3D Drawing Samples

As part of our service, helping customers to specify a modular access ramp, we can quickly and easily provide a 3D drawing showing the layout of the ramp system we propose. We can also include and highlight individual dimensions on the drawings and as its 3D, we show the ramp from any perspective required.

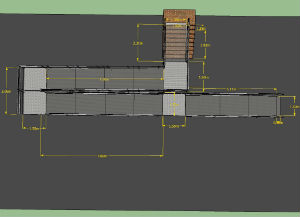

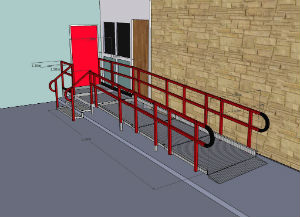

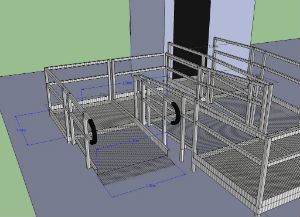

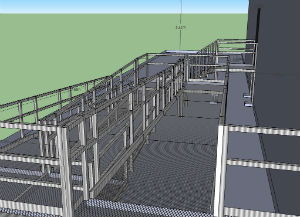

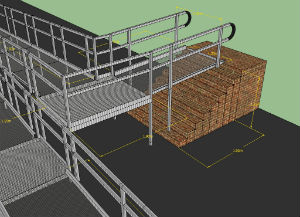

These drawings can easily be tweaked and tailored, showing changes to layout and handrail options. See the example images below.

We always try to ensure the drawing shows the surroundings of any photographs we are provided with. This helps to give a better idea of how the finished ramp will look.
