Heavy Duty Hinged Tailboards - 1262mm Wide
The Ramp People's range of Heavy Duty Hinged Tailboards is available in the width 1250mm usable width, with an additional total width of 12mm for the sides. The offered lengths are 565mm, 940mm, 1190mm, 1690mm and 2065mm. With a capacity from up to 4800kg these are perfect for pallet trucks / forklifts with low ground clearance.
Description
The Heavy Duty Hinged Tailboards feature:

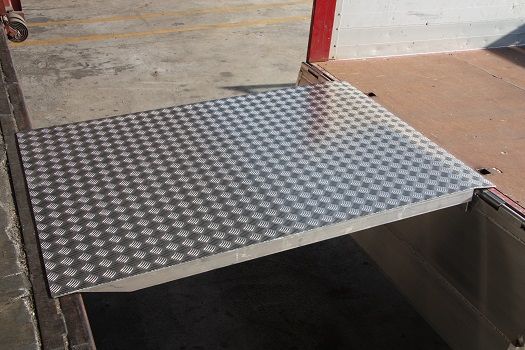

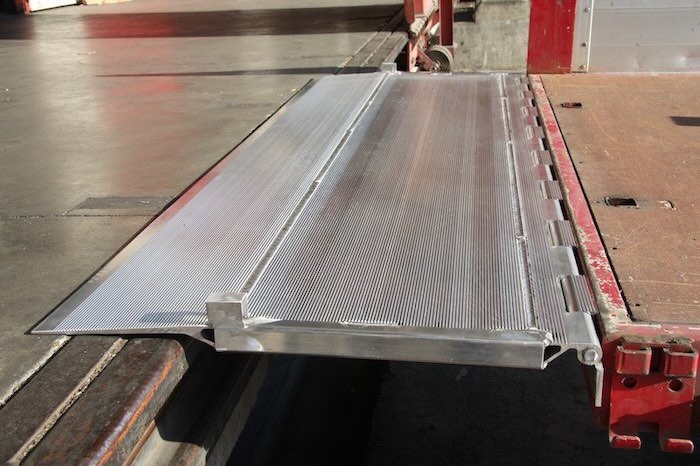

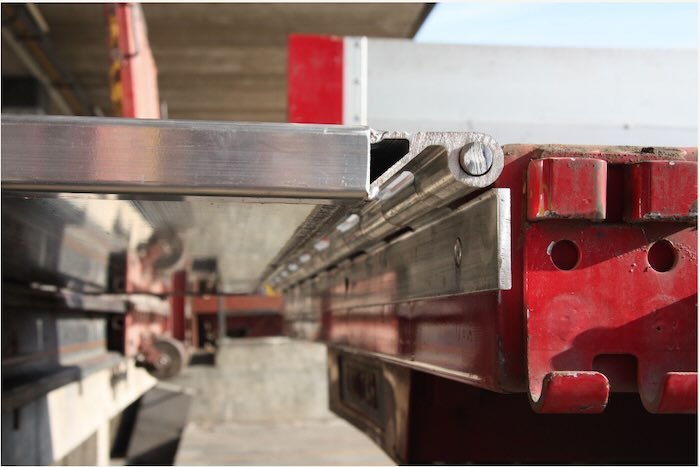

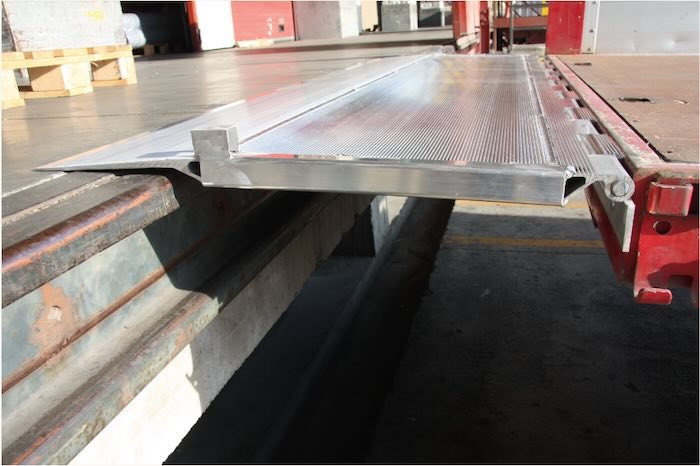

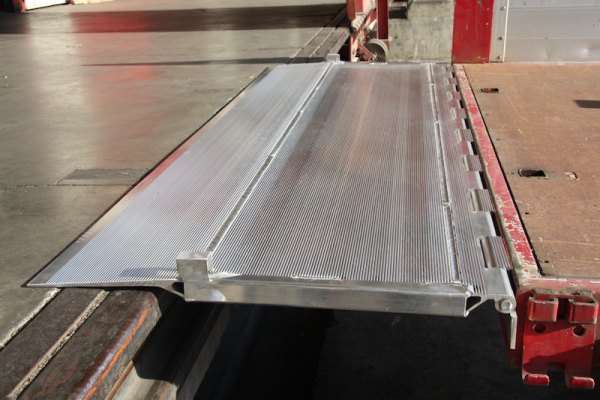

- Fixed onto the back of your lorry or your loading bay it enables easy access and safe unloading of goods up to 4800kg Capacity
- Quick and easy to install
- No fixings included so you can chose how and where to attach the tailboard.
- Unique design enables incredible grip
- Can be customised to any length required and with a minimum width of 1250mm

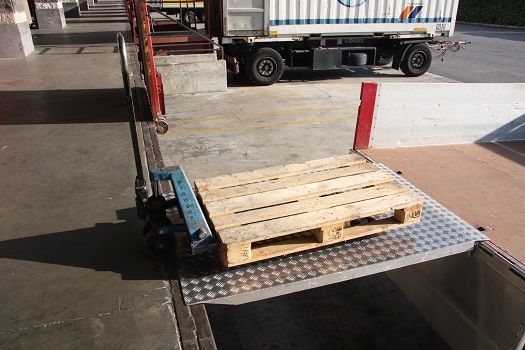

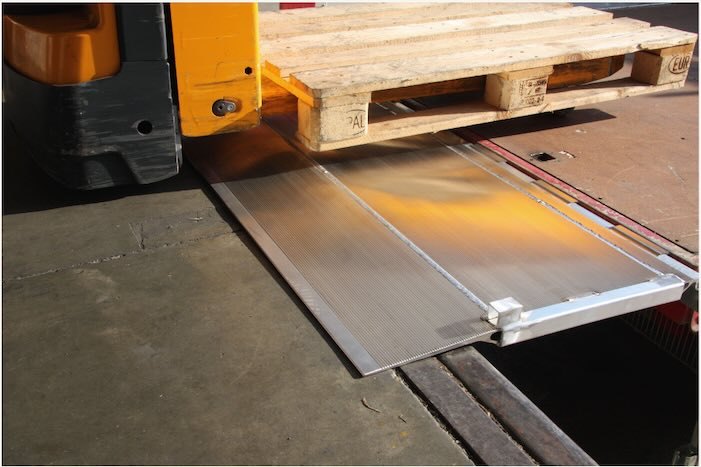

- Perfect for pallet trucks with low ground clearance
- Produced entirely in the EU
- Manufactured from lightweight aluminium (type 6005A)
- Robot welded for solid, strong and durable construction
- Lightweight for easy handling and compliance with Health & Safety Guidelines
- Fully TUV Certified
- Tested to 200% loading capacity
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
565mm long
- Length (mm): 565
- Weight (kg): 23
- Total Width (mm): 1262
- Usable Width (mm): 1250
- Capacity (kg): 4800
940mm long
- Length (mm): 940
- Weight (kg): 35
- Total Width (mm): 1262
- Usable Width (mm): 1250
- Capacity (kg): 3950
1190mm long
- Length (mm): 1190
- Weight (kg): 43
- Total Width (mm): 1262
- Usable Width (mm): 1250
- Capacity (kg): 3450
1690mm long
- Length (mm): 1690
- Weight (kg): 59
- Total Width (mm): 1262
- Usable Width (mm): 1250
- Capacity (kg): 2400
2065mm long
- Length (mm): 2065
- Weight (kg): 71
- Total Width (mm): 1262
- Usable Width (mm): 1250
- Capacity (kg): 1600
Usage guidelines and safety information for our full vehicle ramp range can be found here.
Details
SKU | TRP40AL/ Heavy Duty |
---|---|
Capacity (kg) | 4800-1600 |
Length (mm) | 565-2065 |
Total Width (mm) | 1262 |
Weight (kg) | 23-71 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Usable Width (mm) | 1250 |
