£1,290.00 £1,075.00
SKU
TRP140/25L
In Stock





Extra Wide Aluminium Loading Ramps (2500x460x7000kg)

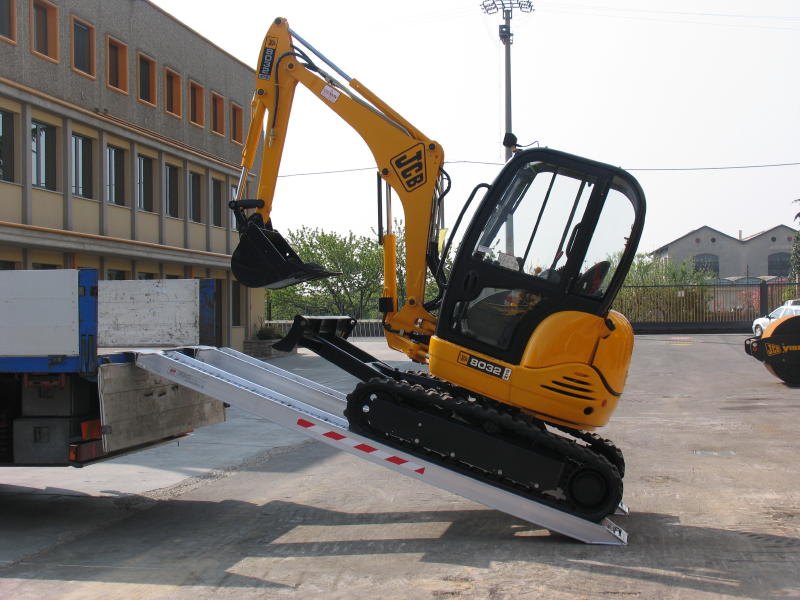

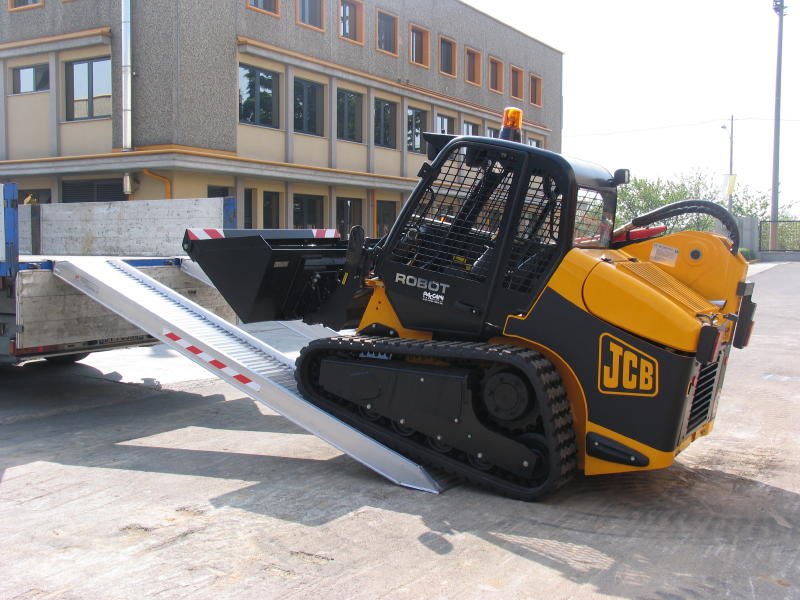

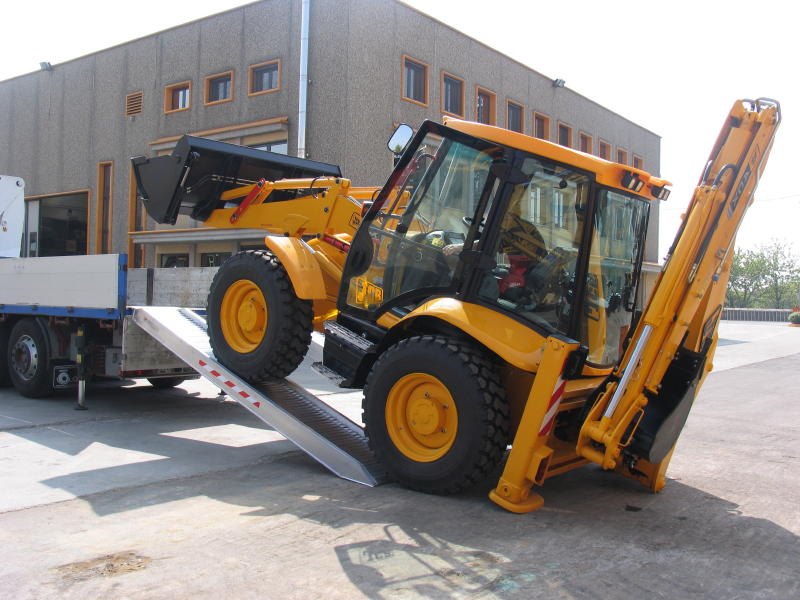

460mm wide x 2500mm long with a 140mm profile thickness. Featuring a maximum capacity of 5000kg, this ramp is ideal for use as a plant ramp, digger ramp or tele-handler ramp. Please note the minimum track width is 200mm and max 380mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

Some of our best selling medium to heavy duty plant ramp, the TRP140L Series has a core profile thickness is 140mm. The TRP140L Series has a width of 480mm, feature a capacity of up to 7000kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP140L series the minimum width of tracks/wheels is 350mm. These Ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges.
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks.
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP140/25L
Default Connection Rest On Connection
Capacity (kg) 7000
Height of Ramps Profile (mm) 140
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 29.5
Weight Per Pair (kg) 59
Width (mm) 460
Minimum Track Width (mm) 200
Maximum Track Width (mm) 380
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 5540
Capacity Wheelbase 1500mm (kg) 7000
Capacity Wheelbase 2000mm (kg) 7000
