New Product Alert - Aluminium Wedge Ramp

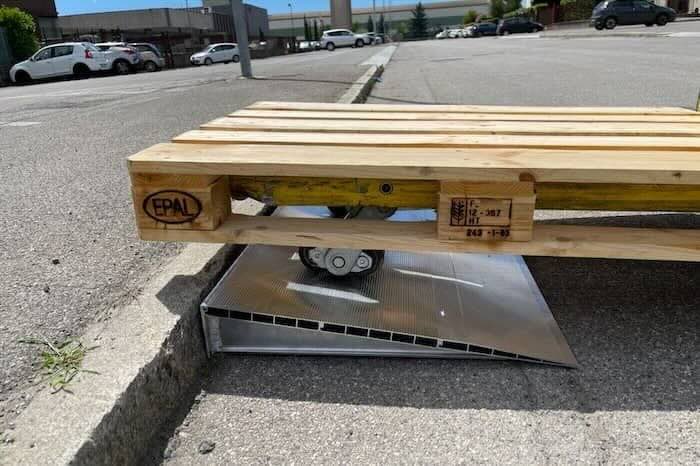

Aluminium Wedge Ramp
We have recently introduced a new Aluminium Wedge Ramp to our range of pallet truck and container ramps.
This new ramp, which is designed to help you overcome heights of 60mm - 170mm offers a versatile 1000kg capacity. The aluminium loading ramp is perfect for use as a pallet truck loading ramp, trolley ramp, flight case ramp and more. Easily overcome kerbs, enter containers and access buildings.
Portable Loading Ramp
Measure the vertical height from the ground to where the end of the ramp will rest.
Check the total width of the pallet truck and the width of the area you are overcoming, for example the step.
Check the weight of the pallet truck and any weight it will be carrying
Built for commercial use in warehouses, businesses parks, loading bays, event venues, construction sites and more, the portable aluminium wedge ramp has been designed to allow workers to safely load goods over kerbs and steps or into containers. The aluminium ramp offers a smooth gradient for a safe, seamless transition from ground level onto the step and to prevent items bottoming out when climbing the ramp.
The Italian manufactured wedge ramp can be customised to your requirements.
The wedge ramps are not designed for forklifts, for this purpose please instead view a pair of aluminium container ramps or our modular container ramp.
Key Features
Perfect for commercial use in warehouses and industrial estates. Ideal for manual pallet trucks, flightcases, trolleys and cages.
Built with gradients between 1:6 to 1:10, designed to provide a smooth gradient for loading items with low clearance.
Available in heights from 60mm - 170mm to allow you to select a height which is in line with your step, kerb or doorway.
Simply rest on the ground and start using - no installation required. Wedge design to prevent the need for having to place weight on the step.
950mm wide design, built with pallet trucks in mind. The ramp offers no edges to allow you to safely load items with low clearance.
R13 slip resistance surface for enhanced safety when loading in commercial environments.
At The Ramp People we also offer wedge ramps in heights from 10mm - 50mm.
Types of Pallet Truck Ramps
- Lengths from 1.8m to 2.4m for heights up to 400mm
- 1m wide, ideal for pallet trucks and cages
- Highly durable 1,000kg capacity TÜV certified
- Portable design, rest in place
- Pre-drilled hole to secure in place during loading
- R13 slip resistance for enhanced safety
- Height from 10mm to 170mm, overcome steps and kerbs
- 1m wide, ideal for pallet trucks and cages
- Capacities up to 1,000kg, TÜV certified
- Portable design, rest in place
- Made in Italy, customisable solutions available
- R13 slip resistance for enhanced safety
- For 150mm to 300mm heights, load and unload shipping containers
- 2.2m wide, covers the full container width
- 10,000kg capacity - for pallet trucks and forklifts
- Modular design, create your required width
- Rests onto the step or container
- Overcome obstacles including cables up to 85mm high
- 950mm wide, ideal for pallet trucks and cages
- 1,000kg capacity, TÜV certified
- Portable design, simply rest in place
- Smooth gradient for easy loading
- R13 slip resistance for enhanced safety
- Allow the pallet truck to safely pass from the loading bay to the van or container
- Widths up to 1250mm, ideal for pallet trucks and cages
- Range of lengths to meet your loading needs
- Capacities up to 3420kg, TÜV certified
- Portable design, simply rest in place
Pallet Truck Ramps
- Lengths from 1.8m to 2.4m for heights up to 400mm
- 1m wide, ideal for pallet trucks and cages
- Highly durable 1,000kg capacity TÜV certified
- Portable design, rest in place
- Pre-drilled hole to secure in place during loading
- R13 slip resistance for enhanced safety
Aluminium Wedge Ramp
- Height from 10mm to 170mm, overcome steps and kerbs
- 1m wide, ideal for pallet trucks and cages
- Capacities up to 1,000kg, TÜV certified
- Portable design, rest in place
- Made in Italy, customisable solutions available
- R13 slip resistance for enhanced safety
Rubber Container Ramp
- For 150mm to 300mm heights, load and unload shipping containers
- 2.2m wide, covers the full container width
- 10,000kg capacity - for pallet trucks and forklifts
- Modular design, create your required width
- Rests onto the step or container
- Rubber design, can be left outside
Bridge Ramp
- Overcome obstacles including cables up to 85mm high
- 950mm wide, ideal for pallet trucks and cages
- 1,000kg capacity, TÜV certified
- Portable design, simply rest in place
- Smooth gradient for easy loading
- R13 slip resistance for enhanced safety
Loading Bridge
- Allow the pallet truck to safely pass from the loading bay to the van or container
- Widths up to 1250mm, ideal for pallet trucks and cages
- Range of lengths to meet your loading needs
- Capacities up to 3420kg, TÜV certified
- Portable design, simply rest in place
Choosing Between A Wedge Ramp and a Ramp with a Rest-on Connection
- The aluminium wedge ramps simply rest in place in-front of the step or kerb. The ramp does not need to be supported by the step or threshold, this is often beneficial in areas where users do not wish to put the ramps weight on the threshold. It can also offer a smoother transition from the ramp to the step as there is no connection in place. Wedge ramps can only be used at the specific height they have been purchased for so are usually purchased for a specific location.
- Pallet truck loading ramps with a rest on connection can generally be used at a variety of heights and are therefore often chosen where the ramp will be used in a variety of locations across site. The Ramp People's pallet truck ramps with a rest-on connection offer a pre-drilled hole to allow them to be secured in place during loading, perfect for those seeking extra security.
Health & Safety
- Loading ramps are designed to enhance health and safety in the workplace by reducing the need for employees to lift items. They also increase efficiency.
- The portable ramp is TÜV Certified and offers a R13 Slip Resistance surface for peace of mind.
- The range of aluminium ramps are lightweight, with weights starting at just 8kg, ensuring they can be handled by just one person, in turn allowing companies to confidently meet manual handling requirements.
- In workplace settings, a health and safety assessment should be carried out if employees are required to lift ramps. Companies must comply with the Manual Handling Operations Regulations and the Lifting Operations and Lifting Equipment Regulations (LOLER). Appropriate PPE, including safety boots and gloves, should always be worn when handling ramps.
Custom Solutions
- At The Ramp People we offer customised pallet truck ramps to meet your specific requirements. For loading pallet trucks with specifically low clearance we can undertake a CAD simulation to identify and create a solution suitable for your loading needs. Further customisations include adding carry handles to the ramps to make it easier to lift and move, adding or removing safety edges, modifying the width and length and cutting the angle of the foot of the ramp to achieve a smoother gradient.
