Vehicle and Pedestrian Construction Ramps
Vehicle Ramps
The Ramp People's temporary vehicle ramps are fabricated from precision engineered aluminium and have a capacity of up to 4500kgs, depending on the length of the ramp. The vehicle trench bridges are available in lengths from 990mm – 5790mm and widths of 1000mm and 1250mm.
The handrails on the sides of the bridge / walkways are 1018mm high when deployed, and fold in on themselves for ease of transportation. They can also be removed completely. The raised edges are 200mm high.
Please be aware that these trench bridges are designed for a minimum rubber footprint of 200mm x 200mm. The maximum distribution of load on vehicle axles should be between 40% and 60%. These ramps are only suitable for use at a maximum gradient of up to 8%. You will also need to ensure that there is at least a 330mm rest on either side of the excavation for the ramp to rest upon. The maximum load height ranges from 80mm – 460mm.
Vehicle Gangways
The Ramp People's vehicle gangways are fabricated from precision engineered aluminium and have a capacity of up to 4500kgs, depending on the length of the ramp.
The handrails on the sides of the walkways are 1000mm high when deployed, and fold in on themselves for ease of transportation. They can also be removed completely. The footstops are 200mm high.
Please be aware that these ramp are designed for a minimum rubber footprint of 200mm x 200mm. The maximum distribution of load on vehicle axles should be between 40% and 60%. These ramps are only suitable for use at a maximum gradient of up to 5%. You will also need to ensure that there is at least a 330mm rest on either side of the excavation for the ramp to rest upon.

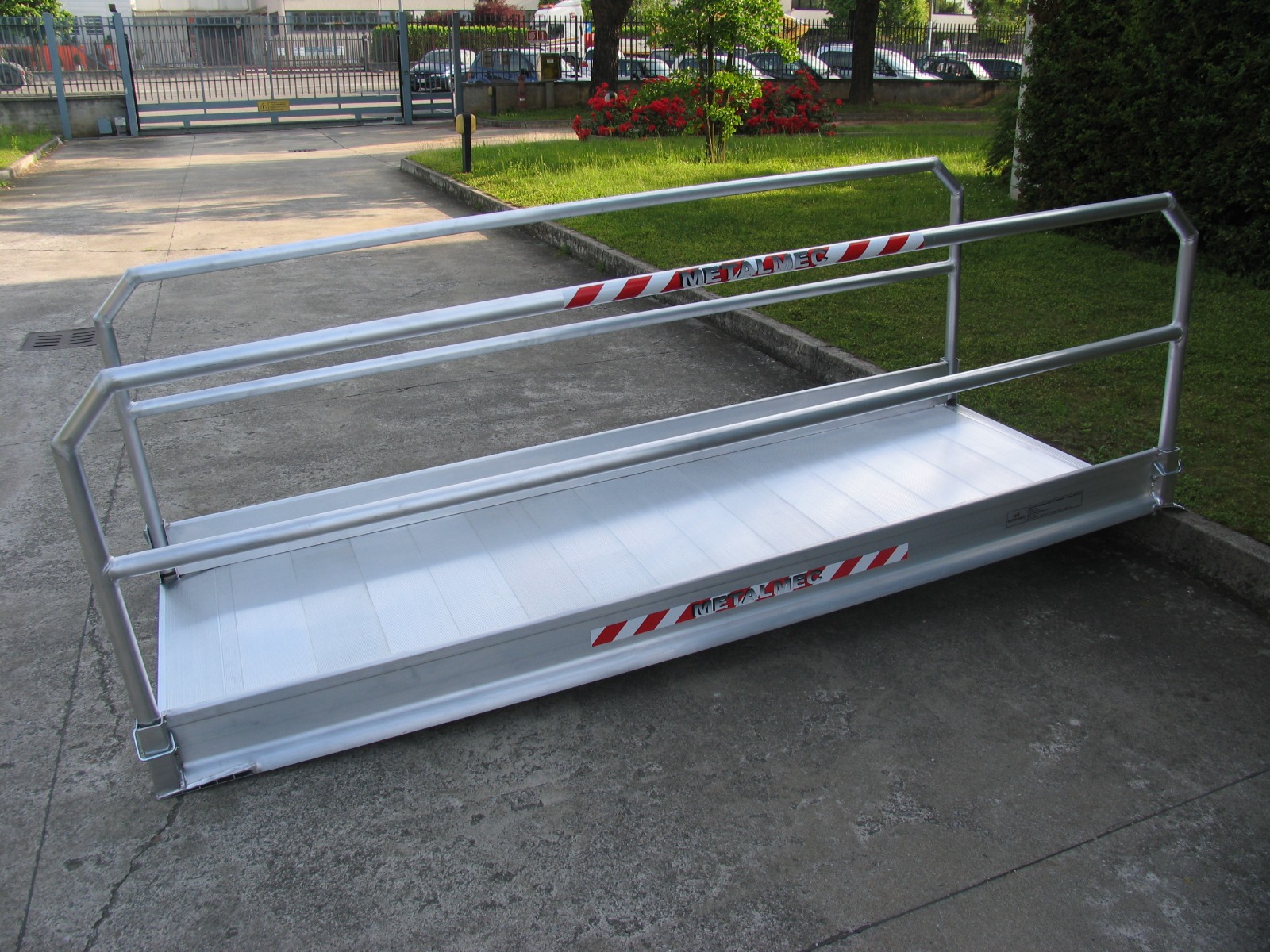

Pedetrian Walkways
The Ramp People's range of aluminium pedestrian walkways are, as the name suggests, designed for pedestrian to use as a bridge to cross excavations and trenches. The trench bridges have a maximum loading capacity of 400kgs/m2 and range from 1260mm - 6055mm long. The handrails on the sides of the walkways are 1018mm high when deployed, and fold in on themselves for ease of transportation. They can also be removed completely.
Please note that the walkway bridge should never be used at more than a maximum gradient of 5%, for steeper graidents view our pedestrian ramps here or contact our team. On both sides of the footbridge, there must also be a minimum rest of 330mm.

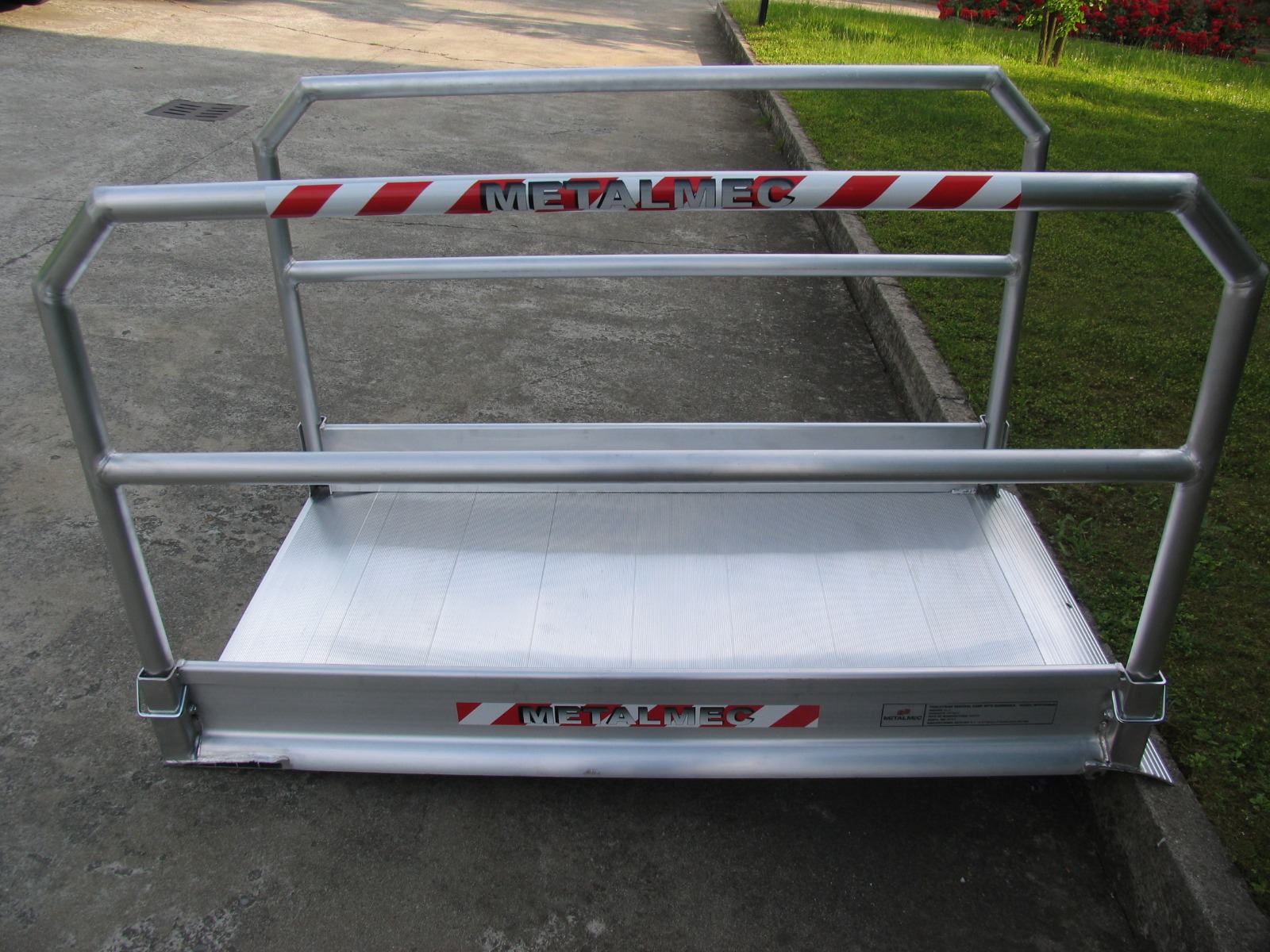

Pedestrian Ramps
The Ramp People's range of aluminium pedestrian bridge ramps are, as the name suggests, designed for pedestrian use to bridge height differences caused by construction or public works. They have a maximum loading capacity of 400kgs/m2 and range from 990mm - 5790mm long.
The handrails on the sides of the walkways are 1018mm high when deployed, and fold in on themselves for ease of transportation. They can also be removed completely. The raised edges are 200mm high.
Please note that the ramp should never be used at more than a maximum gradient of 8%. They are available for height differences ranging from 80mm - 460mm.
