For Professional Use Up To 4500kg
Heavy duty non folding loading ramps for mainly professional and commercial use, with capacities of up to 4,500kg. Ideal for plant machinery and garden machinery.
For similar aluminium loading ramps with an alternative surface, please view our TRP70 and TRP80 series.
| SKU | Capacity (kg) | Height of Ramps Profile (mm) | Length (mm) | Max Load Height (mm) | Min. Load Height (mm) | Weight per Ramp (kg) | Weight Per Pair (kg) | Width (mm) | Minimum Track Width (mm) | Maximum Track Width (mm) | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TRP60/15 | 4500 | 70 | 1500 | 450 | 300 | 11 | 22 | 315 | 150 | 295 | £624.00 £520.00 |
| TRP60/20 | 4500 | 70 | 2000 | 600 | 450 | 14.5 | 29 | 315 | 150 | 295 | £708.00 £590.00 |
| TRP60/25 | 3400 | 70 | 2500 | 750 | 600 | 16.5 | 33 | 315 | 150 | 295 | £804.00 £670.00 |
| TRP60/30 | 2250 | 70 | 3000 | 900 | 750 | 20 | 40 | 315 | 150 | 295 | £888.00 £740.00 |
| TRP60/35 | 1500 | 70 | 3500 | 1050 | 900 | 23.50 | 47 | 315 | 150 | 295 | £1,056.00 £880.00 |
| TRP60/40 | 1200 | 70 | 4000 | 1200 | 1050 | 27 | 54 | 315 | 150 | 295 | £1,128.00 £940.00 |
Sabretooth Heavy Duty Loading Ramps

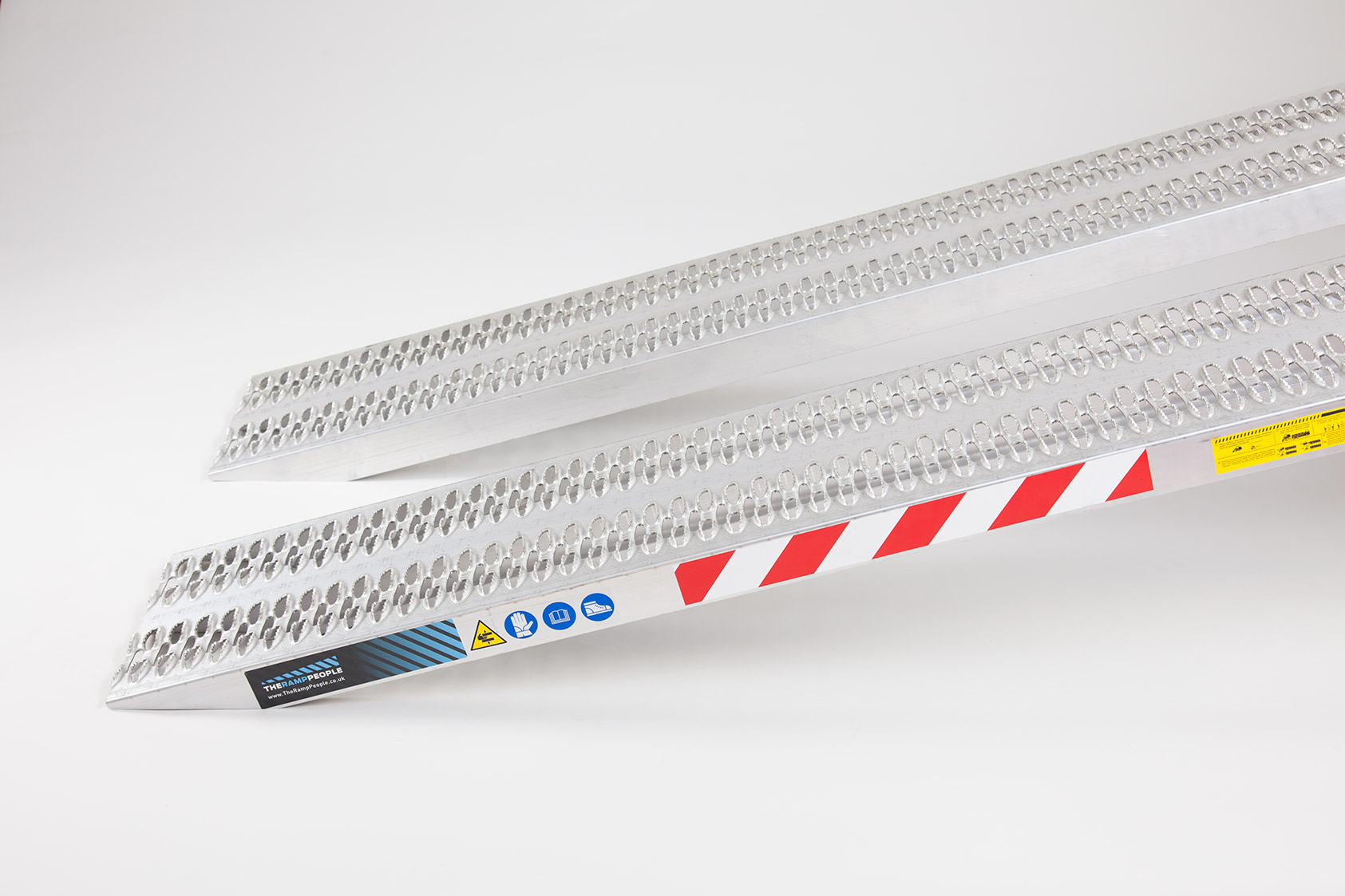

The Sabretooth Heavy Duty Loading Ramps are available in lengths from 1.5m to 4m and offer capacities up to 4500kg across the pair. Perfect for loading machinery onto vans and trailers, these aluminium ramps are designed to offer optimum grip during loading due to their high traction, R13 slip-resistant surface. The large holes on the ramps surface allow dirt to drop through the ramps. The portable ramps, which are made in Europe, simply rest onto your vehicle for ease of loading, a pre-drilled hole is provided to allow you to secure the ramps in place. The foot of the ramps is cut at an angle based on the load height to ensure the ramp stays securely onto the ground and provide smooth access onto the ramp. For peace of mind the ramps are lightweight for easy handling and are TUV certified to the stated capacity.
For higher weight capacities for plant machinery or longer ramp lengths click here
Why Choose The Ramp People?

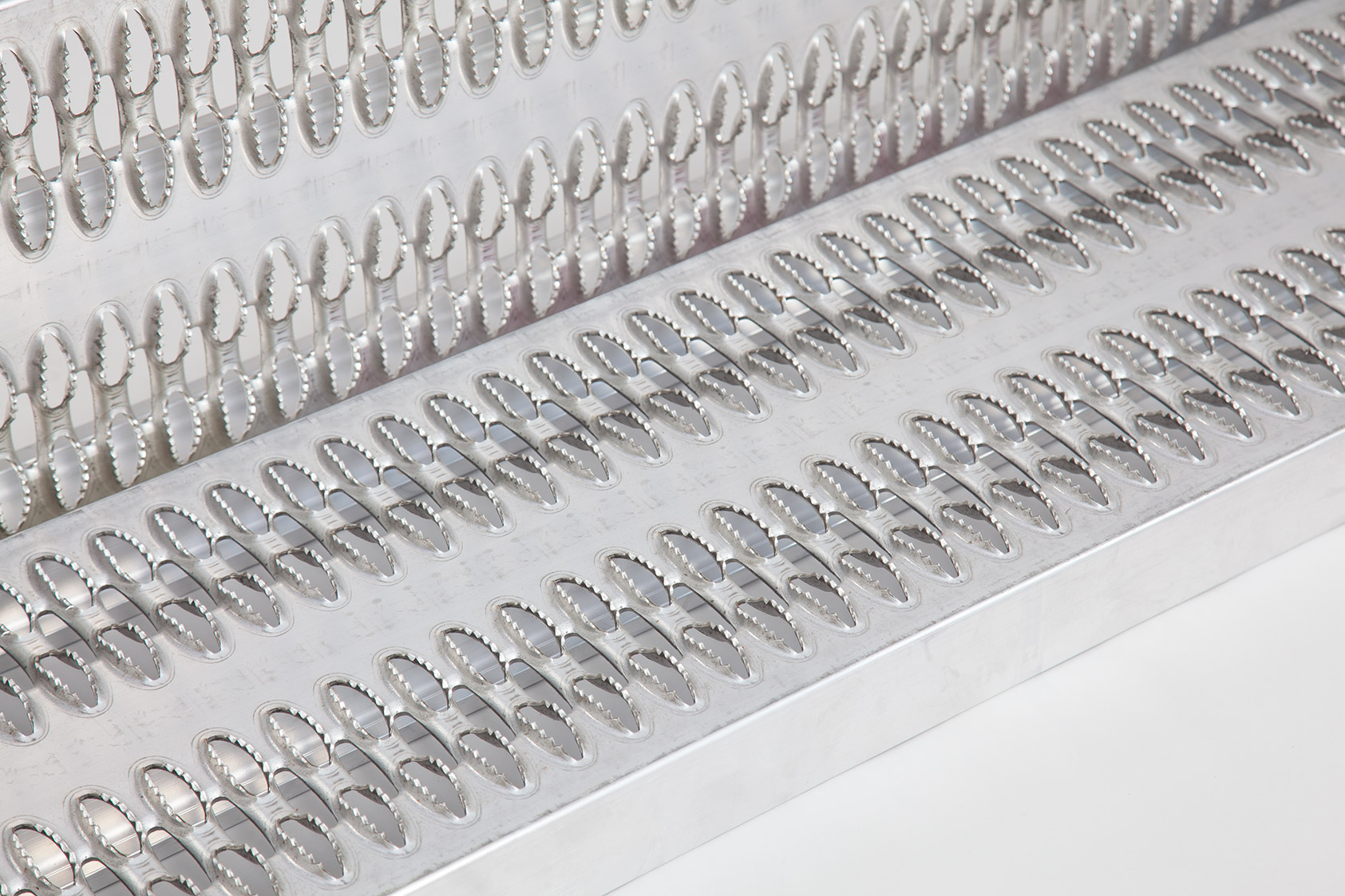

- Optimum Grip - Large holes and grip surface for ultimate traction, R13 slip resistance
- Premium Quality - Manufactured in Europe, TUV certified
- Designed for Commercial Use - Perfect for business use, provided in various lengths and capacities
- Expert Advice - Speak to our team for support identifying the most suitable ramp for your loading scenario
