Adjustable Threshold Ramp (2ft - 8ft) with Entry Plate Kit

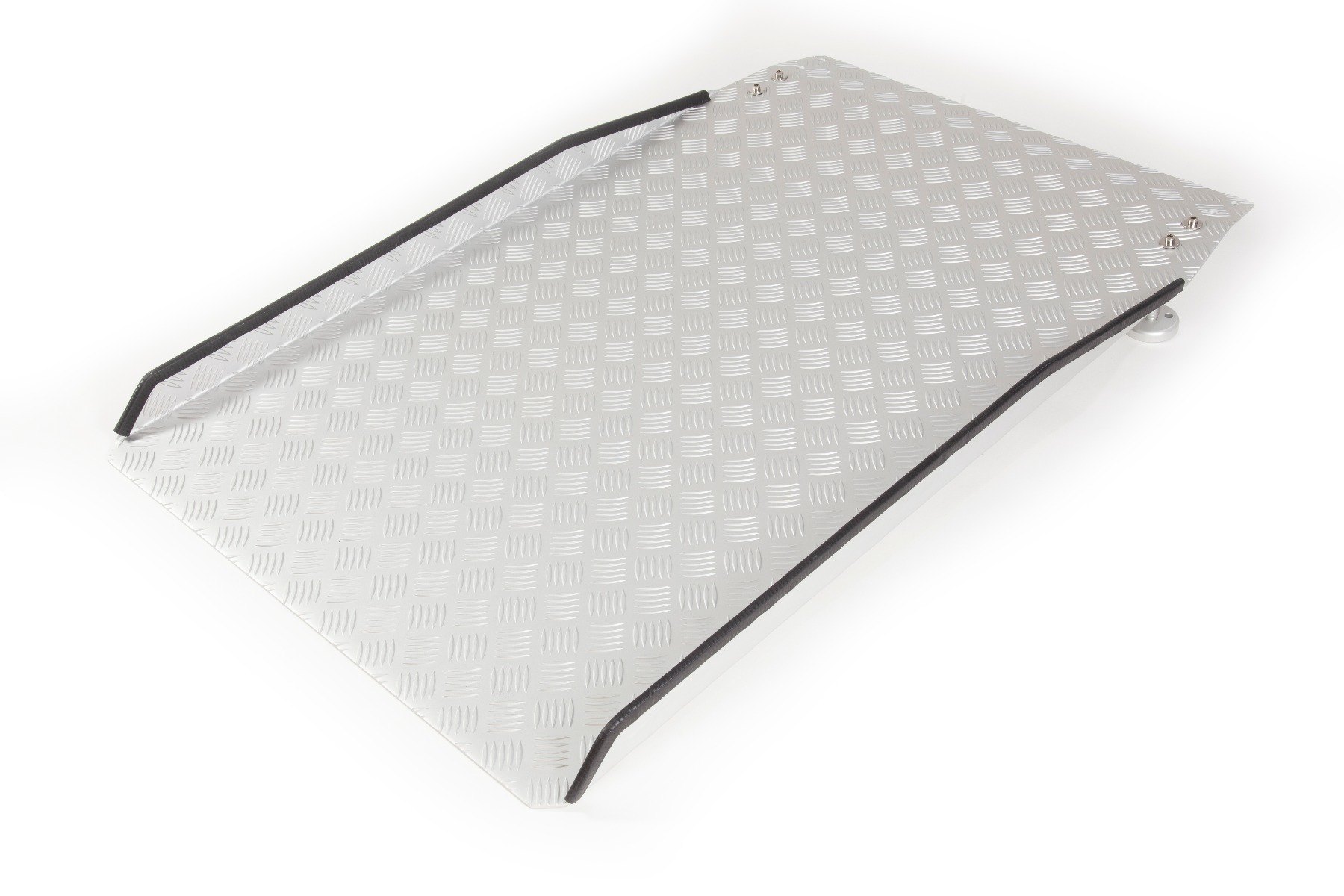

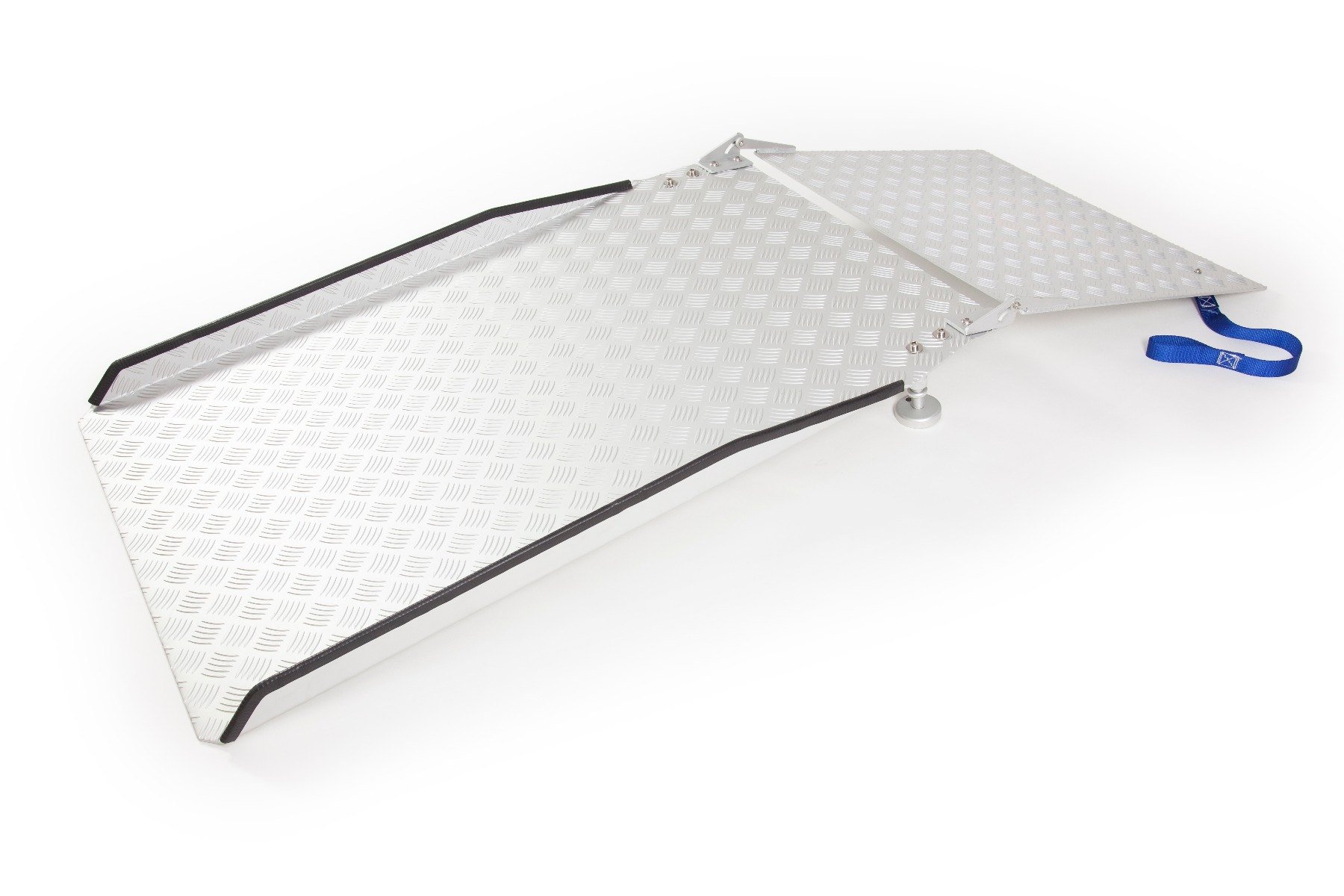

Fixed Anodised Aluminium Threshold Ramp for fixing on a step or a threshold supplied with a leg kit for height differences up to 70mm - 254mm (3" - 10") and a 300mm or 600mm long entry plate. Ramp available in the lengths from 2ft up to 8ft.

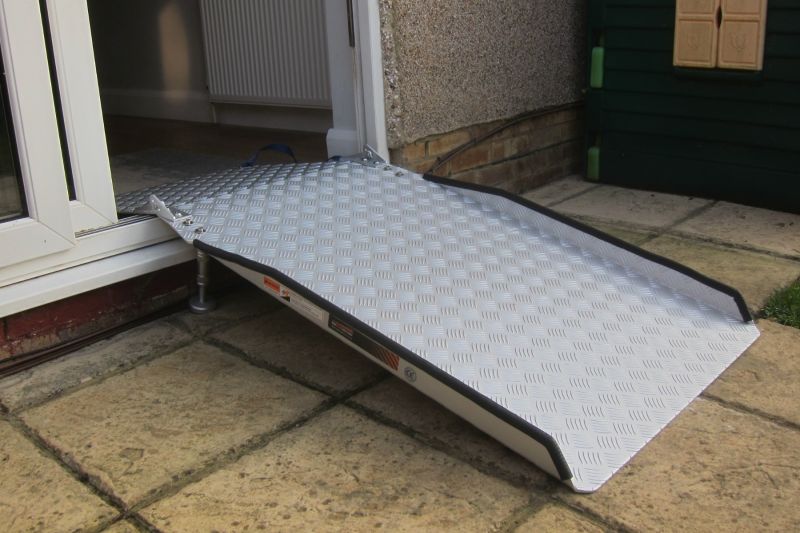

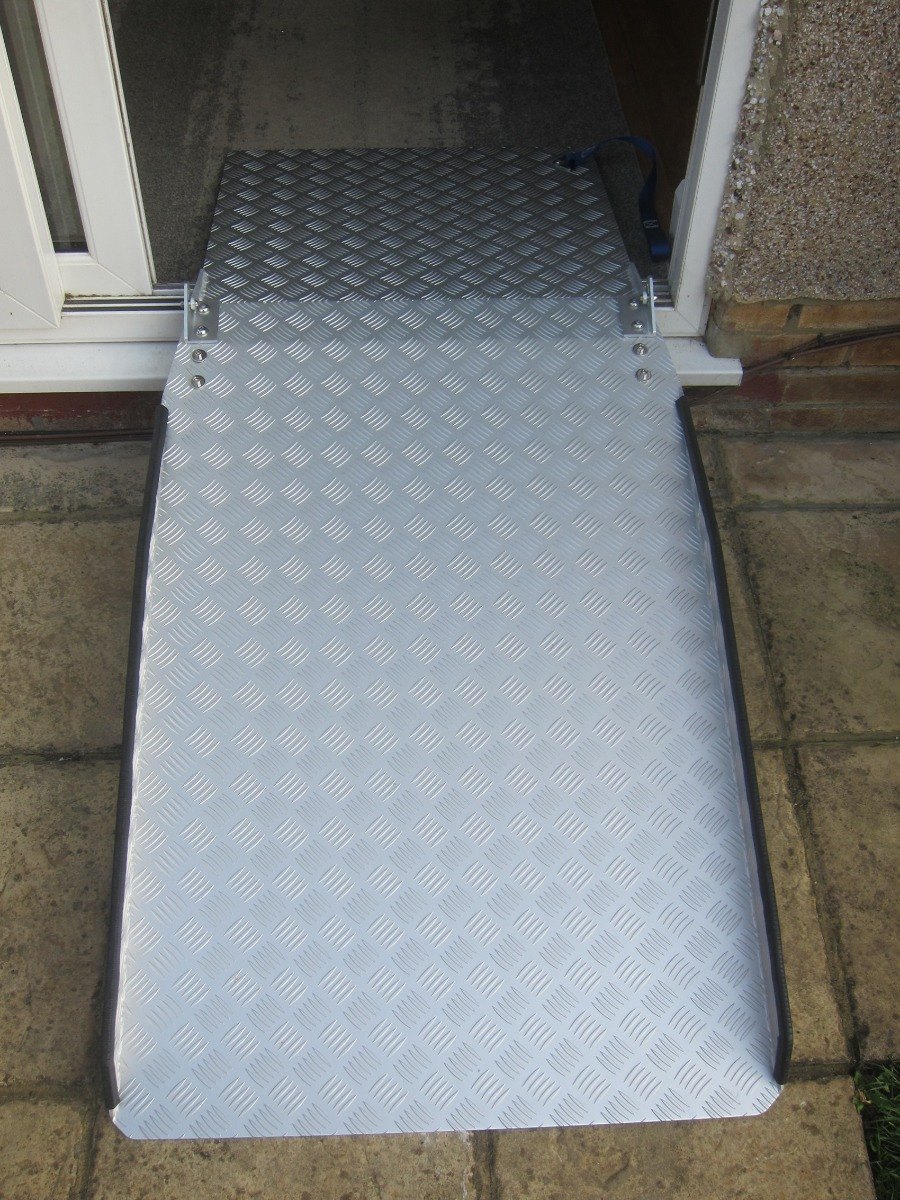

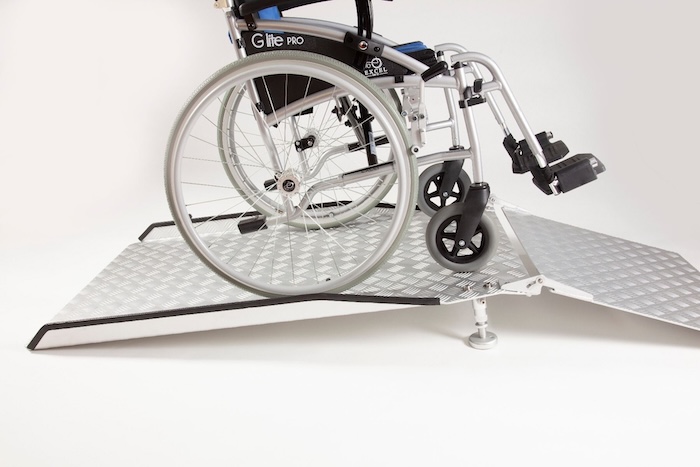

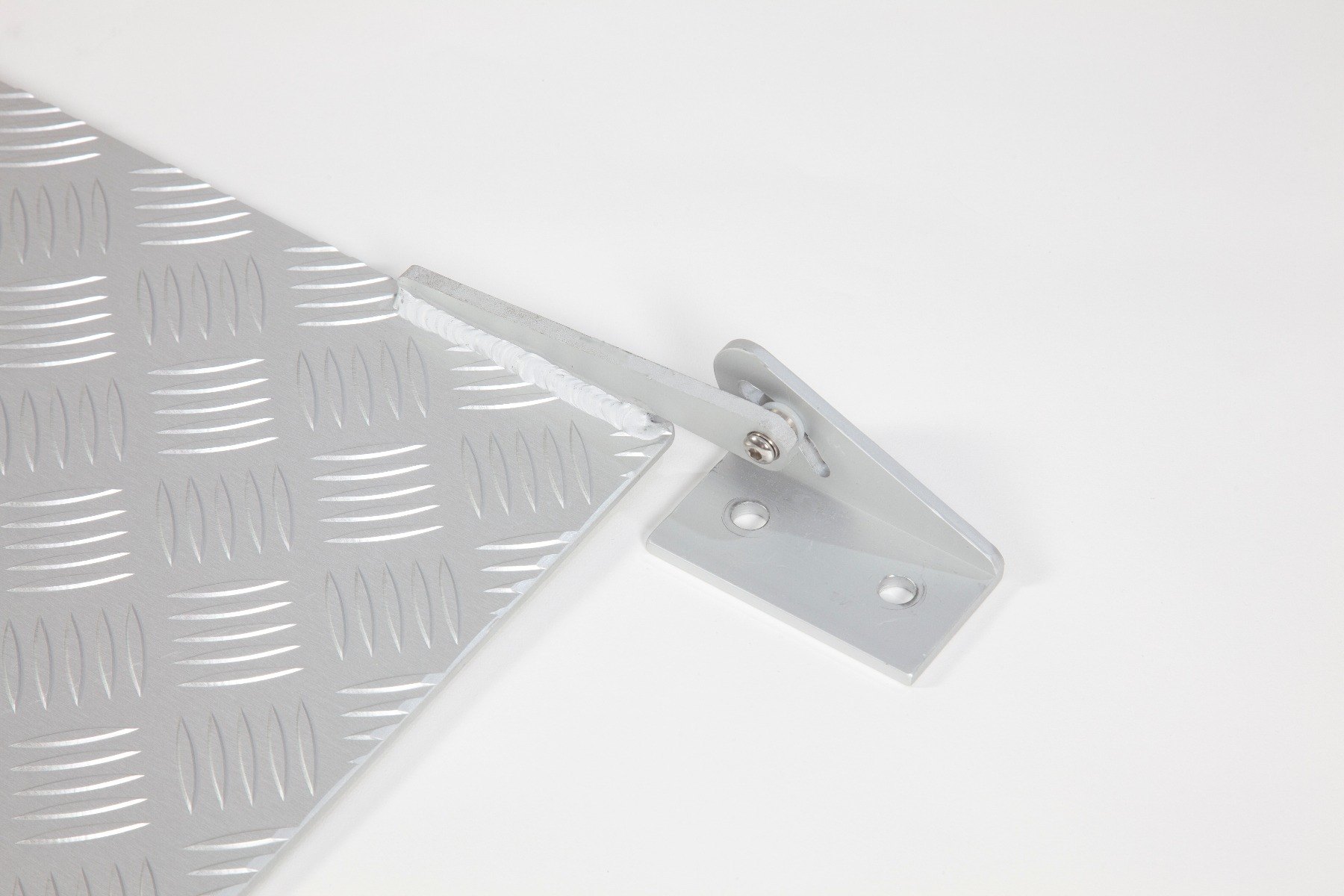

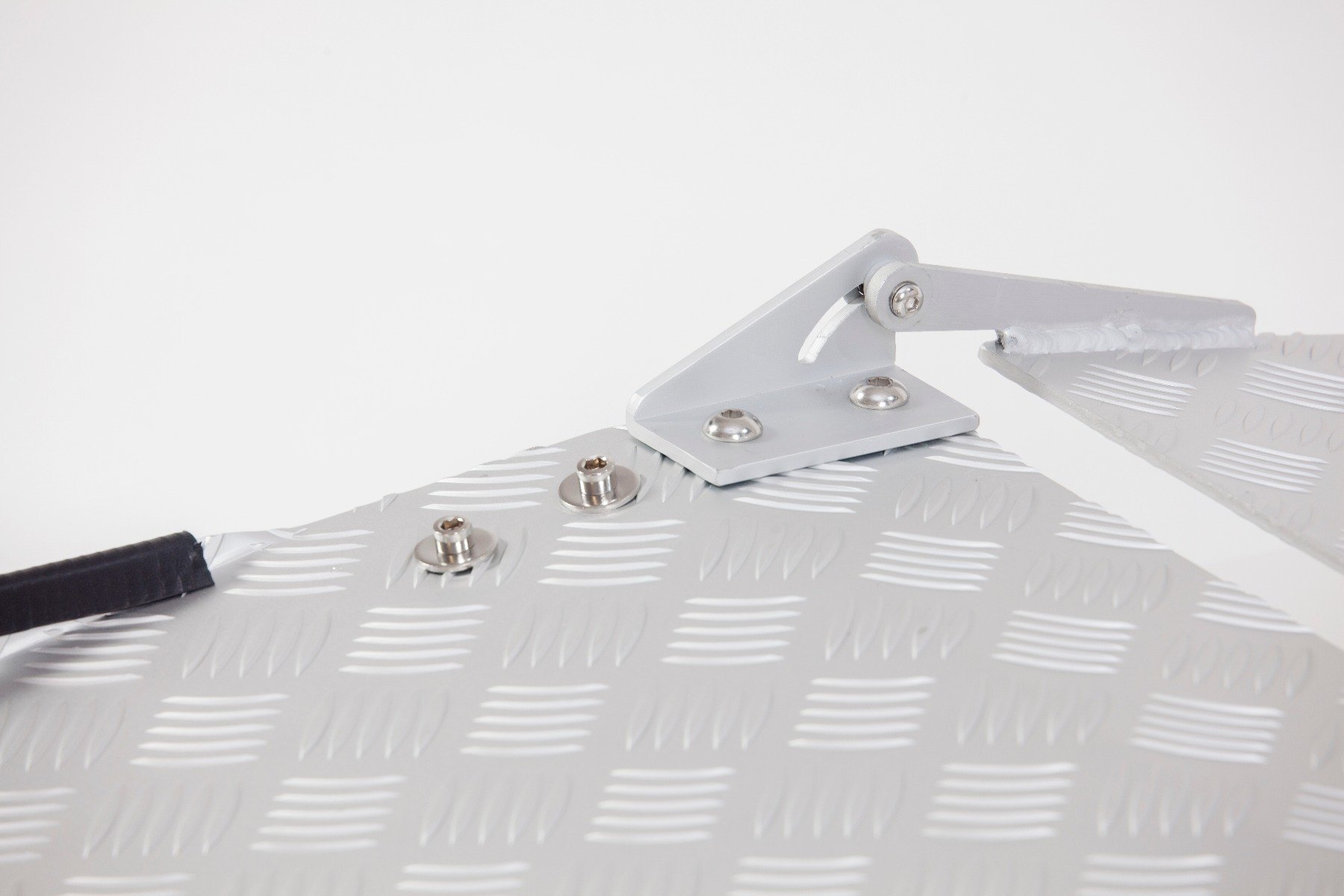

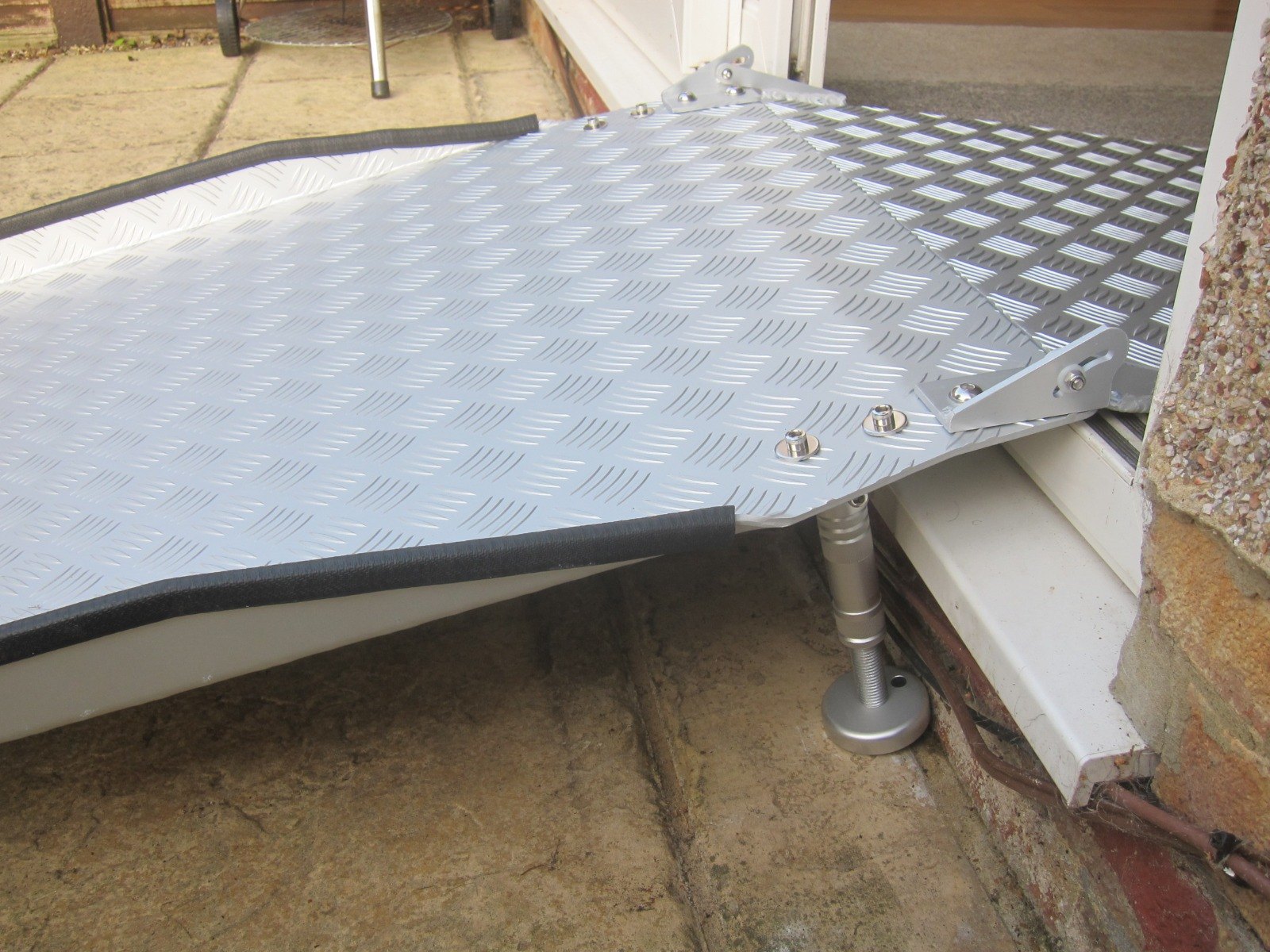

The leg kit allows the ramp to be put flush to the step, without putting any weight on the step. The hinged entry plate will allow easy entry over a threshold, through sliding doors and/or inward opening doors. Due to the safety edges this product might not work well on outwards opening doors.

Please note capacity of the entry plate is only 250kg, however capacity of the ramp section will be 400kg

The Internal entry plates will have a max height of 70mm for the 300mm long and 120mm for the 600mm long plate, the external max height will depend on the length of ramp selected.

Please note measure the height of the internal drop and the depth of your step to make sure the entry plate is long enough for the application.

Once the ramp length and entry plate length option are selected, price for the item will be displayed at the top right of the page.

Assembly required, instructions for the leg kit can be seen here.  Instructions for assembling the plate can be found here.

Length (ft)2 - 8
Width (mm)715 - 790
Max. Load Height (mm)70 - 200
Capacity (kg)250 - 400
  • Electric Wheelchair

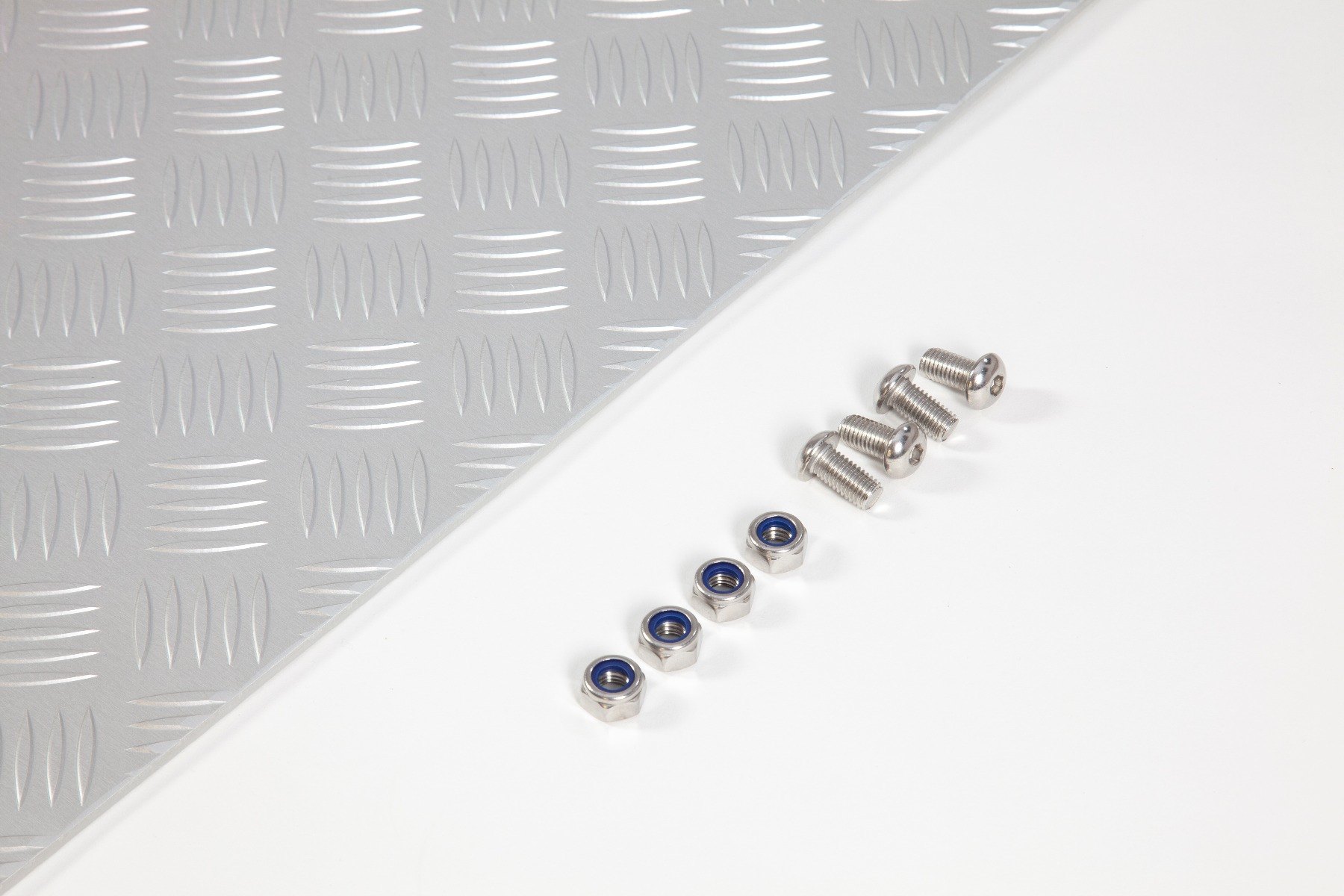

  • Fixings Included
  • Manual Wheelchair
  • Mobility Scooter
  • One Year Warranty
  • Leave Outside
Description
  • Overcome thresholds including uPVC doorways, wooden doorways and PVC thresholds

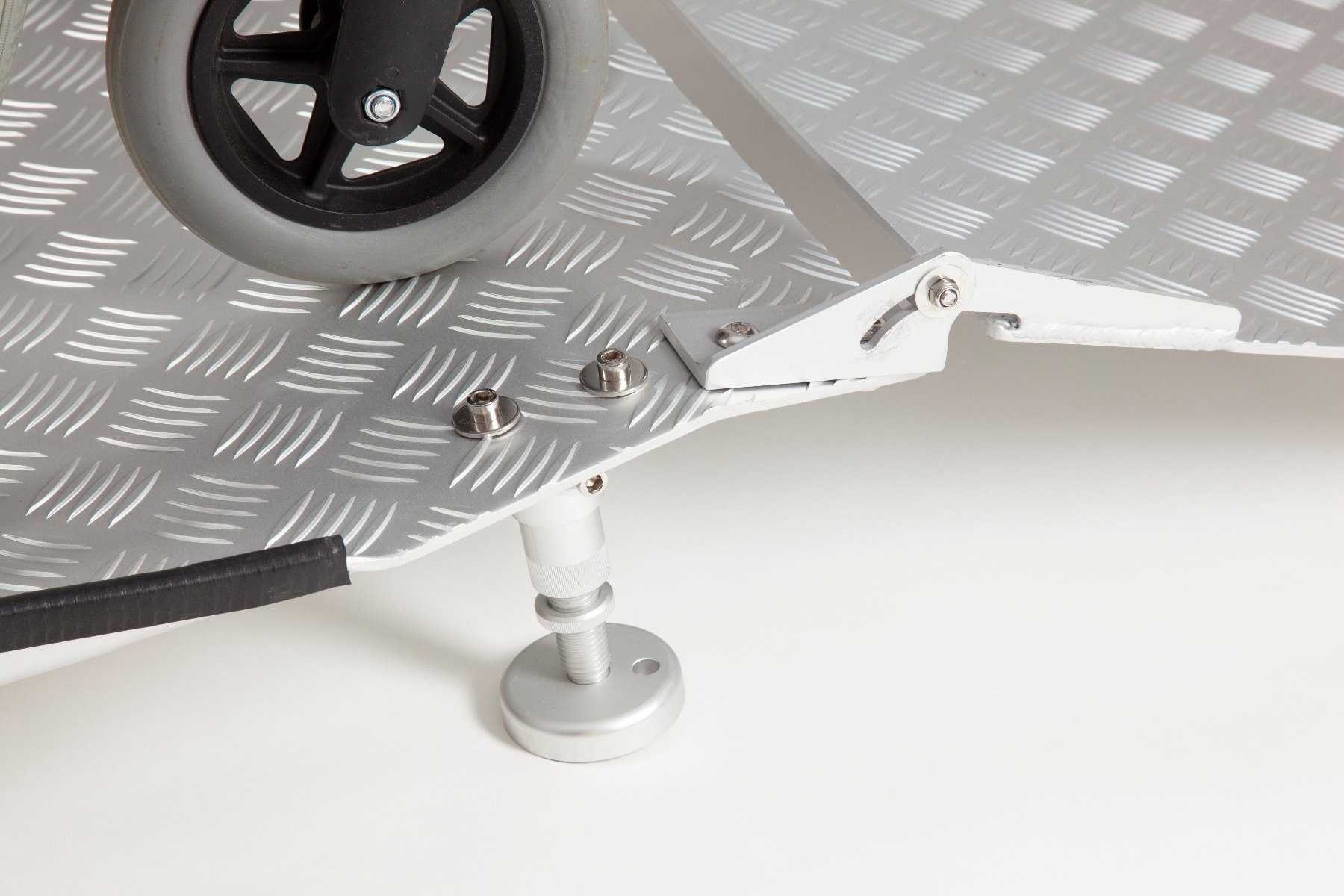

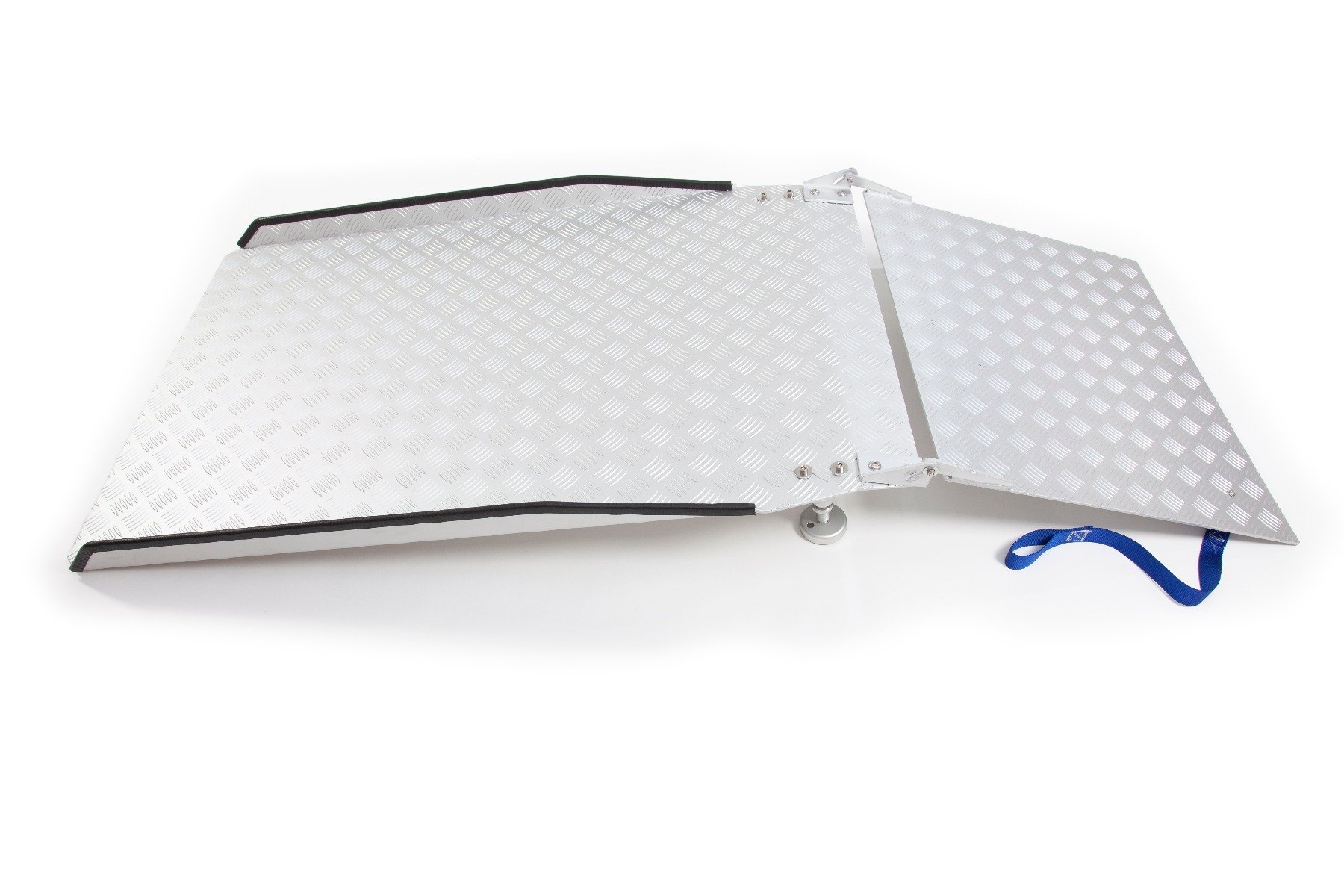

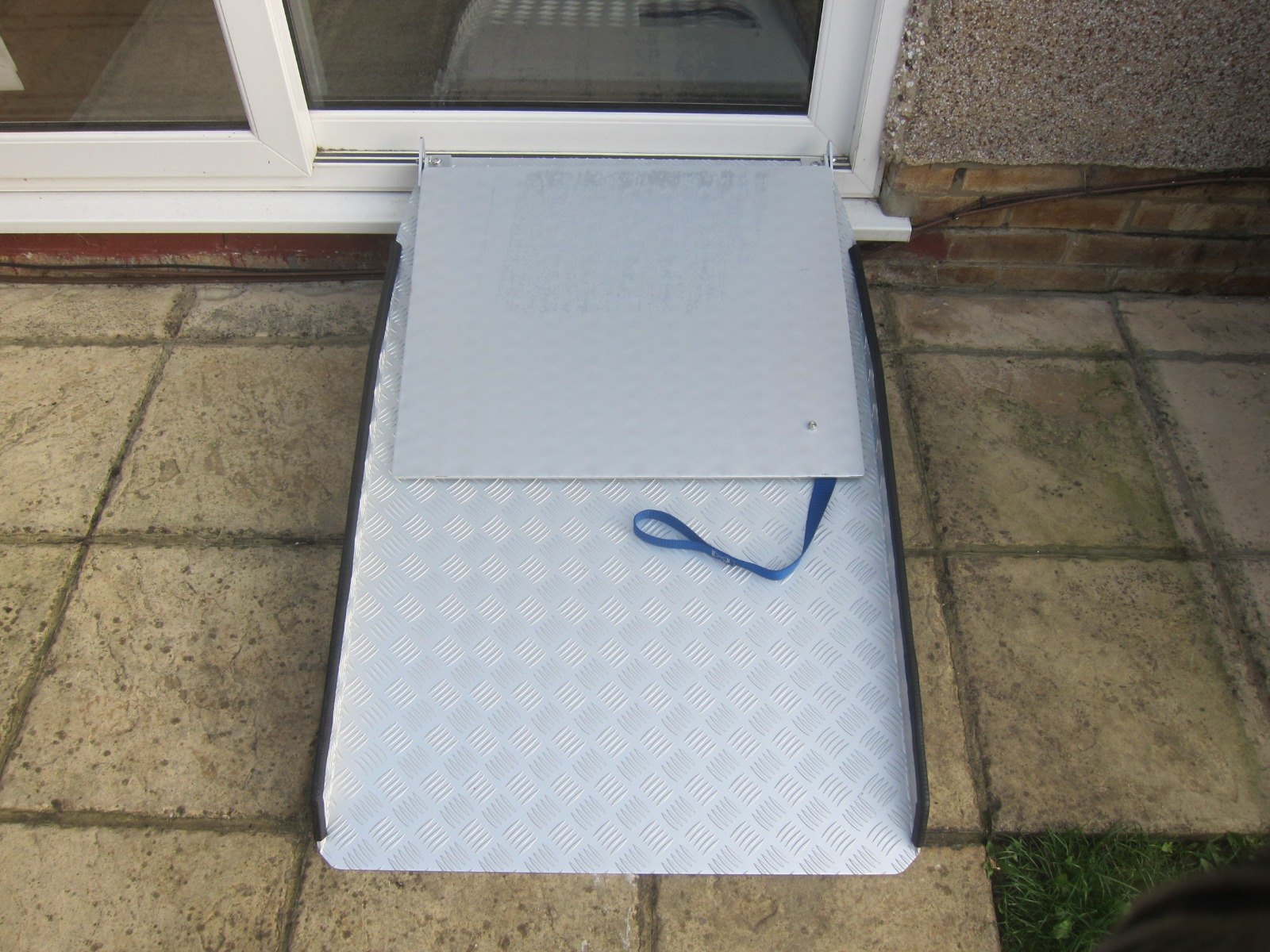

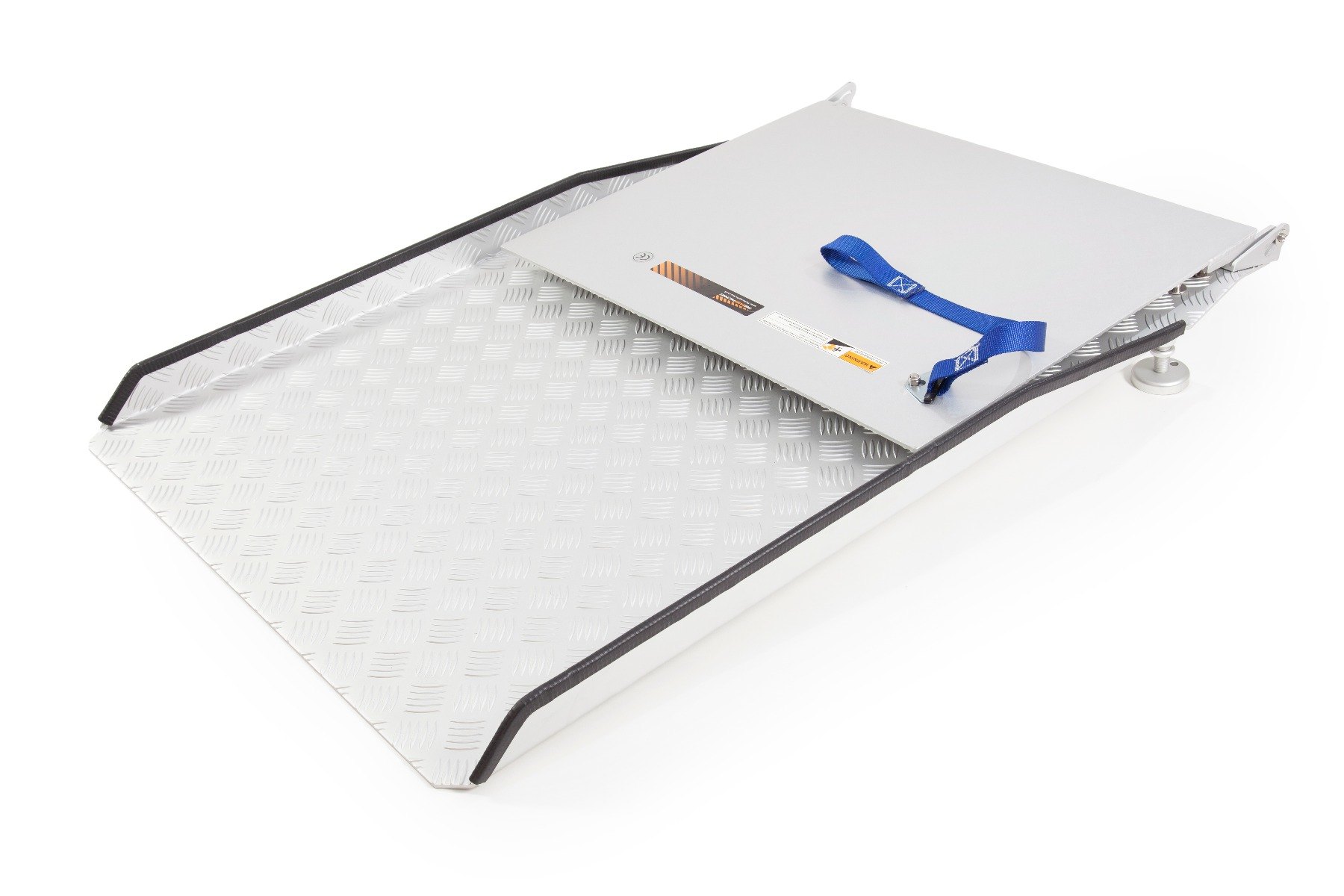

  • Simply flip the entry plate over the doorway when you wish to use the ramp, prior to closing the door flip the plate back onto the ramp

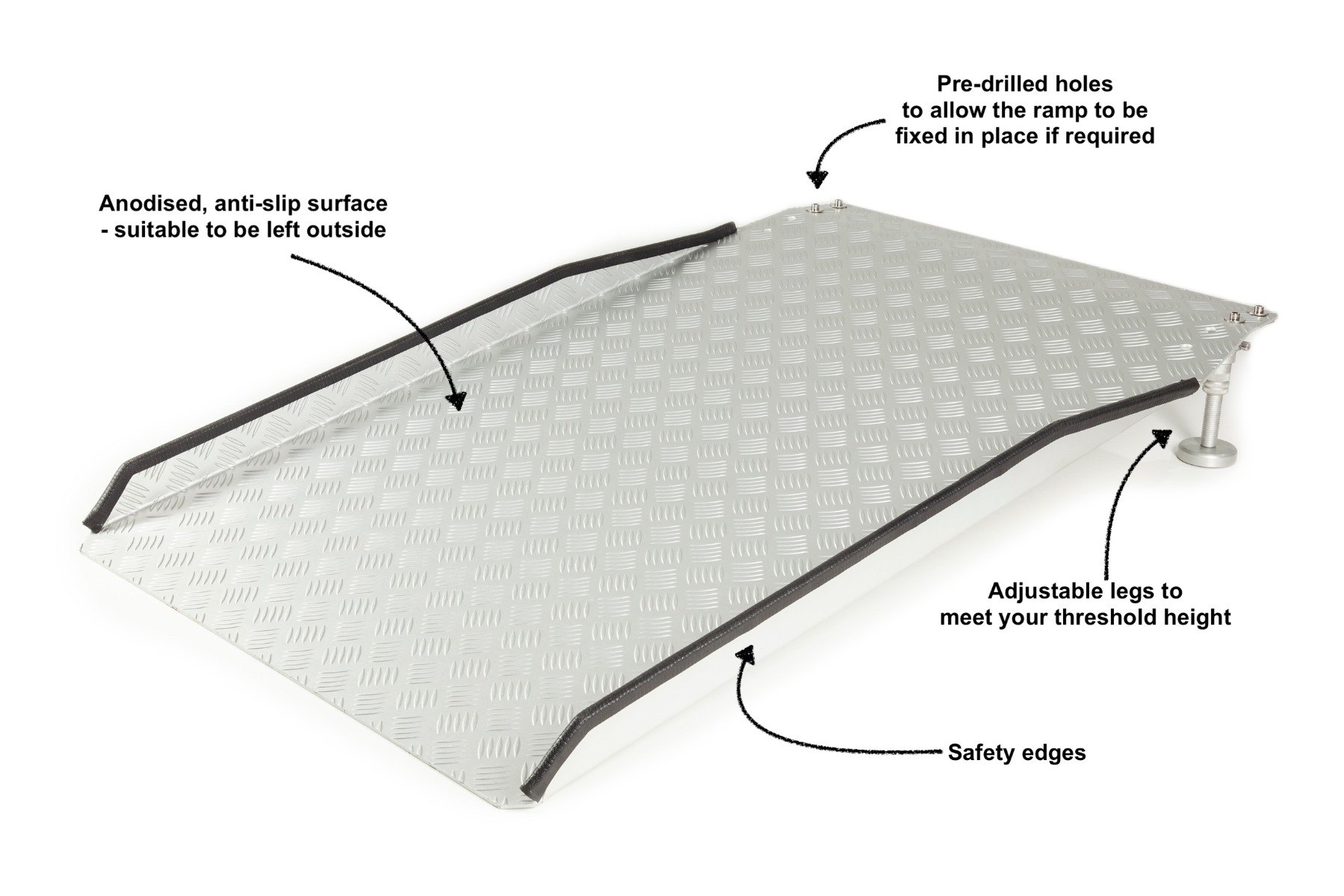

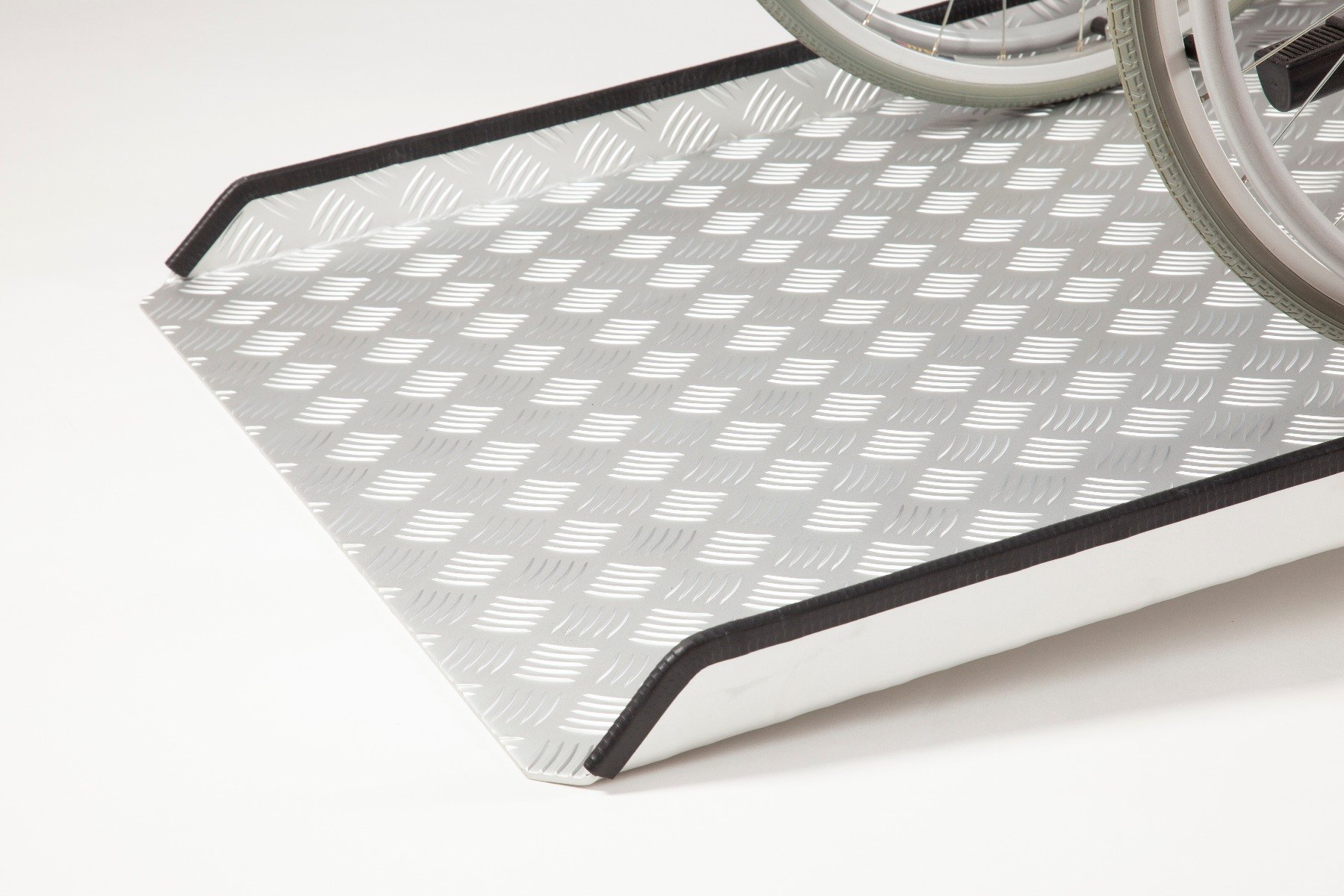

  • Chequered anti-slip surface for optimum traction during use
  • Use as a temporary or fixed semi-permanent solution
  • Fixing points in the legs of the ramp to allow the ramp to be secured to the ground (please note securing the ramp is optional)
  • Suitable for indoor and outdoor use, can be left outside
  • Quick and easy to install
  • Unique design enables incredible grip

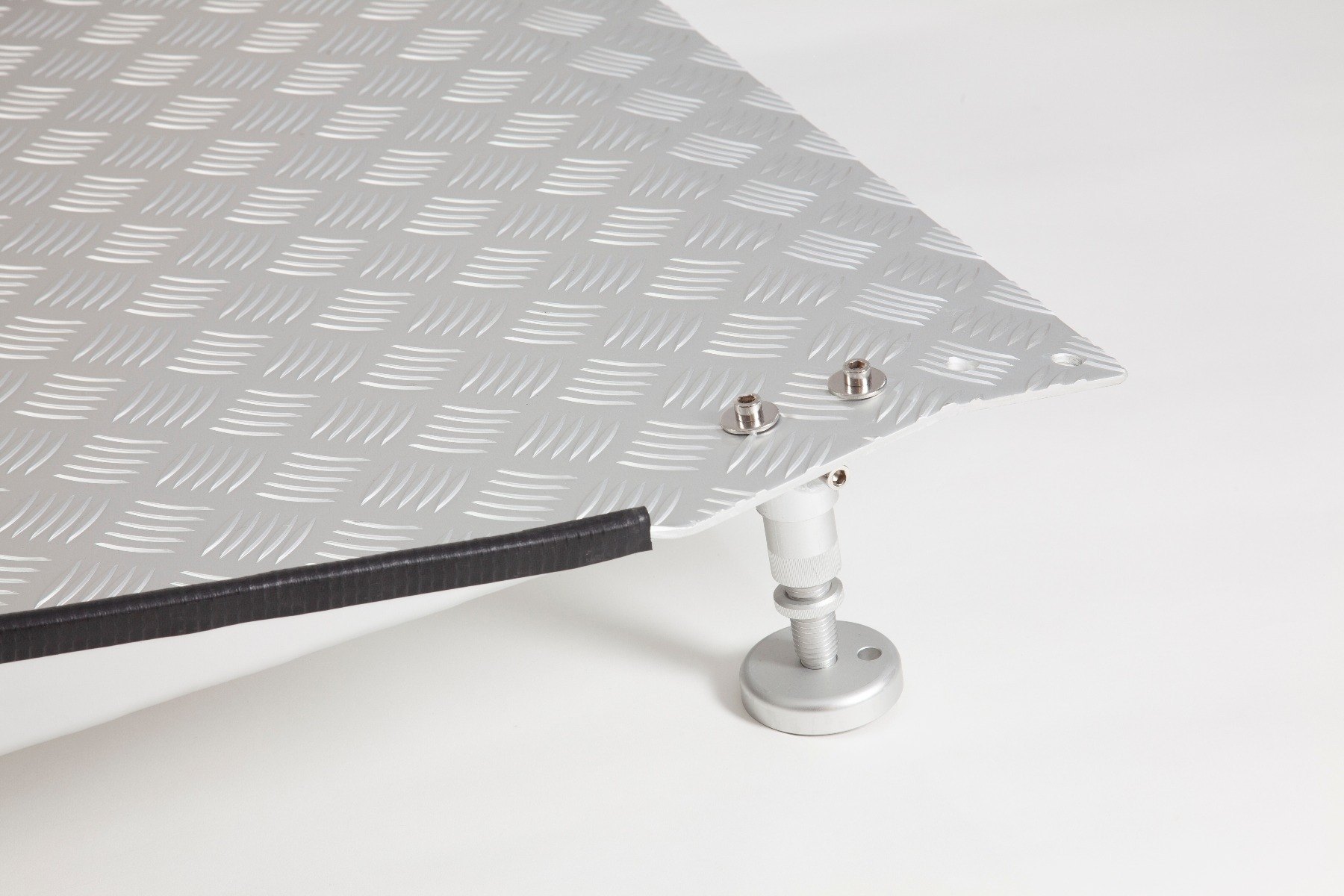

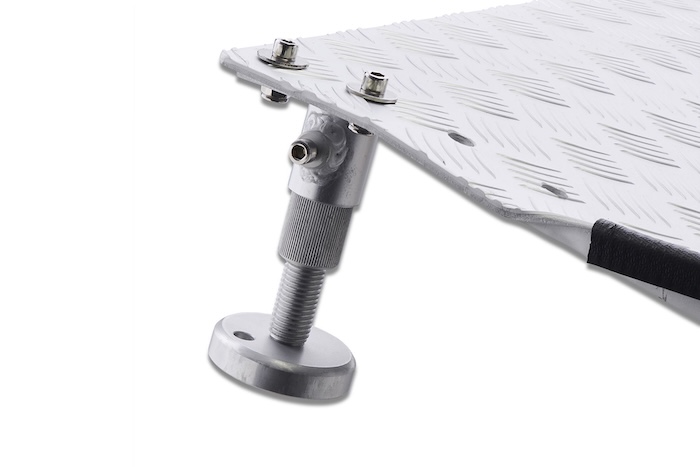

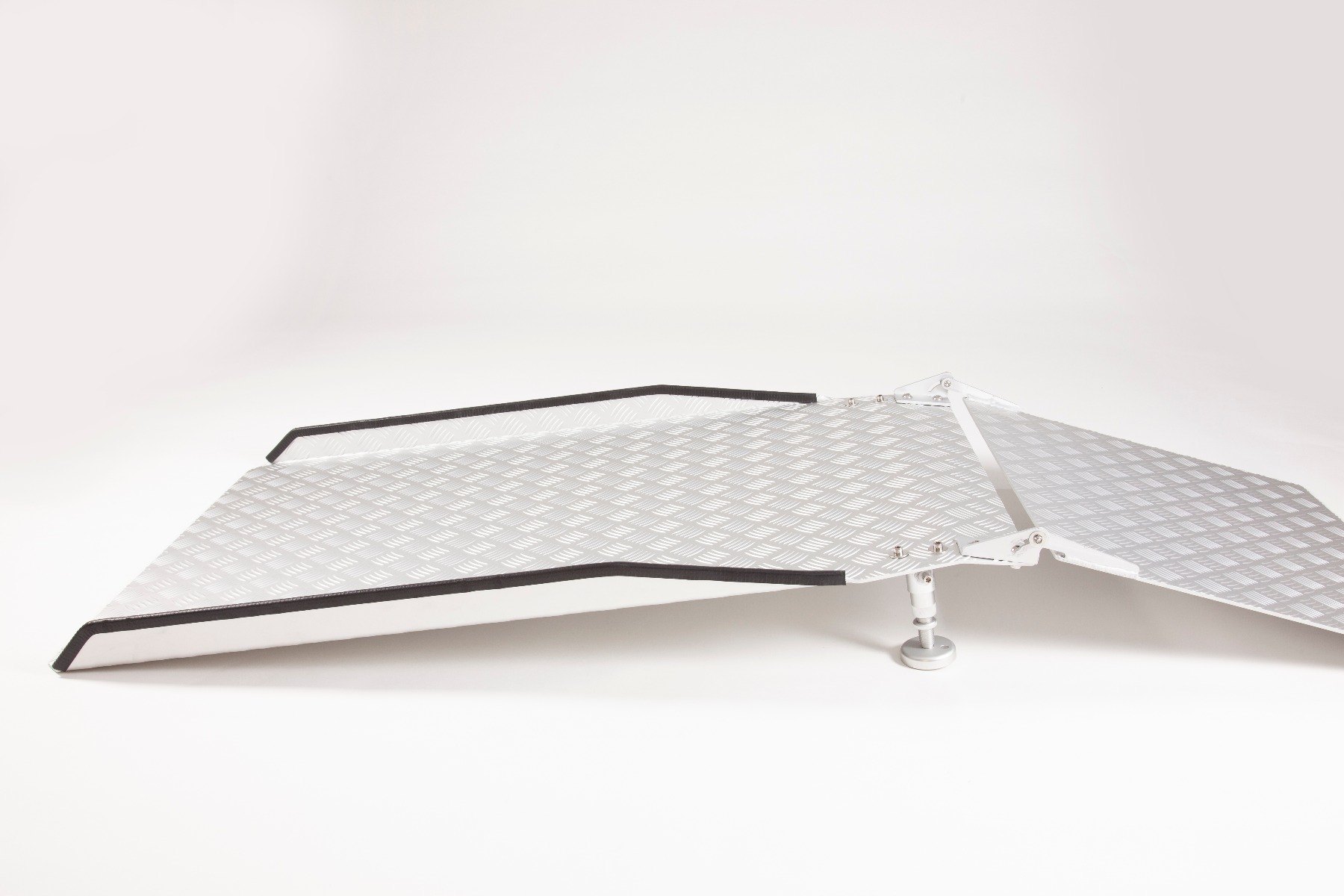

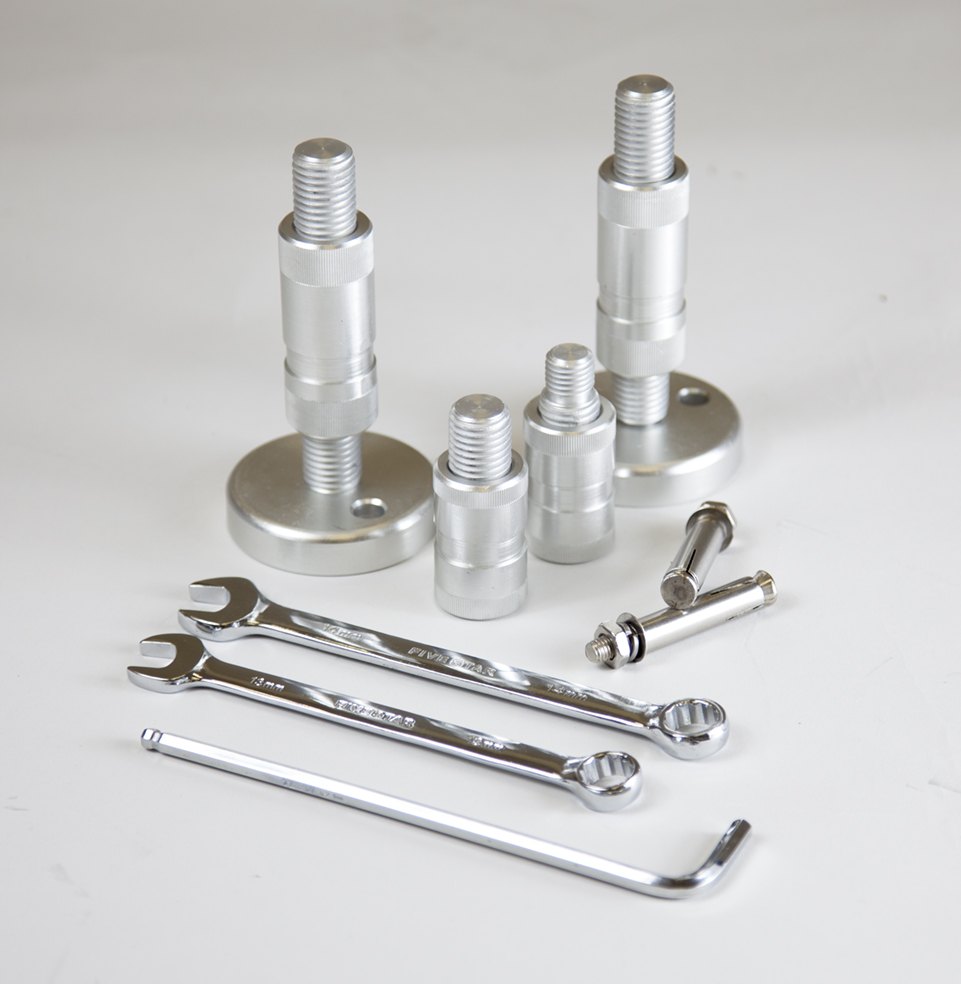

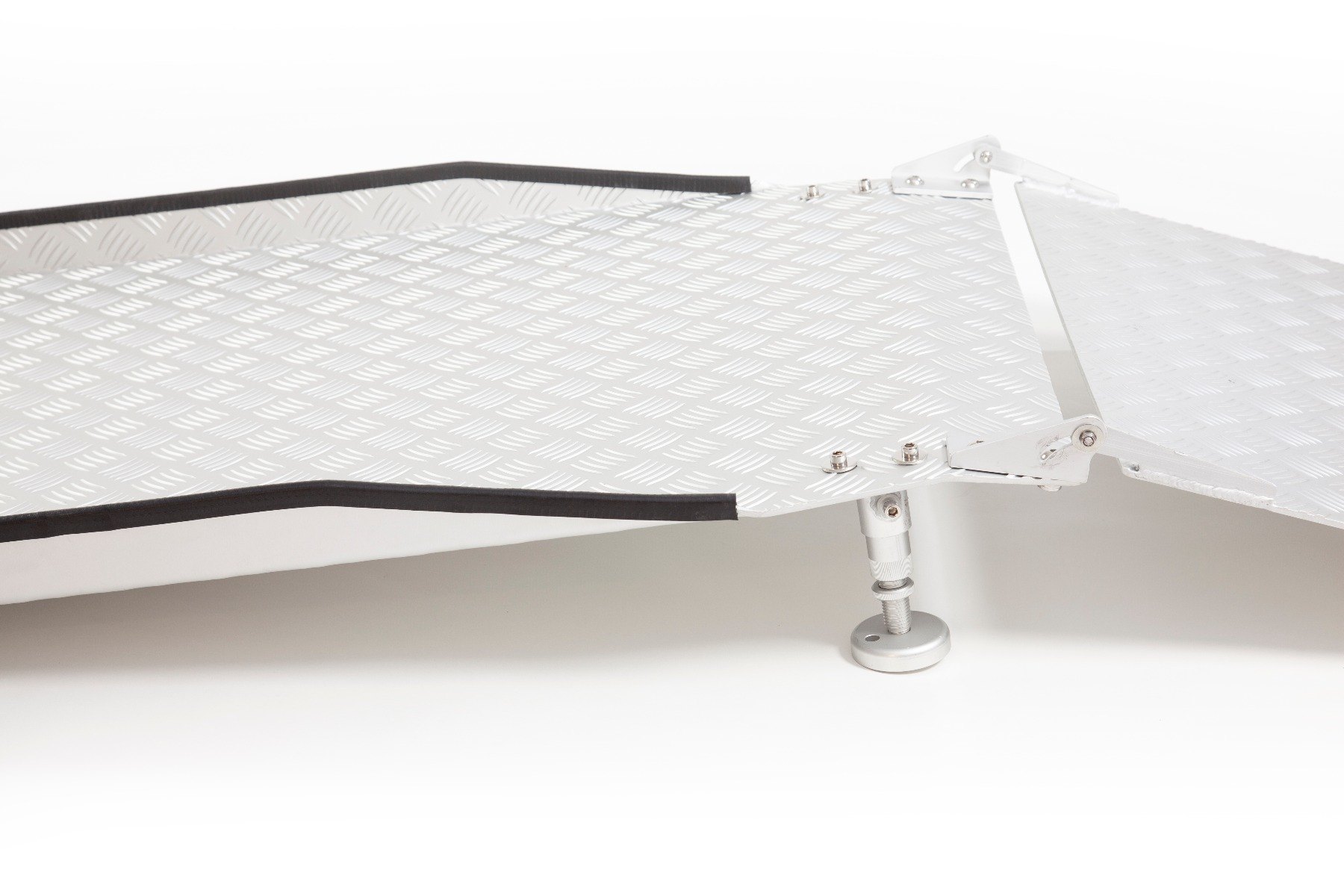

  • Easily positioned telescopic legs which are adjustable to heights between 70mm - 254mm (3" - 10") meaning the ramp can be adjusted to be used in various locations

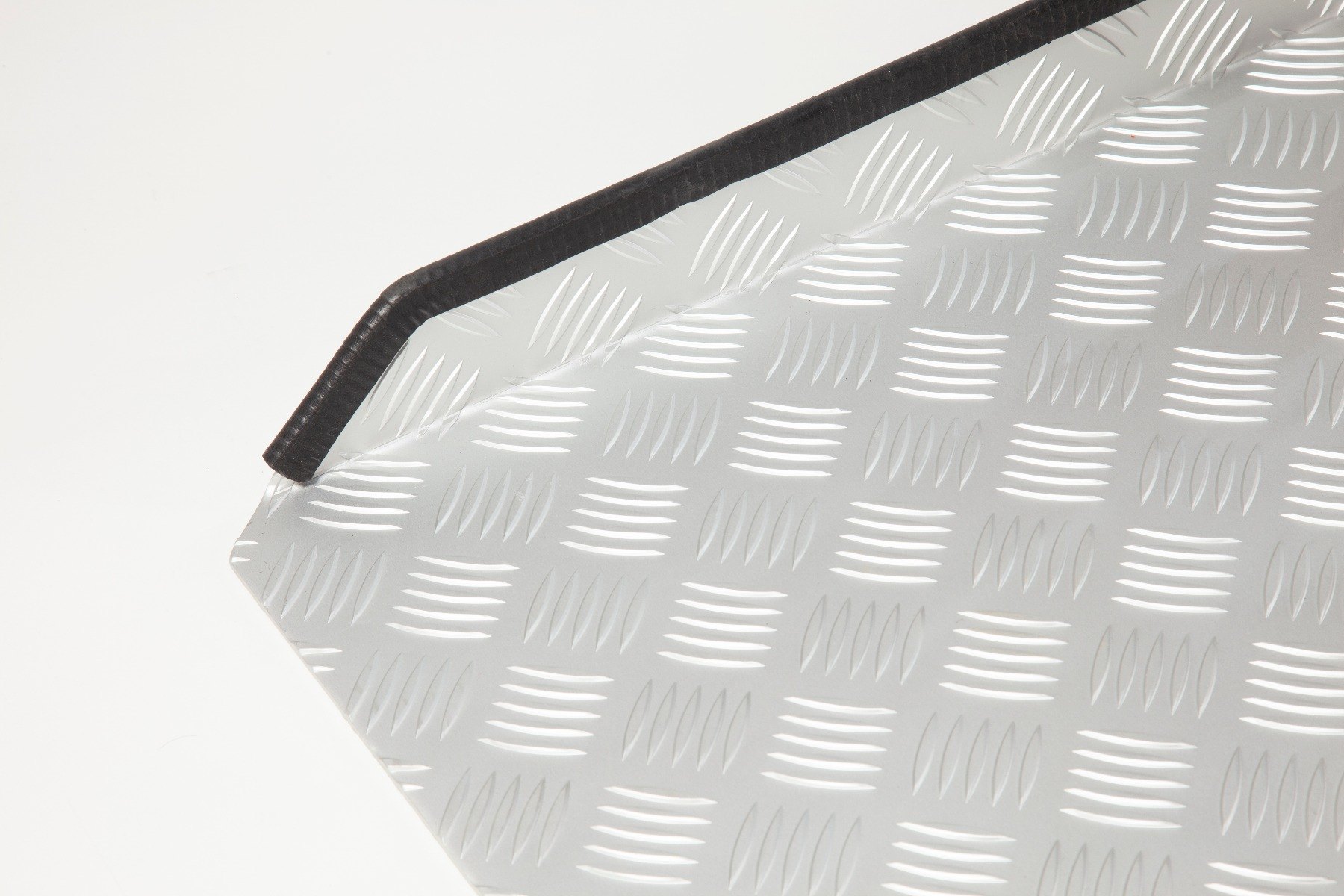

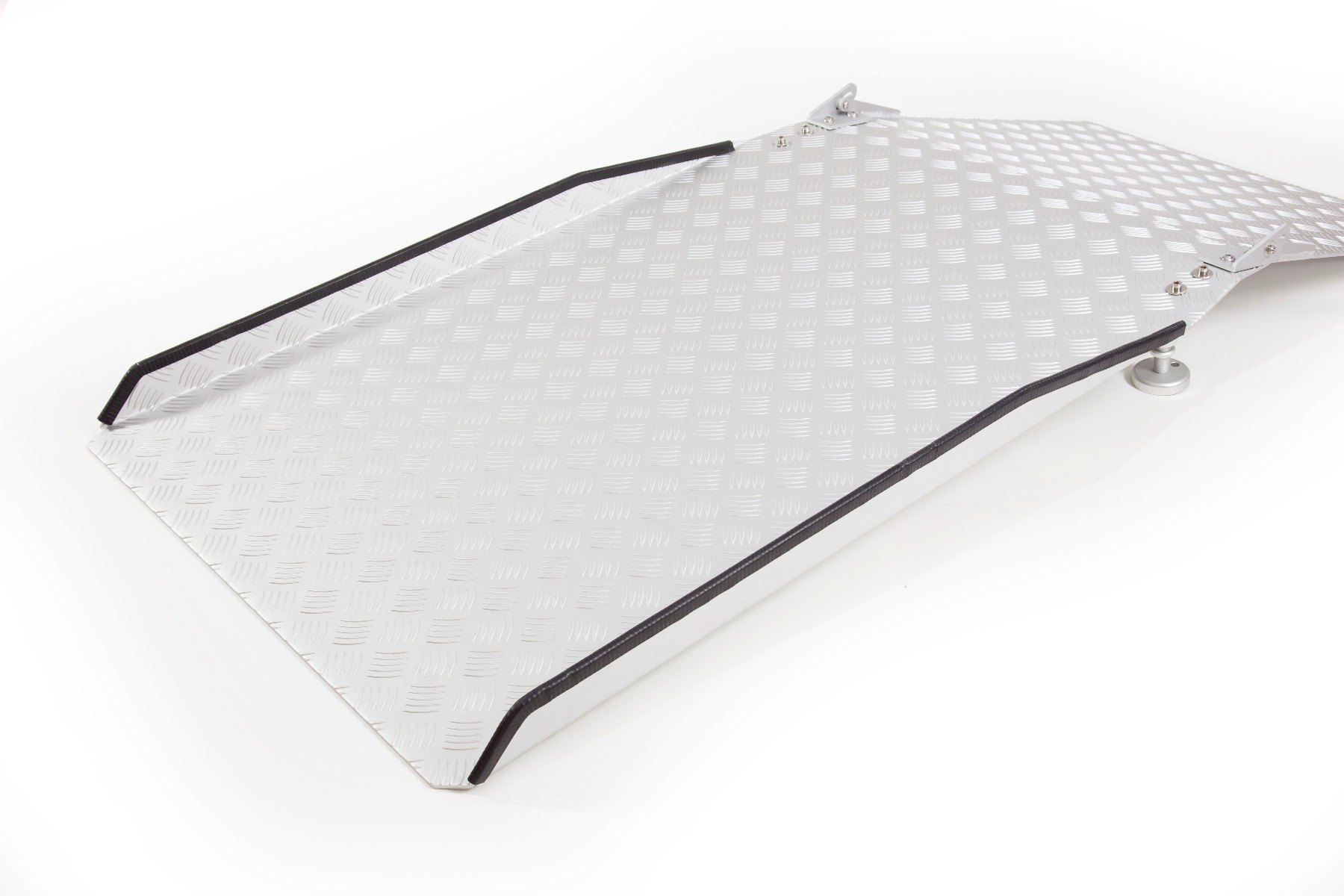

  • Lateral safety edges in a contrasting colour to prevent users coming off the ramp and reduce trip hazards

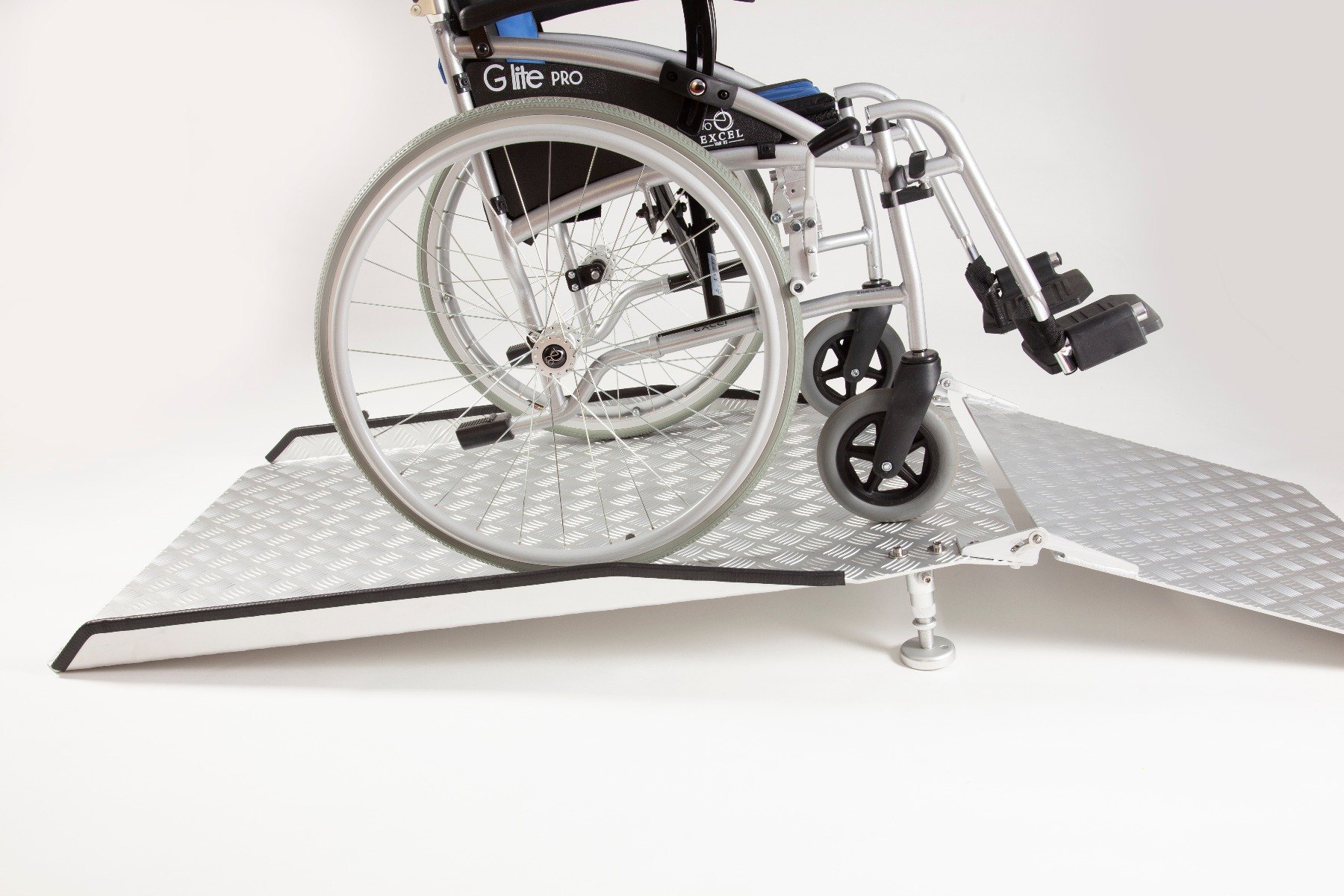

  • High capacity suitable for wheelchairs, scooters and walkers
  • Anodised finish prevents stains and corrosion
  • Easy wash surface for long life
  • Can be used with or without the entry plate
  • For help identifying the ramp length you require please use our ramp length calculator or contact our team

These ramps are only suitable for use as mobility aids. Due to the safety edges this product might not work well on outwards opening doors.

Instructions for assembling the leg kit can also be found here all pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Instructions for assembling the plate can be found here

Adjustable Threshold Ramps with Entry Plate Kit

2ft / 61cm kit

  • Length (mm): 610 + Plate
  • Ramp weight (kg): 10 + Plate
  • Capacity (kg): 400 on the ramp , 250 on the entry plate
  • Total ramp width (mm): 790
  • Internal ramp width (mm): 755
  • Width of entry plate (mm): 715
  • Max. load height of 2ft ramp (mm): 100

3ft / 92cm kit

  • Length (mm): 920 + Plate
  • Ramp weight (kg): 14 + Plate
  • Capacity (kg): 400 on the ramp, 250 on the entry plate
  • Total ramp width (mm): 790
  • Internal ramp width (mm): 755
  • Width of entry plate (mm): 715
  • Max. load height of 3ft ramp (mm): 150

4ft / 122cm kit

  • Length (mm): 1220 + Plate
  • Ramp weight (kg): 18 + Plate
  • Capacity (kg): 400 on the ramp, 250 on the entry plate
  • Total ramp width (mm): 790
  • Internal ramp width (mm): 755
  • Width of entry plate (mm): 715
  • Max. load height of 4ft ramp (mm): 200

6ft / 183cm kit

  • Length (mm): 1830 + Plate
  • Ramp weight (kg): 26 + Plate
  • Capacity (kg): 400 on the ramp, 250 on the entry plate
  • Total ramp width (mm): 790
  • Internal ramp width (mm): 755
  • Width of entry plate (mm): 715
  • Max. load height of 6ft ramp (mm): 254

8ft / 244cm kit

  • Length (mm): 2440 + Plate
  • Ramp weight (kg): 34 + Plate
  • Capacity (kg): 400 on the ramp , 250 on the entry plate
  • Total ramp width (mm): 790
  • Internal ramp width (mm): 755
  • Width of entry plate (mm): 715
  • Max. load height of 8ft ramp (mm): 254

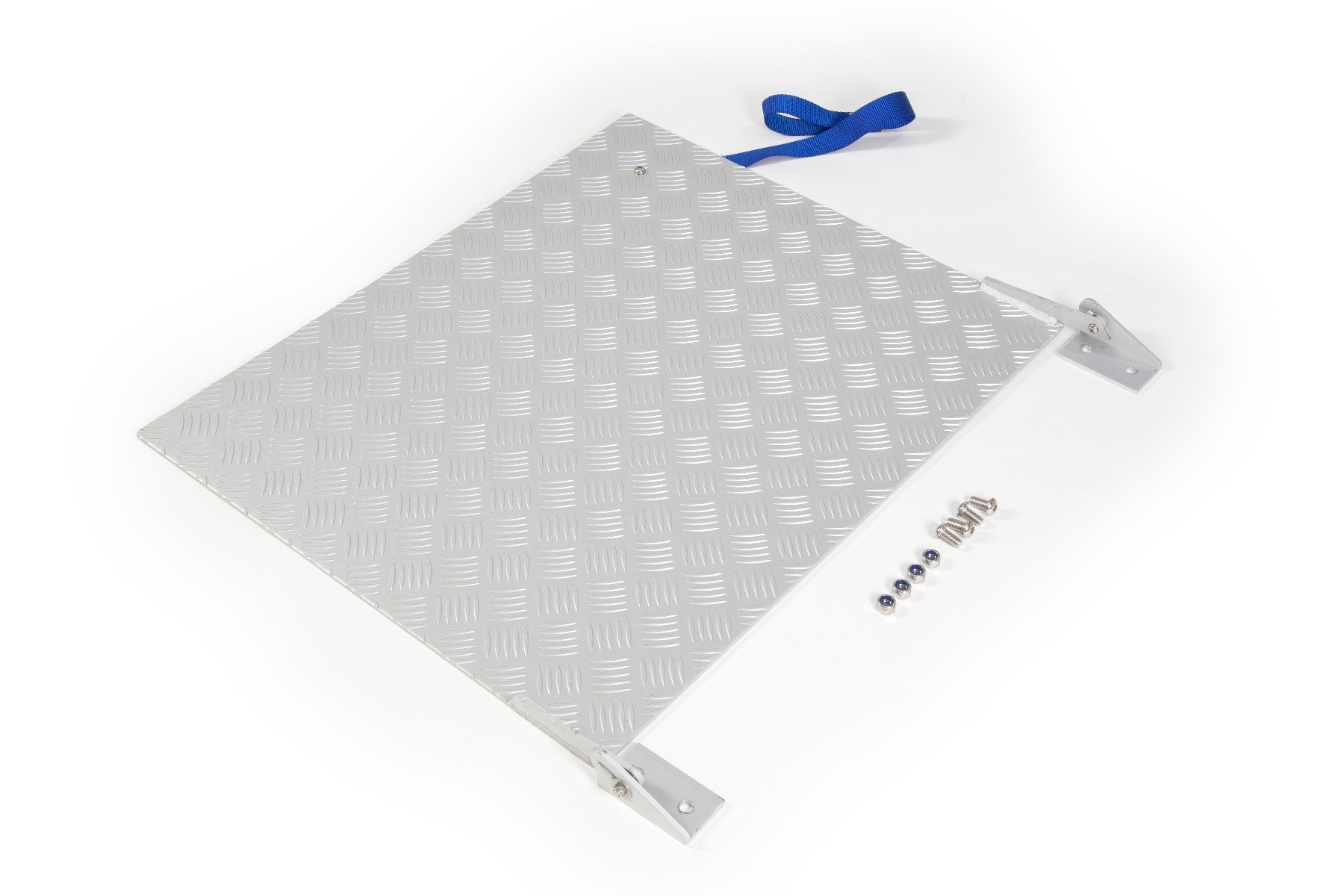

300mm / 11.8" Entry Plate

  • Length (mm): 300
  • Weight (kg): 3
  • Capacity (kg): 250kg
  • Width (mm): 715
  • Max. load height of 300mm entry plate (mm): 50

600mm / 23.6" Entry Plate

  • Length (mm): 600
  • Weight (kg): 6
  • Capacity (kg): 250kg
  • Width (mm): 715
  • Max. load height (mm): 100

Details
SKU TRP-AD-KIT
Capacity (kg) 250 - 400
Length (ft) 2 - 8
Max Load Height 70 - 200
Width (mm) 715 - 790
One Year Warranty Yes
Electric Wheelchair Yes
Fixings Included Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes
Leave Outside Yes
