Vehicle Ramps

SKU	Capacity (kg)	Height (mm)	Internal Width (mm)	Length (mm)	Max Load Height (mm)	Weight (kg)	Price
TRP-MPI10/10	4500	1055	1000	990	80	34	£1,380.00 £1,150.00
TRP-MPI10/12	1500	1055	1250	990	80	38	£1,428.00 £1,190.00
TRP-MPI14/10	4500	1055	1000	1390	110	44	£1,500.00 £1,250.00
TRP-MPI14/12	1500	1055	1250	1390	110	49	£1,554.00 £1,295.00
TRP-MPI20/10	4500	1055	1000	1990	160	59	£1,668.00 £1,390.00
TRP-MPI20/12	1500	1055	1250	1990	160	67	£1,758.00 £1,465.00
TRP-MPI24/10	3514	1055	1000	2390	190	69	£1,776.00 £1,480.00
TRP-MPI24/12	1500	1055	1250	2390	190	78	£1,872.00 £1,560.00
TRP-MPI30/10	2746	1055	1000	2990	240	84	£2,034.00 £1,695.00
TRP-MPI30/12	1500	1055	1250	2990	240	95	£2,154.00 £1,795.00
TRP-MPI38/10	1830	1055	1000	3790	300	104	£2,388.00 £1,990.00
TRP-MPI38/12	1500	1055	1250	3790	300	118	£2,538.00 £2,115.00
TRP-MPI48/10	1292	1055	1000	4790		130	£2,742.00 £2,285.00
TRP-MPI48/12	1292	1055	1250	4790	380	147	£2,904.00 £2,420.00
TRP-MPI58/10	998	1055	1000	5790	460	156	£3,312.00 £2,760.00
TRP-MPI58/12	998	1055	1250	5790	460	176	£3,510.00 £2,925.00

The Ramp People's temporary vehicle ramps are fabricated from precision engineered aluminium and have a capacity of up to 4500kgs, depending on the length of the ramp. The vehicle trench bridges are available in lengths from 990mm – 5790mm and widths of 1000mm and 1250mm.

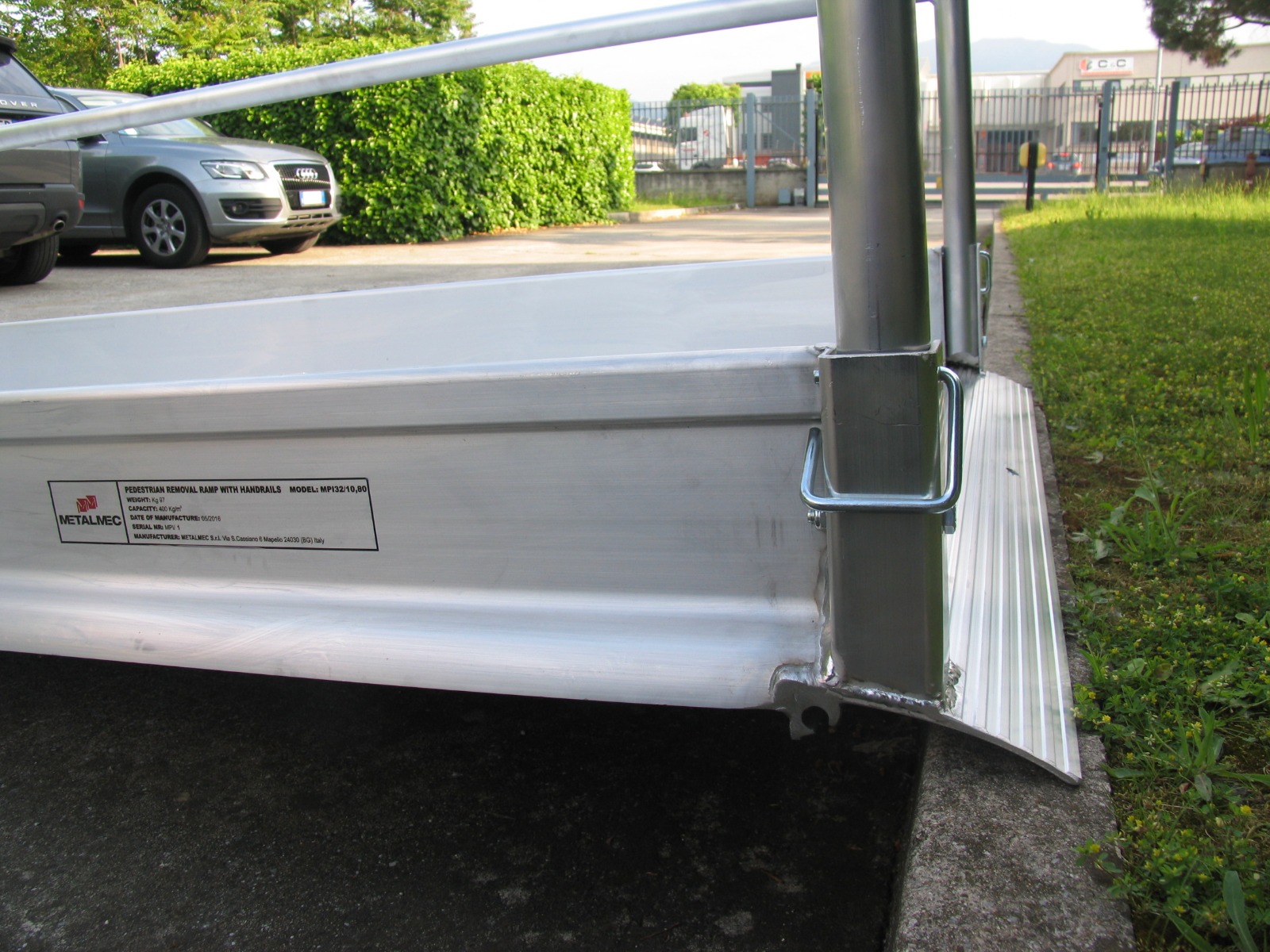

The handrails on the sides of the bridge / walkways are 1018mm high when deployed, and fold in on themselves for ease of transportation. They can also be removed completely. The raised edges are 200mm high.

Please be aware that these trench bridges are designed for a minimum rubber footprint of 200mm x 200mm. The maximum distribution of load on vehicle axles should be between 40% and 60%. These ramps are only suitable for use at a maximum gradient of up to 8%. You will also need to ensure that there is at least a 330mm rest on either side of the excavation for the ramp to rest upon. The maximum load height ranges from 80mm – 460mm
