Milled Surface Ramps for Steel Track

Milled Ramps for Steel Tracks Milled Ramps for Steel Tracks Milled Ramps for Steel Tracks

SKU Capacity (kg) Height of ramps profile (mm) Length (mm) Max load height (mm) Weight (kg) Weight per ramp (kg) Width (mm) Price
TRP13045/10 50,000 130 1000 300 64 32 450 £1,476.00 £1,230.00
TRP13060/10 58,000 130 1000 300 85 42.50 600 £1,800.00 £1,500.00
TRP13045/15 50,000 130 1500 450 91 44.50 450 £1,800.00 £1,500.00
TRP13045/20 40,000 130 2000 600 117 58.5 450 £2,118.60 £1,765.50
TRP13060/15 50,000 130 1500 450 121 60.5 600 £2,220.00 £1,850.00
TRP13045/25 34,000 130 2500 750 144 72 450 £2,472.00 £2,060.00
TRP13060/20 50,000 130 2000 600 156 78 600 £2,640.00 £2,200.00
TRP13045/30 26,200 130 3000 900 170 85 450 £2,760.00 £2,300.00
TRP13045/35 18,000 130 3500 1050 197 98.5 450 £2,928.00 £2,440.00
TRP13060/25 48,000 130 2500 750 192 96 600 £3,060.00 £2,550.00
TRP13060/30 36,000 130 3000 900 227 113.50 600 £3,480.00 £2,900.00
TRP13045/40 14,000 130 4000 1200 224 112 450 £3,540.00 £2,950.00
TRP13060/35 26,100 130 3500 1050 263 131.50 600 £3,900.00 £3,250.00
TRP13045/45 10,500 130 4500 1350 250 125 450 £3,960.00 £3,300.00
TRP13045/50 8,500 130 5000 1500 277 138.50 450 £4,290.00 £3,575.00
TRP13060/40 19,000 130 4000 1200 298 149 600 £4,380.00 £3,650.00
TRP13060/45 12,000 130 4500 1350 334 167 600 £4,920.00 £4,100.00
TRP13060/50 10,500 130 5000 1500 370 185 600 £5,400.00 £4,500.00

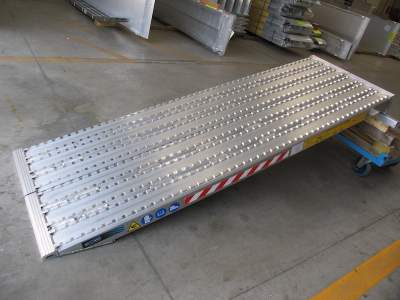

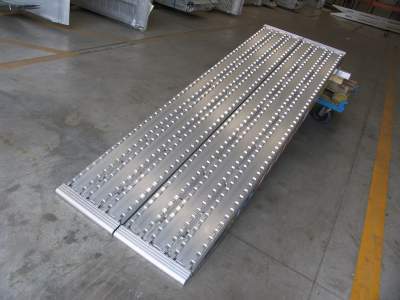

These ramps come as standard coated with a milled surface which give extra grip. This series see wide usage as plant ramps and heavy duty machinery ramps. There are no welds on the outside surface of the ramp to protect the construction of the ramp and they are fully TUV certified. You can choose what kind of connection is best suitable for you. Edges are not possible for this kind of ramp.

If you have any questions or need any advice on which ramps to look at, please feel free to contact our team.

Heavy Duty Loading ramps for Steel Tracked machinery with capacities up to 58,000kg. Available in two widths and lengths up to 5m.
