Ramp Capacity, Length & Load Height

Wheelchair Ramps Folding 2ft-8ft

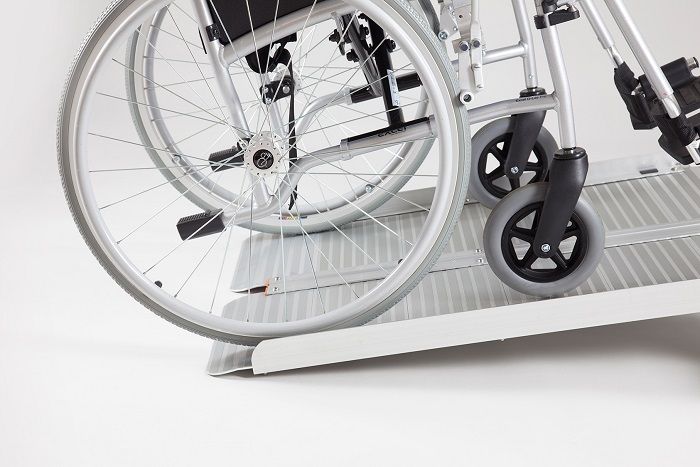

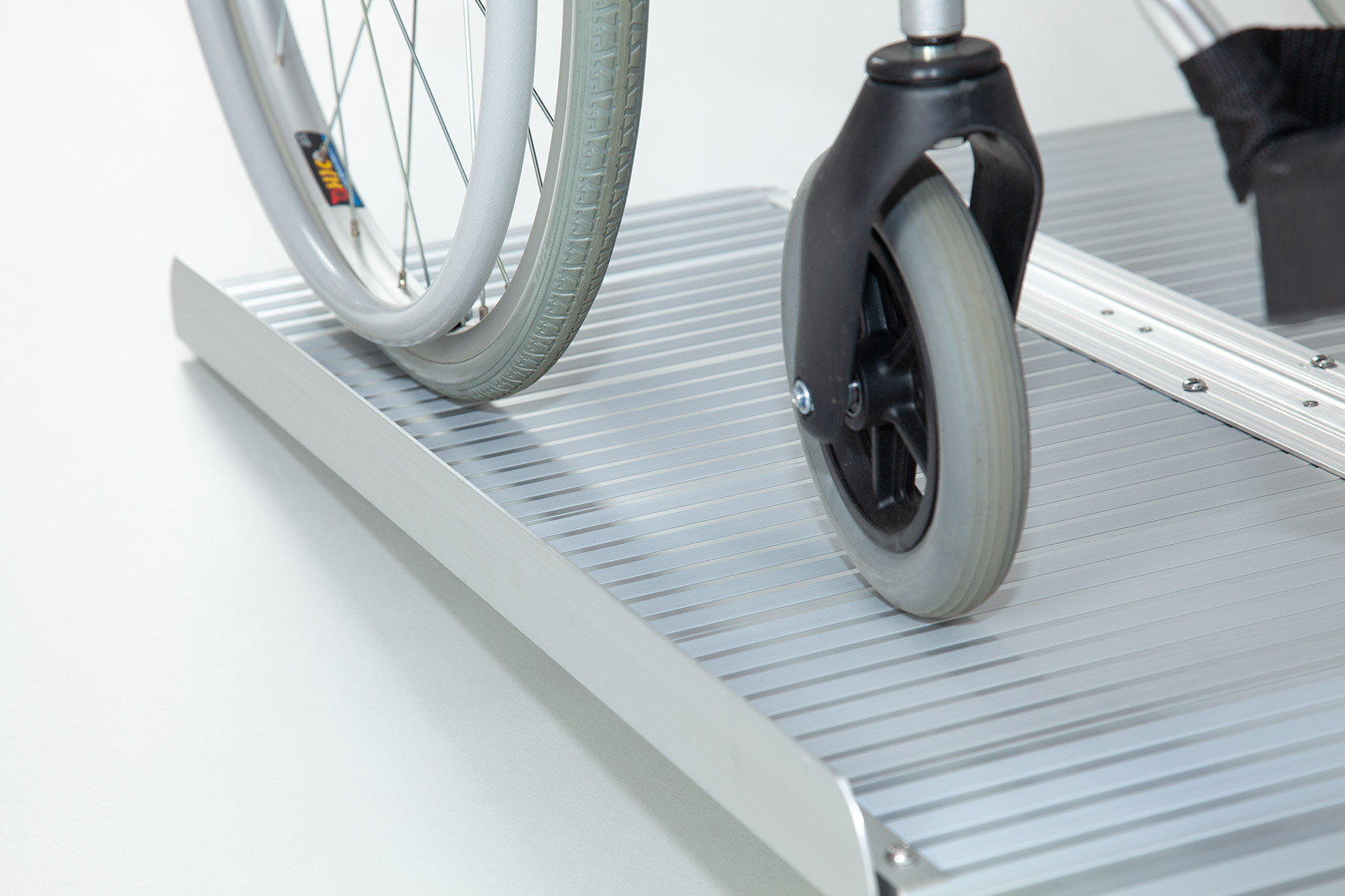

Lightweight folding wheelchair ramps that provide wheelchair access over any kerb or step. Choose from 2ft, 3ft, 4ft, 5ft, 6ft, 7ft and 8ft lengths. With weights starting at just over 5kg, this disabled access ramp/suitcase ramp can be easily folded length ways during transport, with or without the bag. Internal width 715mm and total width 720mm.
Both options ramp length and bag option need to be selected, once done price for the item will be displayed at the top right of the page

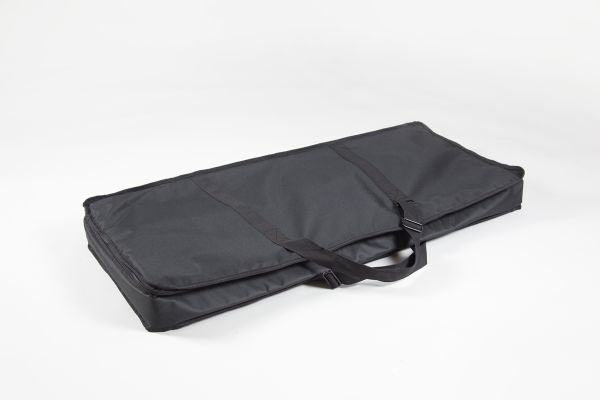

Wheelchair ramp bags available for ramps up to 5ft long, however the 'bag option' still need to selected for the 6ft, 7ft and 8ft lengths, please select the 'NO BAG' option.
Folding Wheelchair Ramps FAQ's
Length (ft) | 2 - 8 |
---|---|
Length (mm) | 610- 2440 |
Total Width (mm) | 720 |
Max. Load Height (mm) | 405 |
Weight (kg) | 5.4 - 23 |
Capacity (kg) | 275-300 |

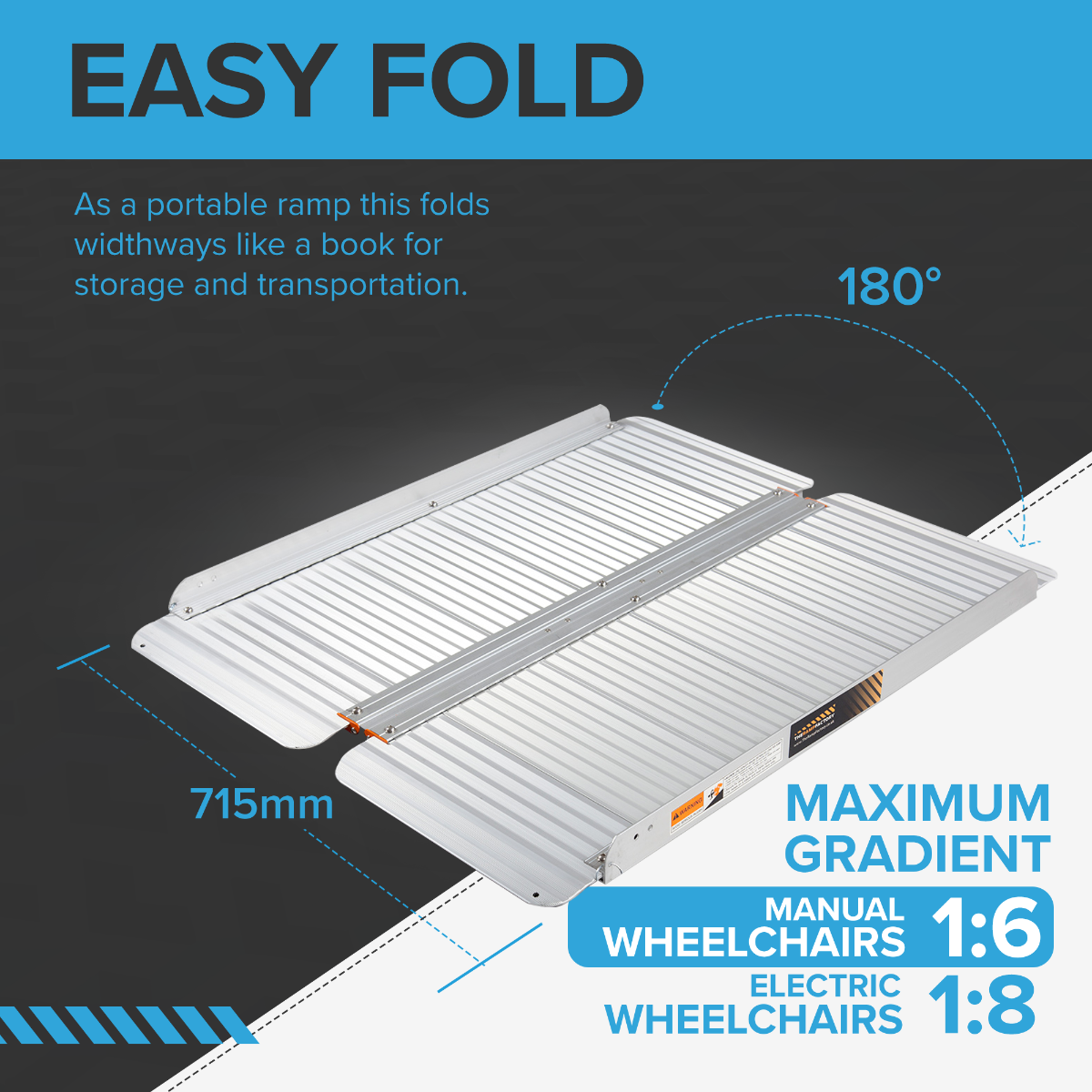

- Folding ramp design for easy storage and transport

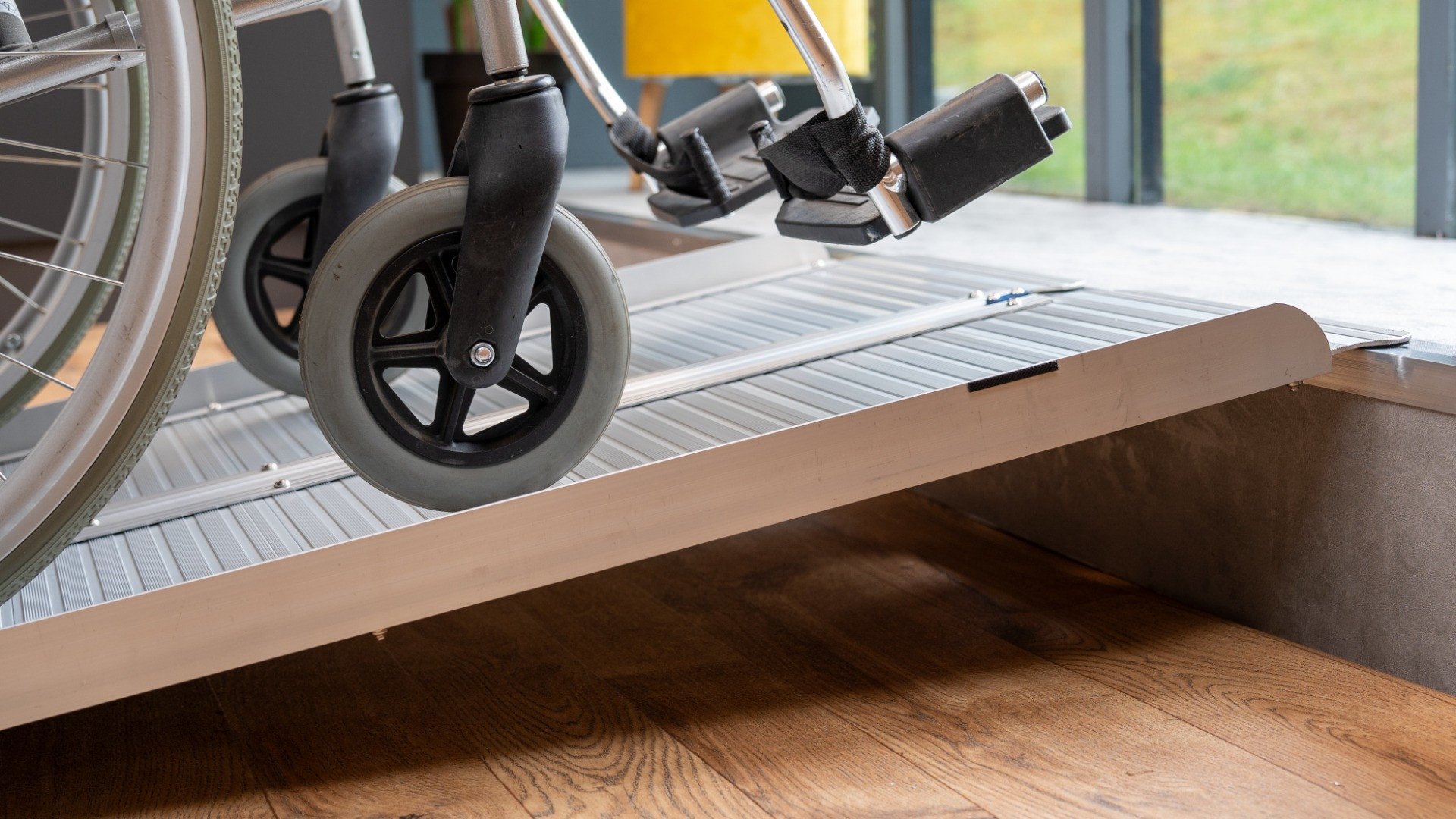

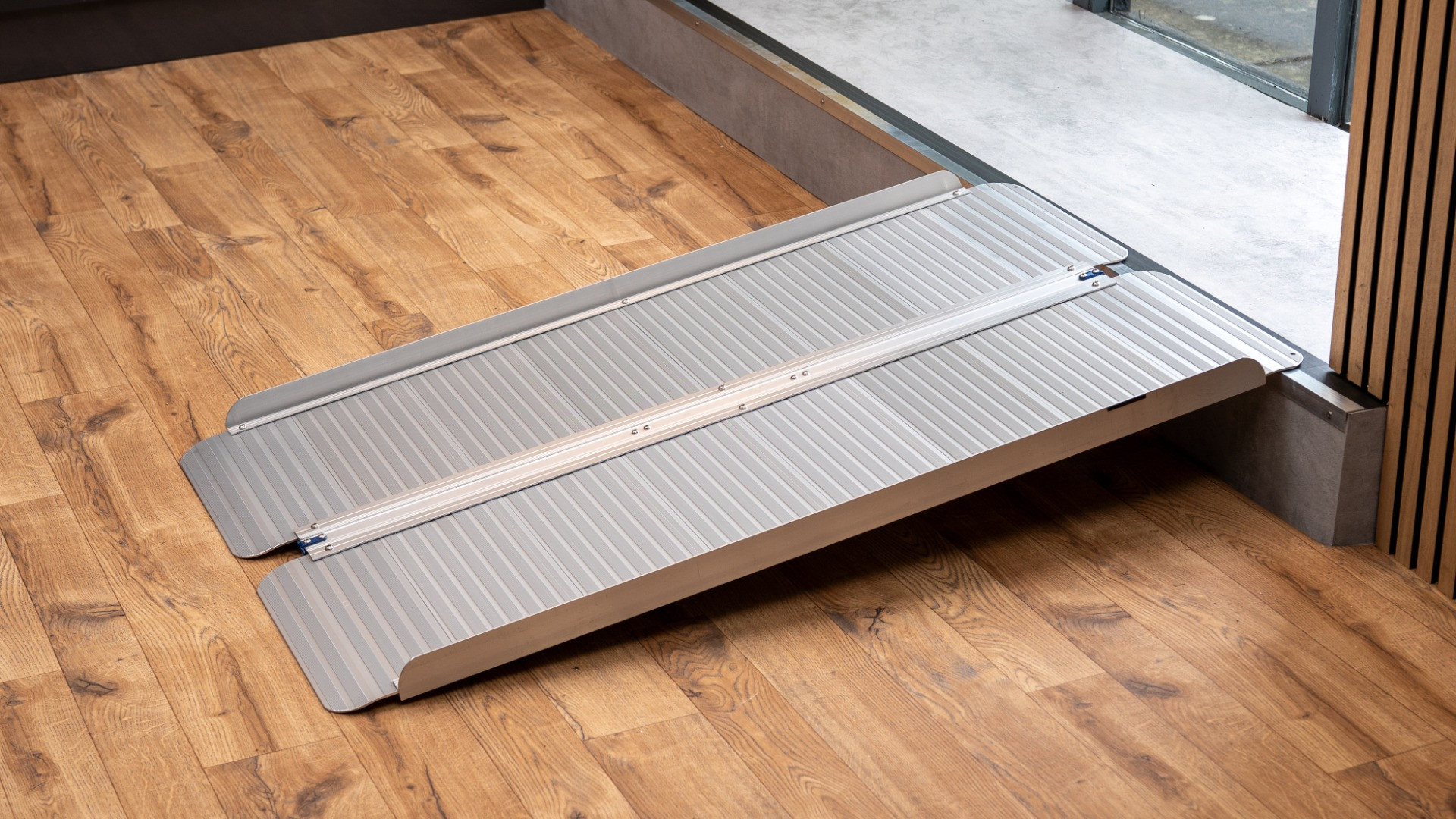

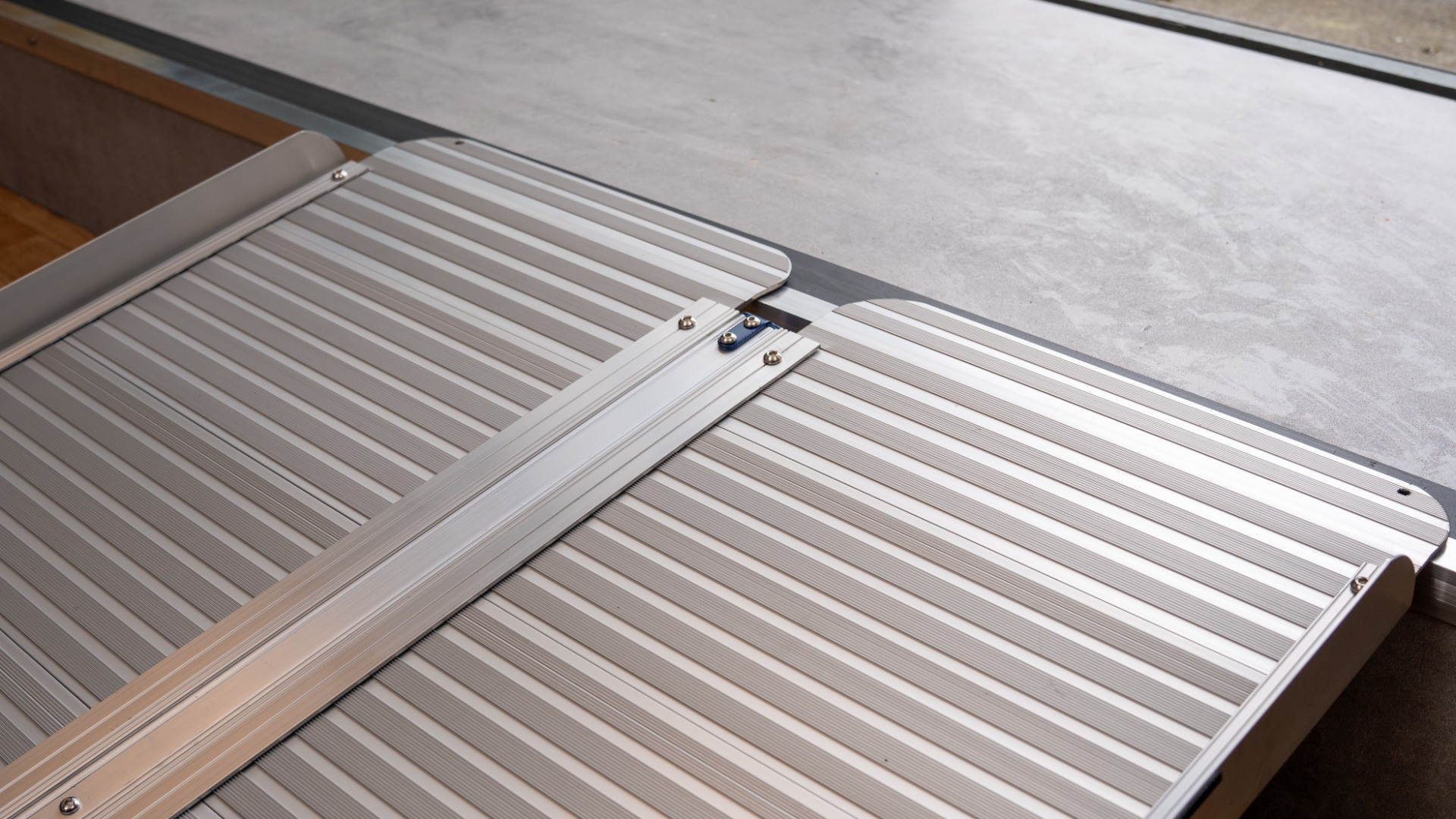

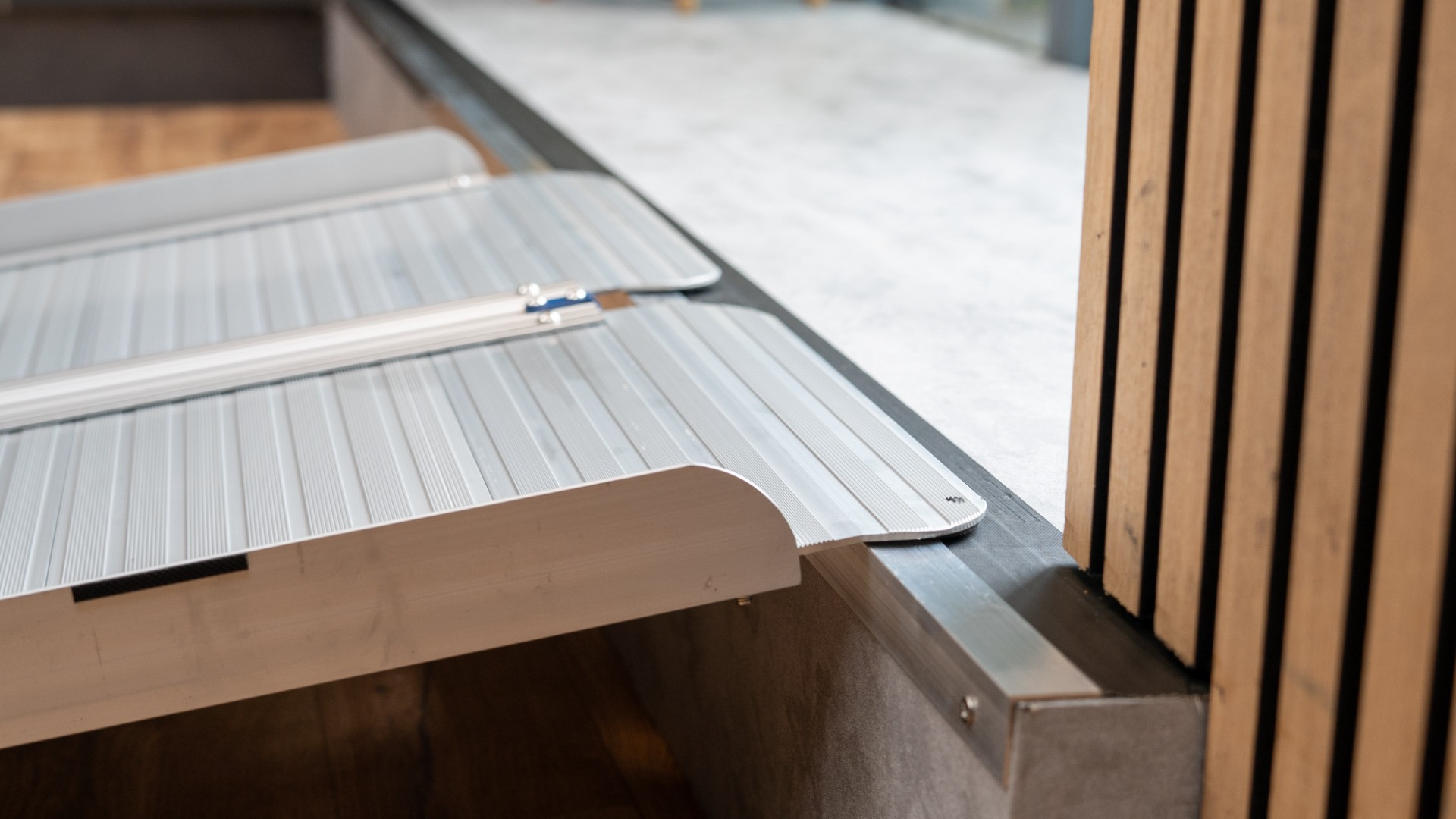

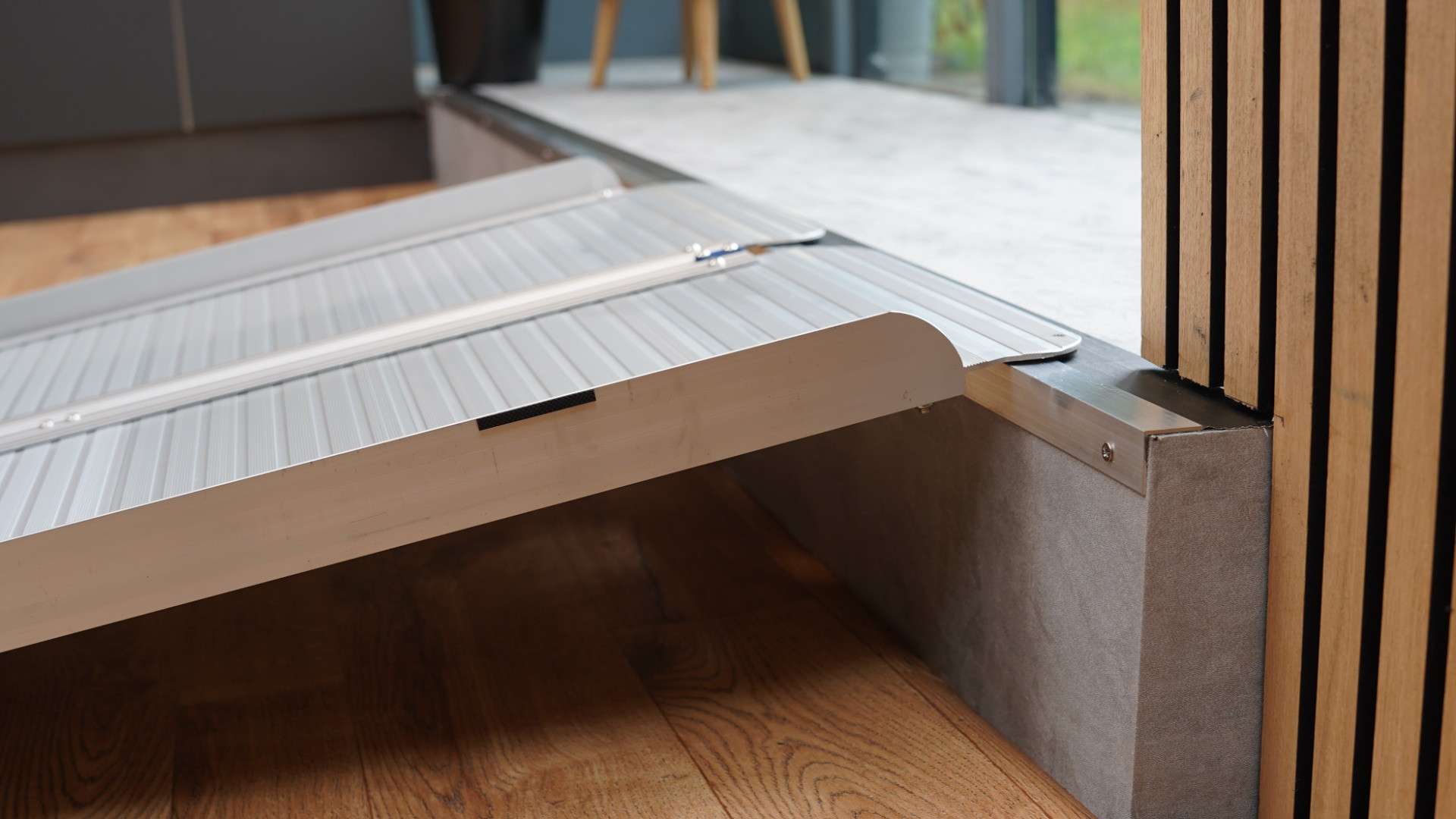

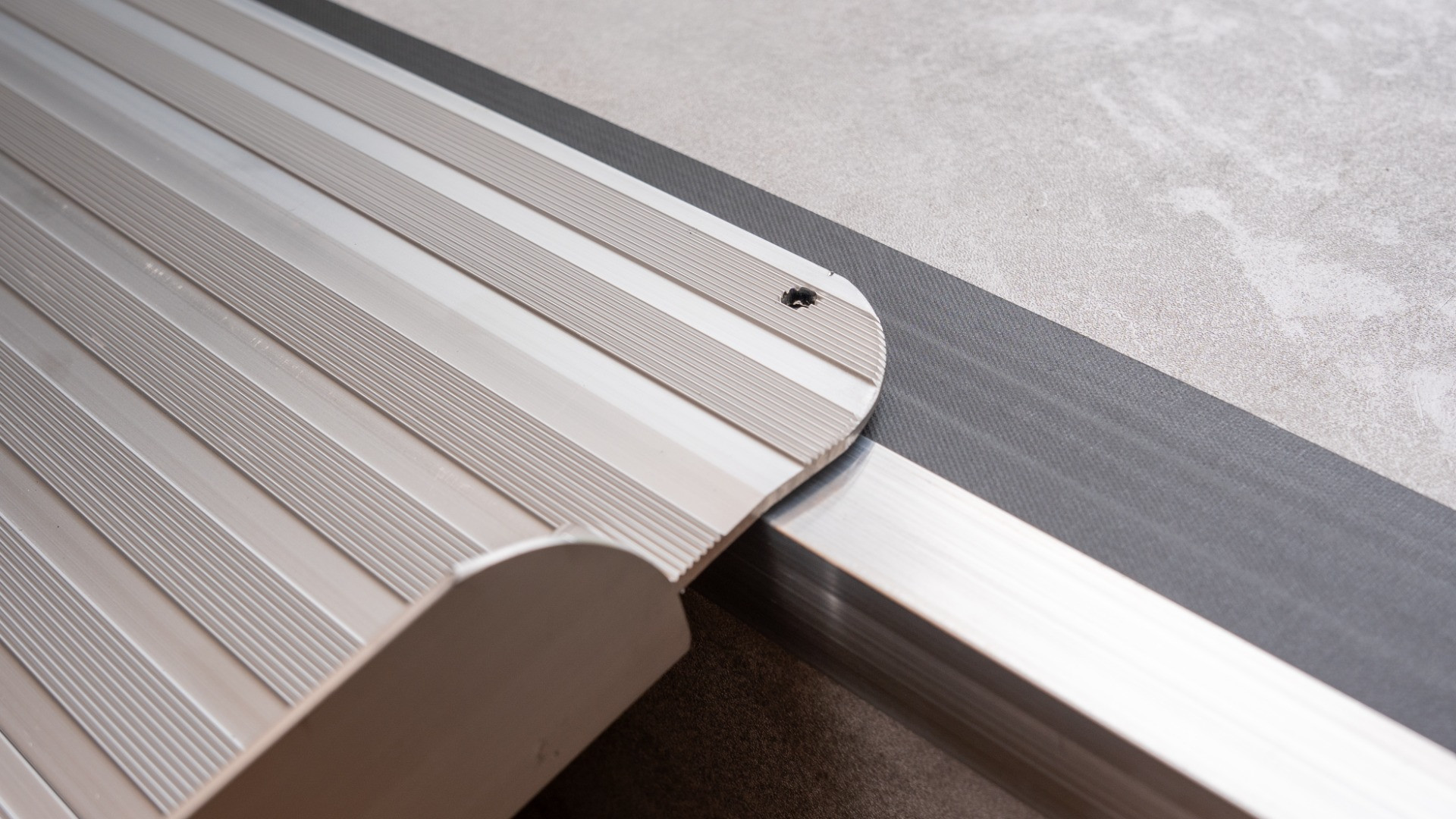

- Rest on connection - to fit just rest on and start loading
- Maximum gradient = 1 in 6 although 1 in 8 is recommended
- Lightweight for easy handling

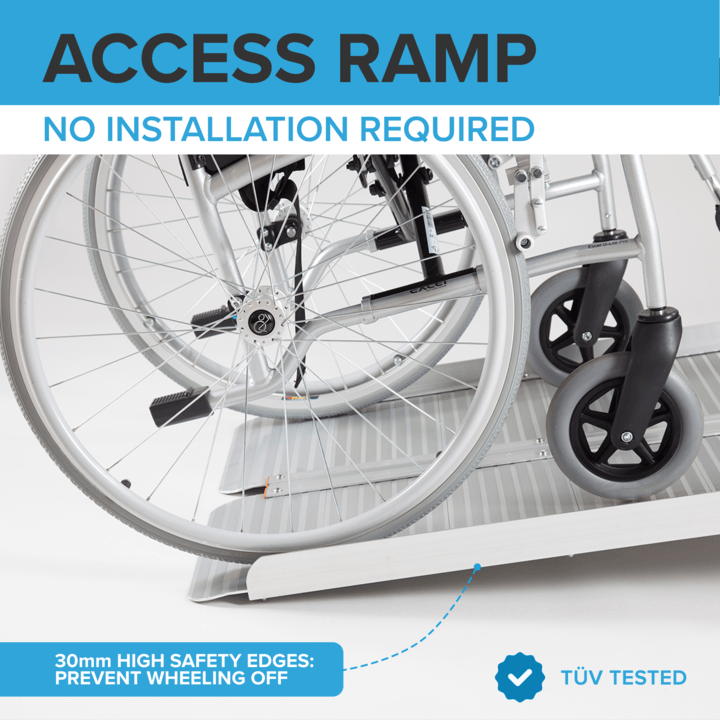

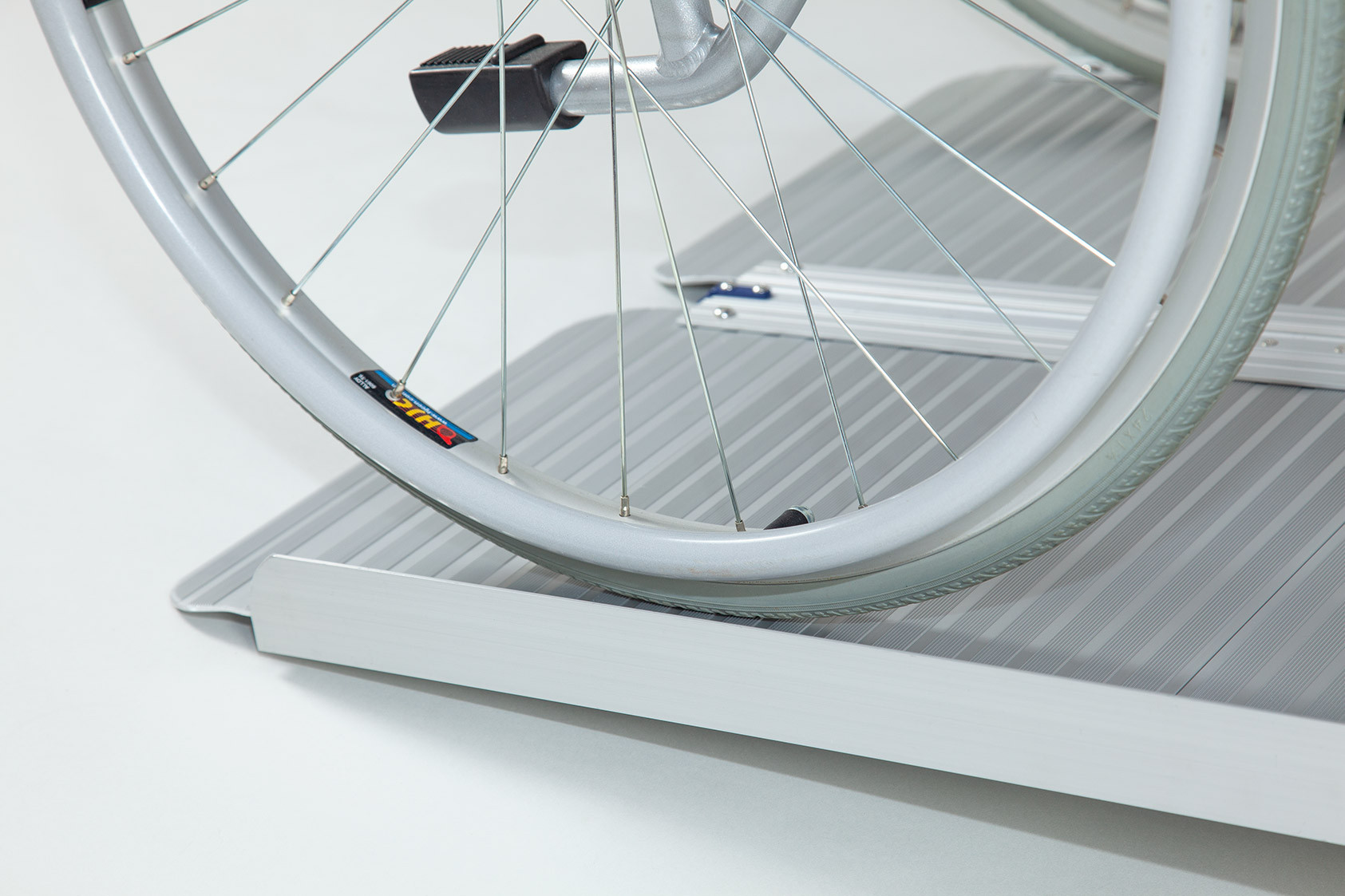

- Edges on each side of the suitcase ramp to prevent accidentally wheeling off
- Edges are 30mm high

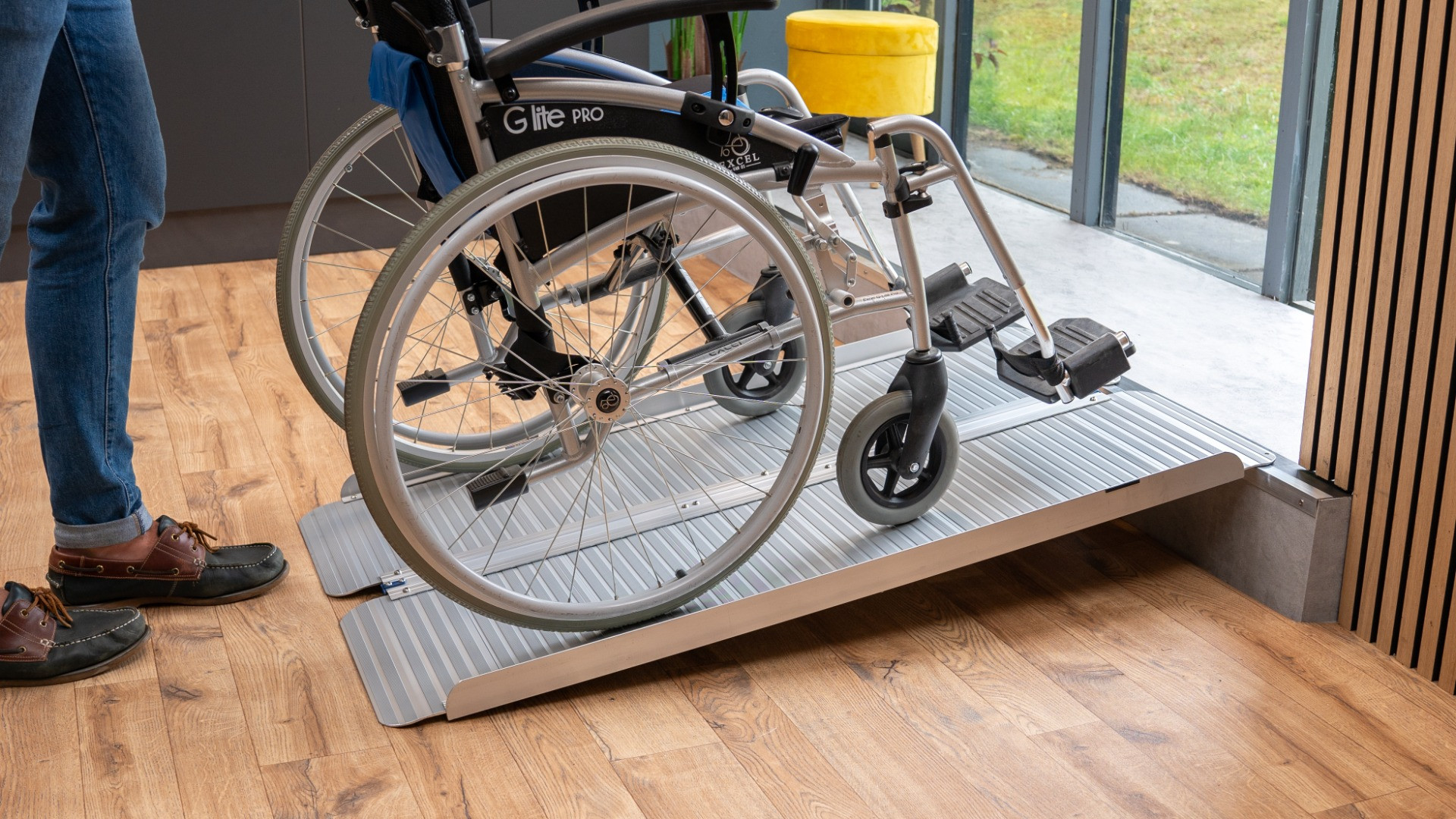

- Suitable for manual wheelchair, electric wheelchairs and mobility scooters
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- These ramps are only suitable for use as mobility aids
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
For help identifying the ramp length you require please use our ramp length calculator or contact our team.
Folding Wheelchair Ramp Range
2ft

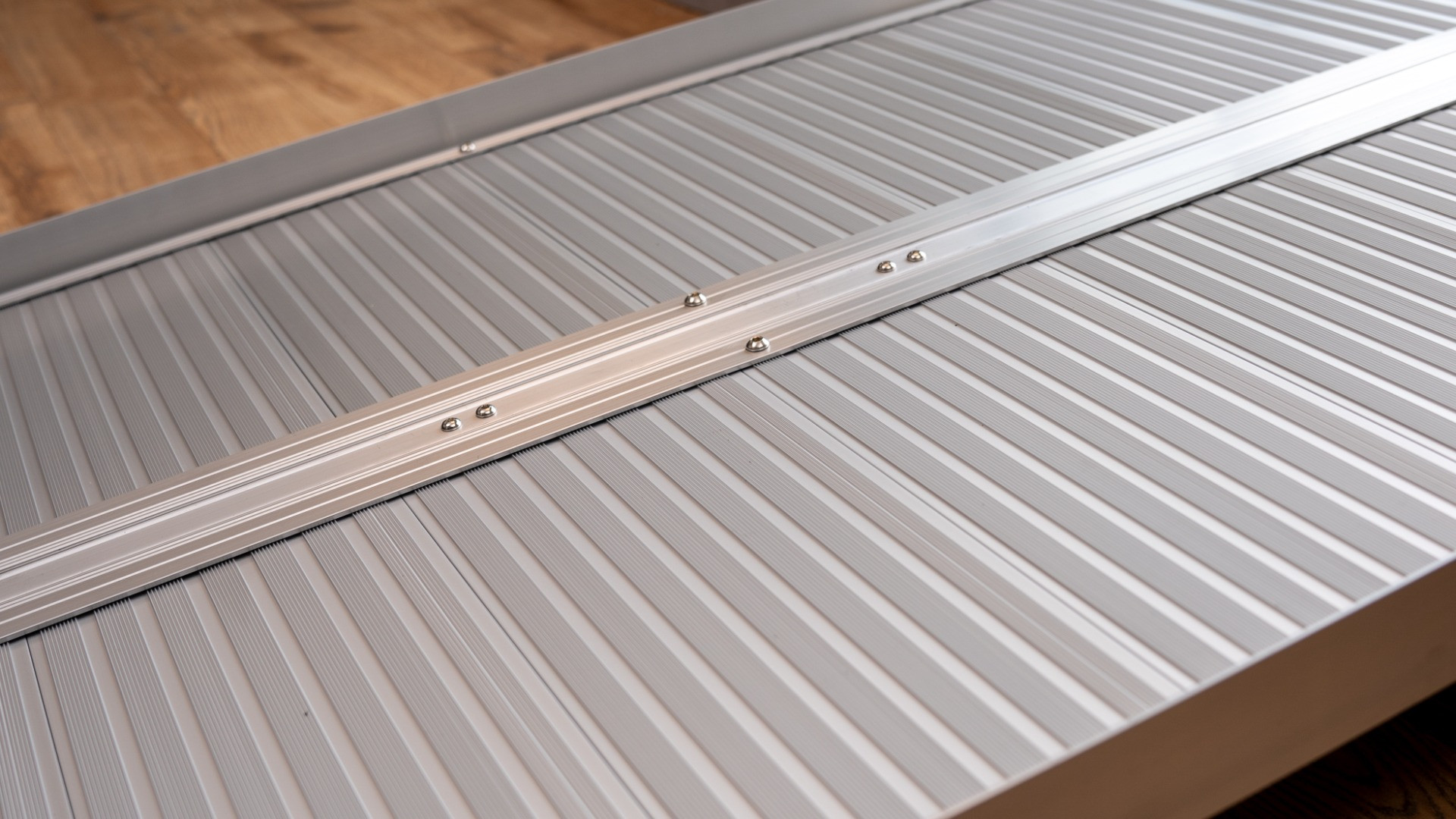

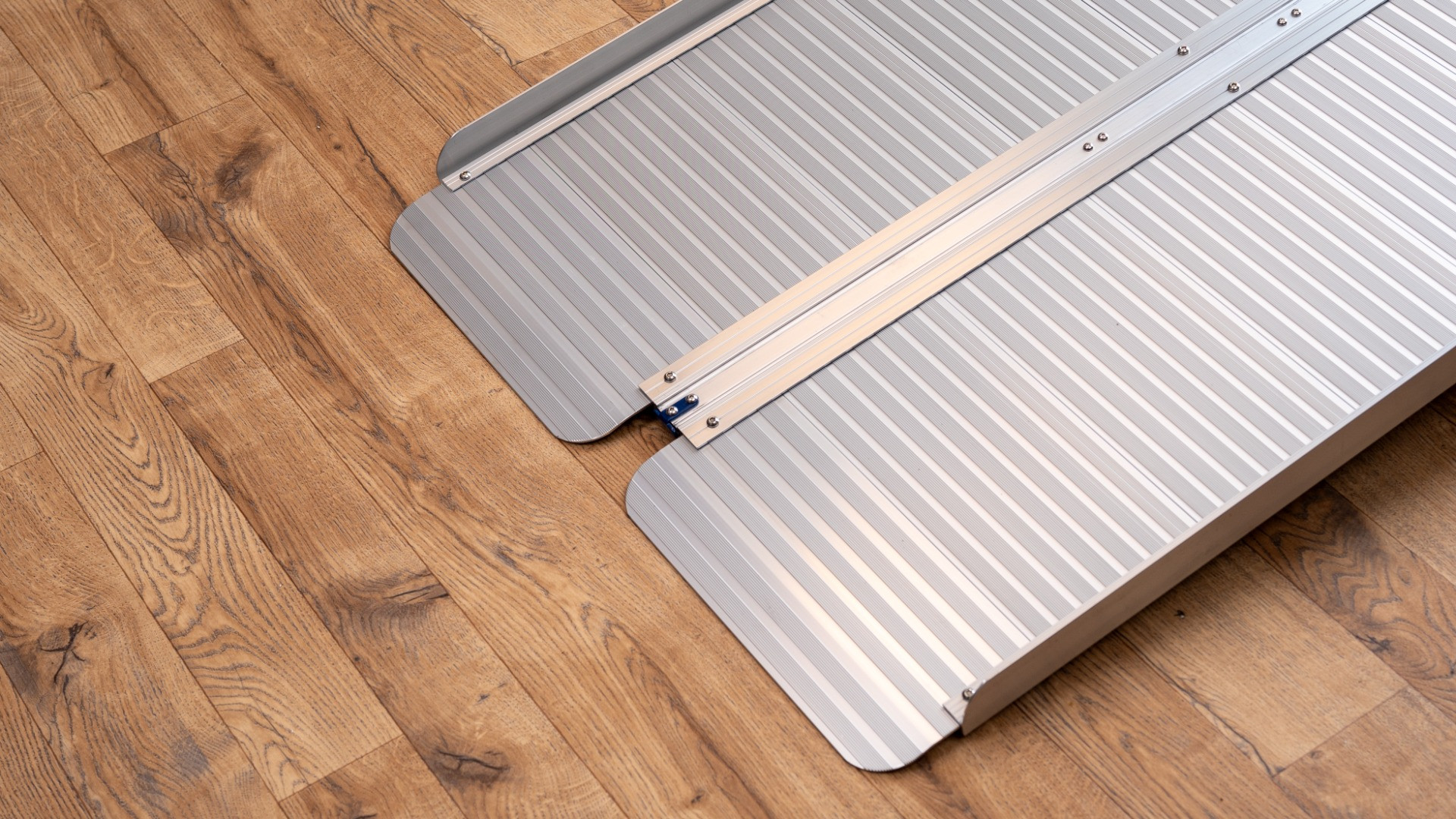

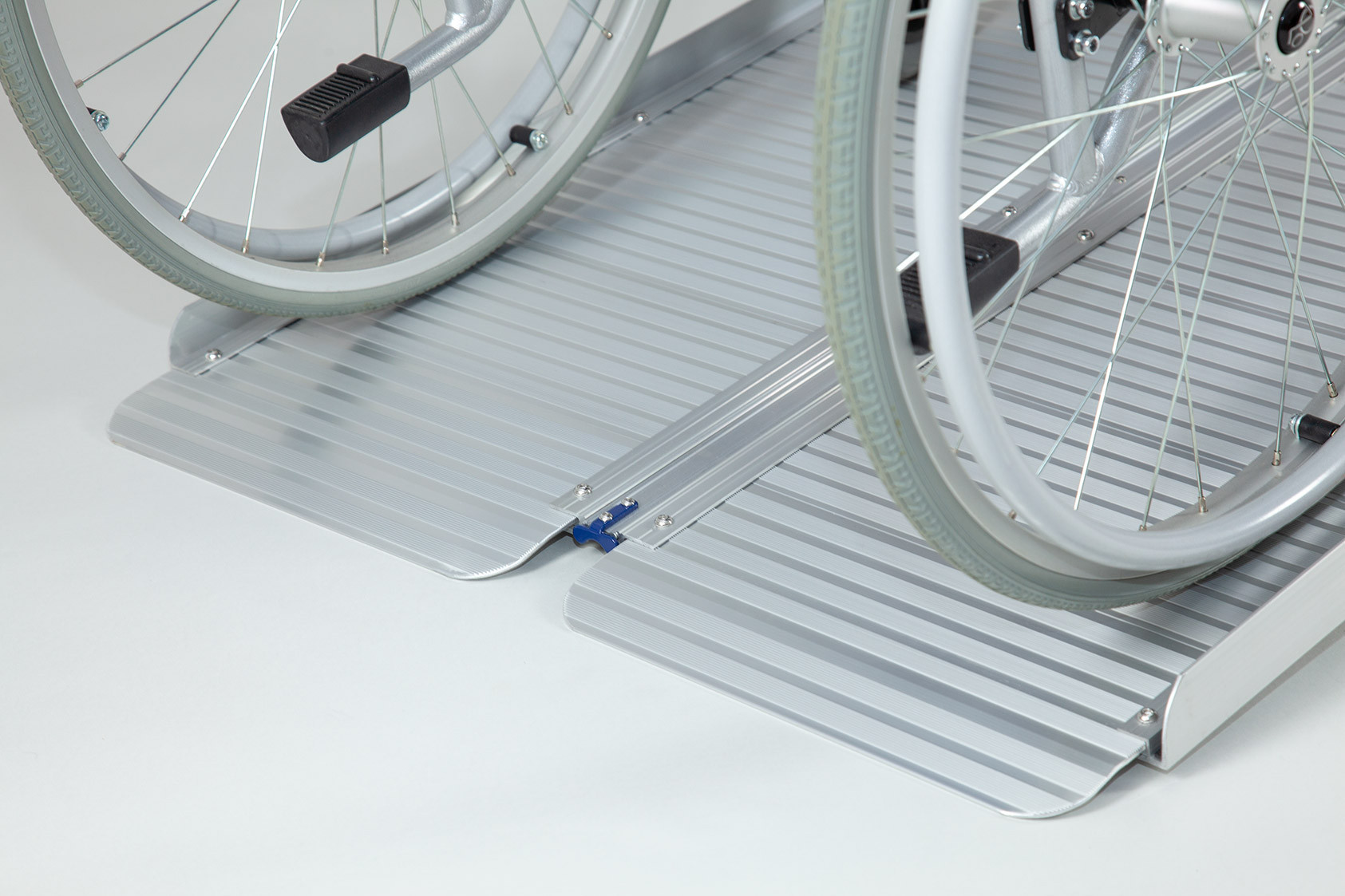

- The 2ft with the new improved flat hinge
- Length 2ft (610mm)
- Weight 5.4kg
- Capacity 300kg
- Internal width 715mm
- Max. load height 100mm
3ft
- The 3ft with the new improved flat hinge
- Length 3ft (915mm)
- Weight 7.0kg
- Capacity 300kg
- Internal width 715mm
- Max. load height 150mm
4ft
- The 4ft with the new improved flat hinge
- Length 4ft (1219mm)
- Weight 10.40kg
- Capacity 300kg
- Internal width 715mm
- Max. load height 200mm
5ft
- The 5ft with the new improved flat hinge
- Length 5ft (1524mm)
- Weight 13.2kg
- Capacity 300kg
- Internal width 715mm
- Max. load height 250mm
6ft
- The 6ft with the new improved flat hinge
- Length 6ft (1829mm)
- Weight 15.8kg
- Capacity 300kg
- Internal width 715mm
- Max. load height 300mm
7ft
- The 7ft with Barrel Hinge, NOT flat hinge
- Length 7ft (2130mm)
- Weight 19kg
- Capacity 275kg
- Internal width 715mm
- Max. load height 355mm
8ft
- The 8ft with Barrel Hinge, NOT flat hinge
- Length 8ft (2440mm)
- Weight 24.1kg
- Capacity 275kg
- Width 750mm
- Max. load height 405mm
SKU | TRP607-folding-multi |
---|---|
Capacity (kg) | 275-300 |
Internal Width (mm) | 715 |
Length (ft) | 2 - 8 |
Length (mm) | 610- 2440 |
Max Load Height (mm) | 405 |
Min. Load Height (mm) | 61 |
Total Width (mm) | 720 |
Weight (kg) | 5.4 - 23 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
Ramp Length & Load Height
It is crucial for you to know your load height to identify which ramp length you require. The load height is the vertical measurement from the ground to where you rest the ramp onto.
Once you have the load height you can use our simple ramp length calculator to identify which ramp length you require, alternatively please contact our team.
Manual Wheelchairs:
Minimum recommended gradient: 1:6
Example: for a 1ft load height you'll need a 6ft long ramp.
Mobility Scooters:
Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance)
Example: for a 1ft load height you'll need an 8ft long ramp.
