Adjustable Platform - (935mm x 1010mm) Black With Yellow edges

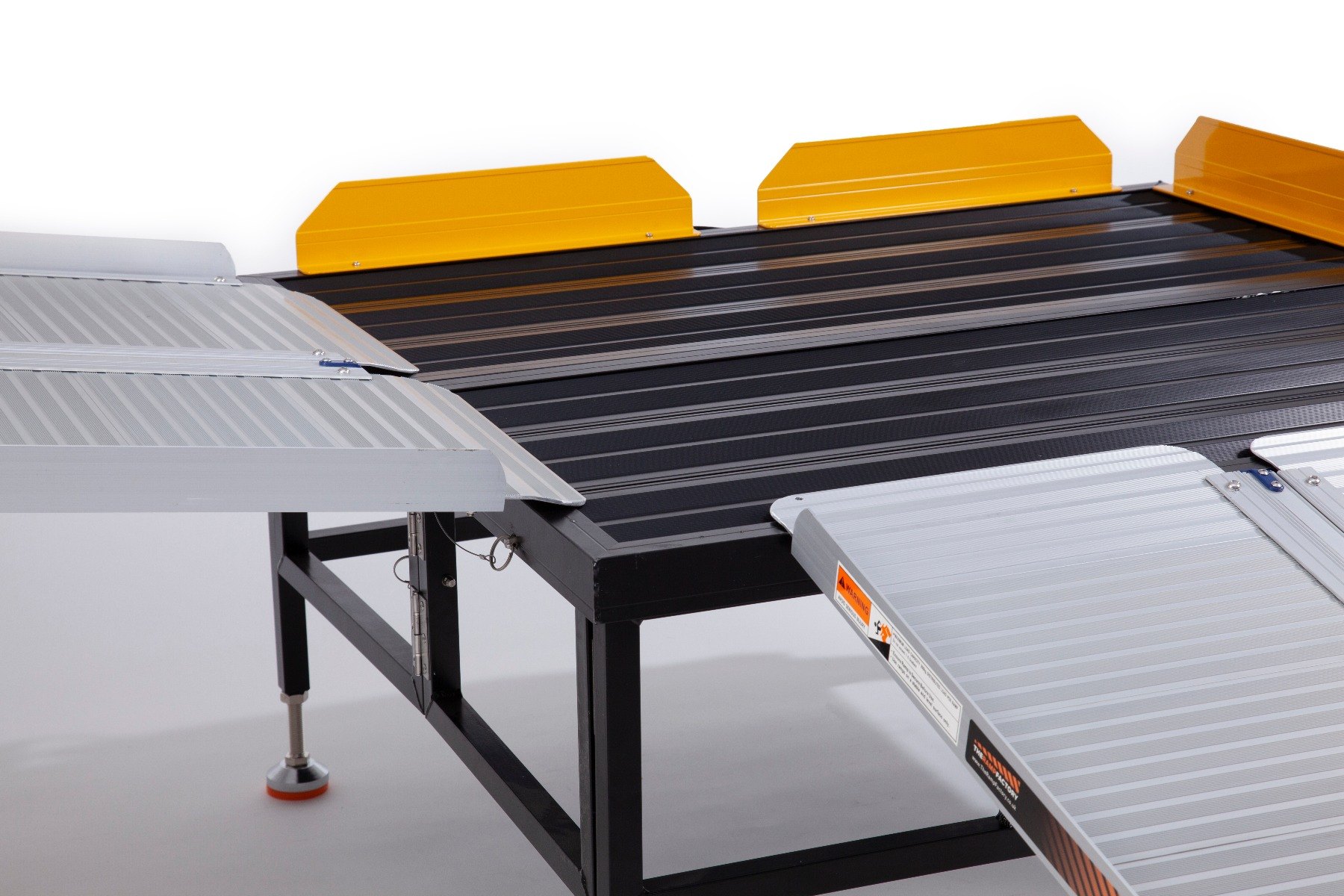

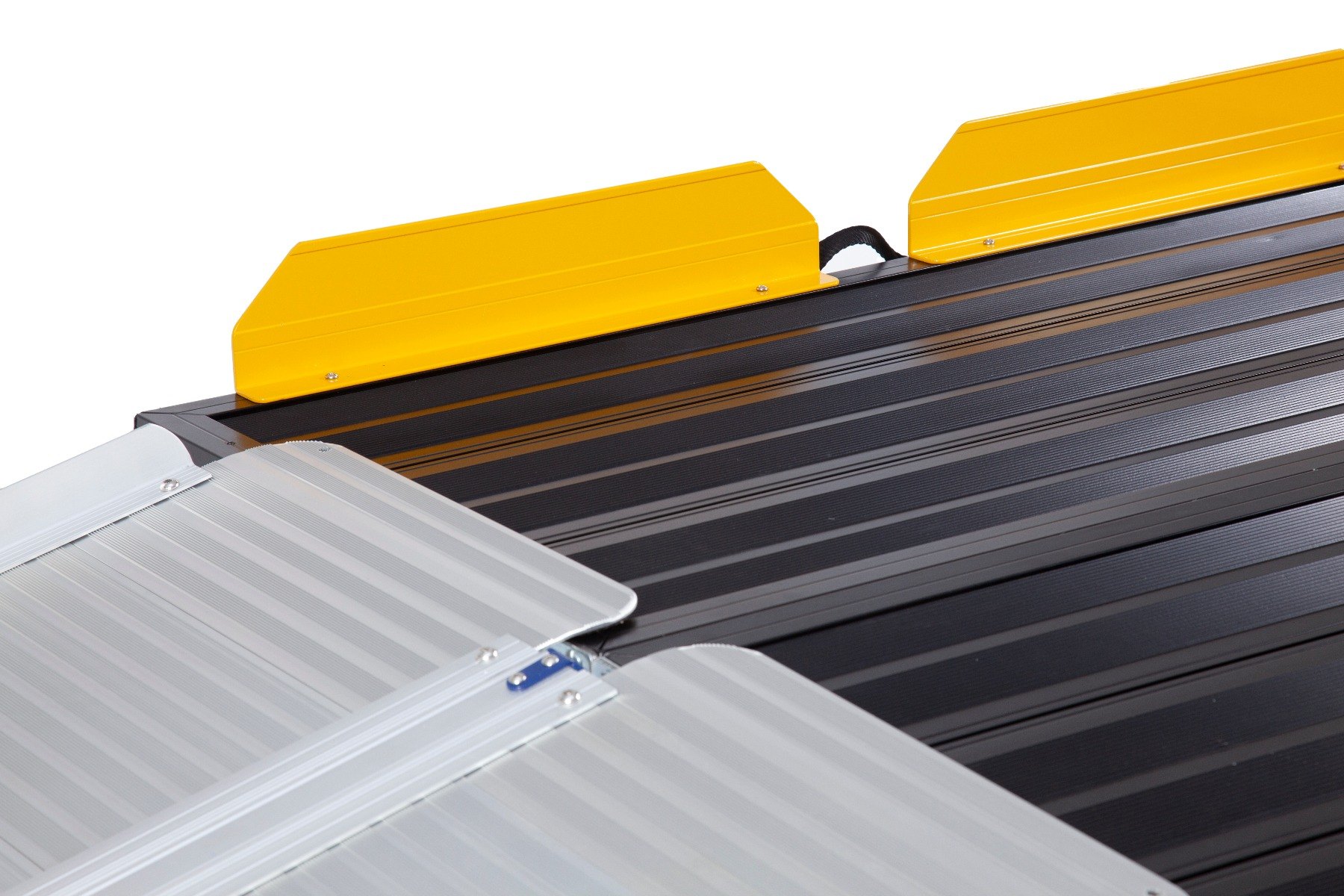

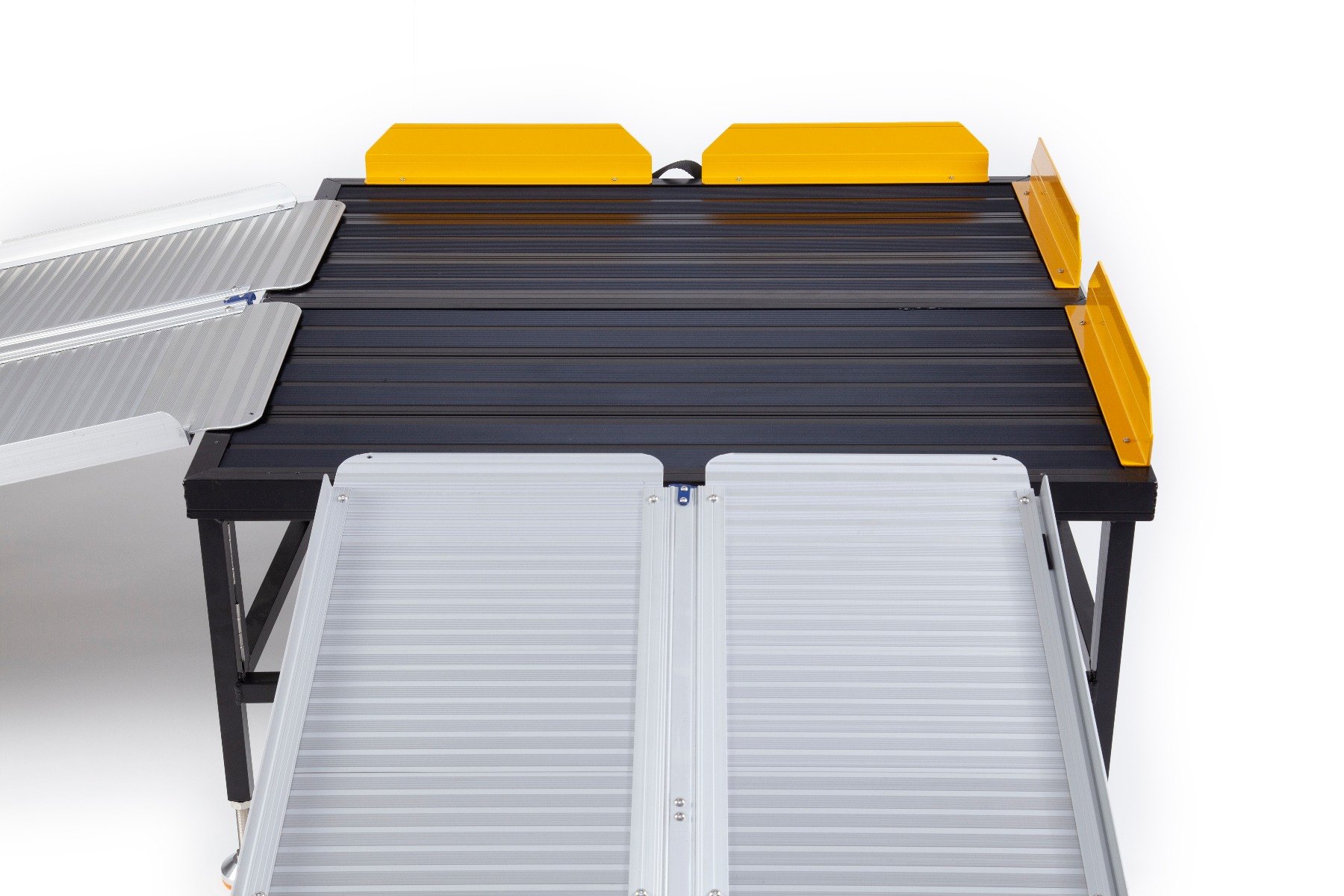

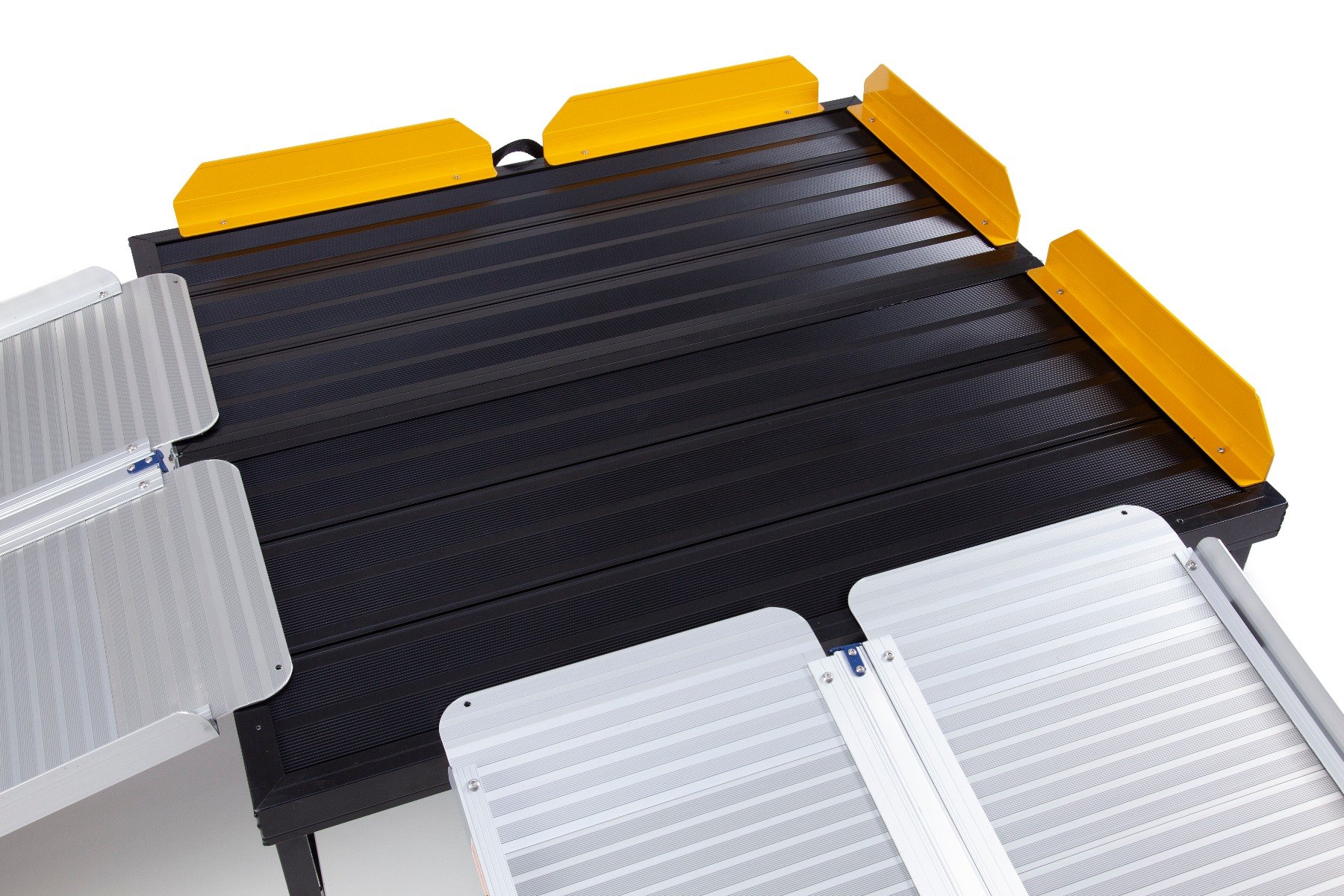

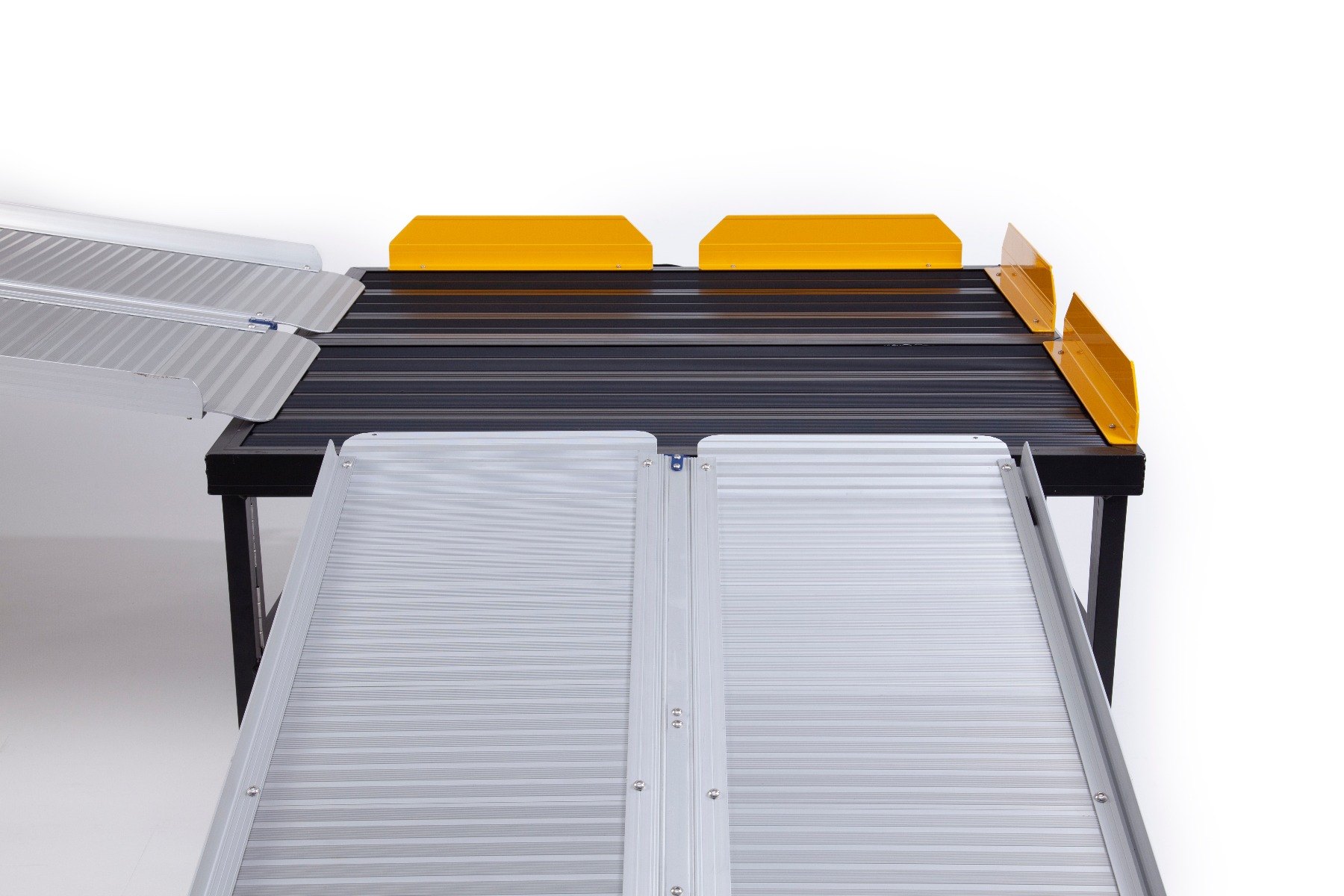

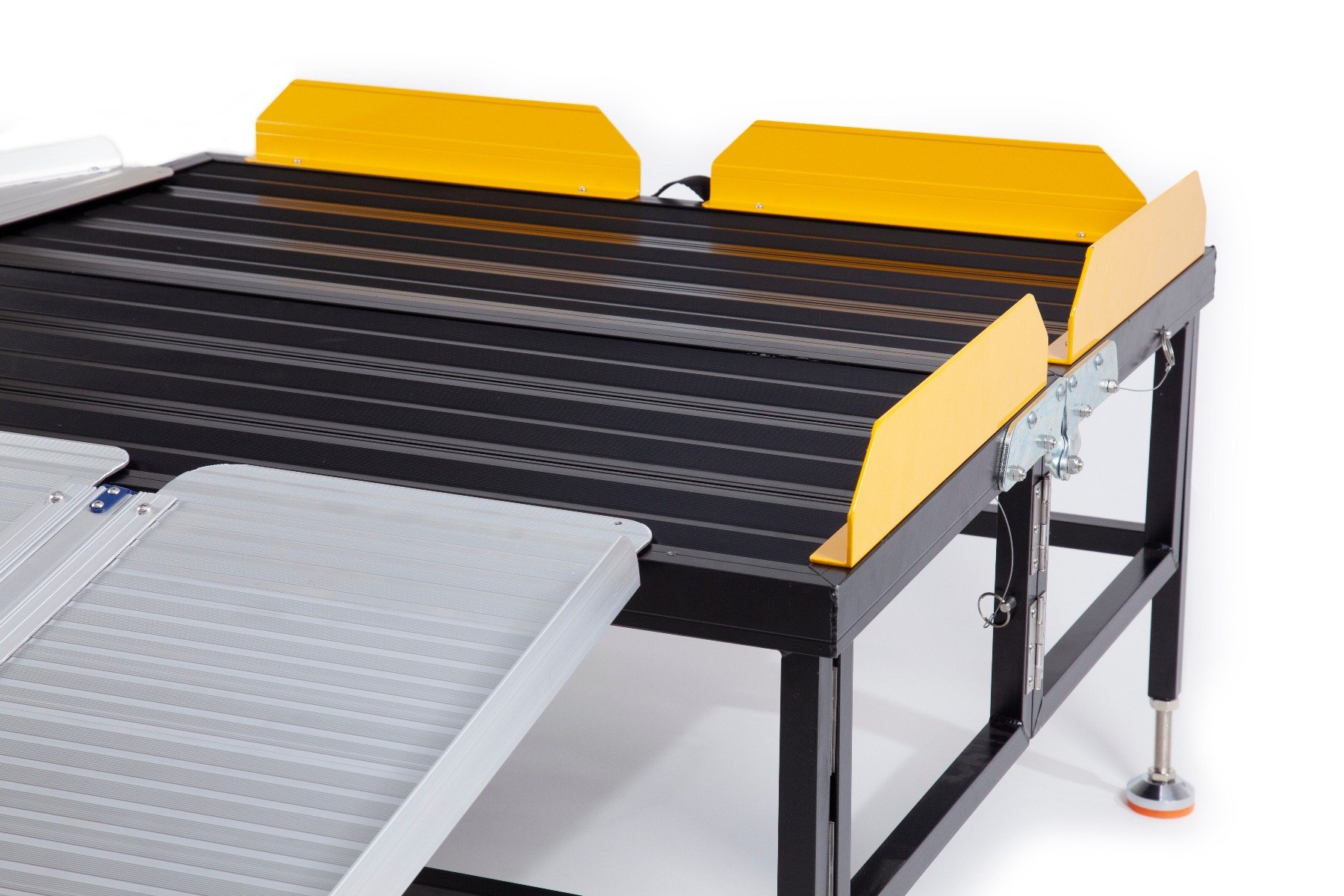

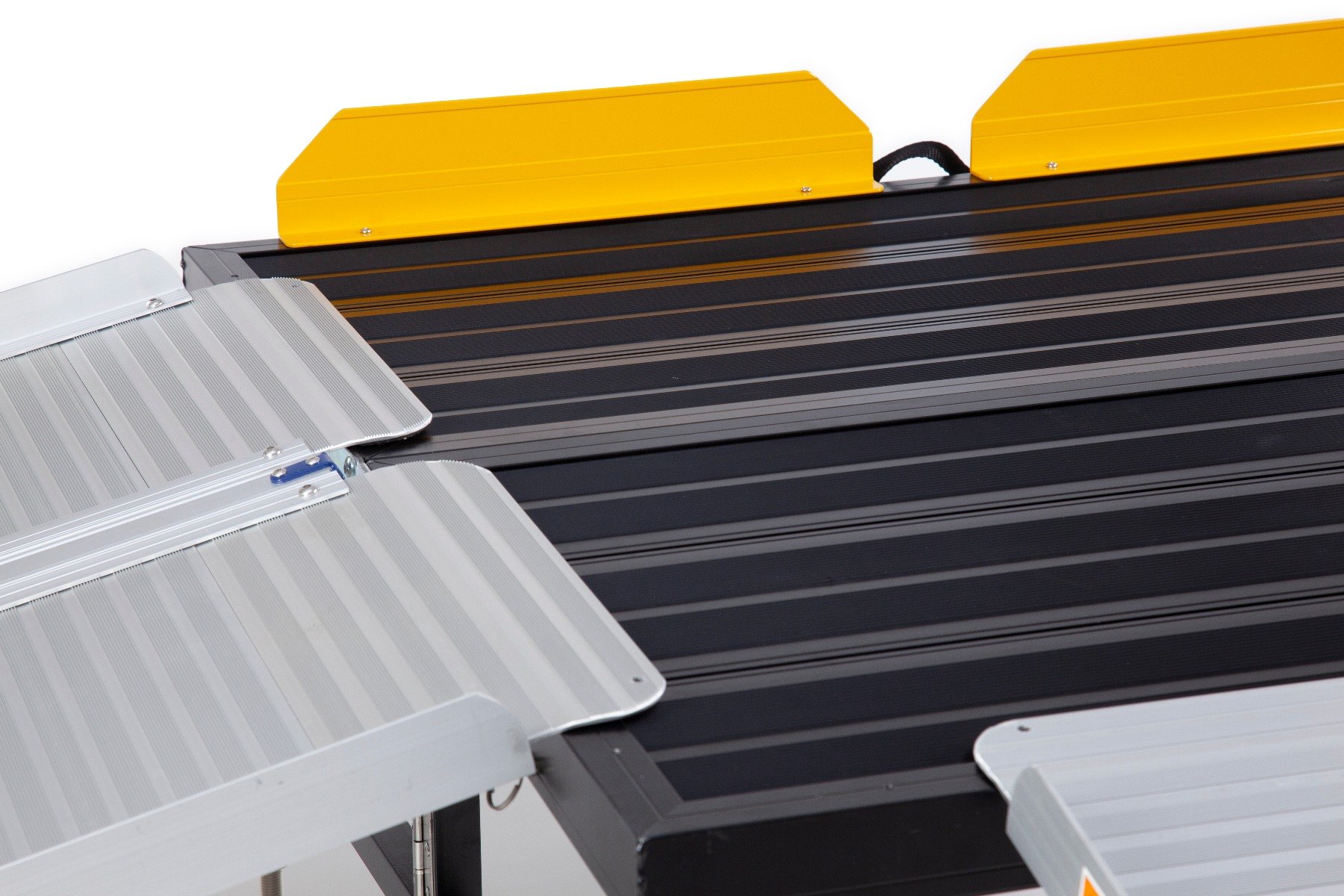

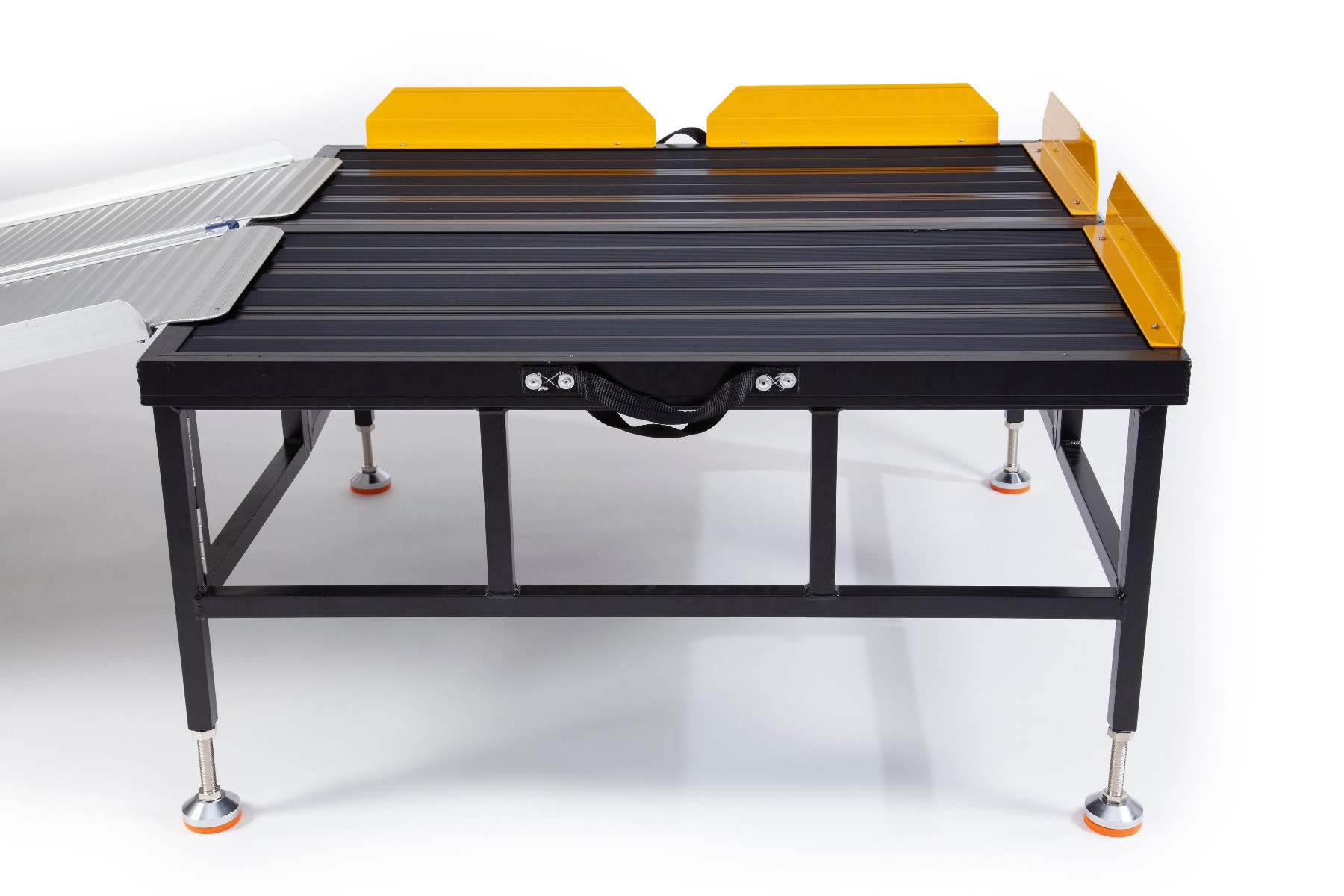

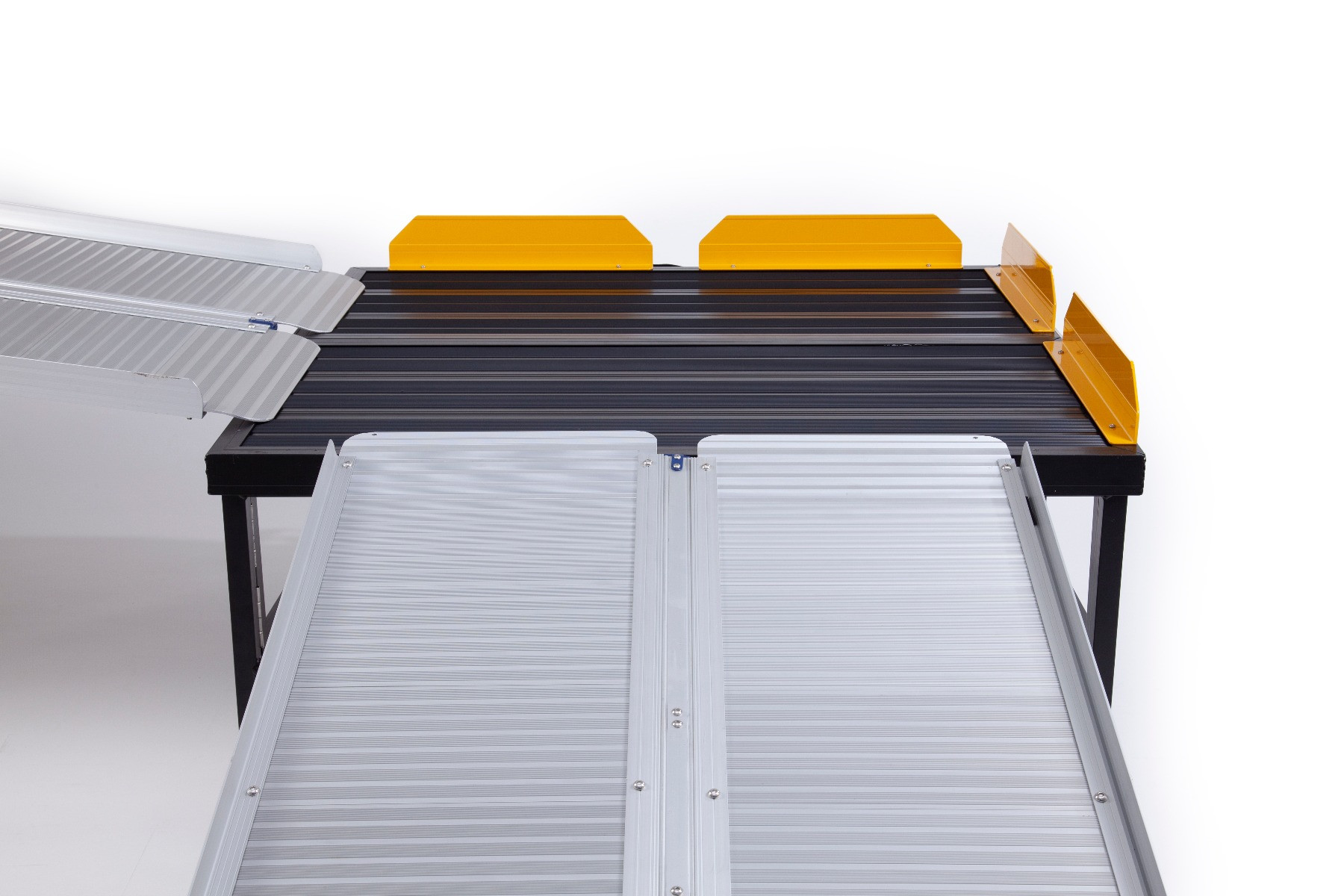

Platforms are often used to allow wheelchair users to take a 90-degree turn. They are a popular solution where space is limited and users are unable to have a straight ramp, for example due to restrictions based on the pavement size or patio size. The adjustable platform can be used in combination with two of our wheelchair ramps. Users will then go from the doorway down one ramp onto the platform and take a turn prior to going down a further ramp to reach ground level.

Adjustable platform TRP-Platform-MK2

• Platform plate unfolded(mm): 935 x 1010
• Platform plate folded(mm): 468 x 1010
• Platform plate Depth(mm): 144
• Platform plate weight(kg): 16.5
• Platform frame unfolded(mm): 935 x 1010 x 200 H
• Platform frame folded(mm): 978 x 179 x 200 H
• Platform frame weight(kg): 9

Wheelchair Platform main features:

• Allow wheelchair users to take a 90 degree turn.

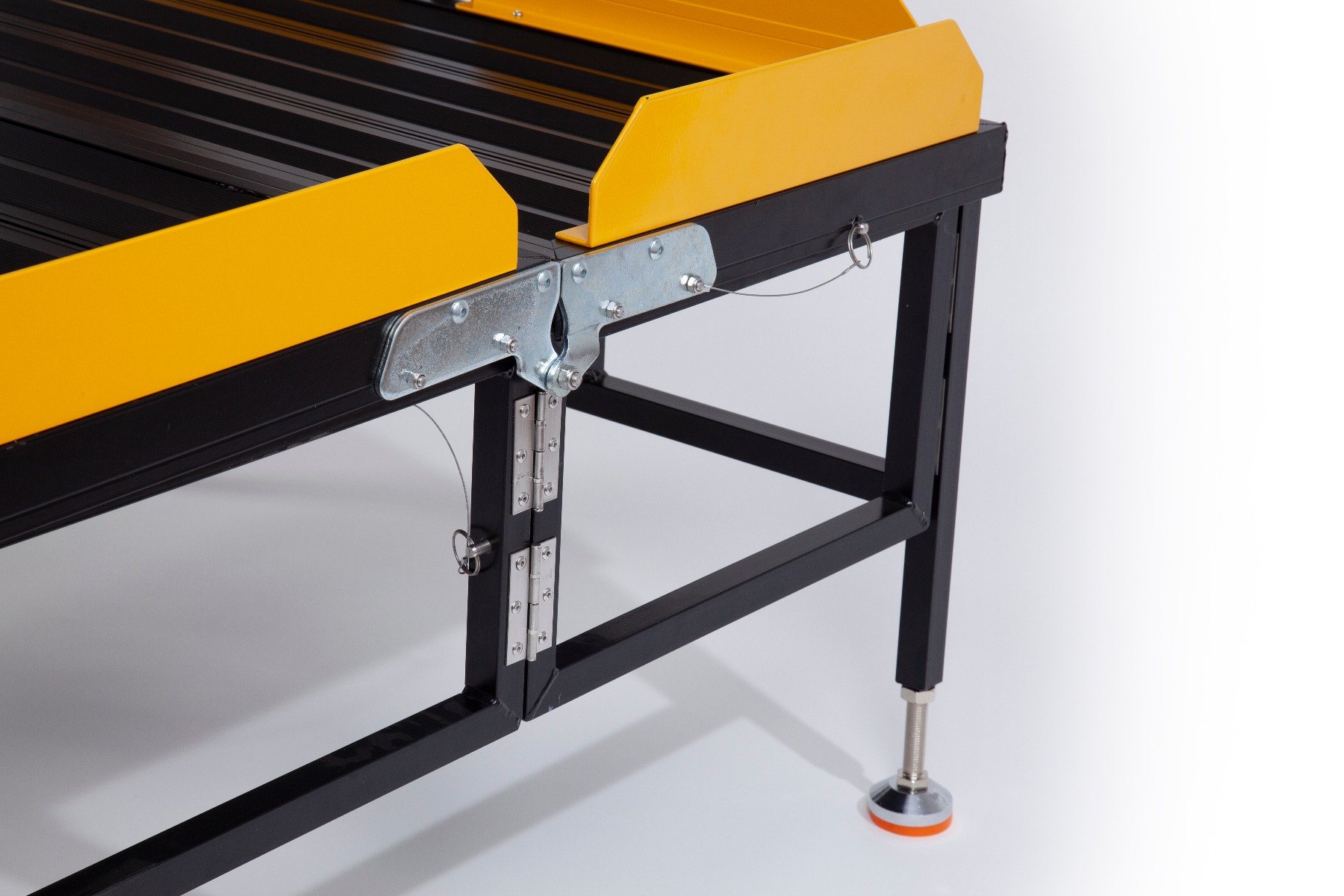

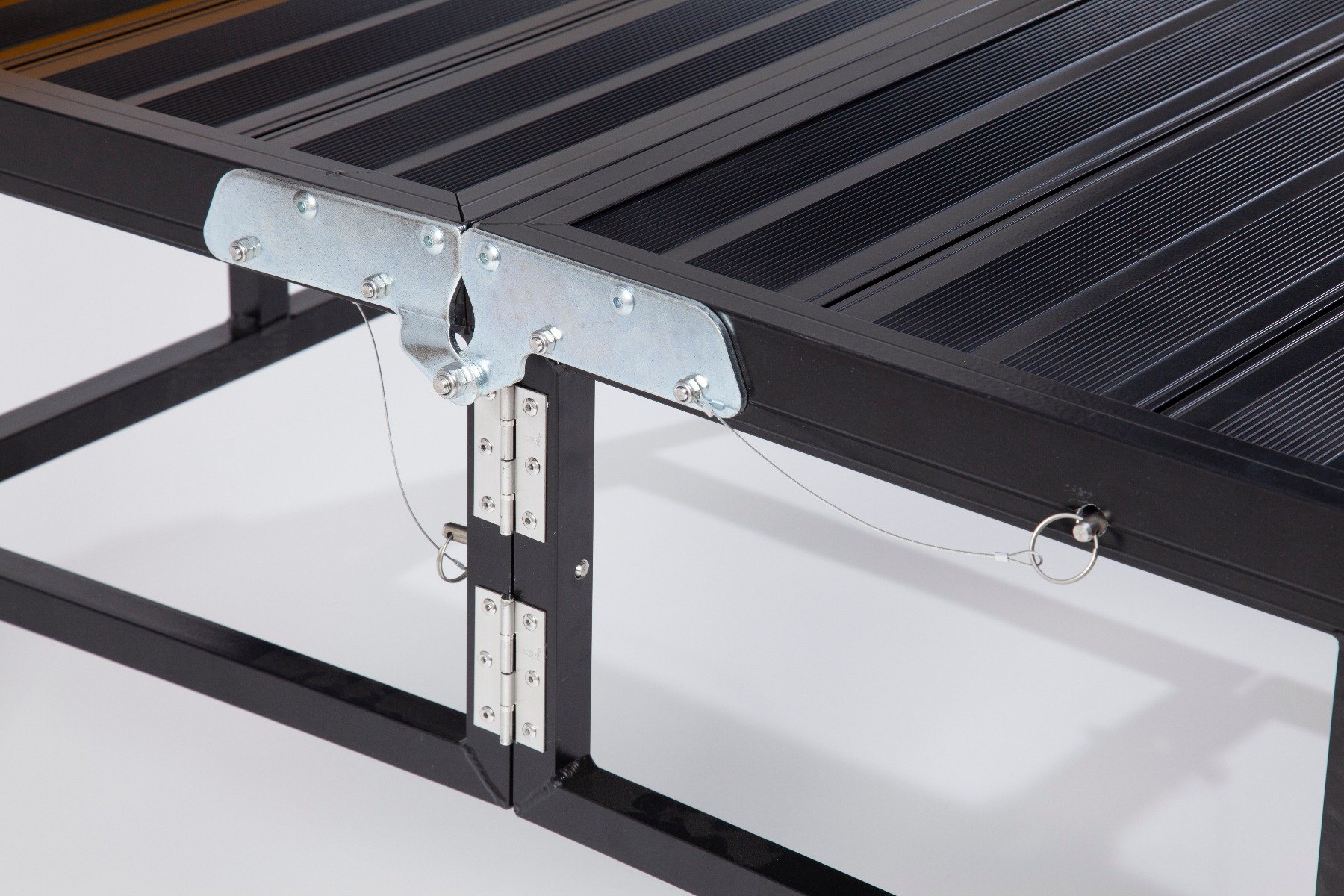

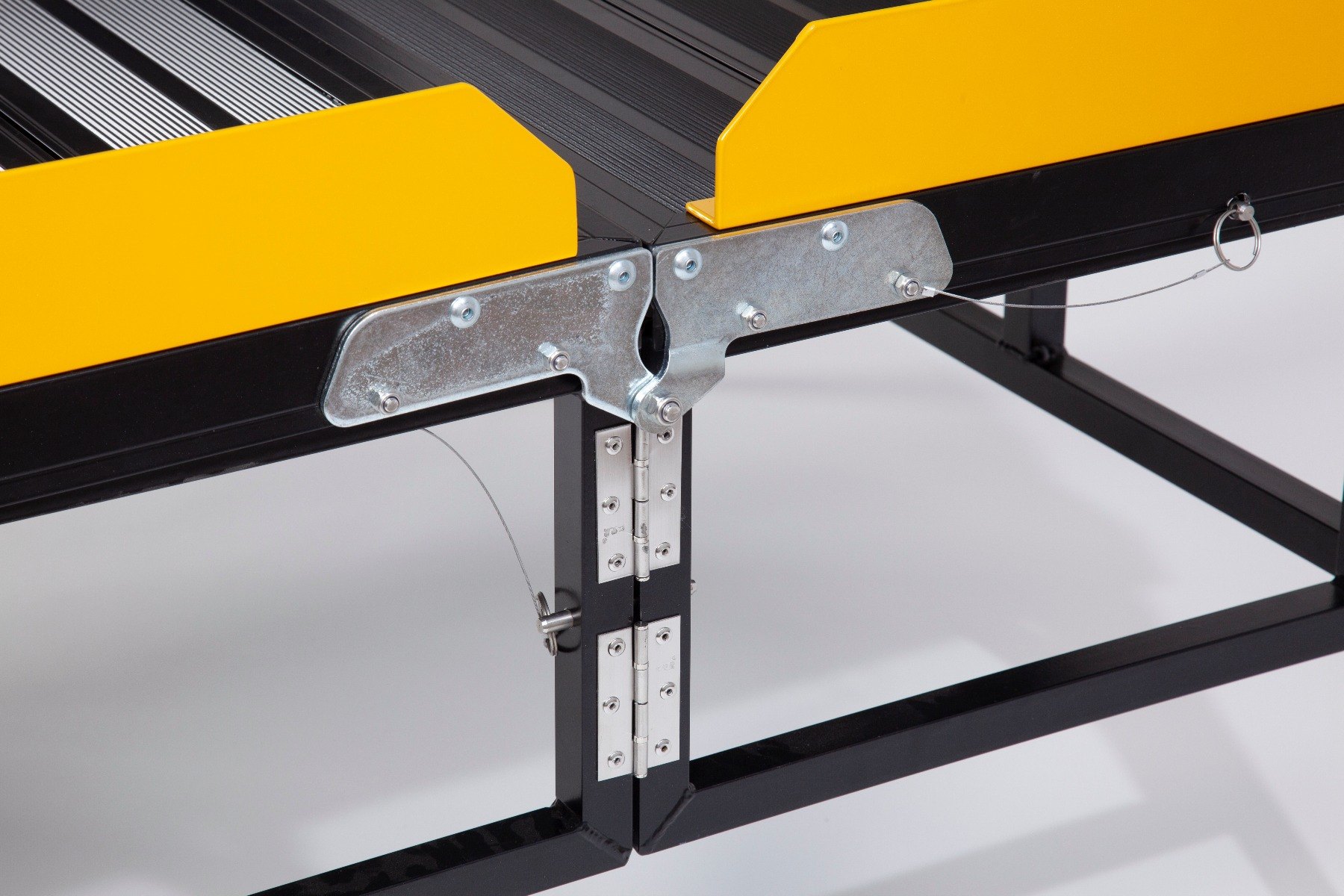

• The Platform can be easily assembled/disassembled with an innovative design. An easy guide can be found here.

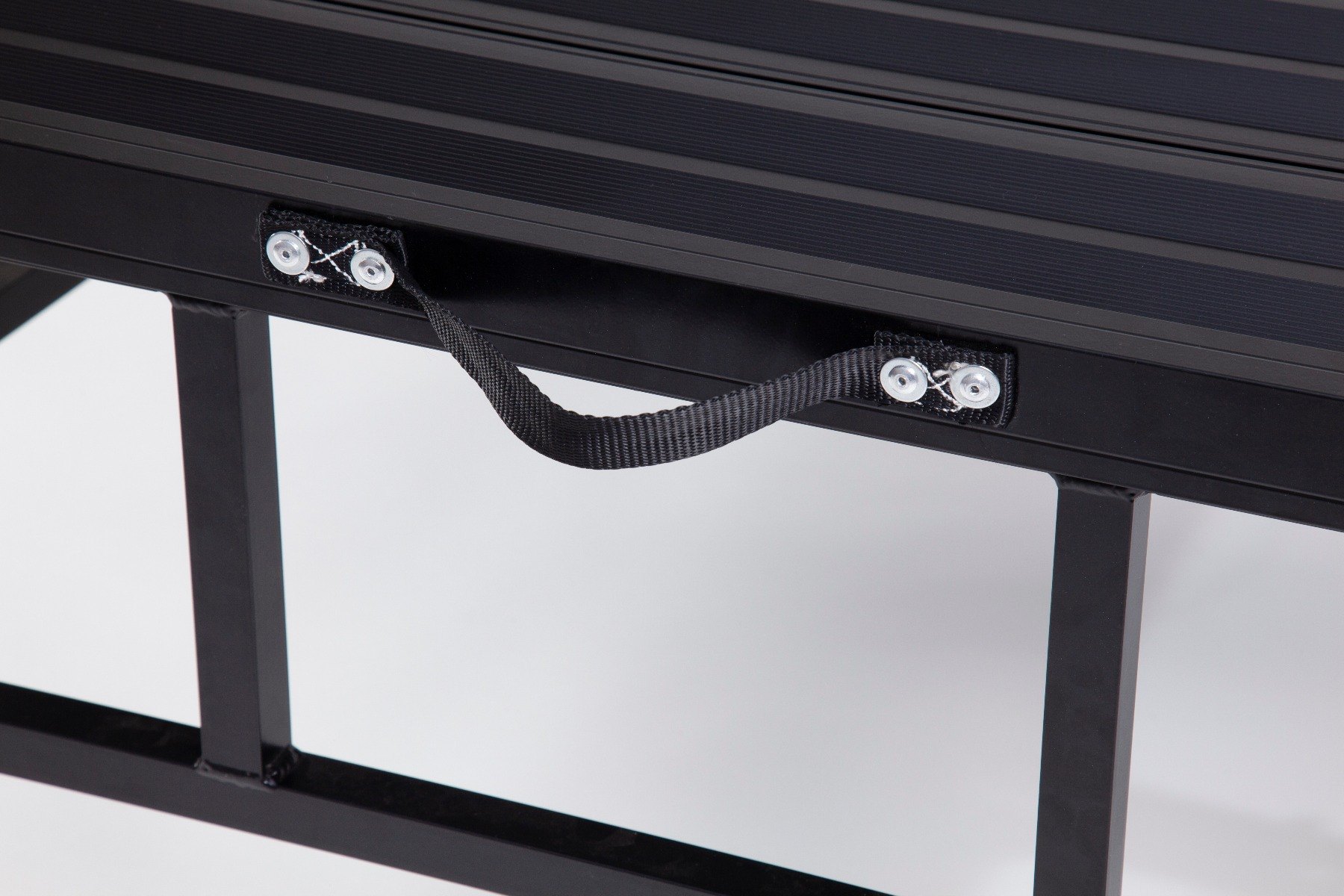

• Lightweight, frame weight 9kg and top surface 16.5kg making it easy to carry and for a fast change of position

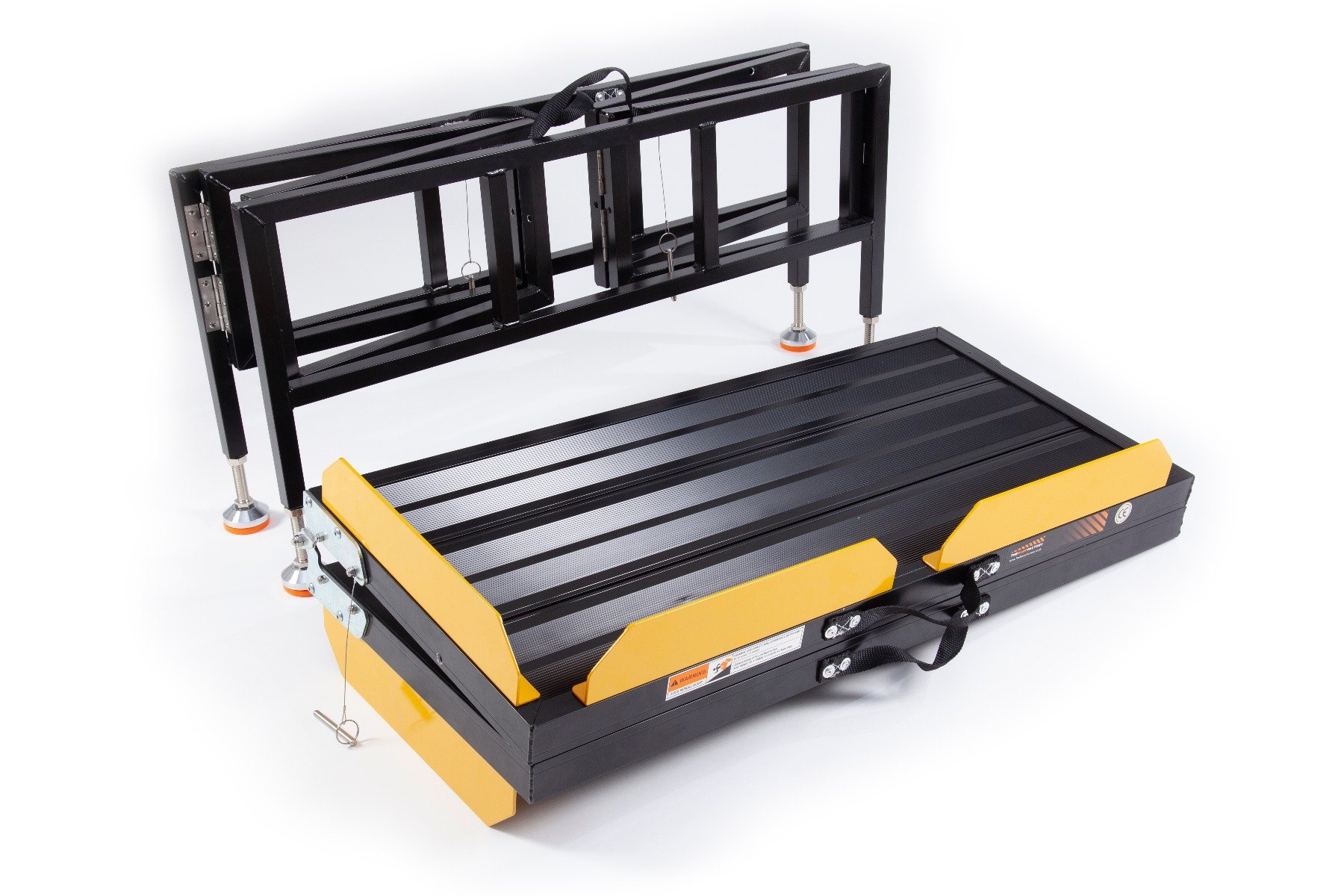

• Compact, easily stored as it requires minimum space

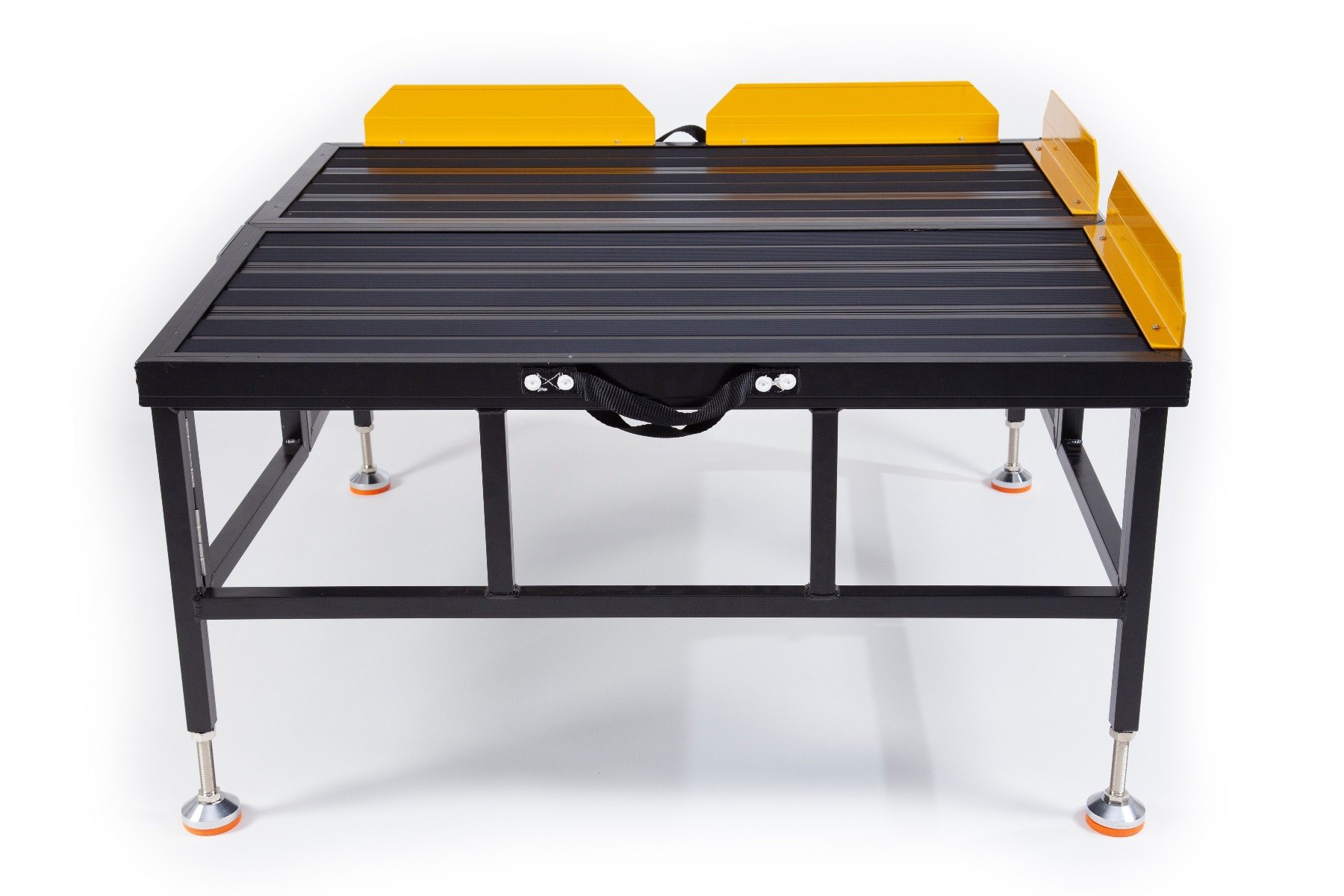

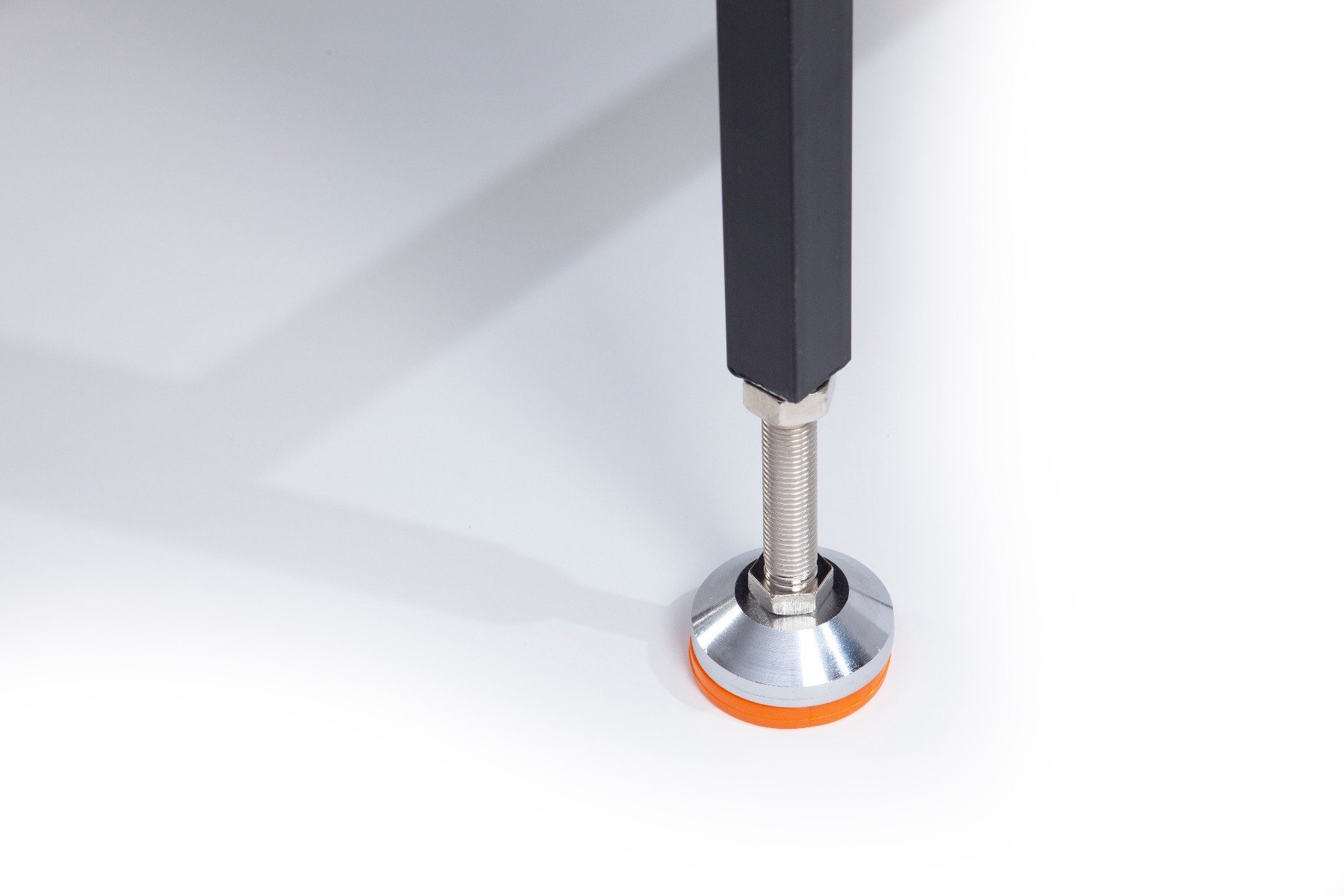

• Build with 4 independent legs, this allows the users to adjust each leg individually to get the correct height even on uneven ground
• Suitable for up to 950mm wide ramps
• Adjustable in heights between 250mm - 530mm
• Weight Capacity of 300kg
• Can be used with our range of wheelchair ramps including our economy wheelchair ramps and premium wheelchair ramps
• The price is for the platform only, no ramps are included
• Packaging dimenions (2 boxes) - Platform: 105cm x 45xm x 15cm Legs: 105cm x 25cm x 15cm

This is a ramp accessory and are only suitable for use as mobility aids
