Wheelchair Ramps Multi-fold 4ft - 10ft

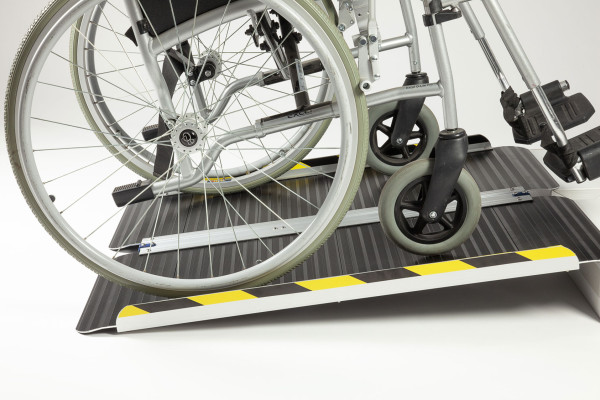

Solid and durable aluminium wheelchair ramp with black non-slip grip surface. Choose from 4ft, 5ft, 6ft, 8ft and 10ft lengths. This disabled access ramp/suitcase ramp folds in half, both it's length and width - from 8ft upwards the ramps split in 2, these are SPLIT ramps and make the ramps much easier to put in place and use.

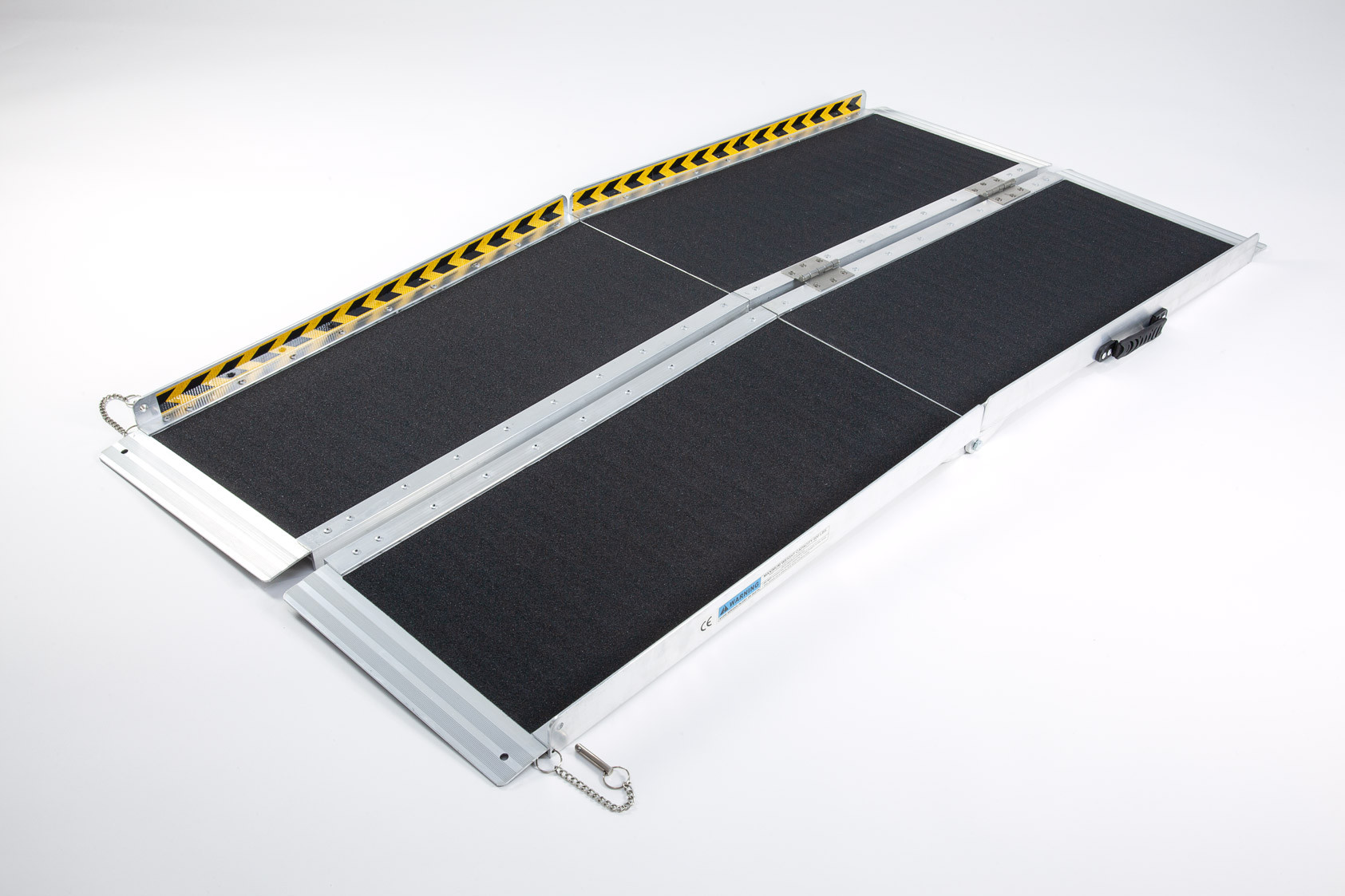

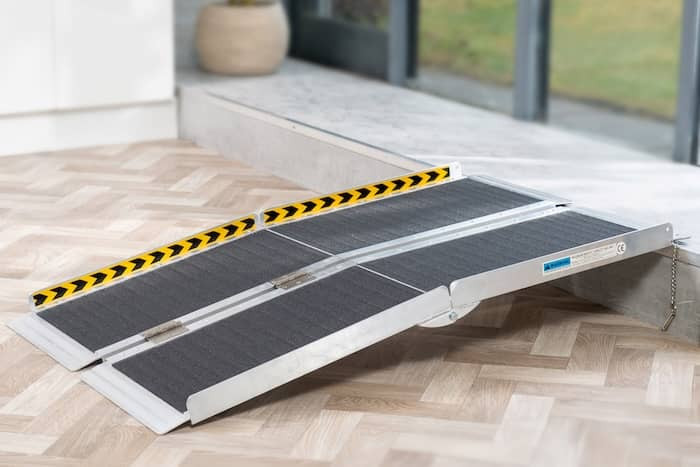

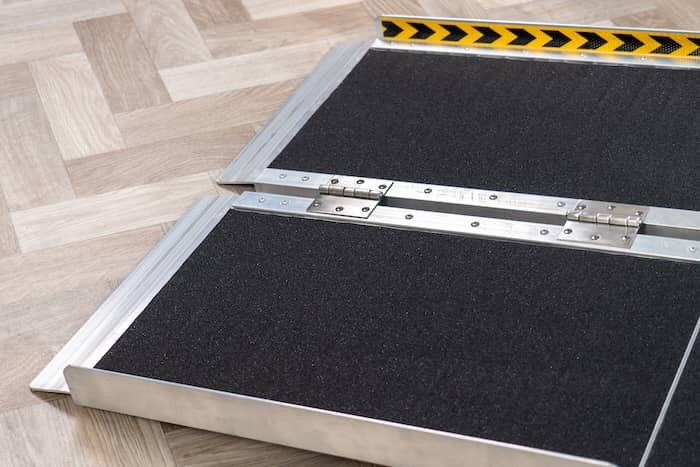

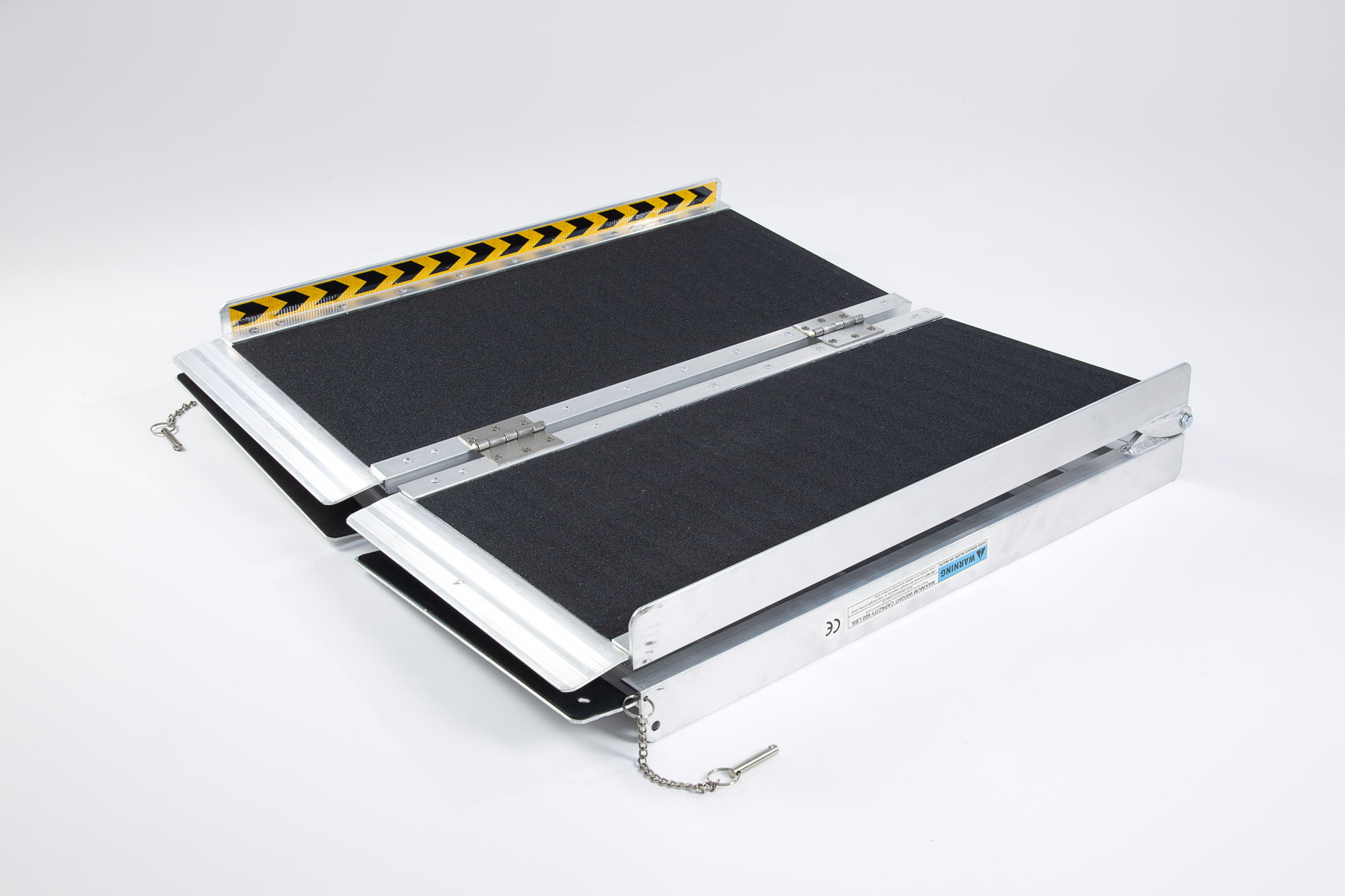

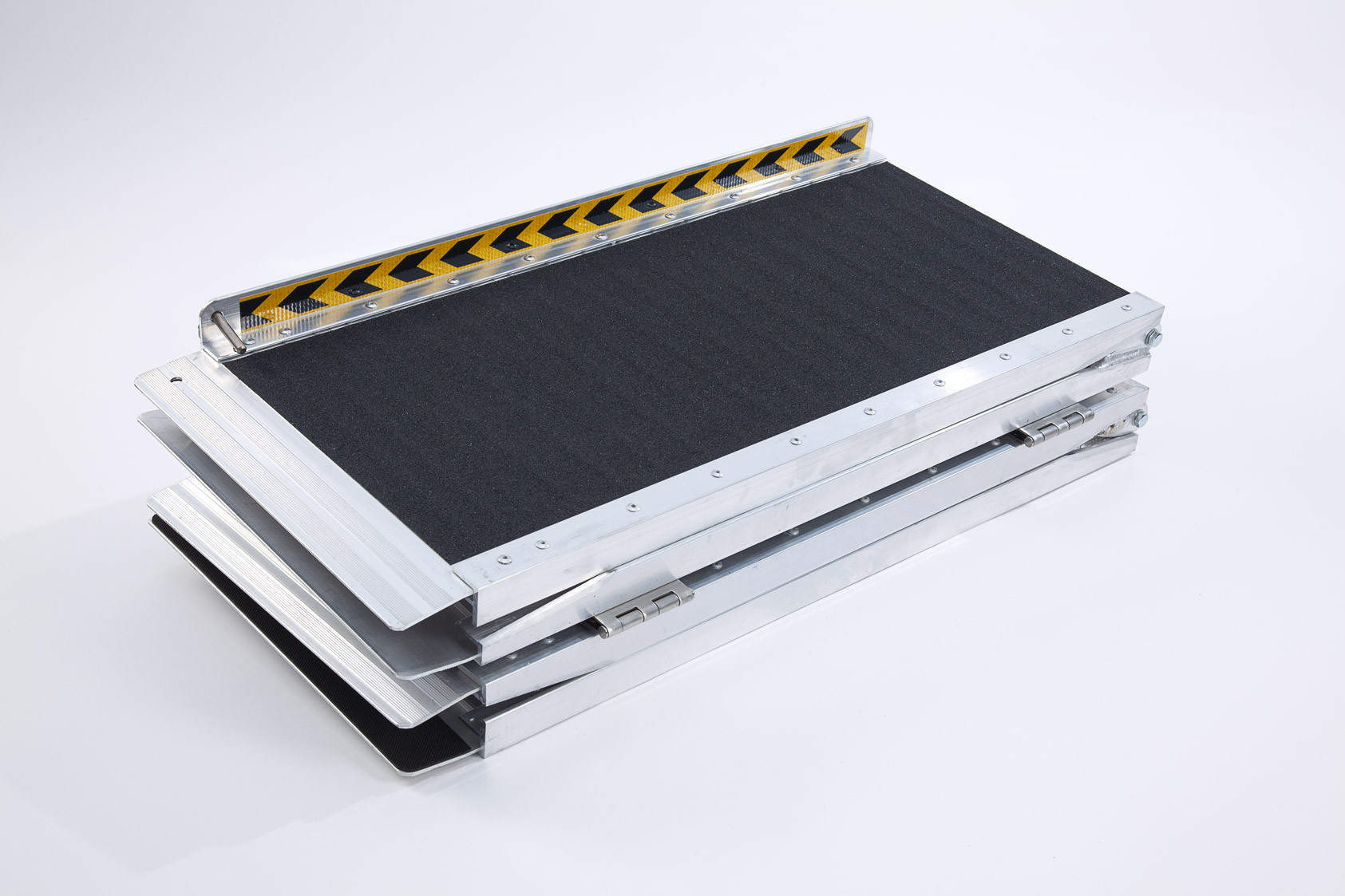

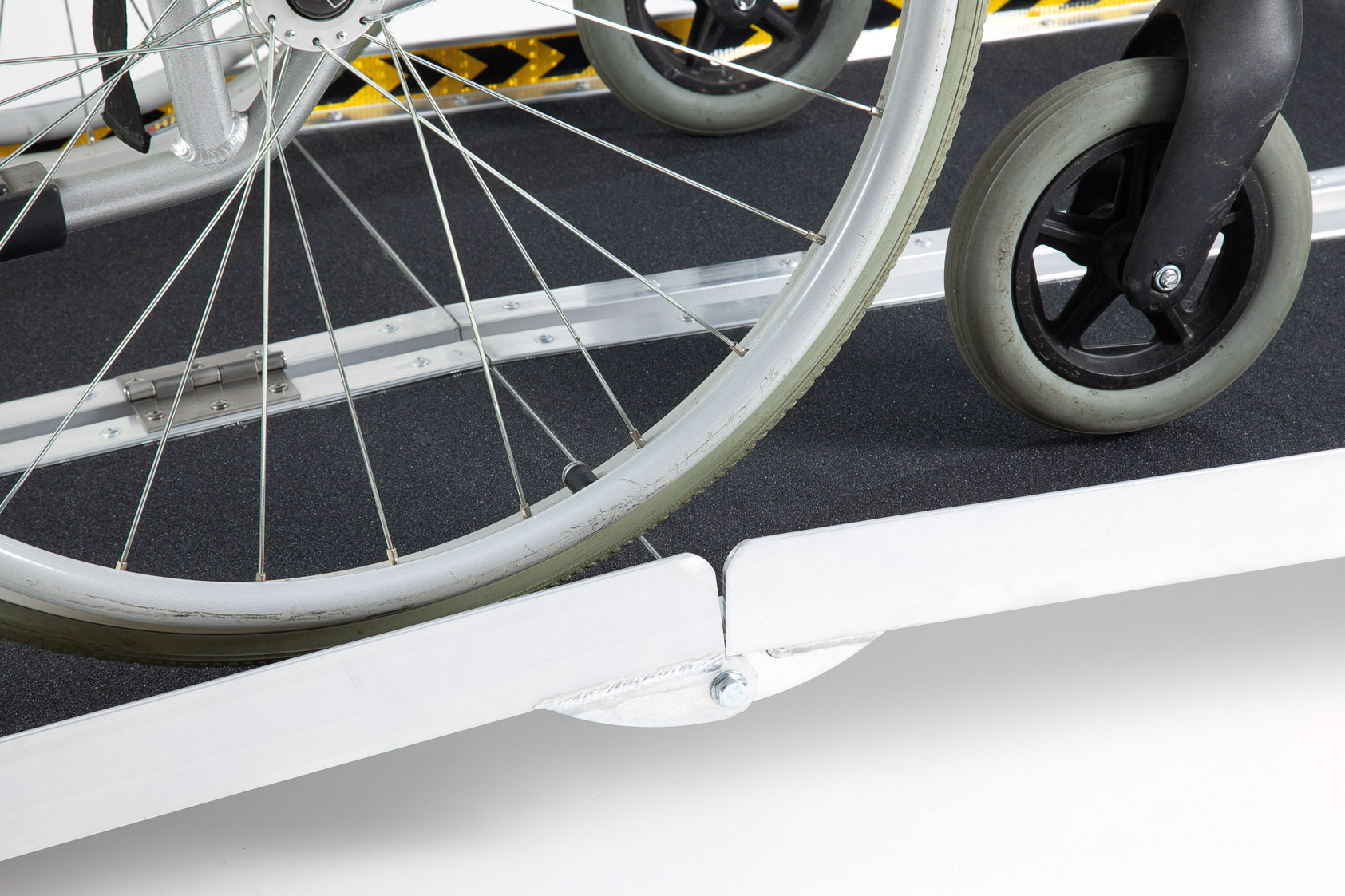

- Folds lengthways and widthways for compact storage and transportation, the 8ft and 10ft suitcase ramps split in two

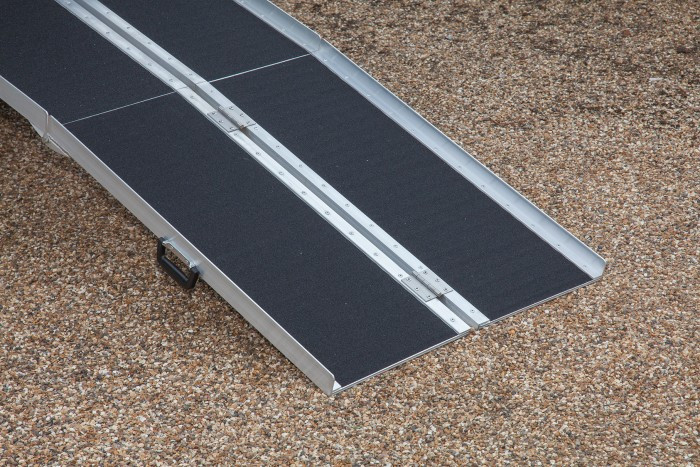

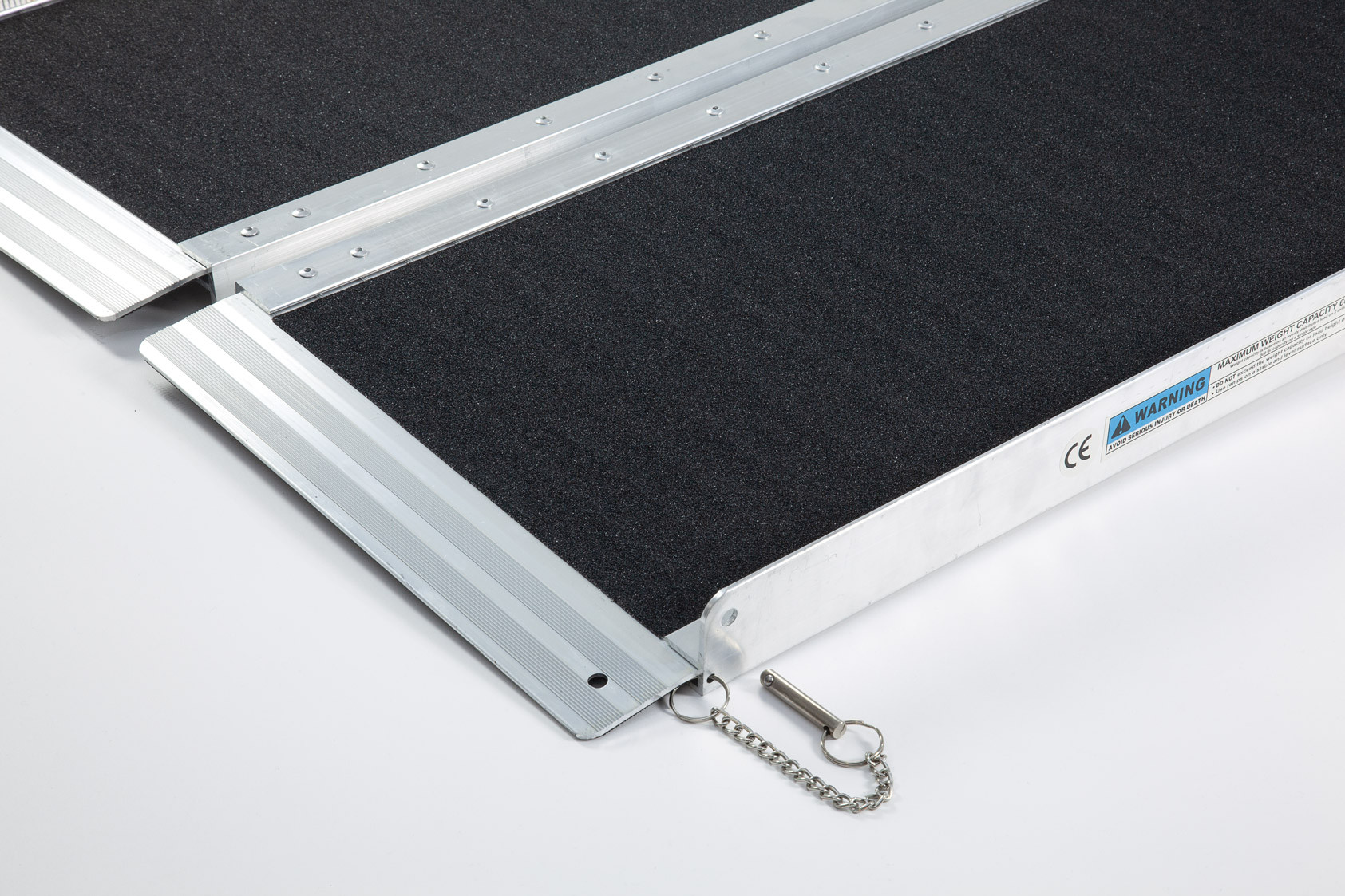

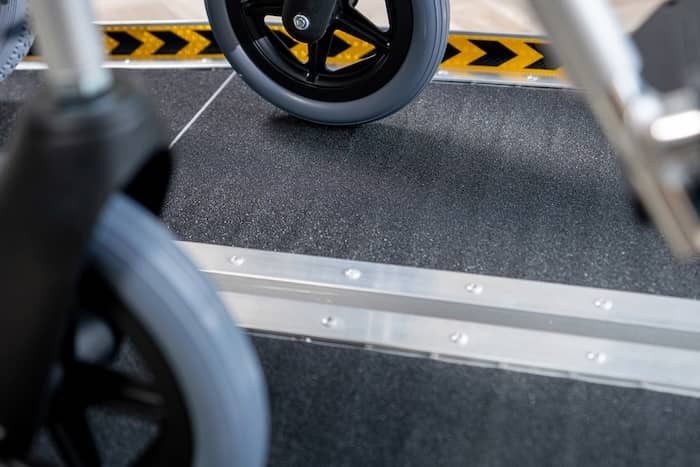

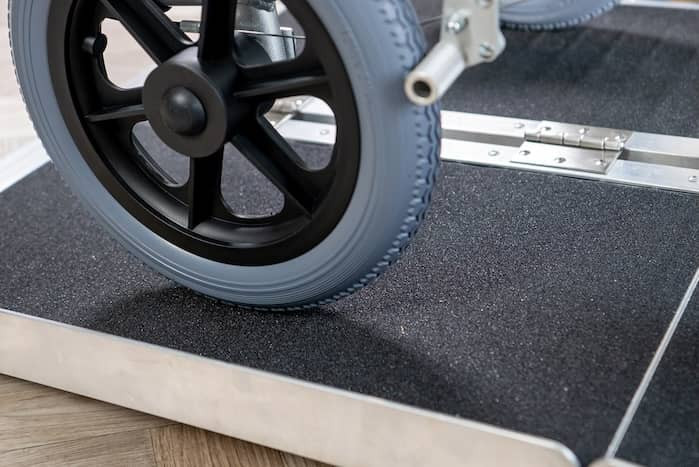

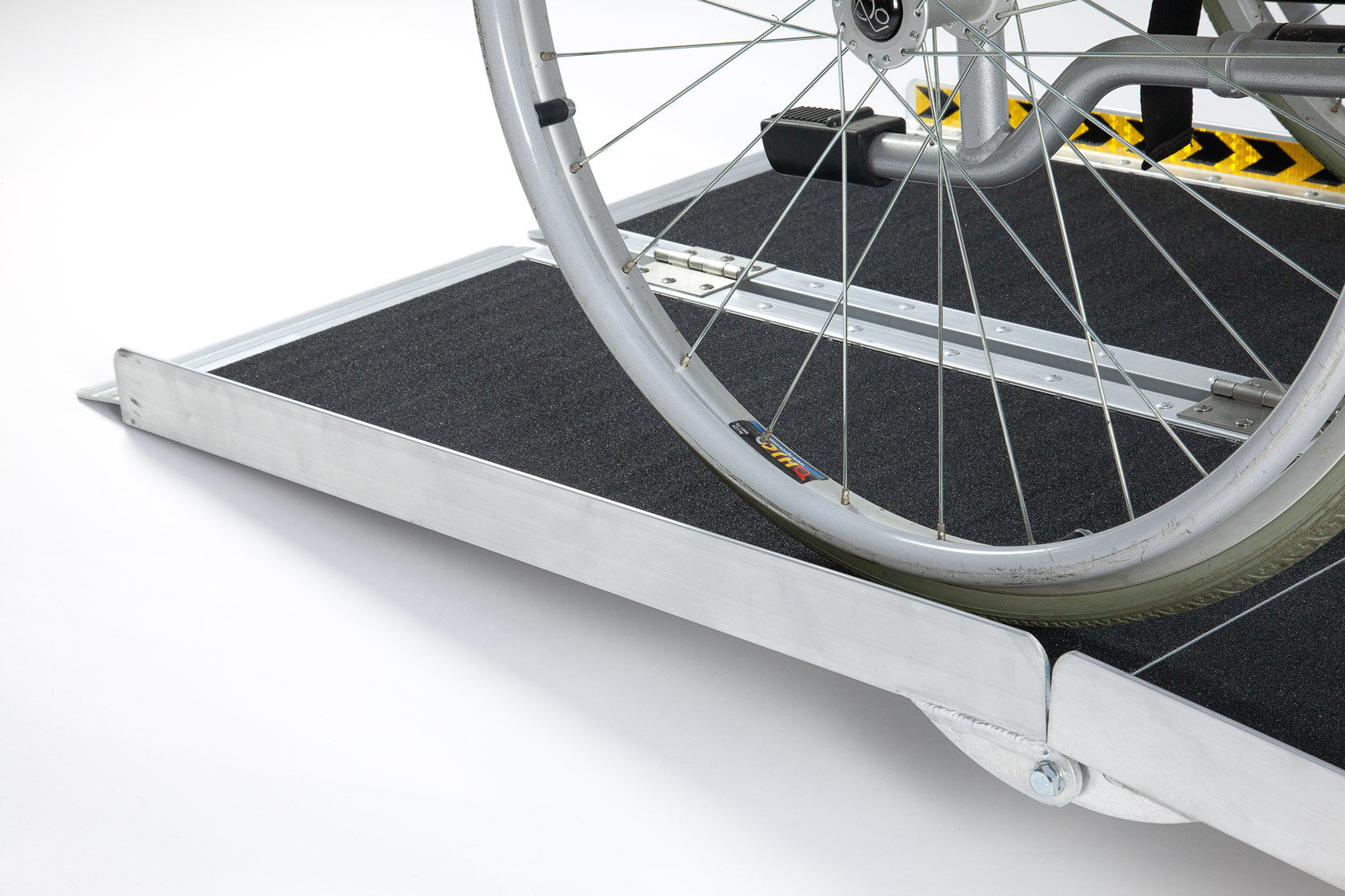

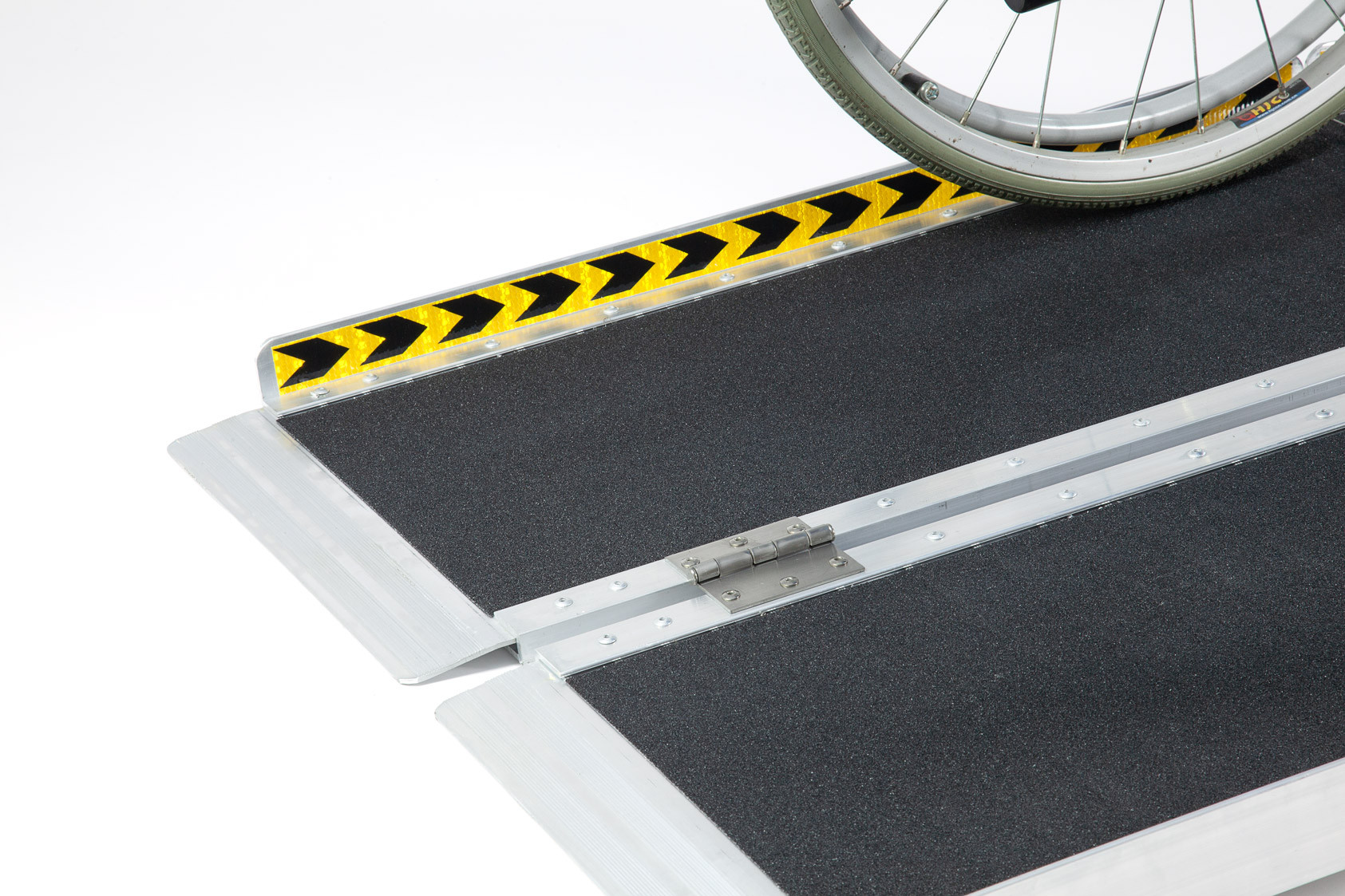

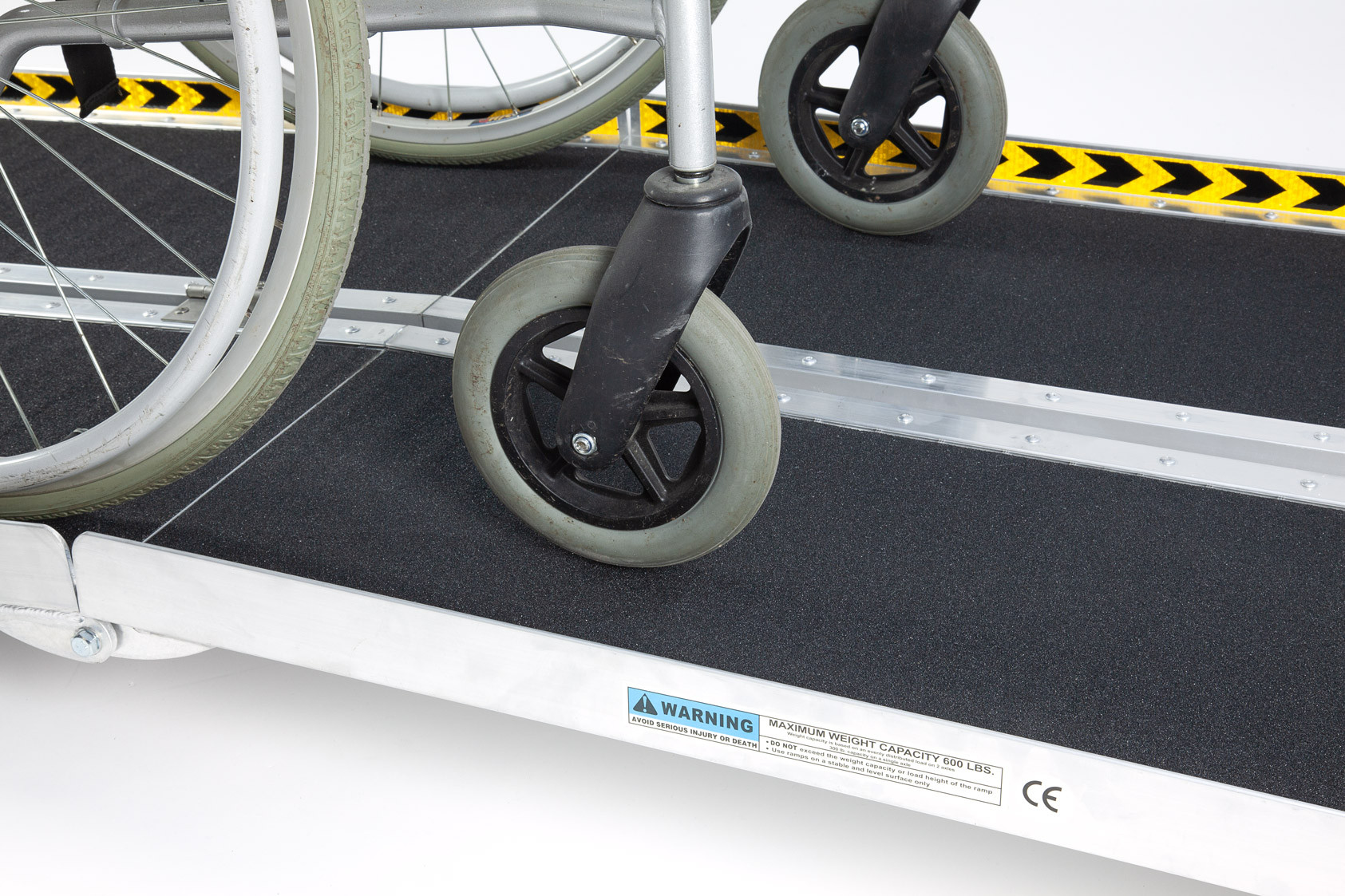

- Black anti-slip grip surface for optimum grip during use

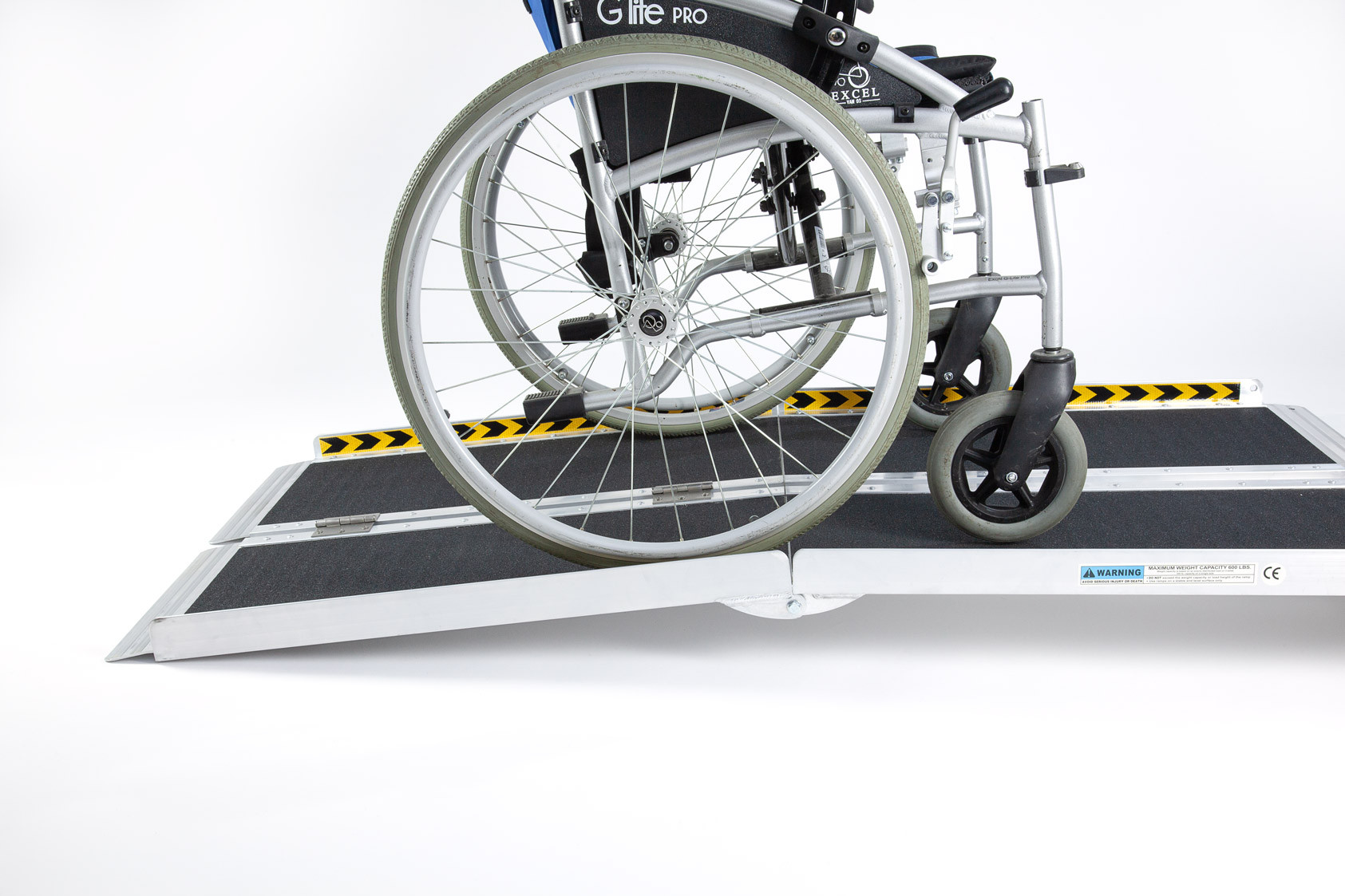

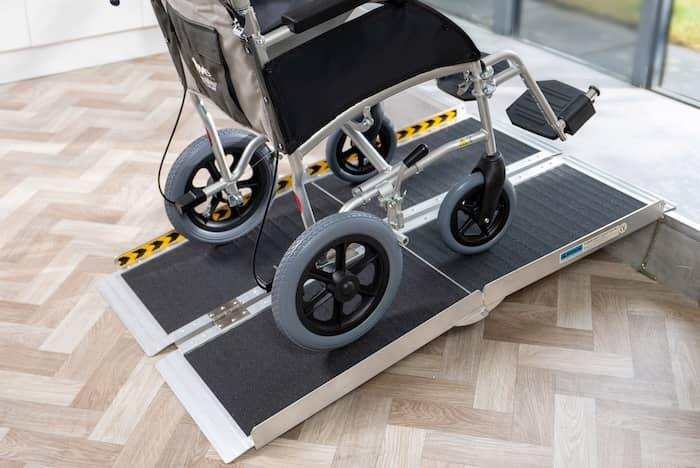

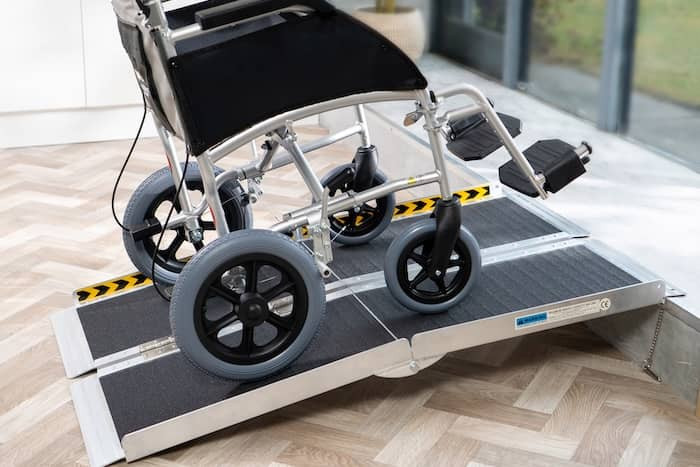

- 275kg capacity, suitable for manual wheelchairs, scooters, walkers and electric wheelchairs

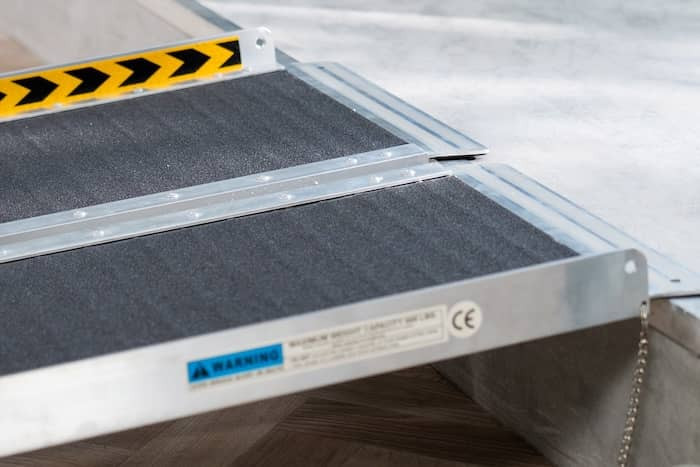

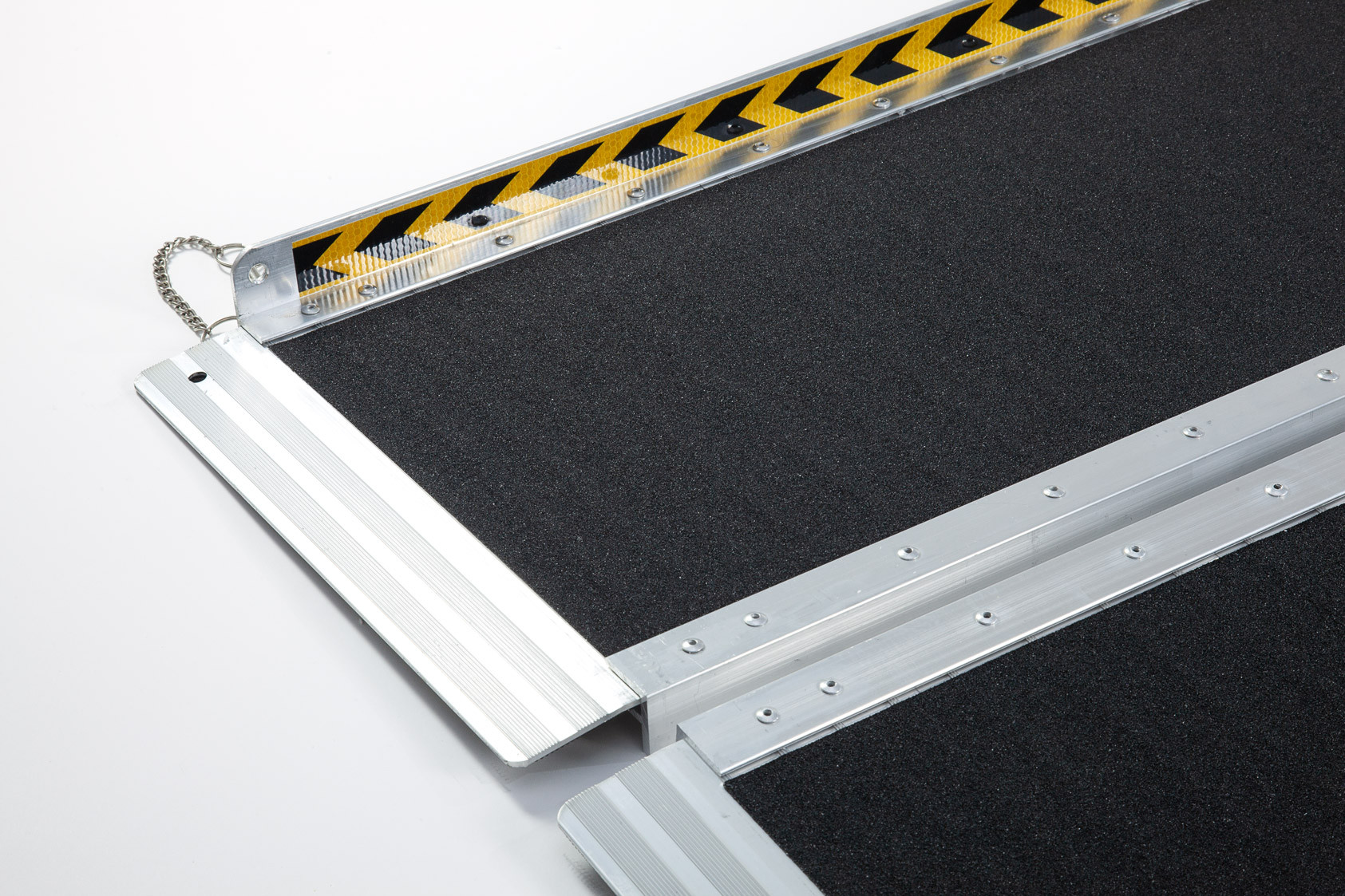

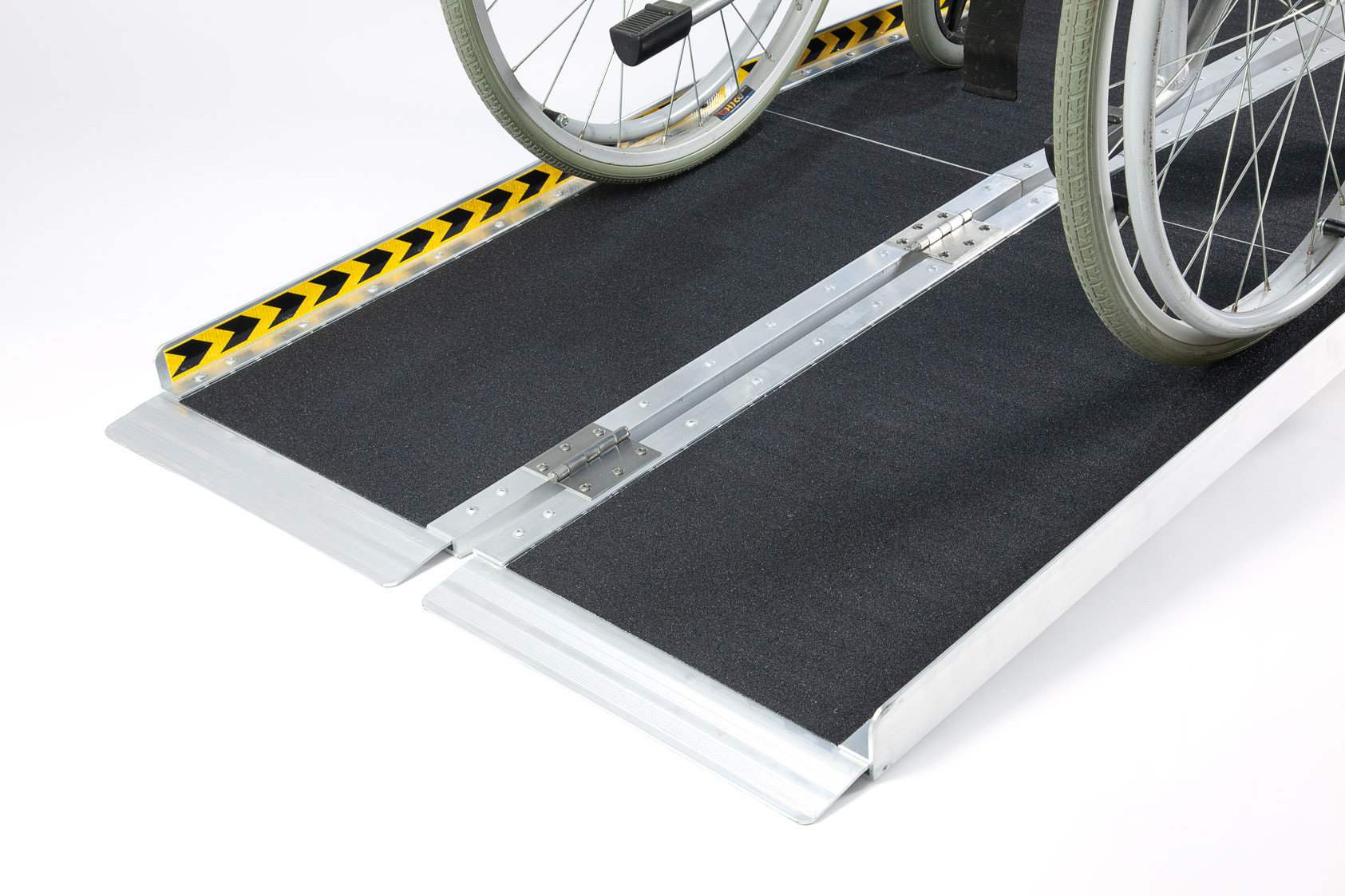

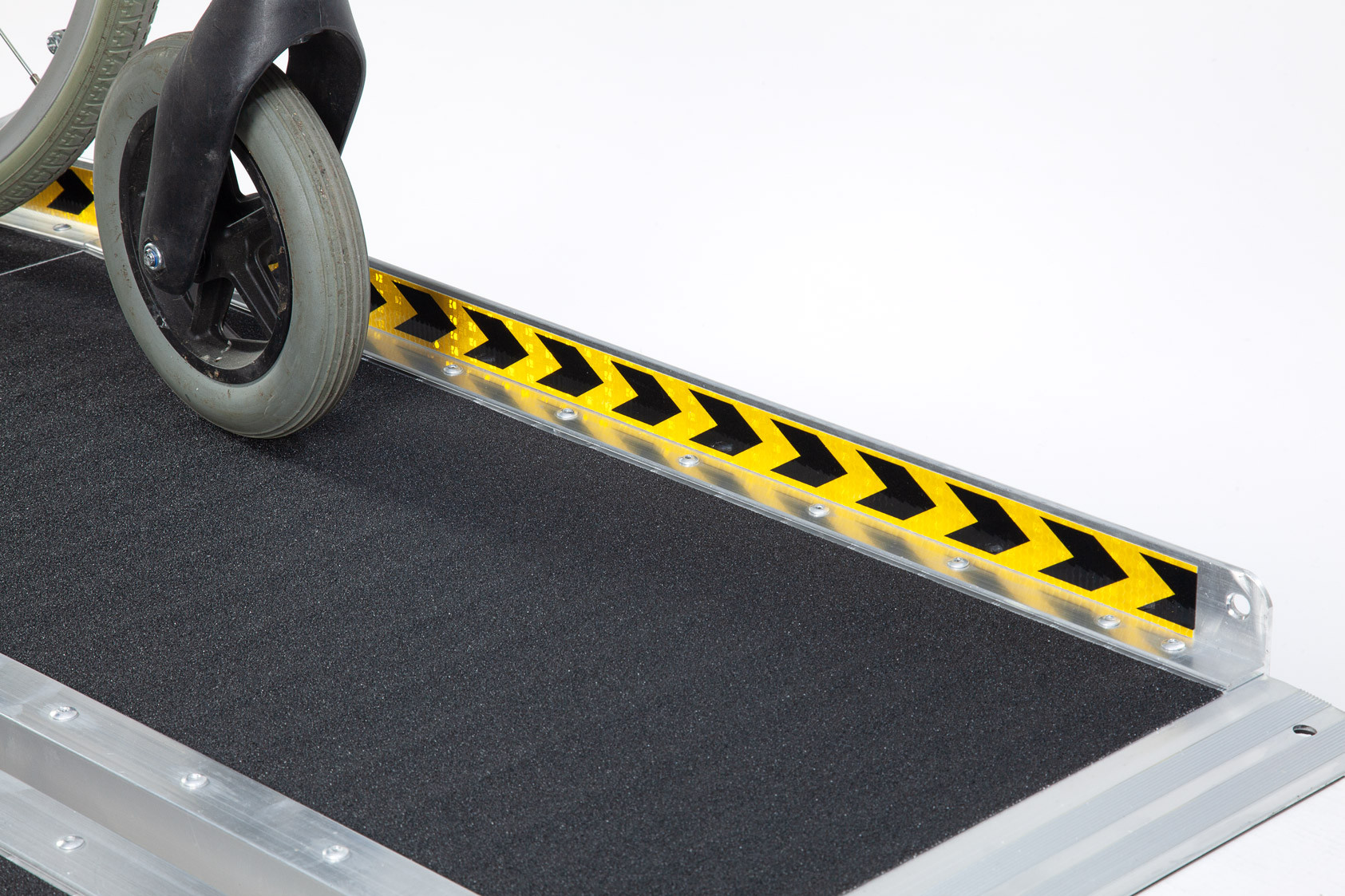

- Safety edges to prevent users from rolling off of the access ramp

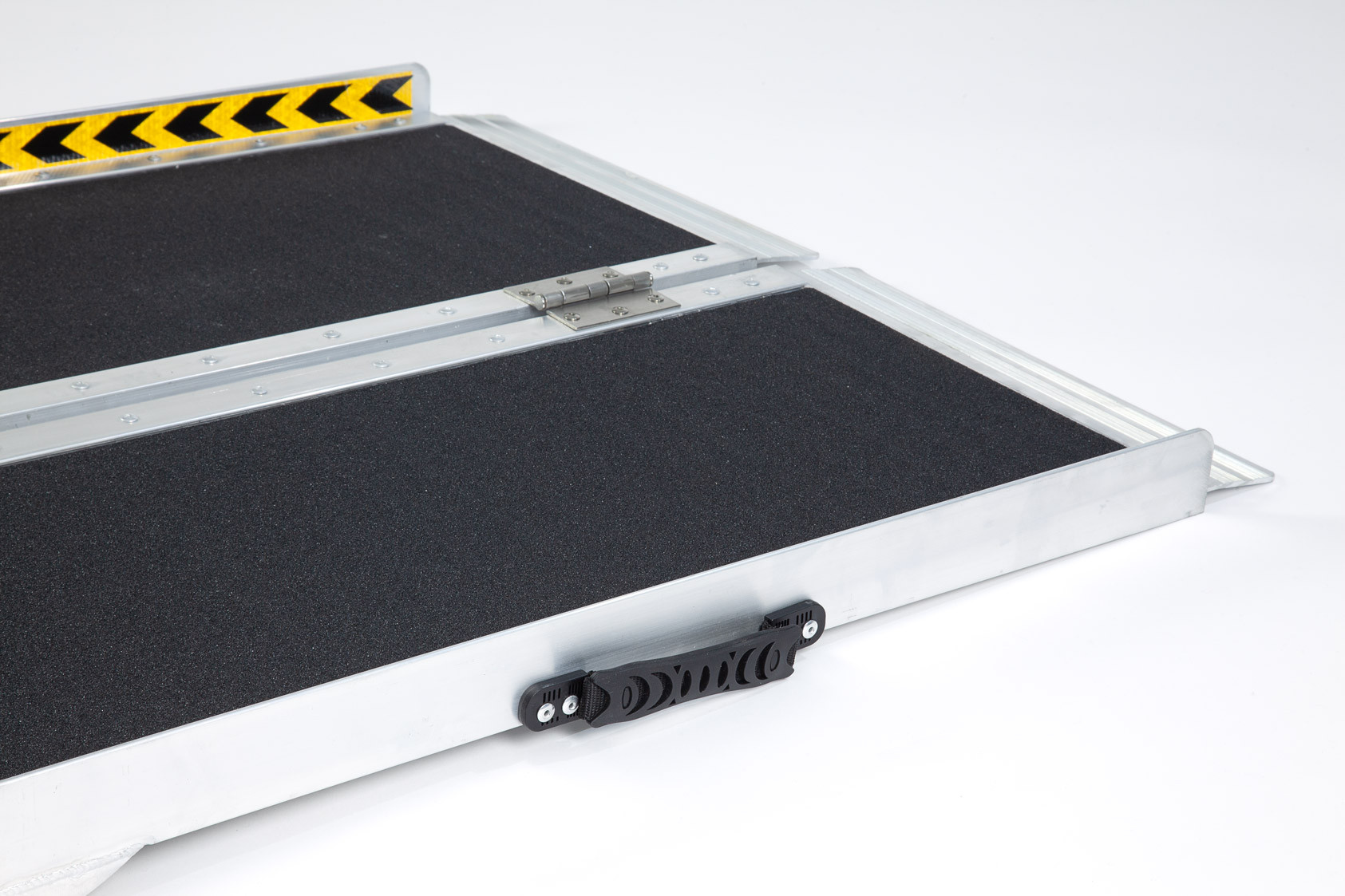

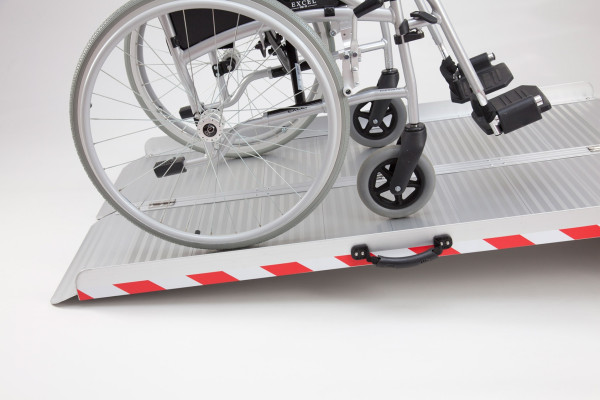

- Carry handle built onto the side of the portable wheelchair ramp to allow the ramp to easily be moved and transported

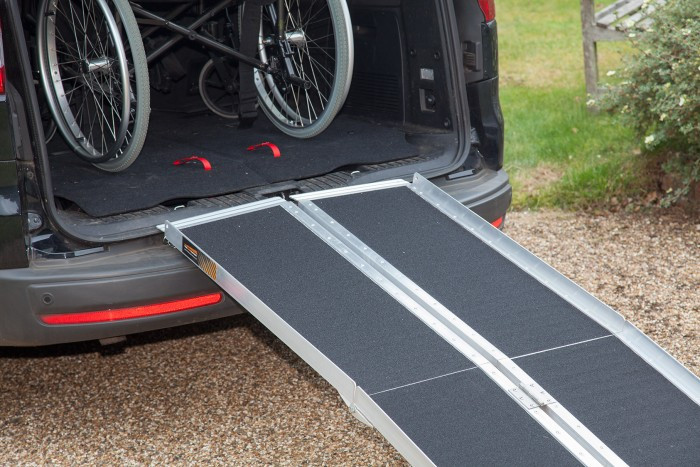

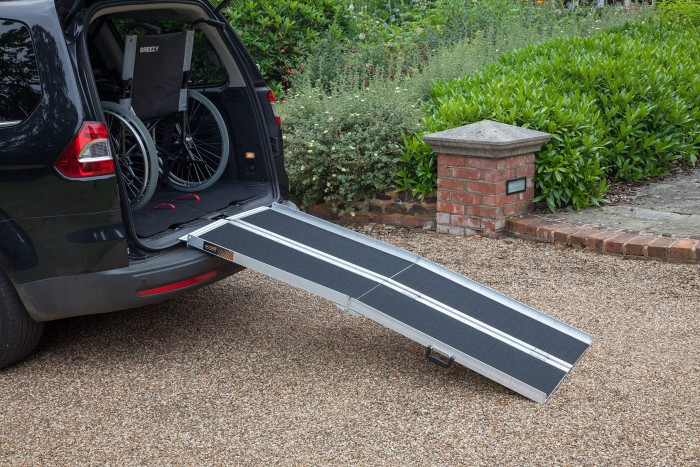

- No installation required simply rest the ramp onto the step, kerb and doorway and start using

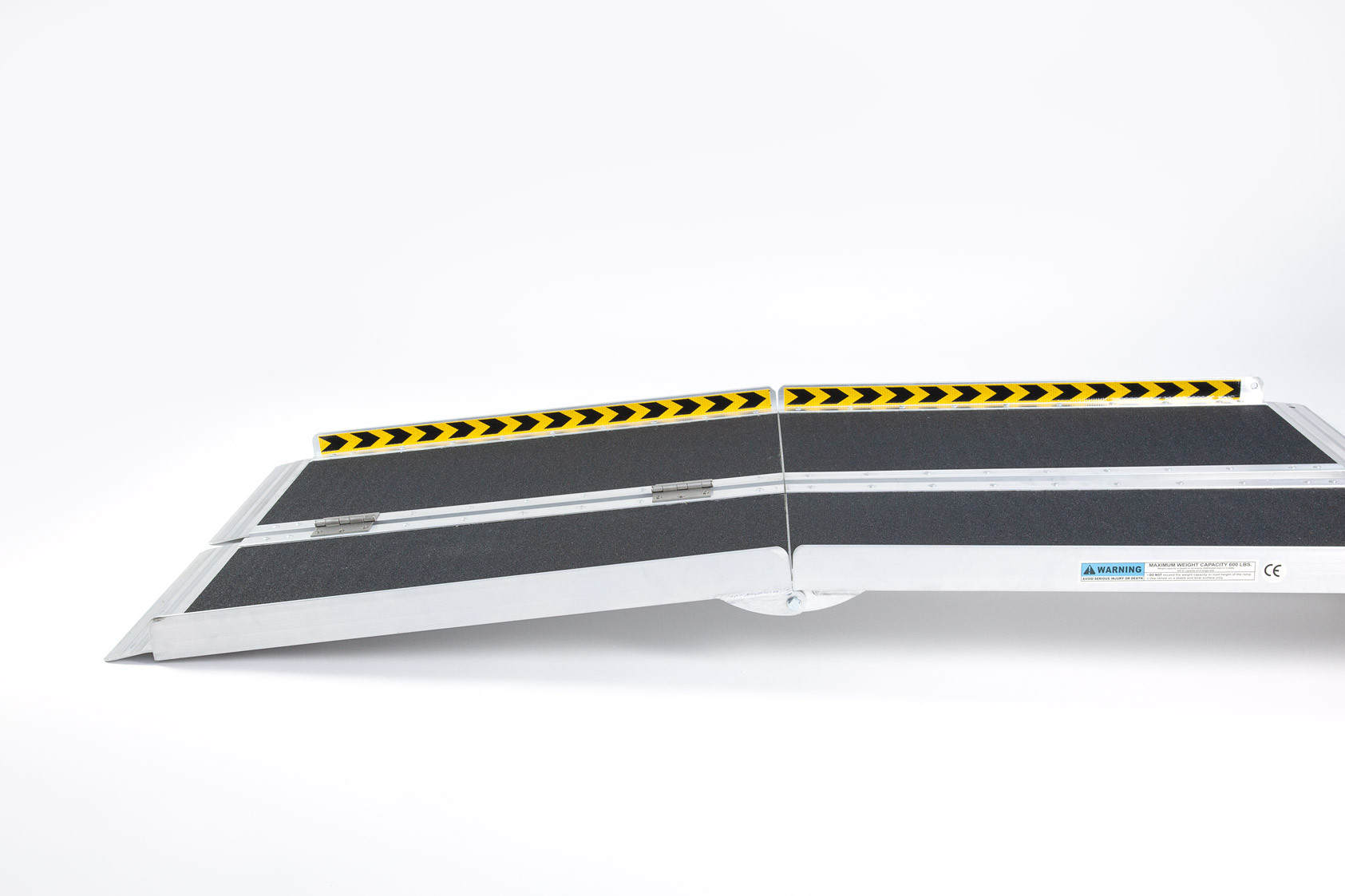

- Improved clearance due to the slightly curved design
Maximum gradient = 1 in 6 although 1 in 8 is recommended. For help identifying the ramp length you require please use our ramp length calculator or contact our team. These ramps are only suitable for use as mobility aids.
Multi-fold Wheelchair Ramp
4ft / 121cm
- Length 4ft(1219mm)
- Folded dimensions 609mm x 335mm x 220mm
- Weight 10.3kg
- Capacity 270kg
- Open width 730mm
- Internal width 720mm
- Max. load height 203mm
5ft / 152cm
- Length 5ft(1524mm)
- Folded dimensions 762mm x 335mm x 220mm
- Weight 12.6kg
- Capacity 270kg
- Open width 730mm
- Internal width 720mm
- Max. load height 250mm
6ft / 183cm
- Length 6ft(1830mm)
- Folded dimensions 914mm x 335mm x 220mm
- Weight 16.7kg
- Capacity 270kg
- Open width 730mm
- Internal width 720mm
- Max. load height 305mm
8ft / 243cm
- Length 8ft(2438mm)
- Folded dimensions 1219mm x 335mm x 220mm
- Weight per ramp half 10,75kg
- Total Weight 21.5kg
- Capacity 270kg
- Open width 730mm
- Internal width 720mm
- Max. load height 405mm
10ft / 304cm
- Length 10ft(3048mm)
- Folded dimensions 1524mm x 335mm x 220mm
- Weight per ramp half 13.75kg
- Total Weight 27.5kg
- Capacity 270kg
- Open width 730mm
- Internal width 720mm
- Max. load height 505mm
Please note the 10ft ramp is quite heavy, please check it is suitable for your needs prior to ordering
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
SKU | TRP506-multifold |
---|---|
Capacity (kg) | 270 |
Height of Raised Side (mm) | 50 |
Internal Width (mm) | 720 |
Length (ft) | 4 - 10.00 |
Max Load Height (mm) | 505 |
Open Width (mm) | 730 |
Total Width (mm) | 730 |
Weight (kg) | 10.3 - 27.5 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
