Rubber Kerb Ramp 100mm, 150mm & 200mm

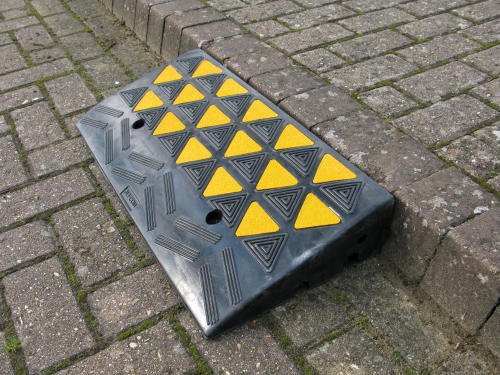

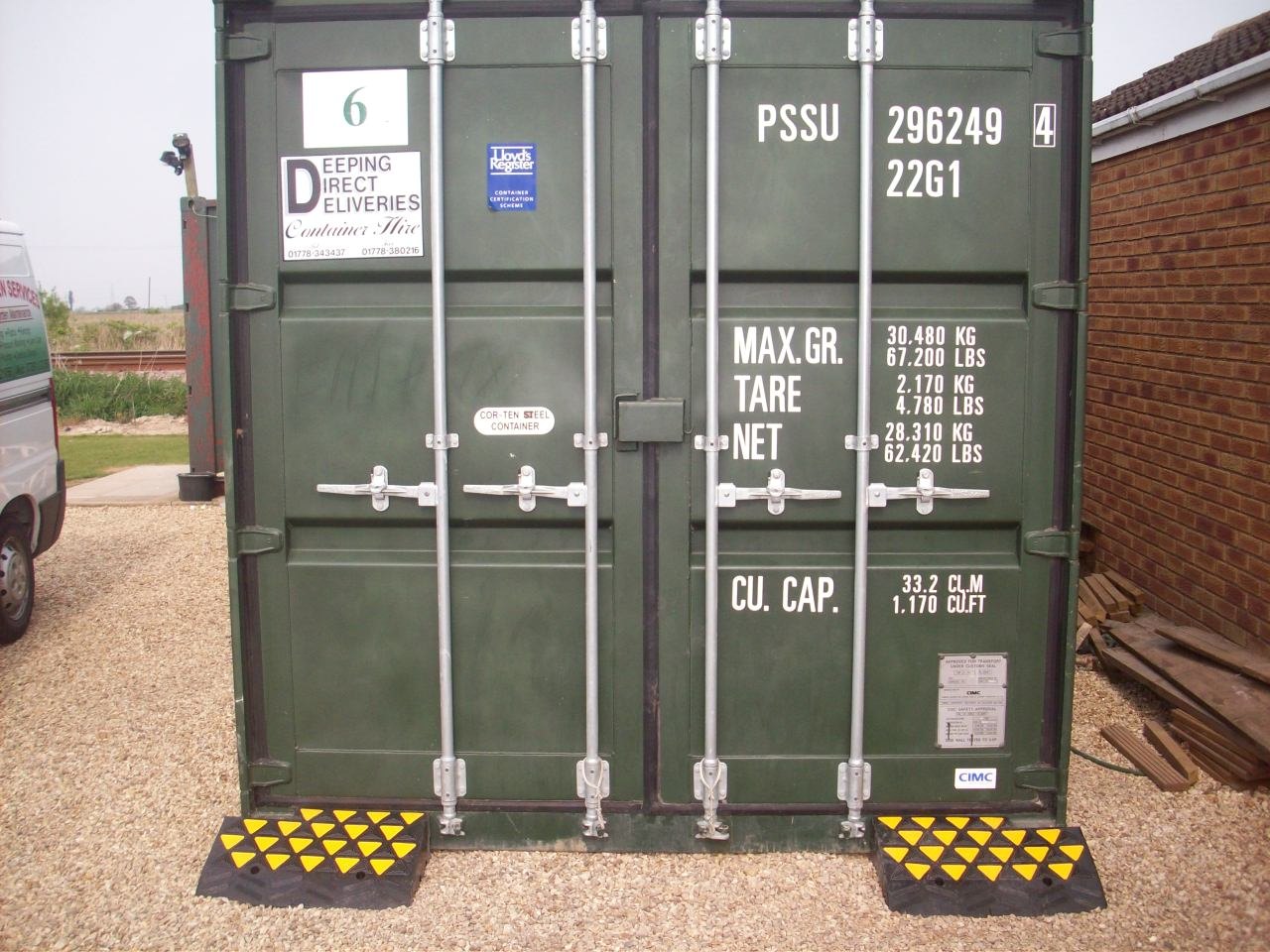

The Ramp People's heavy duty rubber kerb ramps are available in heights of 100mm, 150mm & 200mm and are provided with fixings for tarmac and concrete for easy installation. These high visibility ramps include 2 channels to allow cables to pass below the ramp. With a 20,000kg capacity, these kerb ramps allow goods, vehicles and HGV's to overcome kerbs.
Both ramp height option and quantity/type need to be selected, once done price and availability for the item will be displayed

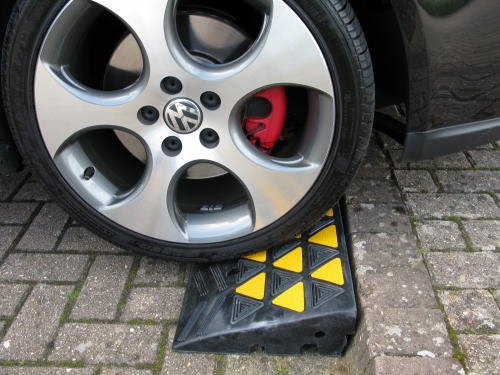

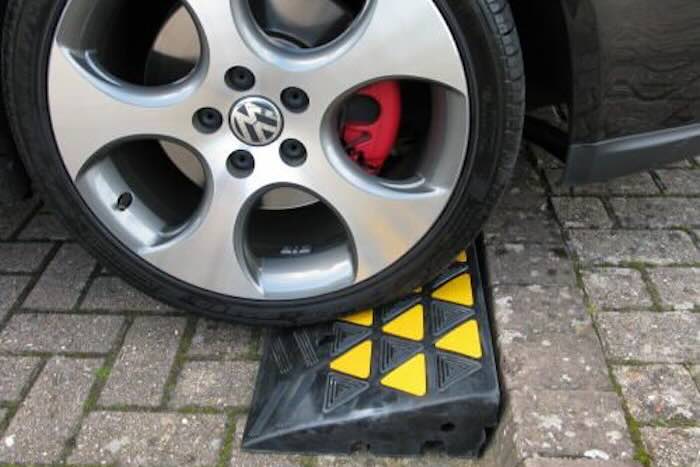

Heavy Duty Kerb Ramps are a cost-effective and convenient way to allow cars, vehicles and trolleys to mount kerb easily. Suits most applications including warehouse, industrial plant, private motorists, public buildings etc.
- High visibility black and yellow kerb ramp with light reflectors to reduce trip hazards and alert drivers to the ramps

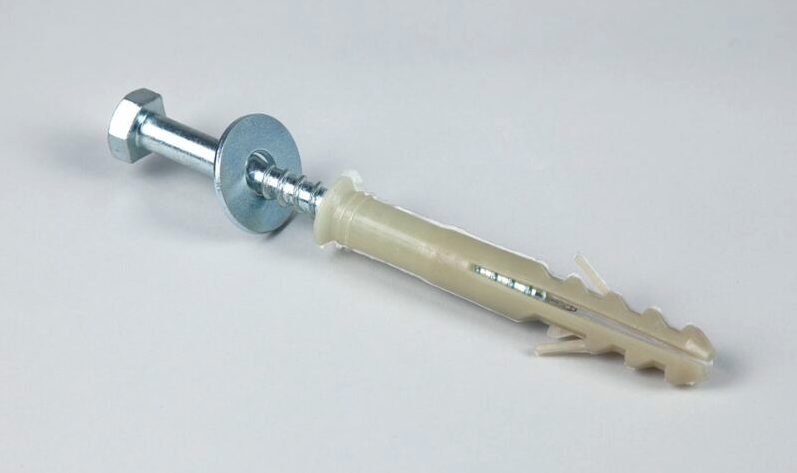

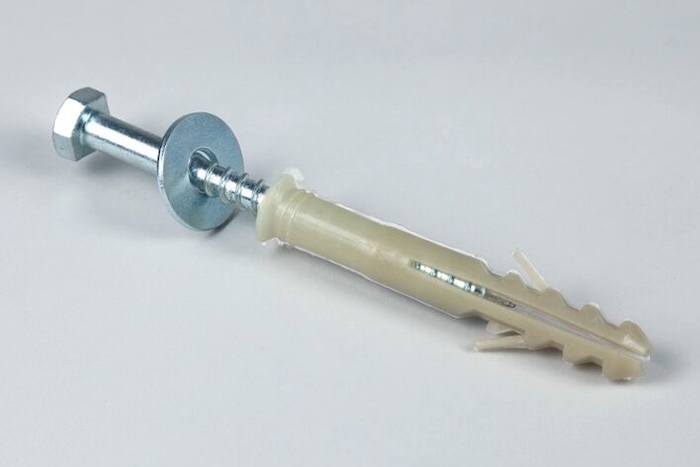

- Fixed or temporary ramp, provided with fixings for tarmac and concrete and pre-drilled fixing points to allow the ramp to be secured to the ground
- Non-slip textured surface to reduce traction

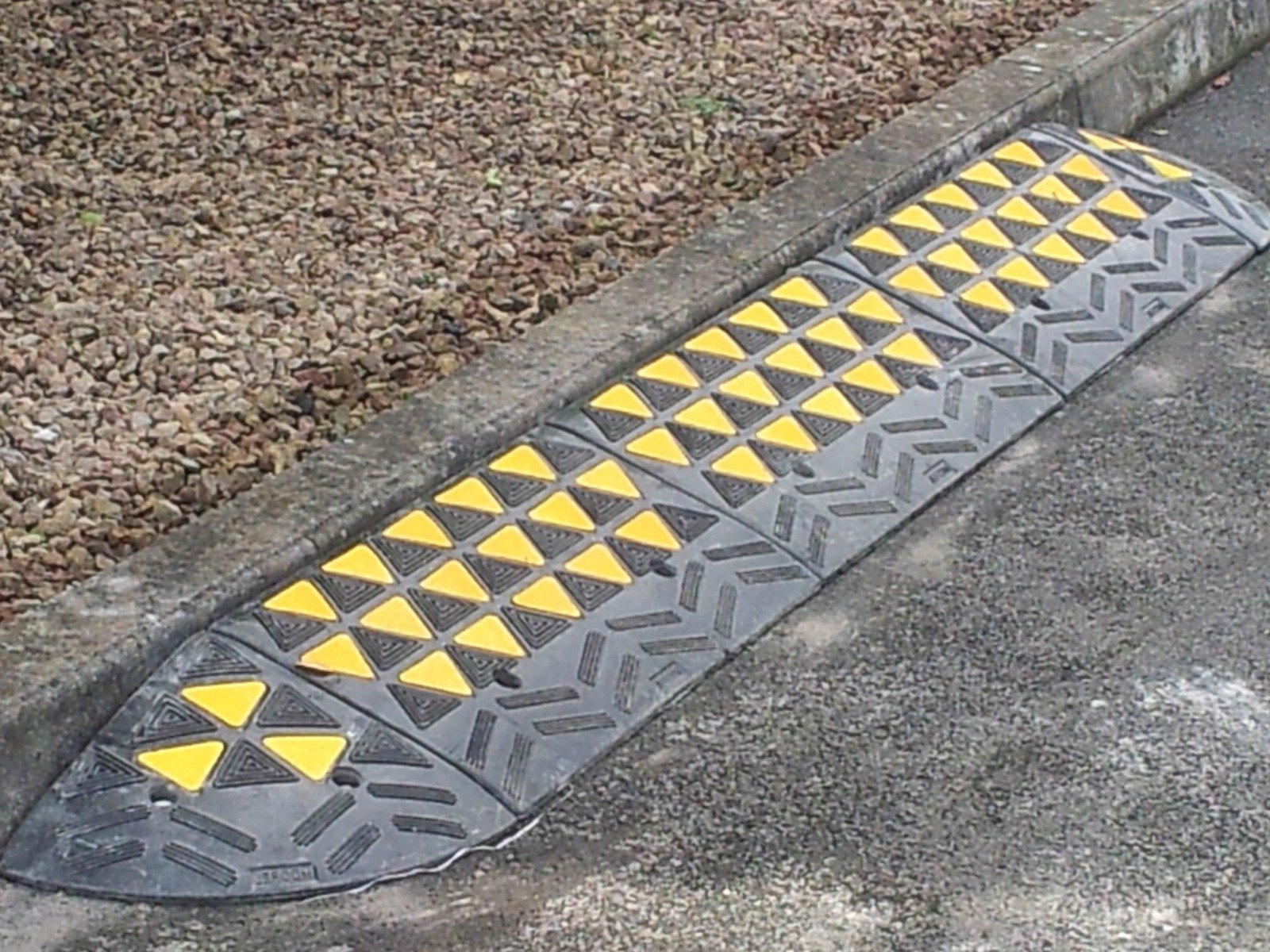

- Straight edge design to allow multiple units to be placed side by side to create any width
- Durable rubber suitable for indoor and outdoor use, can be left outside

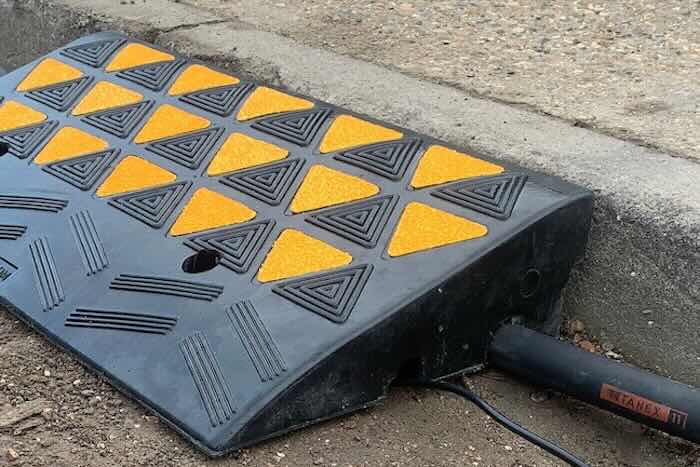

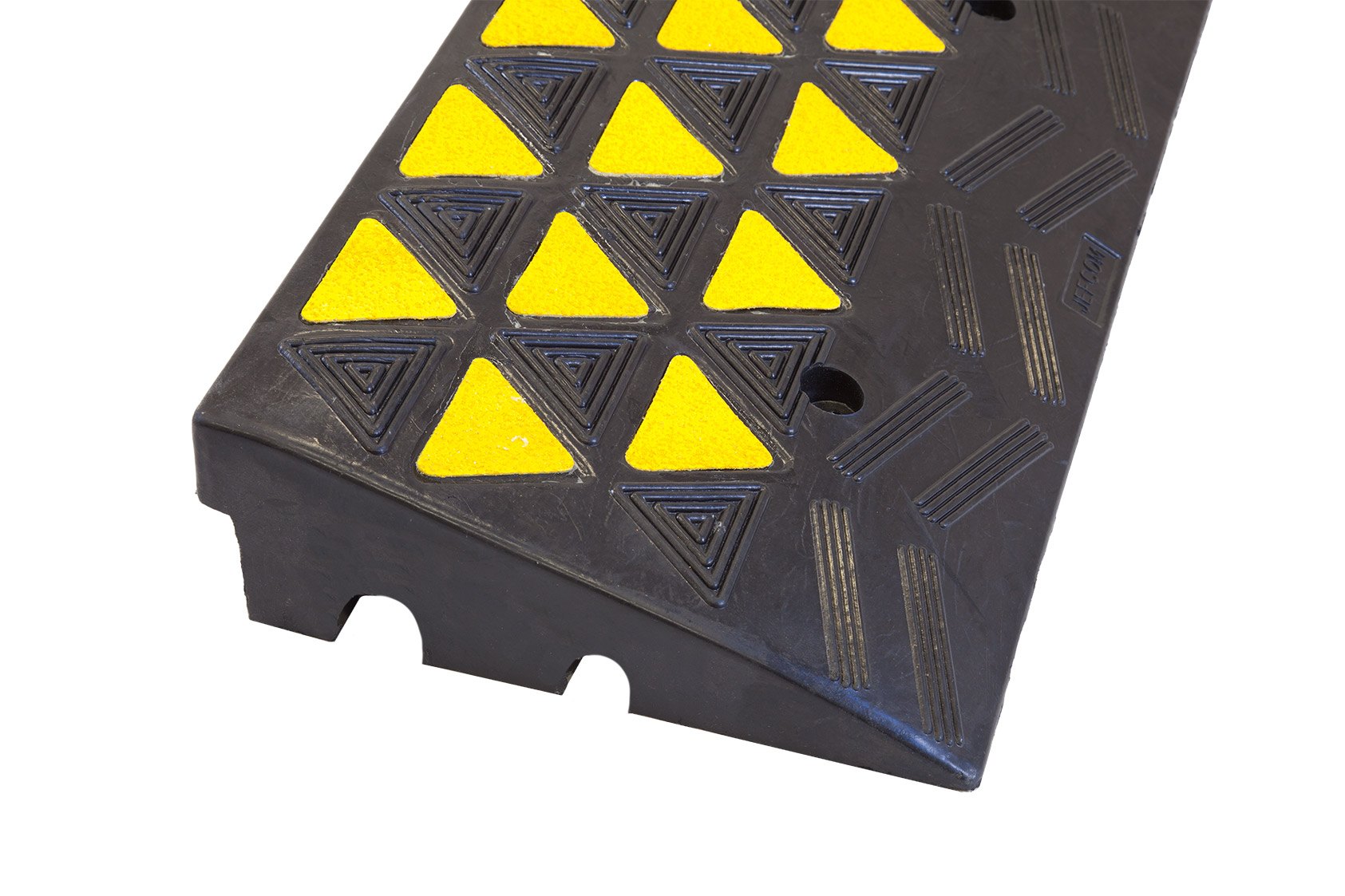

- 2 channels for cables and hoses to pass below the ramps
- 100mm ramp has 2 Channels: Channel 1: 32mm x 29.5mm Channel 2: 29.5mm x 24.5mm
- 150mm ramp has 2 Channels: Channel 1: 33mm x 26.2mm Channel 2: 28.1 x 23.6mm
- 200mm ramp has 2 Channels: Channel 1 : 50mm x 50mm Channel 2 40mm x 40mm
Please note, due to the gradient these are not recommended to be used as mobility aids. For wheelchair access please instead view our rubber threshold ramps
Rubber Kerb Ramp 100mm TRP1M
Single Kerb Ramp
- Length: 300mm
- Width: 600mm
- Height: 100mm
- Weight: 9.4kg
- Capacity: 20,000kg
- Number of ramps: One

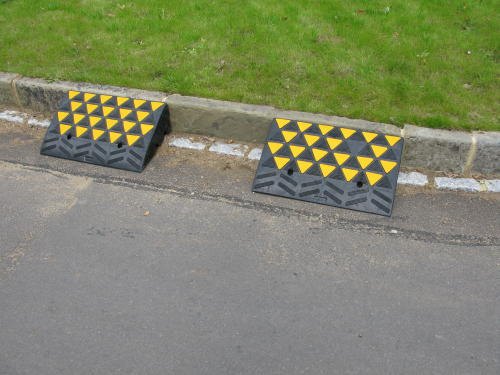

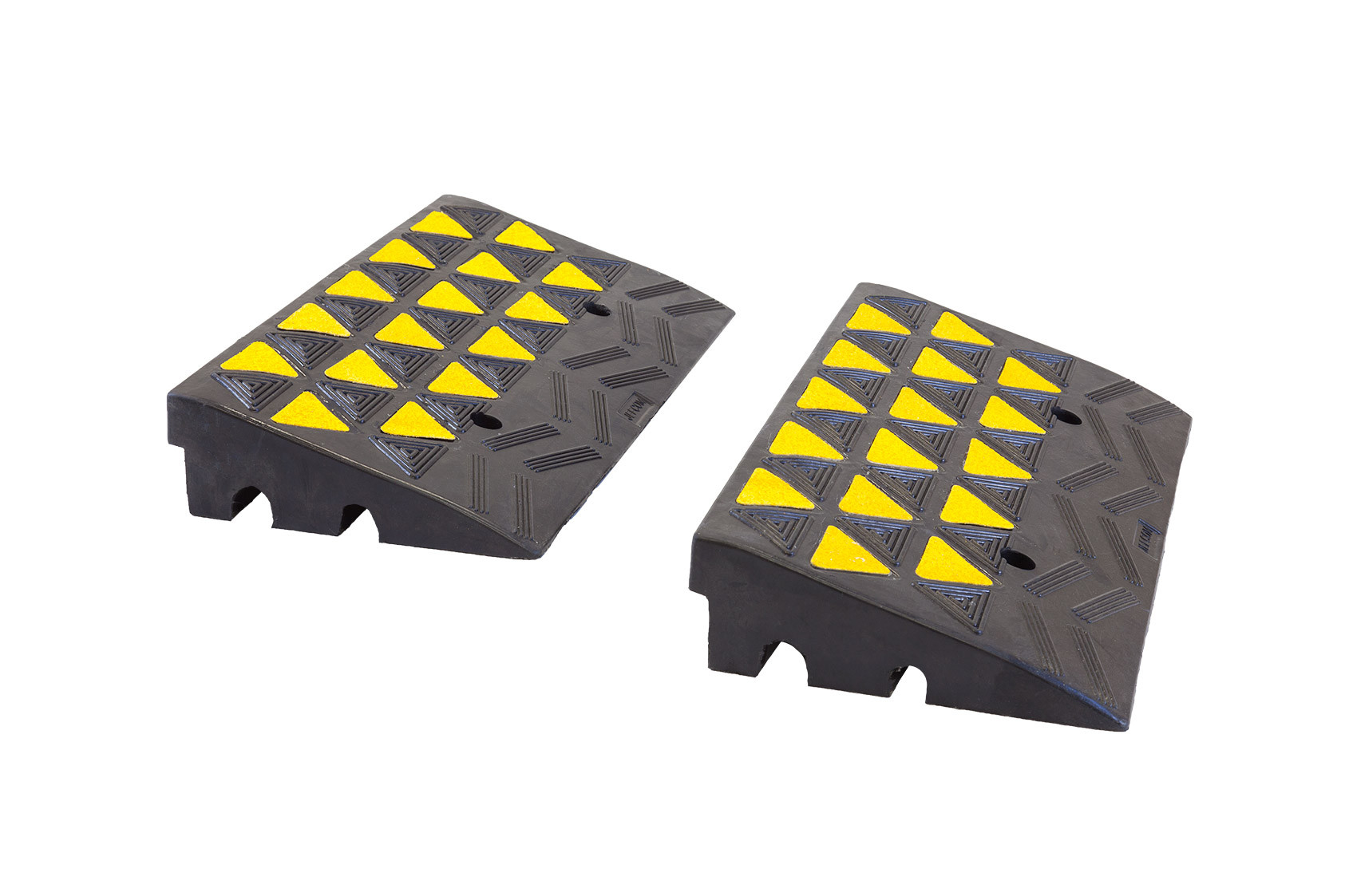

Pair of Rubber Kerb Ramps
- Length: 300mm
- Width: 1200mm
- Height: 100mm
- Weight: 18.8kg
- Capacity: 20,000kg
- Number of ramps: Two

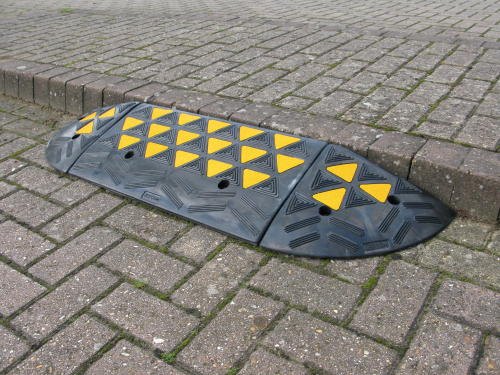

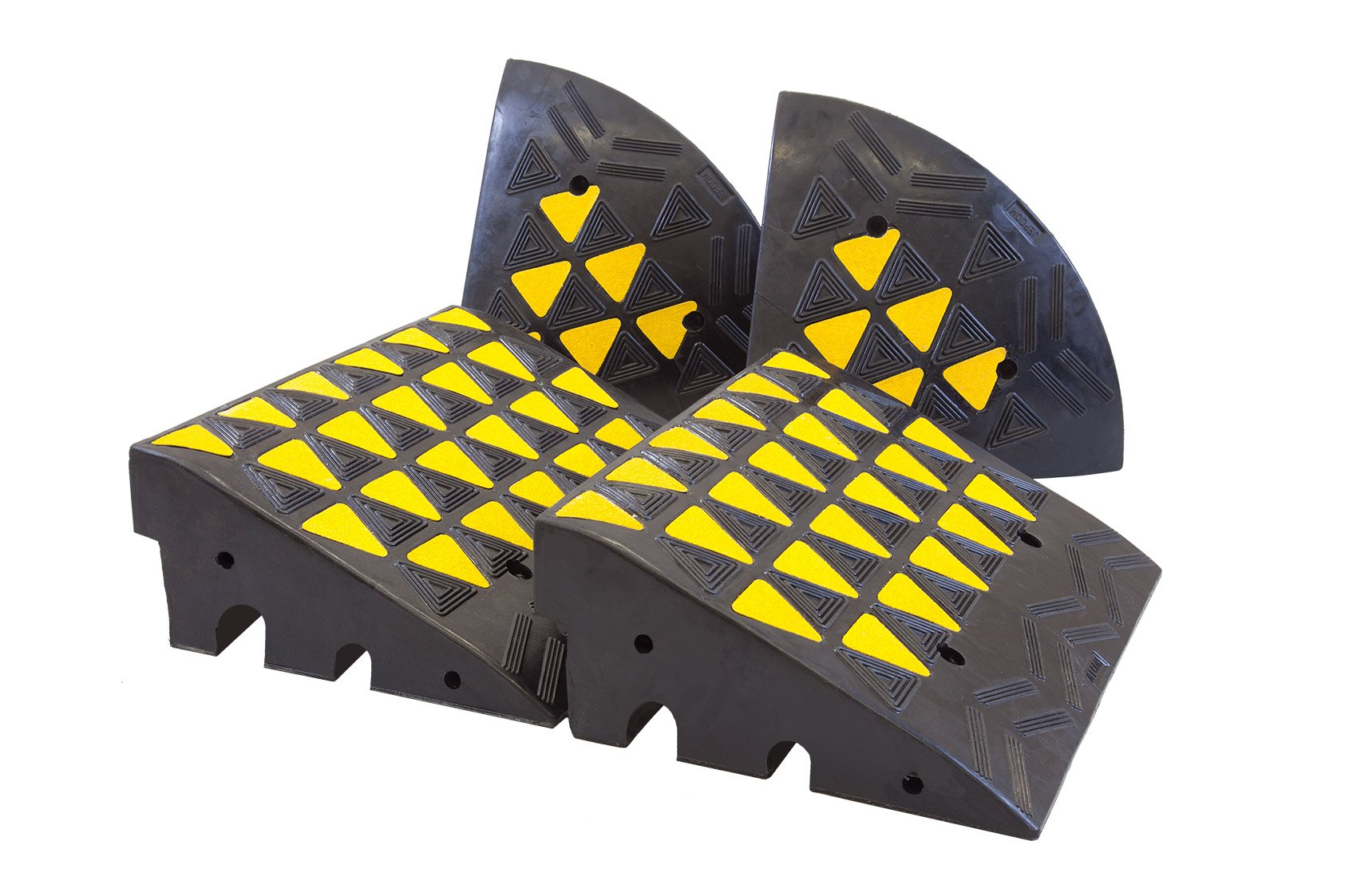

Rubber Kerb Ramp Kit
- Length: 300mm
- Width: 1800mm
- Height: 100mm
- Weight: 24.8kg
- Capacity: 20,000kg
- Number of ramps: Two middle ramps (2 x 600mm) & 2 end caps (2 x 300mm)

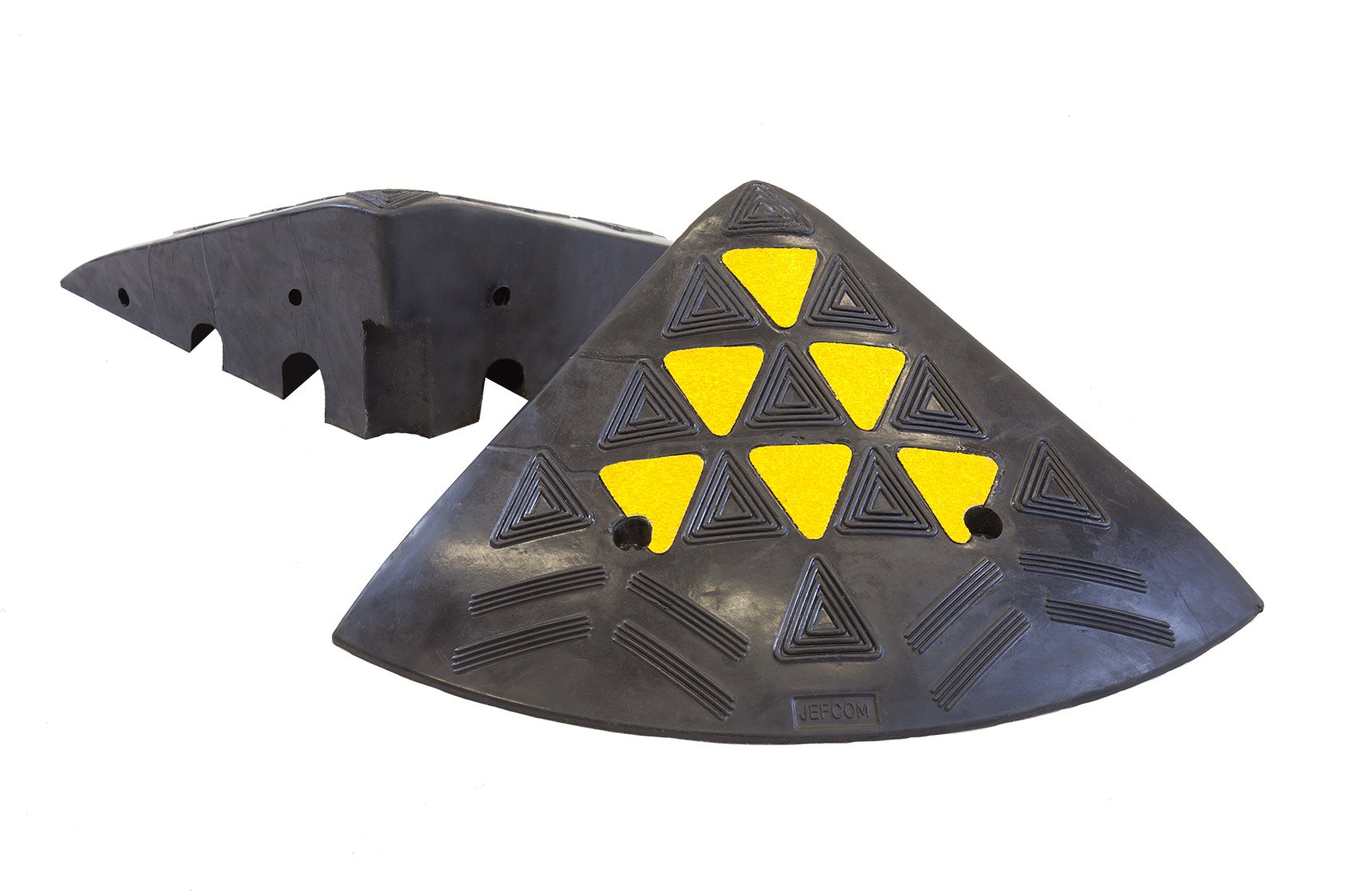

End Cap
- Length: 300mm
- Width: 300mm
- Height: 100mm
- Weight: 3kg
- Capacity: 20,000kg
- Number of ramps: 1 end cap
Rubber Kerb Ramp 150mm TRP2M
Single Kerb Ramp
- Length: 360mm
- Width: 600mm
- Height: 150mm
- Weight: 16.10kg
- Capacity: 20,000kg
- Number of ramps: One
Pair of Rubber Kerb Ramps
- Length: 360mm
- Width: 1200mm
- Height: 150mm
- Weight: 32.20kg
- Capacity: 20,000kg
- Number of ramps: Two
Rubber Kerb Ramp Kit
- Length: 360mm
- Width: 1920mm
- Height: 150mm
- Weight: 44.90kg
- Capacity: 20,000kg
- Number of ramps: Two middle ramps (2 x 600mm) & 2 end caps (2 x 360mm)
End Cap
- Length: 360mm
- Width: 360mm
- Height: 150mm
- Weight: 6.35kg
- Capacity: 20,000kg
- Number of ramps: 1 end cap

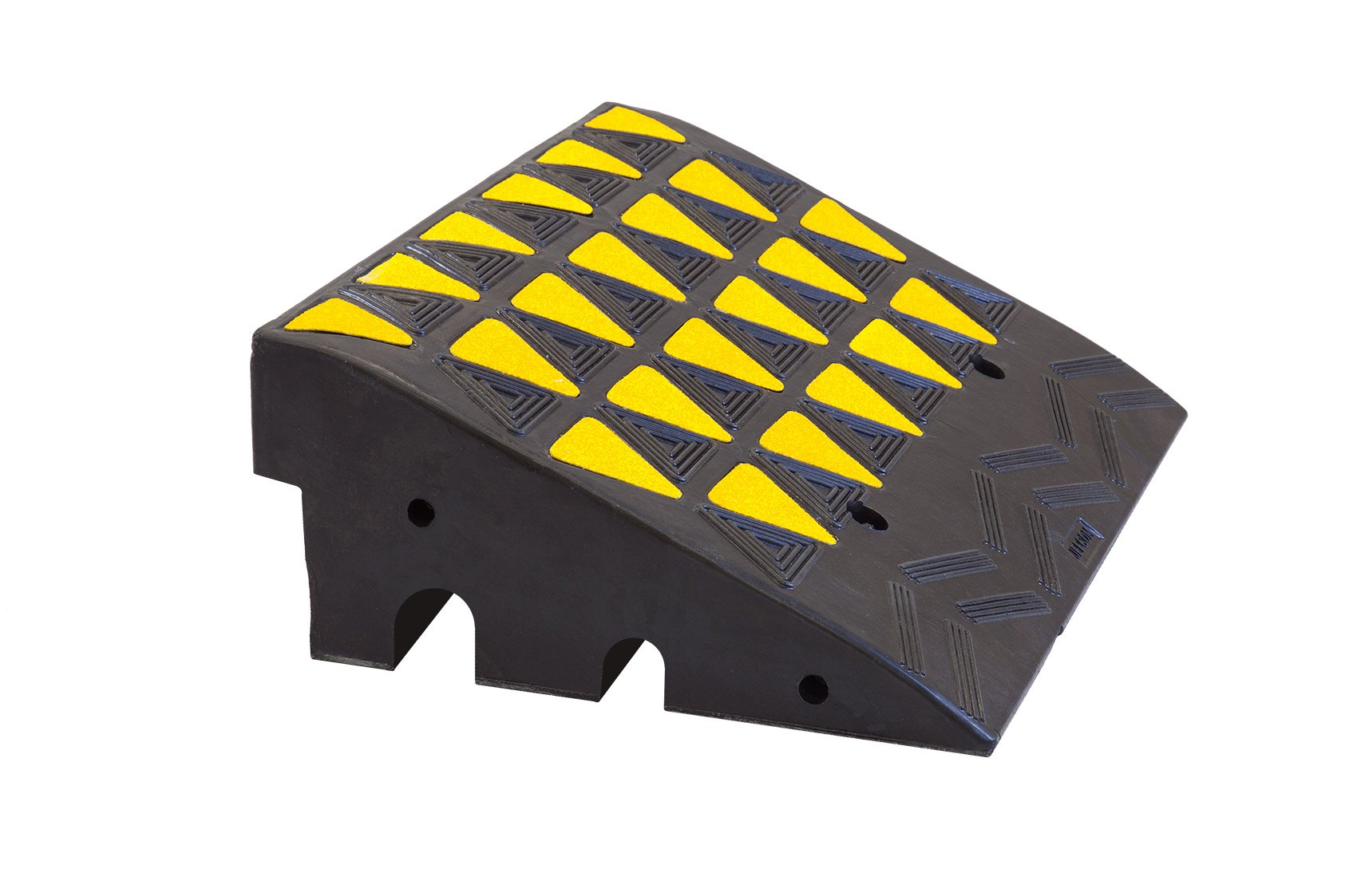

Rubber Kerb Ramp 200mm TRP3M
Single Kerb Ramp
- Length: 450mm
- Width: 600mm
- Height: 200mm
- Weight: 23.7kg
- Capacity: 15,000kg
- Number of ramps: One
Pair of Rubber Kerb Ramps
- Length: 450mm
- Width: 1200mm
- Height: 200mm
- Weight: 47.4kg
- Capacity: 15,000kg
- Number of ramps: Two
Rubber Kerb Ramp Kit
- Length: 450mm
- Width: 2100mm
- Height: 200mm
- Weight: 88kg
- Capacity: 15,000kg
- Number of ramps: Two middle ramps (2 x 600mm) & 2 End Caps (2 x 450mm).
End Cap
- Length: 450mm
- Width: 450mm
- Height: 200mm
- Weight: 14kg
- Capacity: 15,000kg
- Number of ramps: 1 end cap
SKU | TRP1MConf |
---|---|
Capacity (kg) | 15,000 - 20,000 |
Height (mm) | 100 - 200 |
Length (mm) | 300 - 450 |
Weight (kg) | 3 - 47.4 |
Width (mm) | 300 - 2100 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Fixings Included | Yes |
High Visability | Yes |
Leave Outside | Yes |
Channel Size (mm) | 100mm: #1: 32mm x 29.5mm & #2: 29.5mm x 24.5mm I 150mm: #1: 33mm x 26.2mm & # 2: 28.1 x 23.6mm I 200mm: #1 50 mm x 50 mm & #2: 40 mm x 40 mm |
No. Channels | 2 |
