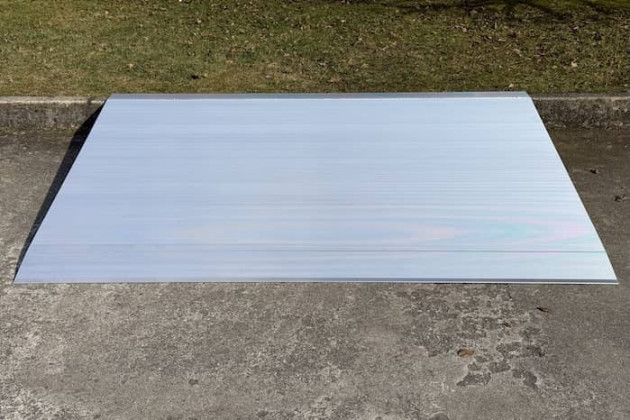

Pallet Truck Ramp 2200mm Wide x 2000kg Capacity

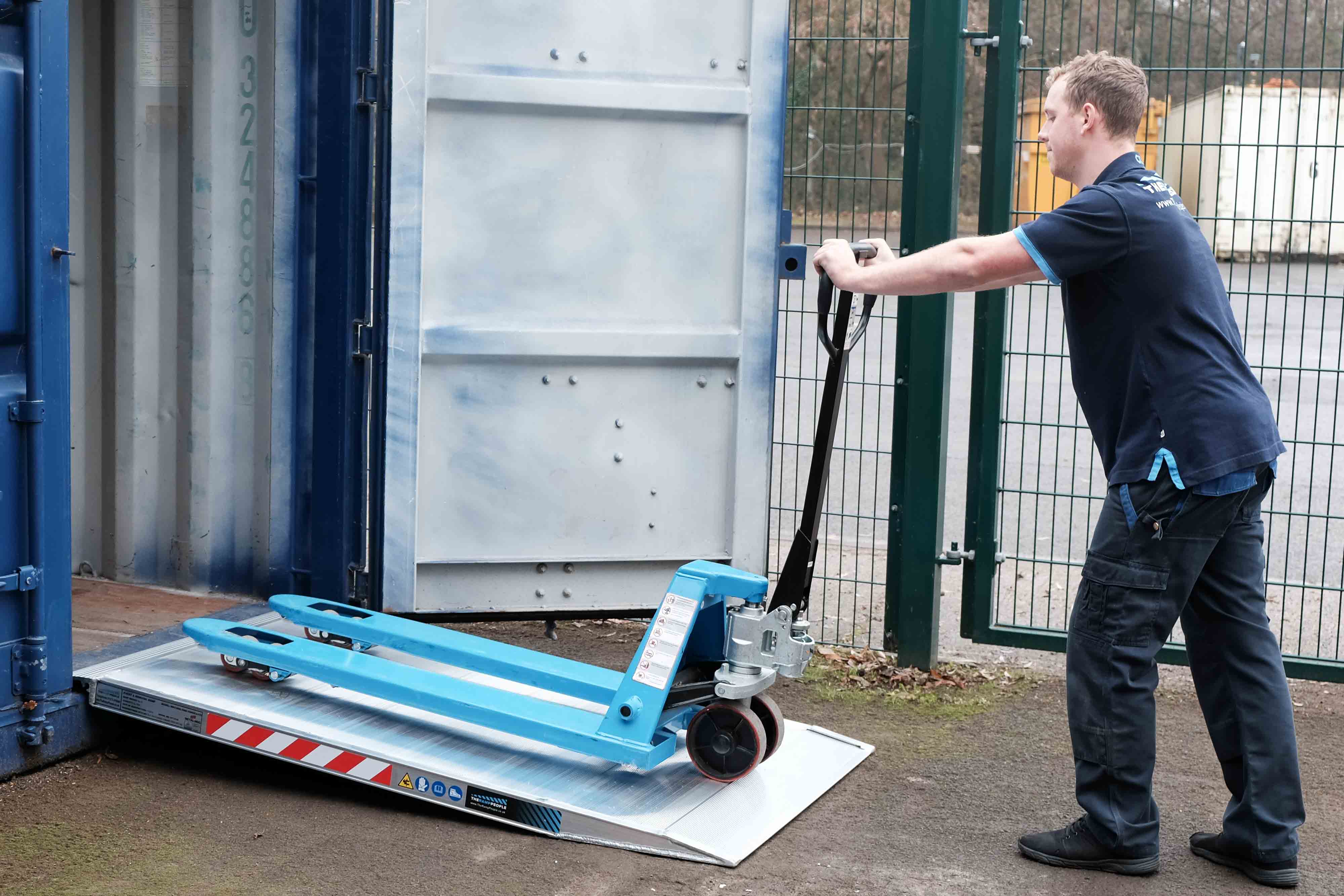

At 2.2m wide this wide container ramp is designed to cover the full width of the container. Available in a variety of load heights from 100mm - 300mm and offered in capacities of 1000kg or 2000kg. This heavy duty aluminium loading ramp is a perfect choice to easily load and unload manual pallet trucks, electric pallet trucks, cages and trolleys into containers or over steps and thresholds in commercial sites and industrial units.
- 2200mm wide to cover the full width of the container
- 1560mm length to provide a smooth loading gradient
- Available with a 1000kg or 2000kg capacity
- No installation required, simply rest onto the container or step
- Cut out grooves to allow the ramp to be positioned in place by a forklift
- Anti-slip surface, R13 certified
- Produced from high-strength aluminium

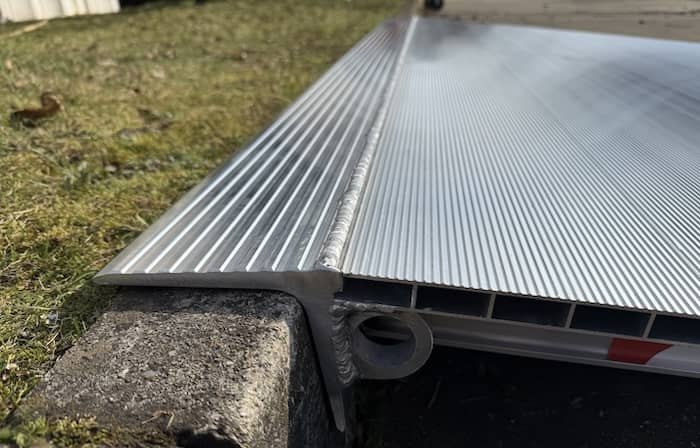

- Angled foot for smooth entry onto the ramp
- Provided with steel chains to allow the ramp to be secured in place during use
- Smooth gradient for ease of loading
- The ramp is provided without edges
- 1000kg loading capacity based on a 1000mm wheelbase
- This aluminium loading ramp ramp can also be used to load lightweight plant machinery with a wheelbase of 1000mm or above
- Please note this ramp is not suitable for forklifts
- Can be customised at an additional fee to include nylon handles to allow the ramp to be moved by hand. For further customisations speak to our team
- Please note the ramps are not suitable for steel tracked vehicles
| SKU | TRP-TRPSHL TRP-TRPSHL |
|---|---|
| Capacity (kg) | 1000 - 2000 2205 - 4409 |
| Length (mm) | 1560 - 1562 61.42 - 61.50 |
| Max Load Height (mm) | 300 11.81 |
| Min. Load Height (mm) | 100 3.94 |
| Weight (kg) | 57 - 67 125.66 - 147.71 |
| Width (mm) | 2200 86.61 |
| Two Year Warranty | Yes 1 |
| Customisable | Yes 1 |
| European Made | Yes 1 |
| Colour Option | White 7702 |
