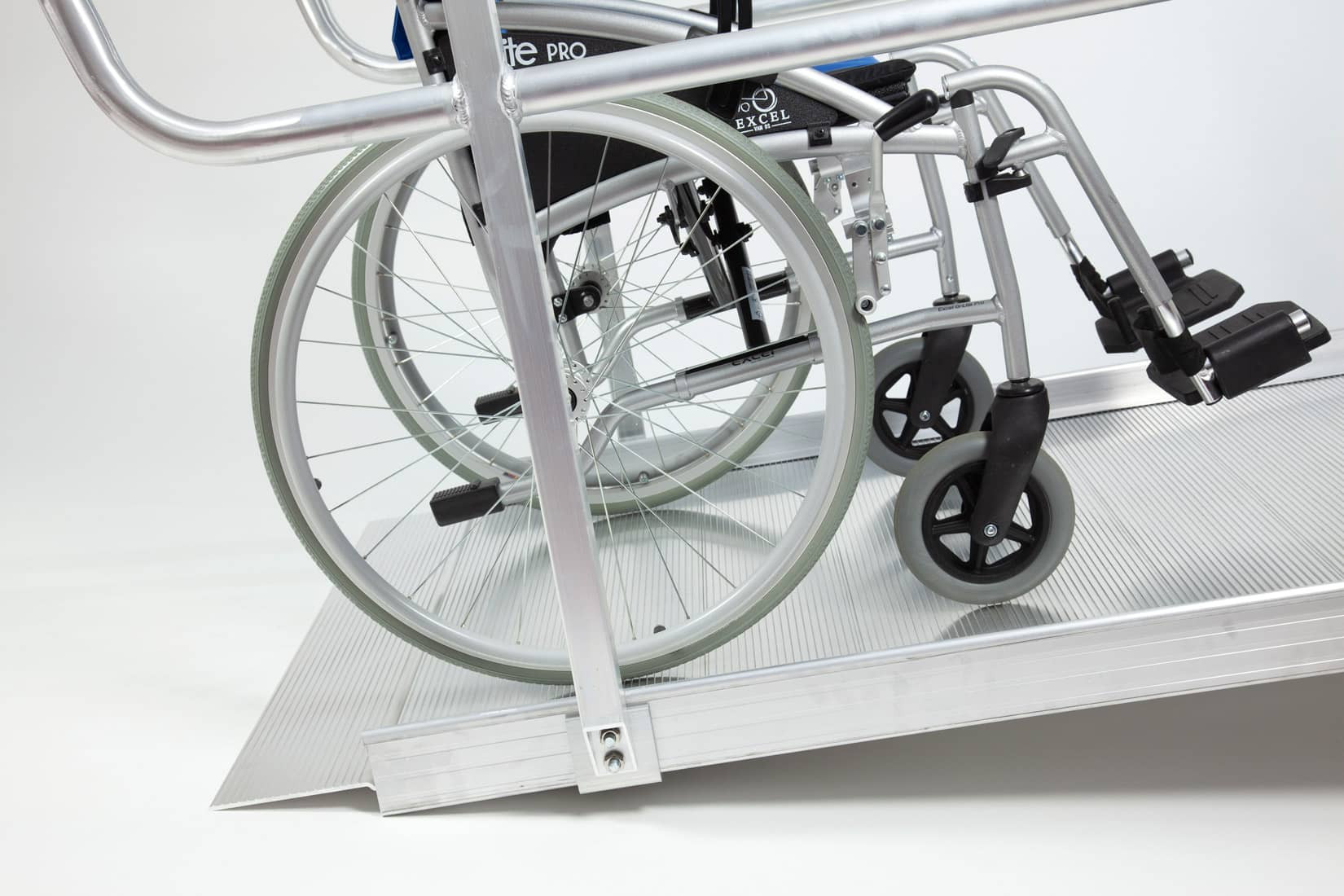

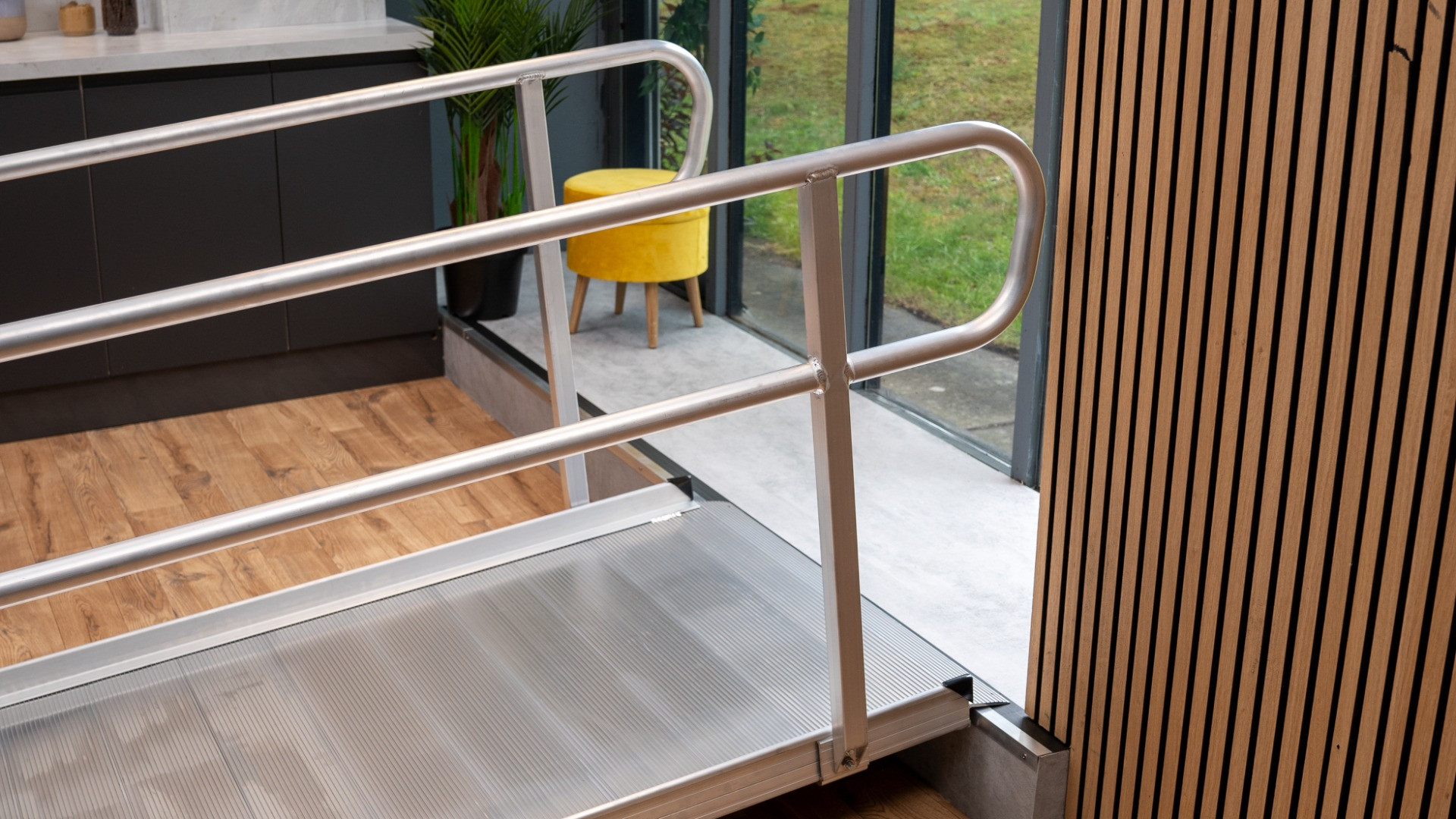

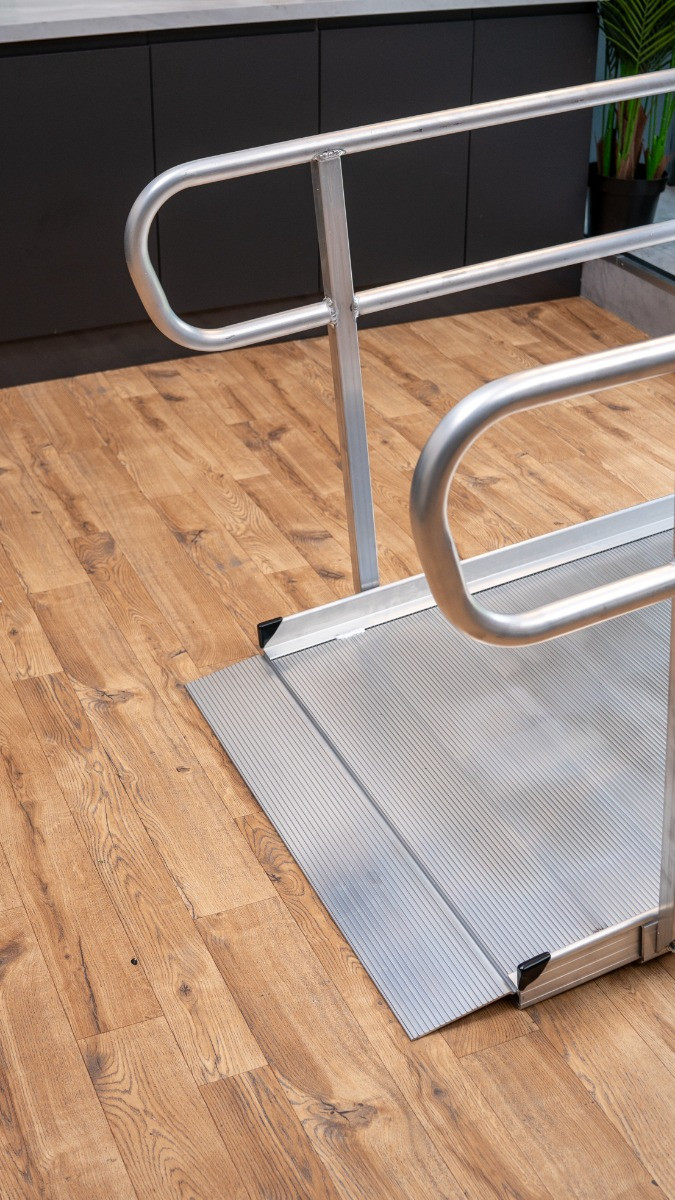

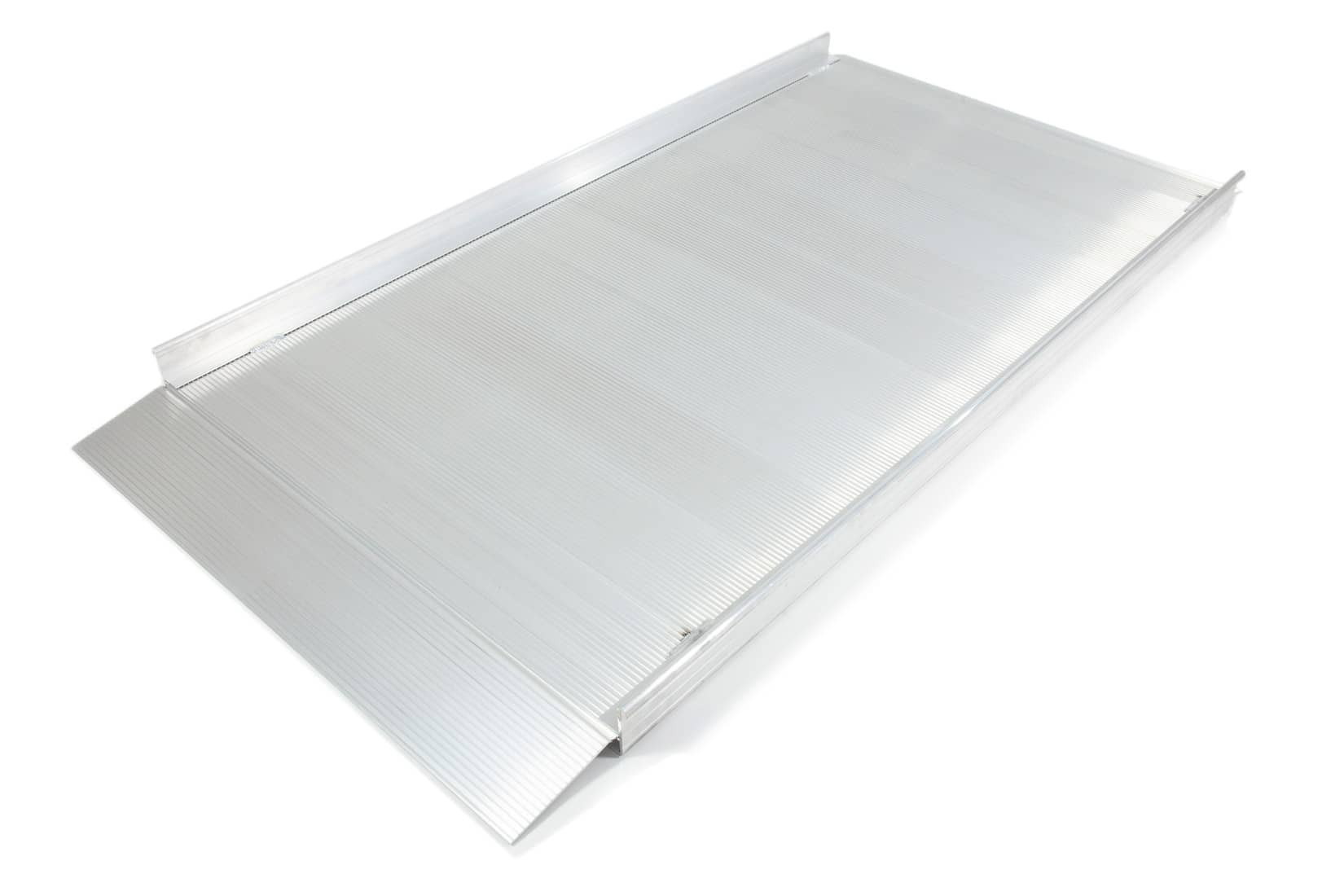

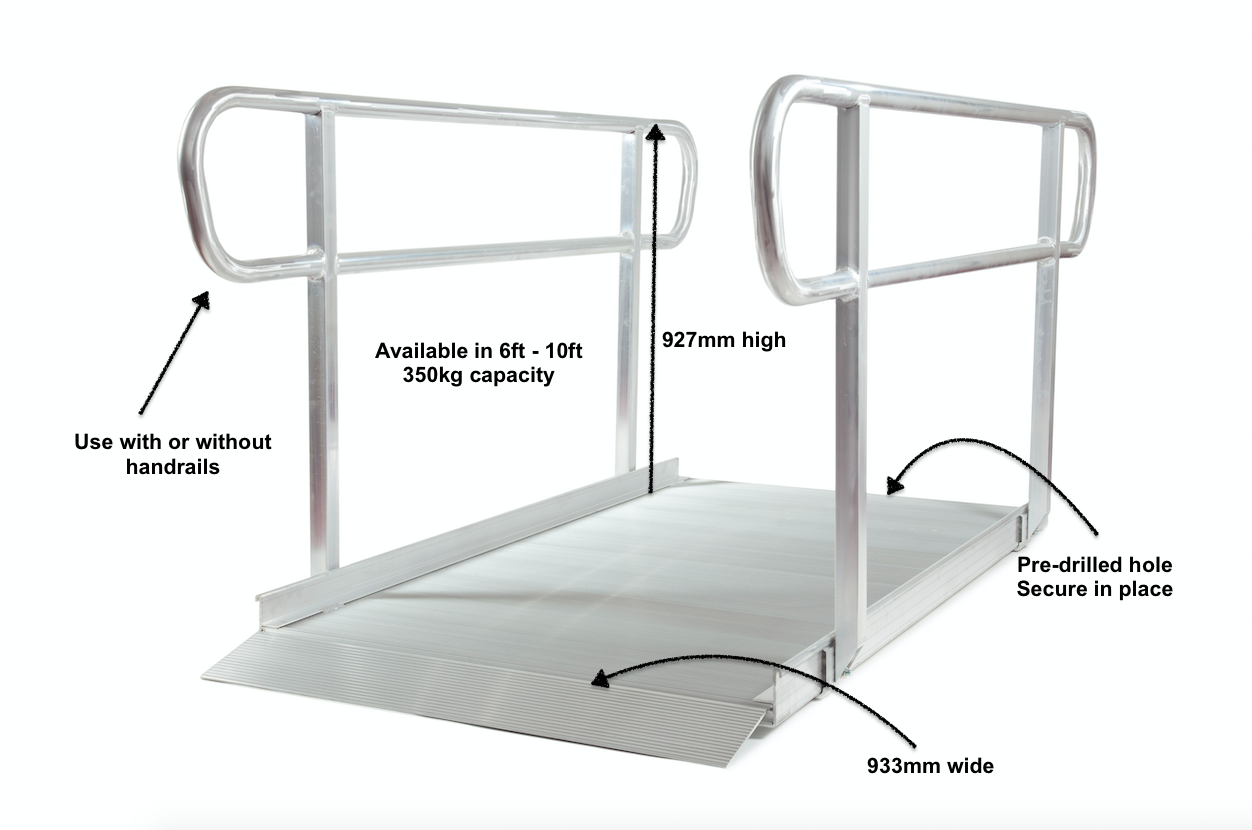

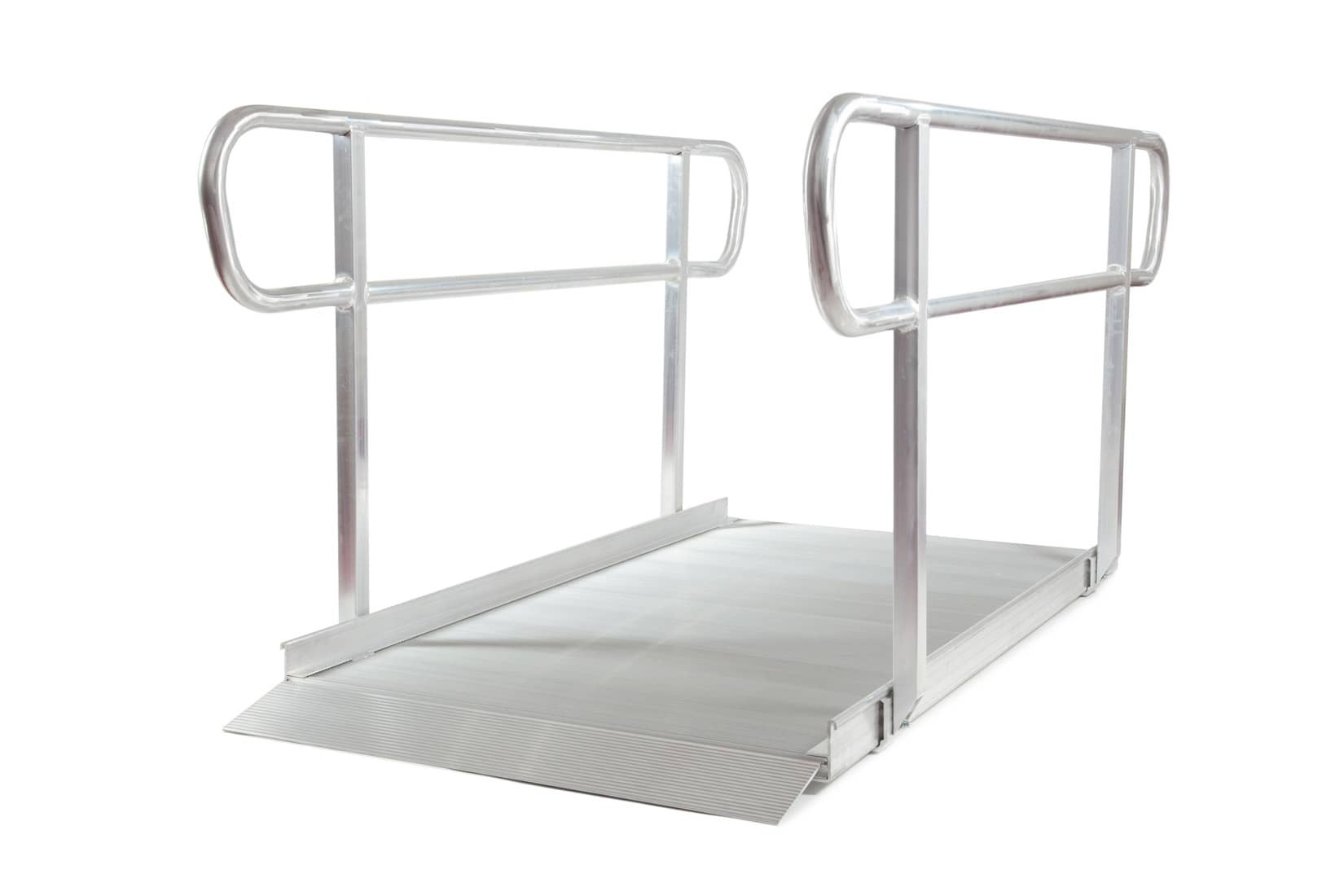

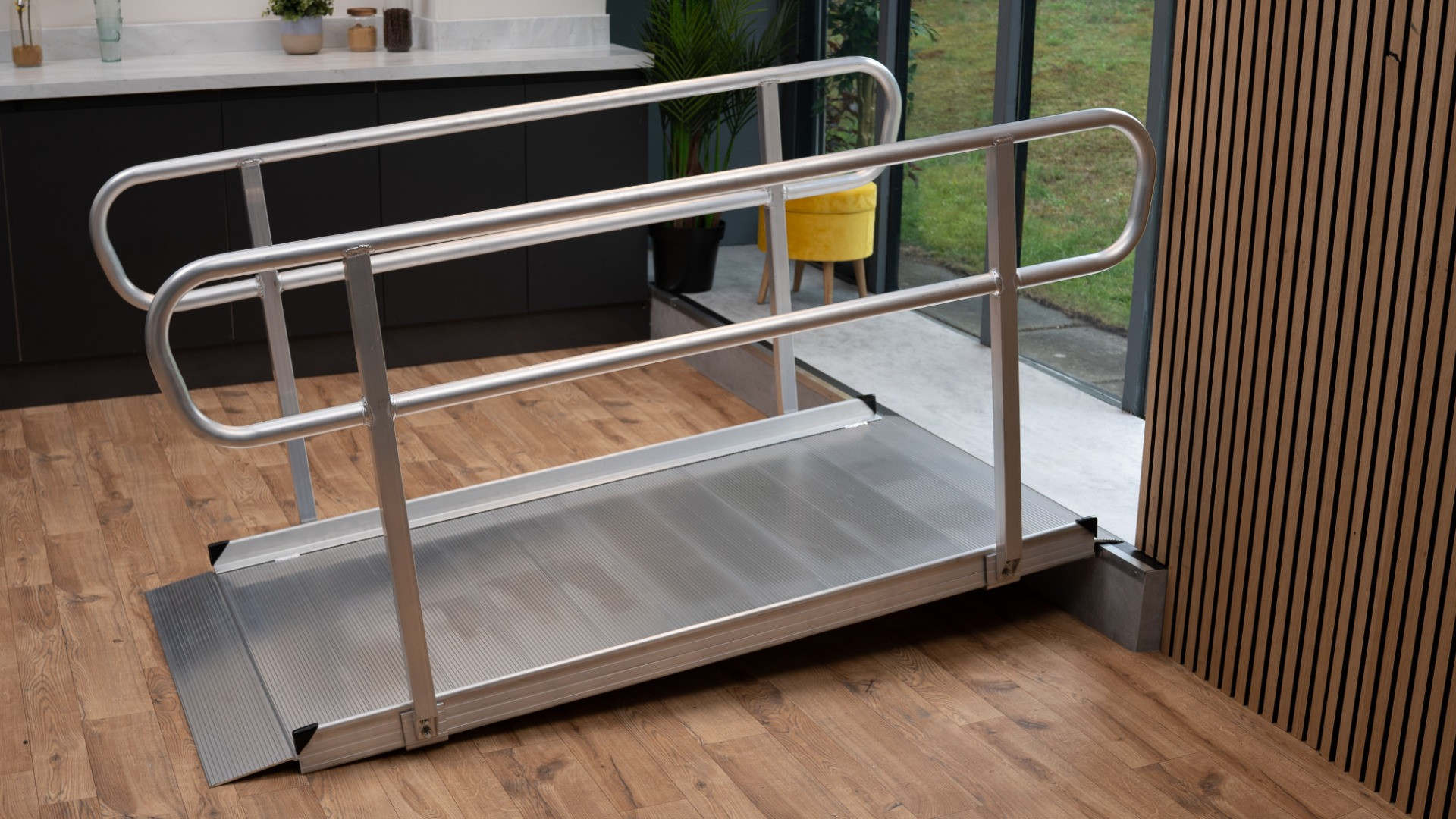

This wheelchair ramp kit with handrails is provided in lengths of 4ft/122cm, 5ft/152cm, 6ft/182cm, 8ft/243cm and 10ft/304cm. This disabled access ramp is easy to assemble and can be secured and left in place or moved as required. With a 350kg capacity, this is suitable for manual and electric wheelchairs, walkers and scooters. This wheelchair ramp can be used with or without handrails. Total ramp width 933mm, internal width 888mm.
Available with and without handrails
4ft - Handrails
Length (ft)
4
Length (mm)
1220
Total Width (mm)
927
Height (mm)
927
Max Load Height (mm)
200
Weight (kg)
23
Capacity (kg)
350
4ft - No Handrails
Length (ft)
4
Length (mm)
1220
Total Width (mm)
933
Max Load Height (mm)
200
Weight (kg)
15
Capacity (kg)
350
5ft - Handrails
Length (ft)
5
Length (mm)
1524
Internal Width (mm)
888
Total Width (mm)
933
Height (mm)
927
Weight (kg)
27
Capacity (kg)
350
5ft - No Handrails
Length (ft)
5
Length (mm)
1524
Total Width (mm)
933
Max Load Height (mm)
250
Weight (kg)
18
Capacity (kg)
350
6ft - Handrails
Length (ft)
6
Length (mm)
1828
Width (mm)
933
Height (mm)
927
Max Load Height (mm)
300
Weight (kg)
31
Capacity (kg)
350
6ft - No Handrails
Length (ft)
6
Length (mm)
1828
Total Width (mm)
933
Max Load Height (mm)
300
Weight (kg)
21
Capacity (kg)
350
8ft - Handrails
Length (ft)
8
Length (mm)
2438
Width (mm)
933
Height (mm)
927
Max Load Height (mm)
405
Weight (kg)
39.5
Capacity (kg)
350
8ft - No Handrails
Length (ft)
8
Length (mm)
2438
Total Width (mm)
933
Max Load Height (mm)
405
Weight (kg)
27.5
Capacity (kg)
350
10ft - Handrails
Length (ft)
10
Length (mm)
3048
Width (mm)
933
Height (mm)
927
Max Load Height (mm)
505
Weight (kg)
47.5
Capacity (kg)
350
10ft - No Handrails
Length (ft)
10
Length (mm)
3048
Total Width (mm)
933
Max Load Height (mm)
505
Weight (kg)
33.5
Capacity (kg)
350
Ramp Length & Load Height
It is crucial for you to know your load height to identify which ramp length you require. The load height is the vertical measurement from the ground to where you rest the ramp onto.
Once you have the load height you can use our simple ramp length calculator to identify which ramp length you require, alternatively please contact our team.
Manual Wheelchairs: Minimum recommended gradient: 1:6 Example: for a 1ft load height you'll need a 6ft long ramp.
Mobility Scooters: Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance) Example: for a 1ft load height you'll need an 8ft long ramp.
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Bolt Down
Easy to Fit
Electric Wheelchair
Manual Wheelchair
Mobility Scooter
One Year Warranty
Leave Outside
Description

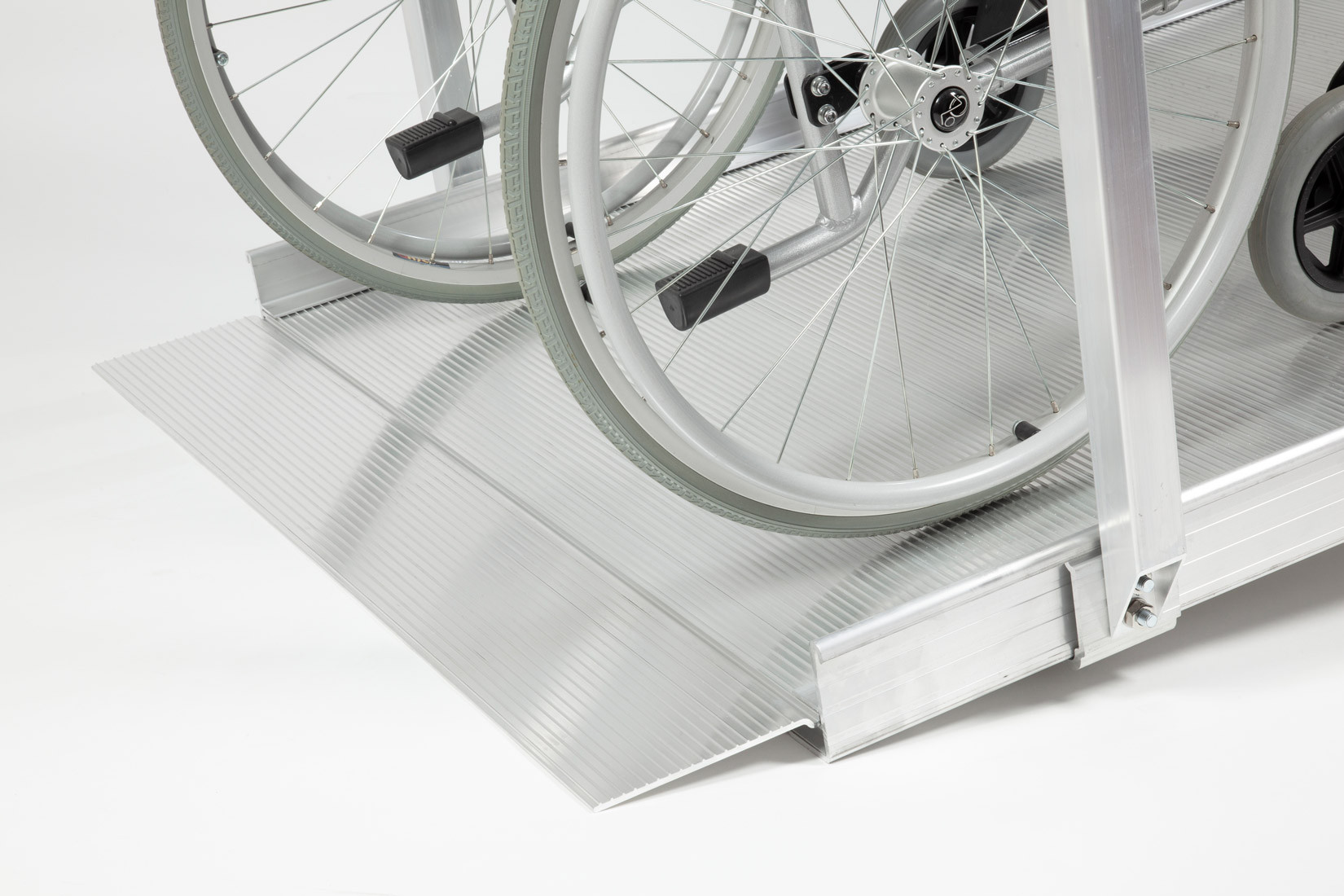

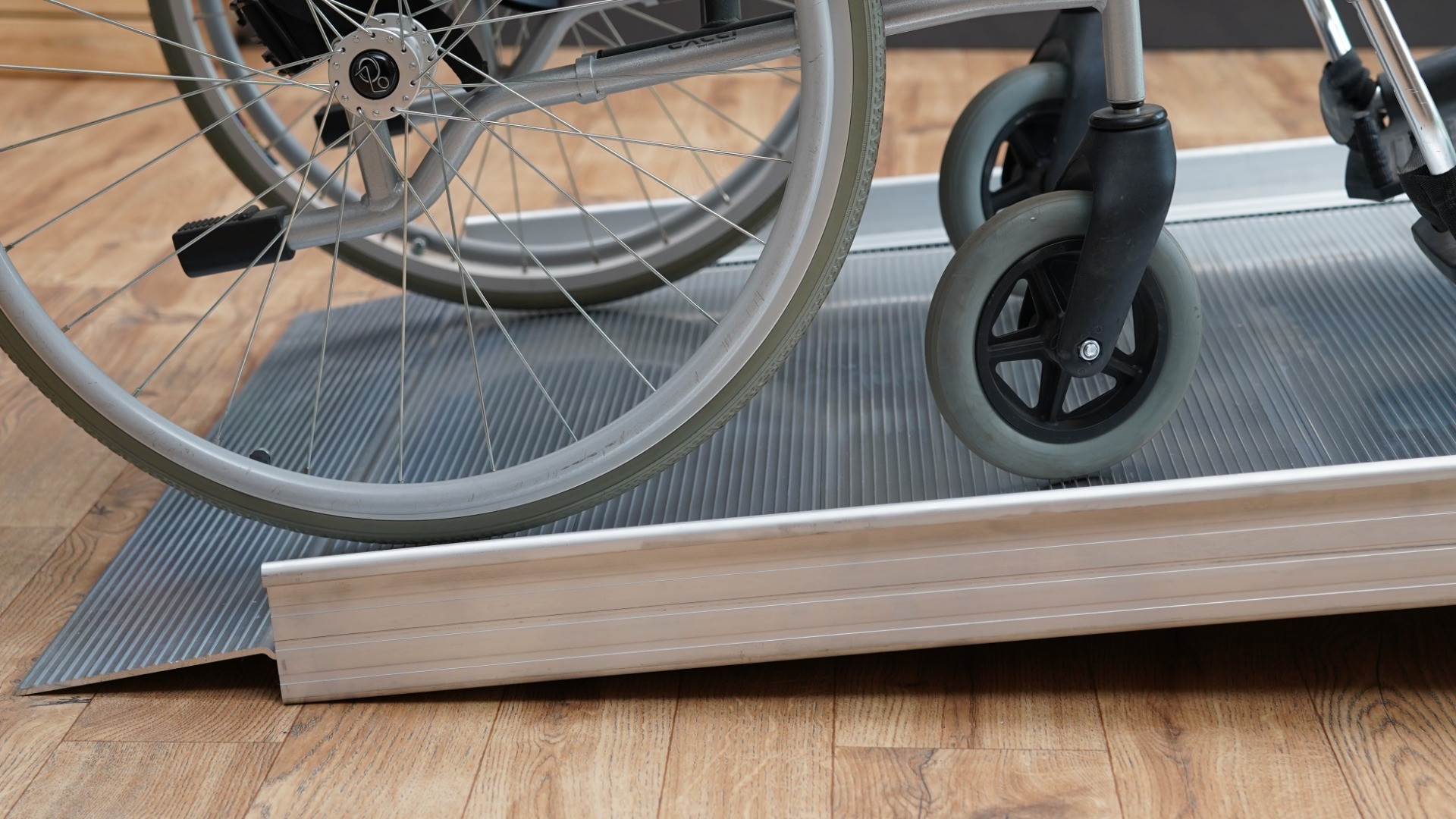

350kg capacity, this disabled access ramp is suitable for manual wheelchairs, electric wheelchairs, scooters and walkers
Utilise as a fixed, semi-permanent or temporary access ramp, pre-drilled holes to allow the wheelchair ramp to be secured to the step
Available to purchase with or without handrails

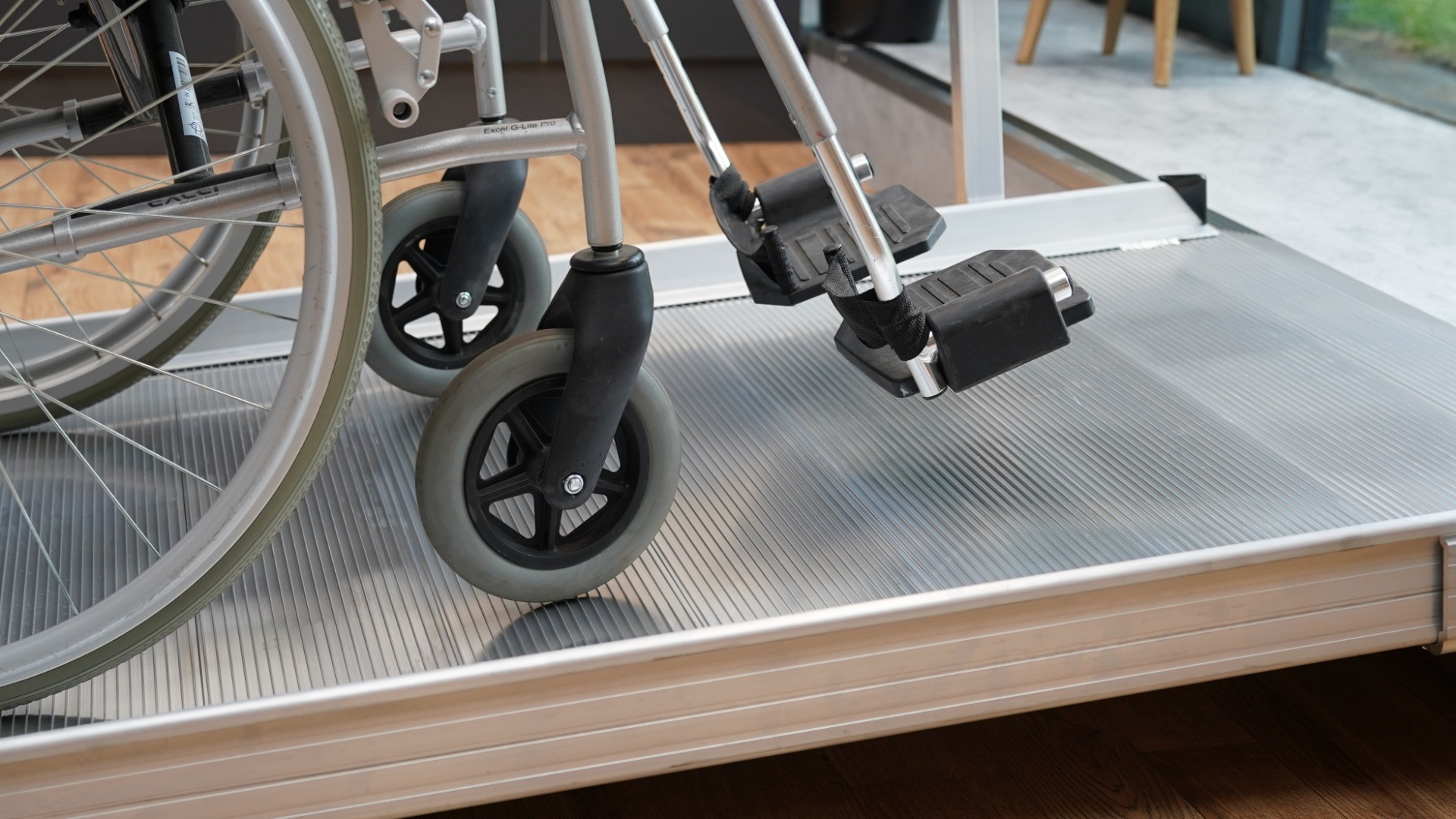

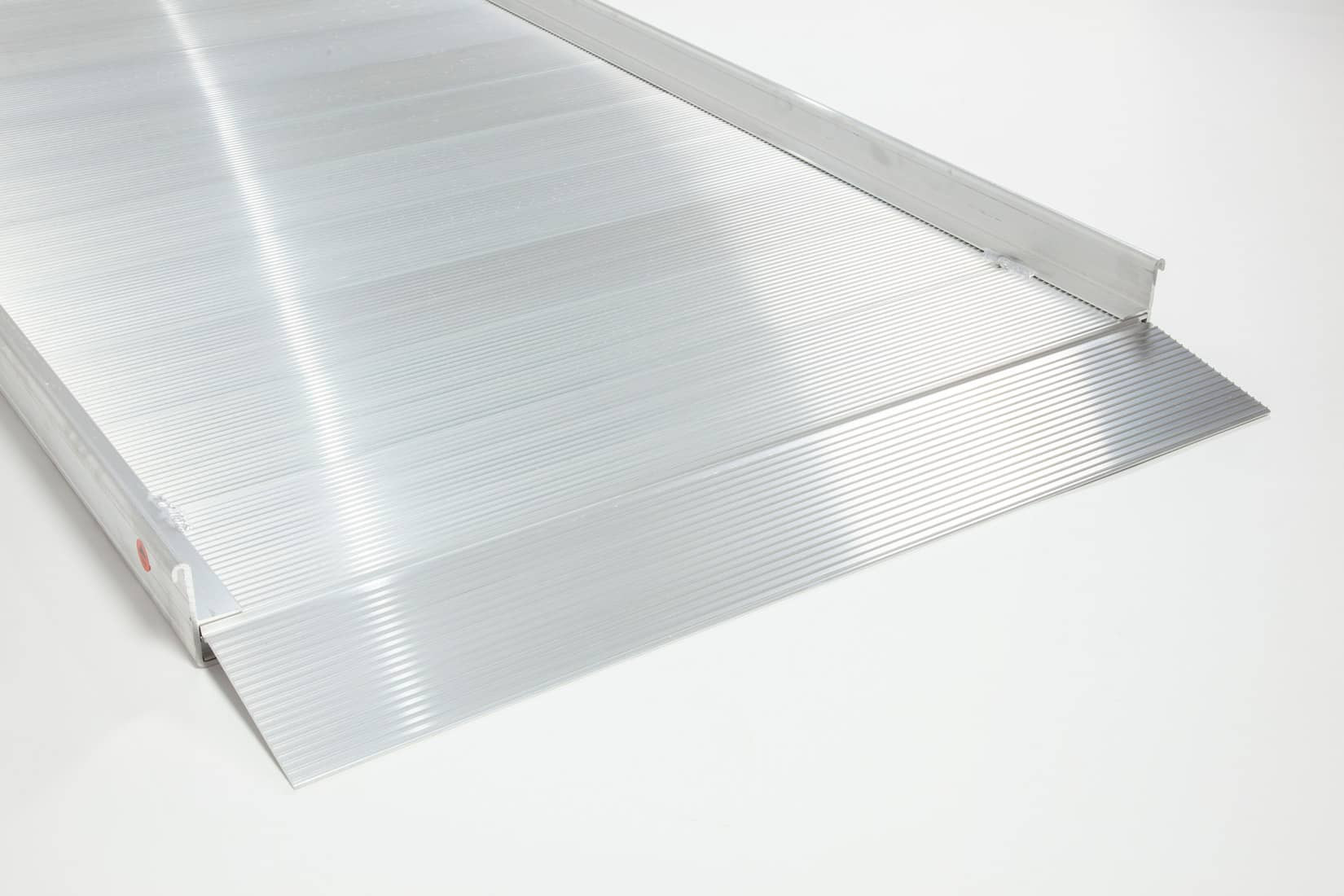

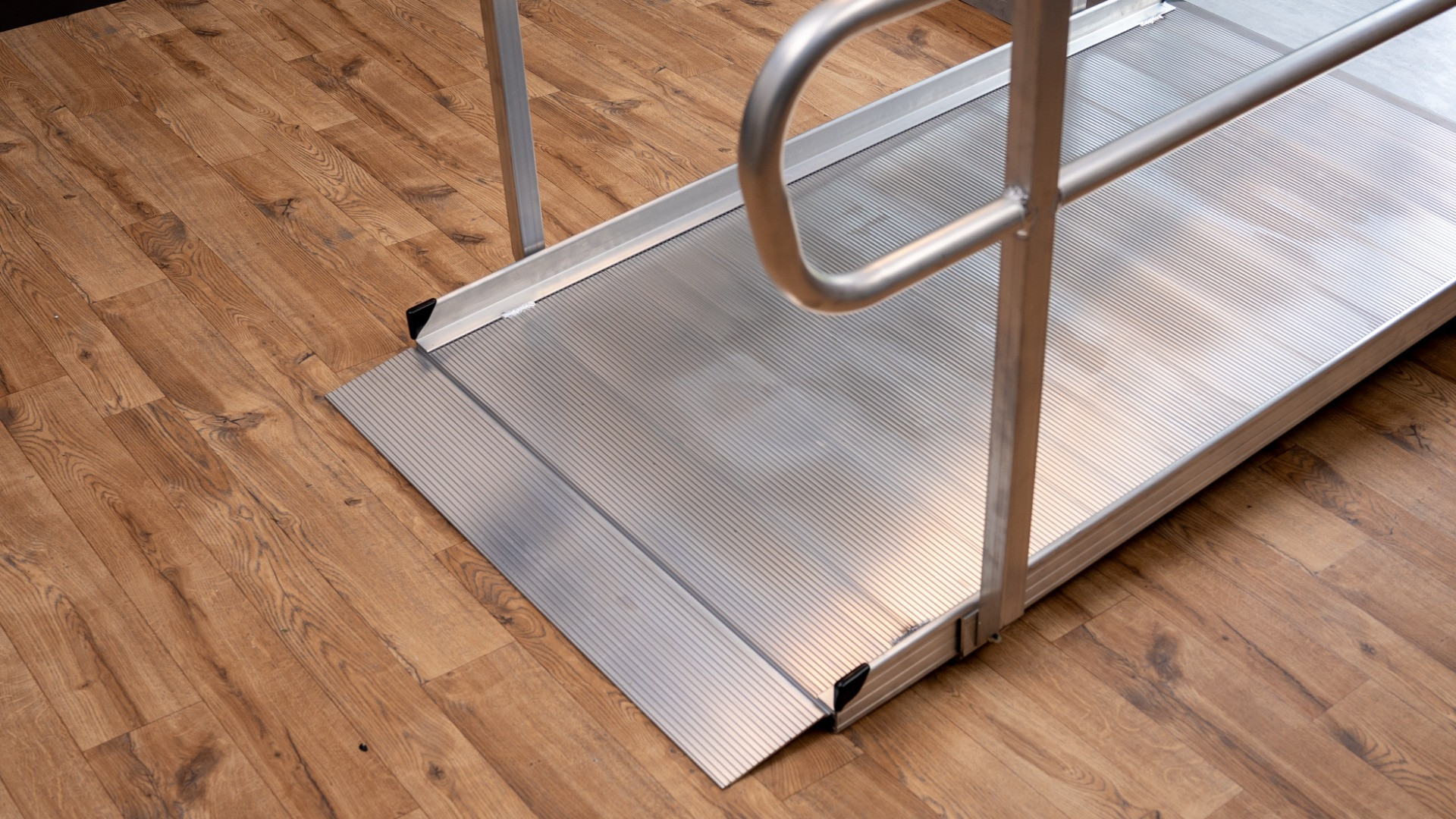

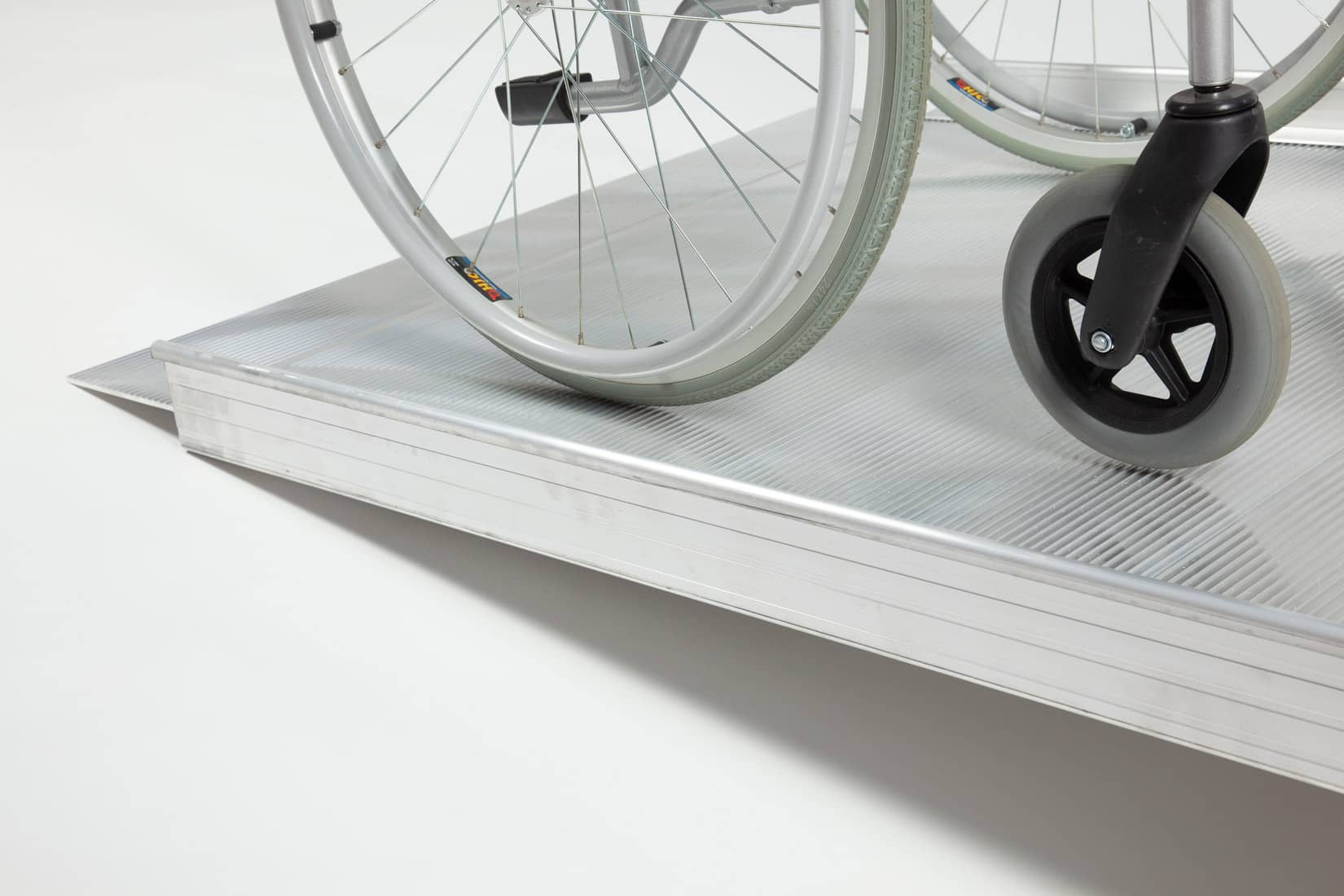

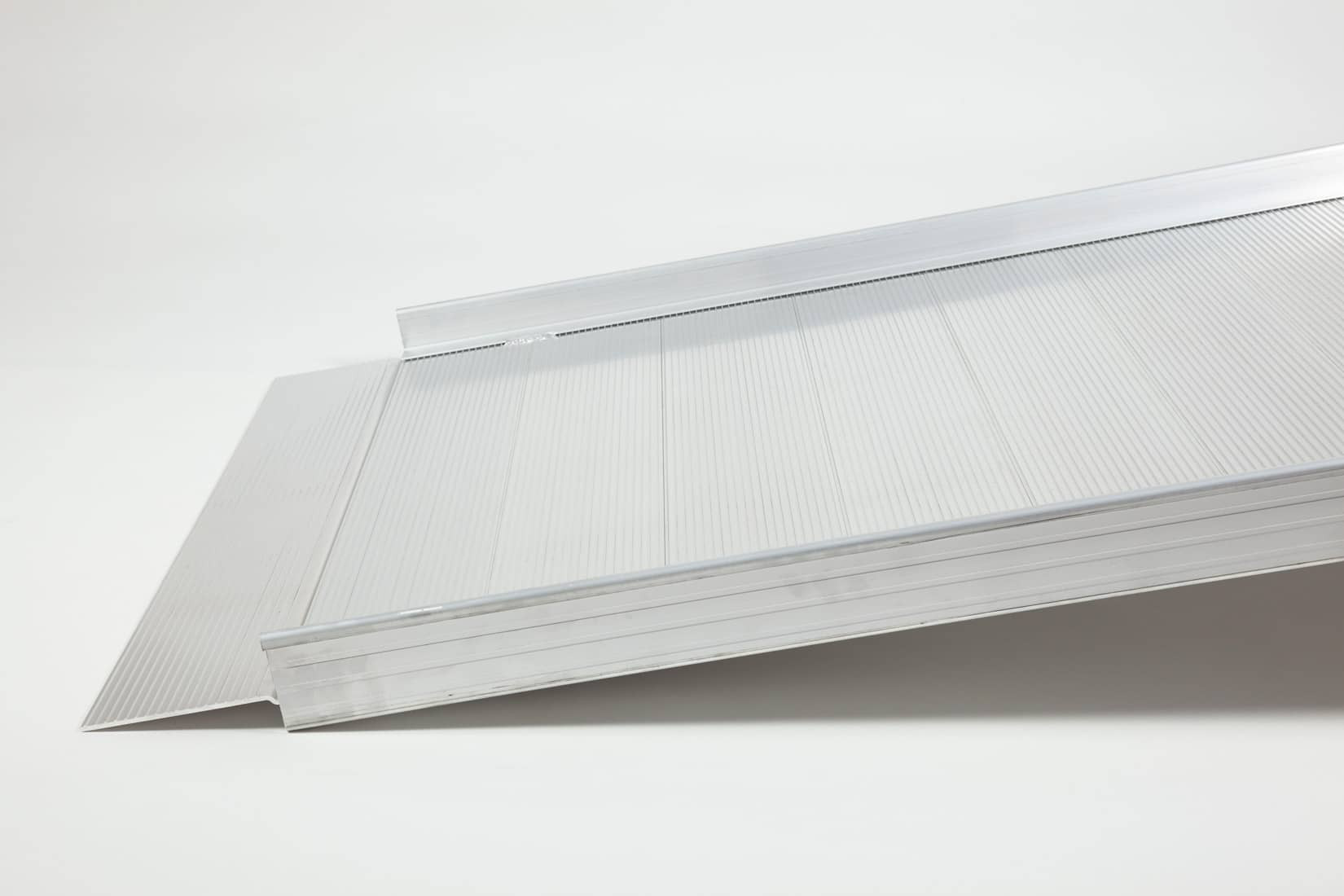

Anti-slip surface

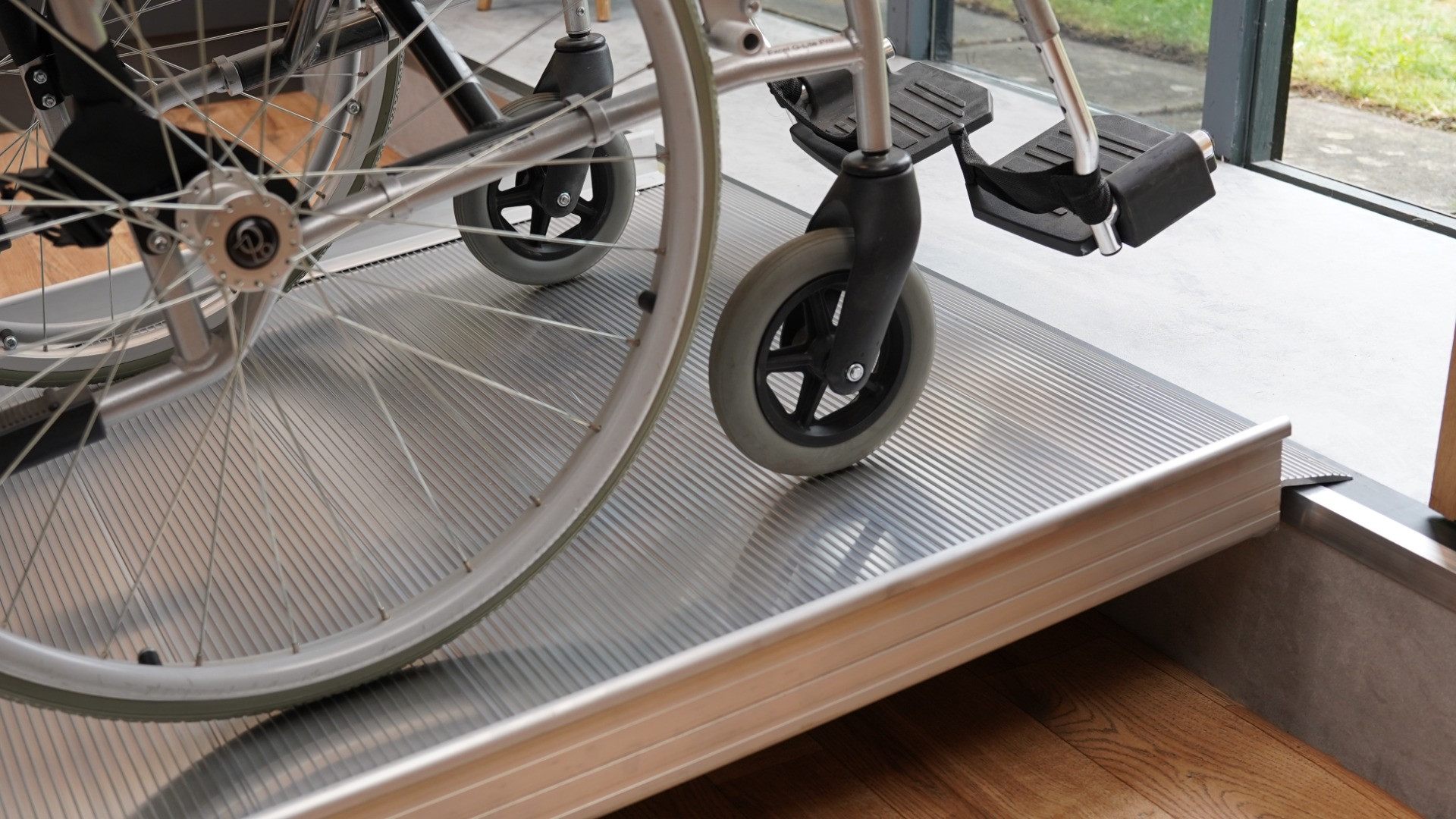

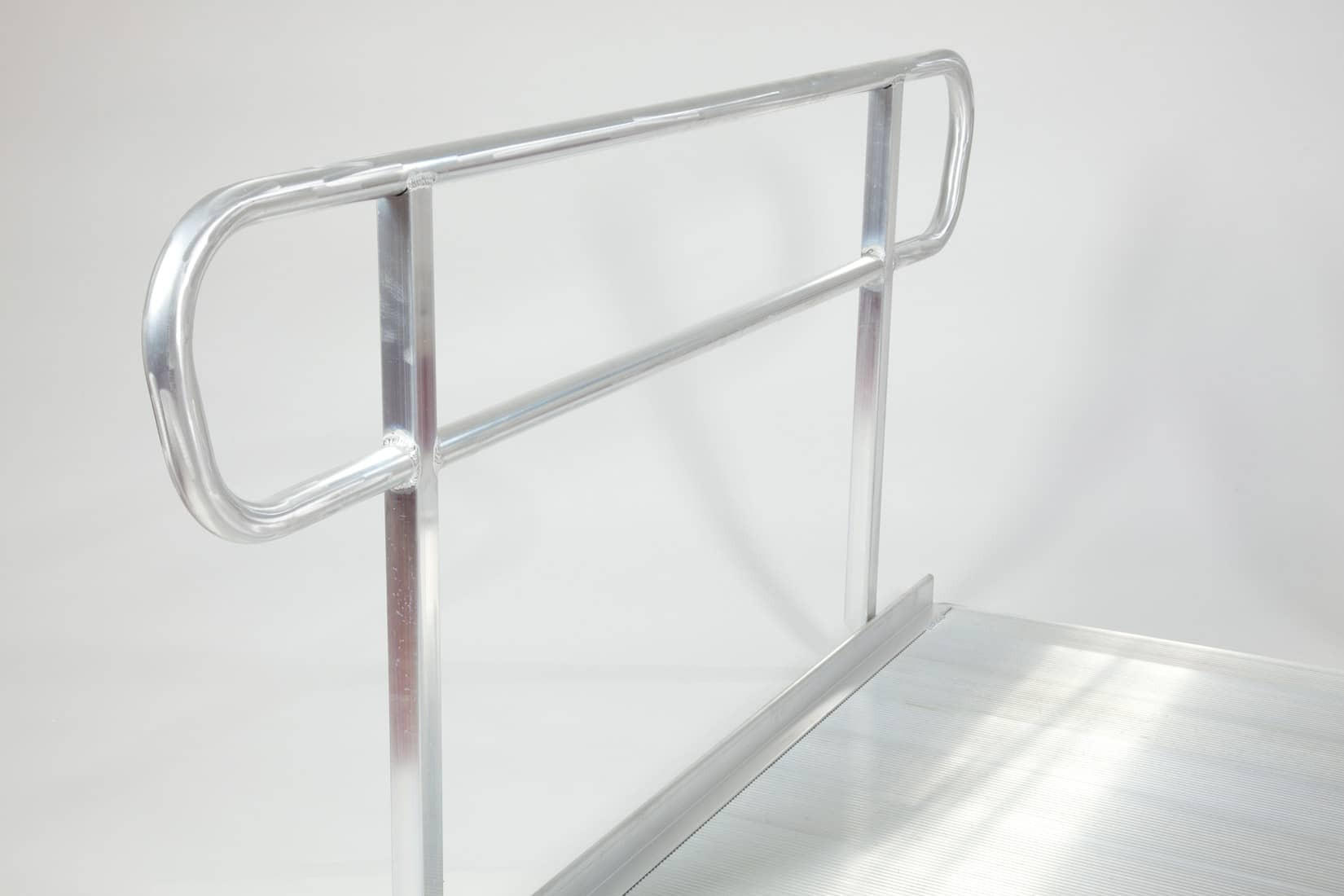

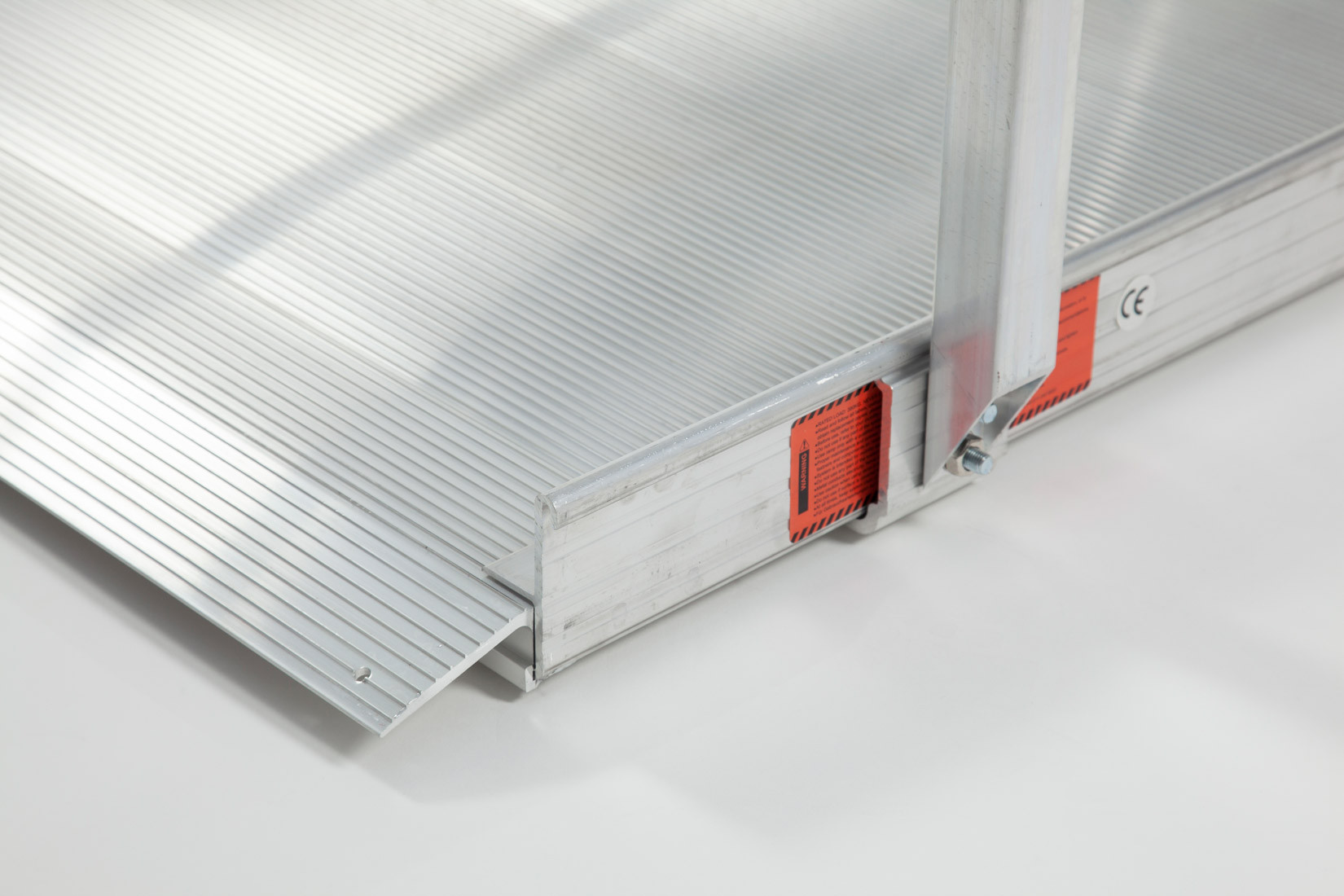

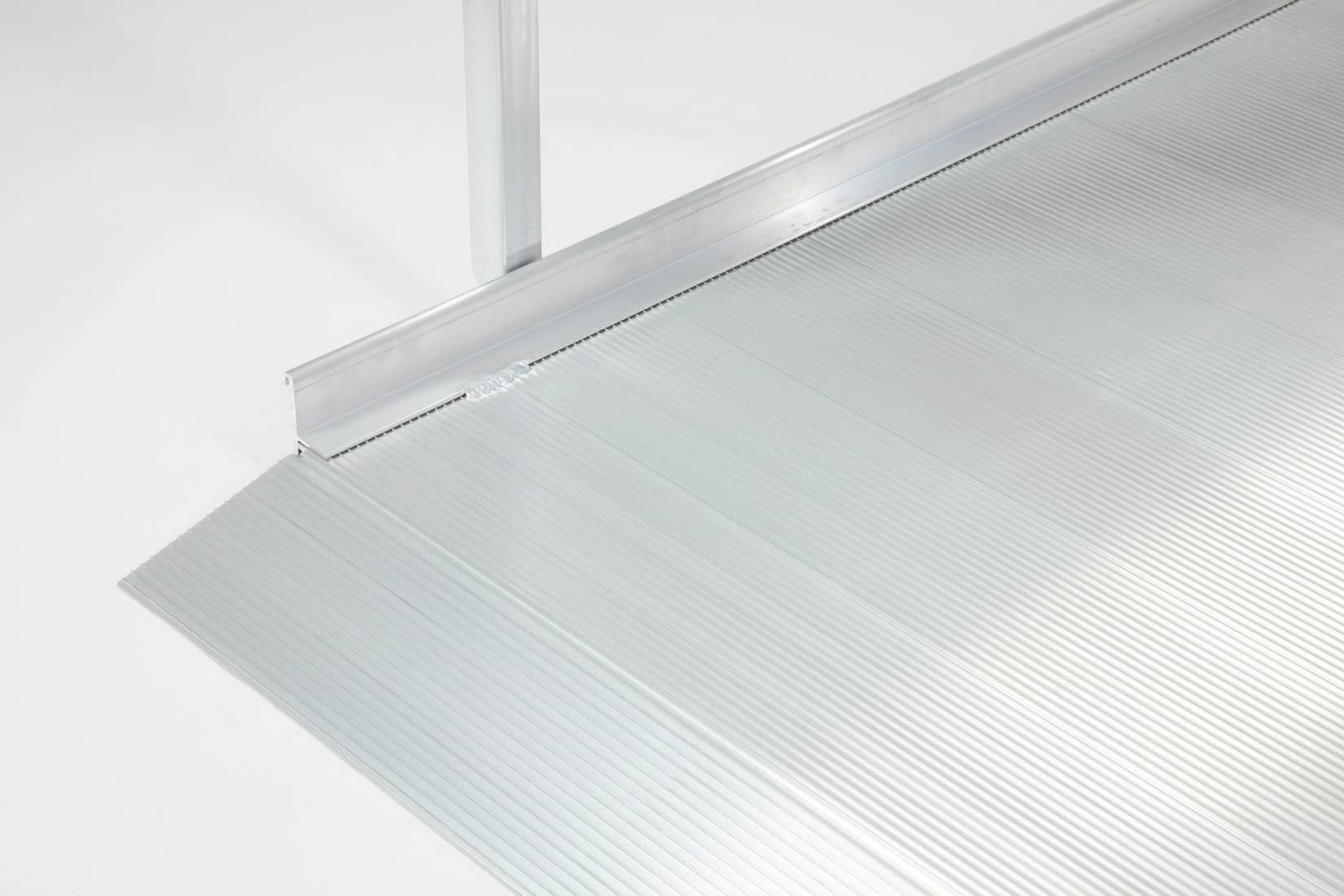

5cm high safety edges on either side of the ramp to prevent users from rolling off the ramp
Suitable for indoor and outdoor use, the aluminium ramp can be left outside

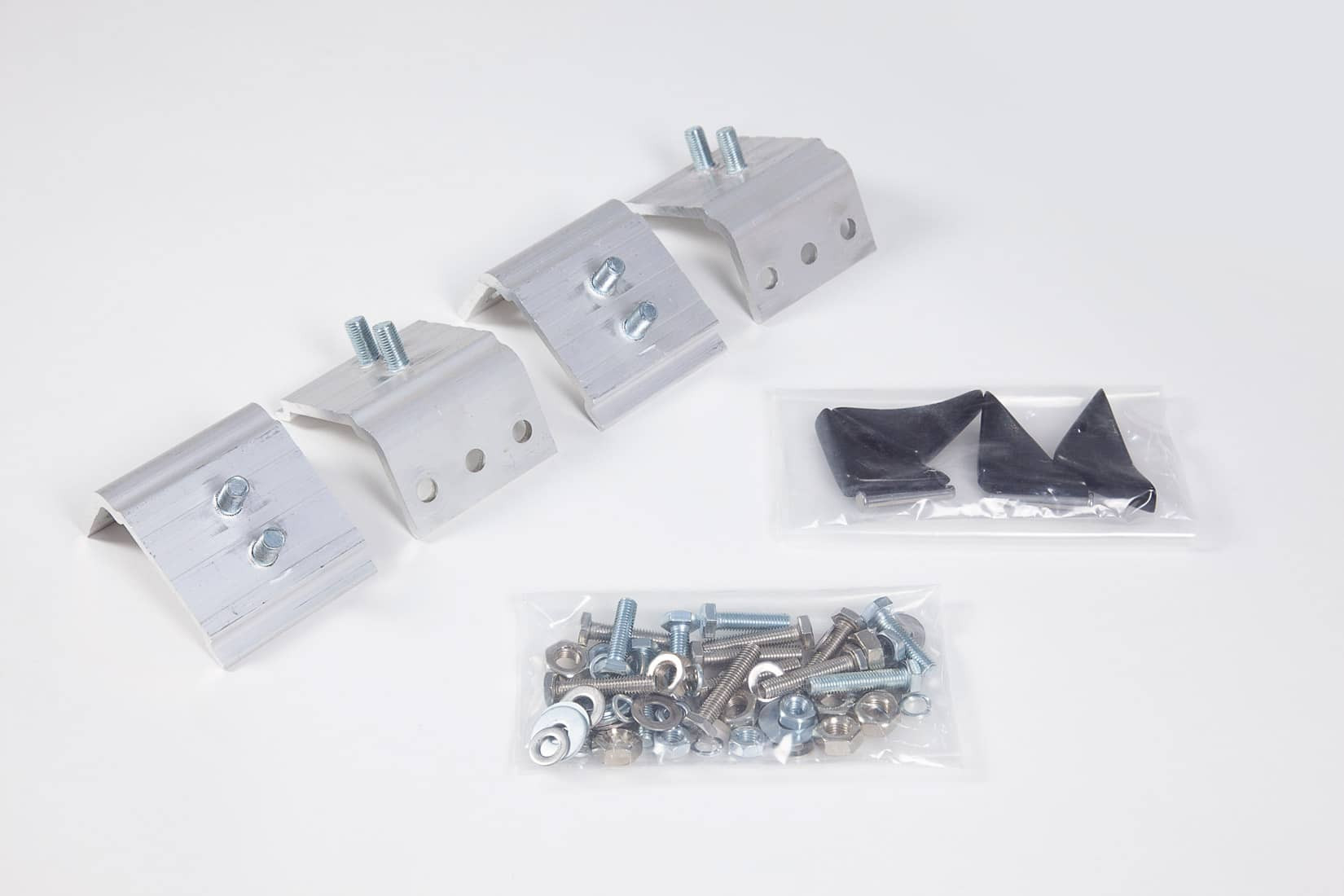

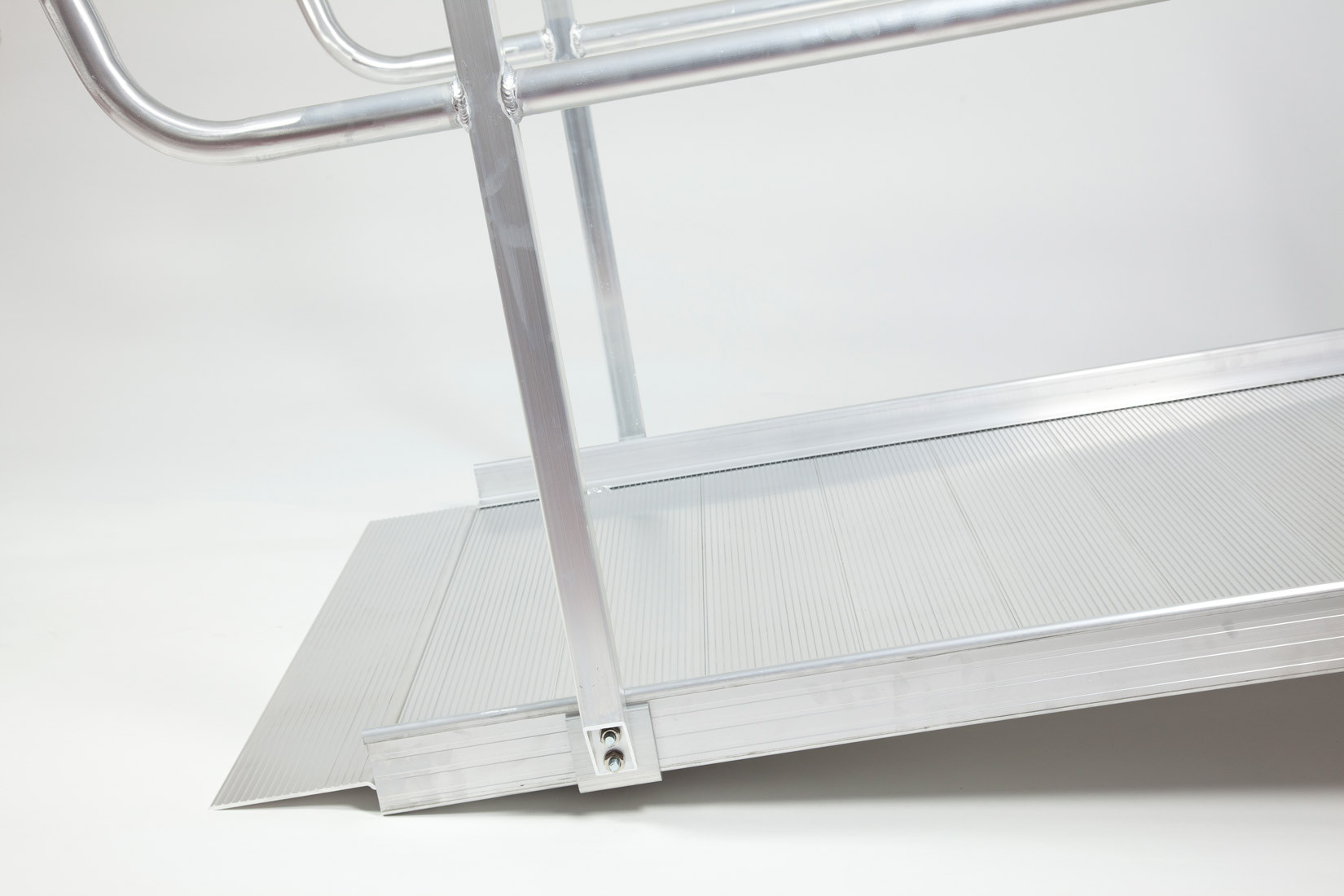

Easy installation, fixings are provided to secure the handrails onto the mobility ramp
VAT relief available for individuals with disabilities or registered charities
Suitable for use within the commercial and domestic settings

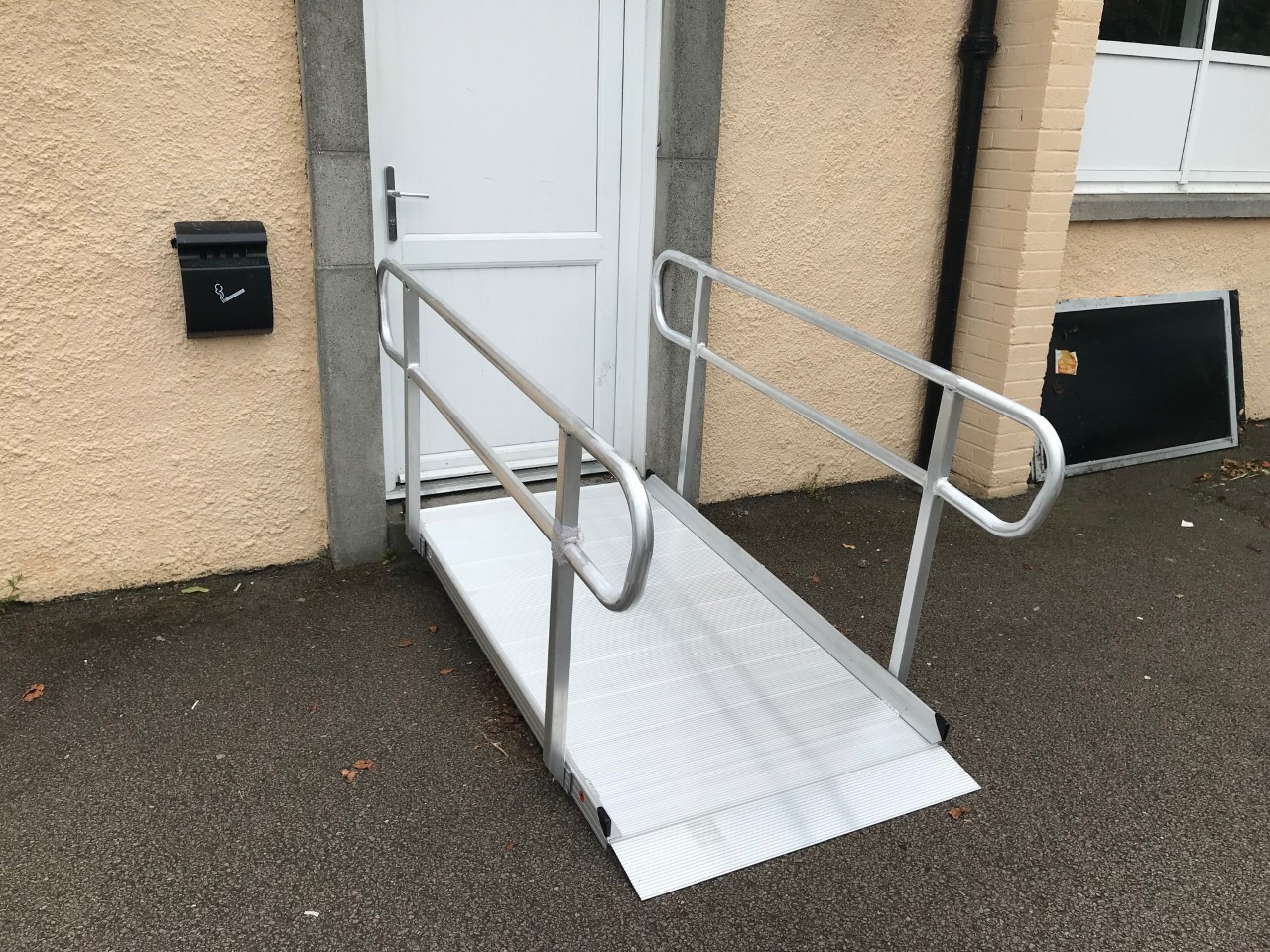

Overcome steps and kerbs and doorways

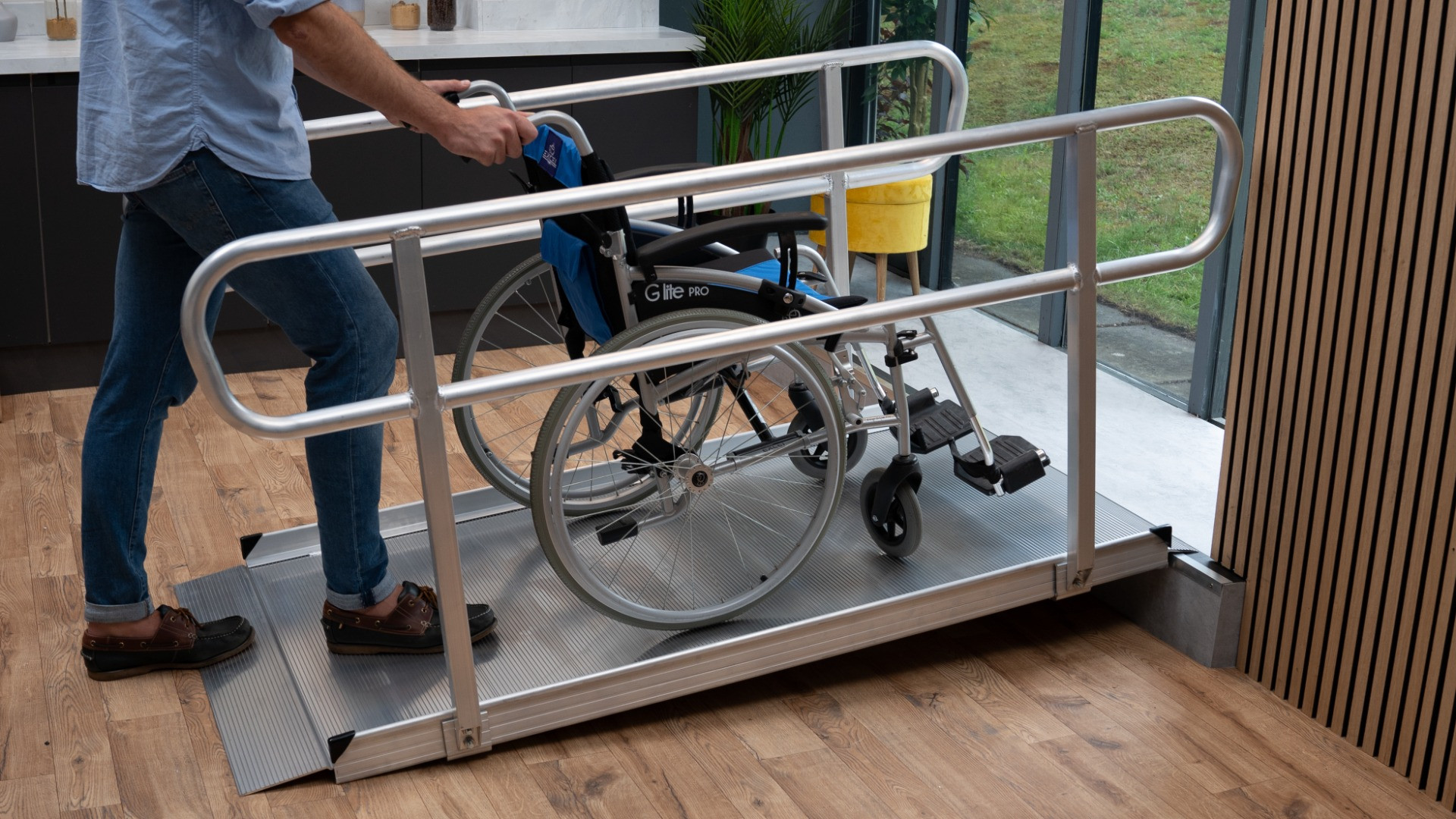

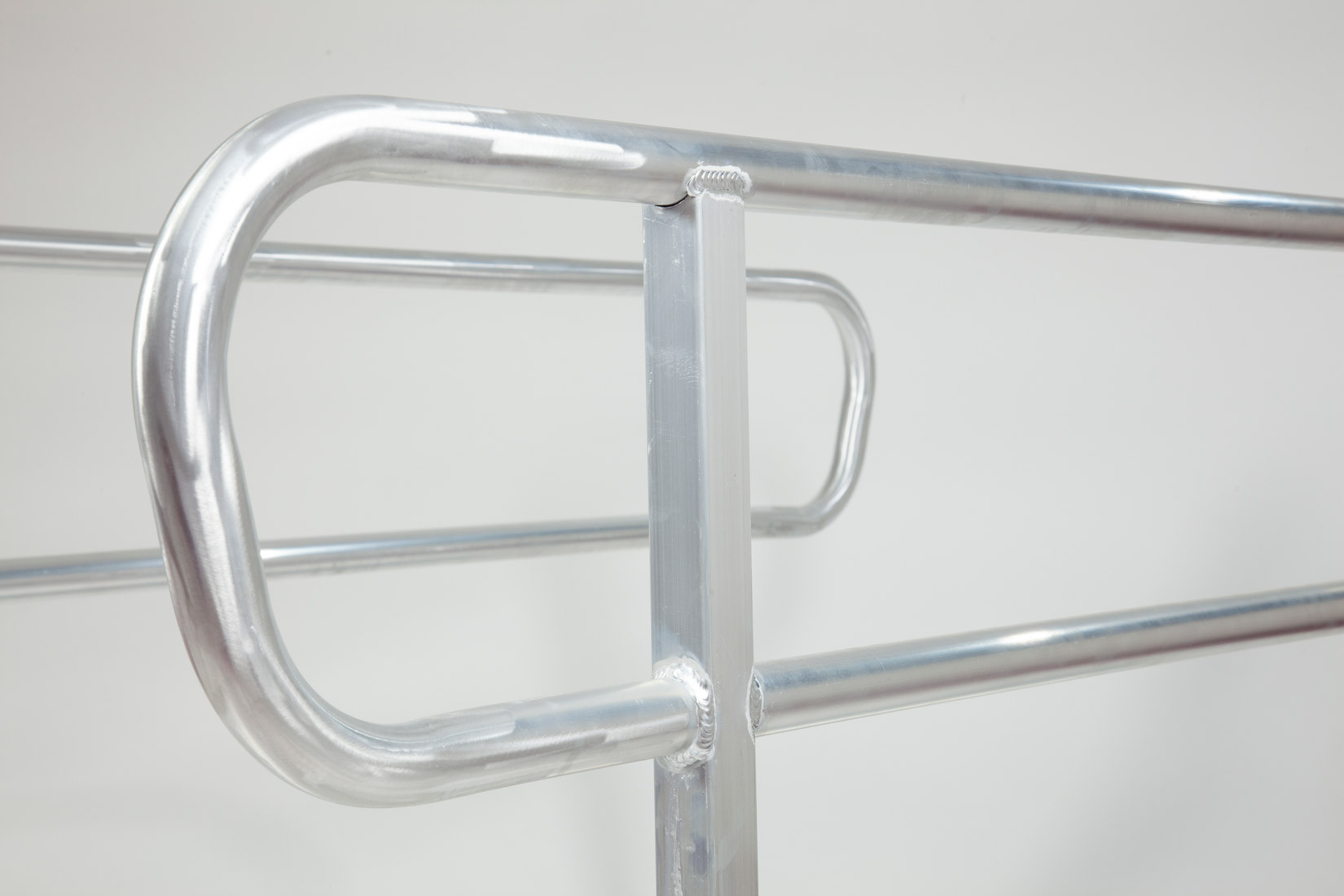

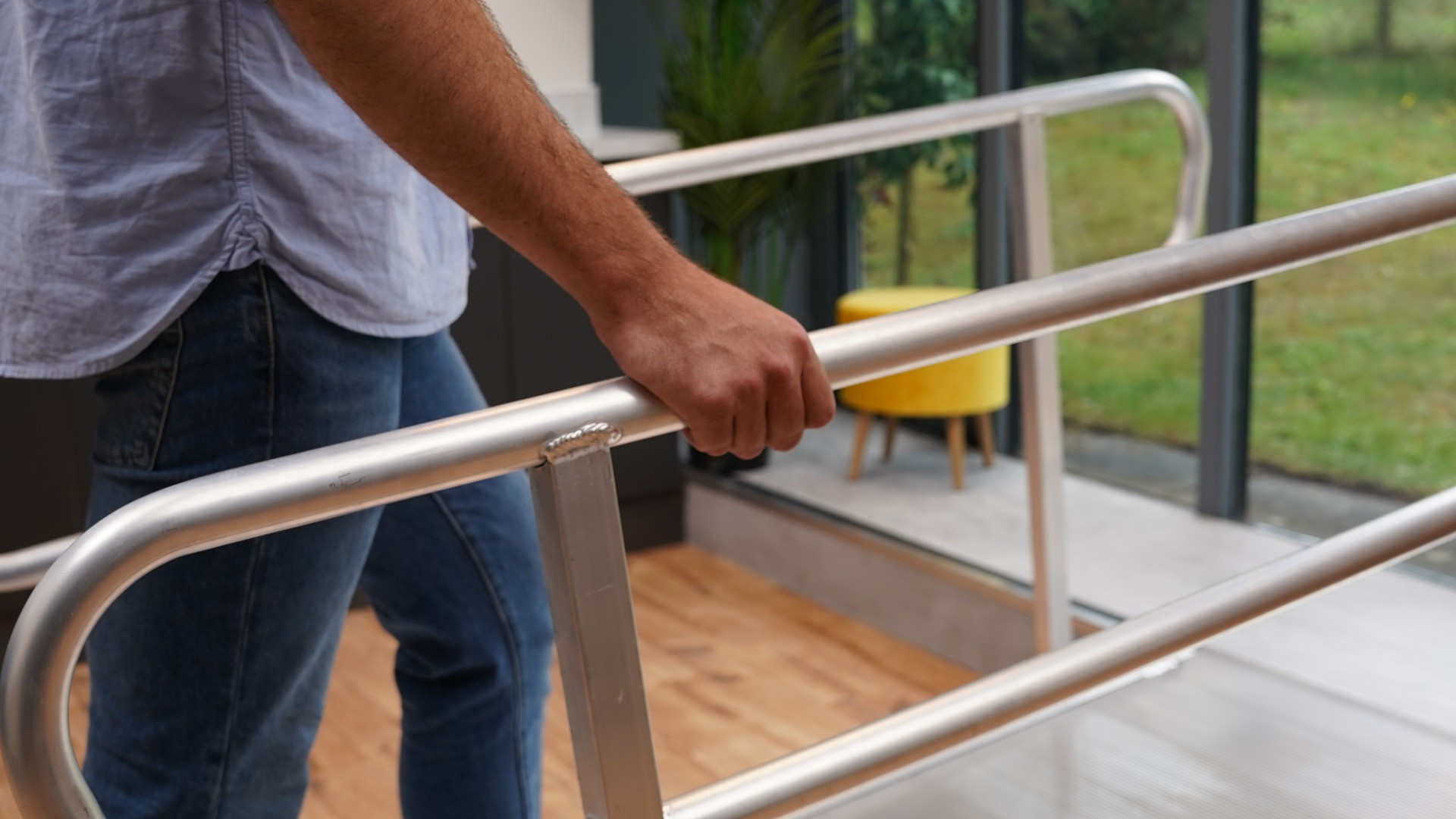

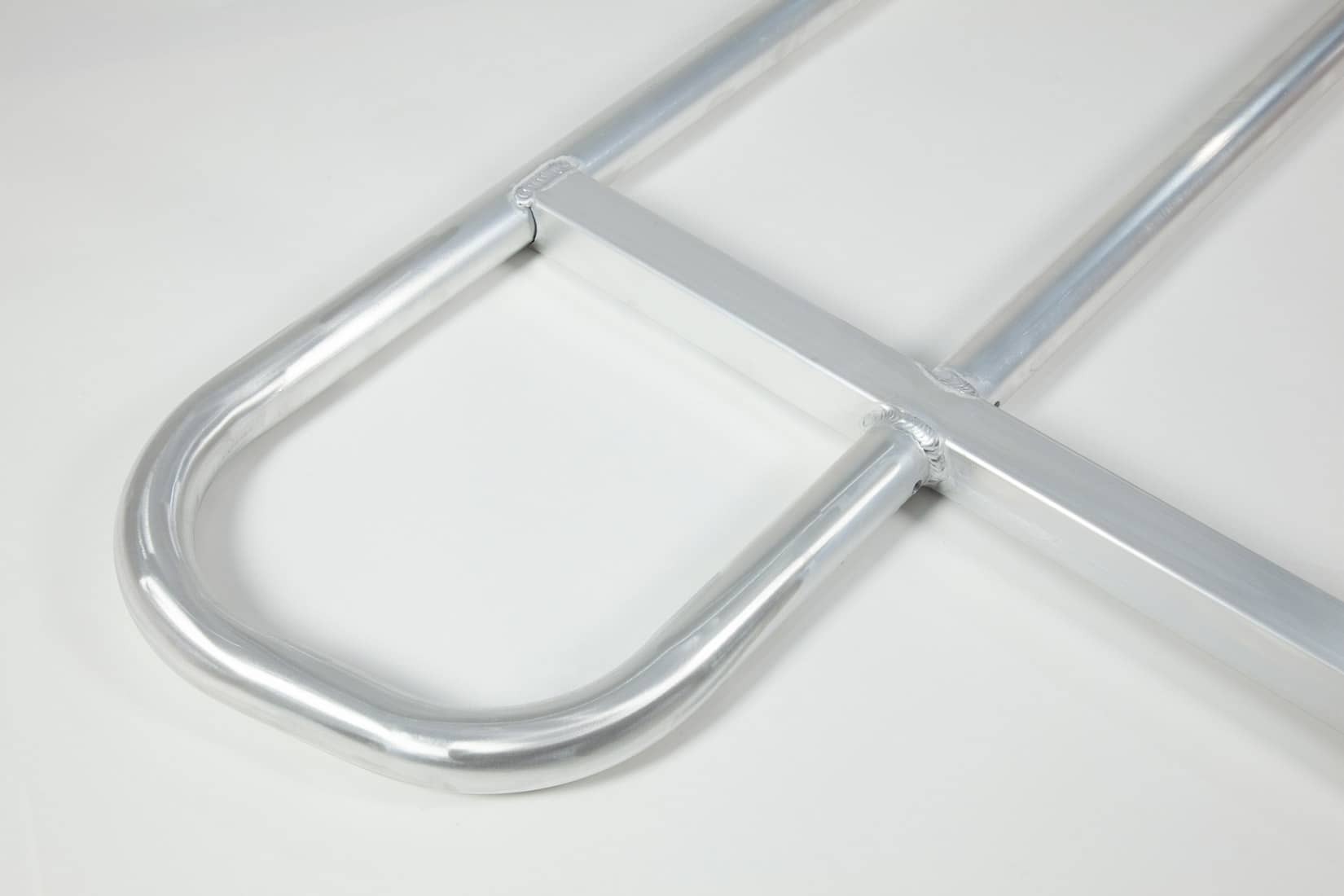

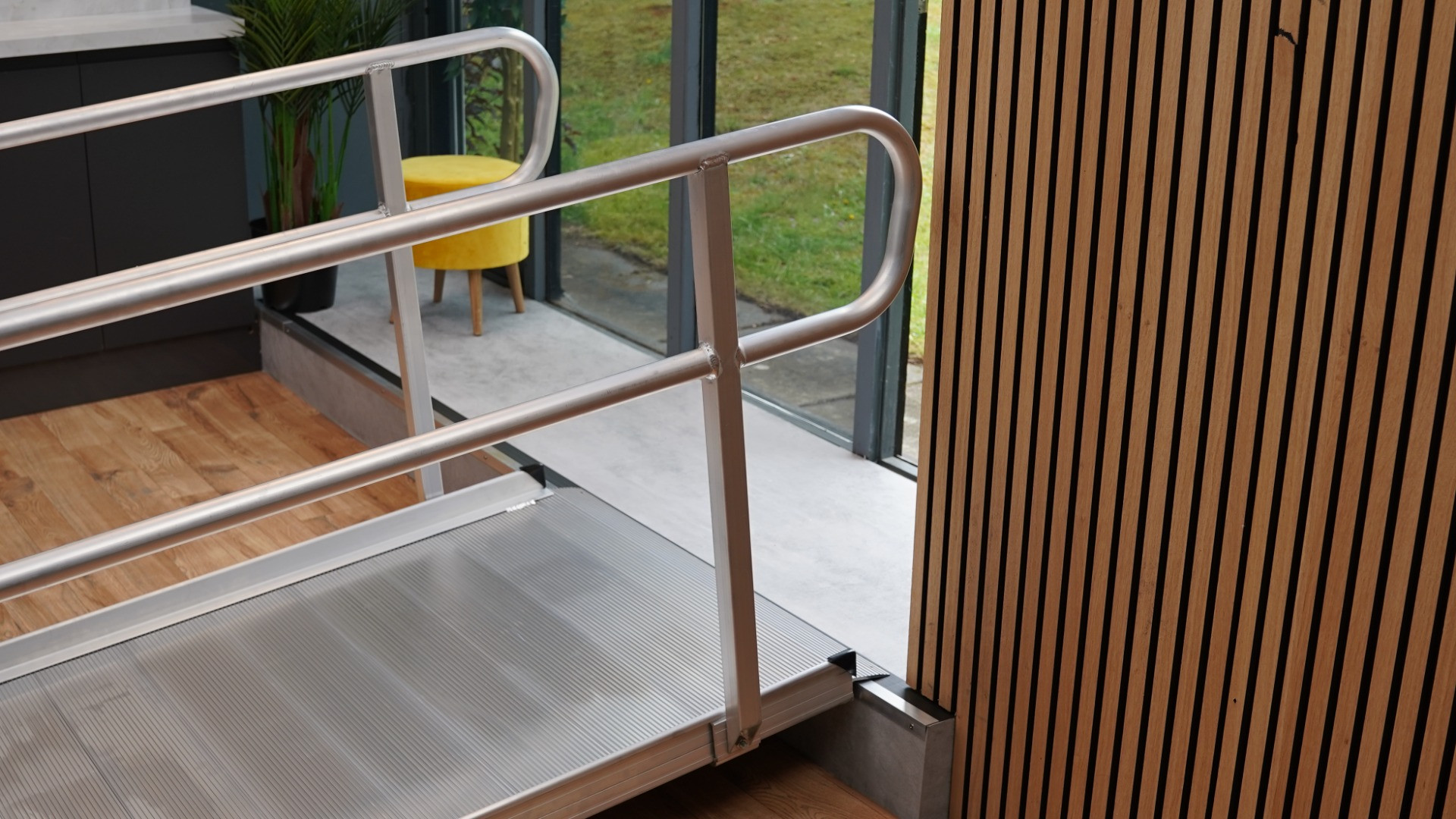

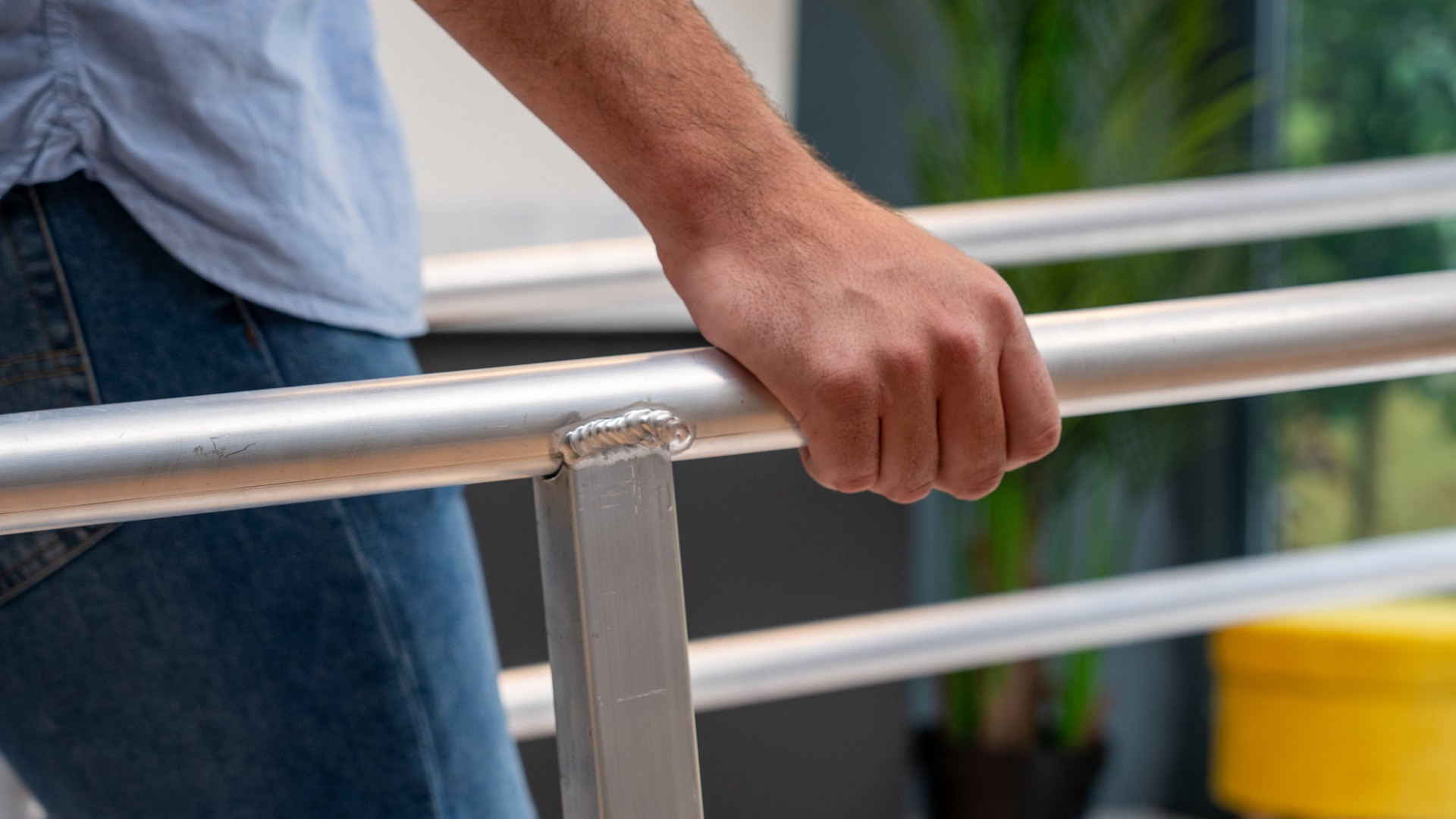

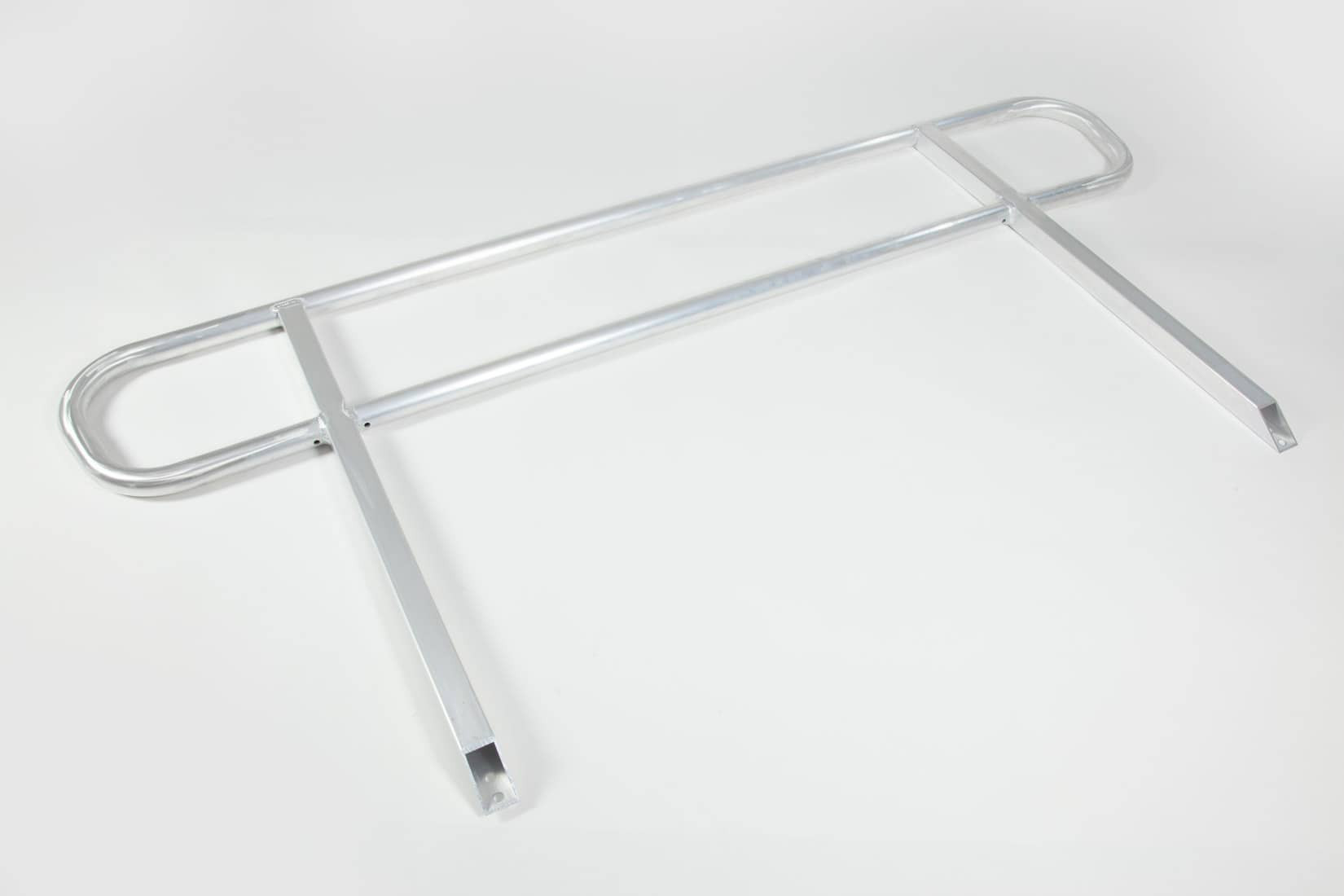

Double handrails specifically designed to be used in conjunction with this ramp, perfect for those who require a mobility aid for walking
Total ramp width is 930mm, width of the ramp including handrails is 1020mm

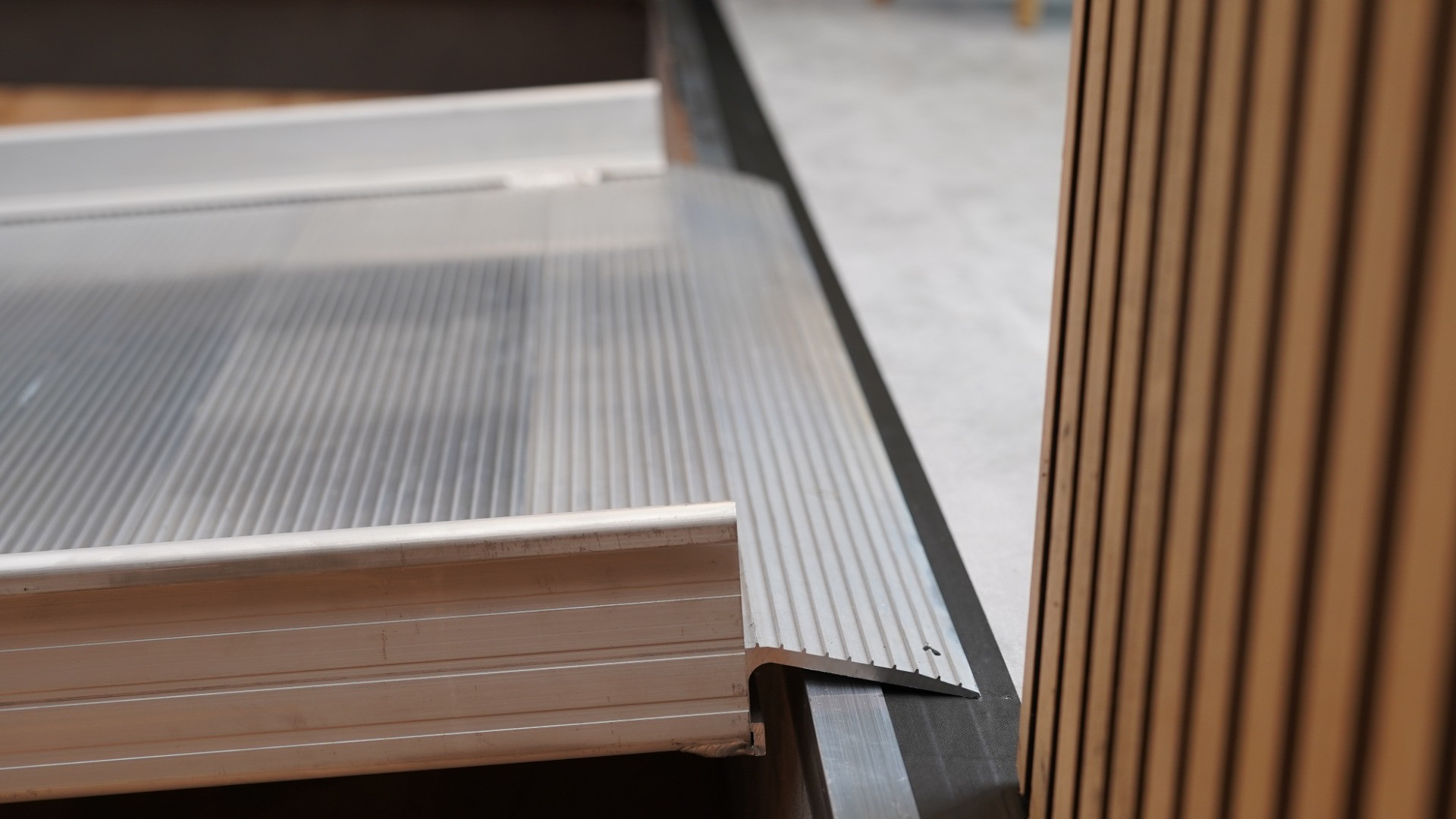

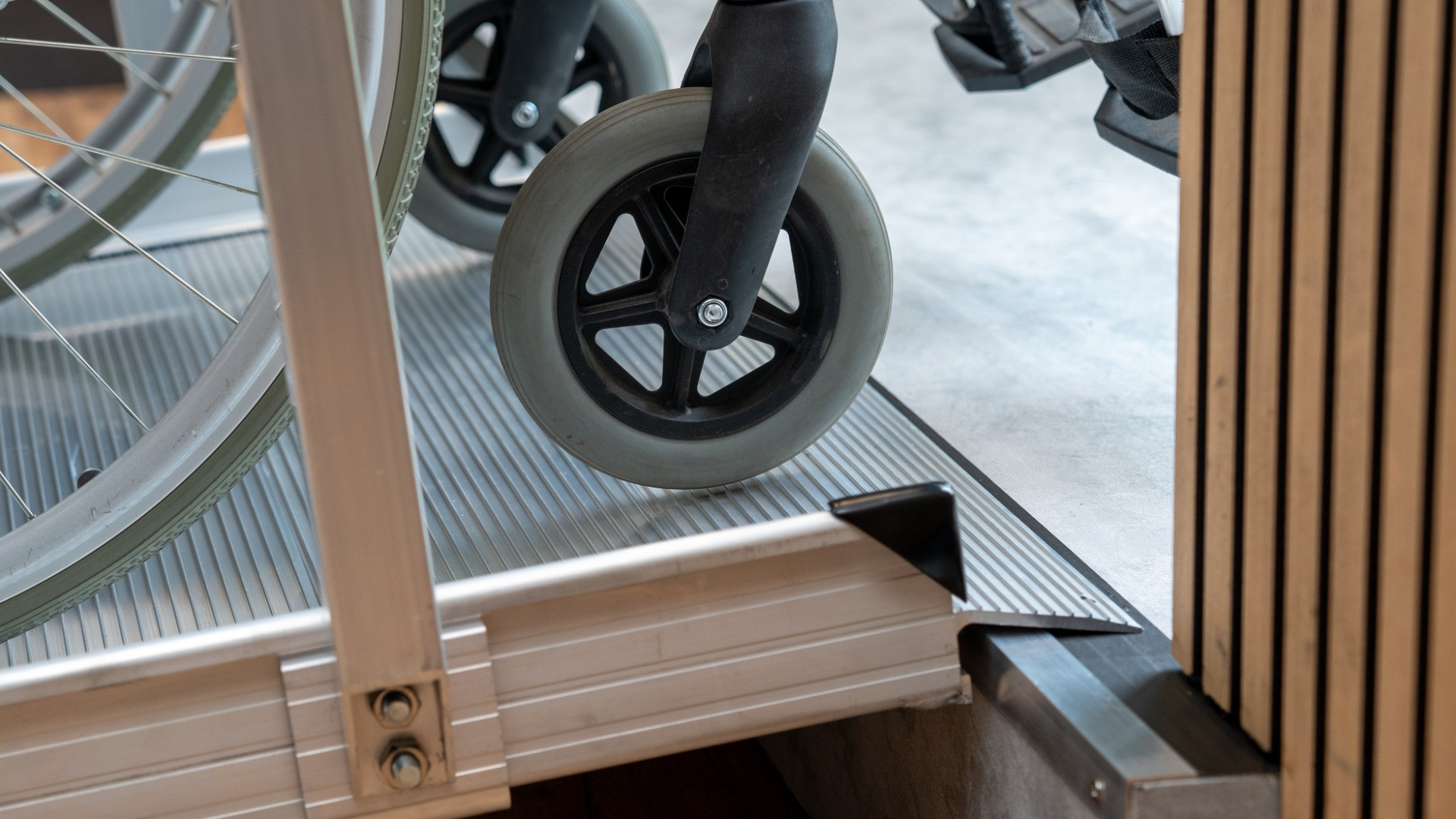

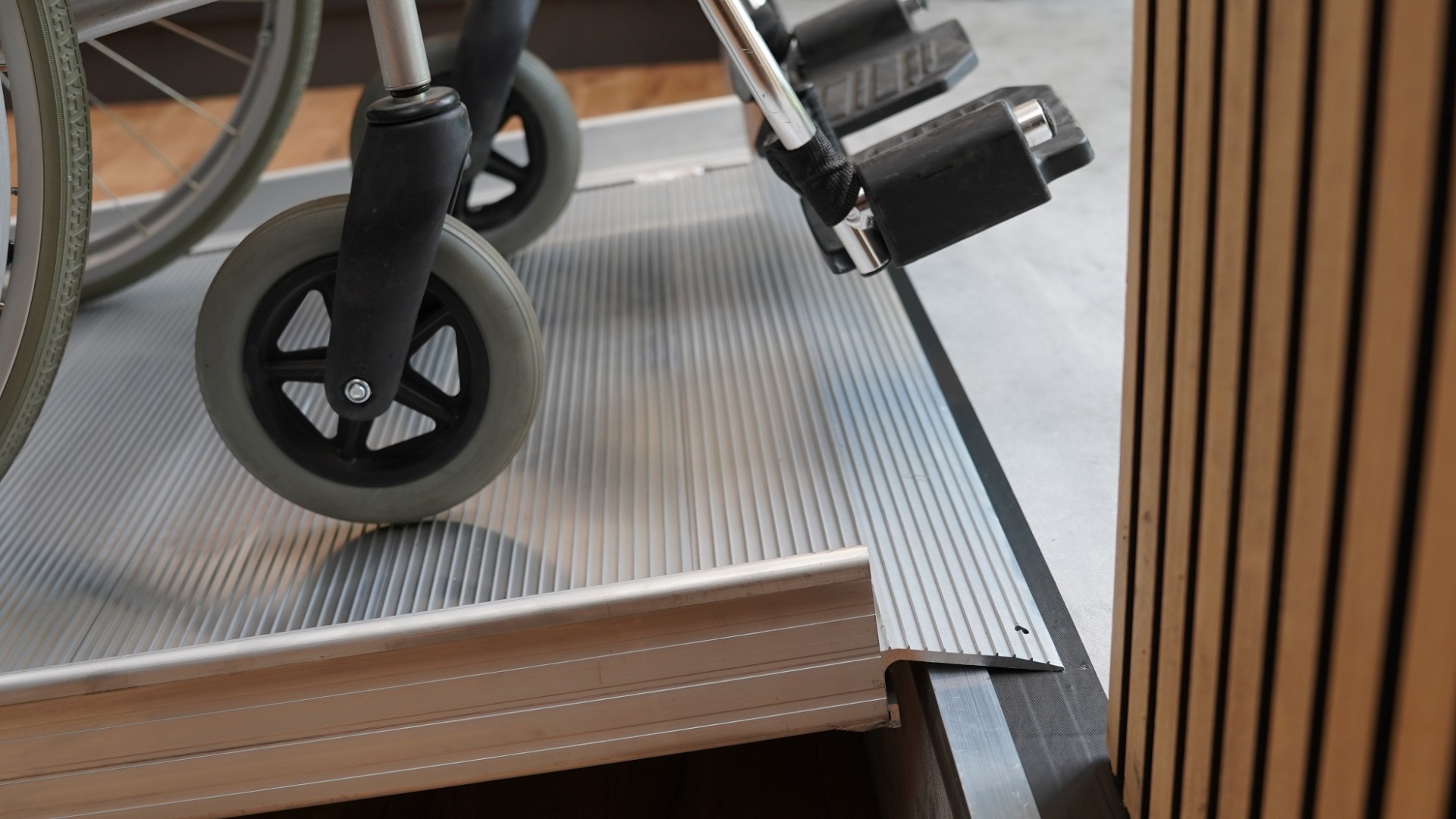

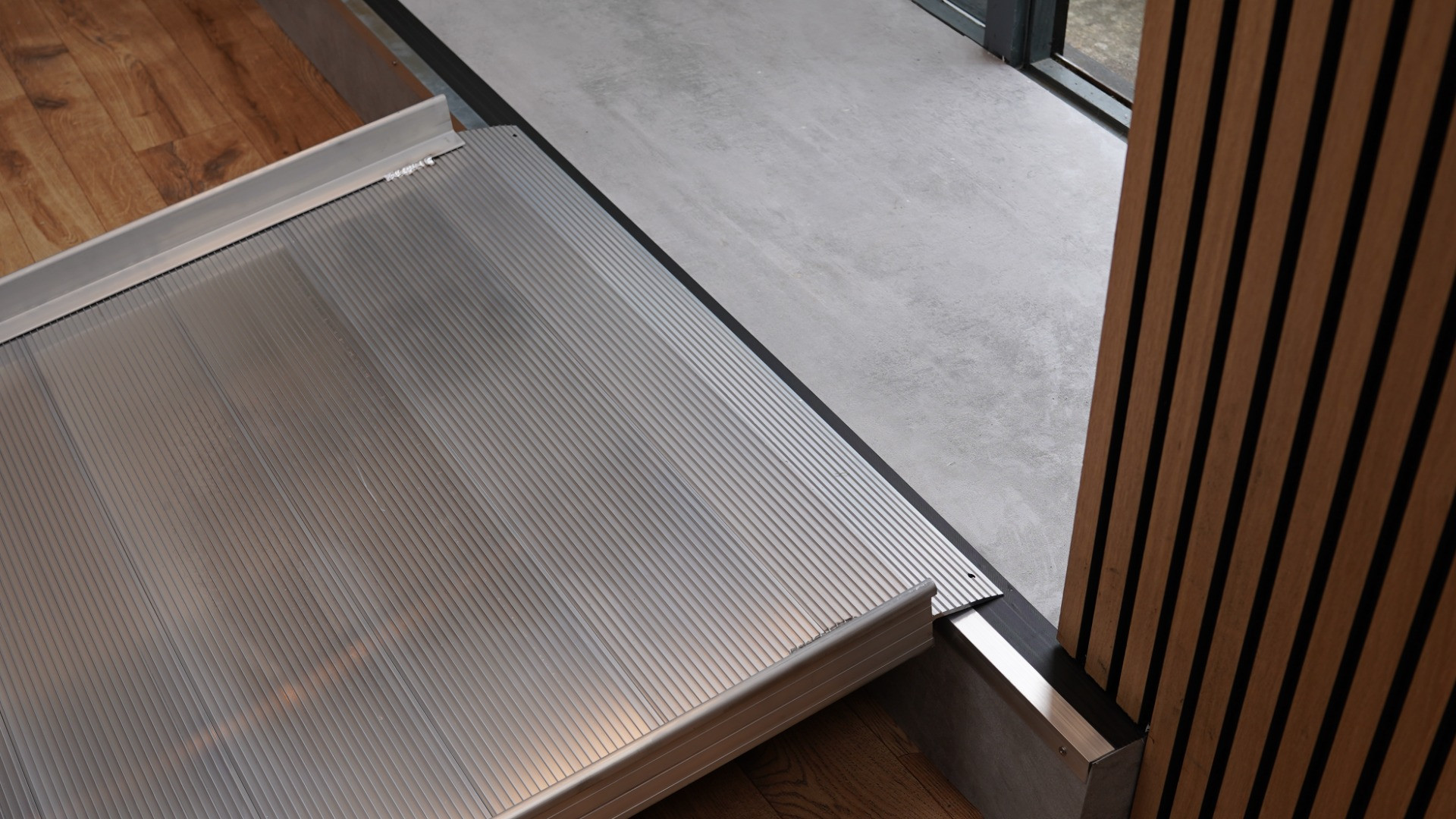

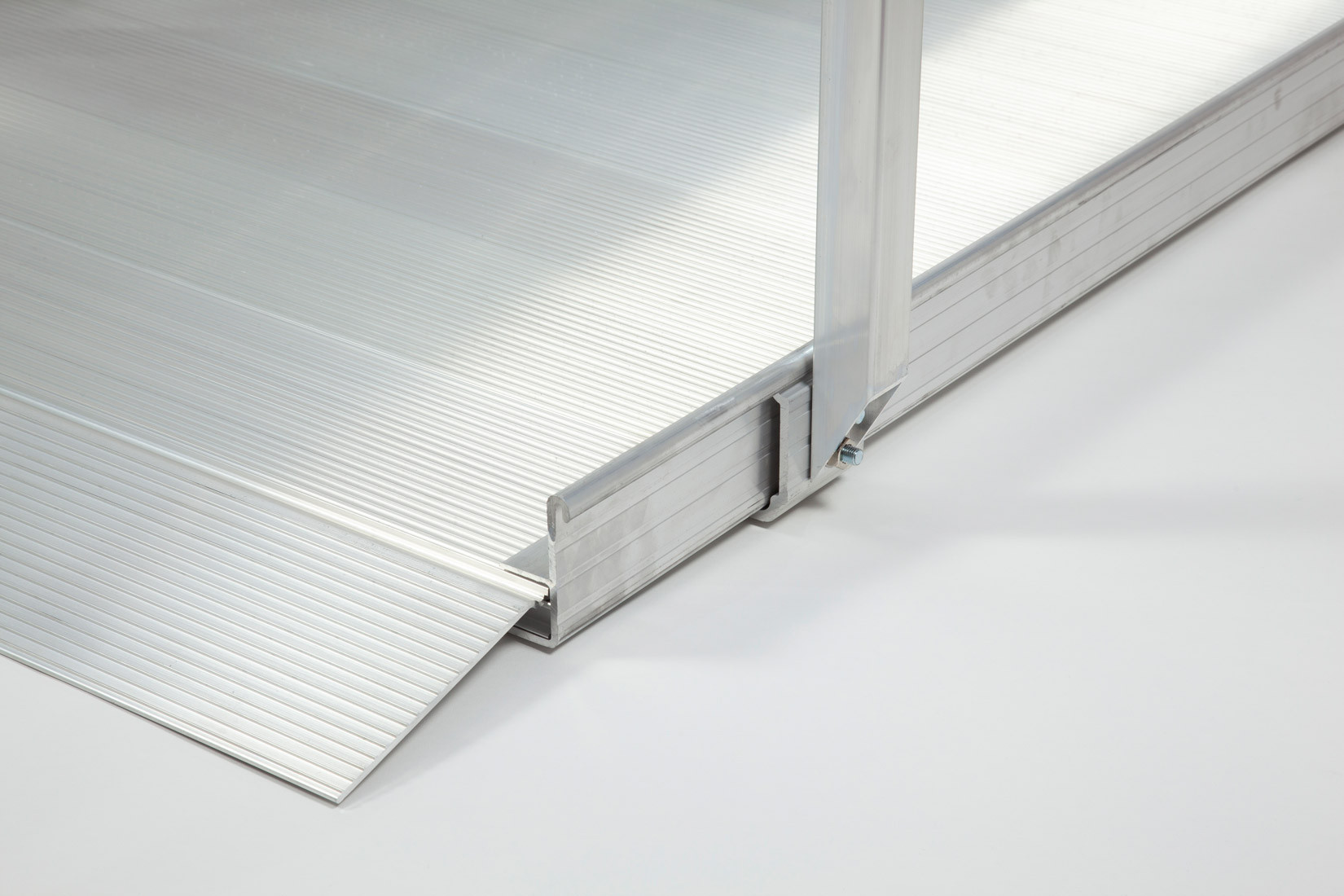

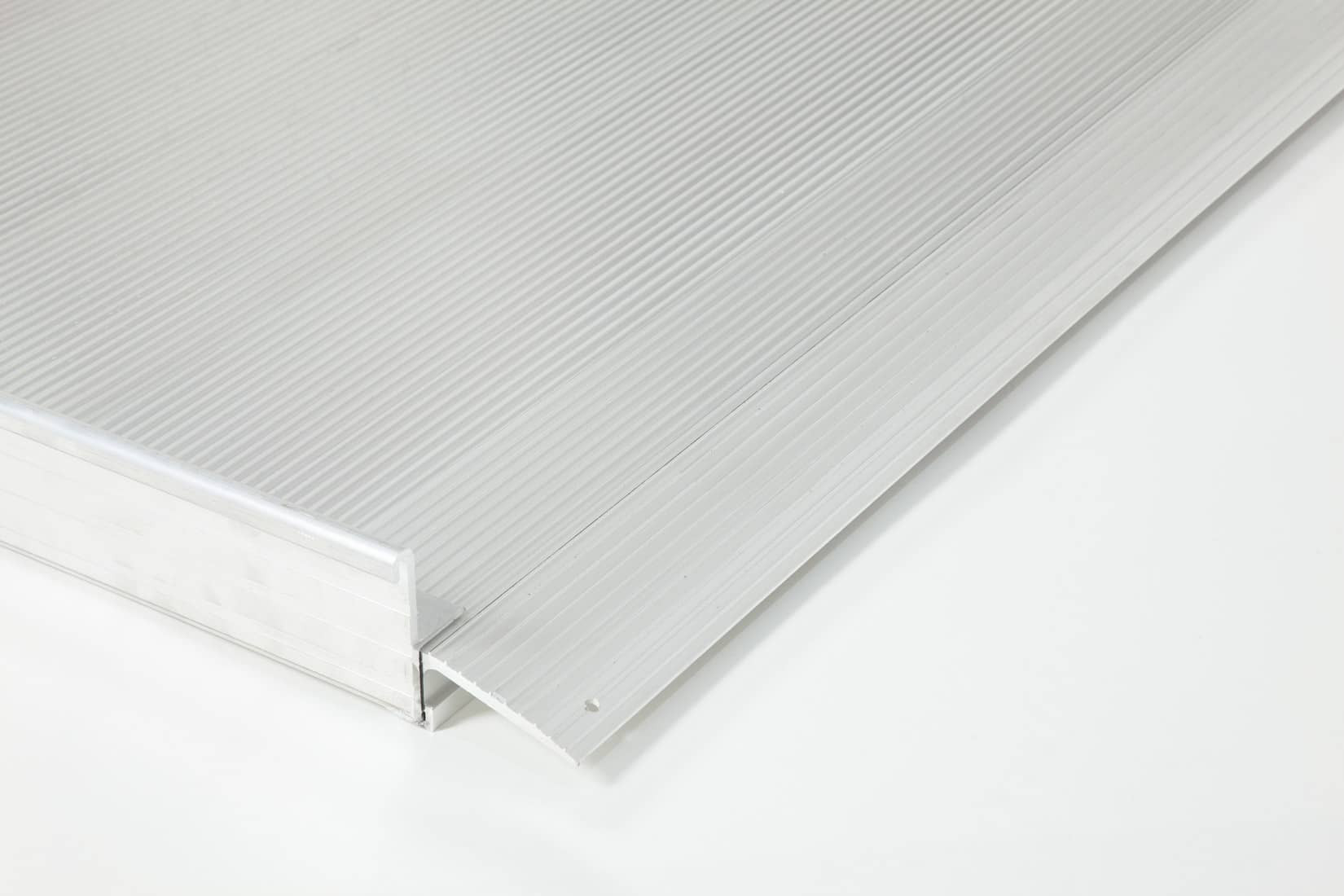

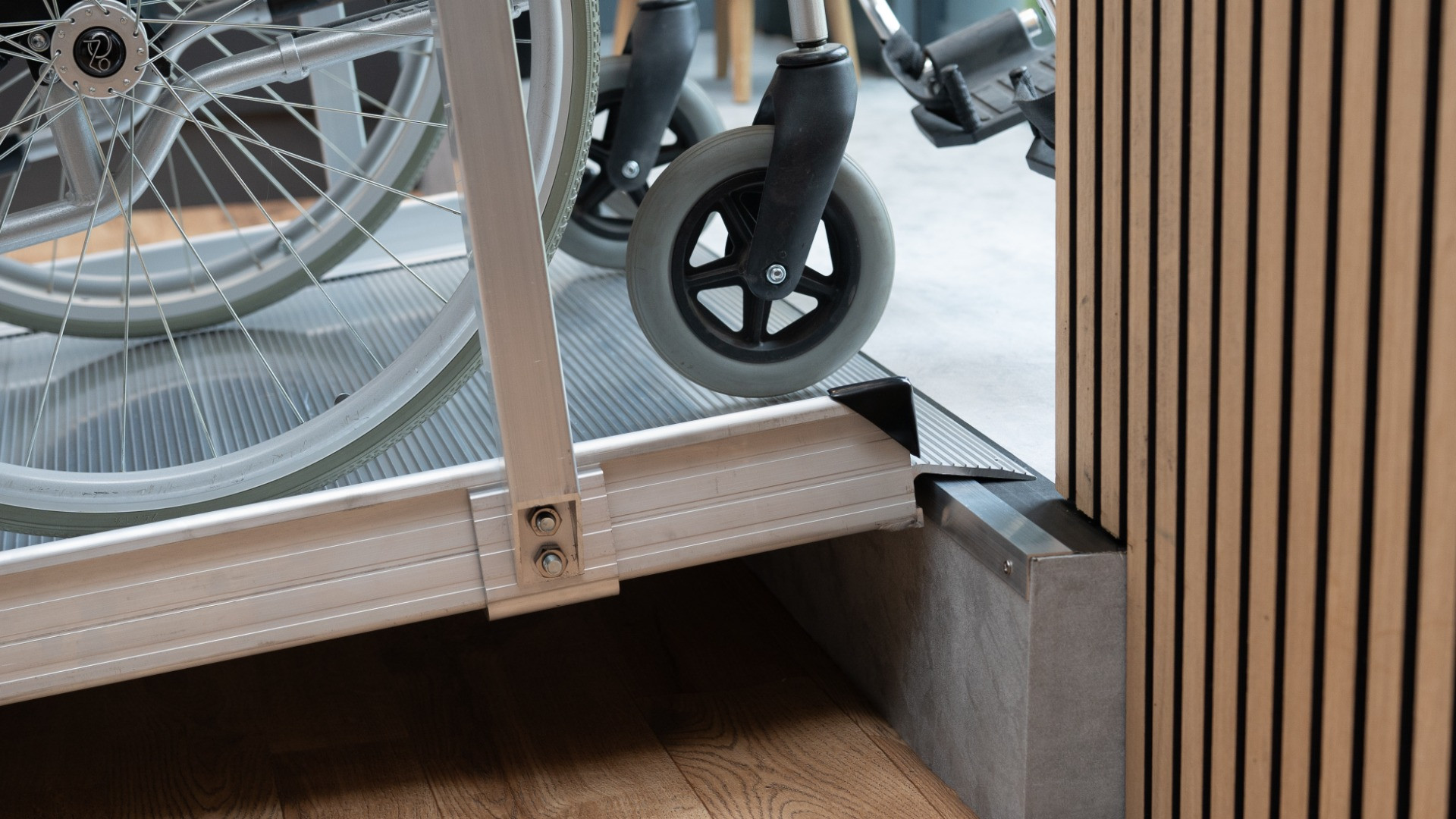

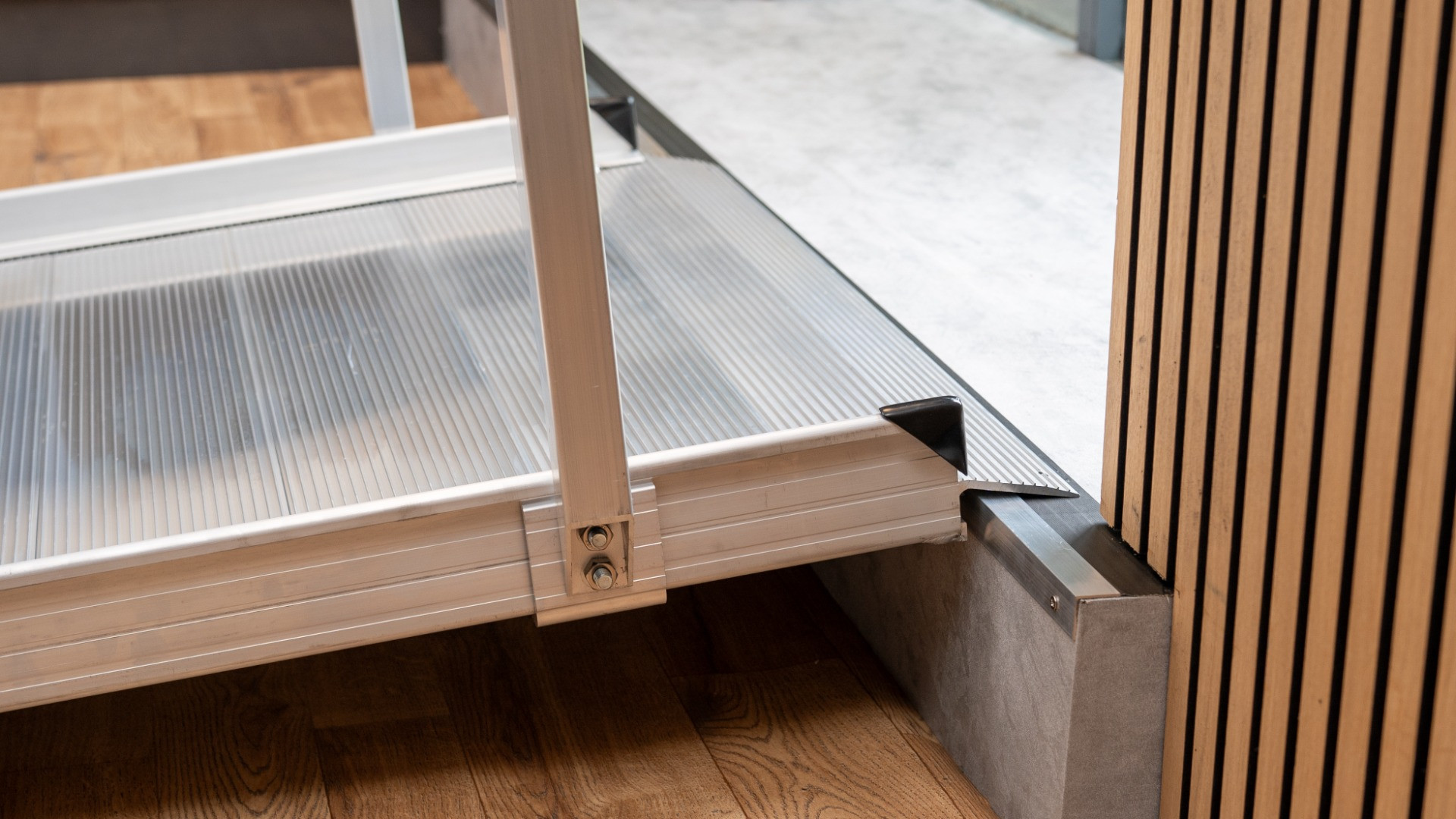

The rest on connection is 900mm wide and 60mm long
For longer lengths, these ramps can be connected together with our joining support
Expert advice available, for help identifying the wheelchair ramp length you require please use our ramp length calculator or contact our team. Maximum gradient = 1:6 although 1:8 is recommended.

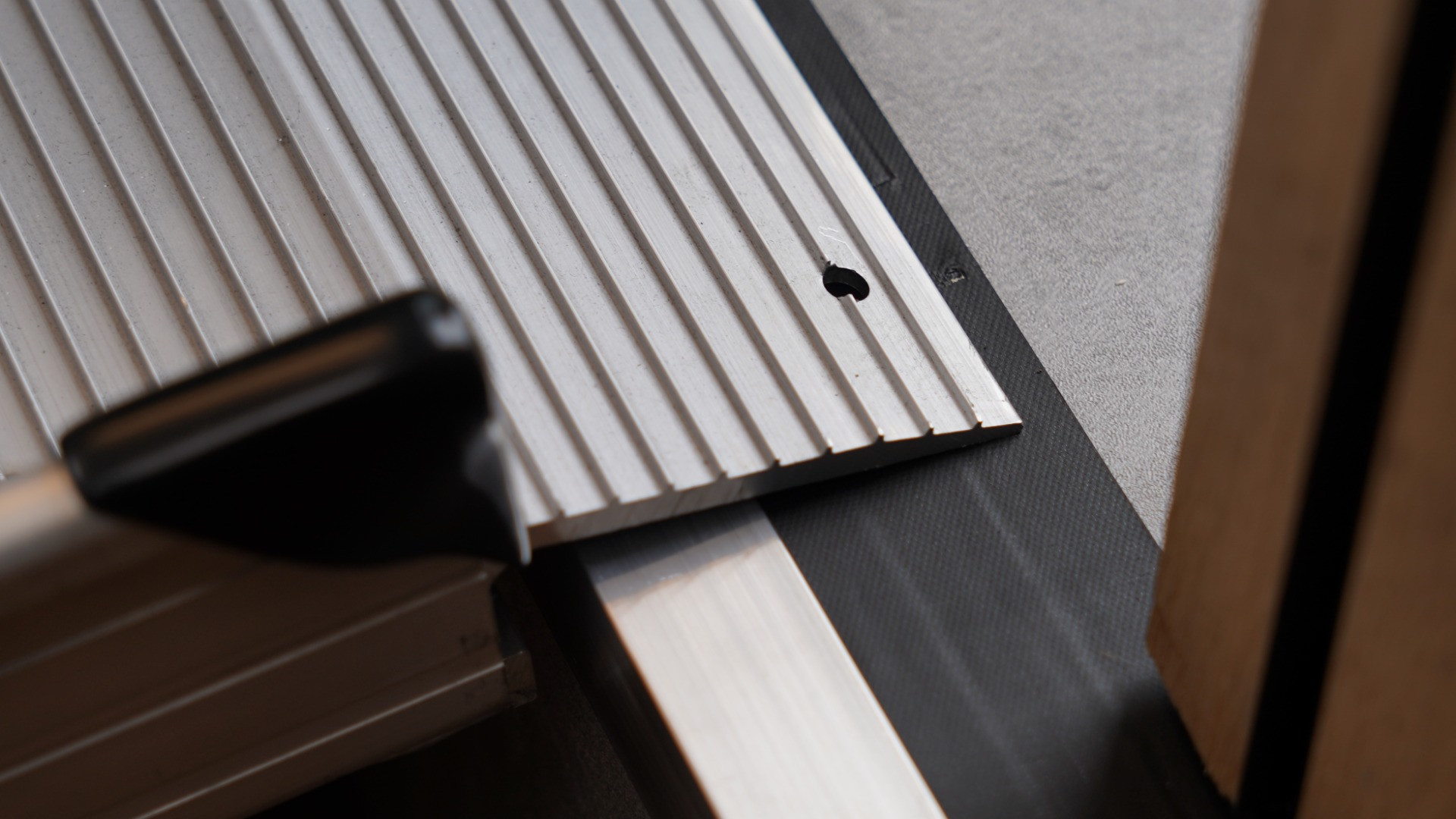

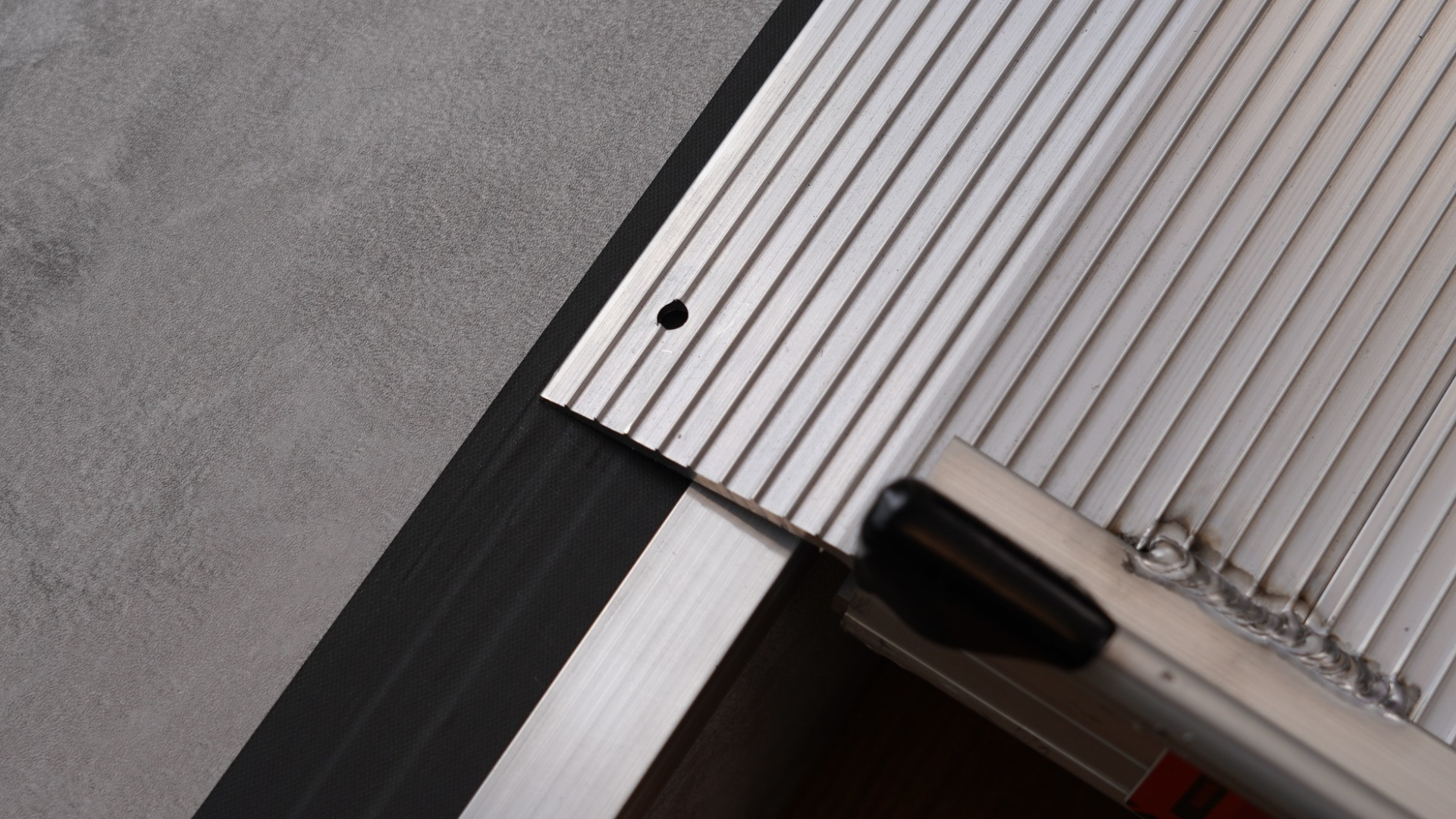

The diameter of the ground fixing holes is 6mm, secure with pegs or bolts (not included). Only recommended for use as a mobility aid
Wheelchair Ramp Kit with Handrails Range
4ft / 122cm - TRP-WR4Kit
Length: 4ft / 1220mm
Weight: 23kg
Handrail weight: 8kg, Ramp weight: 15kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 200mm
Height (with handrails): 927mm
5ft / 152cm - TRP-WR5Kit
Length: 5ft / 1524mm
Weight: 27kg
Handrail weight: 9kg, Ramp weight: 18kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 250mm
Height (with handrails): 927mm
6ft / 182cm - TRP-WR6Kit
Length: 6ft / 1828mm
Weight: 31kg
Handrail weight: 10kg, Ramp weight: 21kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 300mm
Height (with handrails): 927mm
8ft / 243cm - TRP-WR8Kit
Length: 8ft / 2438mm
Weight: 39.5kg
Handrail weight: 12kg, Ramp weight: 27.5kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 405mm
Height (with handrails): 927mm
10ft / 304cm - TRP-WR10Kit
Length: 10ft / 3048mm
Weight: 47.5kg
Handrail weight: 14kg, Ramp weight: 33.5kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 505mm
Height (with handrails): 927mm
Please note due to the size of the 10ft ramp it can be difficult and expensive to return so please ensure this is suitable for you prior to ordering.
