Modular Wheelchair Ramp Instruction Guide and Video
This guide will take you through how to easily install your steel modular wheelchair ramp at home or at your workplace.
The guide includes a video and instructions to help you securely assemble your access ramp.
Modular Wheelchair Ramp Installation Video (1500mm Wide)
An easy guide to installing our 1.5m wide Steel Modular Wheelchair Ramp can be viewed, here or you can watch our assembly instructions video.
Modular Wheelchair Ramp Installation Video (1080mm wide)
The modular wheelchair ramps are provided with assembly instructions which are available to download here. We also suggest watching our assembly instructions video.
The modular ramp systems can be assembled by a competent builder or DIY'er, we recommend at least two people assemble the ramps. The assembly time can vary depending on your chosen ramp length.
Please see for yourself in the video how simple this installation can be.
Helpful Links
Download the Modular Ramp Installation Guide to learn how to assemble the 1500mm Wide Steel Modular Wheelchair Ramp Kits.
If you have purchased our Aluminium Modular Wheelchair Ramp Kit please use the link above to view the instruction guide for these ramps.
1500mm Modular Ramp Parts: A guide to fixings, bolts and parts
1. Foot Parts
1. Adjustable foot, to be screwed in the telescopic leg in the stanchion
2. Nut, for adjusting and fitting the foot in the leg
3. Foot plate, to be placed under the adjustable foot. If necessary you need to place slabs under the foot plate to strengthen the foot under the Modular Wheelchair System.

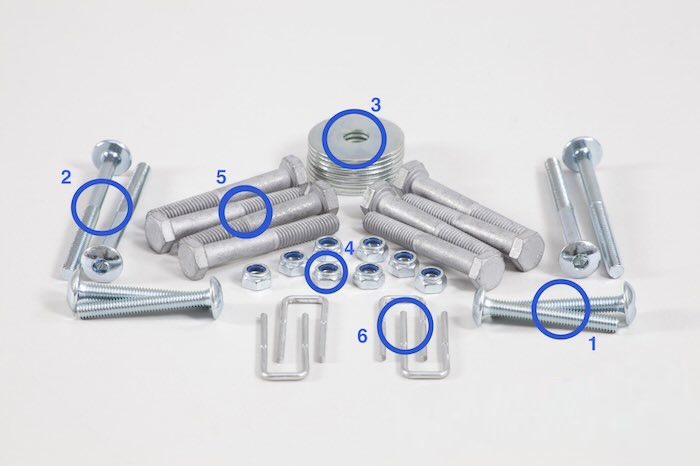

2. Fixings Part 2
1. Shorter bolts for the top bar of the handrails
2. Longer bolts for the lower bar of the handrails
3. Washer for all bolts in the image, every bolt needs to be fixed with a washer
4. Nuts, to fix the 1. and 2. bolts
5. Bolts, to fix the stanchions to the ramp sections, with a washer and nuts (image no.3, part no.3)
6. U-Shaped locking pin, to fix the handrails to the plastic caps on the stanchions

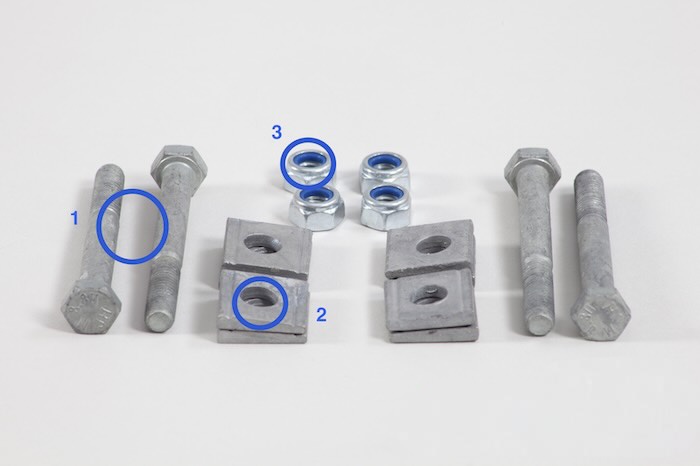

3. Fixings Part 2
1. Long bolts to connect the ramp section with the platform
2. Wedge washer, to connect the sloped ramp section to the straight platform
3. Nuts, for the bolts no.1

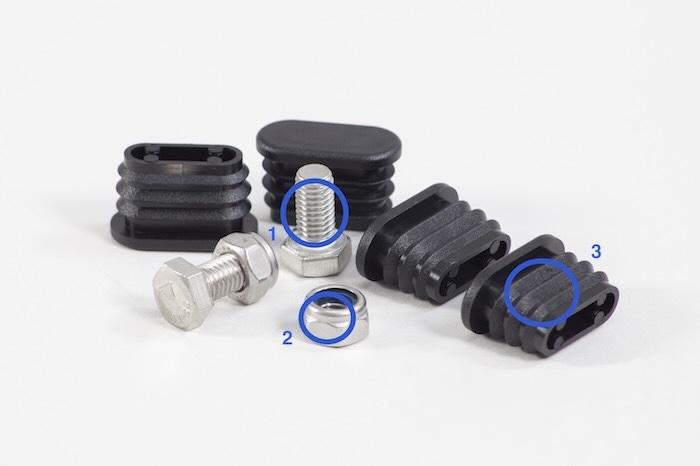

4. Ramp Section Fixings
1. Bolts, to connect the ramp sections with each other
2. Nuts, for the ramp sections connection bolts
3. Plastic end caps, for the lower edges of the ramp sections

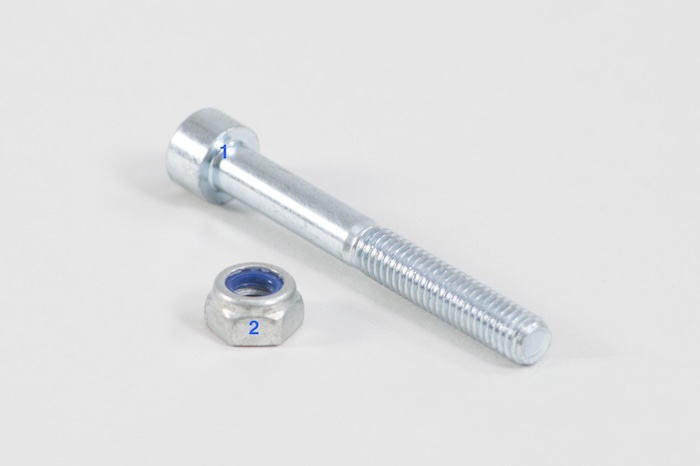

5. Handrails Fixings
1. Bolt, to connect the handrails to the stanchions
2. Nut, to fix the bolt

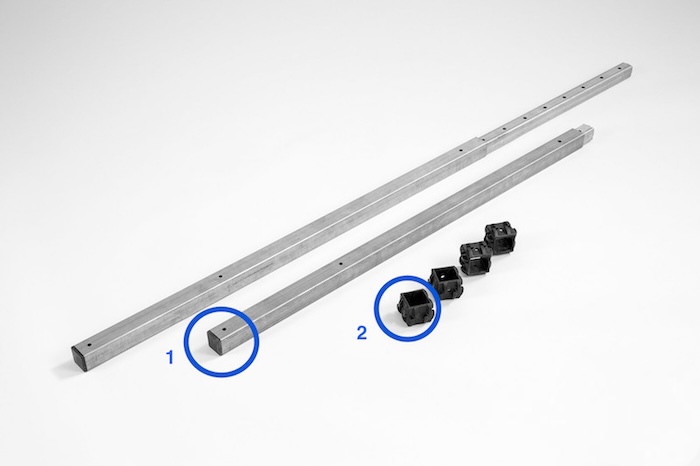

6. Stanchions and Telescopic Leg
Stanchions, which contain the telescopic legs to connect the handrails with the ramp sections.
The two top holes are the ones to be fitted with the plastic caps which can be seen below in the bolt circles
