Why should I choose Flow Plates?

Directional flow plate ramps are designed to slow vehicles and encourage the flow of one-way traffic. Commonly used in car parks, private residential areas and industrial estates, they discourage drivers from exiting or reversing through an entrance.

Directional flow plate ramps retract below ground level when a vehicle is approaching and access control unit providing safe access or authorised vehicles.

All vehicles can drive over the lowered Flow Plate.

The units are finished as powder coated yellow with the 'teeth' and rotating mechanism galvanised to ensure long life.

They can be supplied with a sloping 'end' unit pair, each 250mm long, which is attached as an alternative to the standard square end. There are no spikes in the 'end' unit.

When the vehicle has passed, the teeth return to the active position, ensuring a deterrent from unauthorised vehicle intrusion from the wrong side.

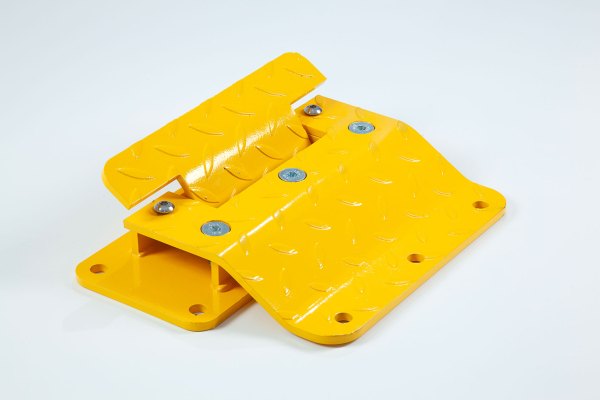

Built for heavy-duty use, they accommodate all vehicles, from cars to HGVs. These surface-mounted one-way traffic control flow plate are made of steel with a durable chequered plate surface for added strength. The yellow finish, along with highly reflective red cat's eyes, ensures visibility in all weather conditions.

The plates are easy to install with 4 fixing holes provided per plate and single per inter-lockable end cap to allow this to be easily secured with our universal fixings supplied with these into tarmac or concrete surface. Installation and maintenance details can be found here: Installation Guide

Create your preferred layout by selecting the central flow plate and end caps (sold in pairs). You can create a continuous line using only end caps or configure individual sections. For more layout options, click here.

All pictures shown are for illustration purposes only. The actual product may vary due to product enhancement, It is important that flow plates are driven over in a straight line, vehicles should not approach or drive over the flow plates at an angle.

Flow plates are not recommended to be used in pedestrian areas. For pedestrian and vehicle traffic we would instead recommend viewing our speed bump kits.

We have another type of flow plate range, heavy duty or standard.

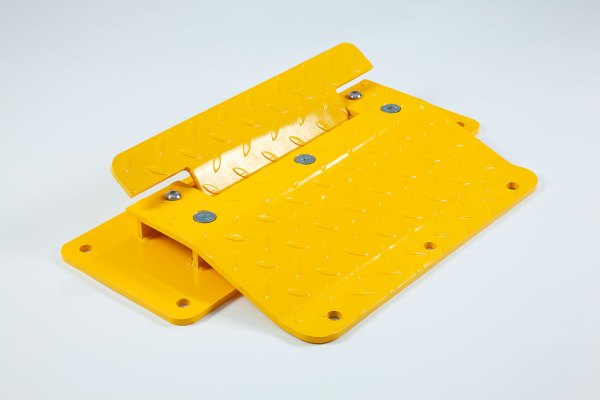

Our heavy-duty flow plates are suitable for all vehicle types, from cars to 30 ton HGVs making them perfect for car parks and industrial estates. Designed to slow the speeds of passing vehicles and encourage the flow of one-way traffic. These flow plates are commonly used to discourage drivers from entering certain areas or exiting out of the entrance.

The heavy-duty flow plates feature a spring mechanism that ensures the plate stays in an upright position for optimal performance. Installation is straightforward, with each plate featuring 7 fixing holes for easy and secure placement.

The heavy duty and standard are also supplied with a locking bolt so the ramp can be temporarily held down to allow traffic to flow in both directions when needed.

All fixings for all of our flow plate range are provided for free.

Don't hesitate to contact us if you need more information on this incredible product range.

We hold large stock for a next working day delivery.

Our range of flow plates are manually controlled and therefore as easy installed and deinstalled as speed bumps, simply install them on the concrete/tarmac floor when needed.

Surface fixed, making it easy to install or relocate. Each plate requires 7 fixings, fixings for tarmac and concrete and a drill bit are provided free of charge.

Please note, these should be used in conjunction with Speed Bumps and Warning Signs
