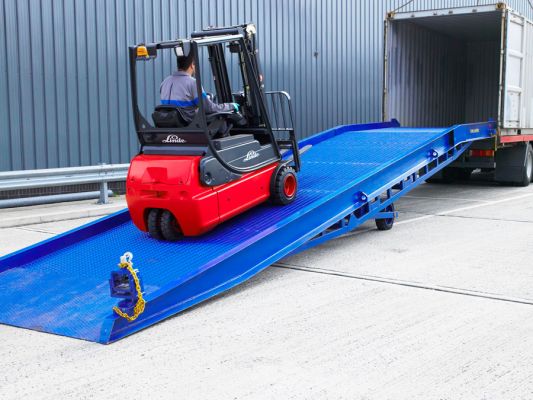

Our TRP-YR10-2 is CE Marked and meets the latest European standards and directives. The yard ramp is a popular choice for those seeking to easily, and quickly, load and unload containers. The fixed swivel clamp allows the ramp to easily be moved to the desired location whilst the hydraulic assist allows the load height to be to amended to heights of between 800mm-1650mm. The ramp has a 10,000kg capacity.

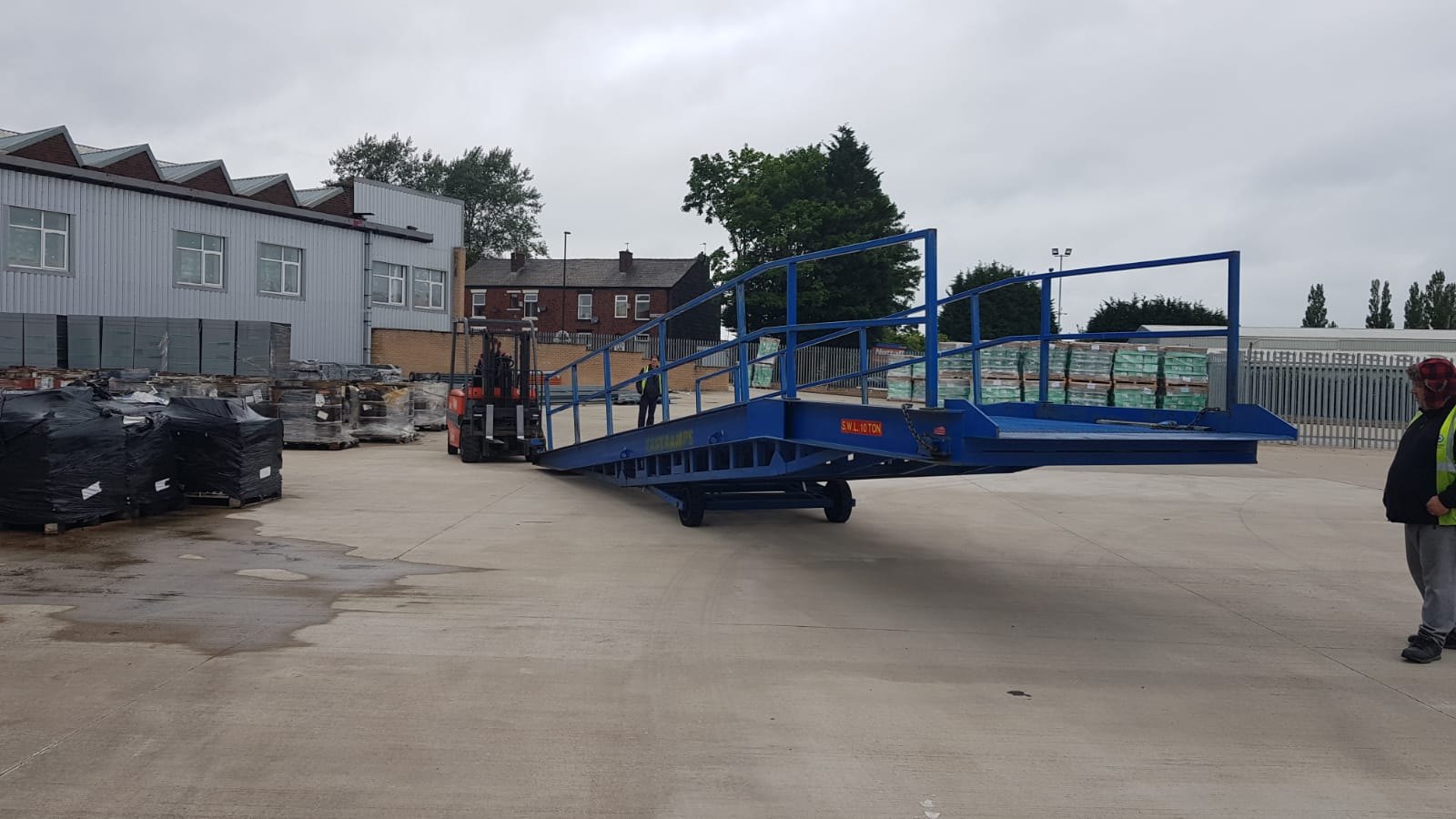

Handrails available on request, please contact us for a quote.
Yard Ramp (11260x2460x10000kg)
Length (mm)
11260
Internal Width (mm)
2260
Max Load Height (mm)
1650
Weight (kg)
4050
Capacity (kg)
10000
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here

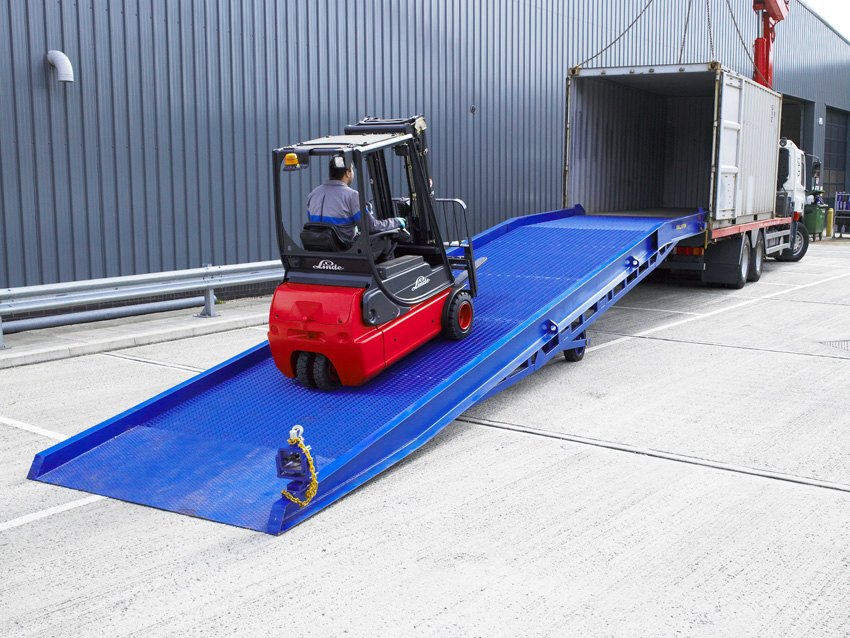

This extra wide yard ramp increases the ease to load wider machinery. This ramp makes loading and unloading containers much simpler. The fixed swivel clamp allows the ramp to easily be moved with a forklift whilst the hydraulic assist allows the ramp height to be adjusted with ease.
The side profiles of all models are constructed from a single piece of steel giving these the highest levels of performance, durability and safety. They can be customised to include handrails if required. The useable width is 2,260mm

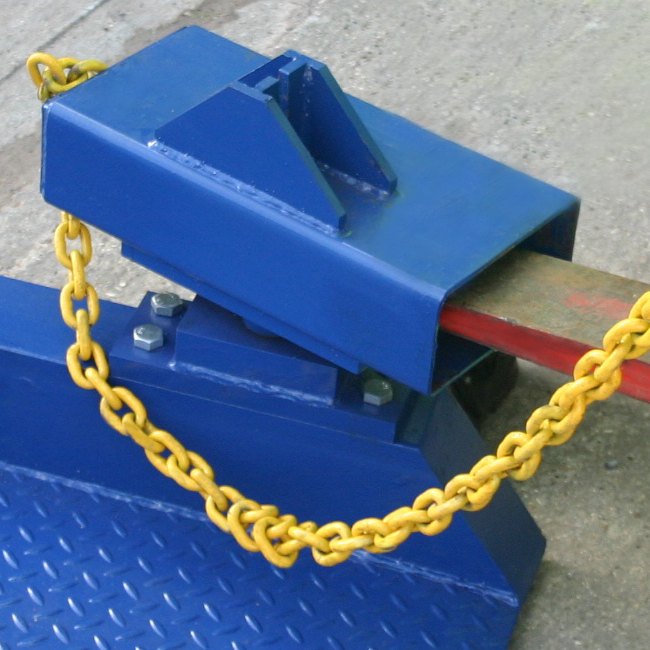

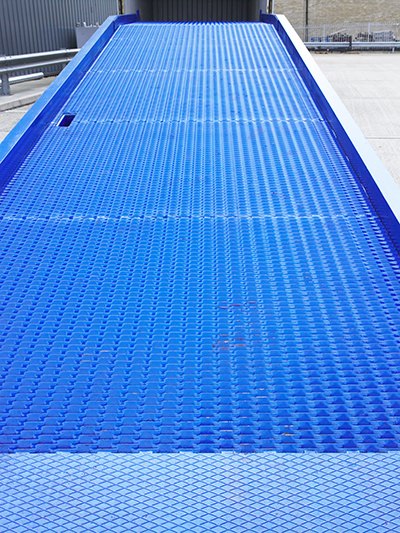

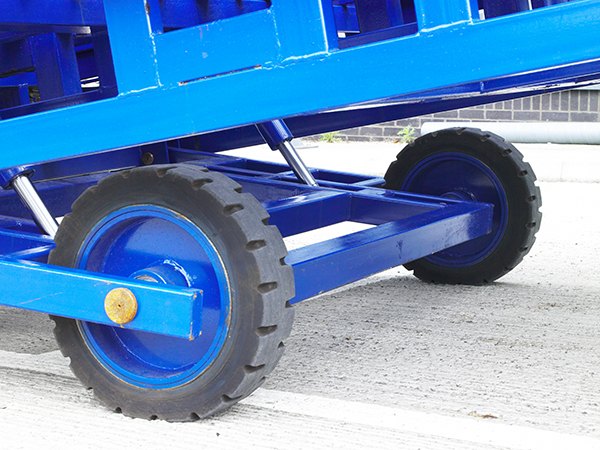

These ramps are fully certified and tested and feature a reinforced steel undercarriage, high traction UK produced mesh anti-slip surface and come supplied with swivel fork mount, steel chains and clamps, hydraulic assist and wheel chocks.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Unlike most of our aluminium loading ramps, our mobile Yard Ramps are made of steel and are suitable for unloading forklifts, scissor lifts and genies. The ramps can also be used in other situations; for example, we have supplied them to customers who created a temporary aisle or who needed a mobile loading ramp to position vehicles on a stage at a ...
Transport & Handrails
Transport
With our Yard Ramps being over eleven meters long customers often think that there must be a hidden delivery charge that we do not list on our website. These are also not something you can employ a local courier service to deliver. Thanks to long term cooperation with a haulage firm our factory can offer free ...
Yard Ramp Training and Maintenance Guide
Although our CE marked mobile yard ramps are very robust, routine maintenance & proper staff training will greatly increase the life expectancy & smooth running of the product. If regularly checked over one unit can be expected to last for 10yrs+ before factory refurbishment is required. Below we ...
