Ramp Length & Load Height
Yard Ramp (11260x2260x15000kg)

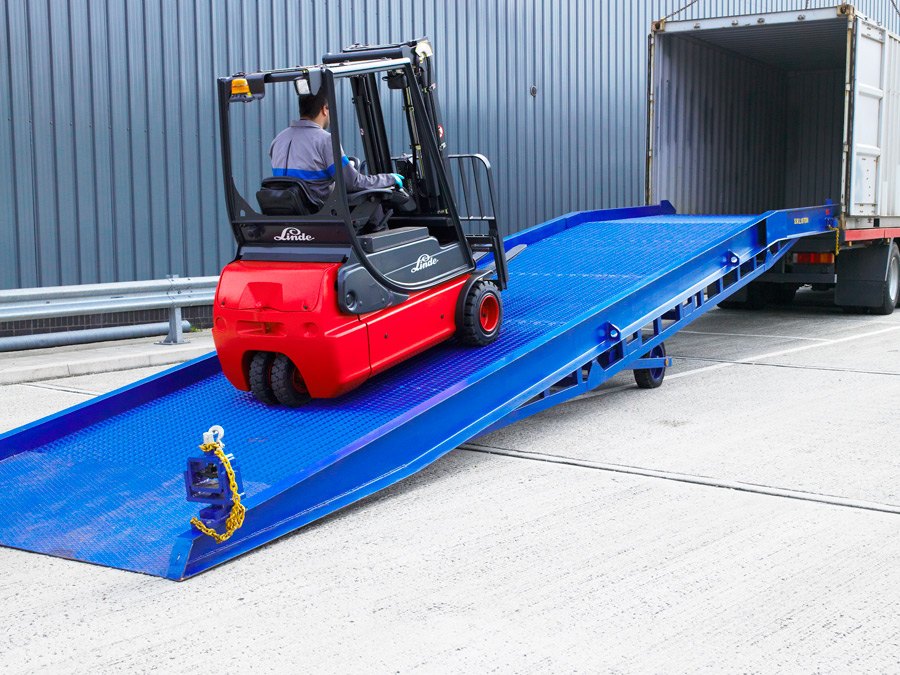

Our TRP-YR15-2 is CE Marked and meets the latest European standards and directives. The yard ramp is a popular choice for those seeking to easily, and quickly, load and unload containers. The fixed swivel clamp allows the ramp to easily be moved to the desired location whilst the hydraulic assist allows the load height to be amended swiftly.
|Min. Height (mm)||800|
|Max. Load Height (mm)||1,650|
This yard ramp increases the ease to load machinery with a capacity of up to 15,000kg. This ramp makes loading and unloading containers much simpler. The fixed swivel clamp allows the ramp to easily be moved with a forklift whilst the hydraulic assist allows the ramp height to be adjusted with ease.
The side profiles of all models are constructed from a single piece of steel giving these the highest levels of performance, durability and safety. The useable width is 2,260mm with an overall width of 2,500mm.

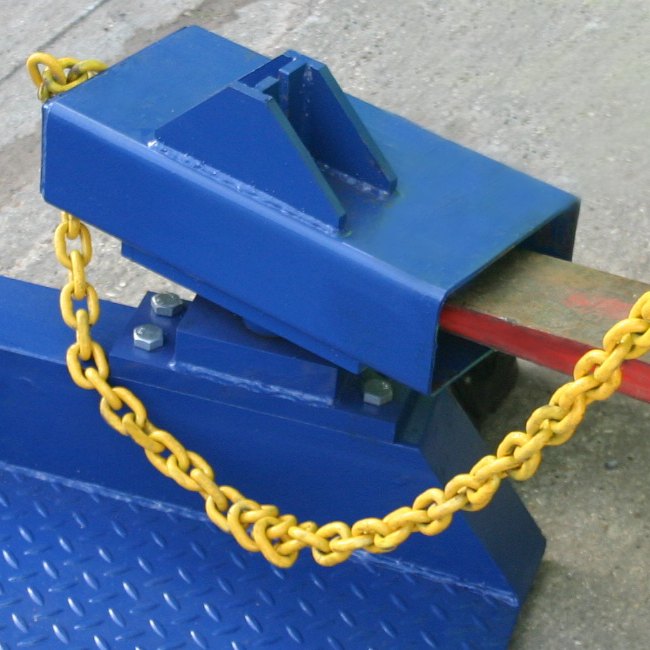

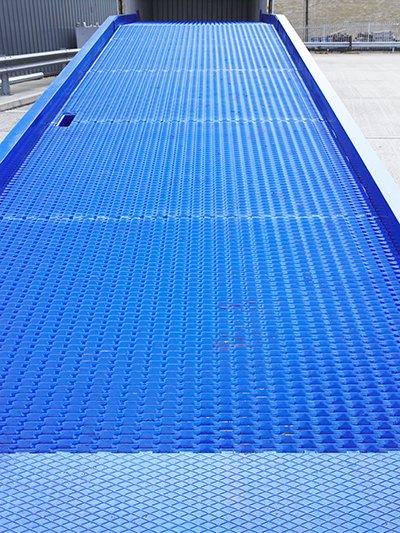

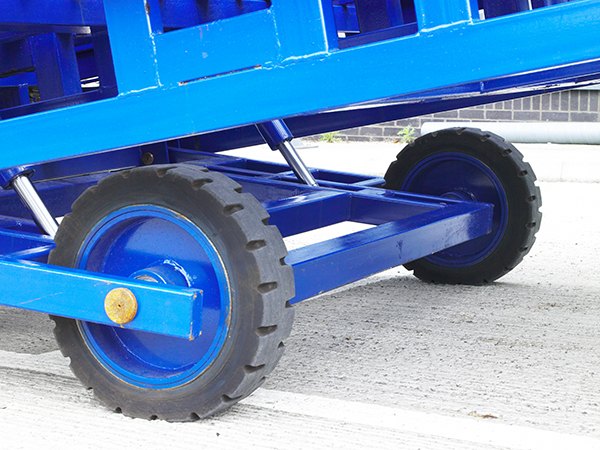

These ramps are fully certified and tested and feature a reinforced steel undercarriage, high traction mesh anti-slip surface and come supplied with swivel fork mount, steel chains and clamps, hydraulic assist and wheel chocks.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
|Inclined Section (mm)||8,440|
|Length Section (mm)||2,520|
|Min Load Height (mm)||800|
|One Year Warranty||Yes|
|Easy to Fit||Yes|
