Ramp Capacity, Length & Load Height

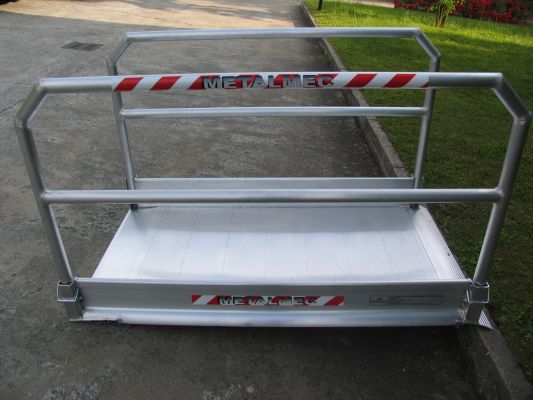

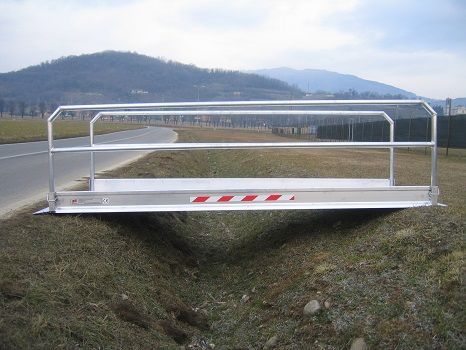

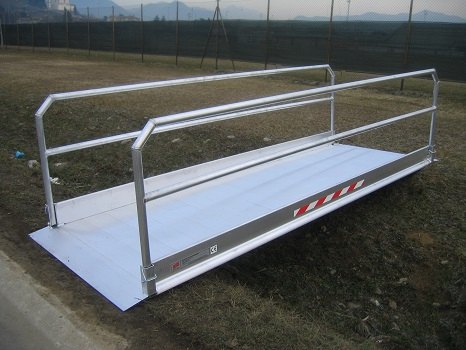

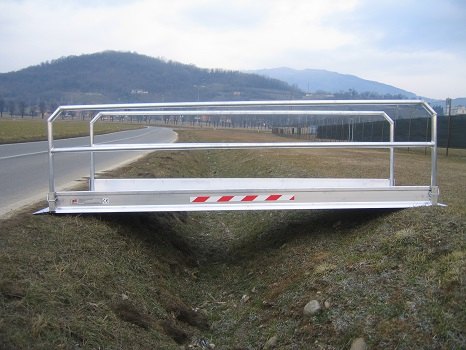

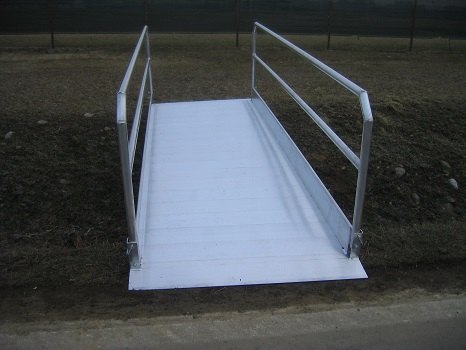

Vehicle Gangway (4055mm long, 1250mm wide, 1500kg)
Length (mm) | 4055 |
---|---|
Weight Per Ramp (kg) | 121 |
Capacity (kg) | 1500 |
TRP Vehicle Gangway features include:

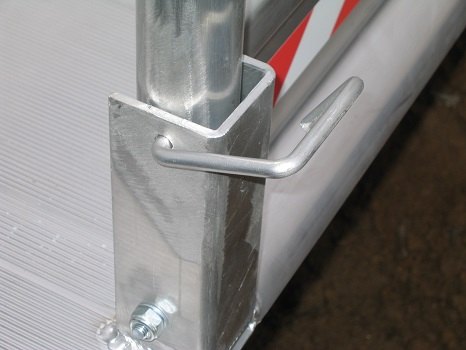

- Rest on connections - simply put ramp in place and start using it

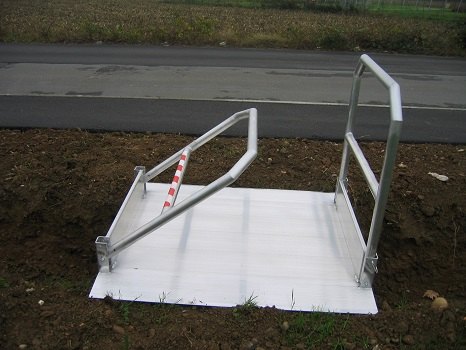

- Foldable edges to reduce ramp size during transportation
- 200mm high footstops
- Ergonomic handrails 1018mm high
For safety remember:
- Do not exceed a maximum gradient of 5%
- There must be a minimum rest of 330mm on both sides of the walkway
- Minimum rubber footprint 200mm x 200mm
- Maximum distribution of load on vehicle axles should be between 40% and 60%
Usage Guidelines and Safety Information for these ramps can be found here.
SKU | TRP-VG40/12 |
---|---|
Capacity (kg) | 1500 |
Capacity for Rubber Tyre Vehicle Width 900mm (kg) | 1432 |
Capacity for Tracked Vehicle Width 750mm (kg) | 1500 |
Internal Width (mm) | 1250 |
Length (mm) | 4055 |
Weight per Ramp (kg) | 121 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Leave Outside | Yes |
External Width (mm) | 1370 |
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.
