Cable Protector TRP-BPCP2S (5 Channels) Black

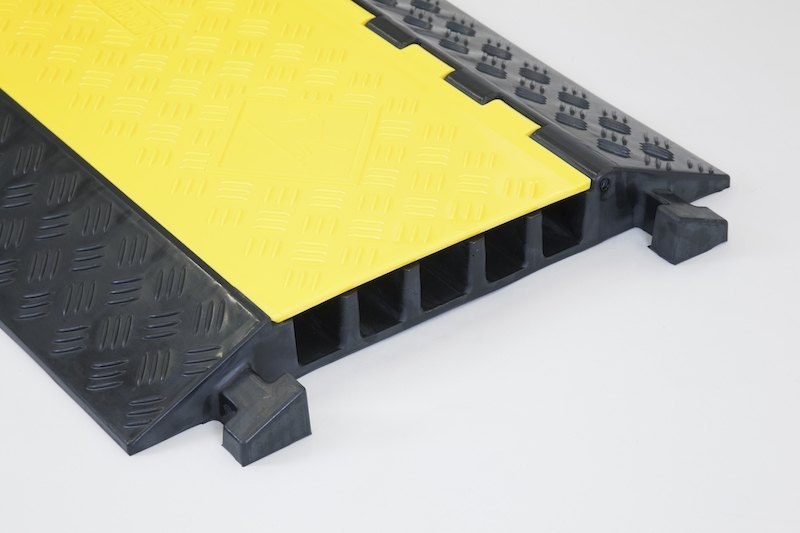

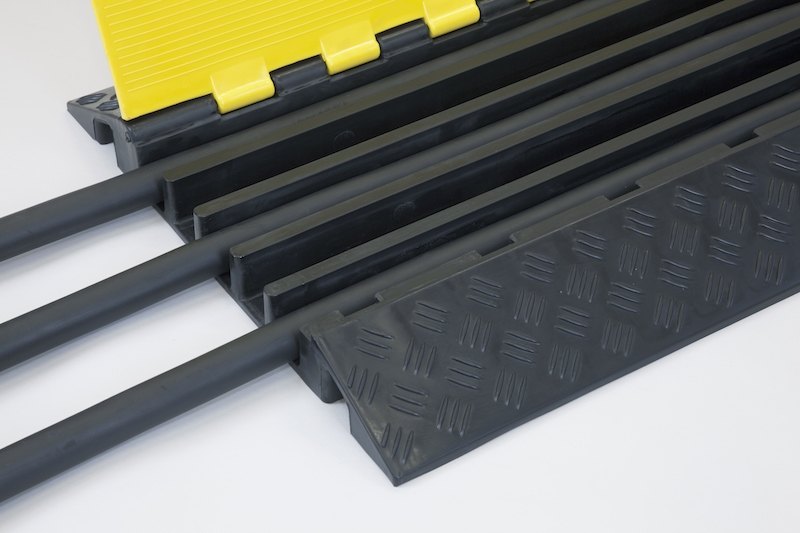

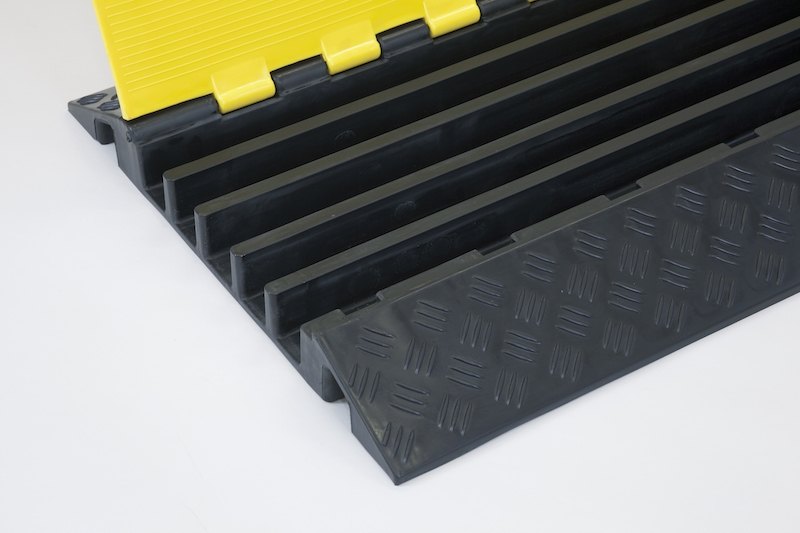

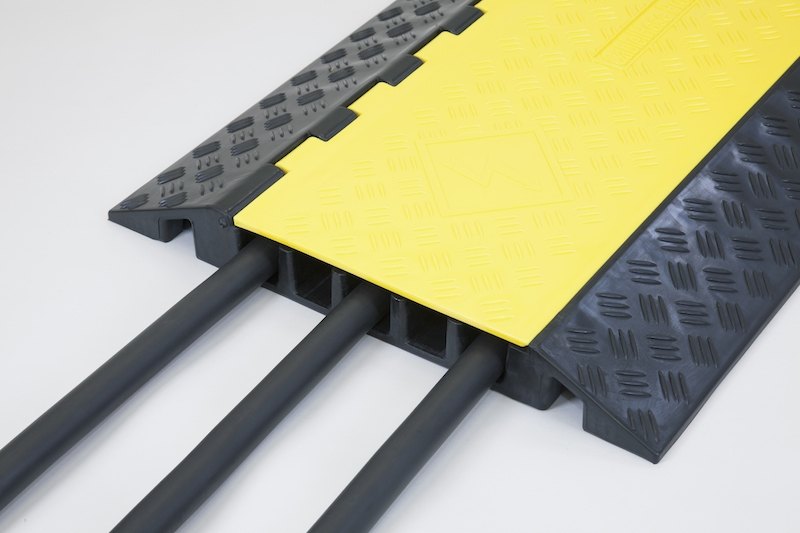

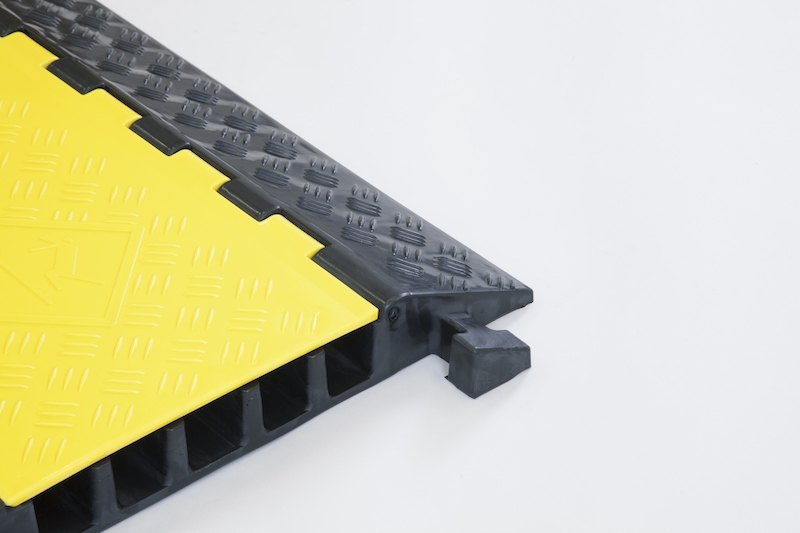

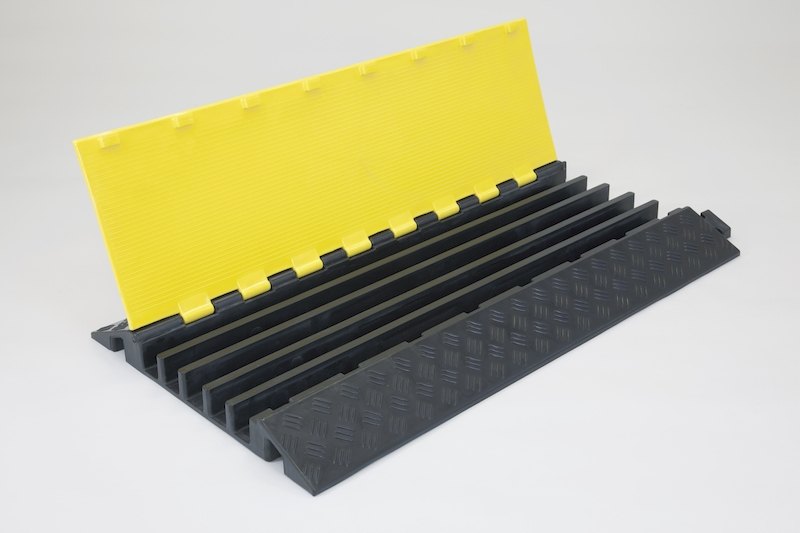

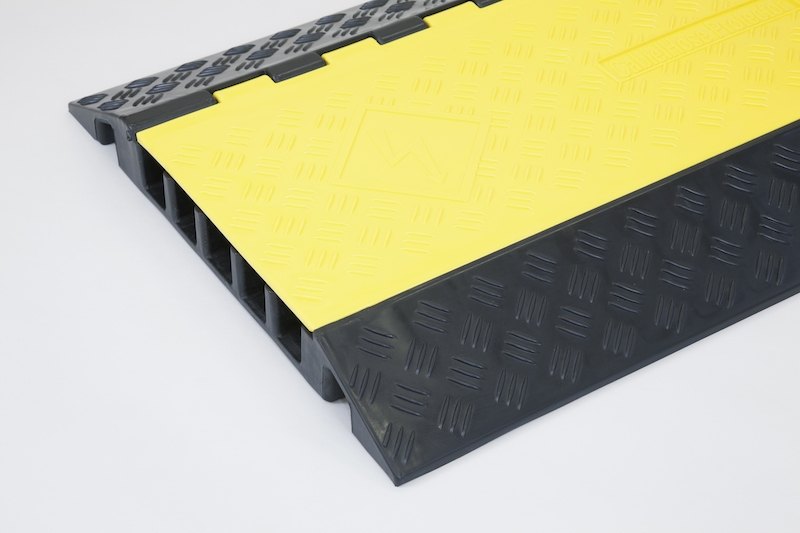

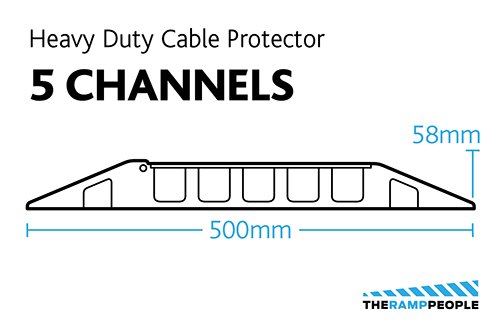

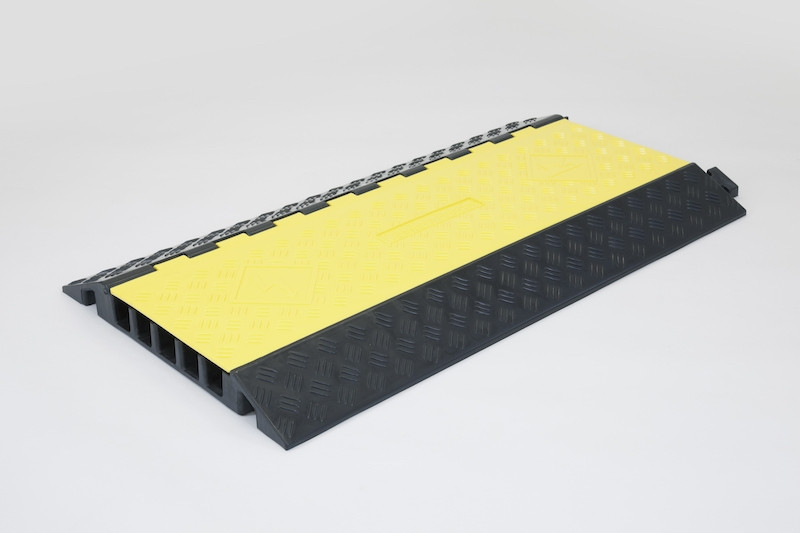

Straight 5-channel heavy-duty cable protector suitable for outdoor and indoor use. 58mm High x 900mm Long x 500mm Wide. 5 channels (31mm x 44mm). Dog-bone connectors allow the cable protectors to easily be secured to one another. Suitable for vehicle and pedestrian traffic, the cable protectors have a 12000kg capacity and come in contrasting black and yellow for high visibility.
These cable protector ramps are designed to be crossed at a maximum speed of 5mph and Max weight should not exceed 6000kg per tyre.
Please note, when specifying the required cable protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles. We recommend using speed bump signs to slow down traffic and alert road users to the cable protectors.
If wheelchairs will be passing over the cable protectors, we recommend purchasing our rubber wheelchair ramp for cable protectors which are compatible with these 5 channel cable protectors.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
SKU | TRP-BPCP2S |
---|---|
Capacity (kg) | 12000 |
Height (mm) | 50 |
Length (mm) | 900 |
Weight (kg) | 8.6 |
Width (mm) | 500 |
One Year Warranty | Yes |
Bulk Prices Available | Yes |
Easy to Fit | Yes |
High Visability | Yes |
Leave Outside | Yes |
Cable Protector Color | Black/Yellow |
Channel Width (mm) | 31.1 |
Channel Size (mm) | 31 x 44 |
Channel Height (mm) | 44 |
Max Cable/ Hose Diameter (mm) | 31,1 |
No. Channels | 5 |
Capacity per Axle (kg) | 12000 |
Capacity per Tyre (kg) | 6000 |
Operating Temperature (deg. F) | -40 °F up to 131 °F |
Durometer A | A93 |
Elongation At Break | 500% |
Tensile Strength | 12 MPa |
Speedlimit (mph) | 5 |
