£948.00 £790.00

Built to order / 1-2 weeks

Defender Midi 5 2D Set Blue - Wheelchair Ramp Cable Protector Set

SKU

TRP-869300SETBLU

The Defender Wheelchair Ramp Cable protector set has been designed for use with the Defender MIDI 5 cable protection system to enhance accessibility and allow those using mobility aids, including wheelchairs and mobility scooters, to safely pass over the cable protector.

SKU	TRP-869300SETBLU TRP-869300SETBLU
Length (mm)	1000 39.37
Width (mm)	430 + 325 16.93 + 12.80
Total Width (mm)	755 29.72
Height (mm)	54 2.13
Weight (kg)	31.76 70.02
Weight per Ramp (kg)	9.5 20.94
Capacity (kg)	5000kg / 25 × 30 cm 11023 / 55 × 66 cm
Channel Size (mm)	34 x 38 mm 1.34 x 1.50 mm
No. Channels	5 5

Cable Protectors

Why are there so many different types?

We offer a complete range of cable protectors from pedestrian covers to heavy duty vehicle hose ramps so that we are ready to assist with any application. We also provide kerb ramps with channels underneath so cables can run below them.

What is the difference between a cable cover & a cable protector?

A cable cover is designed to drop over wires whereas cable protectors encase cables completely. Cable covers offer a swift installation/removal. Cable protectors offer a more secure protection.

Do you have cable protectors suitable for vehicles to cross?

Yes, we have options with capacities ranging from 2000kg to 15,000kg (per section) but please be aware as our 2-channel option is 105mm high it is only suitable for HGV’s & other vehicles with plenty of ground clearance.

How can I check the channel size?

All channel dimensions are listed in our product specification pages, if you are at all unsure or cannot find a suitable option please get in touch.

What are they made of?

The majority of our range is rubber although there are some polyurethane options. This means our products are heavy duty and hard wearing.

Can they be fixed in place?

We do not recommend fixing our products as they are designed to be portable. Some customers have used adhesive tapes or fixings but the product does not come supplied with fixing holes or fixings.

Can cable protectors be used in a warehouse?

Yes however please ensure you select one of our cable protectors that are suitable to be used with forklift/trollies, for example within the Adam Hall range there are cable protectors which are suitable for items with low ground clearence.

Can wheelchairs go over cable protectors/cable covers?

We have a range of cable protectors which are suitable for wheelchairs, these can be viewed here.

Can cable protectors be connected together?

Yes, our heavy duty cable protectors and cable covers are interlocking so you can create your required length. Our rubber cable protectors are available in lengths up to 9m, as they are rubber you can cut these to your required size when needed.

View our extensive range of Cable Covers & Cable Protectors.

Pre-Easter Delivery Cut-off Notice

To ensure your orders arrive in time for Easter, please note that our cut-off time for pre-Easter delivery using our standard delivery option is 2:00 PM on Tuesday, 15th April. Orders placed after this time will be delivered after the Easter break.

For customers selecting our next day delivery service, the cut-off is 2:00 PM on Wednesday, 16th April.

Thank you for your continued support, and we wish you a very Happy Easter

We’re committed to fast, reliable delivery, with in-stock items usually arriving within 2–3 working days, subject to stock availability. Larger or remote deliveries may take 5–10 working days, and a Next Day Delivery option is also available. To ensure safe and secure delivery of larger items, we work with specialised couriers. These deliveries may take a little longer, typically arriving within 5 to 10 working days.

Delivery cut-off times

Place your order by 3:00pm, Monday to Friday for same-day dispatch on our free delivery service, or by 3:00pm for next-day delivery. (Excludes Bank Holidays.)

Where we deliver free of charge...

We offer free delivery on all orders to Mainland England, Wales, and Southern Scotland. Every order is fully trackable, and you’ll receive a tracking link once your item ships from our UK warehouse.

For other UK locations - including Northern Ireland, Republic of Ireland, the Highlands, Islands, Isle of Man, and Channel Islands - delivery charges are shown at checkout once your address is entered.

While free delivery is available to most of the UK, some locations may incur a charge. We work hard to keep these costs as low as possible, ensuring you receive reliable and great-value delivery wherever you are.

You can also view them in the table below. For orders to the Channel Isles, VAT on delivery charges will be removed at the checkout.

Free Delivery 2-3 days

Orders placed before 3:00pm will be dispatched the same working day. Orders after 3:00pm will be dispatched the next working day.

Location	Weight	Cost
Enland, Wales & Southern Scotland	Any Weight	Free
Northern Scotland, Highlands & Islands	Any Weight	£25.00
Guernsey & Jersey	Under 20kg	£36.00
-	21.01 - 40kg	£60.00
-	40.01kg - 100kg	£100.00
-	100.01kg +	£150.00
Isle of Man	Any Weight	£55.00
Northern Ireland	Under 20kg	£20.00
-	20.01 - 30kg	£30.00
-	30.01 - 100kg	£55.00
-	100 - 200kg	£115.00
-	200kg +	£125.00

Next Day Delivery

Orders placed before 3:00pm will be delivered the next working day. Orders after 3:00pm will be delivered the on subsequent working day.

Location	Weight	Cost
England, Wales & Southern Scotland	Under 30kg	£12.00
-	30kg +	£24.00
Northern Scotland, Highlands & Islands	Not available	Not available
Channel Islands	Not available	Not available
Isle of Man	Not available	Not available
Northern Ireland	Not available	Not available

Saturday Delivery

Orders placed before 3:00 pm on Friday with Saturday delivery selected will arrive on Saturday Orders after 3:00pm will be delivered the on subsequent Saturday.

Location	Weight	Cost
England, Wales & Southern Scotland	Under 30kg	£18.00
-	30kg +	£36.00
Northern Scotland, Highlands & Islands	Not available	Not available
Channel Islands	Not available	Not available
Isle of Man	Not available	Not available
Northern Ireland	Not available	Not available

Delivery information & receipt of goods

We’re committed to ensuring your order arrives on time and in perfect condition. To help us do that, please check your delivery address is correct on your invoice and let us know right away if anything needs updating. When your order arrives, we recommend signing for it, only if you’re happy with its condition. Your satisfaction is very important to us!

Delivery time frames

Our deliveries usually take place between 9:00am and 6:00pm, and someone will need to be there to sign for the order. Most of our Next Day Delivery orders (placed before 3:00pm) arrive the following working day, but as much as we try, we can’t always guarantee it. If you need something urgently, contact us at: [email protected] - We’re dedicated to ensuring you’re completely satisfied with both our products and service.

If your order is going out on a pallet, the cut-off time might be a little earlier (usually midday) because of courier collection times. Give us a call or email to double check. Please also make sure someone’s available to receive the delivery, as missed pallet deliveries can lead to extra charges.

Additional information

Be sure to check the availability info on each product page. For items that are pre-order, custom-made, or not currently in stock, we may not be able to give an exact delivery date - but don’t worry! We’ll keep you updated along the way and make sure your order reaches you as quickly as possible.

European Orders

Shopping from the Republic of Ireland? You can find all the same great products over at The Ramp People Ireland.

For deliveries to other European destinations, just get in touch with us at [email protected] - we’ll be happy to help arrange everything for you!

No Quibble 60 Day Returns

Returning your order to us

At The Ramp People, your satisfaction is our priority. We know that sometimes things change - whether it’s sizing, plans, or preferences. That’s why we offer a straightforward, no quibble 60-day money-back guarantee on over 95% of our products, giving you the freedom to shop with complete confidence.

Here are the most common circumstances for returns and how we can help;

Change of mind, wrong size or unsuitable item

If your item isn’t what you expected, doesn’t fit, or you’ve simply changed your mind, no problem! You’re welcome to a full refund within 60 days of receipt - if the item is in its original condition and packaging or an exchange.

Looking to exchange your item? Just note this on the returns form or give us a call on 01372 569051 - we’ll be happy to help!

Please note: that items marked as “built to order” or customised cannot be returned, as they are specially made for you.

Item incorrect or damaged on arrival

Upon delivery, please do not sign for the goods unless you are happy with the condition of the product.

We take pride in our service. If something arrives incorrectly or damaged, we’re here to put it right. Before signing for your delivery, please ensure you're happy with the condition of your item. If there’s a problem, contact us right away at 01372 569051. For damaged goods, please email a photo to [email protected] so we can sort things quickly. We’ll verify your order and arrange prompt delivery of the correct item, along with collection of the original if needed. Refunds or replacements will be processed once we’ve received and checked the returned items.

Faulty items

If your item is faulty or develops a fault, we’ll do everything we can to resolve the issue efficiently. Please refer to our warranty terms in our Terms & Conditions for full details. If the fault is confirmed and the item is within warranty, we’ll arrange a repair or replacement. If you need a quick replacement, we recommend placing a new order - your refund will follow once the faulty item is returned and assessed.

Items that cannot be cancelled or returned

While we aim to be flexible, a few items are non-returnable due to their nature or regulatory requirements.

These include:

Products marked as “built to order” or customised.
Personalised items or those made to your specification.

How to return your item

As the customers, you are responsible for arranging the return of any items to us. You are welcome to use a courier service of your choice; many of our customers find comparison websites such as Parcel2Go helpful for finding competitive delivery rates. We recommend choosing a tracked service for peace of mind and retaining proof of delivery until your return has been fully processed. Unwanted items should be sent back to our address marked 'Returns Department'.

Please download, print and return our completed returns form below and return this along with your item. If you do not have access to a printer, you can simply write the required details out from the form on a piece of paper.

TRP Returns Form

Customers are responsible for any returned goods until they reach our warehouse as stated in this returns policy. None of these terms or conditions affect your statutory legal rights.

Once your item has been returned to our warehouse, please allow 1–2 working days for inspection. If the item’s condition matches the agreed terms, we will issue a credit note via email. After the credit note has been sent, please allow up to 7 days for the refund to be processed.

Customisable
Easy to Fit
European Made
Manual Wheelchair
Mobility Scooter
Five Year Warranty

Description

Made of extremely robust and break-proof TPU
TÜV SÜD certified
Heavy-duty all-round cable bridge with 3D laser grip anti-slip surface made of blue recycled polyurethane and patented self-cleaning lid hinge
Safe and convenient access for wheelchairs, rolling walkers, walkers, trolleys, etc.
Drive-across zone 80 cm, expandable to any desired width
Simple, multidirectional modular structure with unlimited expandability in width and length
Resistant to oil, acids, solvents, and petrol
Load capacity: approx. 5 t / 25 × 30 cm
Suitable for motor vehicles
Made in Germany
User guide available here
All components also available separately
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Defender MIDI 5 2D BLU Midi 5 2D module system for wheelchair ramp and wheelchair accessible transition - middle part blue lid .

Dimensions Cable Protector 5-channels 34.5 x 38.6 mm, dimensions 1000mm x 325mm x 54mm; Weight 10.2 kg

Material : Polyurethane
Max load : Approx. 5 t on a surface area of 25 x 30 cm
Chemical resistance : Oil-resistant, Petrol-resistant, Short-term contact with solvents
Hardness range : 88 Shore ± 4 A Shore
Fire protection class : Class E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range : - 30 to 60 °C

Defender MIDI 5 2D R BLU Midi 5 2D blue ramp - modular system for wheelchair accessible transition - Ramp Section

Ramp section Dimensions 1000mm x 430mm x 54mm; Weight 8.5kg

Blue Material : Polyurethane
Max load : Approx. 5 t on a surface area of 25 x 30 cm
Chemical resistance : Oil-resistant, Petrol-resistant, Short-term contact with solvents
Hardness range : 88 Shore ± 4 A Shore
Fire protection class : Class E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range : - 30 to 60 °C

Description

Designed to enhance accessibility with a 6-degree incline, the DDA / ADA cable ramp kit protects up to 5 cables while allowing wheelchairs and mobility scooters to safely overcome the cable protector. Due to the capacity and design, the cable ramps can also safely be passed over by low clearance cars, pallet trucks and forklifts. Perfect for use at events, festivals and in the workplace or warehouse.

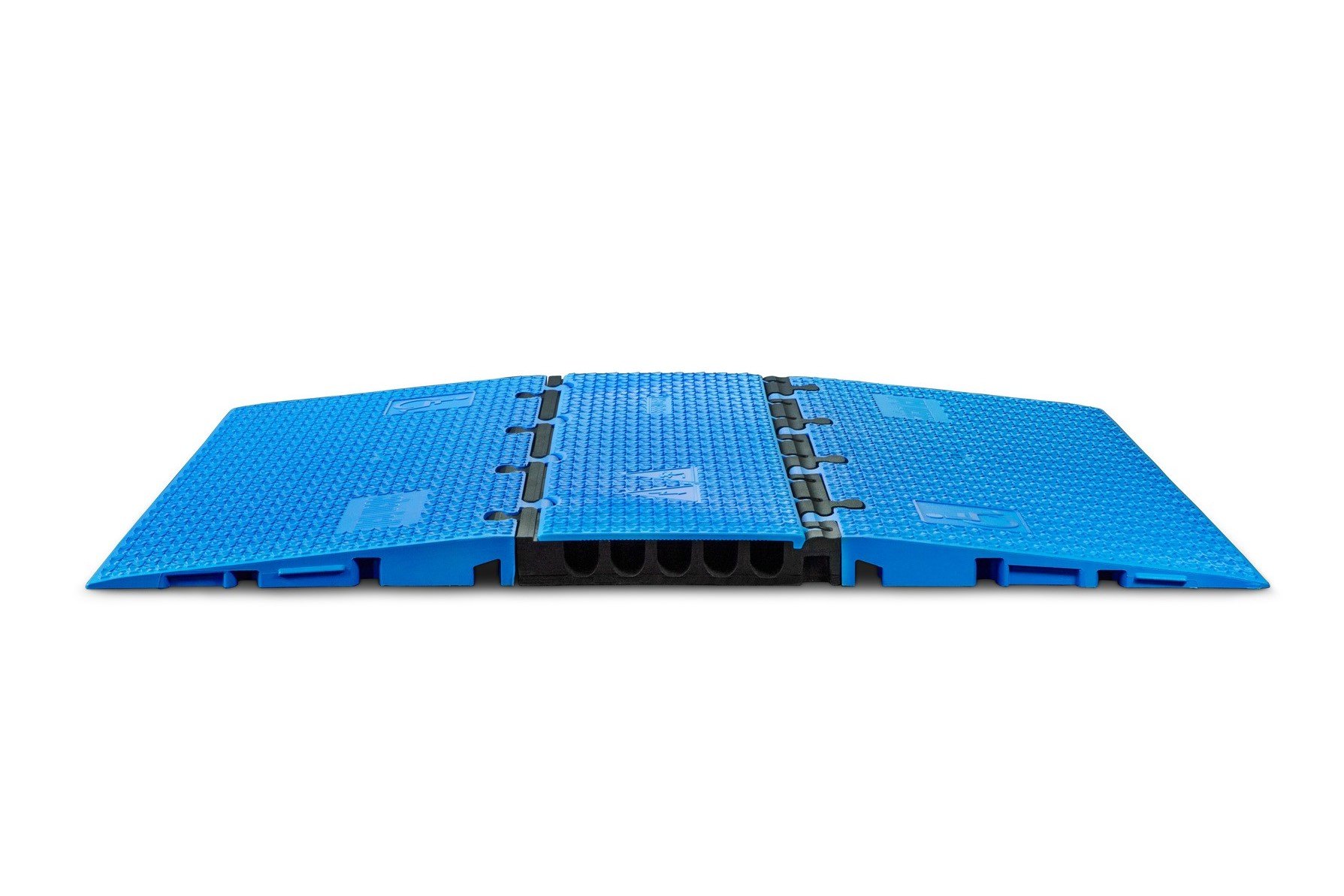

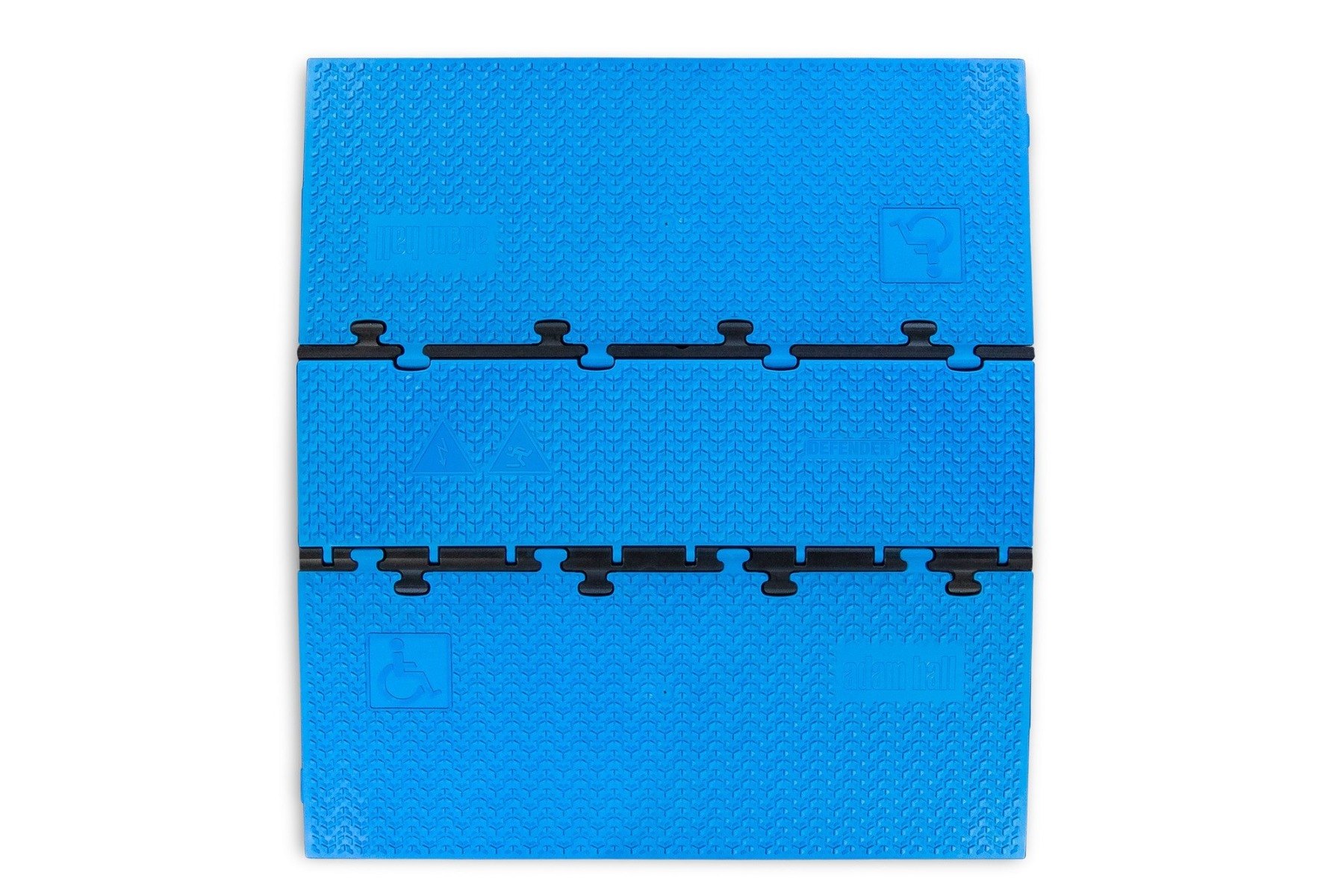

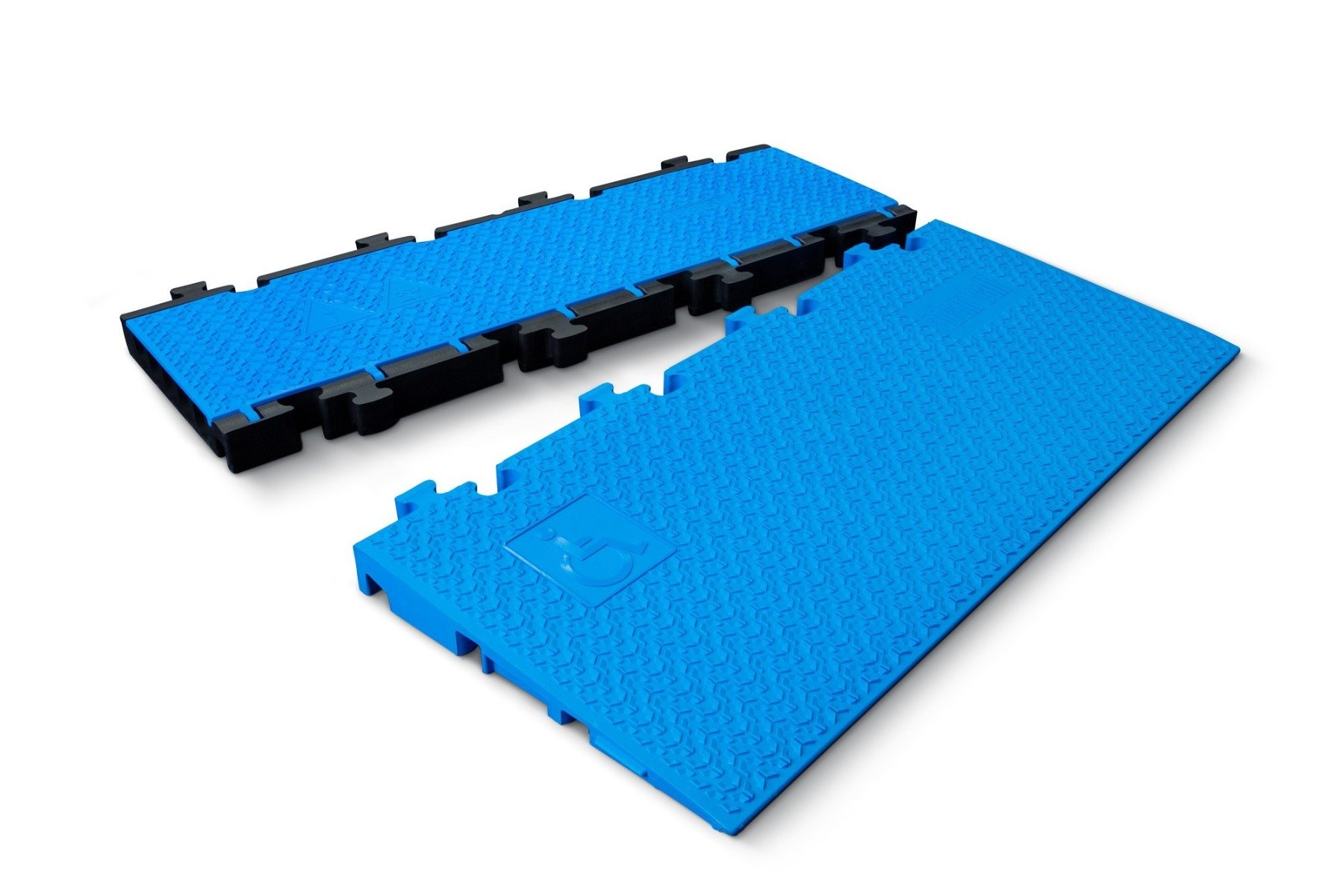

The Defender Midi 5 2D Set consists of two ramps and a middle section to allow wheelchairs to safely overcome the cable protector. Multiple units can be connected side by side to create a wider accessible area where needed.

The range is compatible with the Defender Midi cable protectors.

Manufactured in Germany, the Adam Hall Defender Cable Protector range is offered with a 5-year guarantee, perfect for those seeking a durable, long-lasting cable protection solution for use in the workplace, commercial sites or at events. The Defender cable protectors can be used to protect low-voltage cables up to 500 Volts, including communication, control and power-supply cables, along with water and sewage cables and hoses.

Please check the maximum gradient your forklift or pallet truck can climb.

Key Features

Modular design

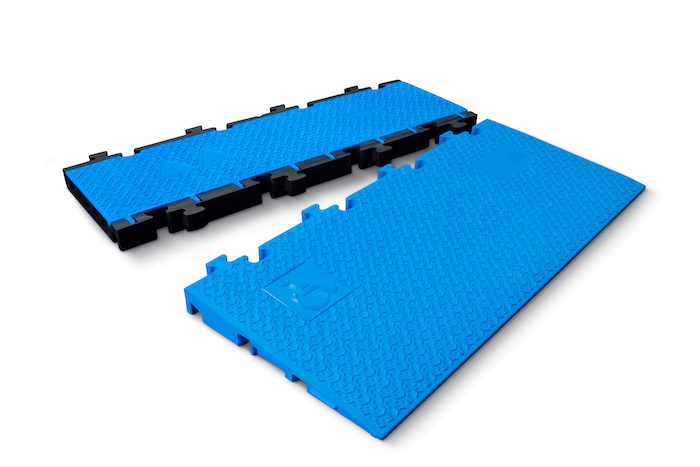

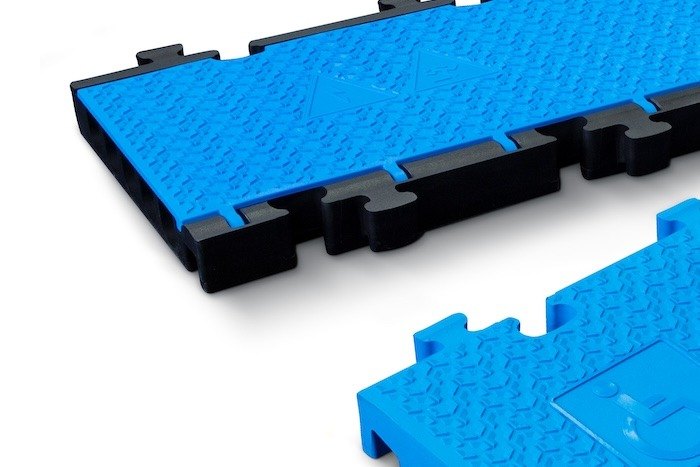

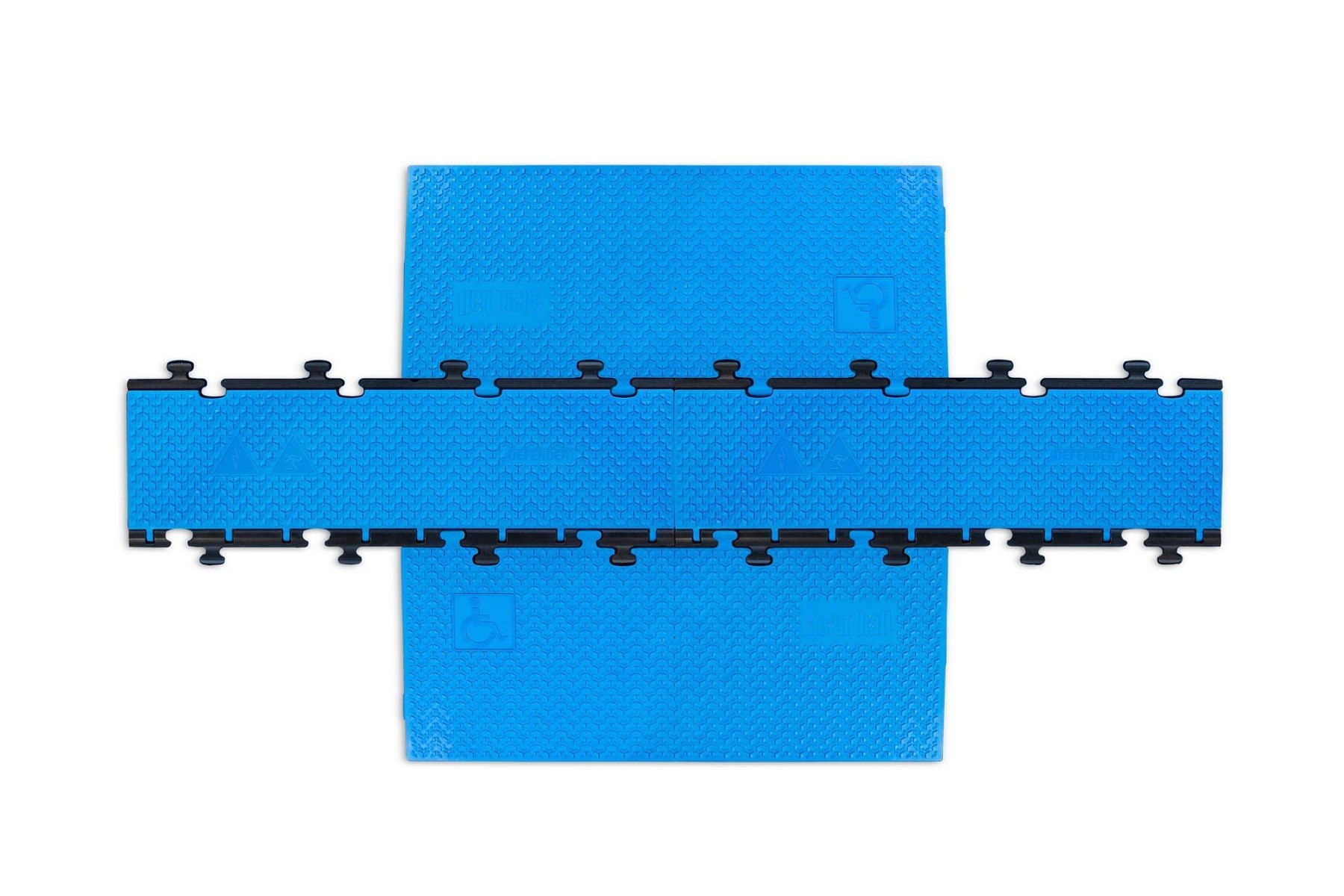

Securely connect multiple units side by side or use in conjunction with Defender Midi cable ramps.

Non-slip surface

Chequered high-visibility non-slip surface, suitable for pedestrians and wheelchairs.

5-channels

Protects up to 5 cables or wires, channel size 34 x 38mm.

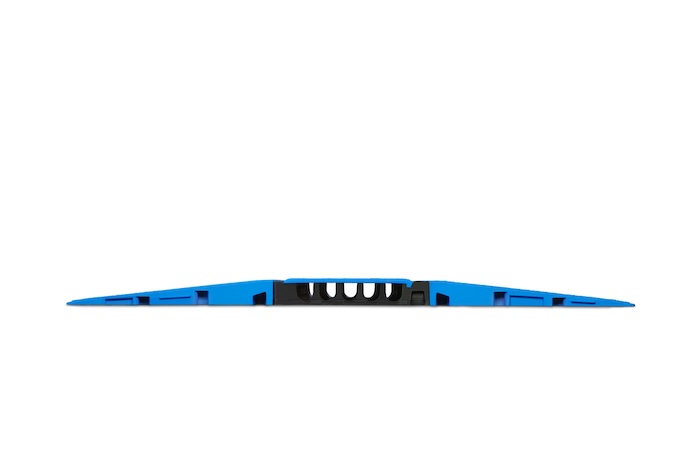

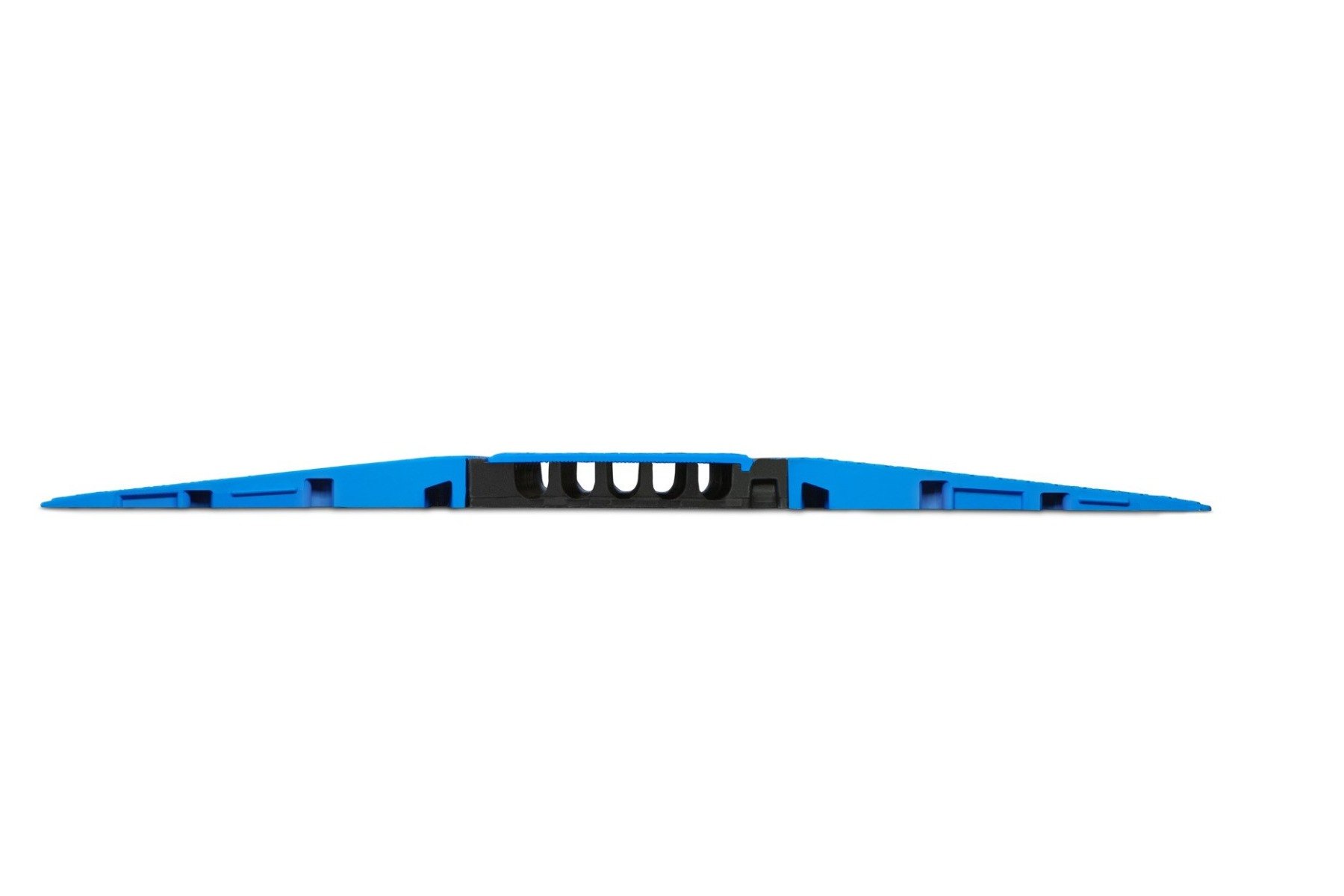

Smooth gradient

Designed specifically with wheelchairs, mobility scooters, pallet trucks and forklifts in mind.

Show more +

Product Highlights

Built for everyday use

Designed for internal and external use, the 5-channel cable protector is quick and easy to set up.

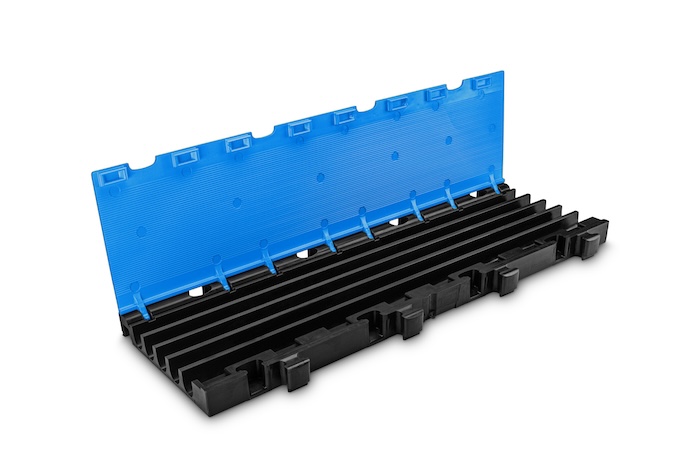

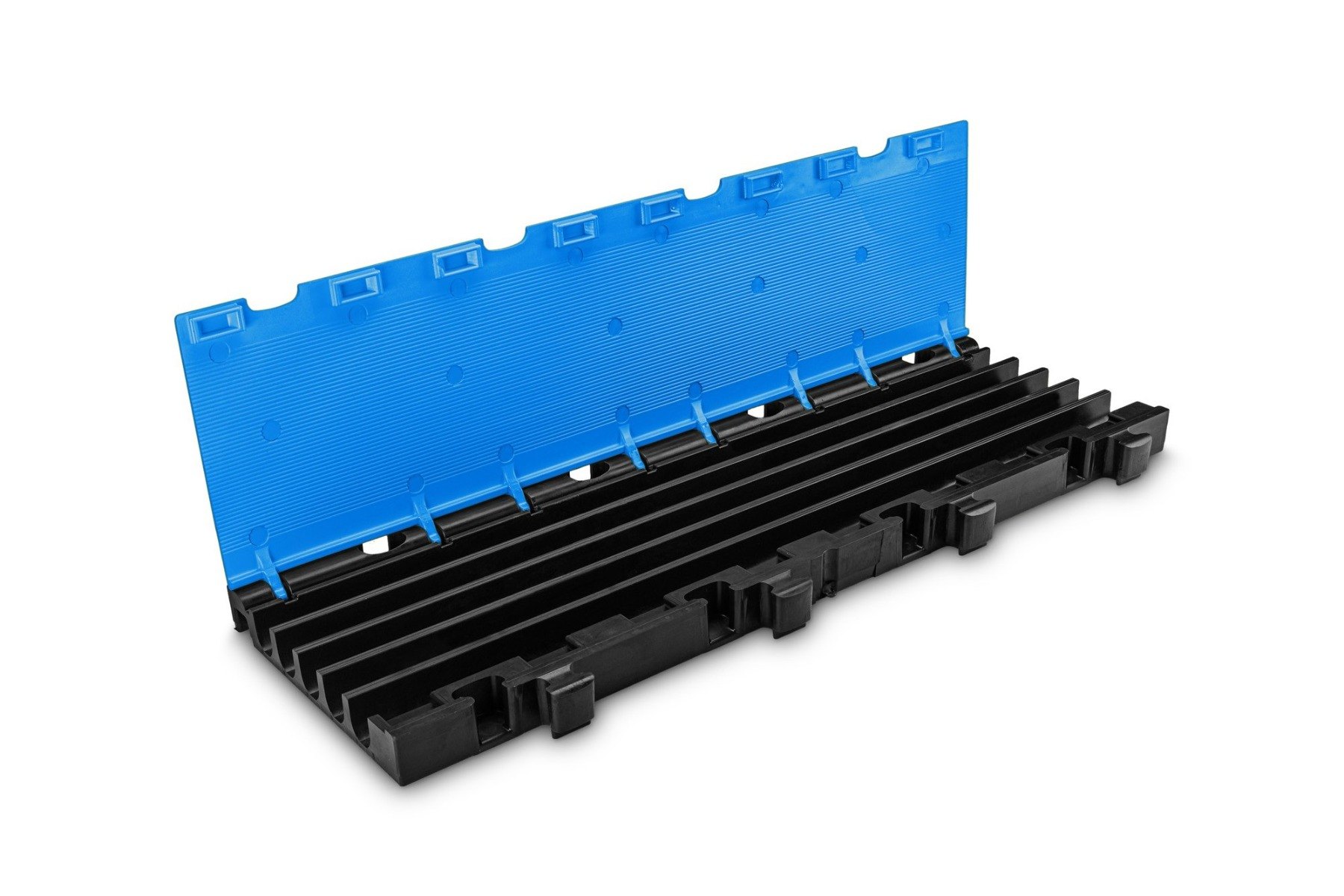

Simply rest on the floor, open the lid and insert the cables or wires. The lid securely locks when closed.

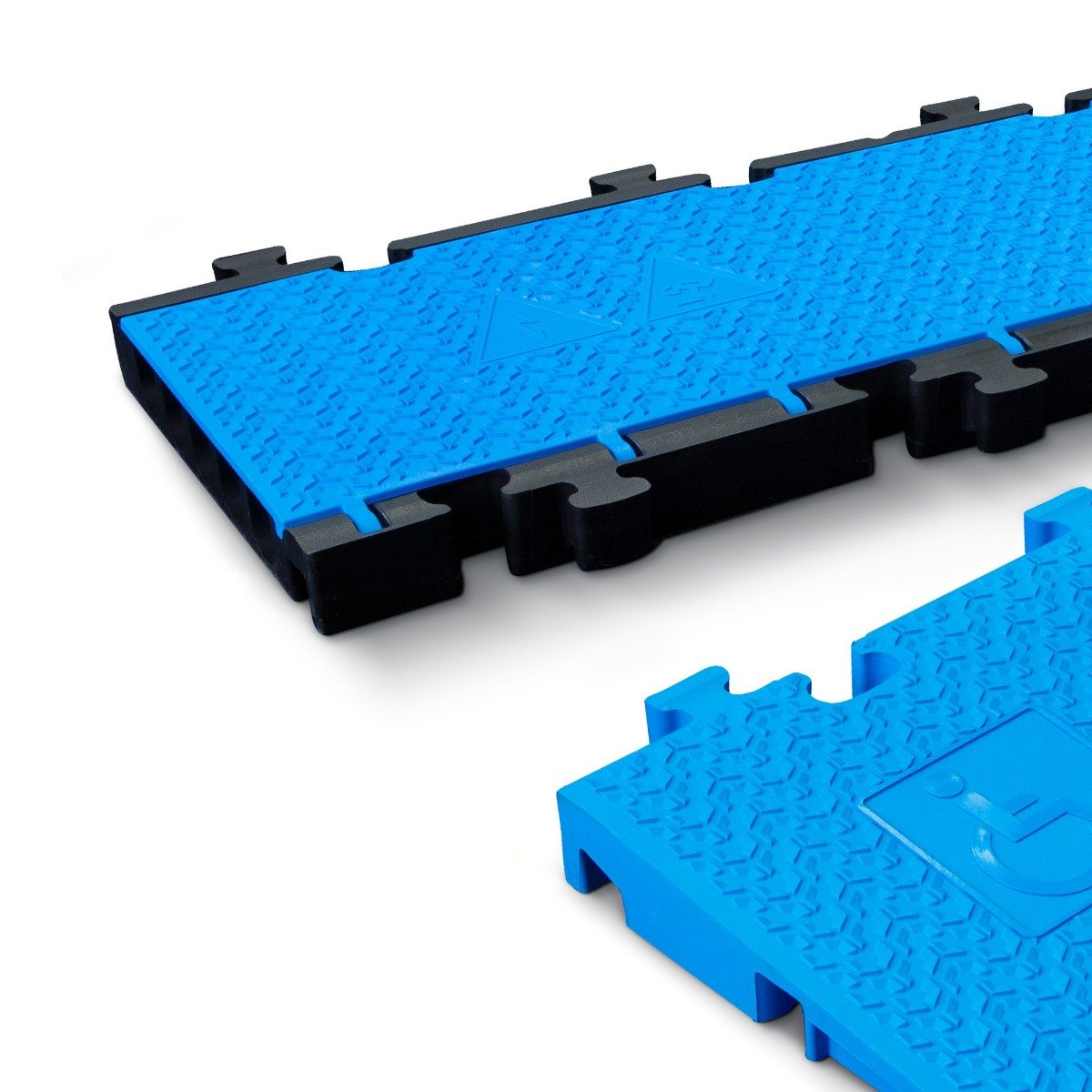

Attach the outer ramps to provide a smooth gradient for safe access over the cables. Use with multiple wheelchair ramps to make larger areas accessible or use with the Defender Midi 5 cable ramp, where only certain sections need to be accessible.

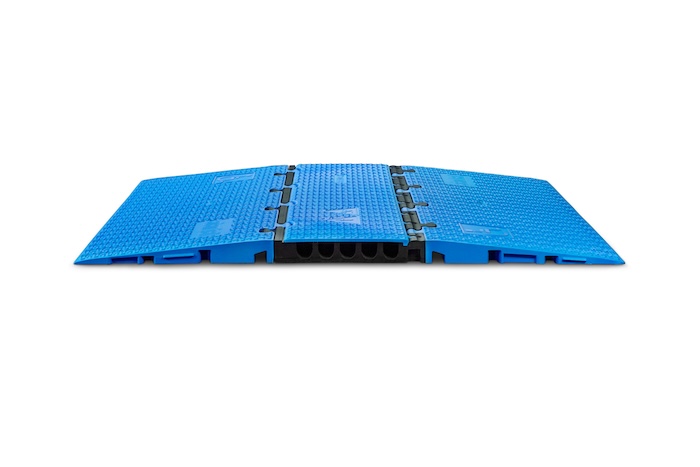

Adam Hall Defender Midi cable protector for wheelchair access

Perfect for commercial use

The 5-channel cable ramp is TÜV SÜD-certified and offers fire protection class E in accordance with DIN EN 13501-1.

Manufactured from 100% recyclable plastic, it is built for use in industrial areas, the cable protector is resistant to oil, acid and petrol. It offers a temperature resistance from -30°C to +60°C and a shore A hardness of 88 ± 4.

The low-profile and high-visibility design allows wheelchairs, mobility scooters, pushchairs and more to safely overcome the cable ramp.

Manufactured with safety in mind, the surfaces, edges and corners are smooth to prevent injuries.

Specification

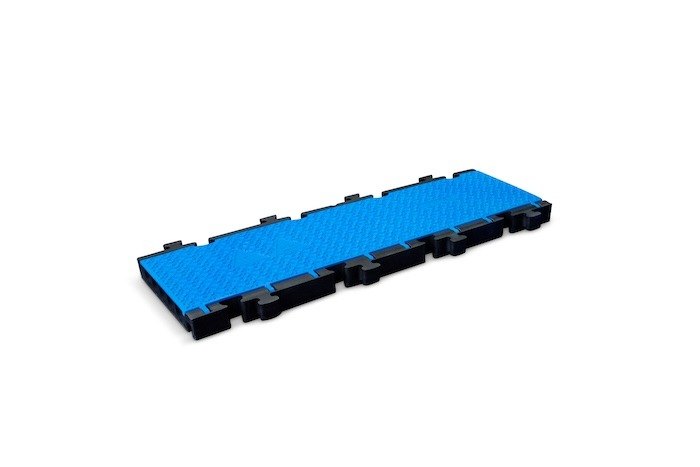

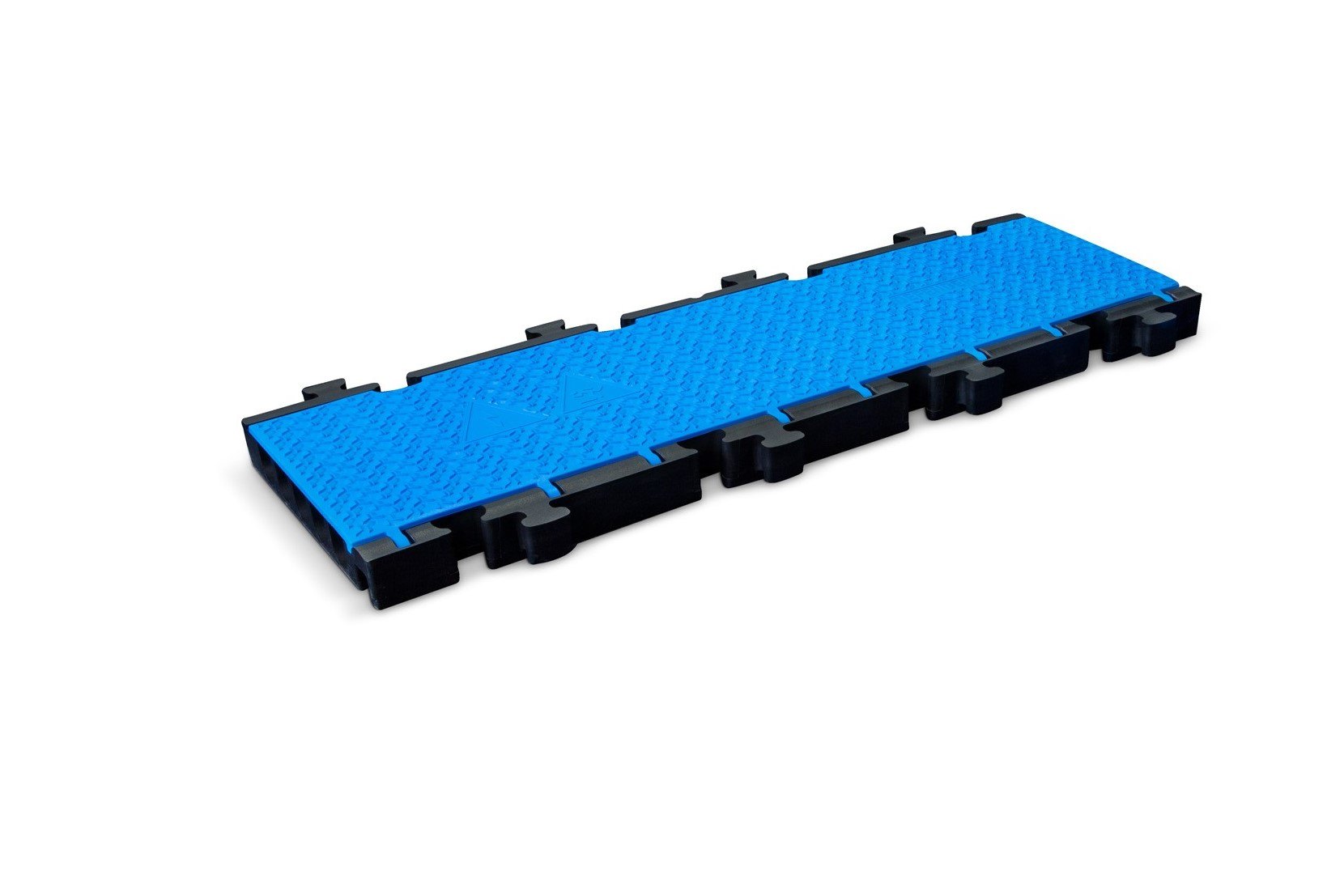

The main cable protector is 1000mm x 325mm x 54mm x 10.2kg and has 5 channels, each channel is 38.5mm x 38.6mm.

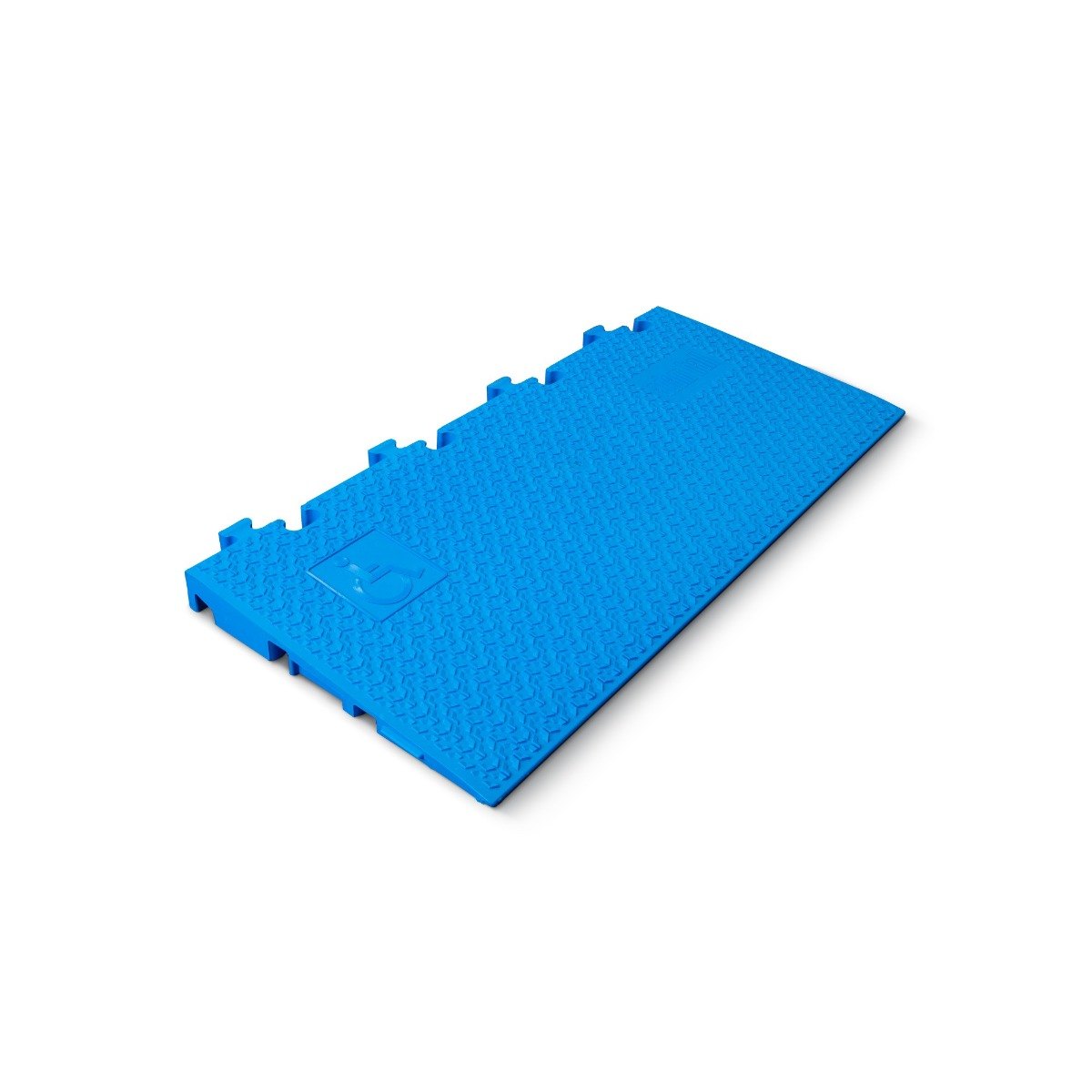

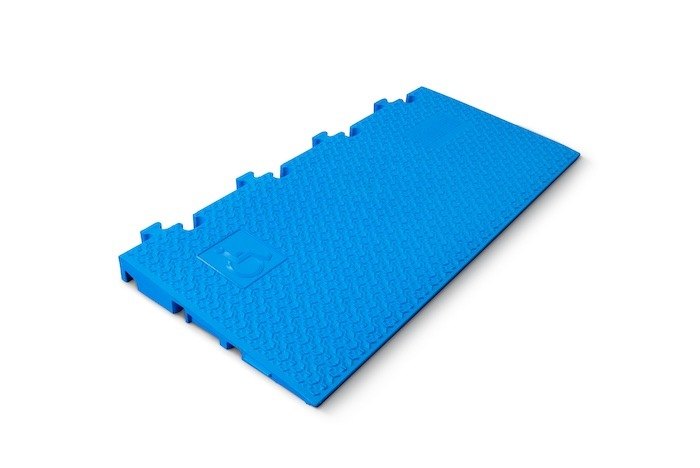

The two transition ramps are 1000mm x 430mm x 54mm x 8.5kg.

Why Choose Adam Hall Defender Cable Protectors?

Manufactured to the highest standards in Germany, the Adam Hall Defender range is renowned for being manufactured from highly durable, recycled materials. Every cable ramp in the Defender series is are TÜV SÜD certified and meets fire protection class E in accordance with DIN EN 13501-1, ensuring a safe and reliable performance.

Engineered with the users' needs in mind, the Defender range offers a wide selection of cable protectors with various channel sizes and load capacities, allowing you to safely protect cables and hoses from both pedestrian and vehicle traffic.

For added peace of mind, the cable protectors are offered with a 5-year warranty.

User Manual

This is a FULL-WIDTH row. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam non pulvinar neque, blandit lobortis leo. Suspendisse ac consectetur magna. Integer vel diam aliquam, laoreet tortor a, commodo diam. Nulla vulputate scelerisque sagittis.

Sed molestie, lectus semper mollis eleifend, ante dui eleifend dui, nec vehicula risus mauris in turpis. Nullam euismod neque vel lectus sodales, nec placerat diam interdum.

Details

SKU	TRP-869300SETBLU
Capacity (kg)	5000kg / 25 × 30 cm
Height (mm)	54
Length (mm)	1000
Total Width (mm)	755
Weight (kg)	31.76
Weight per Ramp (kg)	9.5
Width (mm)	430 + 325
Five Years Warranty	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Manual Wheelchair	Yes
Mobility Scooter Friendly	Yes
Channel Size (mm)	34 x 38 mm
Channel Height (mm)	386
No. Channels	5
Capacity per Axle (kg)	10,000
Durometer A	88 Shore ± 4 A Shore
Speedlimit (mph)	5
Colour Option	Black

Product Questions

Is Adam Hall's Defender Midi 5 2D Set Blue suitable for vehicle traffic?

Yes, with a 5,000kg capacity the cable protector is suitable for various vehicle traffic. Due to the smooth gradient, the cable ramp is also suitable for many forklifts. Please do check your clearance prior to purchase.

I am interested in the Defender Midi 5 2D Set, how easy is it to set up the cable ramp system?

The Defender Midi 5 2D Set is designed to be easy to set up. The sections are modular and interlocking to allow each section to easily be connected or removed when required. Please watch the product video to learn more.

Is Adam Hall's Defender Midi Wheelchair Ramp compatible with other cable protectors?

The Defender Midi Wheelchair Ramp is compatible with Adam Hall's Midi Cable Protectors.

If I am using cable protectors am I legally required to provide wheelchair-accessible cable ramps?

There is not a specific law around accessible cable protectors however the Equality Act 2010 requires reasonable adjustments to be taken to make areas accessible for those with disabilities. Wheelchair friendly cable ramps help ensure compliance by keeping events, pavements, buildings and workplaces accessible.

I am viewing the Adam Hall Cable Protector range. What sets Adam Hall apart from other cable protectors?

Adam Hall Defender cable protectors are a premium range developed and manufactured in Germany. The range includes cable protectors of various sizes and accessories. Produced from 100% recyclable plastic, the cable ramps are resistant to oil, acid and petrol and rated fire protection class E.

What maintenance is recommended for Adam Hall Defender Cable Protectors?

The Adam Hall Defender range are designed to be easy to clean, even with a steam jet cleaner. It is recommended the hinge area and lid is always kept clean. Slightly lubricate hinges and closure regularly with a silicone spray, remove excess lubricant after application to avoid any risk of slipping.

Are Adam Hall Defender Cable Protectors suitable for protecting electrical cables?

Yes the DEFENDER® cable protectors can protect low voltage cables up to 500 V, for example communication cables, control cables and power supply cables. They can also protect water and sewage pipes. Please note they are not suitable for rigid gas pipes.
