Modular Hose Bridge Ramps
Modular rubber hose protector designed to protect cables and hoses from pedestrian and vehicle traffic. The modular kits are suitable for protecting large cables and hoses up to 162mm x 126mm.
The hose protector ramp kit is available at 10cm and 15cm high. You can mix and match components to create a cable protector that fits your exact requirements.
Which height to select? This will depend on the size of cables or hose. The 100mm high tunnel sections have a 107mm x 80mm channel size and can take hoses or cables with a maximum diameter of 80mm. The 150mm high tunnel sections have 2 tunnels with a 126mm x 162mm channel size each and can take hoses or cables with a maximum diameter of 130mm.

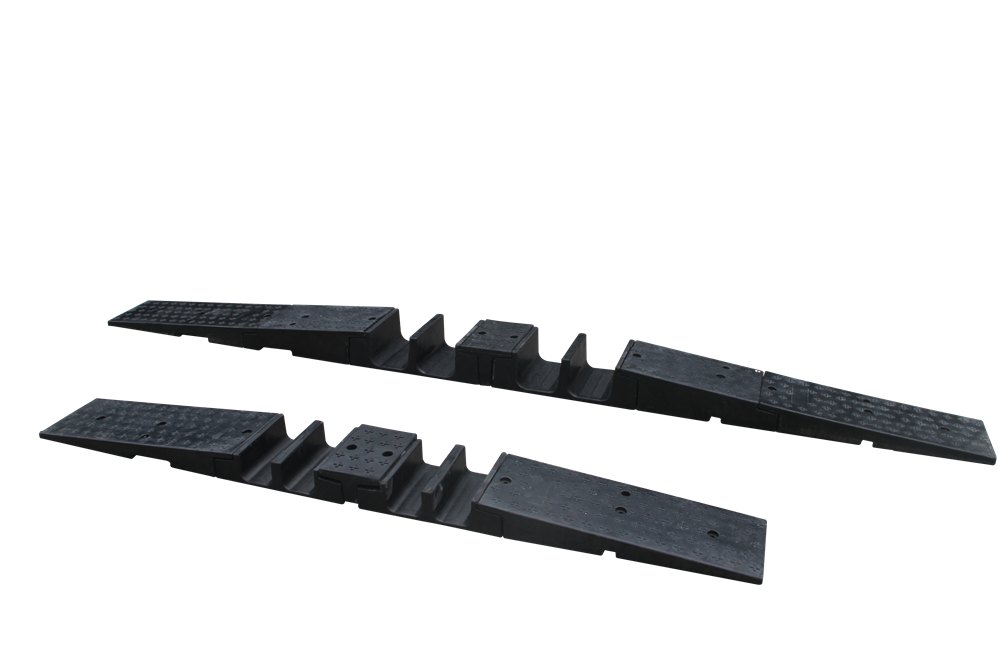

How to order? Once you have confirmed the height needed, input the number of items required before adding them to the basket. For example, if you have only small vehicles crossing over and are looking for a kit to protect 4 hoses, you will need to select 2 units of the pair of ramps (4 ramps in total), 4 units of the tunnel sections and 2 units of the connectors. This will give you 2 kits which are 275mm wide each.
If you need further assistance, please see our full description below or contact us and we will be happy to assist you.
Modular hose protector ramp & cable protector key features include:
- Customisable design, select the hose ramp to meet your requirements
- Durable rubber, suitable for use in all weather conditions
- Suitable for indoor and outdoor use
- Anti-slip chequered surface
- Heavy duty, suitable for pedestrian and vehicle traffic with a capacity up to 10,000kg
- Easy to install, interlocking modular pieces
- Smooth gradient to reduce trip hazards
Modular Hose Bridge Ramps Part Specifications

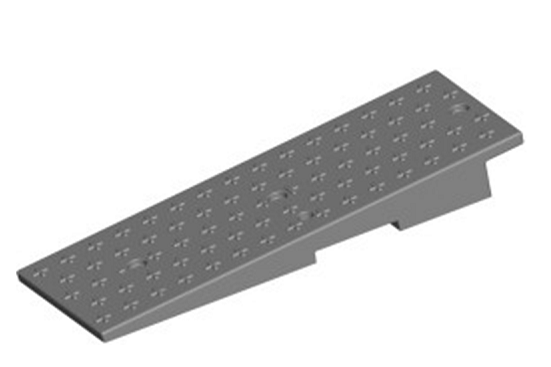

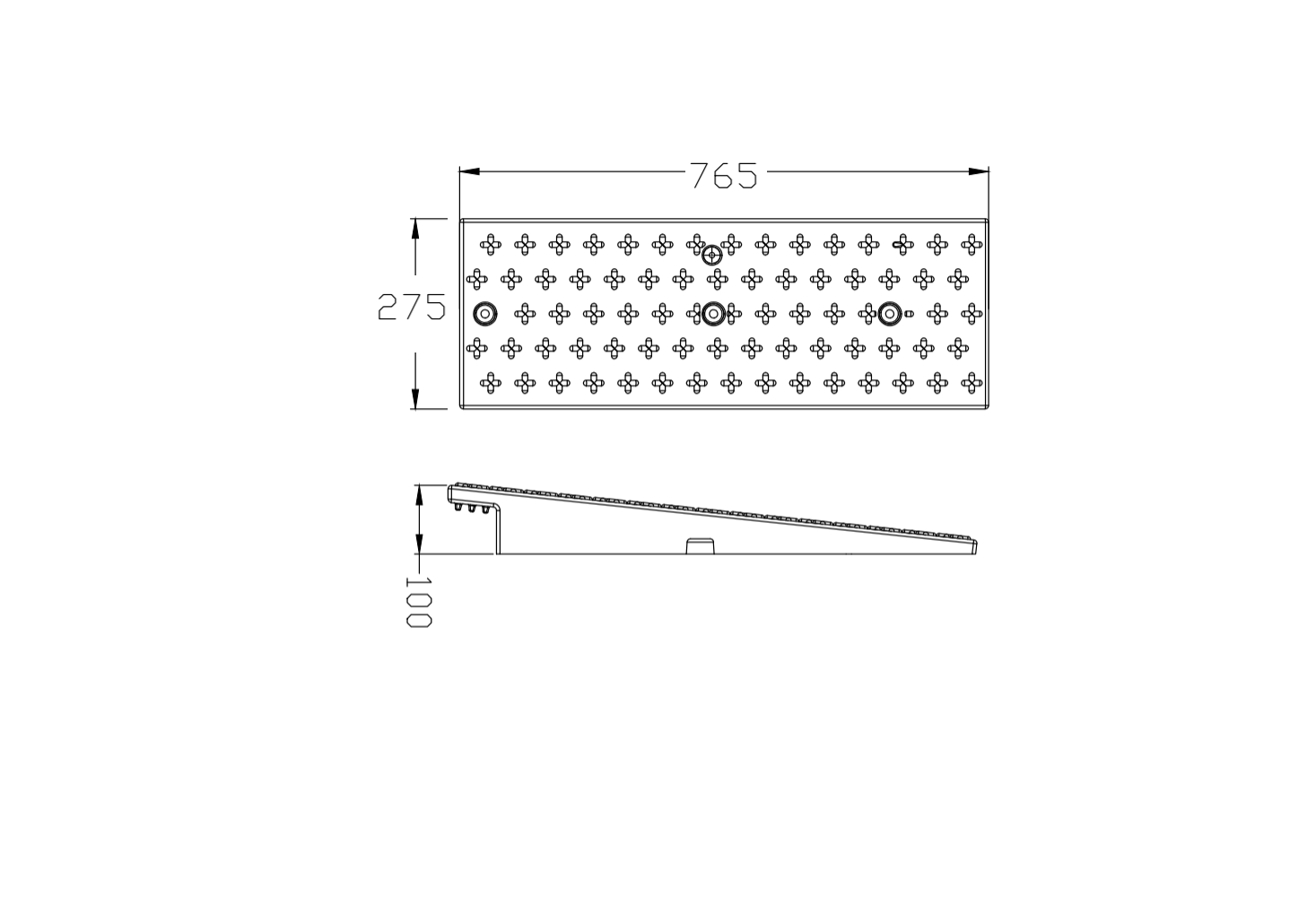

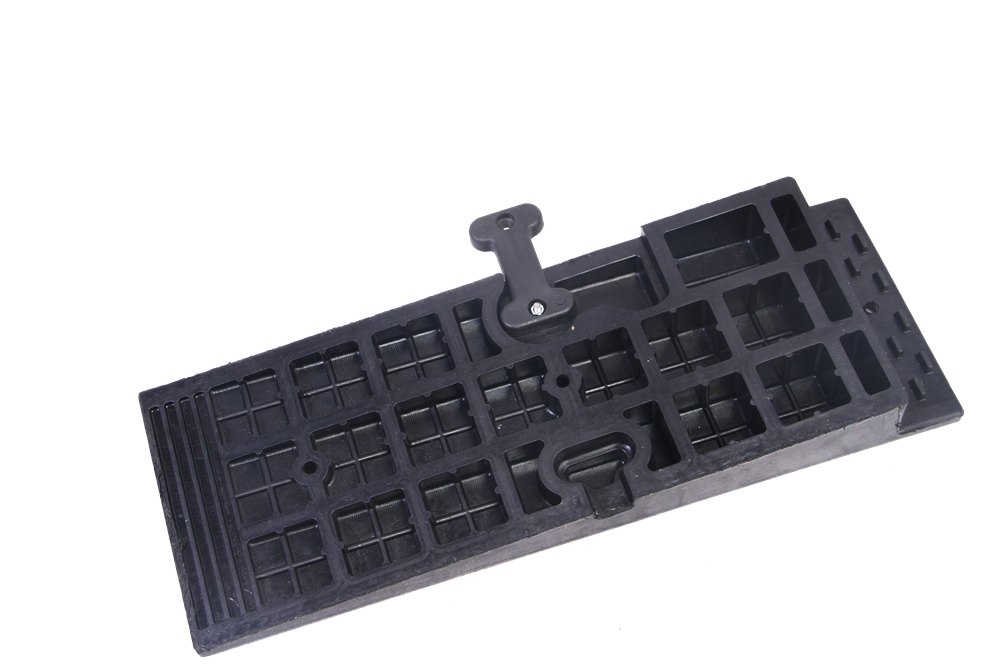

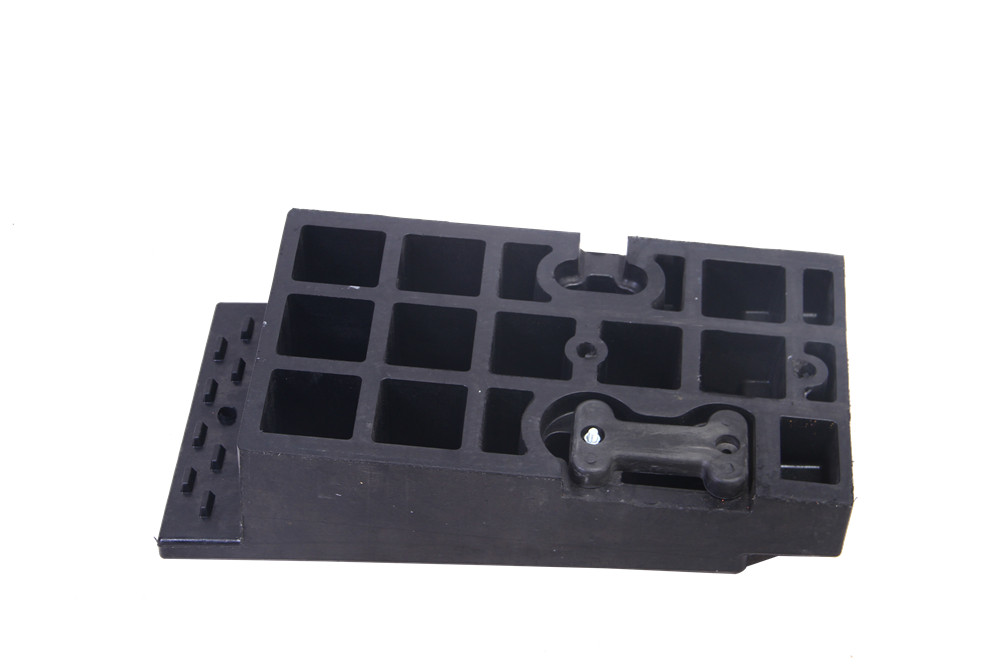

100mm high ramp section TRP-DH-CUP-ramp-100
- Dimensions (mm) - 275 (W) x 765 (L) x 100mm (H)
- Weight (kg) - 10.5

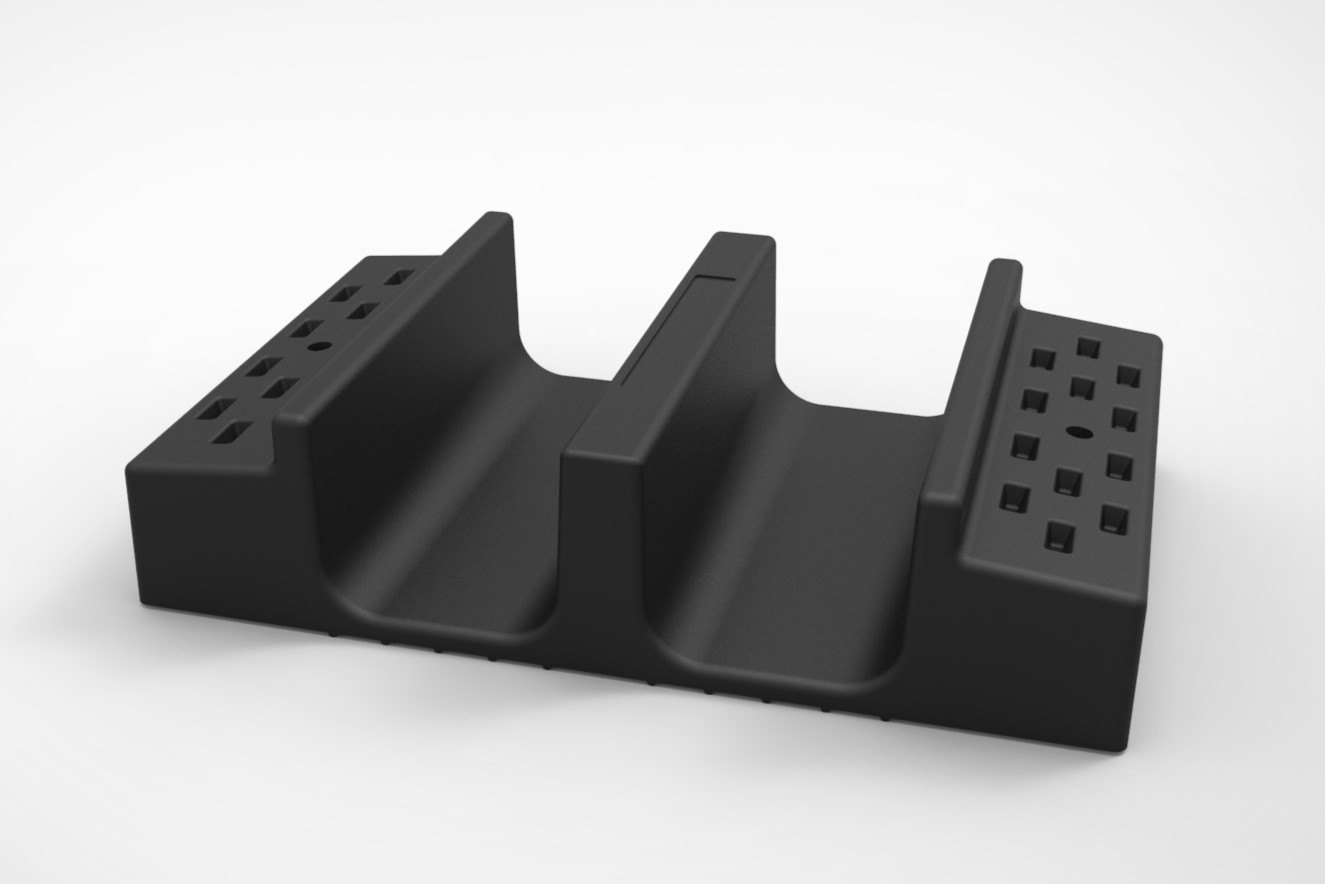

Rubber Hose Ramp Middle Section - Tunnel - Channel Section 100mm high TRP-DH-AHR-3
- Dimensions (mm) - 275 (W) x 424 (L) x 100 (H)
- Channel size (mm) -107 (W) x 80 (H)
- Weight (kg) - 6.5

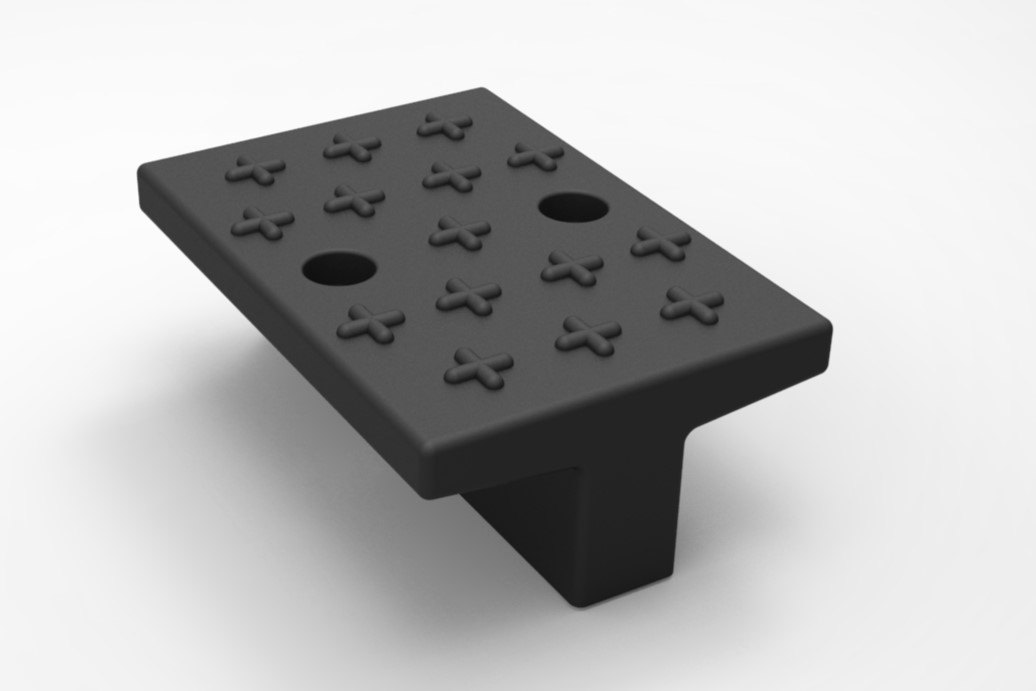

Rubber Hose Bridge Extend Section - 100mm high Connector TRP-DH-AHR-2
- Dimensions (mm)- 275 (W) x 220 (L) x 100 (H)
- Weight (kg) - 3.6

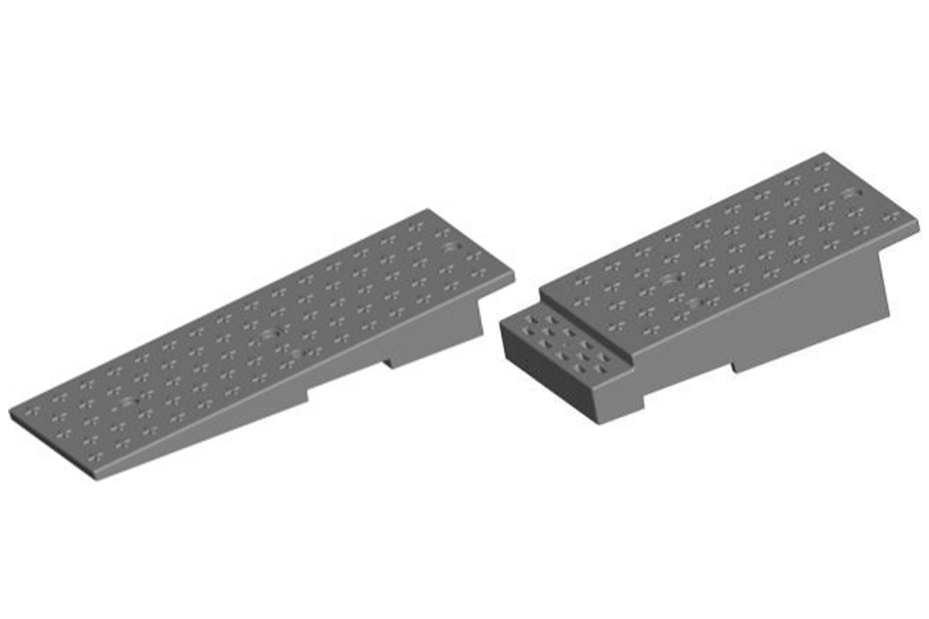

150mm high ramp section TRP-DH-CUP-ramp-150
- Dimensions (mm) - 1750 (W) x 2200 (L) x 150 (H)
- Weight (kg) - 23.5

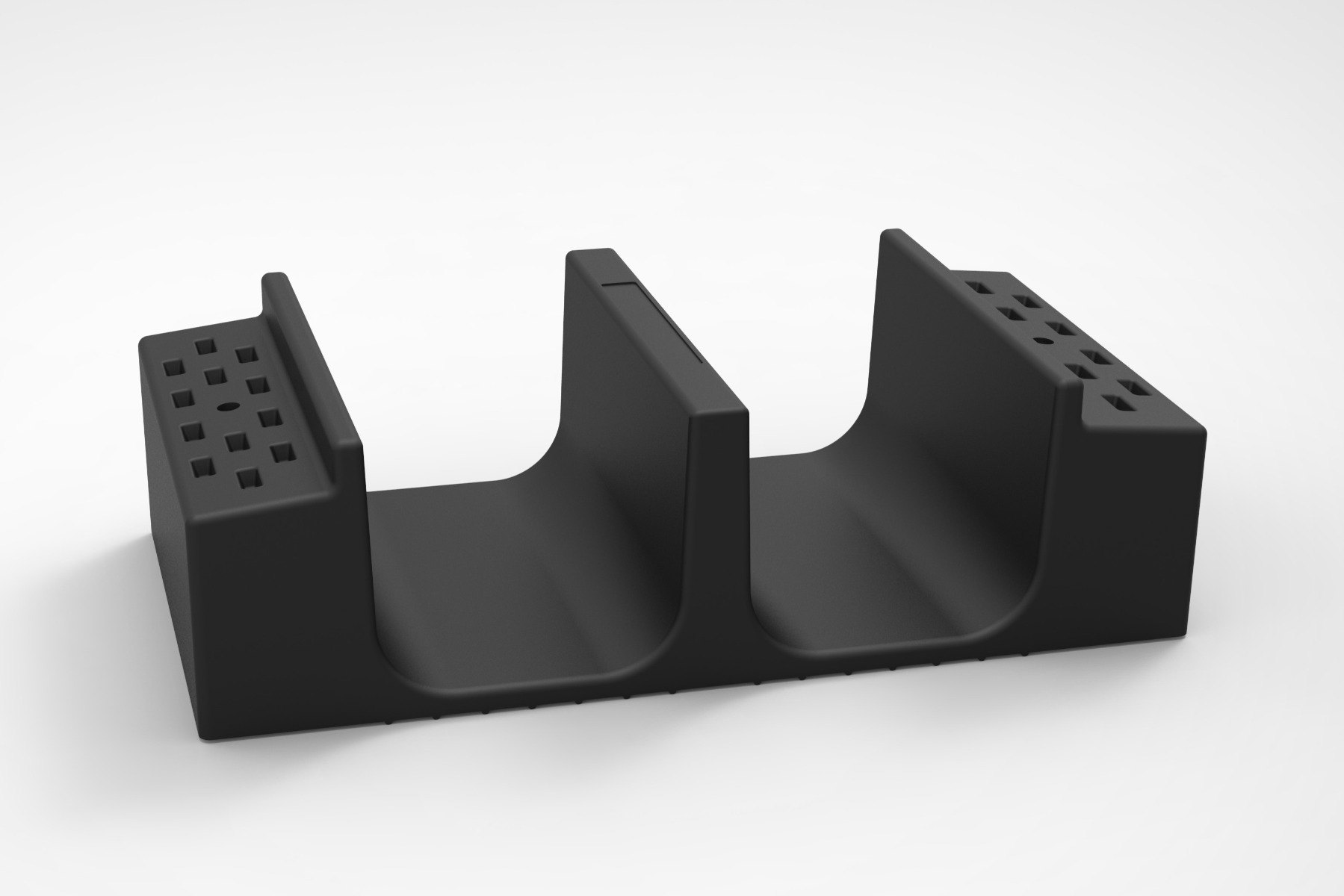

Rubber Hose Ramp Middle Section - Tunnel - Channel Section 150mm high TRP-DH-AHR-6
- Dimensions (mm)- 275 (W) x 524 (L) x 150 (H)
- Channel size (mm) -162 (W) x 126 (H)
- Weight (kg) - 11
Rubber Hose Bridge Extend Section - 150mm high Connector TRP-DH-AHR-5
- Dimensions (mm) - 275 (W) x 220 (L) x 150 (H)
- Weight (kg) - 4.5
| SKU | TRP-AHR-CUP-Hose |
|---|---|
| Capacity (kg) | 10000 |
| Height (mm) | 100-150 |
| Width (mm) | 275 |
