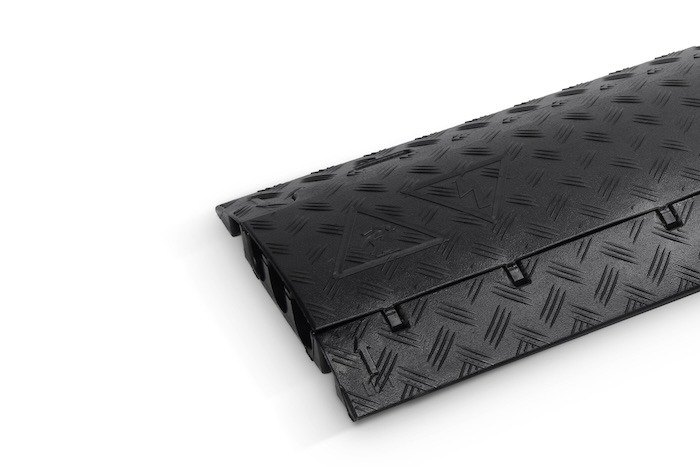

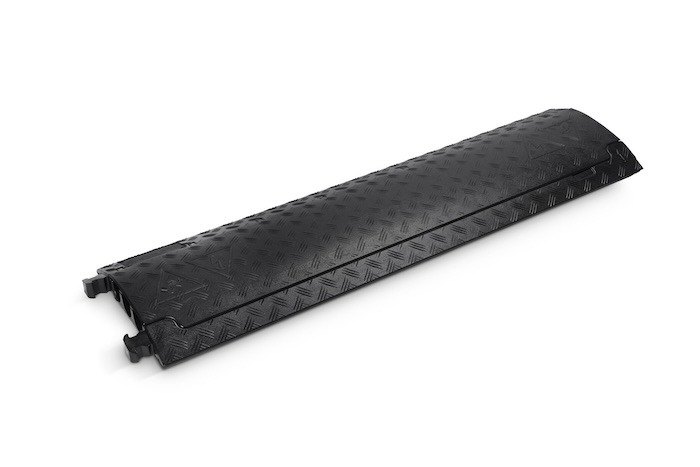

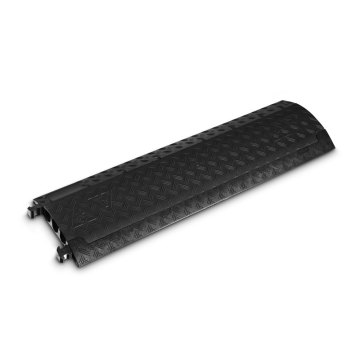

Defender Mini Black 3 Channel Cable Protector
Adam Hall's Black 3-channel Defender Mini offers a capacity of 4,000kg per axle. Designed for indoor and outdoor use to protect cables from pedestrian traffic, the cable ramp has 3 channels: 1 channel is 35mm x 35mm, 2 channels are 35mm x 30mm.
The minimum order quantity is 5 units.
- 3 channels (1 channel: 35mm x 35mm, 2 channels: 35mm x 30mm)
- Capacity of 2,000kg per 20cm x 20cm
- Black polyethylene lid ensures the cables are secure within the cable protector
- Non-slip surface
- Extremly lightweight at 5kg
- Self-cleaning lid hinge (patented)
- Produced from recyclable polyurethane
- Suitable for internal and external use
- Resistant to oils, acids, solvents and petrol and short-term contact with solvents
- TÜV SÜD certified
- Fire resistance class B2 (DIN 4102)
- Additional accessories including end ramps and curves are available
- The Defender Mini user manual is available here
- Not suitable for vehicle traffic
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Description
The Adam Hall Defender Mini cable ramp is perfect for those seeking a lightweight cable protector to protect cables. Offering a 4,000kg capacity per axle, the cable protector is commonly used at events, trade shows and exhibitions. The cable protector is suitable for pedestrians; it is not designed for vehicle traffic.
Manufactured in Germany, the Adam Hall Defender Cable Protector range is offered with a 5-year guarantee, perfect for those seeking a durable, long-lasting cable protection solution for use in the workplace, commercial sites or at events. The Defender cable protectors can be used to protect low-voltage cables up to 500 Volts, including communication, control and power-supply cables, along with water and sewage cables and hoses.
The cable protector is also available in black and yellow.
Accessories are available to help you make the cable protector fit your specific area, including curved sections and end caps.
Key Features

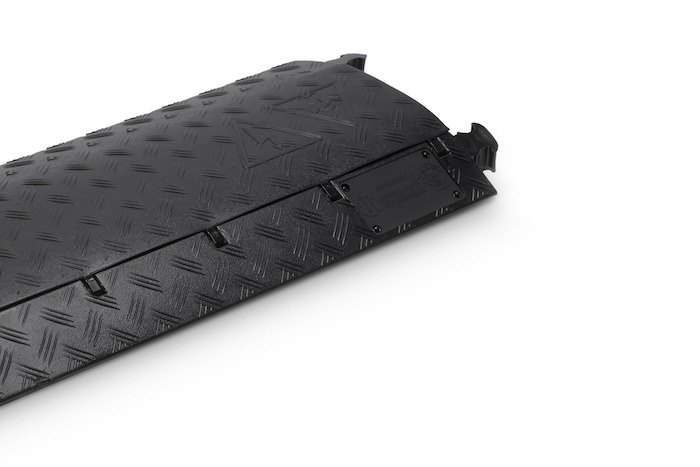

Interlocking design
Connect multiple units together to cover your required cable length.

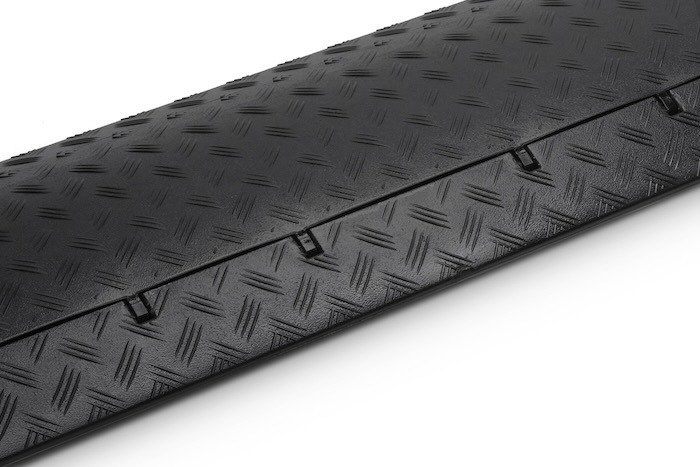

Non-slip surface and base
Chequered professional non-slip surface, suitable for pedestrians and trolleys.

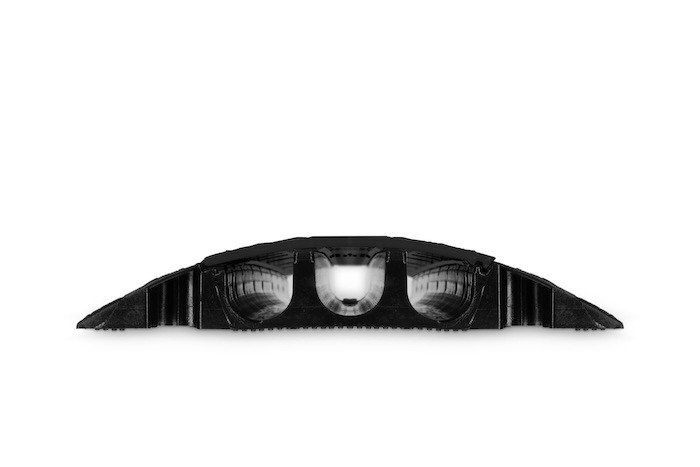

3-channels
Protects up to 3 cables or wires up to 35mm in diameter.


Lightweight and portable
Weighing under 6kg, the cable ramp can easily be lifted and moved into position.


Product Highlights
Built for everyday use
Designed for internal and external use, the 3-channel cable protector is quick and easy to set up.

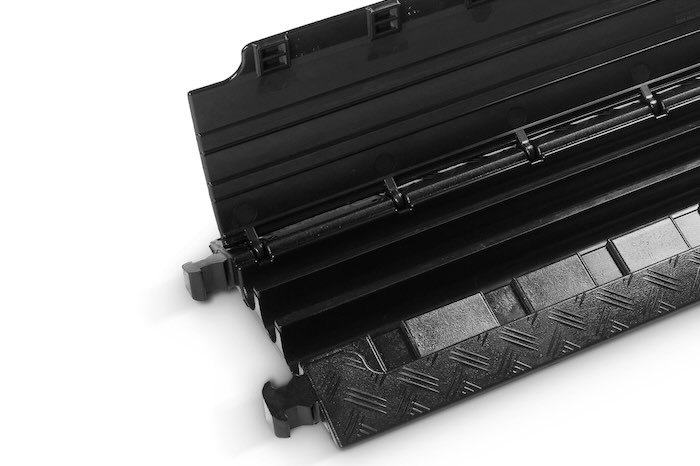

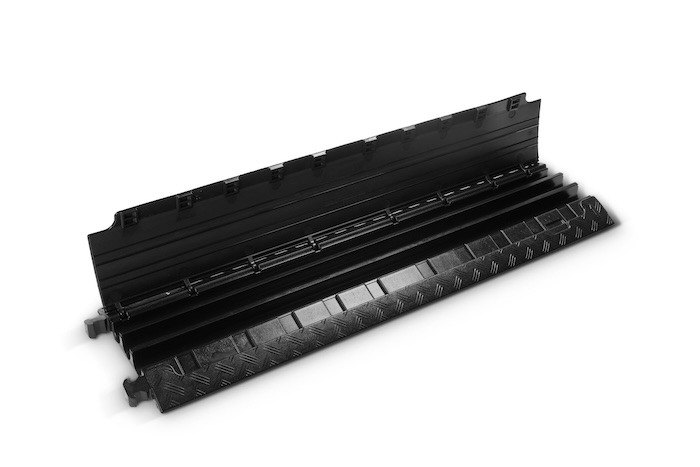

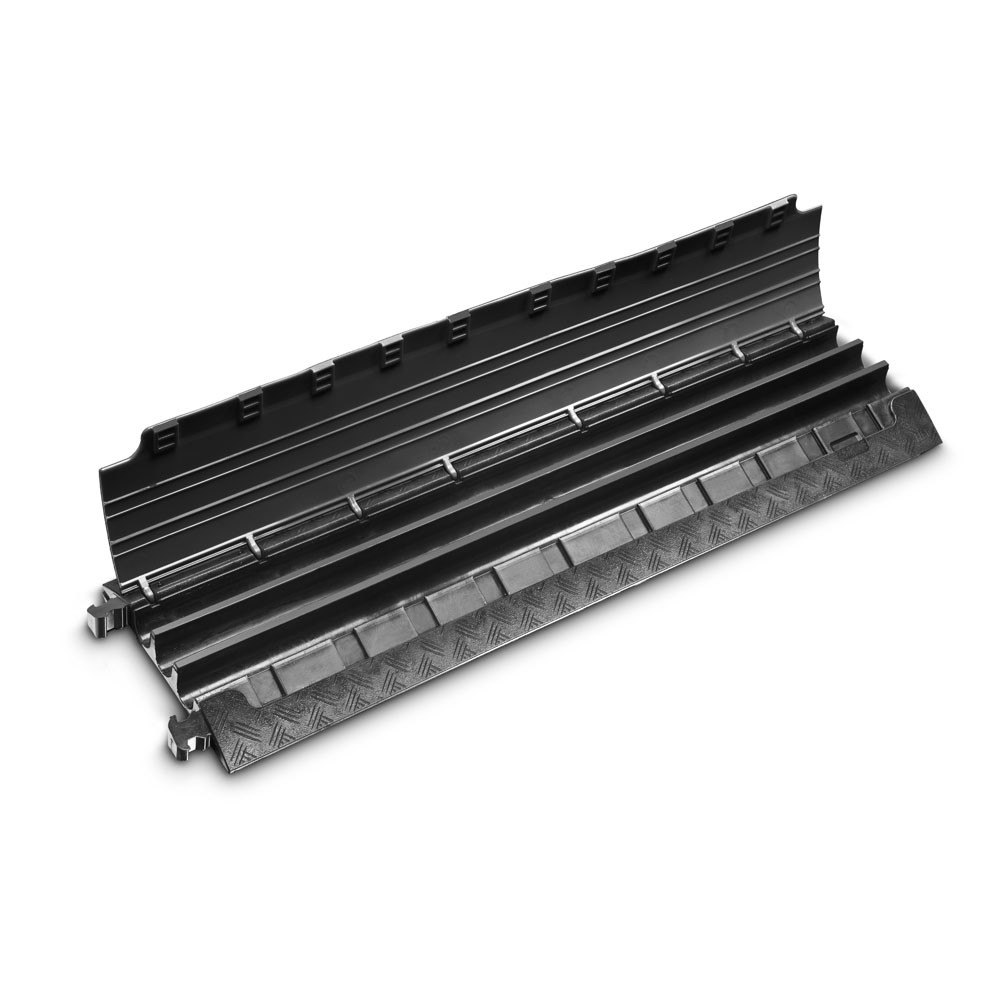

Simply rest on the floor, open the lid and insert the cables or wires. The patented self-cleaning lid securely locks when closed.
The interlocking design allows multiple units to be connected to cover your required cable length.
Weighing under 6kg, the lightweight floor cable protector can be lifted and moved when needed by one person.




Perfect for commercial use
The 3-channel cable ramp is TÜV SÜD-certified and offers fire protection class E in accordance with DIN EN 13501-1.
Manufactured from 100% recyclable polyurethane, the commercial cable protector is resistant to oil, acid and petrol. It offers a temperature resistance from -30°C to +60°C and a shore A hardness of 88 ± 4.
Manufactured with safety in mind, the surfaces, edges and corners are smooth to prevent injuries. The non-slip base ensures the cable protector stays in place on a variety of surfaces.
Durable, long-lasting design
The Defender cable protectors are manufactured from non-breakable plastic (polyurethane).
Offering a self-cleaning lid, the cable ramps require little maintenance. Easily clean when needed using water or a steam jet cleaner.


Why Choose Adam Hall Defender Cable Protectors?
Manufactured to the highest standards in Germany, the Adam Hall Defender range is renowned for being manufactured from highly durable, recycled materials. Every cable ramp in the Defender series is are TÜV SÜD certified and meets fire protection class E in accordance with DIN EN 13501-1, ensuring a safe and reliable performance.
Engineered with the users' needs in mind, the Defender range offers a wide selection of cable protectors with various channel sizes and load capacities, allowing you to safely protect cables and hoses from both pedestrian and vehicle traffic.
For added peace of mind, the cable protectors are offered with a 5-year warranty.
User Manual
To learn more view the Adam Hall Defender Mini user manual.
This is a FULL-WIDTH row. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam non pulvinar neque, blandit lobortis leo. Suspendisse ac consectetur magna. Integer vel diam aliquam, laoreet tortor a, commodo diam. Nulla vulputate scelerisque sagittis.
Sed molestie, lectus semper mollis eleifend, ante dui eleifend dui, nec vehicula risus mauris in turpis. Nullam euismod neque vel lectus sodales, nec placerat diam interdum.


| SKU | TRP-85200BLK |
|---|---|
| Capacity (kg) | 2,000 |
| Height (mm) | 48 |
| Length (mm) | 1000 |
| Weight (kg) | 4.65 |
| Width (mm) | 290 |
| Five Years Warranty | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Cable Protector Color | Black |
| Channel Width (mm) | 35 |
| Channel Size (mm) | 2 channels 35mm x 30mm, 1 channel 35mm x 35mm |
| No. Channels | 3 |
| Capacity per Axle (kg) | 4,000 |
| Colour Option | Black |
