Heavy Duty Removable Loading Bridge (1800mm x 1250mm x 1250kg)
Heavy-duty loading bridge designed to allow pallet trucks and trolleys to easily load and unload vehicles from the loading bay.
SKU | TRP-RB1800H |
---|---|
Length (mm) | 1800 |
Width (mm) | 1250 |
Min. Load Height (mm) | 100 |
Max Load Height (mm) | 230 |
Weight (kg) | 49 |
Capacity (kg) | 1300 |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Truck and Van Ramps
How do I identify what van ramp I require?
First you will need to check your load height, this is the vertical height from the ground to where the ramp will rest. This height identifies the required ramp length, all of our ramps state the maximum load height on the listing.
You also need to consider the maximum weight you are loading.
In addition, we recommend checking the ramp width required in terms of the width of the items you are loading and the internal width of the van.
Please do also check the weight of the ramp is suitable for you.
It is also to consider what you are loading, for example if you are loading an item with low clearance such as a pallet truck a longer ramp is likely to be required, please contact our team for advice.
How long should the ramp be?
For Truck & Van Ramps Health & Safety recommend that a gradient no greater than 30% (16.5 degrees) should be used. Furthermore, no TUV TUV-certified ramp is designed to exceed this gradient. To calculate your gradient simply multiply the bed height of your vehicle by 3.3 to give the optimum length. If loading long/heavy cases or pallet trucks, or items with low clearance, a longer ramp is likely to be required.
Do the ramps have a minimum load height?
The minimum and maximum load heights will be stated on the product page. If no minimum load height is stated, we don’t advise to use the ramps lower than 100mm of the stated max load height as the foot end will not sit flat on the ground. For example, if the ramp has a max load height of 900mm do not use lower than 800mm. For custom solutions, please contact our ramp specialists.
Can the ramps be used over the max load height?
No as the ramp will be too steep. Using the ramp above it’s recommended load height may cause accident, injury or death and will invalidate the warranty.
Should I allow extra capacity in the ramps for safety?
No. Our ramps are manufacturer and engineered to European TUV standards, which require us to build in a 200% safety margin. Please note, if ramp is overloaded this will void warranty.
Can I use a winch to assist loading equipment?
Winches fundamentally alter the normal weight distribution when loading machines and equipment. Stated weight limits are dramatically reduced when using a winch. Winches can be used but great care and attention must be taken, please speak with our sales advisers for help specifying ramps. The most important thing is to keep the rope of winch parallel with the ramp. If you intend to use a winch please make this clear to your sales adviser before purchasing.
How does the ramp connect to the vehicle?
All of our portable truck & van ramps use a rest on connection which rests onto the floor of the vehicle. The Viper Premium van ramps & the truck ramp range come supplied with a locating pin which can be used to anchor the ramp if a matching hole can be driven into the floor of the vehicle.
How do the ramps stay in place?
The van ramps stay in place due to the curved rest-on connection which sits on the van and the angled foot of the ramp which ensures the ramp rests securely on the ground during loading. Please note it is important you are loading at the correct height to ensure the ramp sit securely on the ground. The weight of the load also assists in the ramp staying in place.
Can the ramps be customised?
Some of our van ramps are available to customise including our Premium Viper van ramps. Customisations include amending the width and length of the ramp and amending the connection option. The ramps can also be customised to be cut for alternative load heights, for example if you require a smoother gradient. The lead time on built-to-order items is normally 4-6 weeks.
What is the difference between channel ramps and the single-piece van ramps?
The channel ramps are a pair of ramps whilst a single-piece ramp is one wide ramp. Channel ramps are generally lighter to carry. We offer channel ramps with or without edges. Those without edges are popular for loading ATVs, quad bikes and ride-on mowers. The channel ramps with edges are commonly used for loading trolleys and similar however it is important to check the clearance on what you are loading to ensure that it does not hit the edges of the channel ramps when loading. For loading items with low clearance such as flightcases, one wide ramp is generally preferable. When using one wide ramp you can walk up the ramp behind the item which in many instances can make loading easier.
What is the difference between the premium Viper van ramps and the economy Viper ramps?
Our premium ramps are TUV certified and produced in Italy which means they can be customised if required. The entry onto the ramp for the premium version is slightly smoother than the economy version. In addition to this, the premium version holds a higher capacity (1,000kg+) than the economy version. The premium van ramp is also available in longer lengths than the economy ramp. The premium Viper ramp also offers a pre-drilled hole to allow the ramp to be secured to the vehicle during loading when required. The premium ramps have achieved certification for R13 slip resistance.
How grippy is the surface?
As grippy as we can make it without causing damage to tyres or excessive wear to the surface. We offer various ramps with various surfaces, for example our Viper ramps have light serrations cut across the width which is suitable for dry, clean conditions. If you plan to use in wet or muddy conditions further grip might need to be added such as griptape or rubber covering. Our AnyRamp offers a mesh surface.
Do you offer fixed folding van ramps?
Yes we have a range of fixed folding van ramps which can be secured to the van.
What can be loaded on the folding van ramps?
The folding van ramps can be used to load goods into vans, trailers or over steps. They are commonly used by events companies to load equipment, businesses to load equipment and removal companies to load goods.
Can the ramps be used for loading motorbikes?
For loading items such as motorbikes, ATVs and quad bikes we would instead recommend viewing our range of motorcycle ramps. For loading plant machinery please instead view our Vehicle & Plant ramps.
What are the longest van ramps you offer?
Our Viper Premium heavy duty van ramps are available in lengths up to 5m. Our RollAble loading ramps are modular and therefore can be produced in any length.
What are the van ramps made from?
The majority of our van ramps are produced from aluminium.
We pride ourselves on our ability to get in-stock goods to our UK mainland customers within 1-2 business days 99% of the time, subject to availability. Please note, we use a specialised courier to deliver large items. Due to this, your estimated delivery time will be longer and delivery times may vary from 5 to 10 working days. Delivery times to remote UK locations may also vary depending on your location.
Delivery cut-off times
Our cut off times for same-day dispatch on orders is: 2pm Monday - Friday (Excluding Bank Holidays).
Where we deliver free of charge...
We are proud to say, we offer our customers fast and Free Delivery on all orders to Mainland England, Wales & Southern Scotland. All items are trackable, we will email a tracking link to you once your item is dispatched from our UK warehouse.
Unfortunately, we aren't able to offer all UK customers Free Delivery. However, where the delivery location is chargeable; we endeavour to keep these charges to a minimum and offer our customers' value for money delivery.
Delivery to the following locations: Northern Ireland, Ireland, Scottish Highlands, Scottish Islands, Isle of Man and Channel Islands are calculated at the checkout, upon entering your full address, the shipping fees will be calculated and shown to you prior to placing the order.
You can also view them in the table below,
Delivery costs
Location | Weight | Cost |
---|---|---|
Enland, Wales & Southern Scotland | Any Weight | Free |
Northern Scotland, Highlands & Islands | Any Weight | £25.00 |
Guernsey & Jersey | Under 20kg | £35.00 |
- | 21.01 - 40kg | £60.00 |
- | 40.01kg + | £100.00 |
Isle of Man | Any Weight | £55.00 |
Northern Ireland | Under 20kg | £20.00 |
- | 20.01 - 30kg | £30.00 |
- | 30.01 - 100kg | £55.00 |
- | 100 - 200kg | £115.00 |
- | 200kg + | £125.00 |
Delivery information & receipt of goods
We want you to receive your goods on a timely basis and in pristine condition. Please help us accomplish this by checking the delivery address carefully as noted on the attached invoice and notifying us immediately if there is an error. Upon delivery, please do not sign for the goods unless you are happy with the condition of the product.
Delivery timeframes
Deliveries will occur between the hours of 9:00am and 6:00pm and will require a signature upon receipt. Whilst 99% of orders being shipping within England, Wales & Southern Scotland arrive within 1-2 working days, this cannot be guaranteed.
If you do need the item urgently please contact us at hello@theramppeople.co.uk so that we can best advise you. Your satisfaction with The Ramp People's product and service is our paramount concern.
Please note, if your item is due to be sent on a pallet the cut off time for our 2 working day delivery service may be reduced from 2:00pm to midday, please contact our office for confirmation. If your order is on a pallet, please insure that someone is able to accept the delivery as re-delivery may incur additional cost.
If you have purchased a loading ramp, prior to use please make sure to check the maximum load height as stated on the invoice, read the safety instructions on the side of the ramp closely, and follow the instructions supplied with the product. Failure to comply with product instructions will invalidate your warranty and could cause accident, injury or death so please take this seriously.
Additional information
For a good idea/fair assessment of our delivery times please see our reviews here:
https://uk.trustpilot.com/review/www.theramppeople.co.uk
**Please also refer to the availability stated in the products. For pre-order, non-stock items or built-to-order items we cannot give an exact delivery time - with all deliveries we will keep you updated wherever possible and get these items to you as quickly as possible.
European Orders
If you wish to order from the Republic of Ireland please visit The Ramp People Ireland
For orders to other European locations please contact us directly by emailing hello@theramppeople.co.uk
No quibble 60 day returns
We understand that in some instances, customers will need to return an item due to a change in circumstances, incorrect sizing or simply changing their mind. Here at The Ramp People we offer a 60 day money back guarantee on all purchases; however, there will be circumstances where a return is not possible. So as to remain transparent with our customers, we have detailed our returns policy below to answer any queries you may have about the process.
Here are the most common circumstances for returns and how we can help;
Change of mind, wrong size or unsuitable item
Sometimes an item is not what you imagined, it doesn’t fit or you just don’t need it any more. In these circumstances, we are happy to offer an exchange or a full refund, no quibble of course, if the item is returned in its original condition, including original packaging, and within 60 days from date of receipt. Please note, items which are advertised as 'built to order', or customised items are non-returnable and non-refundable.
Please take care when returning an order to us as all customers are in charge of the item’s return and covering the cost. We recommend you use a tracked, insured returns method so as to ensure a secure transit.
For an exchanged item, please make a note on the returns form that you wish to exchange the product or call us on 01372 569051. We can deliver new items within our standard delivery policy. Unwanted items should be sent back to our address marked 'Returns Department'.
Item incorrect or damaged on arrival
Upon delivery, please do not sign for the goods unless you are happy with the condition of the product.
We pride ourselves on our excellent customer care and service delivery, however, if an unfortunate incident occurs where you believe you have been sent the wrong item please call us immediately on 01372 569051.
For damaged items, please supply proof of damage with a photo and email it across to our customer support team at hello@theramppeople.co.uk. For any incorrect deliveries, we will always check the part numbers on your order due to using different names for marketing and warehouse storage – we can then arrange for the correct item to be delivered whilst the unwanted item is collected and brought back to us.
A refund or replacement can only be processed once we have received all unwanted items and confirmed any damage.
Faulty items
In the unlikely event of an item becoming faulty, please view our guarantee policies in our terms and conditions.
If your item is within our warranty, we will be able to collect it to either repair or replace, however this can only be done once we have confirmed the fault. If you urgently need the item returned, we advise placing a new order and await the refund for the faulty item.
Items that cannot be cancelled or returned
Under Consumer Contract Regulations, customers have the right to cancel any order for any item bought through The Ramp People on this website including a full refund. Unfortunately, these regulations do not apply to the following circumstances;
- Items that are collected from our premises.
- Items with a product description stating: "Built to order or customised."
- Products that are personalised or made to a customer specification.
- Sealed goods that come with health protection or hygiene regulations that have been un-sealed after delivery.
- Returning any products that present a hygiene risk after being used by the recipient.
What happens next?
Please download, print and return our completed returns form below and return this along with your item. If you do not have a printer you can simply write out the details required on the form on a piece of paper.
Parcel2Go is one way to send back an item. Please ensure your item is adequately insured against damage or loss when being returned.
Customers are responsible for any returned goods until they reach our warehouse as stated in this returns policy. None of these terms or conditions affect your statutory legal rights.
Once the item is returned back to our warehouse, please allow 1-2 working days for the items to be checked. Once the items have been checked and the condition is as agreed, a credit note will be emailed across to you. Please note, once the credit note has been provided refunds take up to 14 days.
The Ramp People work in line with Consumer Contract Regulations to ensure your consumer rights are looked after.
- Customisable
- Easy to Fit
- European Made
- Not for Solid Wheels
- One Year Warranty

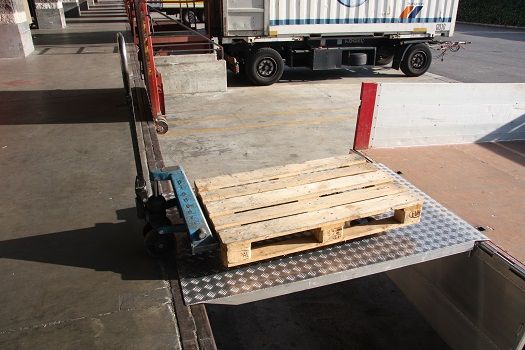

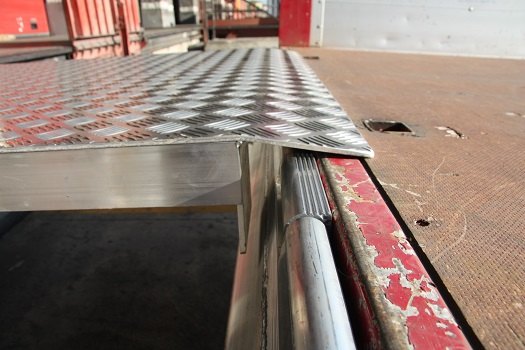

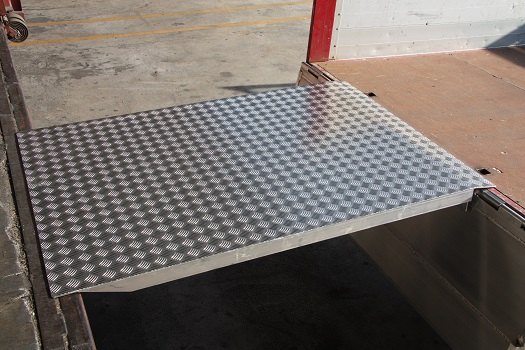

TRP Removable Loading Bridge Features include:
- Highly durable anti-slip surface
- Perfect for pallet trucks with low ground clearance
- Manufactured from lightweight aluminium (type 6005A)
- Robot welded for solid, strong and durable construction
- Lightweight for easy handling
- Fully TUV Certified
- Lengths from 750mm – 1800mm available. Width is fully customisable.
- Lightweight and heavy duty versions available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP-RB1800H |
---|---|
Capacity (kg) | 1300 |
Length (mm) | 1800 |
Max Load Height (mm) | 230 |
Min. Load Height (mm) | 100 |
Weight (kg) | 49 |
Width (mm) | 1250 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
