Hose Protector (850mm long x 300mm wide x 90mm high)

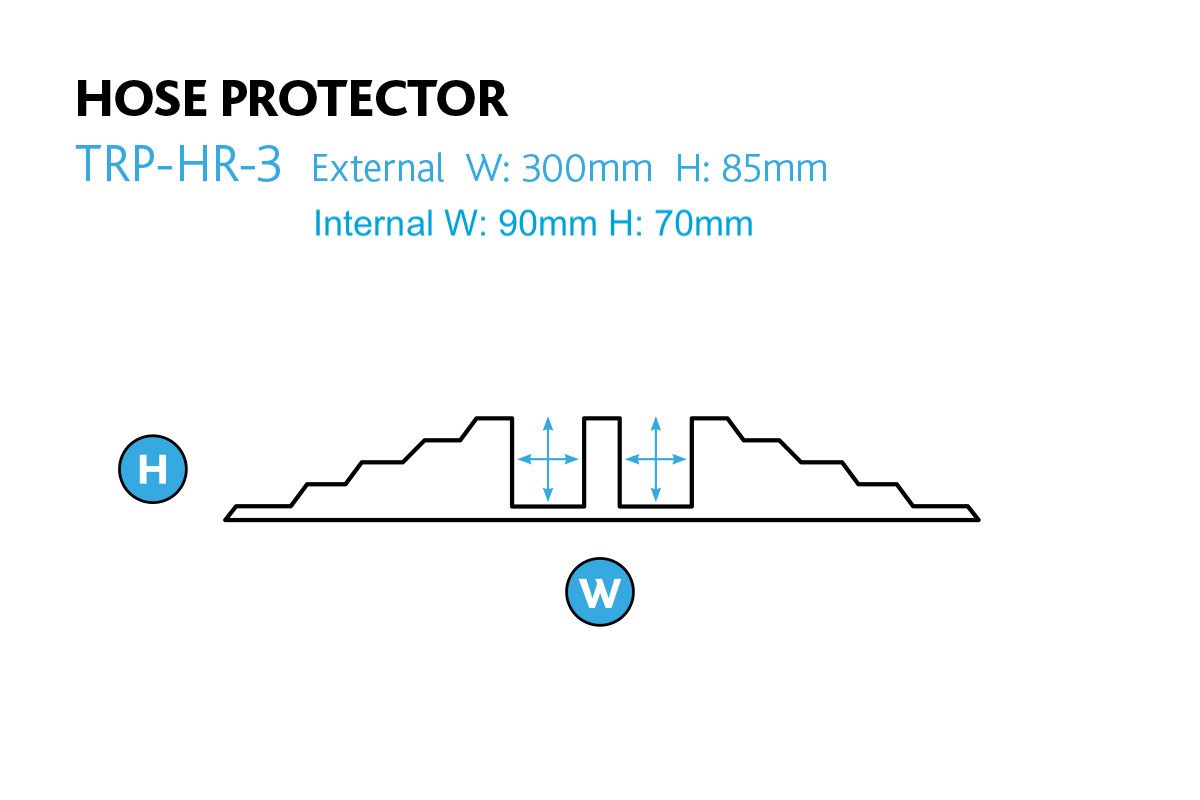

Rubber Hose Protector ramp with the dimensions: 850mm long x 300mm width x 90mm high. Two channels 70mm x 90mm.

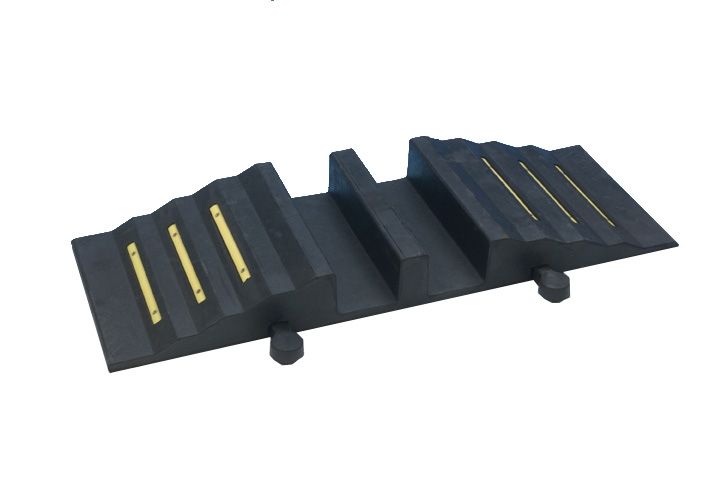

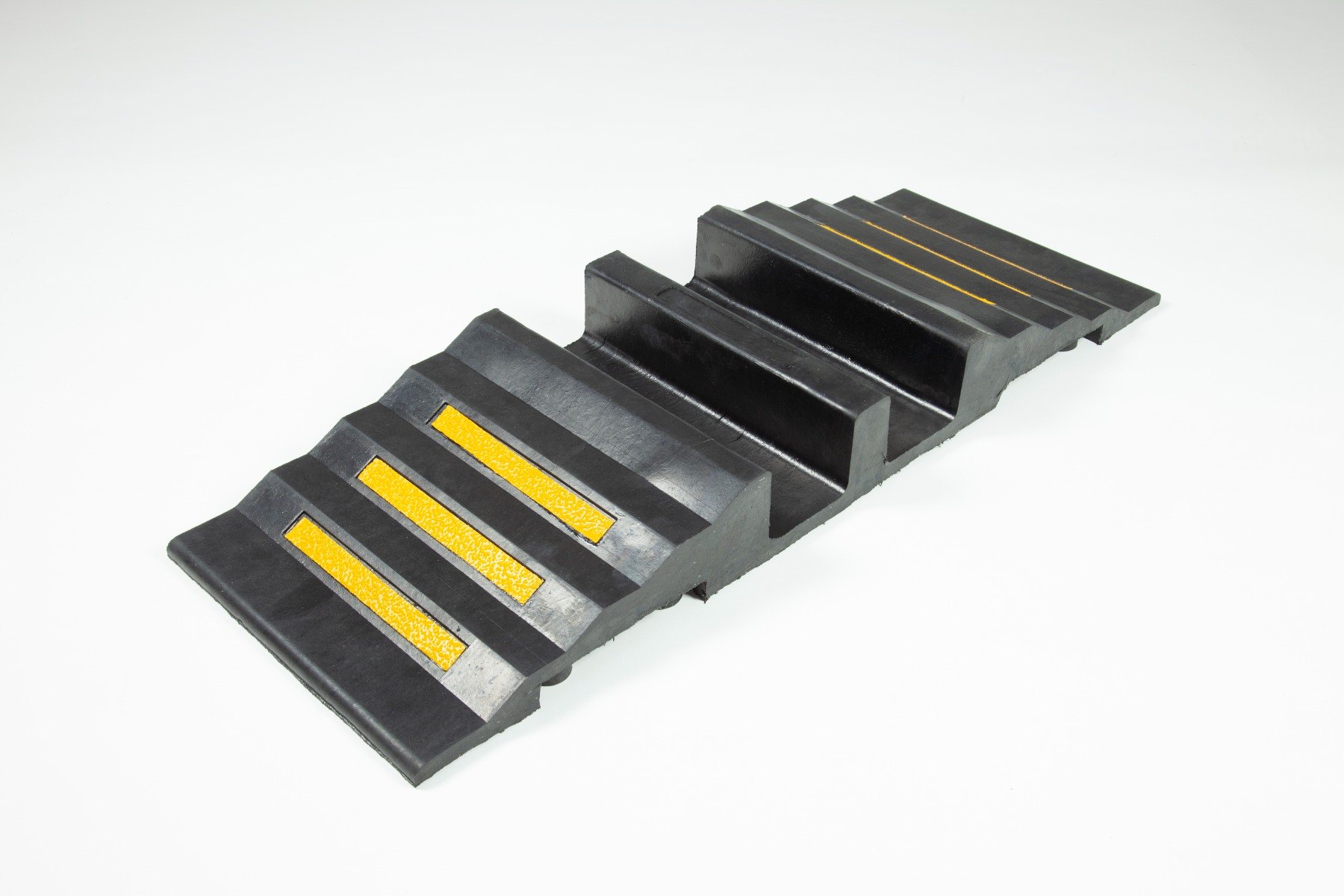

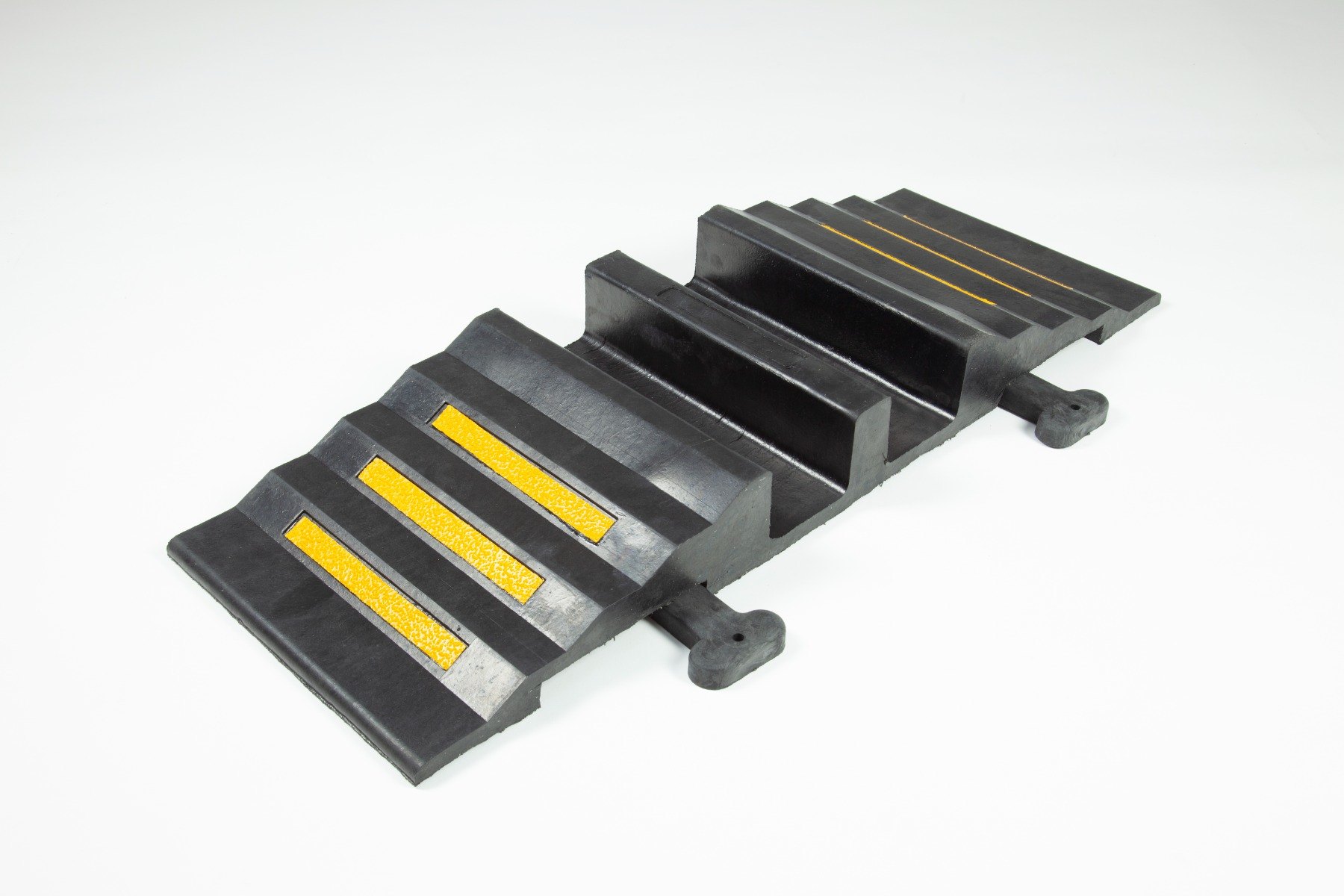

TRP-HR series hose ramps allow vehicles weighing up to 20,000kg per axle to safely and smoothly transition over two master stream or supply lines. The hose protector ramp directs vehicle tires over the hose line to a centre support, then over the second hose line back to the road surface. Each hose ramp can be placed side by side and fixed together with the included connectors, perfect for protecting longer sections of hose. Includes integrated safety yellow reflective strips on both sides for either approach. Ideal for fire engines and fire protection vehicles with supply lines or master stream systems in high traffic areas.

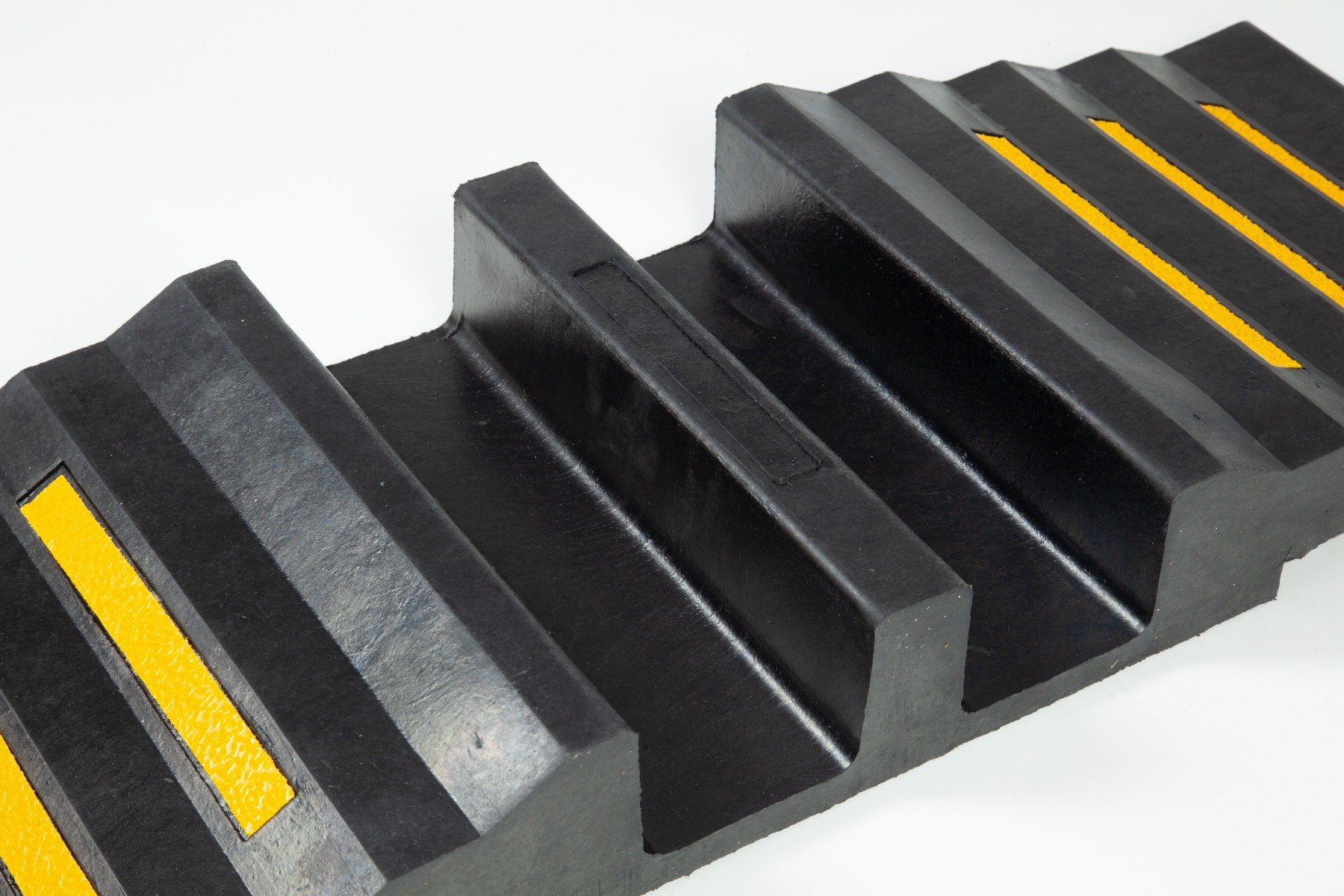

- Dual supply line channels
- Channel size 70mm x 90mm

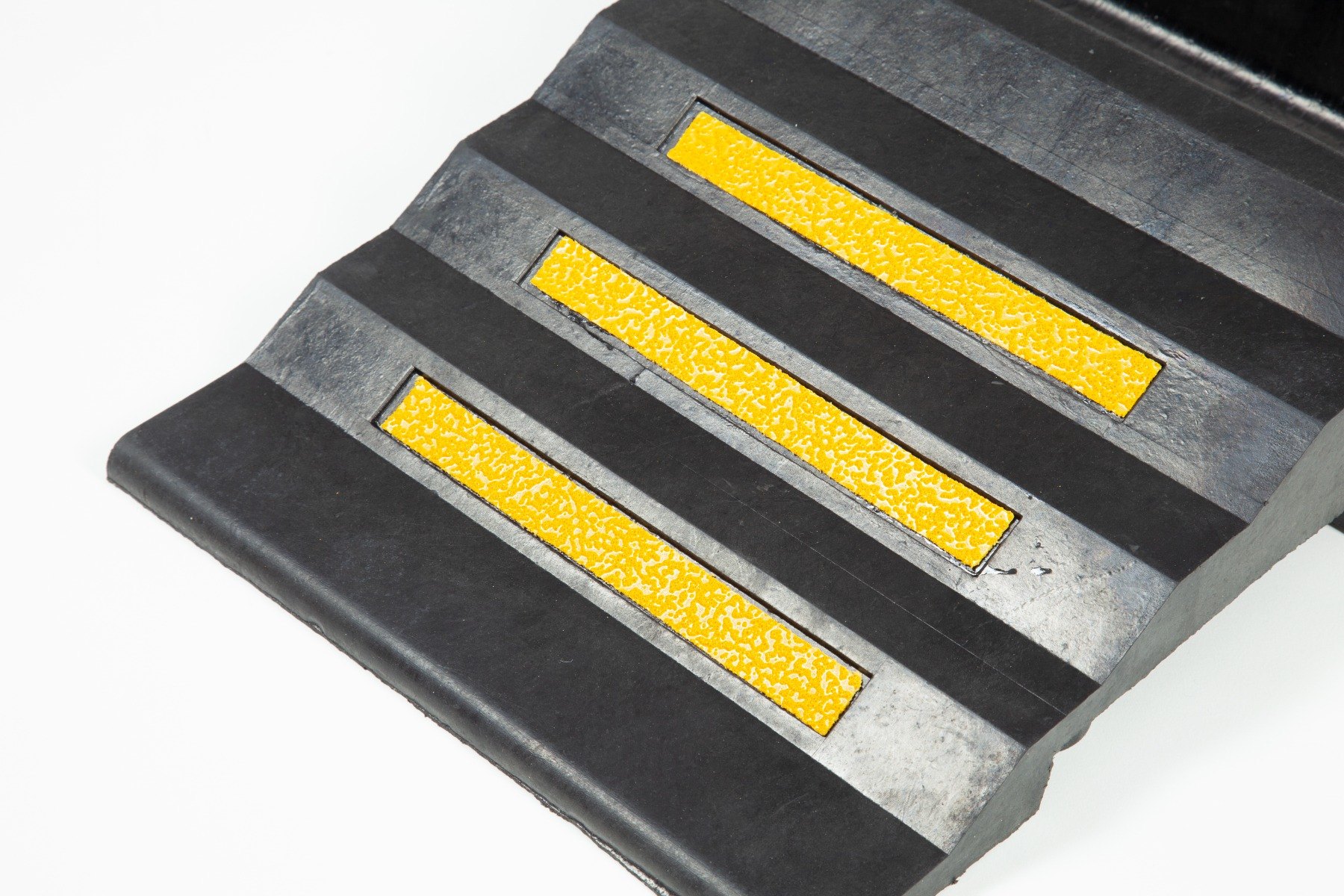

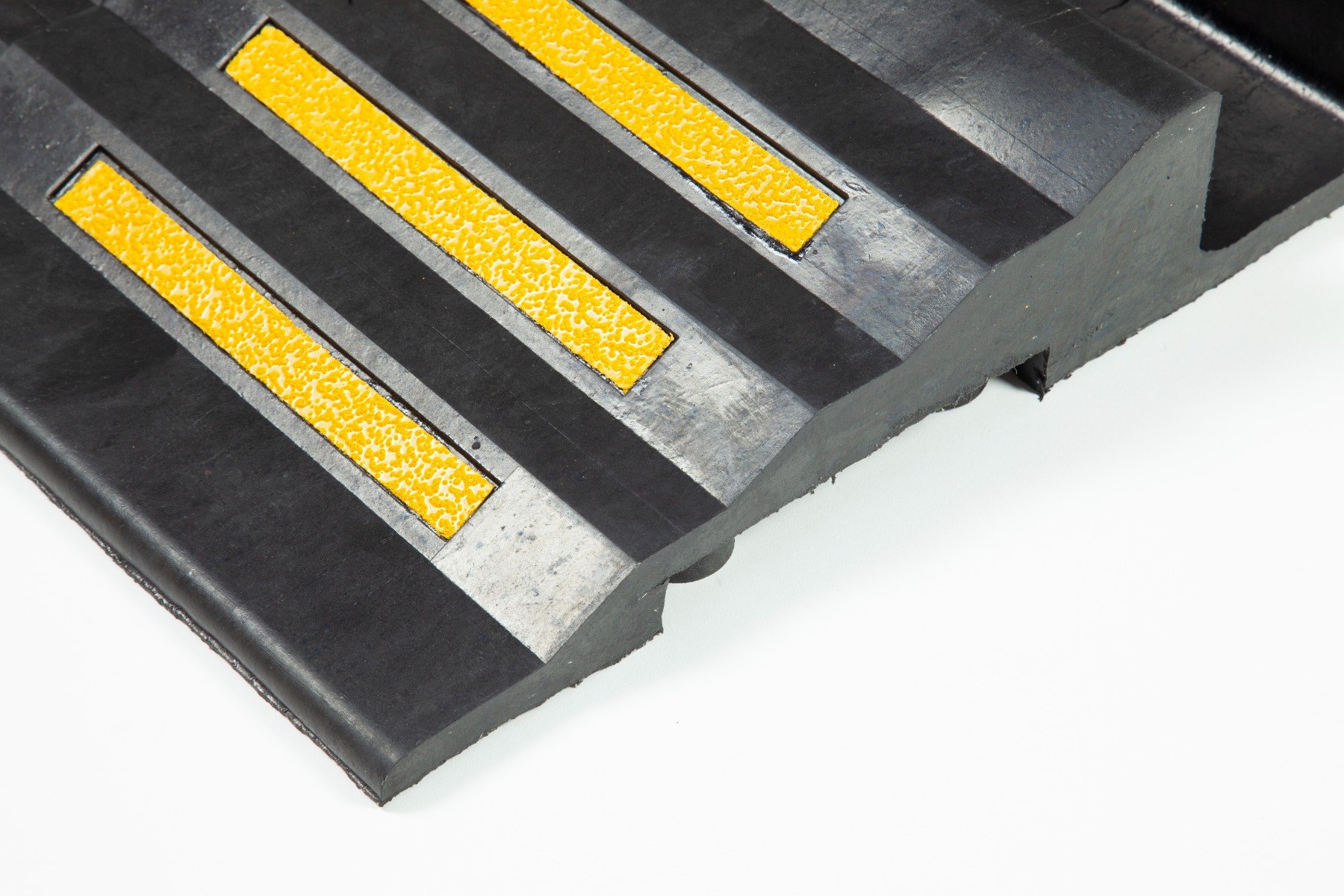

- Integrated safety yellow reflective strips
- Industrial strength thermoplastic rubber bridge design
- Huge 20,000 kg per axle capacity is perfect for fire truck applications

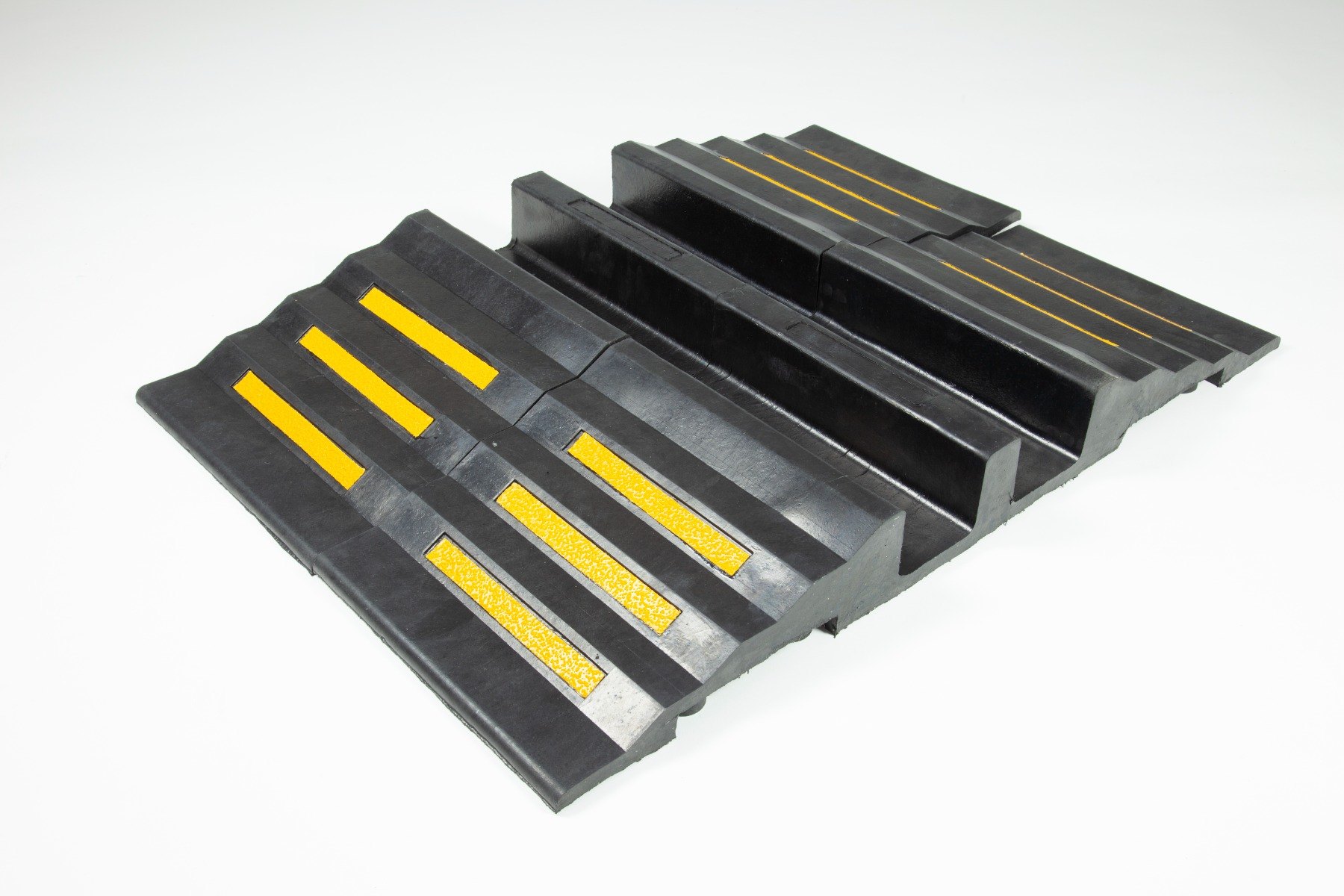

- Place hose protector ramps side by side to protect wider lengths of hose

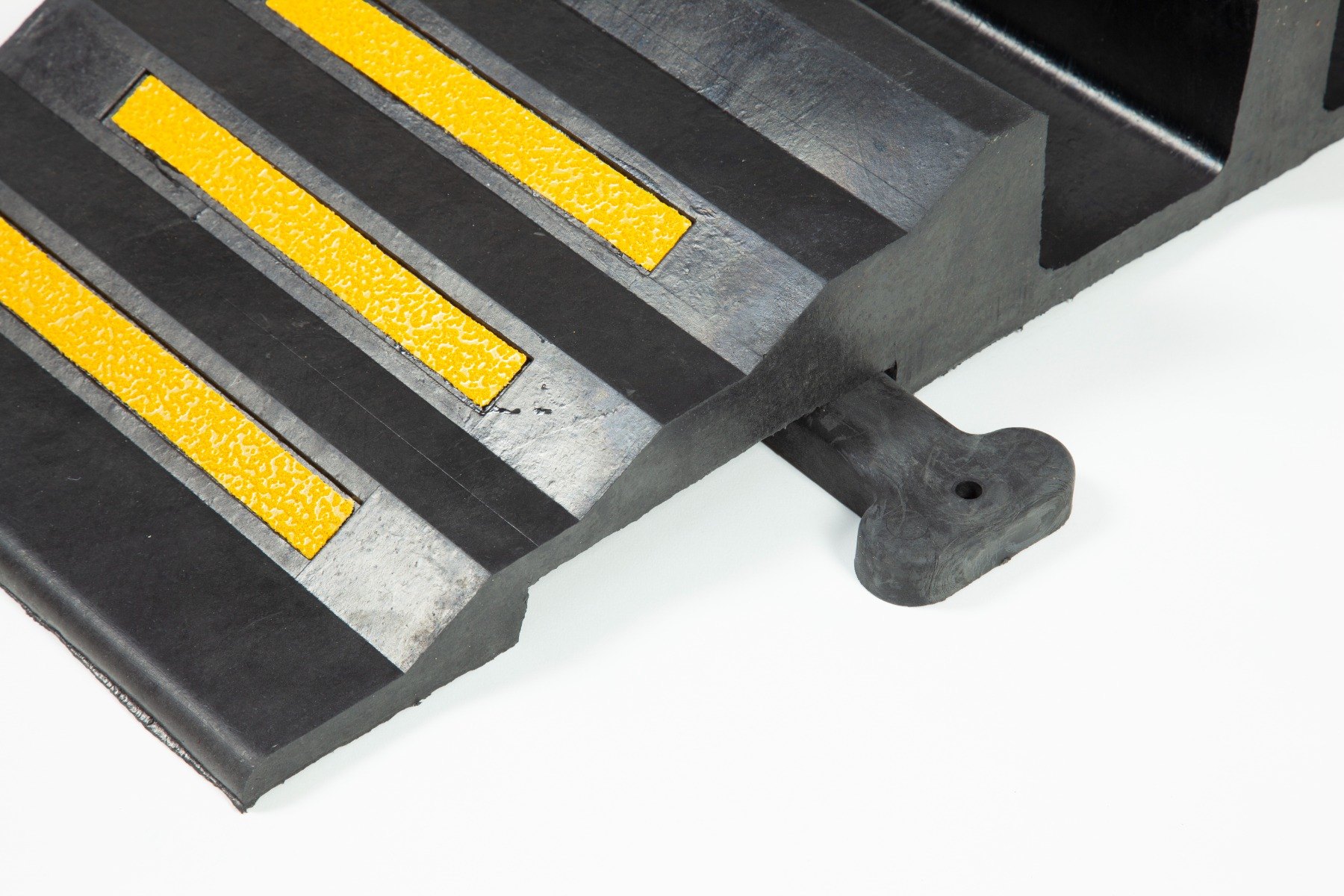

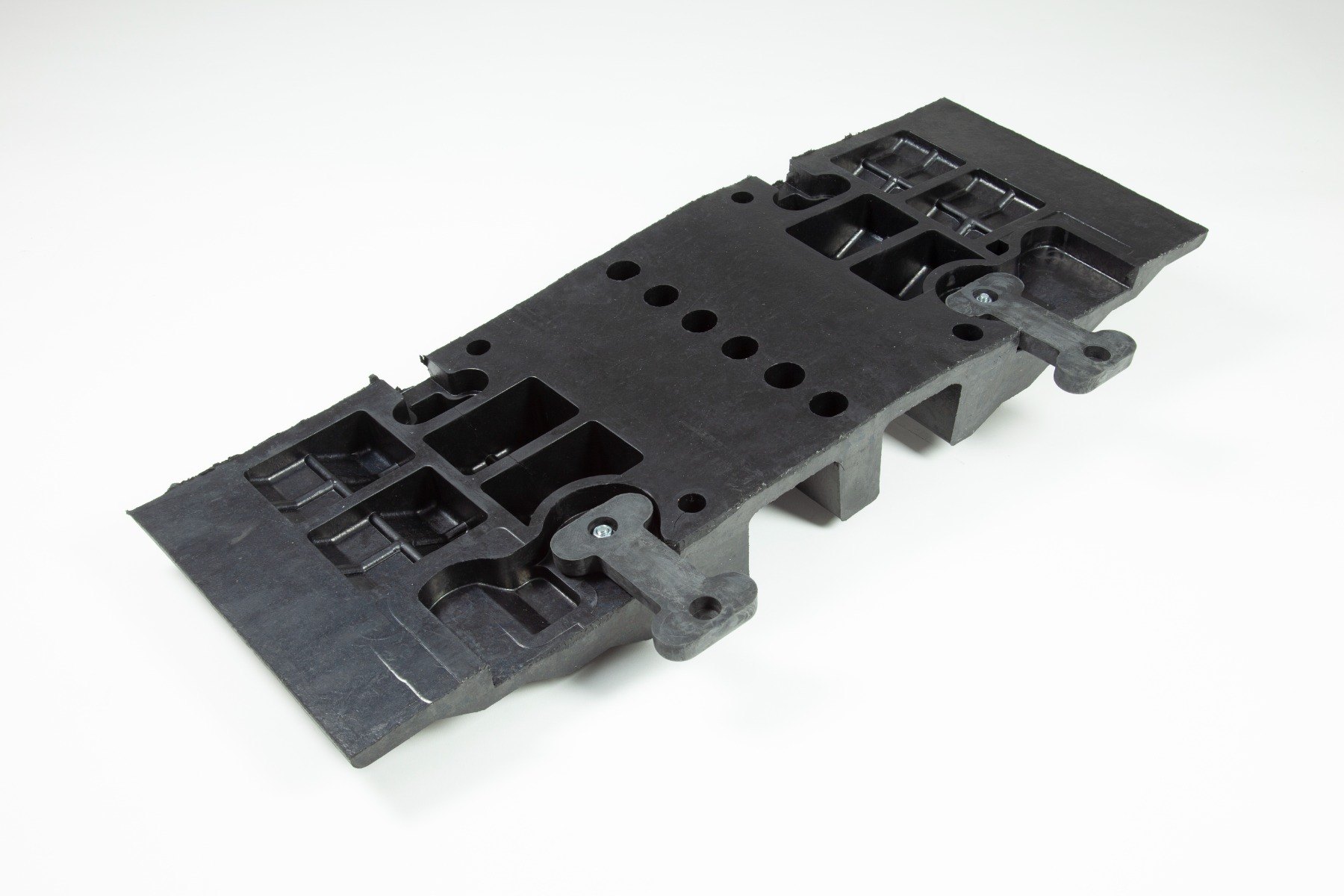

- Ramp connectors have 2 pre-drilled holes for permanent mounting
- Maximum speed 5mph
- Great for outdoor and indoor use

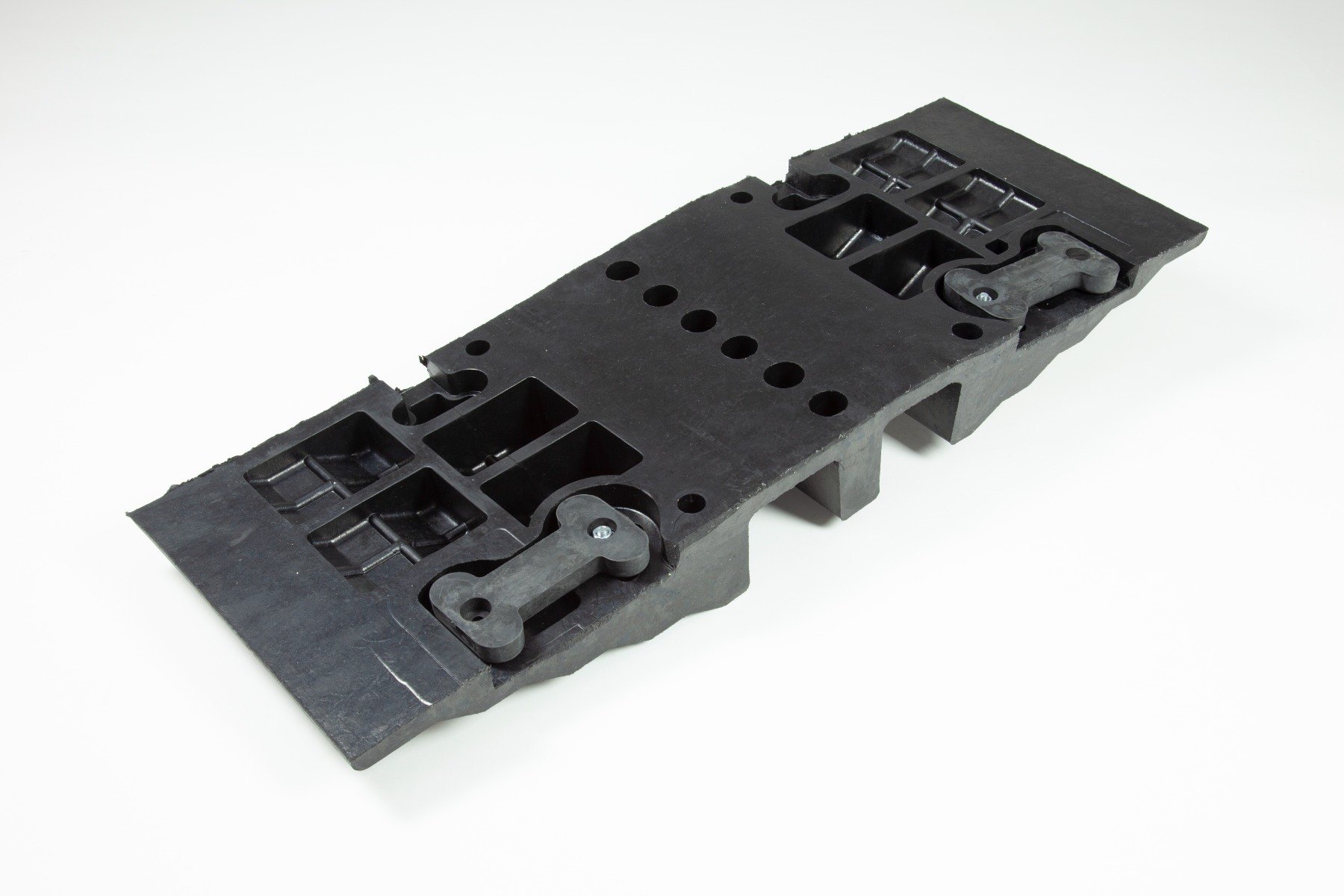

- Includes 2 connectors for securing multiple ramps together
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Please note, when specifying the required hose protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles.
SKU | TRP-HR-3 |
---|---|
Capacity (kg) | 20,000 |
Height (mm) | 90 |
Length (mm) | 300 |
Weight (kg) | 12 |
Width (mm) | 850 |
One Year Warranty | Yes |
Bulk Prices Available | Yes |
Easy to Fit | Yes |
High Visability | Yes |
Leave Outside | Yes |
Channel Width (mm) | 90 |
Channel Height (mm) | 70 |
No. Channels | 2 |
Capacity per Axle (kg) | 20000 |
