RollAble Loading Ramp, 910mm Wide

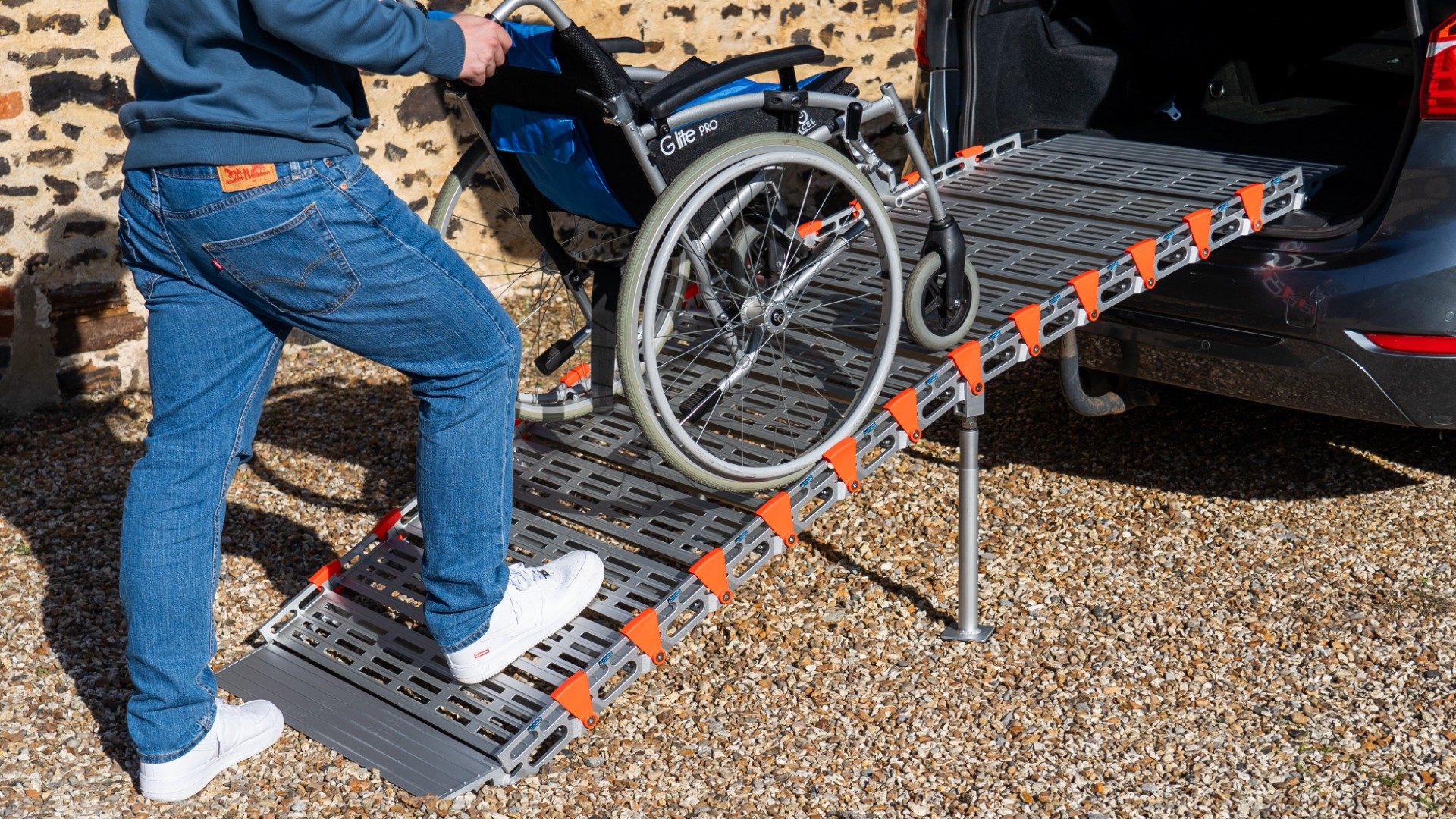

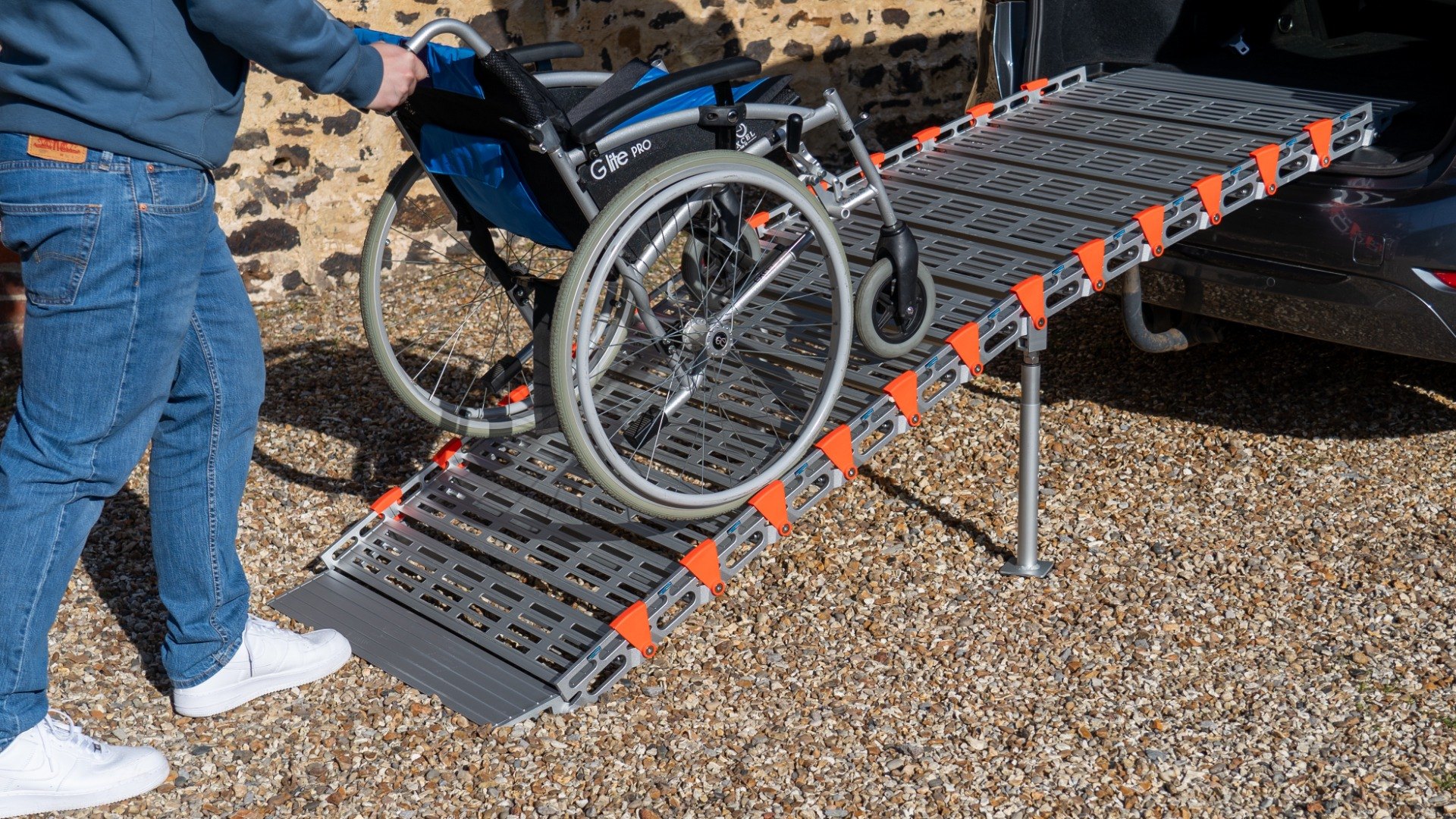

This 910mm wide RollAble Loading Ramp can be used both for commercial and private purposes. Featuring a capacity of 453kg, the ramp can be used for a variety of purposes, including loading goods into vehicles, over steps or over kerbs.
The portable ramp can be rolled for storage and transportation. Where required sections can be removed or added to reduce or increase the ramp length.
Adjustable support stands are included with ramps which are 7ft/2.1m or longer.
RollAble Ramps can be built at any length, please contact us if you need the ramps to be 16ft or longer.
Description
RollAble Ramp Features Include:

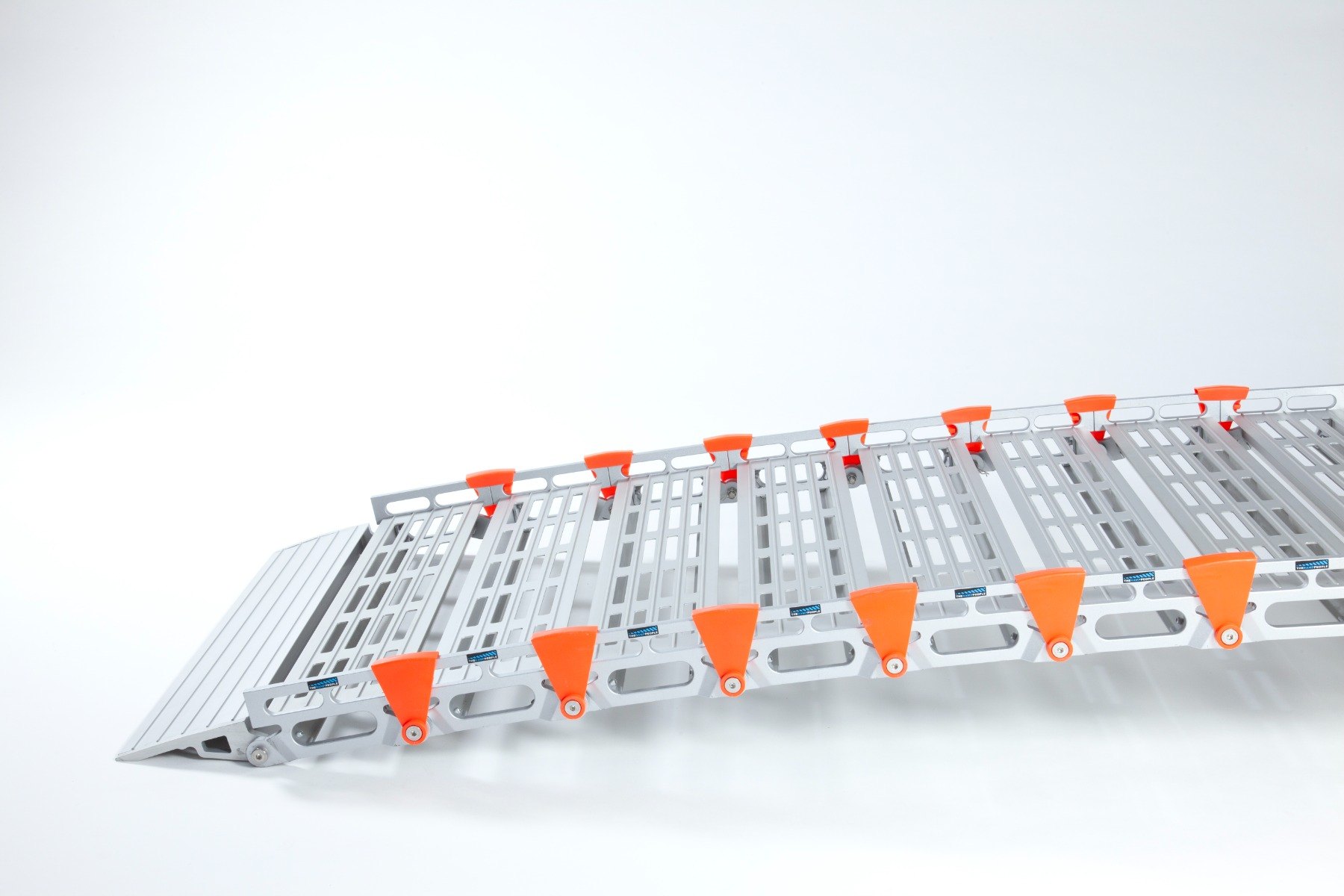

- Constructed using high-tensile aluminium
- RollAble Ramp is lightweight, flexible and highly portable

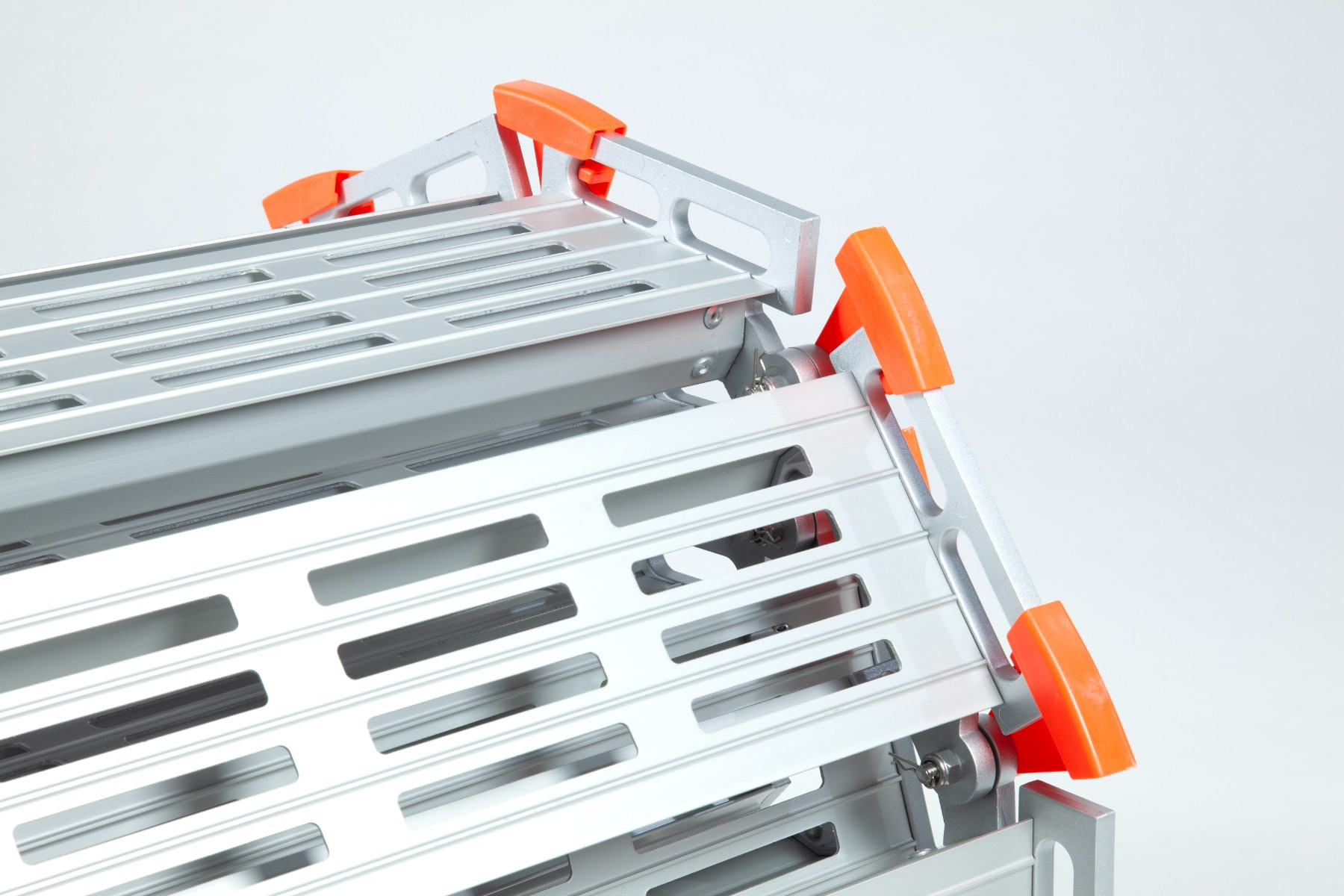

- Rolls for easy storage and transport, provided with a safety strap to use when stored
- Lengths from (3ft) to any length available

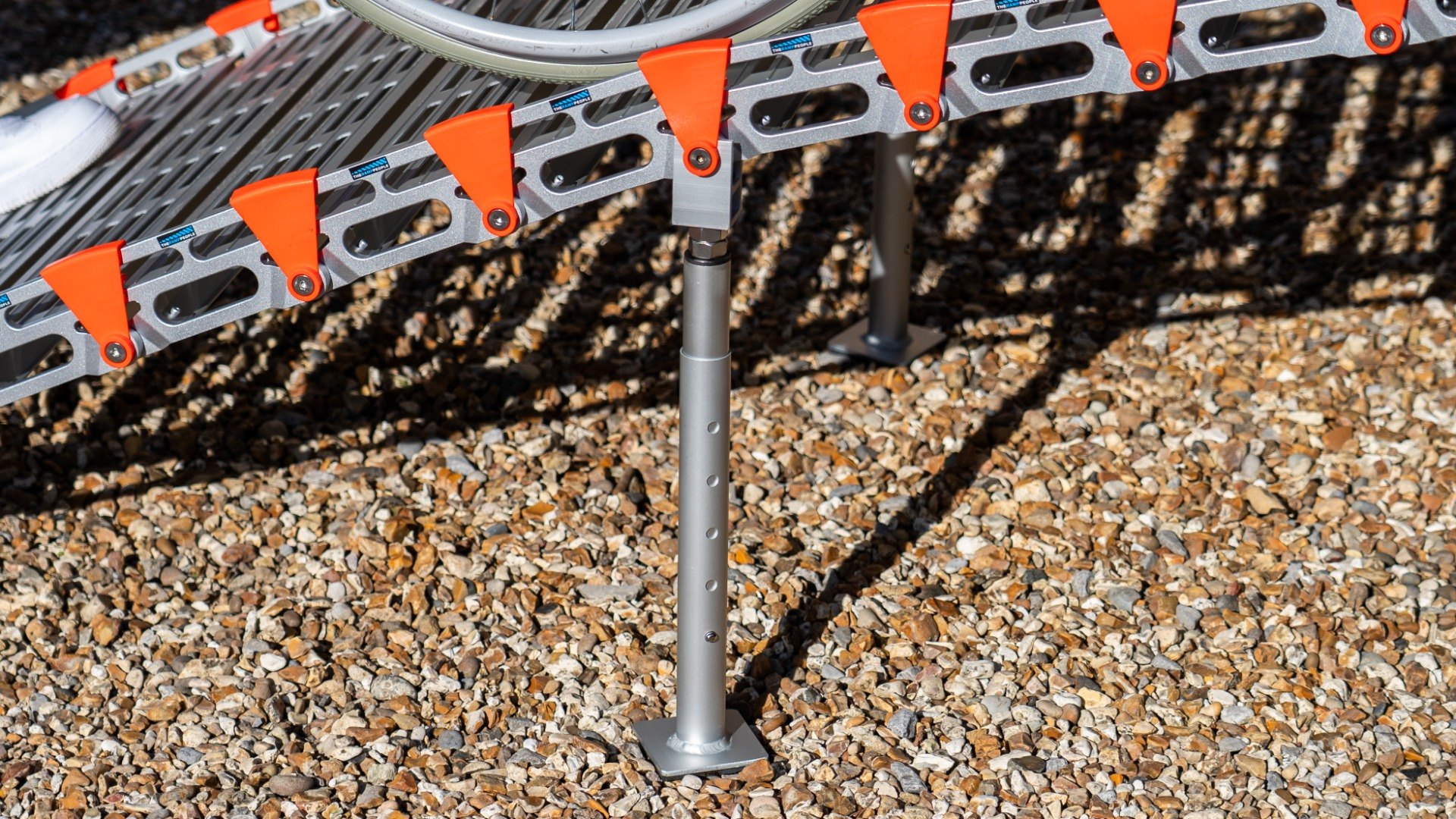

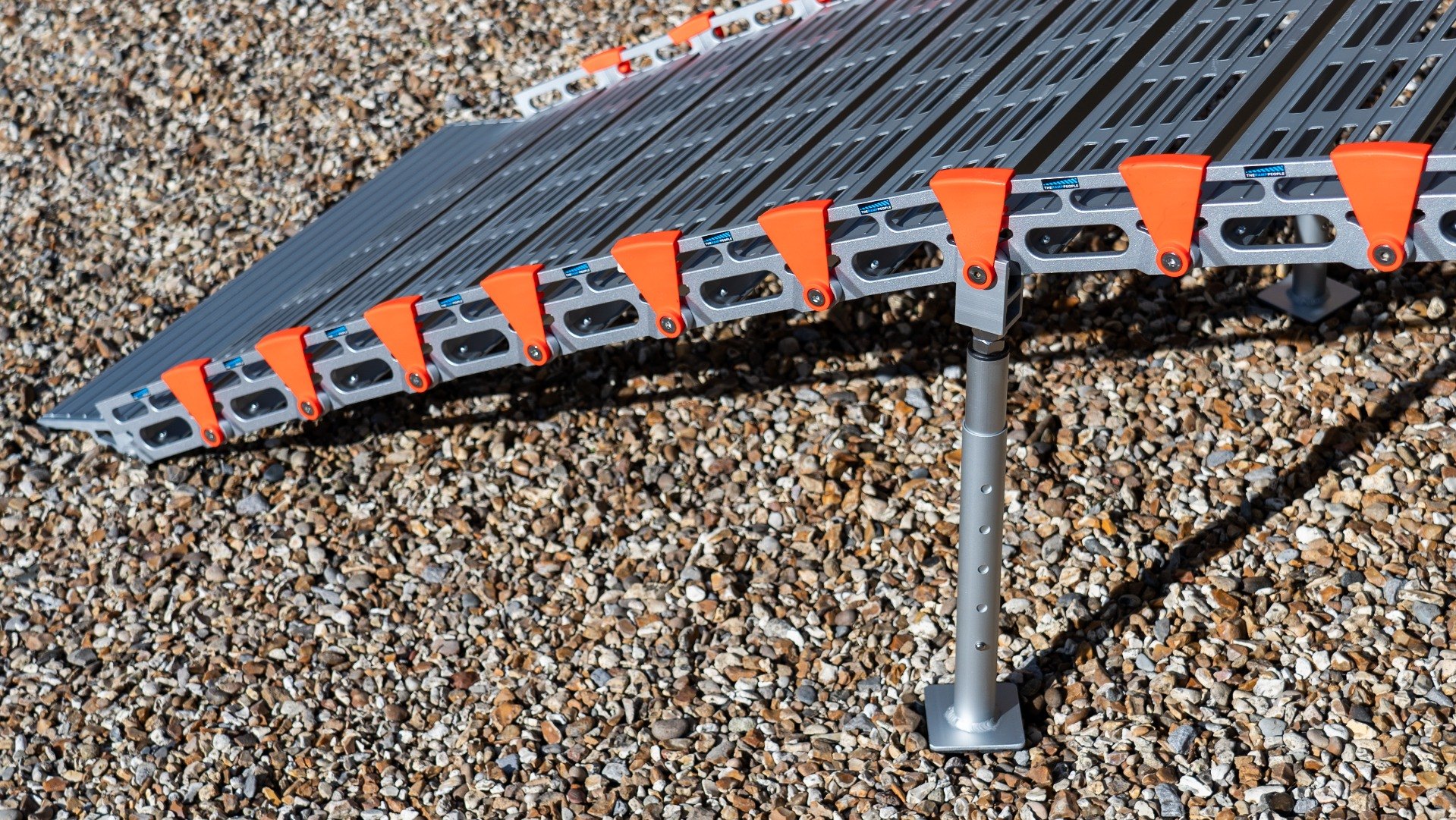

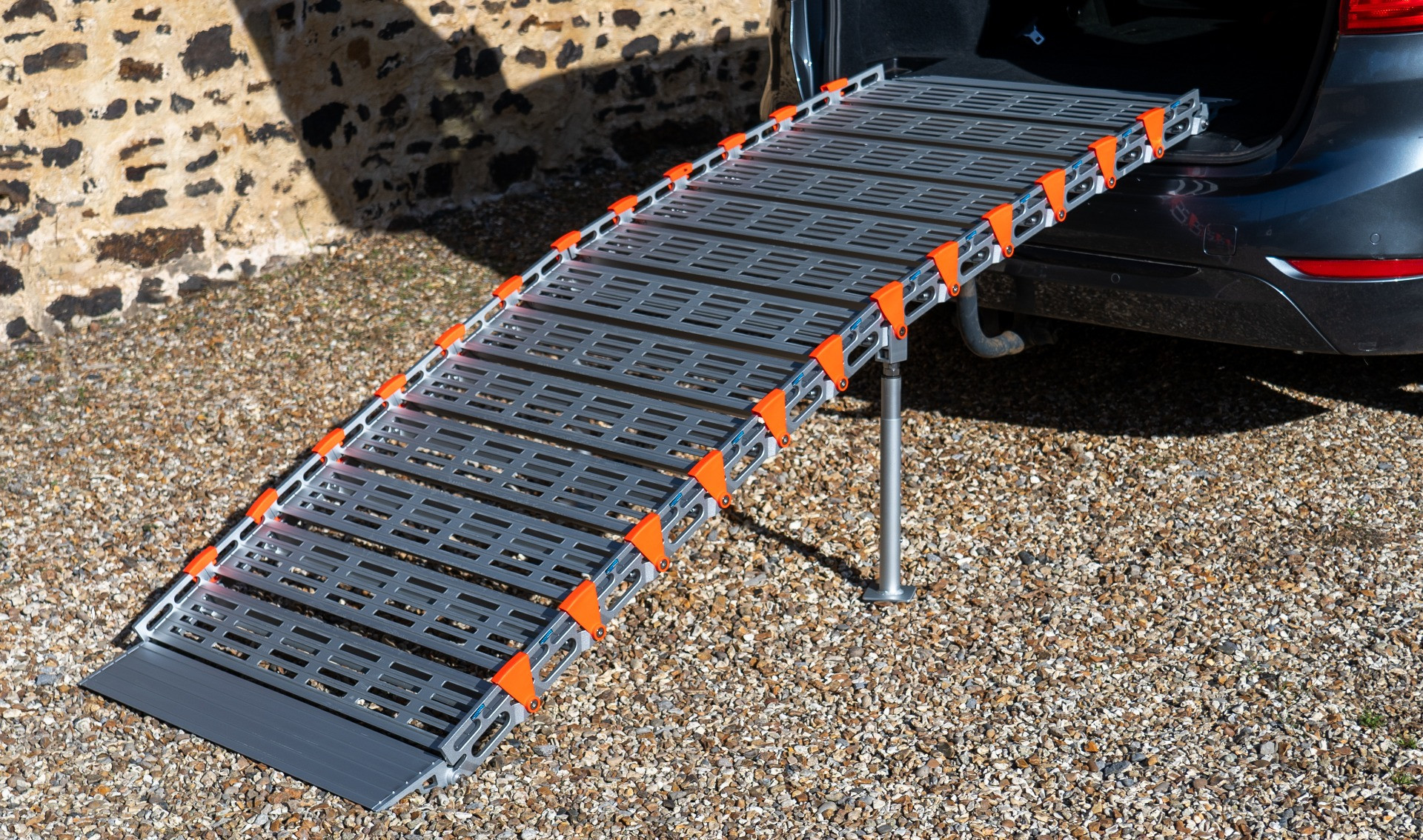

- Lengths of 7ft and longer are provided with extra supports which are adjustable between 47cm - 63cm
- 453kg capacity
- 910mm external width, 890mm internal width

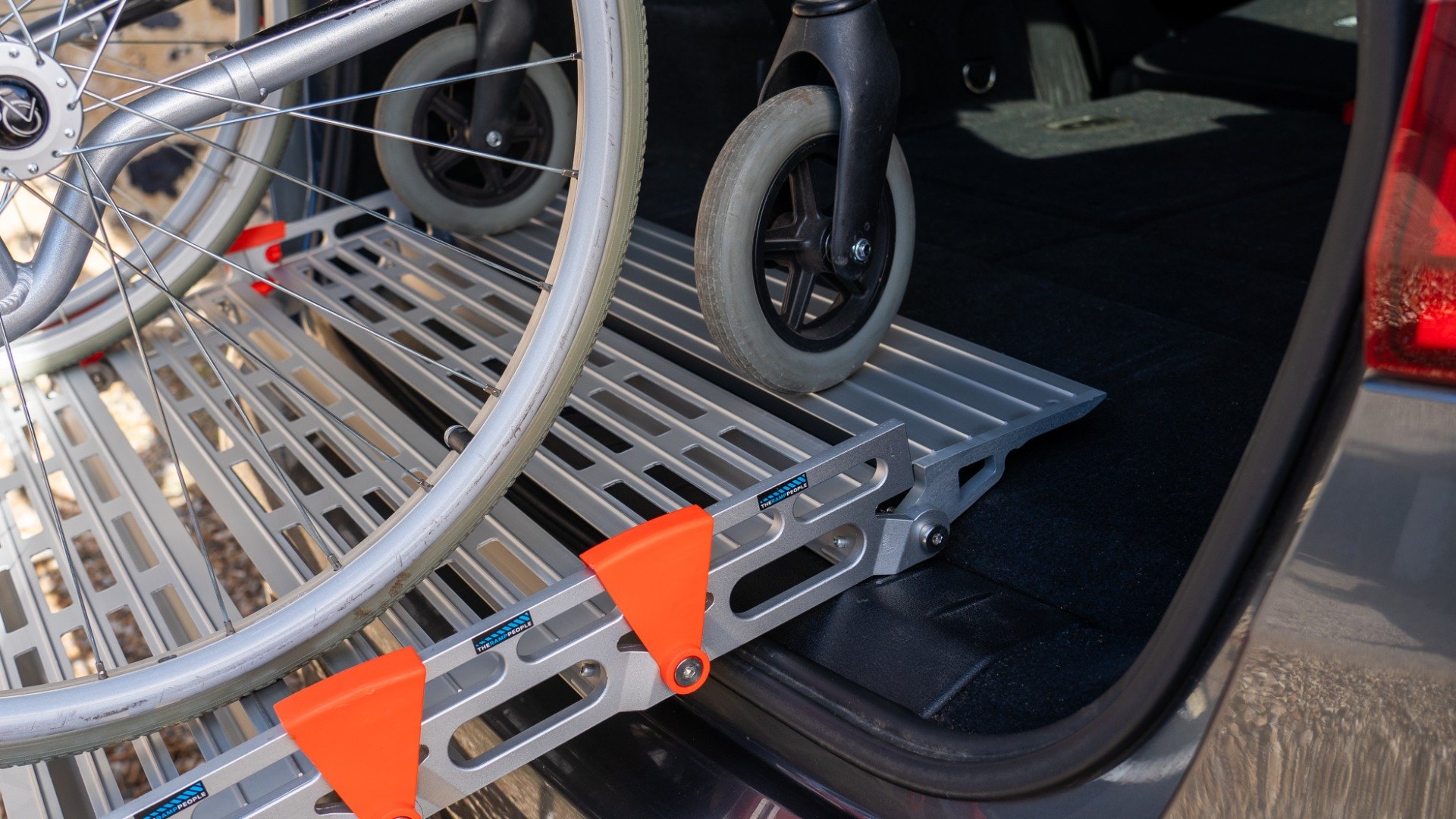

- No installation is required, simply rest the ramp onto the step, kerb or van and start loading

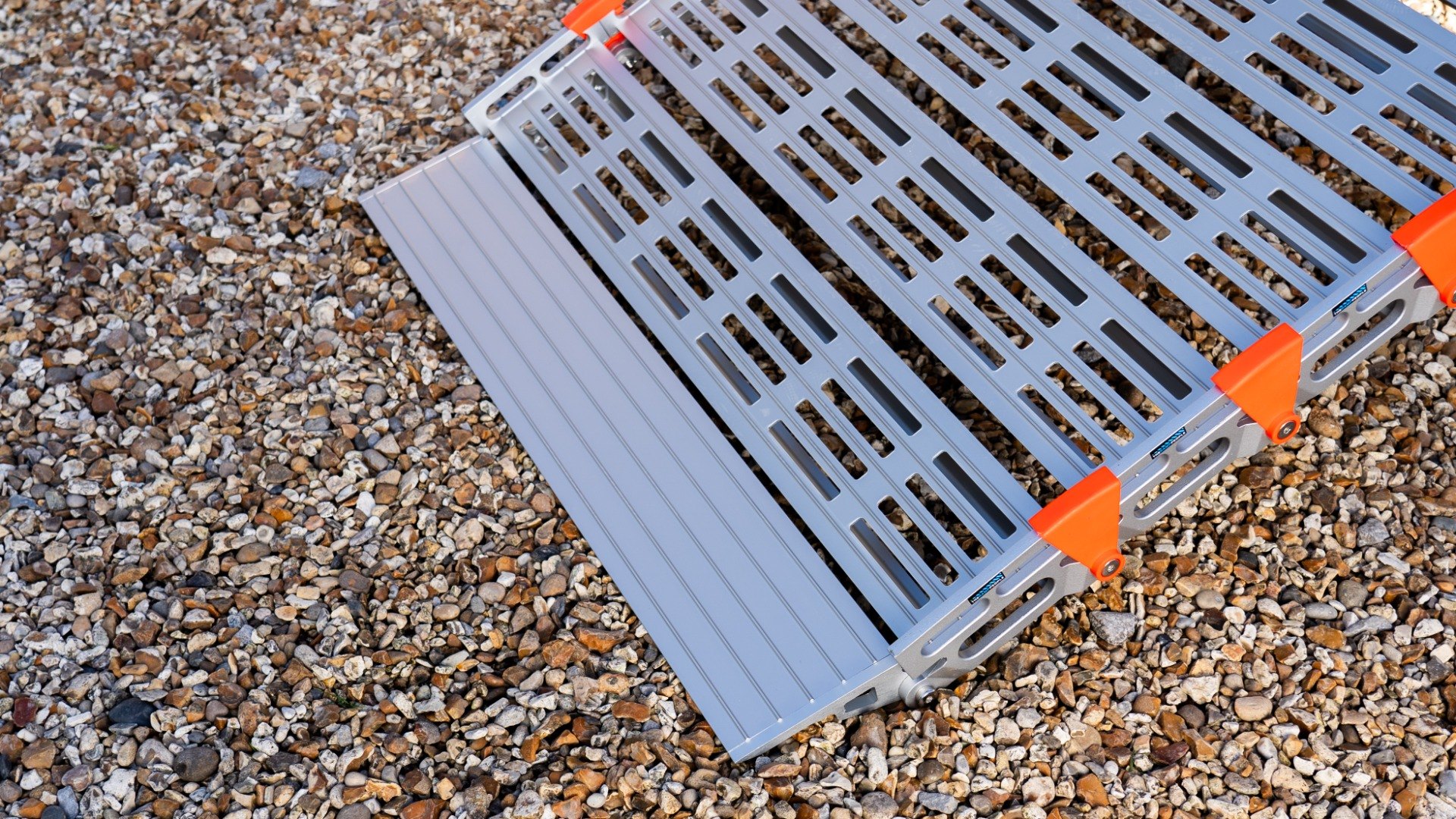

- Smooth access onto the ramp

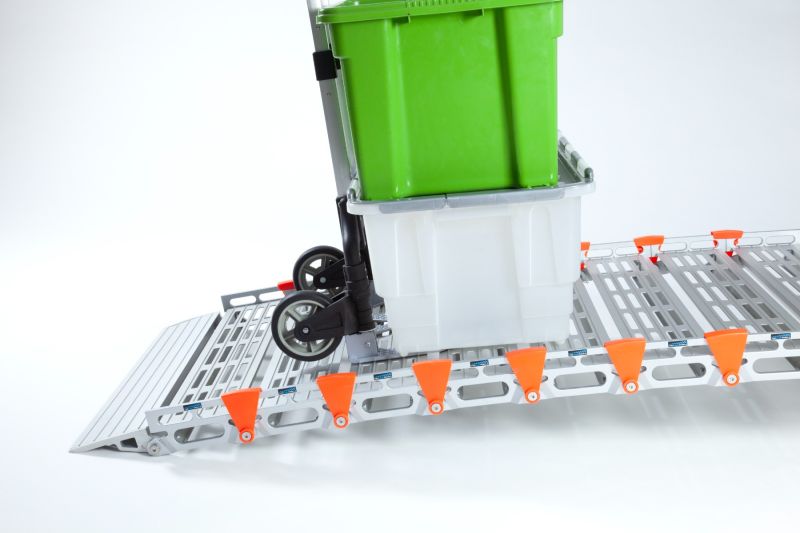

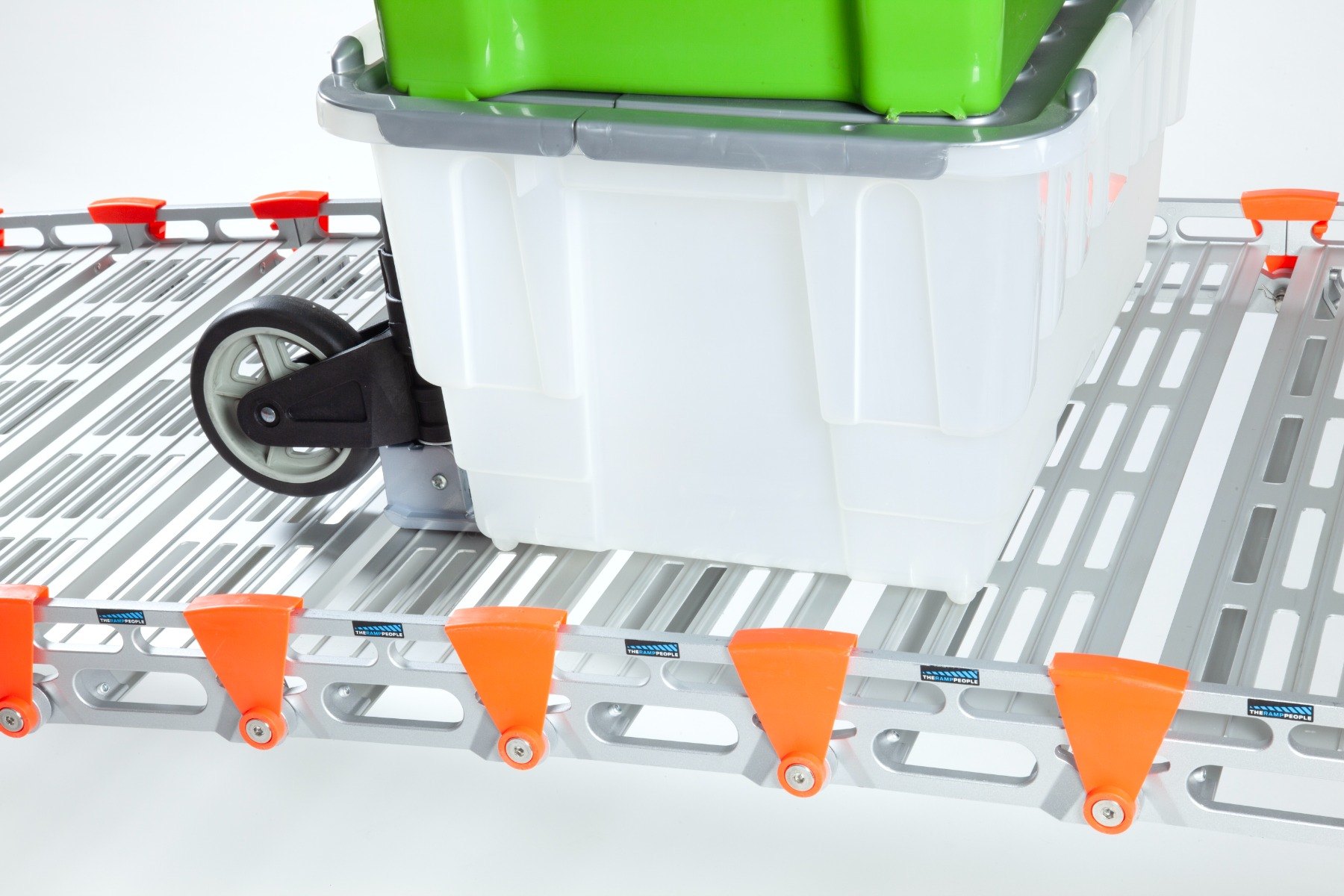

- Designed for loading trolleys and equipment over steps and into vehicles

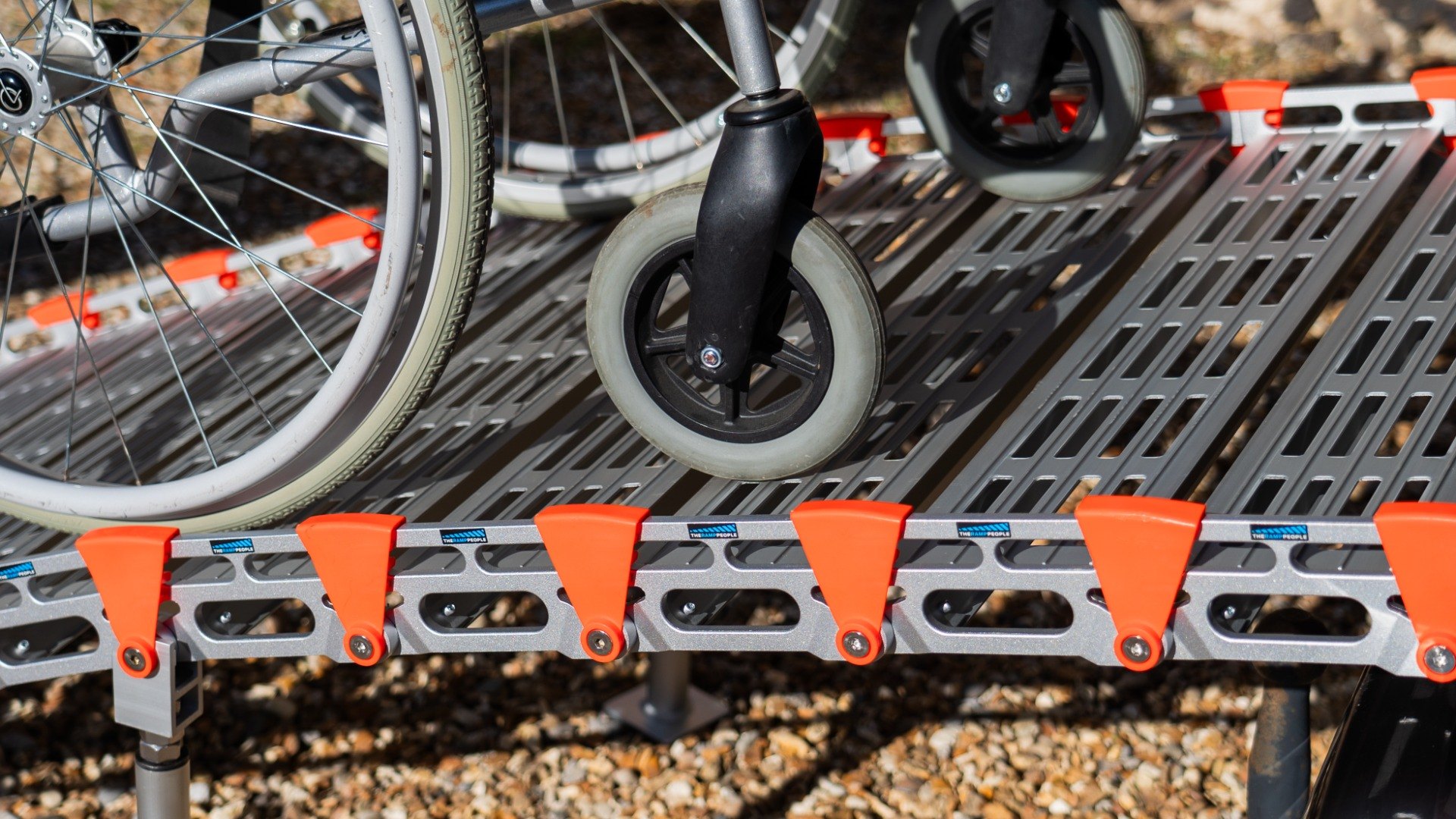

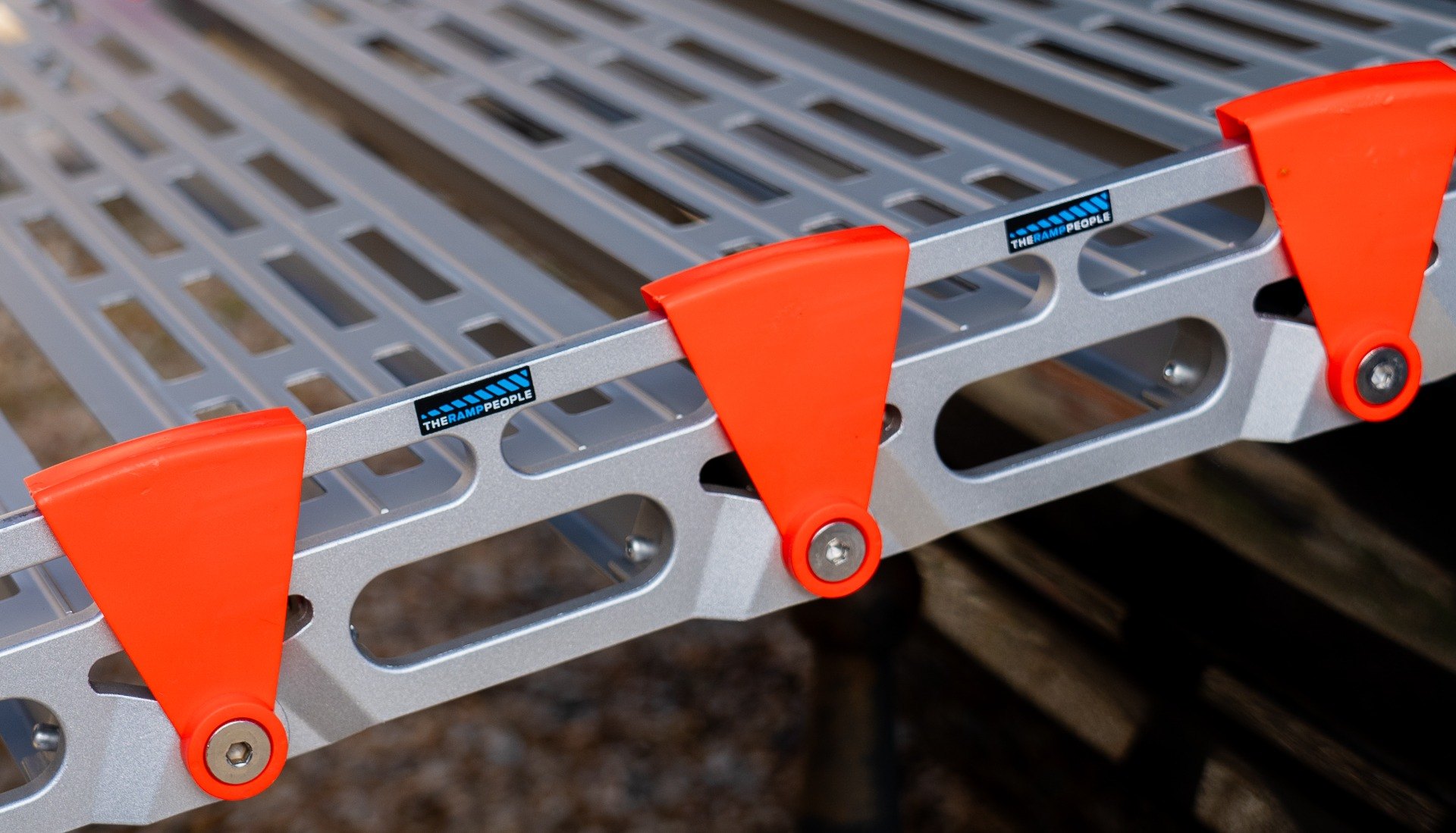

- High visability safety edges, 30mm high, to prevent accidentally wheeling off and to reduce trip hazards
- Cut out safety edges which also act as carry handles for the ramp
- Add/remove sections to amend the ramp length as required, allen key and spanner provdied to amend the ramp length
- CE marked
- Anti-slip surface, R13 rating

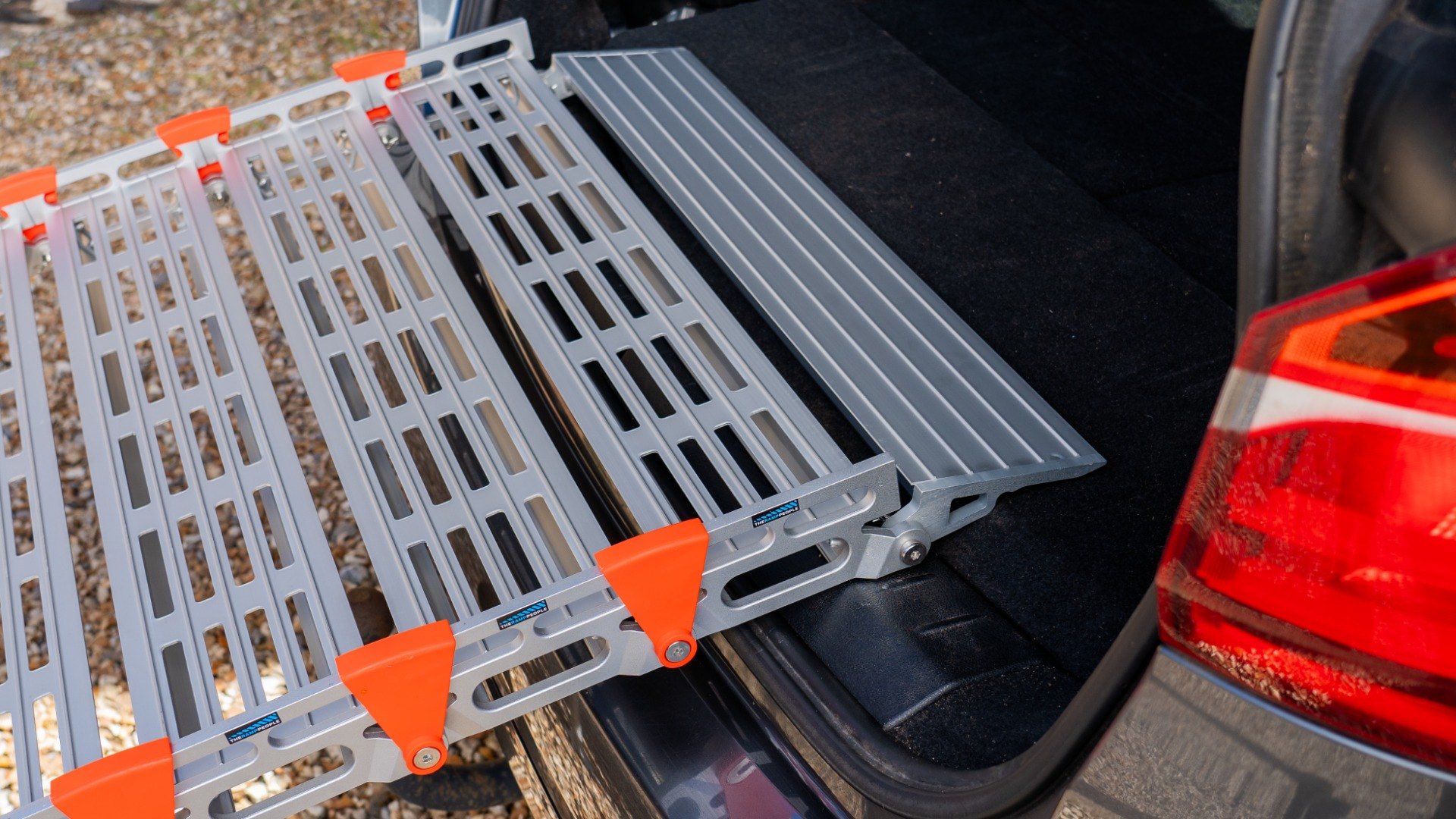

- Please note the length of the rest on connection is larger on this ramp than other ramps (circa 28cm), the maximum load height is therefore lower than those of other loading ramps
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Not suitable for solid wheels
- Not suitable for rubber wheels with a diameter of under 20cm
- Please note some lengths are sent on a pallet with delivery to the kerb side only, if this is not suitable for you please let us know when ordering
- Please note, this product is built to order so non-returnable/refundable
The RollAble Ramp user guide can be found here.
RollAble-Ramp, 910mm wide
91cm / 3 ft
- Length 914mm
- Weight 10kg
- Capacity 453kg
- Rolled Diameter 355mm
- Max. load height 184mm
121cm / 4ft
- Length 1219mm
- Weight 13kg
- Capacity 453kg
- Rolled Diameter 406mm
- Max. load height 273mm
152cm / 5ft
- Length 1524mm
- Weight 16kg
- Capacity 453kg
- Rolled Diameter 457mm
- Max. load height 367mm
182cm / 6ft
- Length 6ft 1828mm
- Weight 19kg
- Capacity 453kg
- Rolled Diameter 508mm
- Max. load height 458mm
213cm / 7ft
- Length 2133mm
- Weight 24kg
- Capacity 453kg
- Rolled Diameter 558mm
- Max. load height 550mm
- Support Stands: Included
243cm / 8ft
- Length 2438mm
- Weight 27kg
- Capacity 453kg
- Rolled Diameter 609mm
- Max. load height 642mm
- Support Stands: Included
274cm / 9ft
- Length 2743mm
- Weight 30kg
- Capacity 453kg
- Rolled Diameter 660mm
- Max. load height 733mm
- Support Stands: Included
304cm / 10ft
- Length 3048mm
- Weight 33.5kg
- Capacity 453kg
- Rolled Diameter 711mm
- Max. load height 825mm
- Support Stands: Included
335cm / 11ft
- Length 3352mm
- Weight 36.5kg
- Capacity 453kg
- Rolled Diameter 762mm
- Max. load height 916mm
- Support Stands: Included
365cm / 12ft
- Length 3657mm
- Weight 39.5kg
- Capacity 453kg
- Rolled Diameter 812mm
- Max. load height 1006mm
- Support Stands: Included
396cm / 13ft
- Length (3962mm
- Weight 43kg
- Capacity 453kg
- Rolled Diameter 863mm
- Max. load height 1099mm
- Support Stands: Included
426cm / 14ft
- Length 4267mm
- Weight 47.5kg
- Capacity 453kg
- Rolled Diameter 914mm
- Max. load height 1191mm
- Support Stands: Included
457cm / 15ft
- Length 4572mm
- Weight 50.5kg
- Capacity 453kg
- Rolled Diameter 965mm
- Max. load height 1282mm
- Support Stands: Included
Details
SKU | TRP-RollAbleVan910 |
---|---|
Capacity (kg) | 453 |
Edge Height (mm) | 30 |
Height (mm) | 75 |
Weight (kg) | 10 - 47 |
Width (mm) | 910 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
High Visability | Yes |
Not Solid Wheels | Yes |
Leave Outside | Yes |
