From
£2,910.00
£2,425.00
SKU
TRP-IRV-90
In Stock
Only %1 left

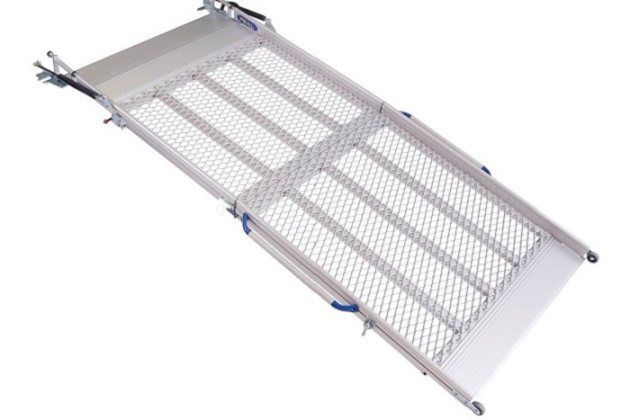

2 Part IRV iRamp Folding Vehicle Ramp 900mm wide

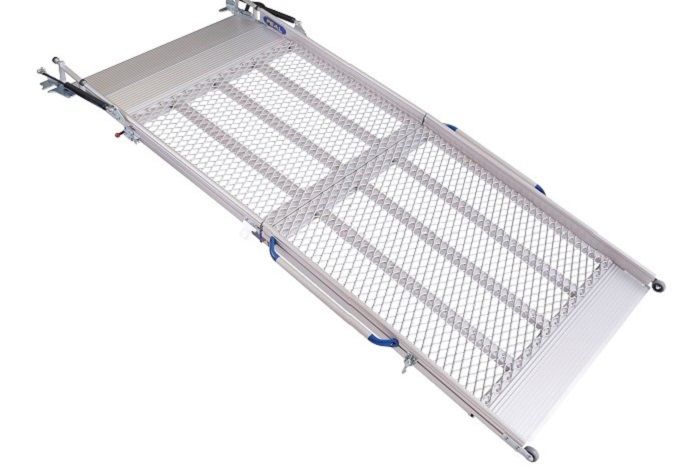

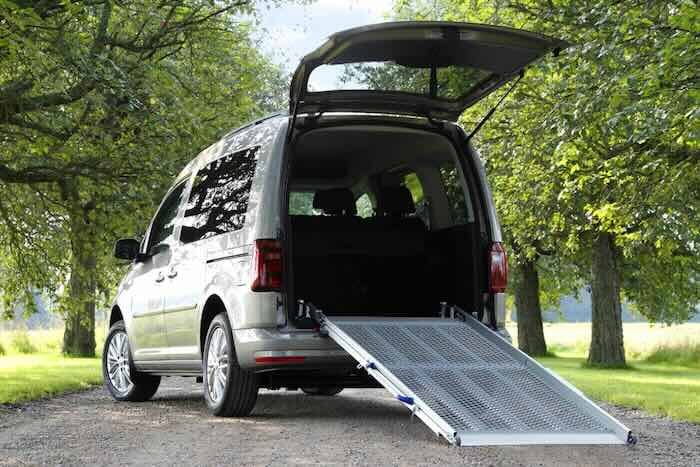

2 Part 900mm wide IRV iRamp with a standard Mesh Surface and 400kg capacity. This fixed folding van ramp is available in lengths up to 2800mm. Durable and lightweight, the ramp can easily be installed in the back of your vehicle and is provided with a 3-year warranty.
Please note the maximum load height noted is based on a 33% gradient, an 18% gradient is advised for ease of loading.
Description
Features include:

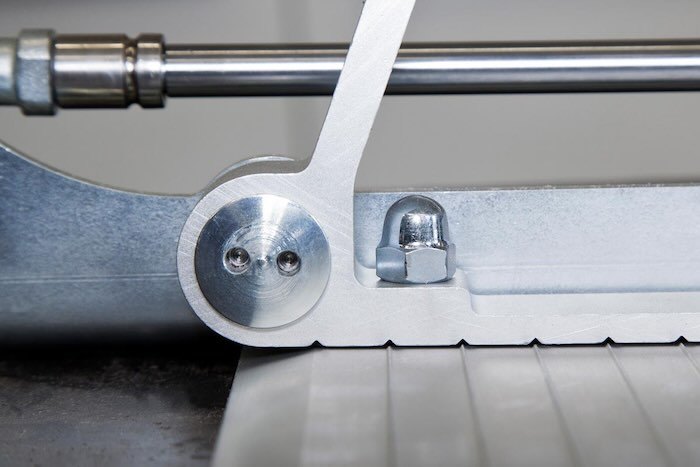

- Improved connection to avoid any bump in and out of ramp to vehicle transition
- 400kg capacity available

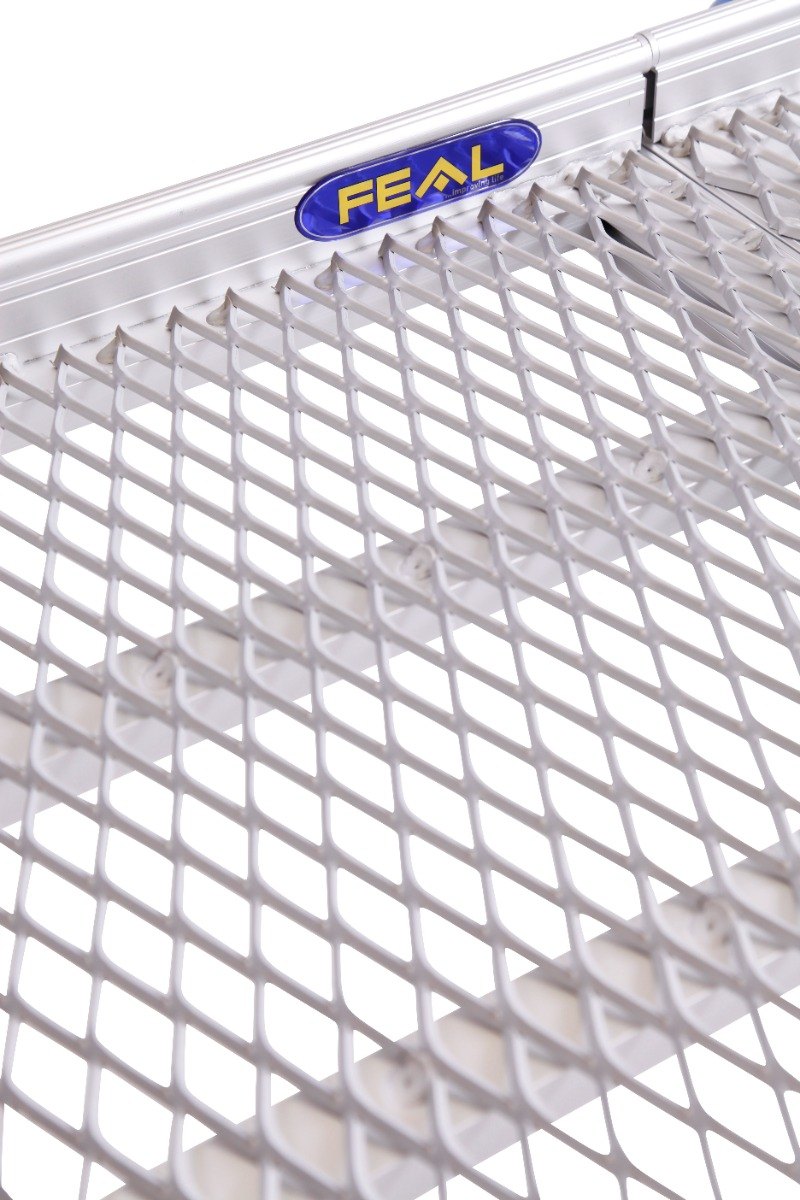

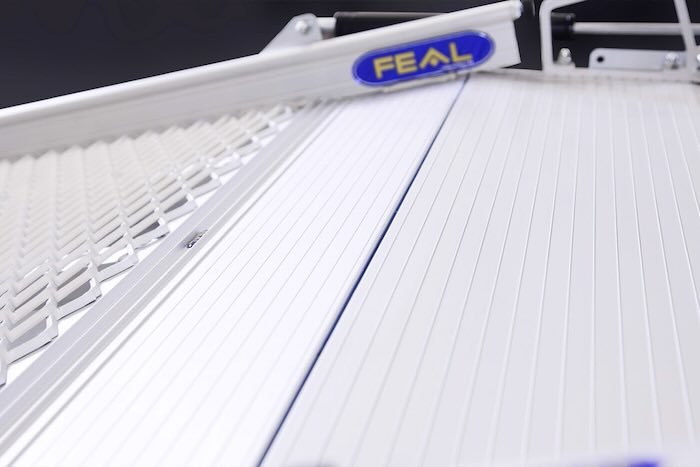

- Excellent grip from mesh anti-slip surface

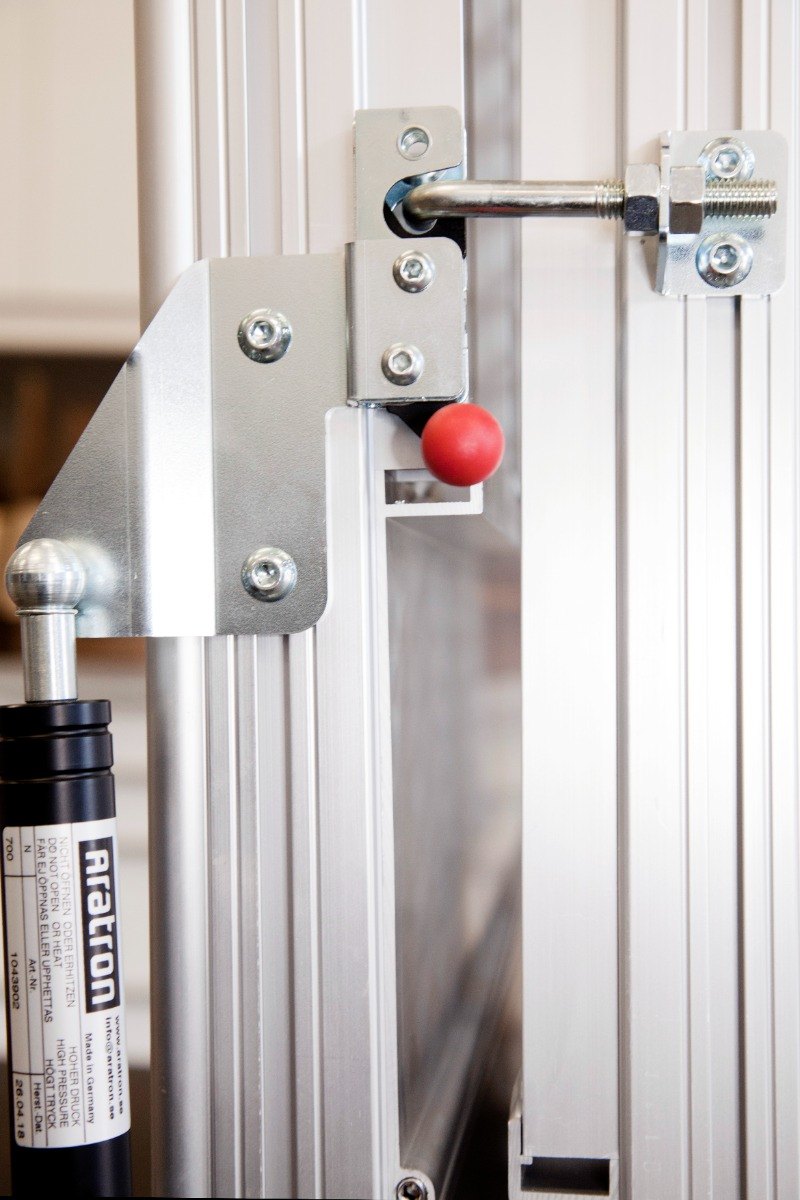

- Includes fixing kit and brackets
- Installation time of less than 30 minutes
- Lightweight
- Robot welded for solid, strong and durable construction
- Easily installed on several vehicles of the same size

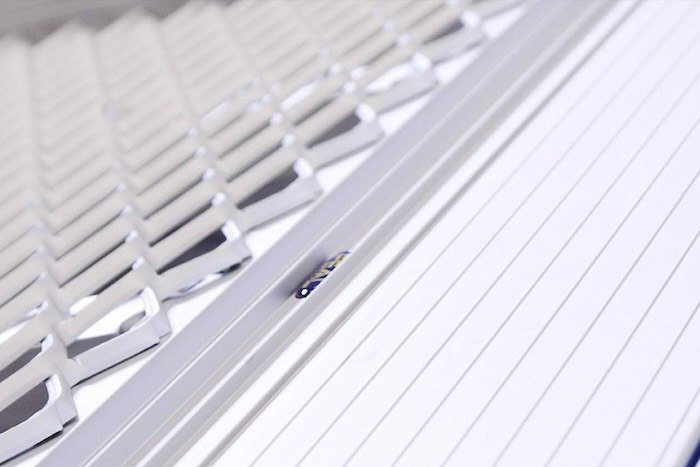

- Lateral safety edges to prevent accidentally wheeling off
- Bypasses most bumpers, crash bars, steps and tow bars
- Crash Test Approved and TUV certified
- 3-year warranty
- Made in Sweden
- Customised Lengths, Widths and Capacities available. Please contact us for more information
- Tight mesh or chequered anti-slip surface available on request
- For installation, please view our installation guide
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

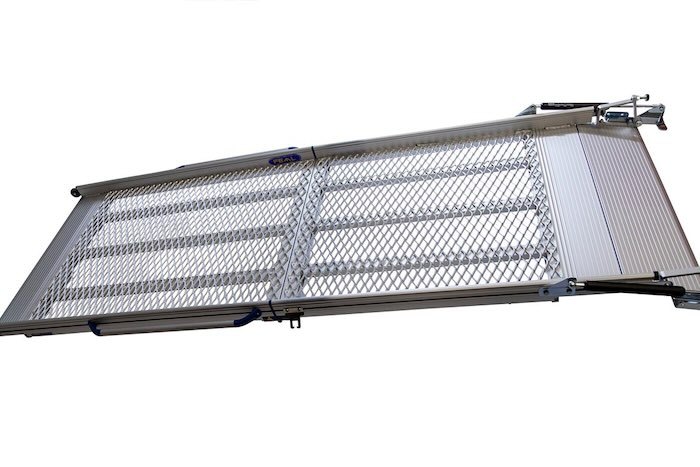

2 Part Folding Van Ramp with Mesh Surface
1800mm TRP-IRV182
- Ramp Length (mm): 1800

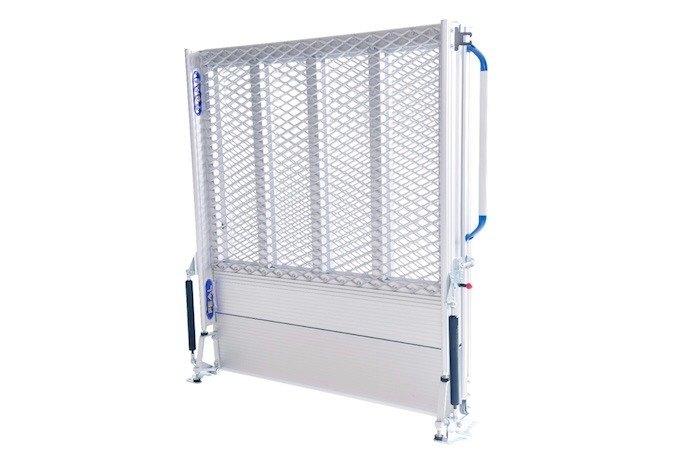

- Folded Height (mm): 1061
- Max Load Height (mm): 500*
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 27
- Capacity (kg): 400
2000mm TRP-IRV202
- Ramp Length (mm): 2000
- Folded Height (mm): 1161
- Max Load Height (mm): 500*
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 29
- Capacity (kg): 400
2200mm TRP-IRV222
- Ramp Length (mm): 2200
- Folded Height (mm): 1261
- Max Load Height (mm): 500*
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 31
- Capacity (kg): 400
2400mm TRP-IRV242
- Ramp Length (mm): 2400
- Folded Height (mm): 1361
- Max Load Height (mm): 500*
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 33
- Capacity (kg): 400
2600mm TRP-IRV262
- Ramp Length (mm): 2600
- Folded Height (mm): 1461
- Max Load Height (mm): 500*
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 35
- Capacity (kg): 400
2800mm TRP-IRV282
- Ramp Length (mm): 2800
- Folded Height (mm): 1561
- Max Load Height (mm): 500*
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 37
- Capacity (kg): 400
* Max. load height may vary depending on the vehicle
Details
SKU | TRP-IRV-90 |
---|---|
Capacity (kg) | 400 |
Folded Height (mm) | 1061 - 1561 |
Internal Width (mm) | 900 |
Length (mm) | 1800 - 2800 |
Outer Ramp Width (mm) | 1038 |
Surface | en Maille |
Total Width (mm) | 1038 |
Weight per Ramp (kg) | 27- 37 |
Width (mm) | 900 |
Three Year Warranty | Yes |
Bolt Down | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Footprint Depth (mm) | 241 |
Footprint Width (mm) | 1050 |
