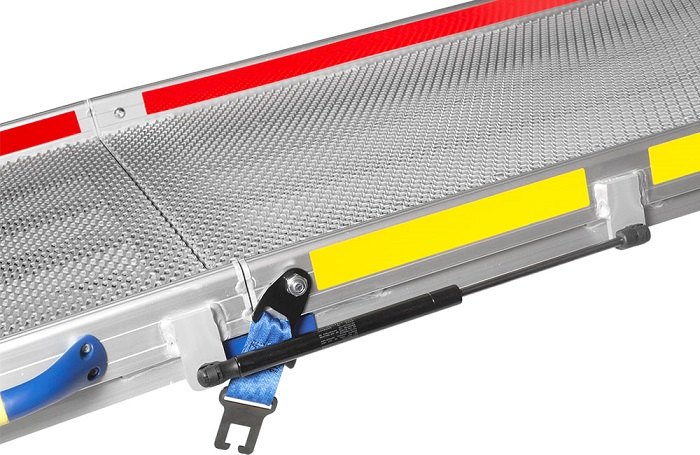

2 Part IRV iRamp Vehicle Folding Ramp 900mm wide - Professional

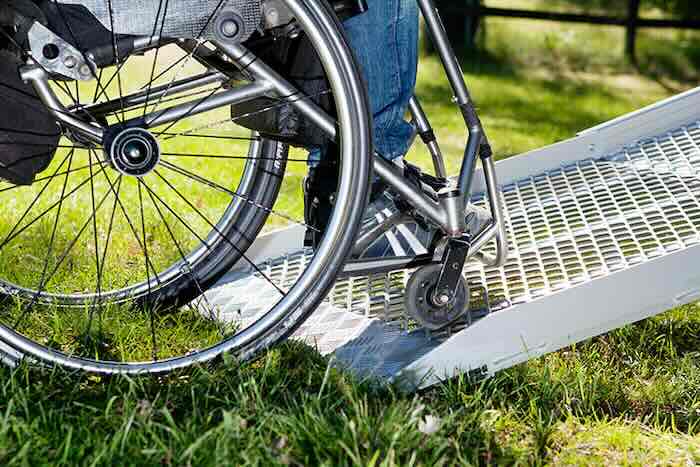

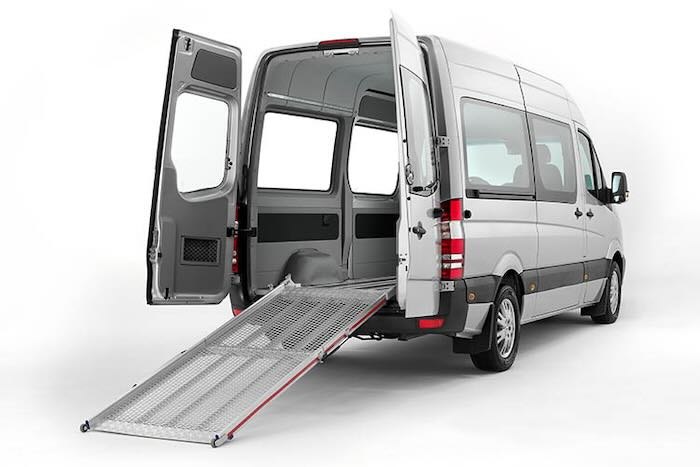

This 2 Part IRV iRamp vehicle folding ramp, part of the Professional range, is available in either standard mesh or tight mesh surfaces for optimum surface transit. It can be used for a variety of applications including wheelchair access, mobility scooters, and a loading ramp for vans
These ramps are made of durable material and can easily be installed in the back of your vehicle. The RampPeople's professional range of products are available in a variety of lengths and suitable for a wide range of vehicles. They have an extensive 3 year manufacturer warranty.
Please contact us if a chequered anti-slip surface is required as these can be offered as a custom ramp surface.

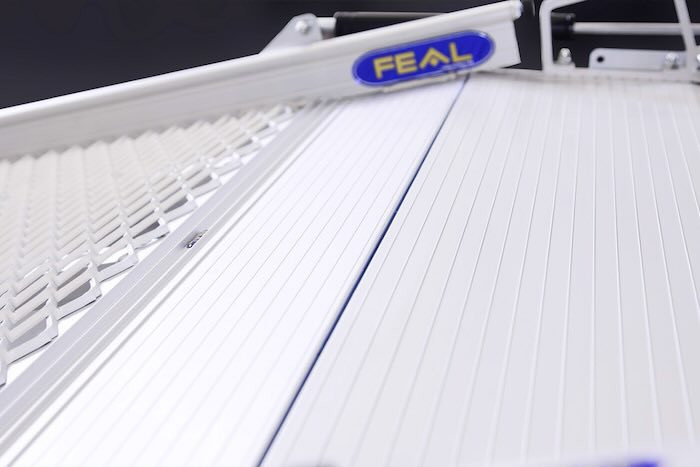

On length selection: The "P" stands for the professional ramp with standard mesh surface The "PTM" stands for professional ramp with tight mesh surface.
2000mm P Standard Mesh
Length (mm)
2000
Internal Width (mm)
900
Total Width (mm)
1038
Max Load Height (mm)
500
Weight (kg)
29
Capacity (kg)
600
2000mm PTM Tight Mesh
Length (mm)
2000
Internal Width (mm)
900
Total Width (mm)
1038
Max Load Height (mm)
500
Weight (kg)
29
Capacity (kg)
600
2400mm P Standard Mesh
Length (mm)
2400
Internal Width (mm)
900
Total Width (mm)
1038
Max Load Height (mm)
600
Weight (kg)
33
Capacity (kg)
600
2400mm PTM Tight Mesh
Length (mm)
2400
Internal Width (mm)
900
Total Width (mm)
1038
Max Load Height (mm)
600
Weight (kg)
33
Capacity (kg)
600
2800mm P Standard Mesh
Length (mm)
2800
Internal Width (mm)
900
Total Width (mm)
1038
Max Load Height (mm)
750
Weight (kg)
37
Capacity (kg)
600
2800mm PTM Tight Mesh
Length (mm)
2800
Internal Width (mm)
900
Total Width (mm)
1038
Max Load Height (mm)
750
Weight (kg)
37
Capacity (kg)
600
Ramp Length & Load Height: Folding Van Ramps
Getting this correct is critical and a guide to the correct load height is shown in the product description/table. An easy guide for the correct measurements can be found here.
Load Height = this is the vertical measurement from the ground to the deck of the van Height (mm) on the folding van ramp tables refers to the height of the ramp when folded = check that there is enough space inside your van for the required ramp
PLEASE ENSURE YOU HAVE ENOUGH ROOM IN THE VAN FOR THE RAMP TO FIT
As a general rule you should observe the following
Up to 450mm load height = 2000mm long ramp Up to 550mm load height = 2250mm long ramp Up to 600mm load height = 2500mm long ramp Up to 750mm load height = 3000mm long ramp
Going over this gradient can cause accident, injury or death and may invalidate the warranty.
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Improved connection to avoid any bump in and out of ramp to vehicle transition
600kg capacity available

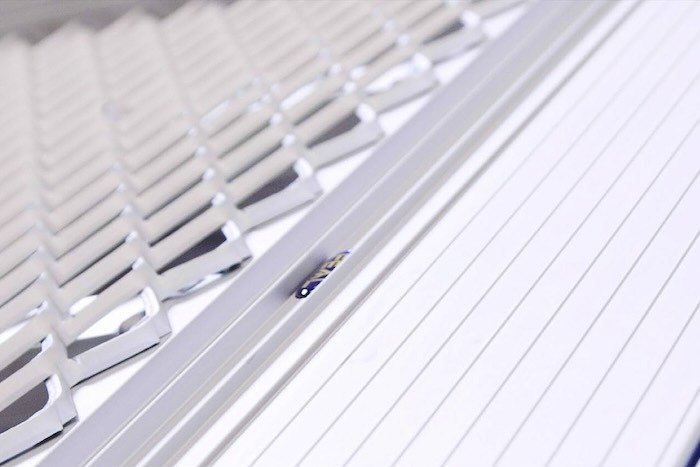

Excellent grip from mesh anti-slip surface
Includes fixing kit and brackets
Installation time of less than 30 minutes
Lightweight, strong and durable
Robot welded for solid, strong and durable construction
Easily installed on several vehicles of the same size
Lateral safety edges to prevent accidentally wheeling off
Bypasses most bumpers, crash bars, steps and tow bars
Safety Crash test and TUV certified
Customised lengths, widths and capacities available. Please contact us for more information.
The ramp is also available with a swivel base. Please note, the swivel base only allows the ramp to turn inwards into the vehicle - turning it outwards can damage the hinge.
It can be overwhelming when you first start looking at purchasing a wheelchair ramp. Many people do not know where to start and one of the most difficult things is knowing what length ramp to order! There is limited information available to assist people with this but we are here to help.
