From
£3,444.00
£2,870.00
SKU
TRP-IRV-90-3
Built to Order
Only %1 left

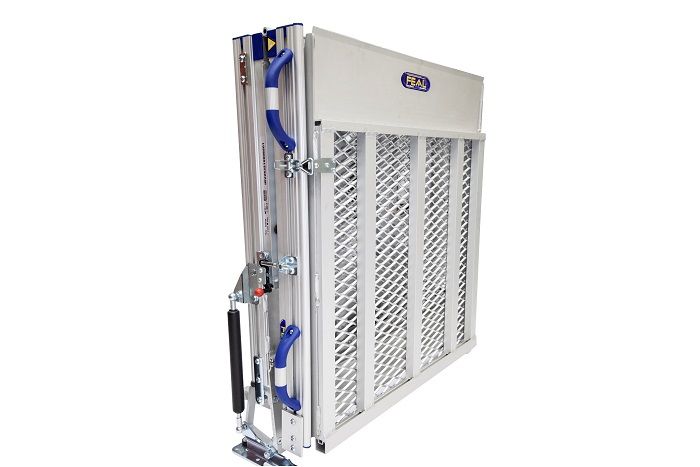

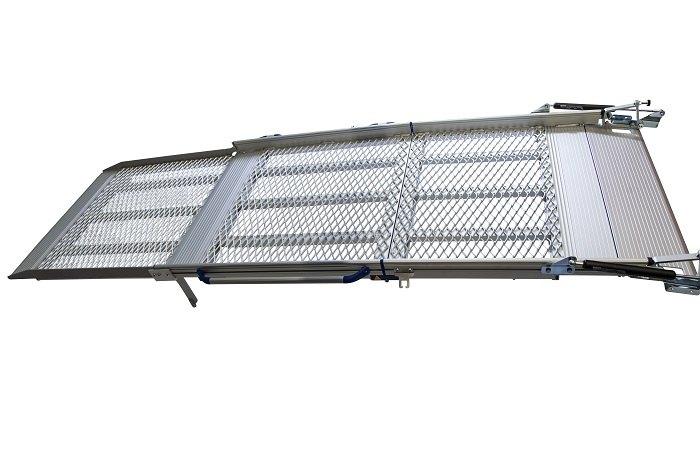

3 Part IRV iRamp Folding Vehicle Ramp 900mm wide
3 Part IRV iRamp vehicle Folding ramp 900mm wide with standard Mesh Surface ramps made from durable material that can easily be installed in the back of your vehicle. Available in a variety of lengths and to fit a wide range of vehicles.
This product is ideal for apply on vehicles with lower internal height that requires longer ramps for wheelchairs
Extensive 3 year manufactory warranty.
Please contact us if tight mesh or chequered anti-slip surface is required as these can be offered as a custom ramp surface.
Description
Features include:
- Improved connection to avoid any bump in and out of ramp to vehicle transition
- 400kg capacity available

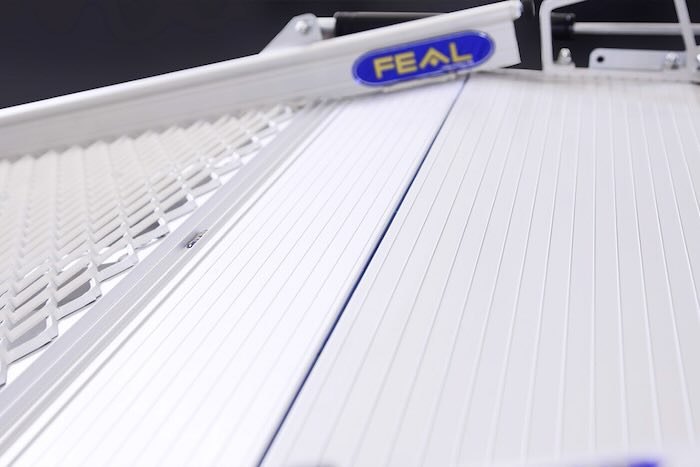

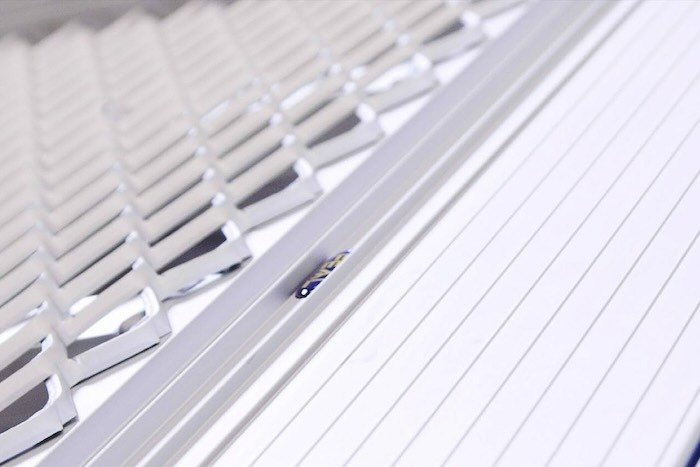

- Excellent grip from mesh anti-slip surface
- Includes fixing kit and brackets
- Installation time of less than 30 minutes
- Lightweight, strong and durable
- Robot welded for solid, strong and durable construction
- Easily installed on several vehicles of the same size
- Lateral safety edges to prevent accidentally wheeling off
- Bypasses most bumpers, crash bars, steps and tow bars
- Extensive 3 year manufactory warranty.
- Safety Crash test and TUV certified
- Customised Lengths, Widths and Capacities available. Please contact us for more information
- For installation, please view our installation guide
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

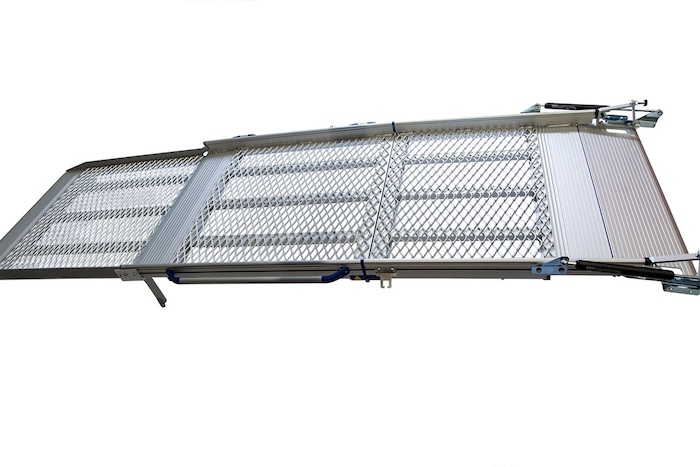

3 Part Folding Van Ramp with Mesh Surface
2530mm TRP-IRV253
- Ramp Length (mm): 2530
- Folded Height (mm): 961
- Max Load Height (mm): *
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 38
- Capacity (kg): 400
2830mm TRP-IRV283
- Ramp Length (mm): 2830
- Folded Height (mm): 1061
- Max Load Height (mm): *
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 40
- Capacity (kg): 400
3130mm TRP-IRV313
- Ramp Length (mm): 3130
- Folded Height (mm): 1161
- Max Load Height (mm): *
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 46
- Capacity (kg): 400
3430mm TRP-IRV343
- Ramp Length (mm): 3430
- Folded Height (mm): 1261
- Max Load Height (mm): *
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 47
- Capacity (kg): 400
3730mm TRP-IRV373
- Ramp Length (mm): 3730
- Folded Height (mm): 1361
- Max Load Height (mm): *
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 50
- Capacity (kg): 400
4030mm TRP-IRV403
- Ramp Length (mm): 4030
- Folded Height (mm): 1461
- Max Load Height (mm): *
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 53
- Capacity (kg): 400
4330mm TRP-IRV433
- Ramp Length (mm): 4330
- Folded Height (mm): 1561
- Max Load Height (mm): *
- Ramp Internal Width (mm): 900
- Ramp Overall Width (mm): 1038
- Weight per ramp (kg): 54
- Capacity (kg): 400
* Max. load height may vary depending on the vehicle
Details
SKU | TRP-IRV-90-3 |
---|---|
Capacity (kg) | 400 |
Folded Height (mm) | TBC - TBC |
Internal Width (mm) | 900 |
Length (mm) | 2530 - 4330 |
Max Load Height (mm) | 540 - 840 |
Outer Ramp Width (mm) | 1028 |
Surface | en Maille |
Weight per Ramp (kg) | 26 - 36 |
Three Year Warranty | Yes |
Bolt Down | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Footprint Depth (mm) | 241 |
Footprint Width (mm) | 1050 |
