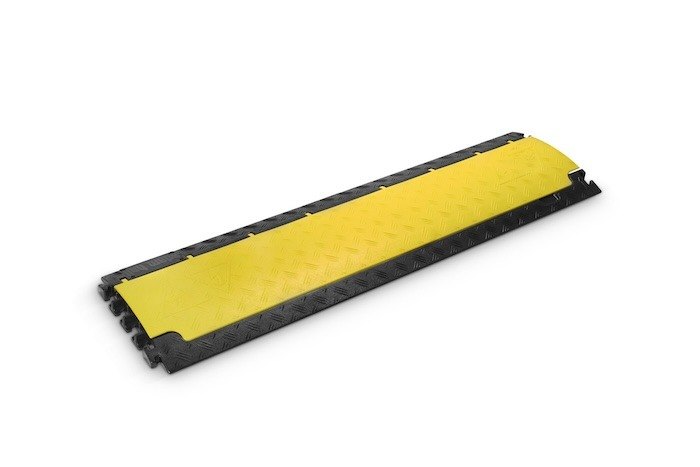

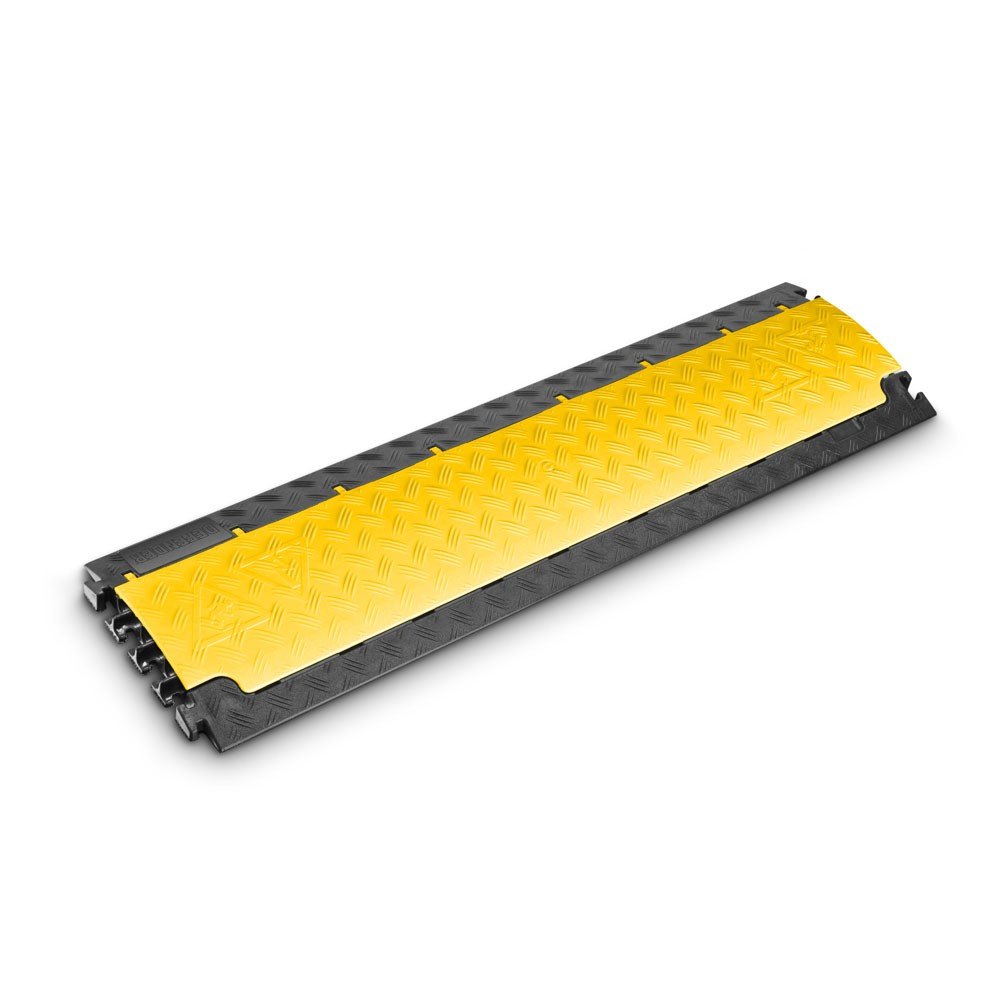

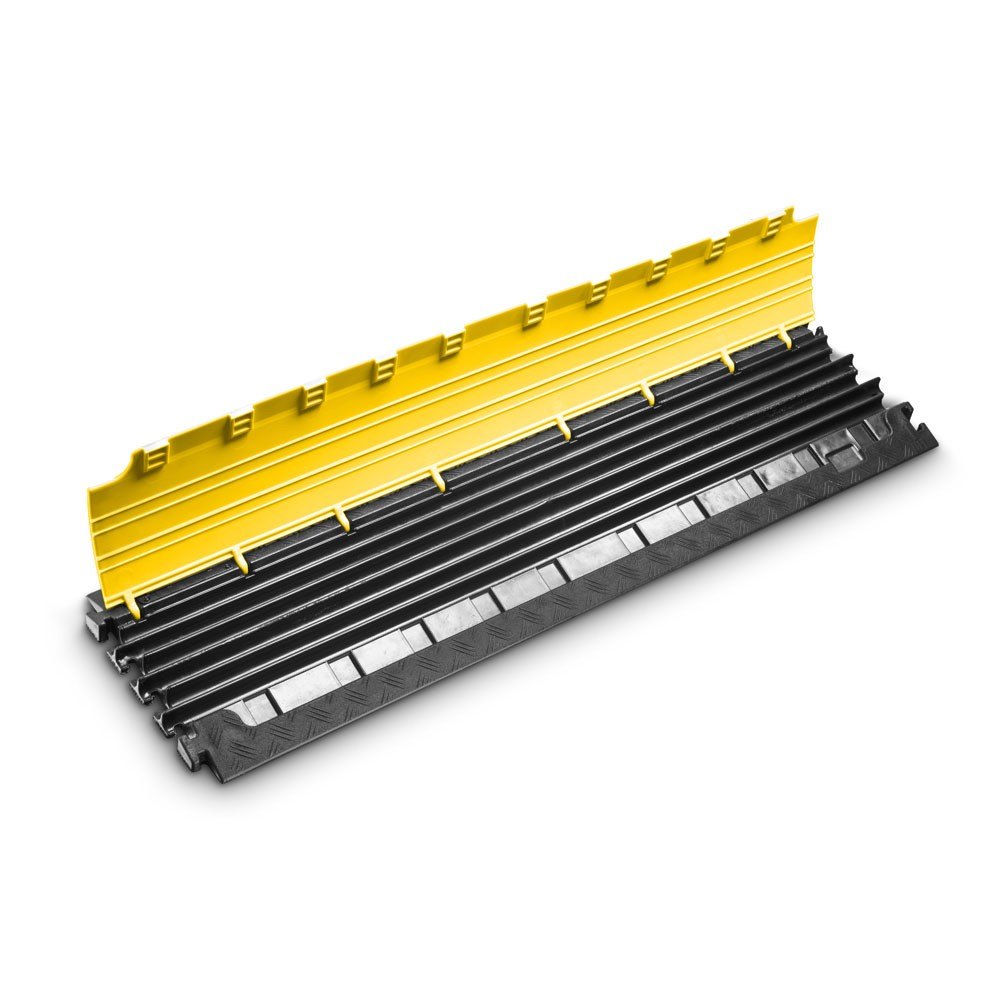

Defender Nano - 6 Channels
Adam Hall's Defender Nano cable protector features six channels, designed to safely protect cables and wires up to 17mm x 18mm. The low-profile design ensures the cable ramp is suitable for pedestrian traffic, wheelchair access, pallet trucks, light forklifts and trolleys.
Minimum order quantity of 5 units.
Features:
- Dimensions: 1000 x 280 x 32mm.
- Low profile making it suitable for items with low clearance
- Highly visible, 6 channel cable protector
- 2,000kg capacity, suitable for light vehicles (max. speed 5mph) - not suitable for road traffic
- Flat, non-slip crossover made from black, recyclable polyurethane
- Wheelchair compatible
- Indoor and outdoor use
- Interlocking design
- Self-cleaning lid hinge
- Fire protection class B2 (DIN 4102)
- TÜV Süd certified
- Resistant to oil, acids, solvents and petrol
- Suitable for internal and external use
- Defender Nano user manual
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Description
The Adam Hall Defender Nano cable ramp is perfect for those seeking a lightweight cable protector to protect small cables and wires. The low-profile design allows wheelchairs and mobility scooters to safely pass over cables, making it perfect for those seeking to create an accessible event or workplace or seeking a DDA / ADA cable ramp. Due to the 2,000kg capacity, the cable protector can also protect cables from occasional light vehicles (not suitable for road traffic), trolleys, pallet trucks and forklifts. The Nano is a popular choice for use at festivals, markets, trade shows, exhibitions, theatres and in warehouses.
Manufactured in Germany, the Adam Hall Defender Cable Protector range is offered with a 5-year guarantee, perfect for those seeking a durable, long-lasting cable protection solution for use in the workplace, commercial sites or at events. The Defender cable protectors can be used to protect low-voltage cables up to 500 Volts, including communication, control and power-supply cables, along with water and sewage cables and hoses.
Accessories are available to help you make the cable protector fit your specific area, including curved sections and end caps.
The cable protector is also available in all black.
We also recommend checking the ground clearance of forklifts and pallet trucks prior to purchase.
Key Features
Interlocking design
Connect multiple units together to cover your required cable length.

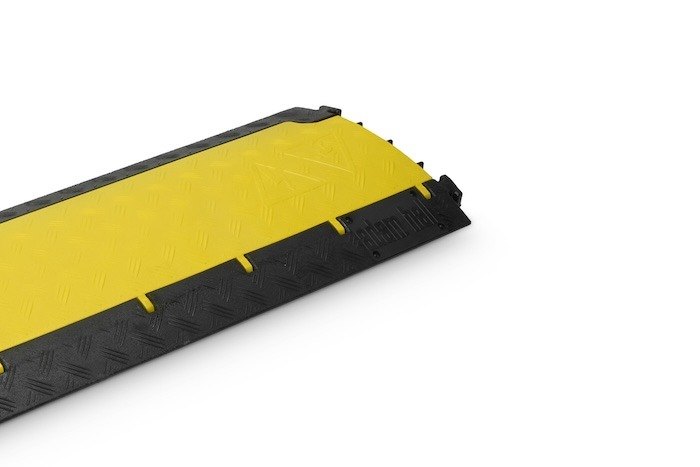

Non-slip surface

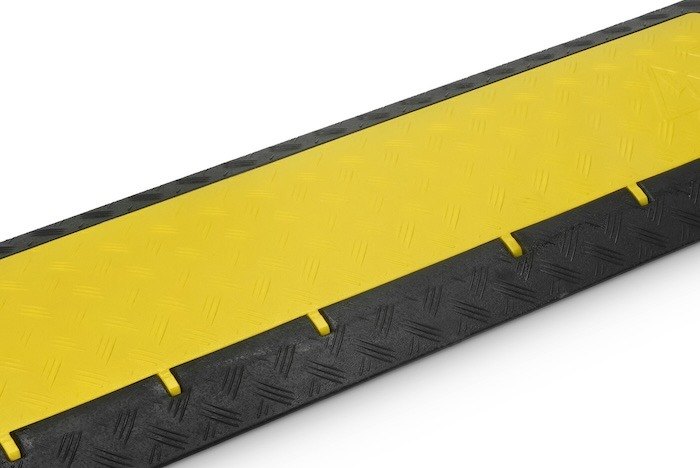

Chequered high-visibility non-slip surface, suitable for pedestrians and wheelchairs.


6-channels

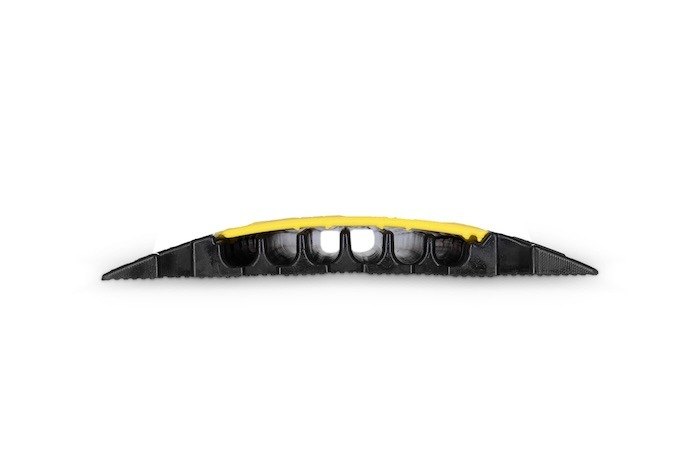

Protects up to 6 cables or wires, channel size 17 x 18mm.


Low profile
Only 32mm high, perfect for low-clearance mobility scooters, pallet trucks and forklifts.


Product Highlights
Built for everyday use
Designed for internal and external use, the 6-channel cable protector is quick and easy to set up.

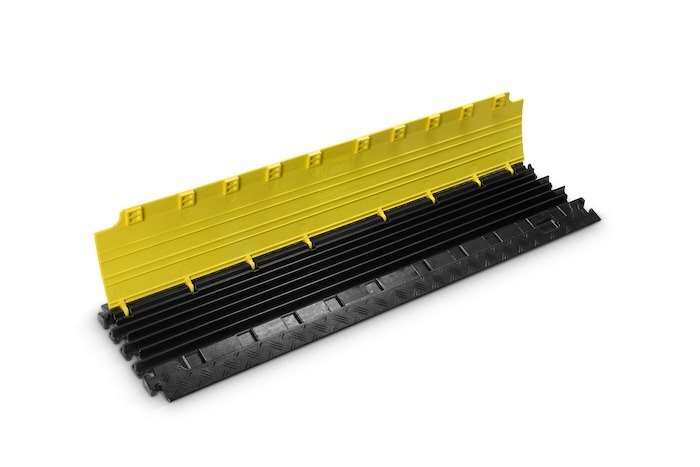

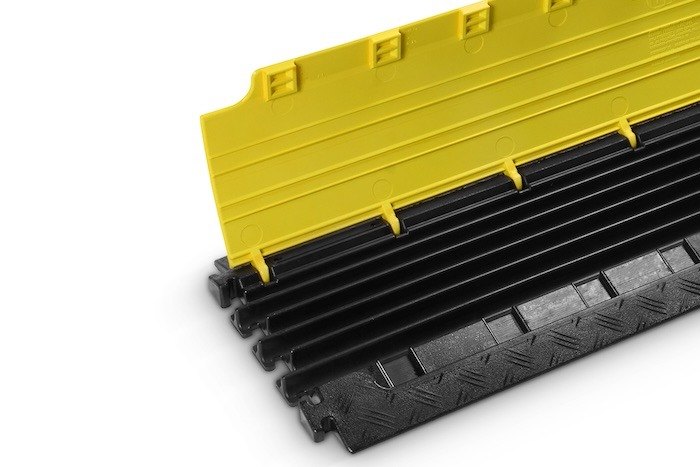

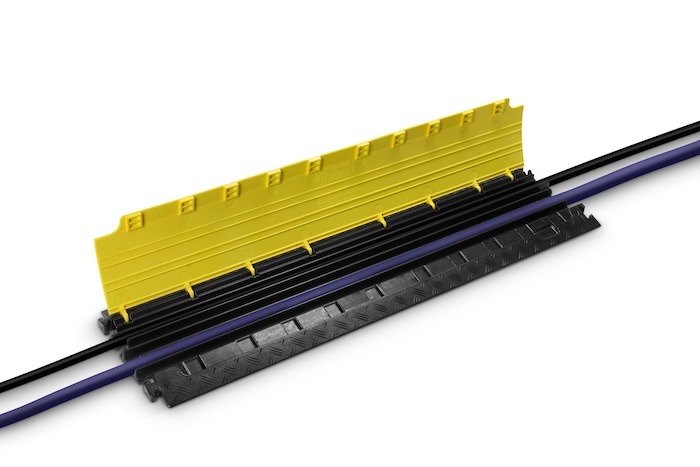

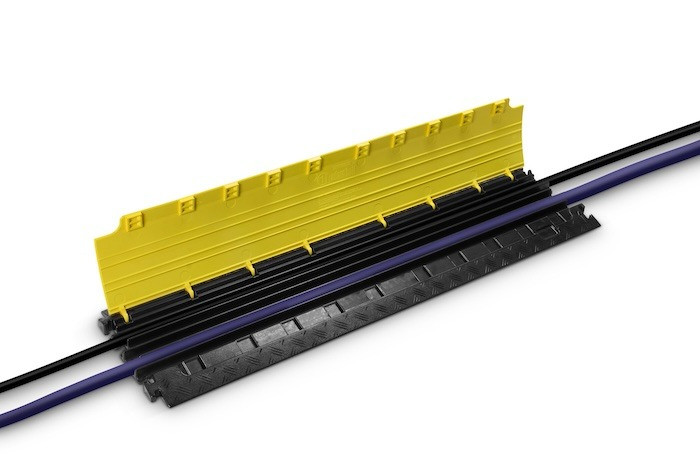

Simply rest on the floor, open the lid and insert the cables or wires. The lid securely locks when closed.
The interlocking design allows multiple units to be connected to cover your required cable length.
Weighing under 5kg, the lightweight floor cable protector can be lifted and moved when needed.




Perfect for commercial use
The 6-channel cable ramp is TÜV SÜD-certified and offers fire protection class E in accordance with DIN EN 13501-1.
Manufactured from 100% recyclable plastic, it is built for use in industrial areas, the cable protector is resistant to oil, acid and petrol. It offers a temperature resistance from -30°C to +60°C and a shore A hardness of 88 ± 4.
The low-profile and high-visibility design ensures accessibility for all.
Manufactured with safety in mind, the surfaces, edges and corners are smooth to prevent injuries.
Durable, long-lasting design
The Defender cable protectors are manufactured from non-breakable plastic (polyurethane).
Offering a self-cleaning lid, the cable ramps require little maintenance. Easily clean when needed using water or a steam jet cleaner.


Why Choose Adam Hall Defender Cable Protectors?
Manufactured to the highest standards in Germany, the Adam Hall Defender range is renowned for being manufactured from highly durable, recycled materials. Every cable ramp in the Defender series is are TÜV SÜD certified and meets fire protection class E in accordance with DIN EN 13501-1, ensuring a safe and reliable performance.
Engineered with the users' needs in mind, the Defender range offers a wide selection of cable protectors with various channel sizes and load capacities, allowing you to safely protect cables and hoses from both pedestrian and vehicle traffic.
For added peace of mind, the cable protectors are offered with a 5-year warranty.
User Manual
To learn more view the Adam Hall Defender Nano user manual.
This is a FULL-WIDTH row. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam non pulvinar neque, blandit lobortis leo. Suspendisse ac consectetur magna. Integer vel diam aliquam, laoreet tortor a, commodo diam. Nulla vulputate scelerisque sagittis.
Sed molestie, lectus semper mollis eleifend, ante dui eleifend dui, nec vehicula risus mauris in turpis. Nullam euismod neque vel lectus sodales, nec placerat diam interdum.


| SKU | TRP-85150 |
|---|---|
| Capacity (kg) | 2,000kg on a surface area of 20 x 20cm |
| Height (mm) | 32 |
| Length (mm) | 1000 |
| Weight (kg) | 4.37 |
| Width (mm) | 280 |
| Safety Standard | DEKRA certified |
| Five Years Warranty | Yes |
| Easy to Fit | Yes |
| Electric Wheelchair | Yes |
| Manual Wheelchair | Yes |
| Mobility Scooter Friendly | Yes |
| Leave Outside | Yes |
| Channel Width (mm) | 17 |
| Channel Size (mm) | 17 x 18 / 17 x 19 |
| Channel Height (mm) | 18 |
| No. Channels | 6 |
| Capacity per Axle (kg) | 4000 |
| Operating Temperature (deg. F) | -22 to 140 |
| Colour Option | Yellow |
