£90.00
£75.00
SKU
TRP-BPCP4M
In Stock
Cable Protector TRP-BPCP4M (3 Channels)

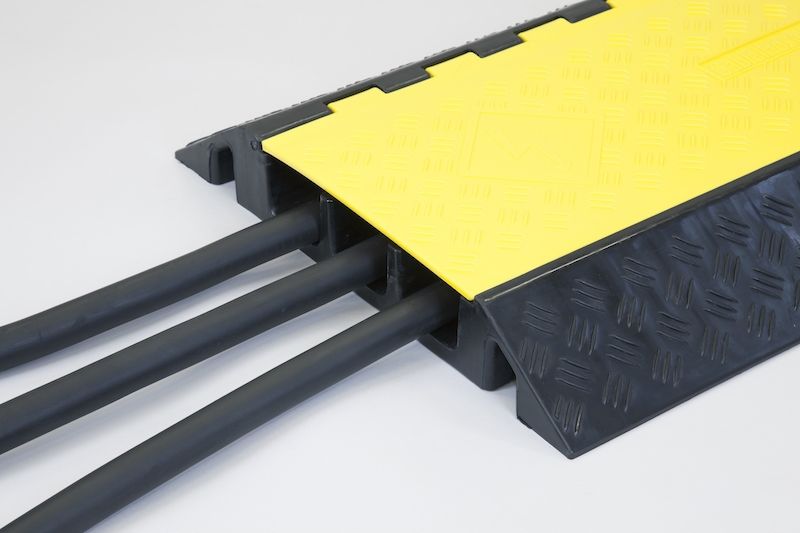

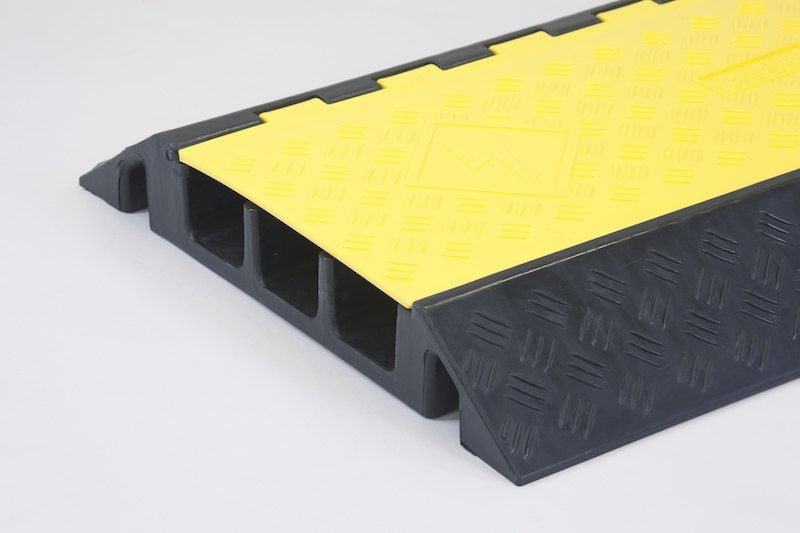

Heavy duty cable protector with 3 channels (64mm x 54mm). The hinged lid design allows you to easily insert cables into the unit. 75mm high - 900mm long - 500mm wide, easily connect the cable protectors together to create your desired length. The cable protector offers an anti-slip surface and is suitable for pedestrian and vehicle traffic. The cable covers have a 12,000kg capacity and comes in contrasting black and yellow.
Description
The Ramp People's interlocking 3 channel heavy duty cable protector speed bumps.

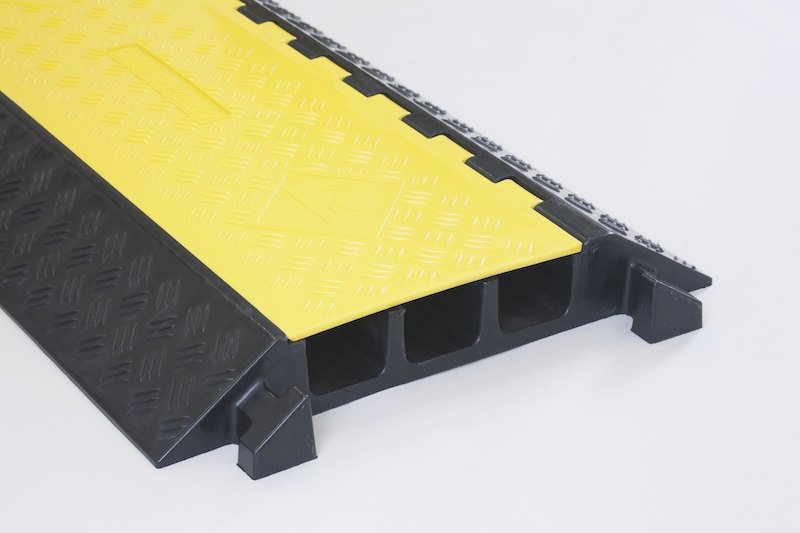

- Featuring 3 channels (64mm x 54mm)

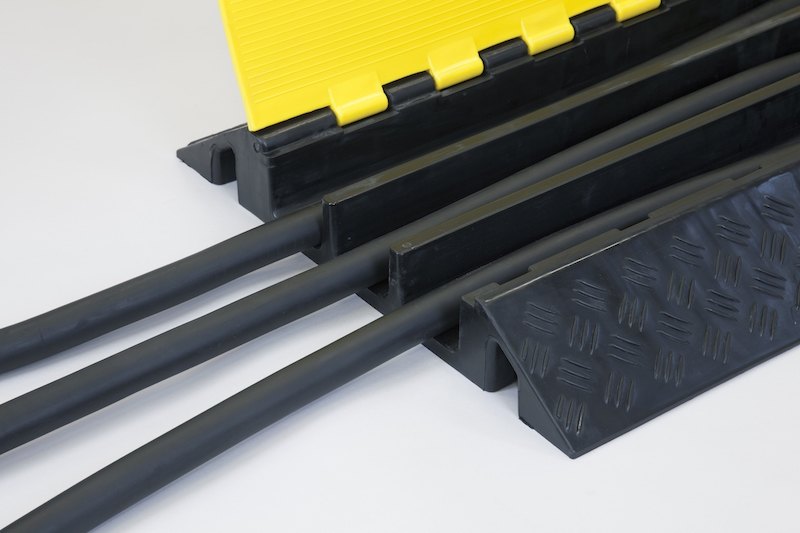

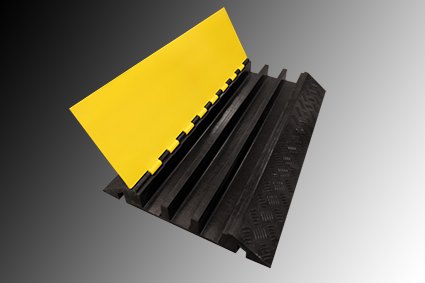

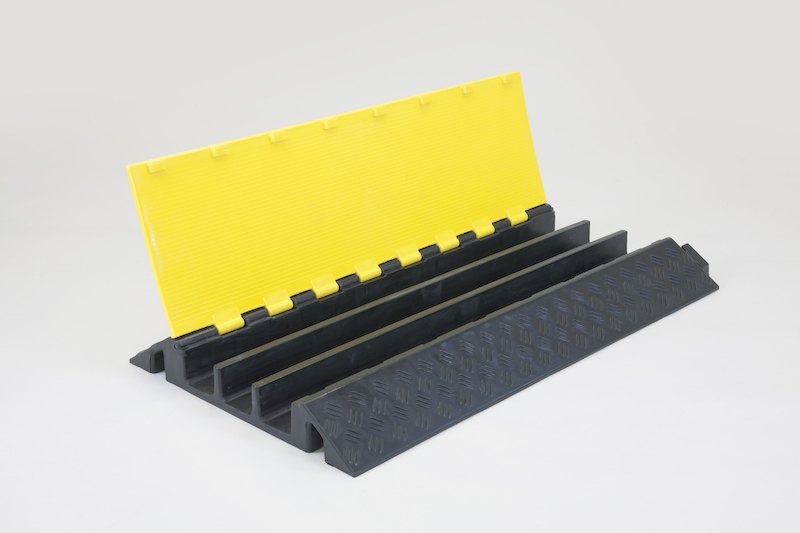

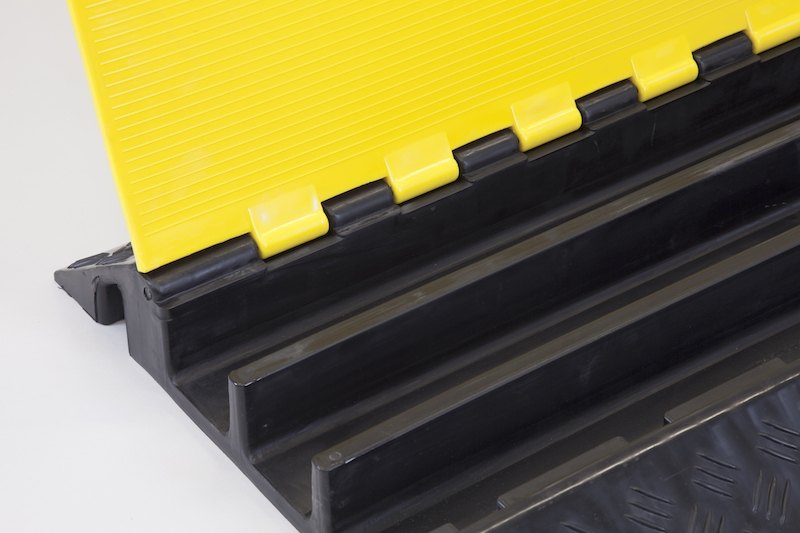

- Hinged lid
- Dog bone connectors to allow the cable protectors to easily be connected together
- 12000kg capacity per axle

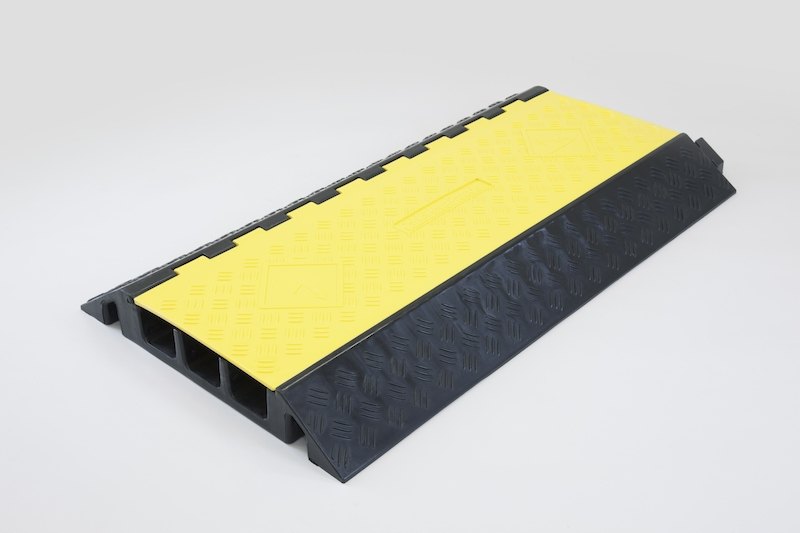

- Chequered anti-slip surface
- Contrasting black and yellow body
- Suitable for indoor and outdoor use
- Made from thermo-plastic polyurethane
- These are designed to be crossed at a max speed of 5mph and Max weight should not exceed 6000kg per tyre
- We recommend using speed bump signs to slow down traffic and alert road users to the cable protectors
- If wheelchairs will be passing over the cable protectors, we recommend purchasing our rubber wheelchair ramp for cable protectors which are compatible with these 3 channel cable protectors
Please note, when specifying the required cable protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles.
Details
SKU | TRP-BPCP4M |
---|---|
Capacity (kg) | 12,000 |

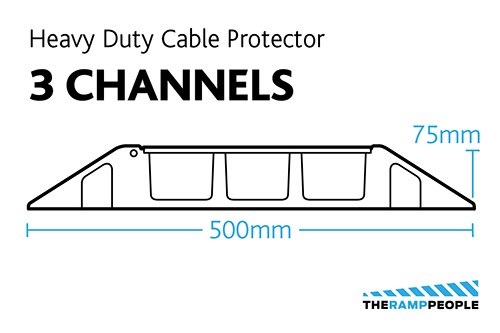

Height (mm) | 75 |
Length (mm) | 880 |
Weight (kg) | 11 |
Width (mm) | 500 |
One Year Warranty | Yes |
Bulk Prices Available | Yes |
Easy to Fit | Yes |
High Visability | Yes |
Leave Outside | Yes |
Cable Protector Color | Black/Yellow |
Channel Width (mm) | 64 |
Channel Size (mm) | 64 x 54 |
Channel Height (mm) | 54 |
Max Cable/ Hose Diameter (mm) | 66.4 |
No. Channels | 3 |
Capacity per Axle (kg) | 12000 |
Capacity per Tyre (kg) | 6000 |
Operating Temperature (deg. F) | -40 °F bis 55 °F |
Durometer A | A93 |
Elongation At Break | 500% |
Tensile Strength | 12 MPa |
Speedlimit (mph) | 5 |
