Ramp Length & Load Height

Checkers Guard Dog - 3 Channel Cable Protector Orange/Black
Length (mm) | 914 |
---|---|
Width (mm) | 510 |
Total Width (mm) | 510 |
Height (mm) | 76.5 |
Weight (kg) | 13.6 |
Capacity (kg) | 12,892 |
Buy With Confidence
Buy With Confidence
The Ramp People value transparency in all of their business transactions and want you to be able to buy from us with confidence. We have taken a number of measures to ensure that this is possible. These include:
Speedy Delivery
We aim to despatch all of our orders within a maximum of 48 hours after they have been received. Next business day delivery is included free of charge as standard, although other shipping methods are available at an extra charge.
No Quibble Returns Policy
All non-faulty stock items can be returned within 14 calendar days of purchase for a full refund. If you aren’t sure how to choose the correct ramp, do give our friendly sales team a call.
Fully Secure Payment Processing
The Ramp People are proud to use Sage Pay, one of the world’s fastest growing E-Commerce Payment Providers to process all of our transactions. Sage Pay encrypt all of your payment details to the highest level possible, ensuring that none of your personal details are passed on to third parties.
See What Other Customers Say About Us
It’s always comforting to be able to see how other customers have rated an Ecommerce Retailer. See what our ratings say about our fantastic service and products by viewing our Trust Pilot reviews on the website.

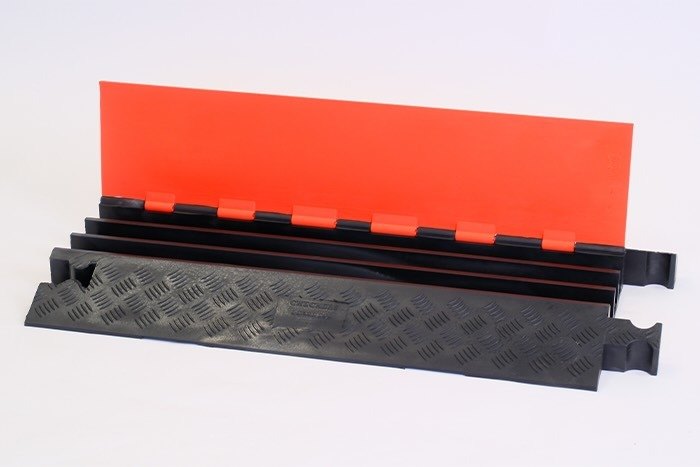

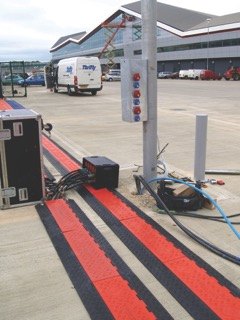

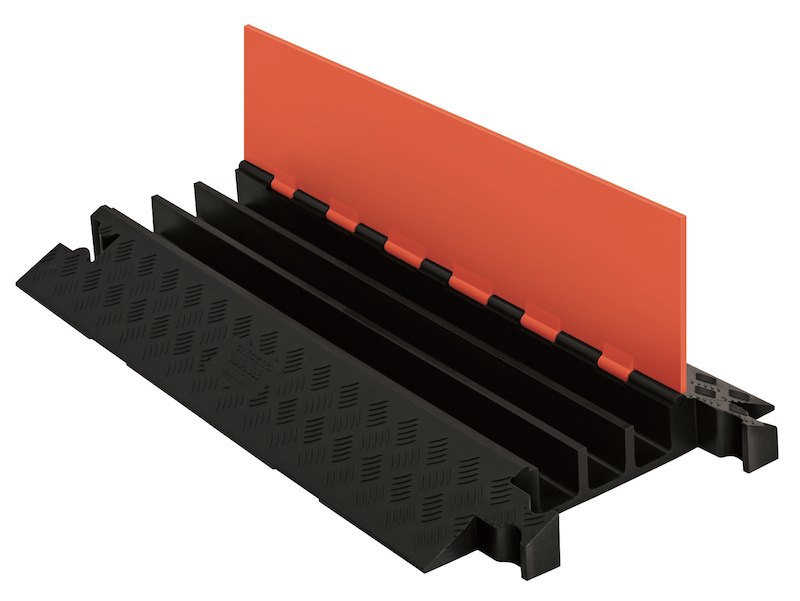

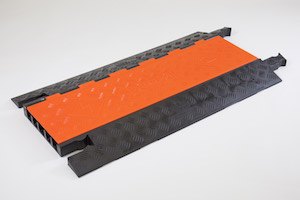

GUARD DOG 3-CHANNEL CABLE PROTECTOR with hinged lid provides a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
- Protects cables and hoses up to 2.25" outside dia.

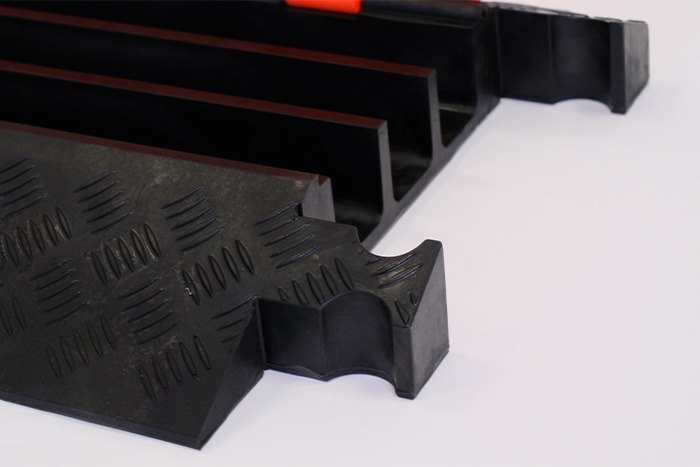

- Dog-bone connector to extend to any desired length

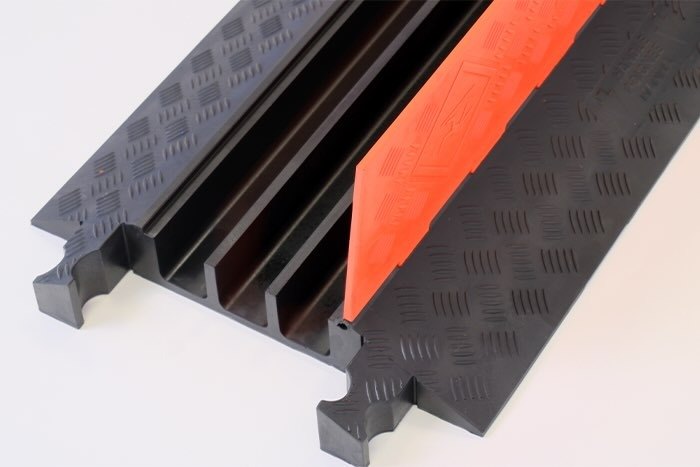

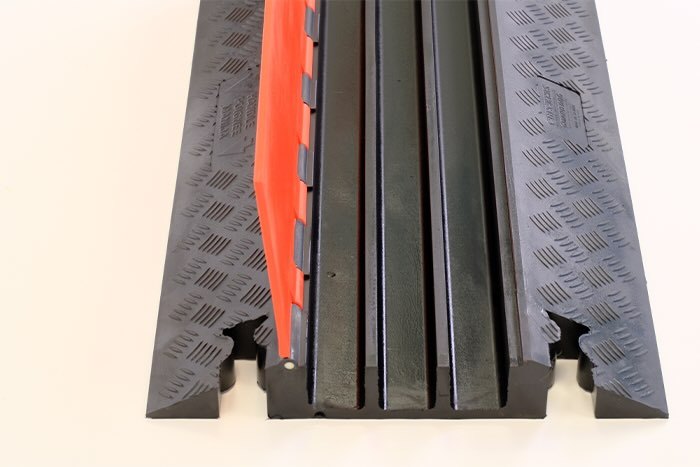

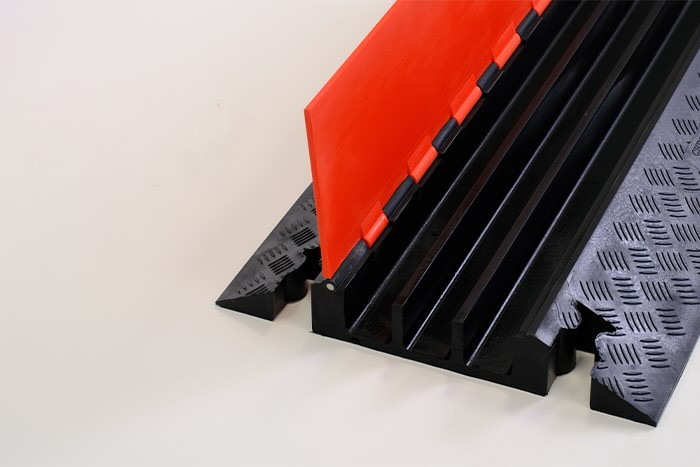

- Reinforced hinged lid for easy cable placement
- All-weather polyurethane construction
- Patented 5-bar tread surface for maximum traction
- Modular interlocking design for easy Setup
SKU | TRP-GD3X225-O/B |
---|---|
Capacity (kg) | 12,892 |
Height (mm) | 76.5 |
Length (mm) | 914 |
Total width (mm) | 510 |
Weight (kg) | 13.6 |
Width (mm) | 510 |
One Year Warranty | Yes |
Easy to Fit | Yes |
High Visability | Yes |
Cable Protector Color | Orange/Black |
Channel Width (mm) | 57.2 |
Channel size (mm) | 57.2 |
Channel Height (mm) | 57.2 |
Max Cable/ Hose Diameter (mm) | 57.1 |
No. Channels | 3 |
Capacity per Axle (kg) | 12,892 |
Capacity per Tyre (kg) | 6,446 |
Operating Temperature (deg. F) | 70 |
Speedlimit (mph) | 5 |
