Checkers Guard Dog - 5 channel Cable Protector Orange/Black
The Guard Dog 5-Channel Cable Protector (model GD5X125) features a hinged lid, a modular, interlocking design, and the capacity to protect up to five cables and hoses with an outside diameter of up to 1.325". Its all-weather polyurethane construction gives it unmatched durability, and with the use of Dog Bone connectors, it can extend to any length. It also features a 5-bar tread surface, ensuring maximum traction for both vehicles and pedestrians.
Guard Dog 5-Channel cable protector with hinged lid provides a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

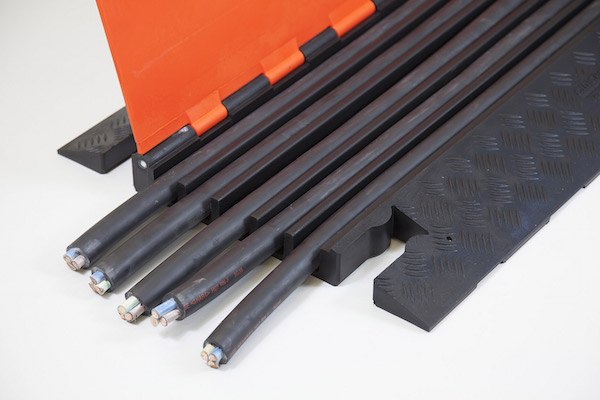

- Protects cables and hoses up to 1.325" outside dia.

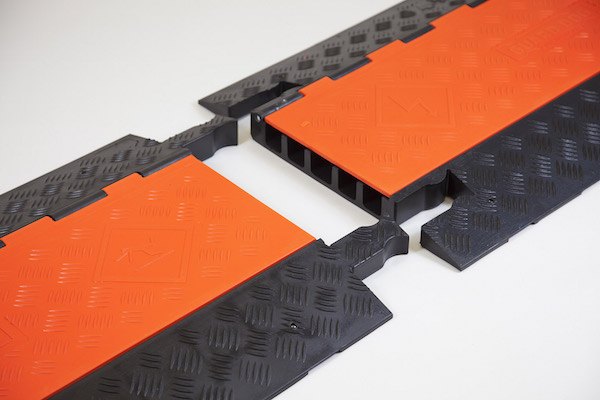

- Dog-bone connector to extend to any desired length

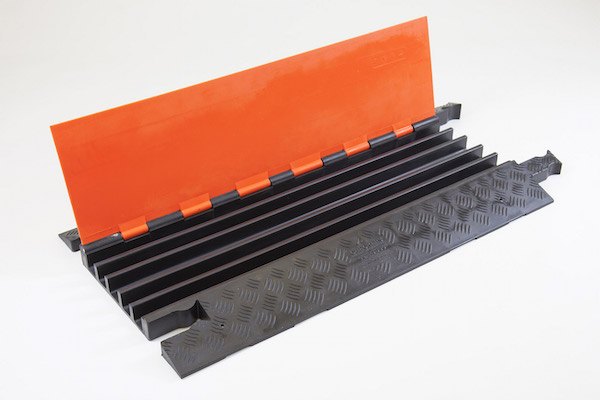

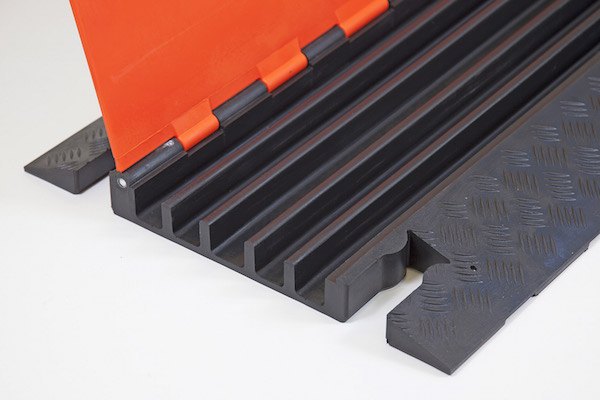

- Reinforced hinged lid for easy cable placement
- All-weather polyurethane construction
- Patented 5-bar tread surface for maximum traction

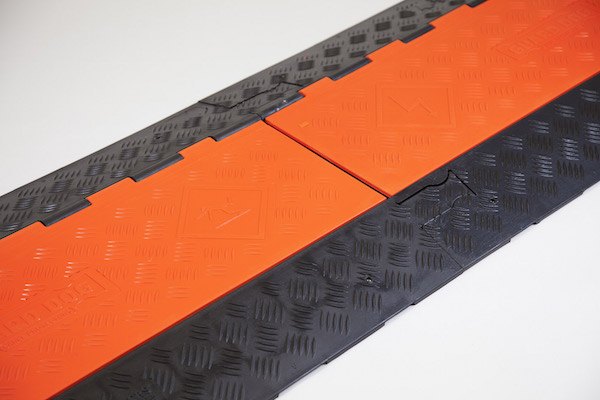

- Modular interlocking design for easy setup
- Four pre-drilled fixing points to allow the cable ramp to be secured in place
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
| SKU | TRP-GD5X125-O/B |
|---|---|
| Capacity (kg) | 9,526 |
| Height (mm) | 47.6 |
| Length (mm) | 914 |
| Weight (kg) | 9.6 |
| Width (mm) | 502 |
| One Year Warranty | Yes |
| Bolt Down | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| Cable Protector Color | Orange/Black |
| Channel Width (mm) | 34 |
| Channel Size (mm) | 34 x 33.7 |
| Channel Height (mm) | 33.7 |
| No. Channels | 5 |
| Capacity per Axle (kg) | 9526 |
| Capacity per Tyre (kg) | 4763 |
| Operating Temperature (deg. F) | 70 |
| Speedlimit (mph) | 10 |
| Colour Option | Black |
