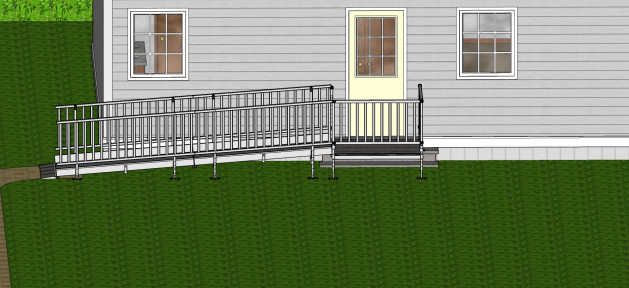

Modular Kit with Platform and Balustrade Handrails (1500mm x 4600mm long)

Modular Ramp System, 4600mm long, 1500mm wide, internal width 1276mm, with balustrade handrails, platform and mesh anti-slip surface.
Length (mm)6440
Total Width (mm)1500
Capacity (kg)200kg / sq. meter

Got a question?

Product: Modular Kit with Platform and Balustrade Handrails (1500mm x 4600mm long)
SKU: TRP-MS1500-4600B

  • Customisable
  • Electric Wheelchair
  • European Made
  • Manual Wheelchair
  • Mobility Scooter
  • Two Year Warranty
£3,780.00 £3,150.00
Built to Order
TRP-MS1500-4600B
Talk to The Ramp People's sales team

Modular Wheelchair Ramp Systems - Legal Compliance

These systems are designed to be both portable and temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.

Modular Ramp Kit, 4600mm long, 1500mm wide, with double height handrails and mesh anti-slip surface.

Kit includes:

  • Lead In Ramp:300mm x 1300mm long
  • Ramp Module incl. Double Height Handrails: 4600mm long x 1500mm wide
  • Platform incl. 2x Double Height Handrails: 1500mm x 1500mm
  • Connection to step/threshold: 220mm deep x 1500mm long; can be ordered cut to size if required. The necessary door measurements can be found here.

All instructions and a video for assembling the system can be found here.

SKU TRP-MS1500-4600B
Capacity (kg) 200kg / sq. meter
Kerb Height (mm) 100
Length (mm) 6440
Platform Length (mm) 1500
Supplied with fixings Yes
Surface Mesh Surface
Total width (mm) 1500
Two Year Warranty Yes
Customisable Yes
Electric Wheelchair Yes
European Made Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes
Usable width (mm) 1276
