Heavy Duty Loading Ramps for Steel Tracks (3500mm x 600mm x 26,100kg)

600mm wide x 3500mm long, with a 130mm profile thickness. Featuring a maximum capacity of 26,100kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3500
Width (mm)600
Max. Load Height (mm)1050
Weight (kg)263
Weight Per Ramp (kg)131.50
Capacity (kg)26,100
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • One Year Warranty
£4,290.00 £3,575.00
Built to Order
Talk to The Ramp People's sales team

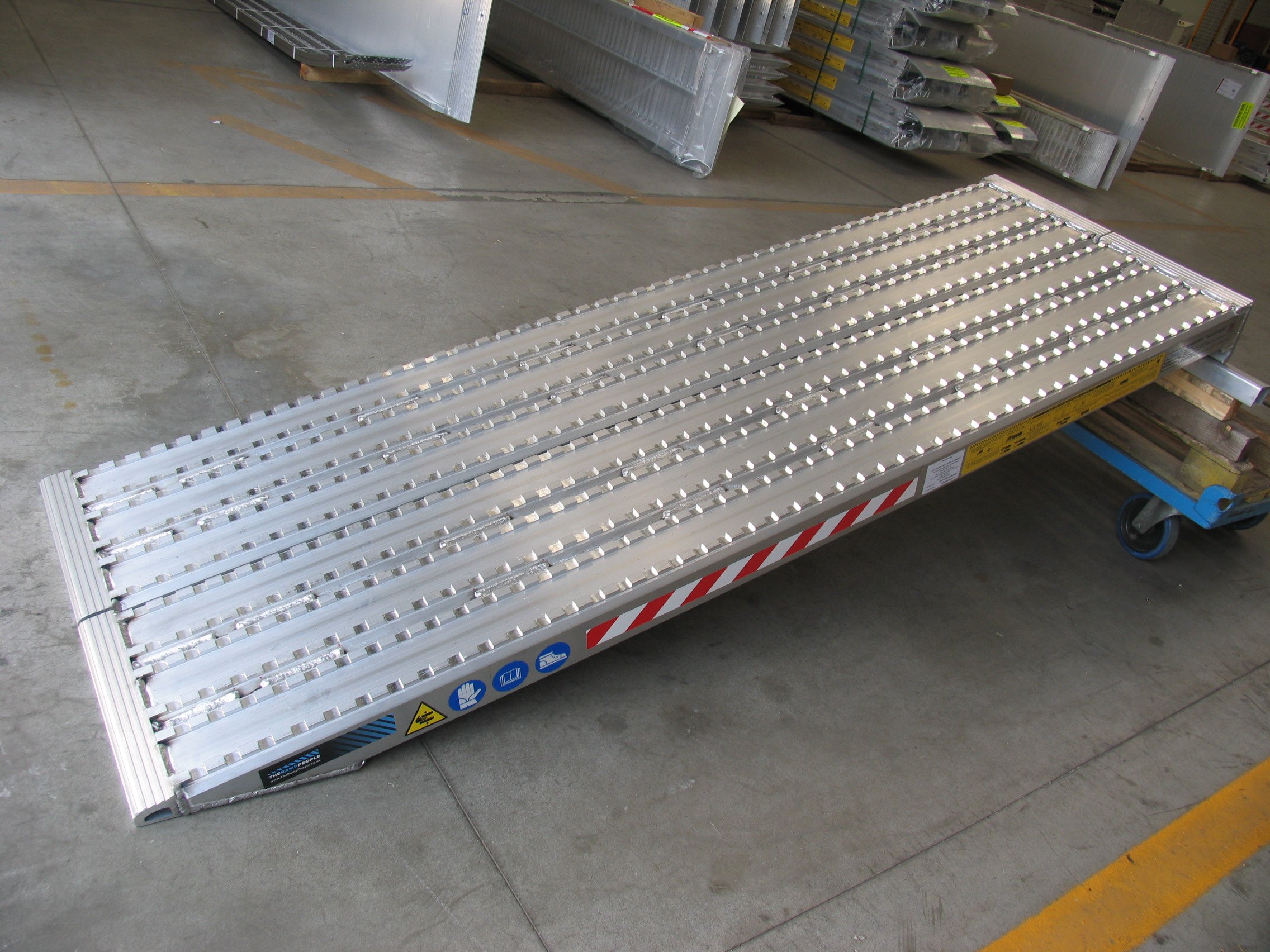

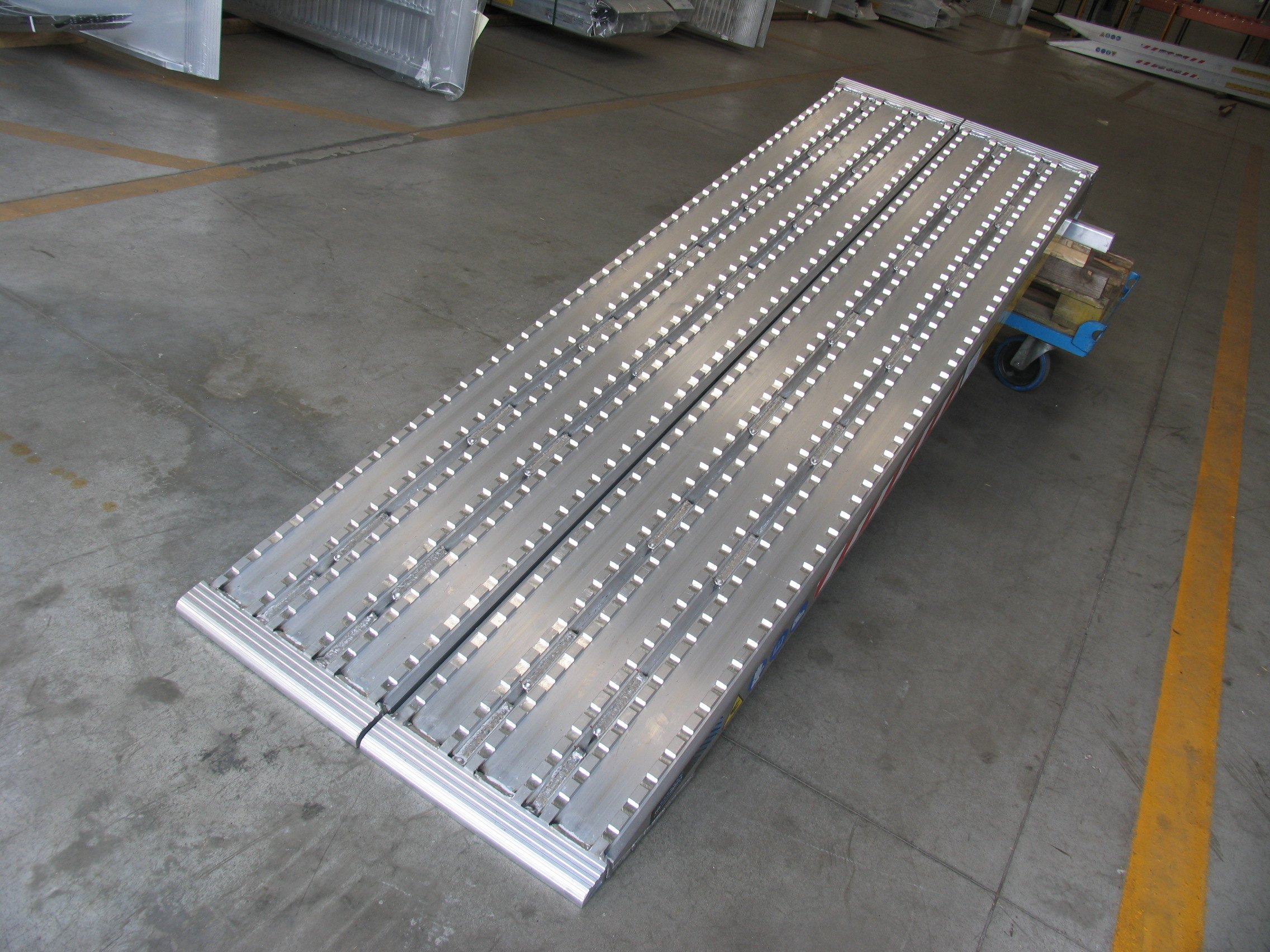

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp People range of steel tracked ramps' core profile thickness is 130mm. Available 600mm wide, these ramps feature no external welds and offer a capacity of up to 26,100kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

  • Flat top with no external welds
  • On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP13060/35
Capacity (kg) 26,100
Height of Ramps Profile (mm) 130
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight (kg) 263
Weight per Ramp (kg) 131.50
Width (mm) 600
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Capacity Wheelbase 1500mm (kg) 15,800
Capacity Wheelbase 1750mm (kg) 19,000
Capacity Wheelbase 2000mm (kg) 26,100
