Hinged Tailboards - 1262mm Wide

The Ramp People's range of Hinged Tailboards is available in the width 1250mm usable width, with an additional total width of 12mm for the sides. The offered lengths are 565mm, 940mm, 1190mm, 1690mm and 2065mm. With a capacity up to 4170kg, these are perfect for pallet trucks / forklifts with low ground clearance.

  • Customisable
  • Easy to Fit
  • European Made
  • One Year Warranty
Description

The Hinged Tailboards feature:

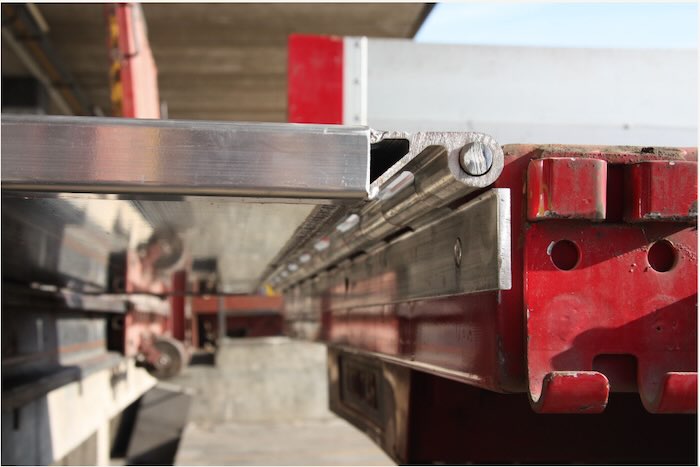

  • Fixed onto the back of your lorry or your loading bay it enables easy access and safe unloading of goods up to 4170kg Capacity
  • Quick and easy to install
  • No fixings included so you can chose how and where to attach the tailboard.
  • Unique design enables incredible grip
  • Can be customised to any length required and with a minimum width of 1250mm

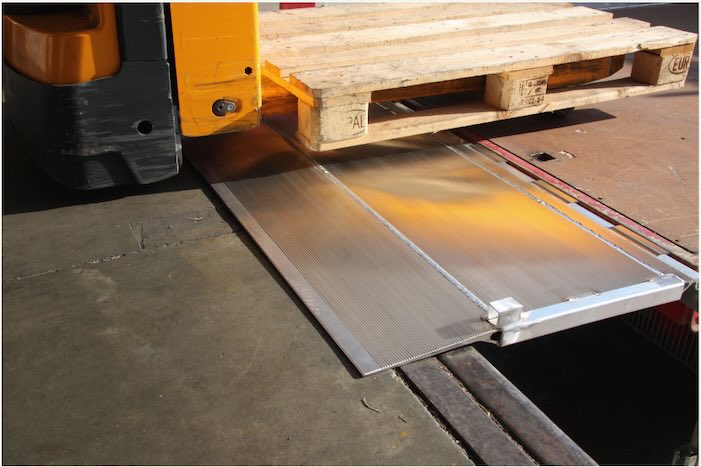

  • Perfect for pallet trucks with low ground clearance
  • Produced entirely in the EU
  • Manufactured from lightweight aluminium (type 6005A)
  • Robot welded for solid, strong and durable construction
  • Fully TUV Certified
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

565mm long

  • Length (mm): 565
  • Weight (kg): 19
  • Total Width (mm): 1262
  • Usable Width (mm): 1250
  • Capacity (kg): 4170

940mm long

  • Length (mm): 940
  • Weight (kg): 27
  • Total Width (mm): 1262
  • Usable Width (mm): 1250
  • Capacity (kg): 2510

1190mm long

  • Length (mm): 1190
  • Weight (kg): 34
  • Total Width (mm): 1262
  • Usable Width (mm): 1250
  • Capacity (kg): 1980

1690mm long

  • Length (mm): 1690
  • Weight (kg): 45
  • Total Width (mm): 1262
  • Usable Width (mm): 1250
  • Capacity (kg): 1100

2065mm long

  • Length (mm): 2065
  • Weight (kg): 54
  • Total Width (mm): 1262
  • Usable Width (mm): 1250
  • Capacity (kg): 720

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP30AL/ Light
Capacity (kg) 4170-720
Length (mm) 565-2065
Total Width (mm) 1262
Weight (kg) 19-54
One Year Warranty Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Usable Width (mm) 1250
