£3,526.80
£2,939.00
SKU
TRP-MS1500-1360B
Built to Order

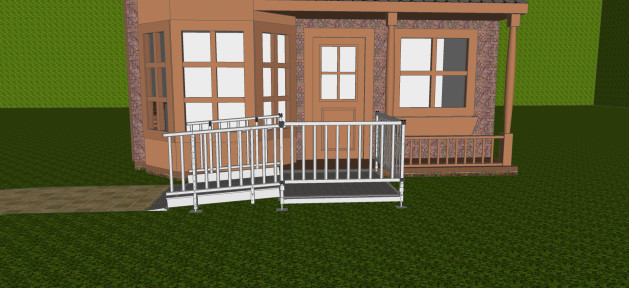

Modular Kit with Platform and Balustrade Handrails (1500mm x 1360mm long)
Modular Ramp System, 1360mm long, 1500mm wide, internal width 1276mm, with balustrade handrails, platform and mesh anti-slip surface.
Description
Modular Wheelchair Ramp Systems - Legal Compliance
These systems are designed to be both portable and temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.
Modular Ramp Kit, 1360mm long, 1500mm wide, with double height handrails and mesh anti-slip surface.
Kit includes:
- Lead In Ramp:300mm x 1300mm long
- Ramp Module incl. Double Height Handrails: 1360mm long x 1500mm wide
- Platform incl. 2x Double Height Handrails: 1500mm x 1500mm
- Connection to step/threshold: 220mm deep x 1500mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
All instructions and a video for assembling the system can be found here.
Details
SKU | TRP-MS1500-1360B |
---|---|
Capacity (kg) | 200kg / sq. meter |
Kerb Height (mm) | 100 |
Length (mm) | 3200 |
Platform Length (mm) | 1500 |
Supplied with Fixings | Yes |
Surface | Mesh Surface |
Total Width (mm) | 1500 |
Two Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
European Made | Yes |
Fixings Included | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
Leave Outside | Yes |
Usable Width (mm) | 1276 |
