Ramp Capacity, Length & Load Height
Modular Kit with Platform and Double Height Handrails (1500mm x 5700mm long)
These systems are both designed to be portable and temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification need to be altered.

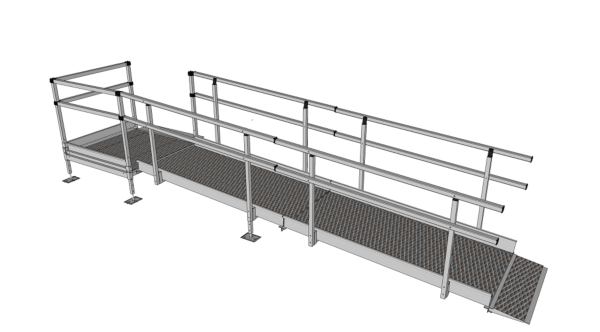

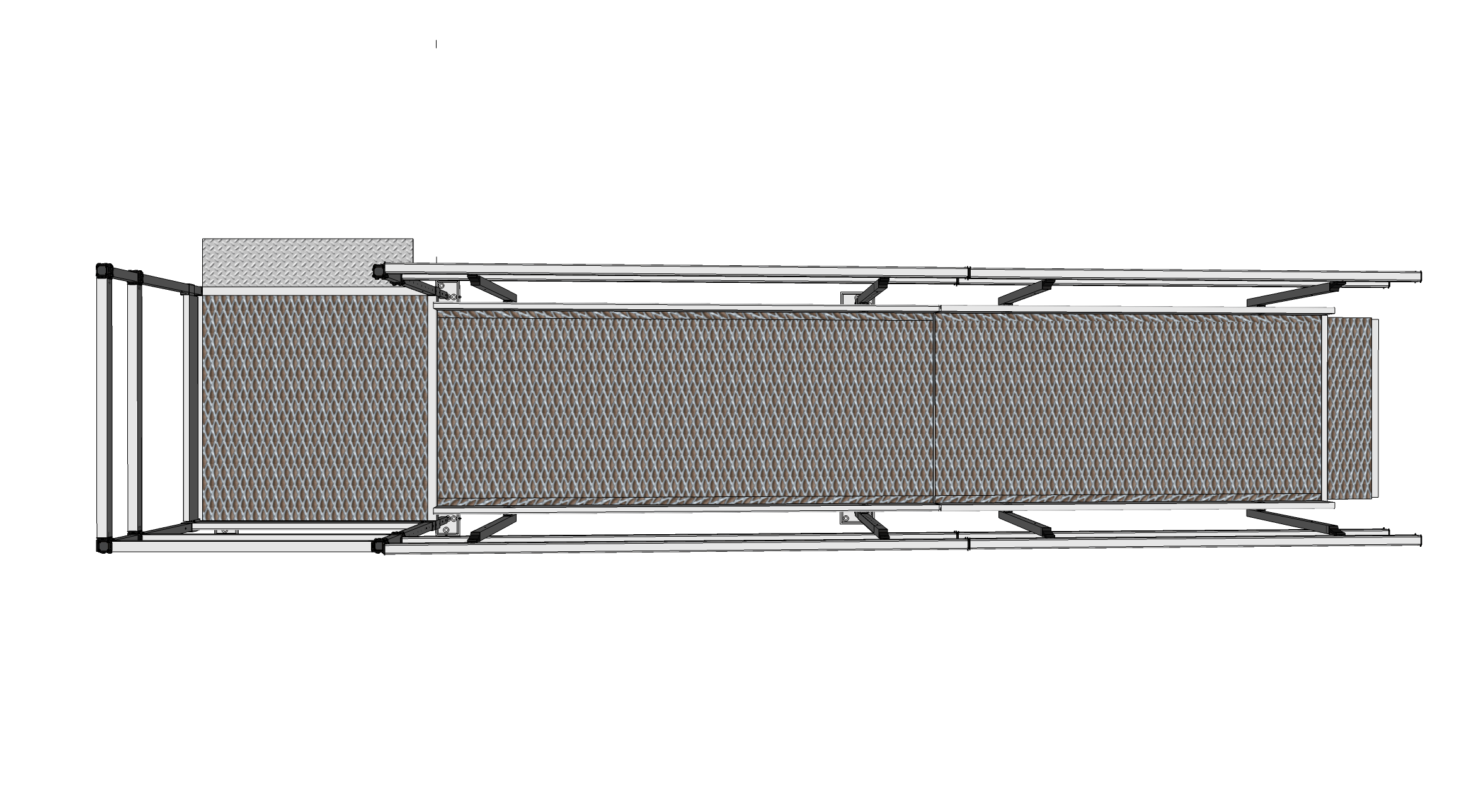

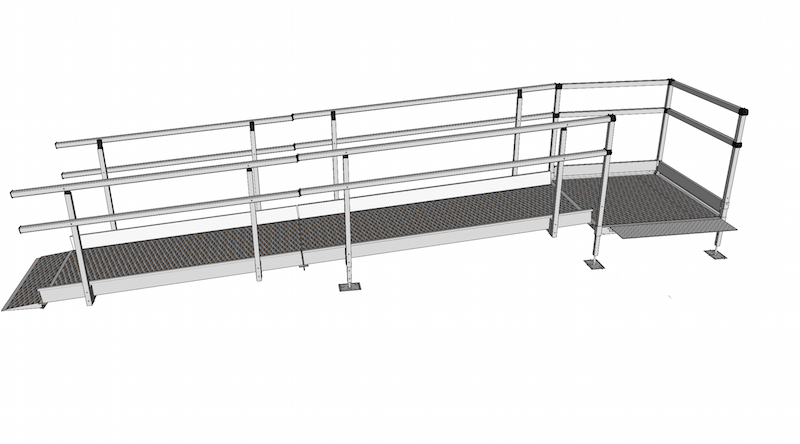

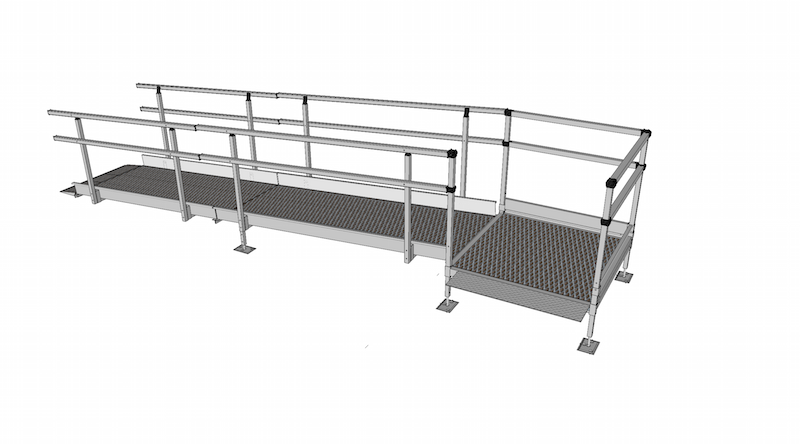

Modular Ramp Kit, 5700mm long, 1500mm wide, with double height handrails and mesh anti-slip surface.
- Lead In Ramp:300mm x 1300mm long
- Ramp Module incl. Double Height Handrails: 5700mm long x 1500mm wide
- Platform incl. 2x Double Height Handrails: 1500mm x 1500mm
- Connection to step/threshold: 220mm deep x 1500mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
All instructions and a video for assembling the system can be found here.
|Two Year Warranty||Yes|
|Easy to Fit||Yes|
|Mobility Scooter Friendly||Yes|
