Ramp Length & Load Height

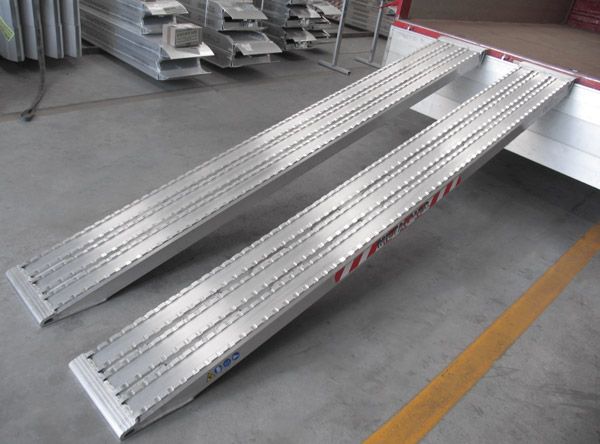

PAIR of ALUMINIUM RAMPS (105X520X5000 -6095kg) Standard. Milled surface
520mm wide x 5000mm long, with a 105mm profile thickness. Featuring a maximum capacity of 6,095kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers.
Custom built sizes are available on request. Price and capacity stated is for the PAIR.
| Length (mm) | 5000 |
|---|---|
| Width (mm) | 520 |
| Max. Load Height (mm) | 1500 |
| Weight Per Ramp (kg) | 112.5 |
| Weight Per Pair (kg) | 225 |
| Capacity (kg) | 6095 |
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Further information can be seen in this blog article here
Buy With Confidence
Buy With Confidence
The Ramp People value transparency in all of their business transactions and want you to be able to buy from us with confidence. We have taken a number of measures to ensure that this is possible. These include:
Speedy Delivery
We aim to despatch all of our orders within a maximum of 48 hours after they have been received. Next business day delivery is included free of charge as standard, although other shipping methods are available at an extra charge.
No Quibble Returns Policy
All non-faulty stock items can be returned within 30 calendar days of purchase for a full refund. If you aren’t sure how to choose the correct ramp, do give our friendly sales team a call.
Fully Secure Payment Processing
The Ramp People are proud to use Adyen, one of the world’s fastest growing E-Commerce Payment Providers to process all of our transactions. Adyen encrypt all of your payment details to the highest level possible, ensuring that none of your personal details are passed on to third parties.
See What Other Customers Say About Us
It’s always comforting to be able to see how other customers have rated an Ecommerce Retailer. See what our ratings say about our fantastic service and products by viewing our Trust Pilot reviews on the website.

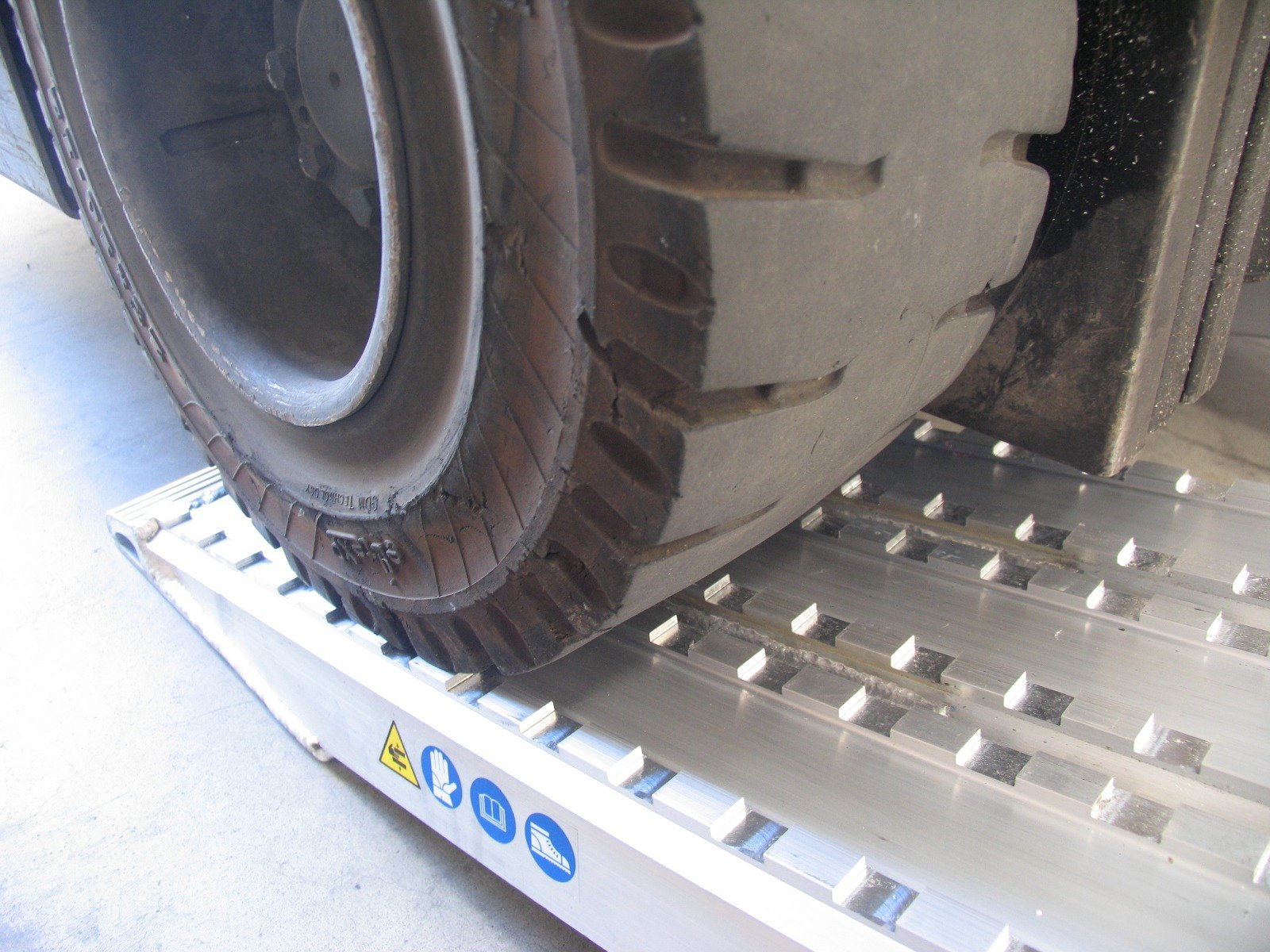

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp People range of steel tracked ramps' core profile thickness is 105mm. Available 520mm wide, these ramps feature no external welds and offer a capacity of up to 29,000kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

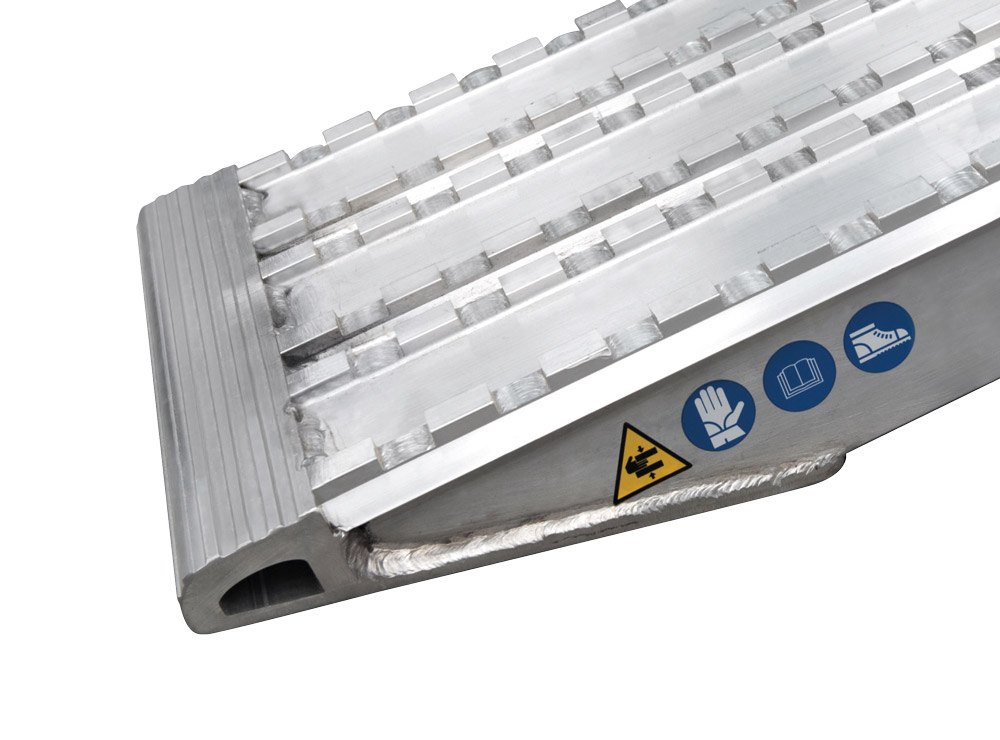

- Flat top with no external welds
- On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
- Custom load heights available
- Quotes for bespoke ramps can be supplied on request
- Special 25/30 surface available on request, suitable for when using rubber tracked and steel tracked machinery
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Fully TUV certified
Usage Guidelines and Safety Information for these ramps can be found here.
| SKU | TRP-105F/520/5000 |
|---|---|

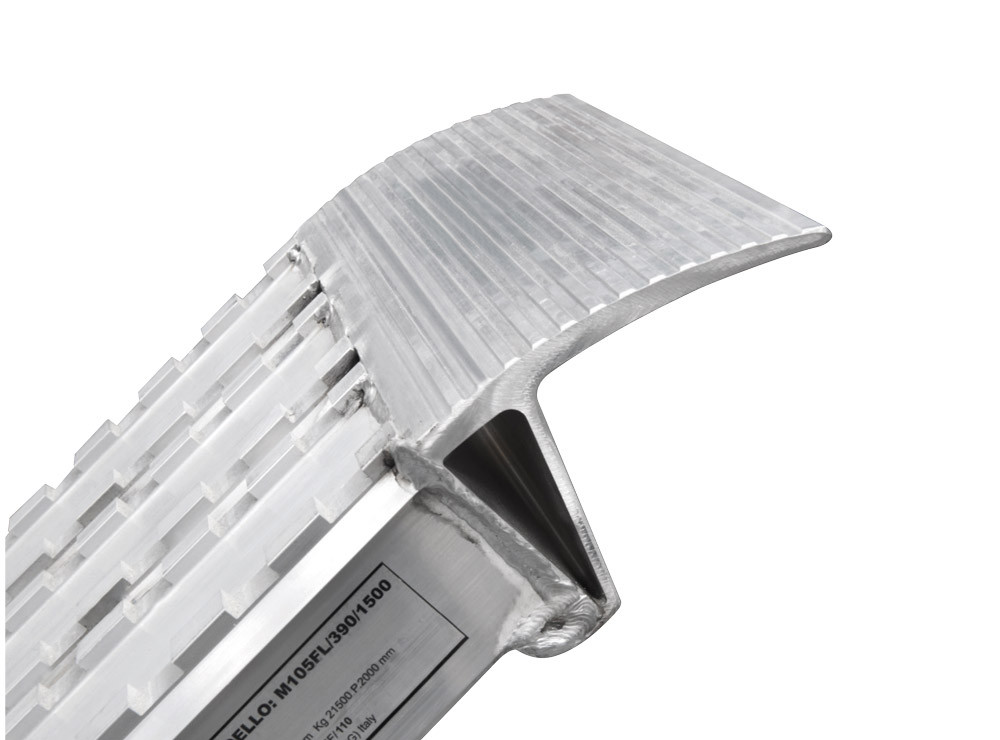

| Default Connection | Rest On Connection |
| Capacity (kg) | 6095 |
| Height of Ramp Profile (mm) | 105 |
| Length (mm) | 5000 |
| Max Load Height (mm) | 1500 |
| Min. Load Height (mm) | 1350 |
| Weight per Ramp (kg) | 112.5 |
| Weight Per Pair (kg) | 225 |
| Width (mm) | 520 |
| One Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Capacity Wheelbase 1000mm (kg) | 4575 |
| Capacity Wheelbase 1500mm (kg) | 5225 |
| Capacity Wheelbase 2000mm (kg) | 6095 |
