Ramp Length & Load Height

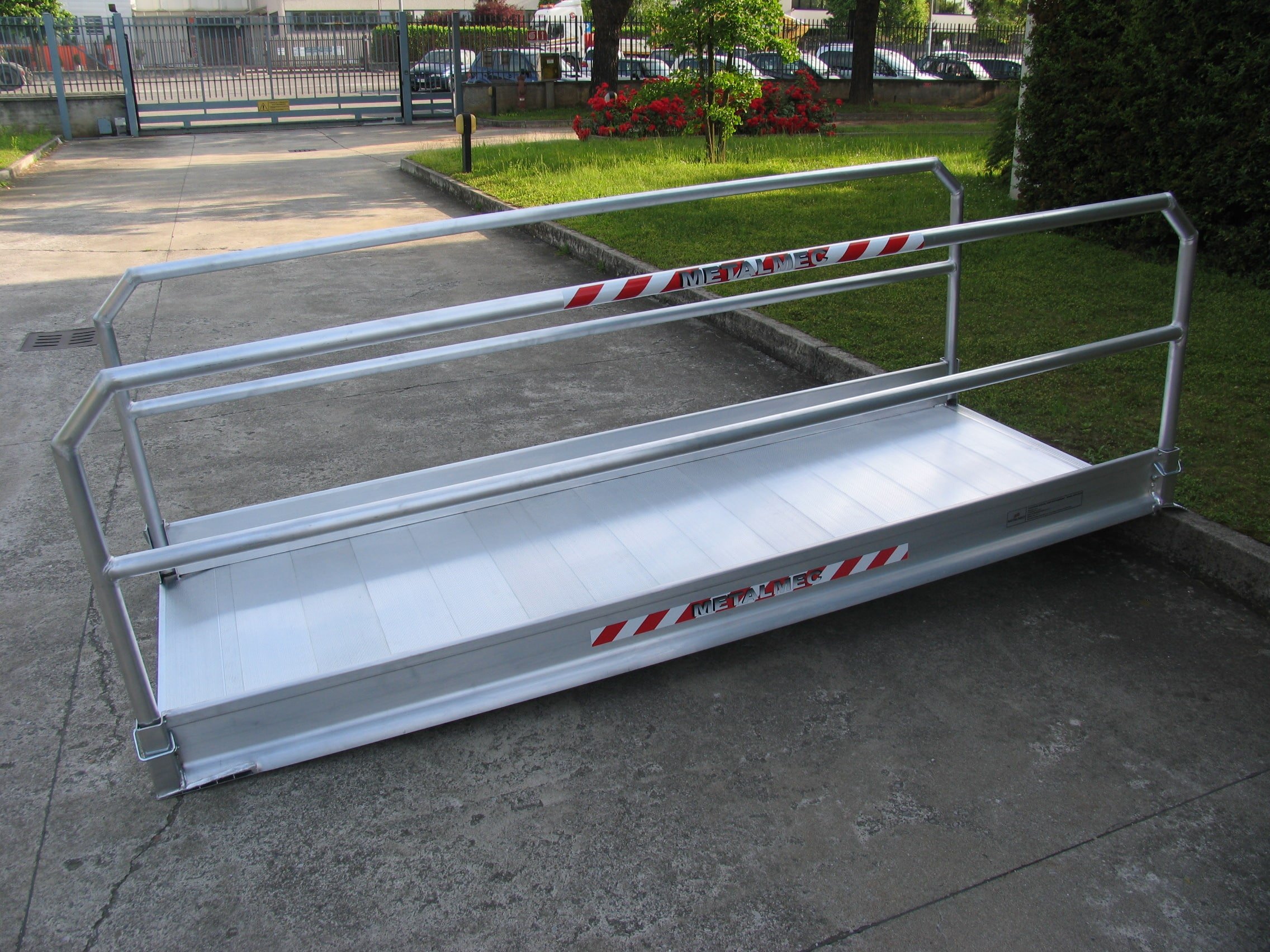

Pedestrian Ramps with Handrails 4790mm Long, Internal Width 1000mm
Pedestrian Ramps with Handrails are 4790mm long with a usable width of 1000mm and maximum capacity of 400kg per square meter. Ideal for overcoming height differences in a variety of different scenarios, from private homes to public applications.
|Max. Load Height (mm)||380|
TRP Pedestrian Ramps with Folding Handrails features include:

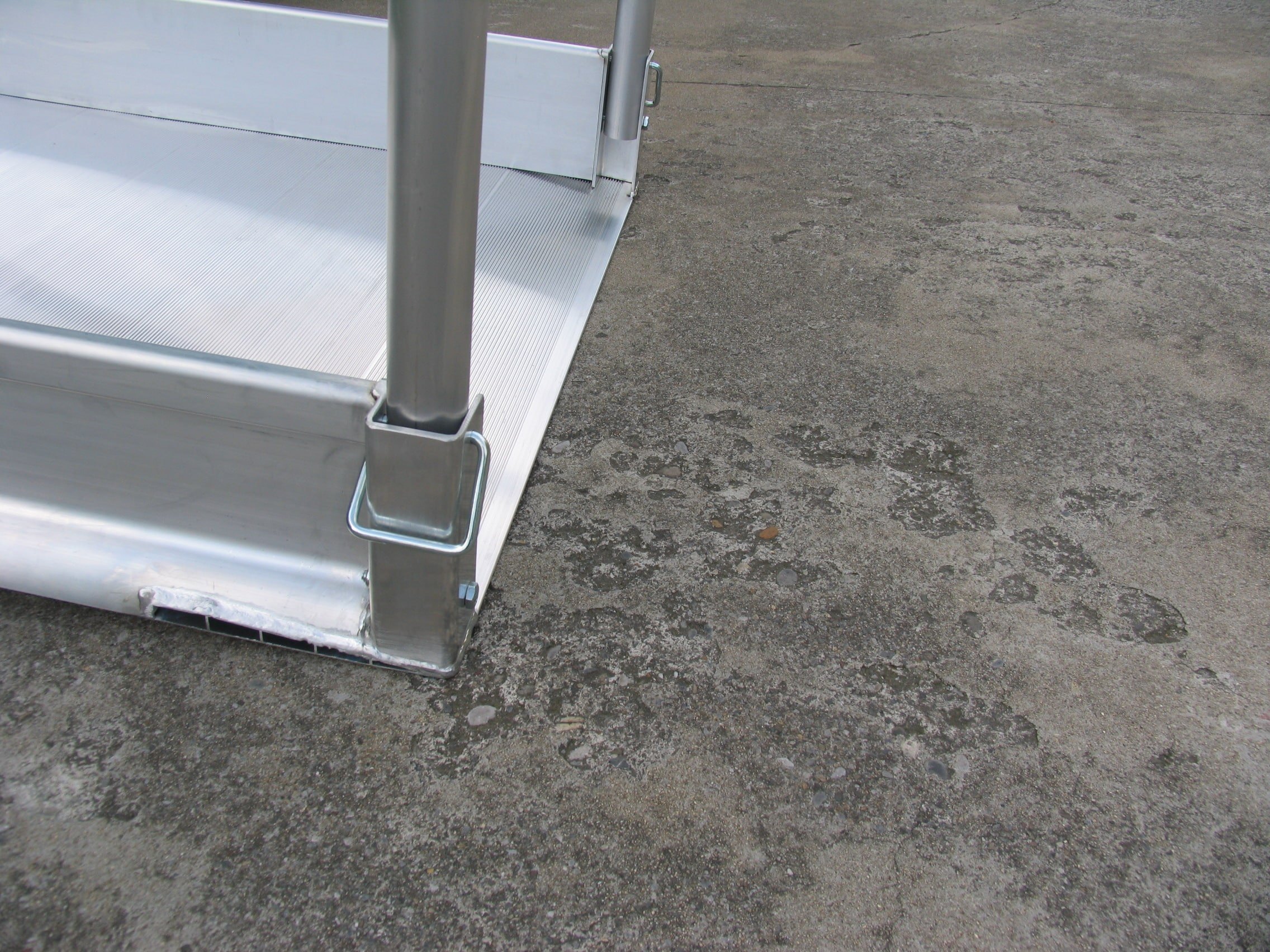

- Rest on connections - simply put ramp in place and start using it

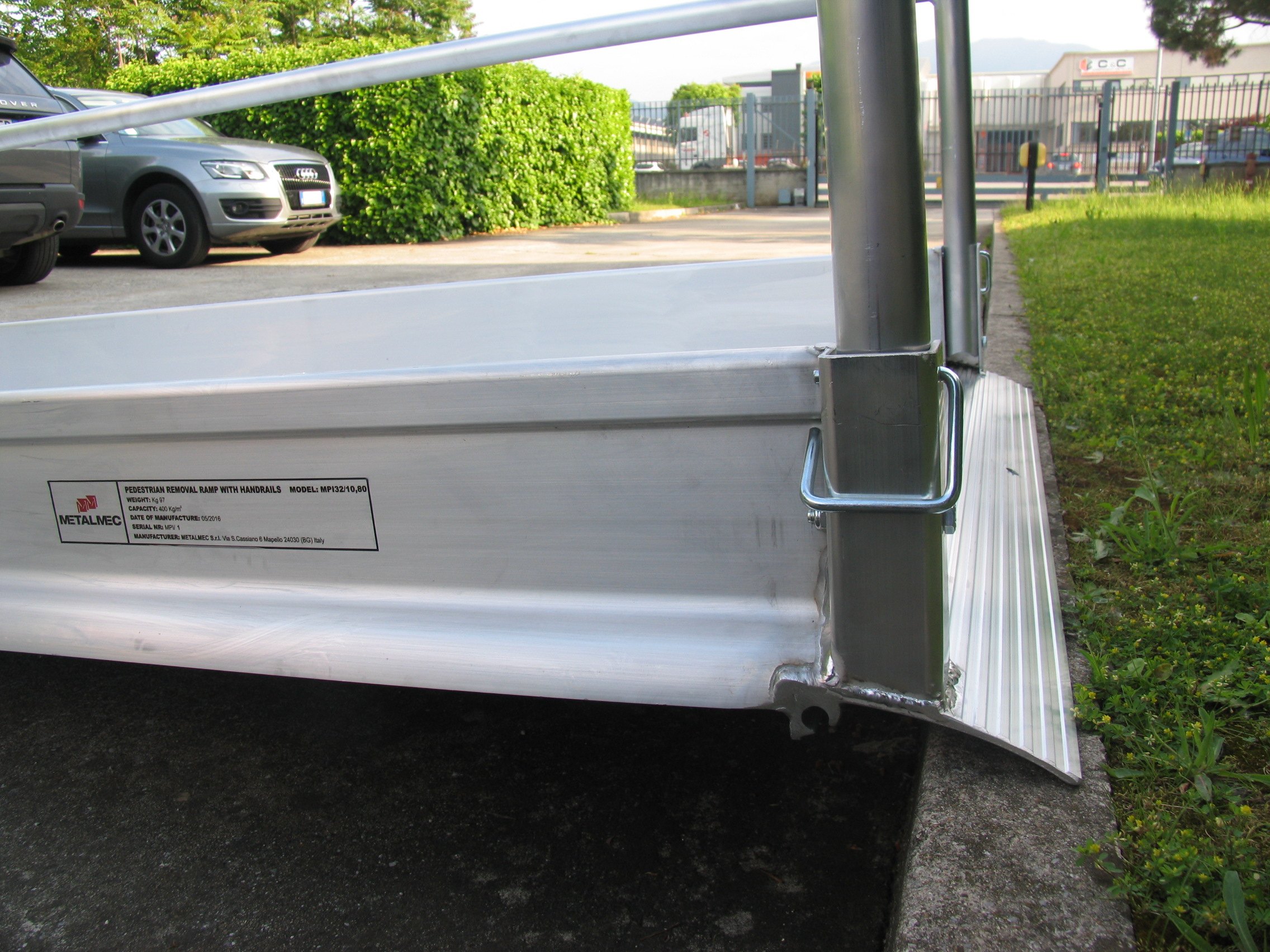

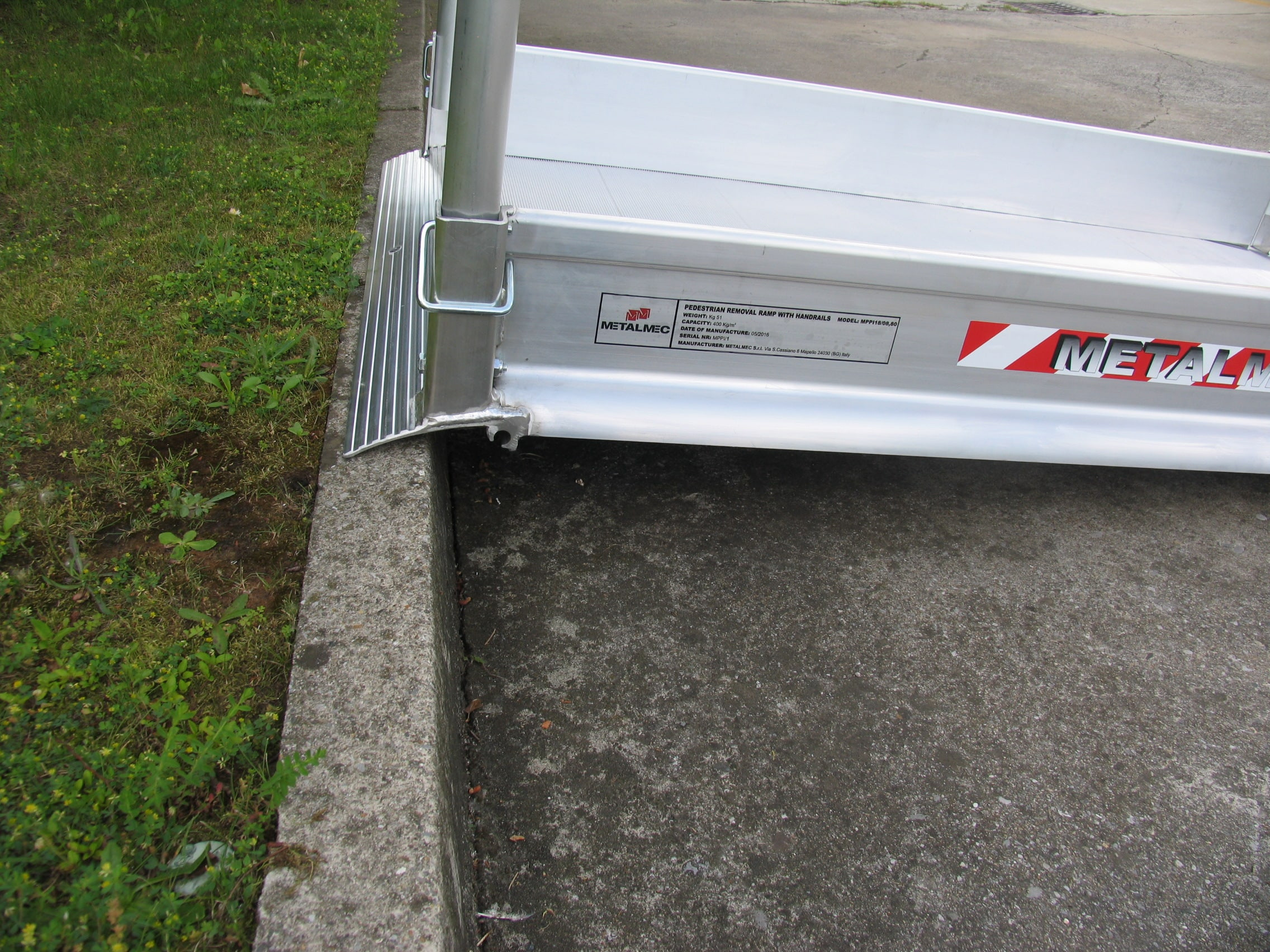

- Foot End allows various heights up to 380mm.
- Suitable for overcoming architectural barriers such as steps, thresholds or kerbs in private or public settings
- Non-slip transit surface
- Maximum Capacity 400kg / sqm

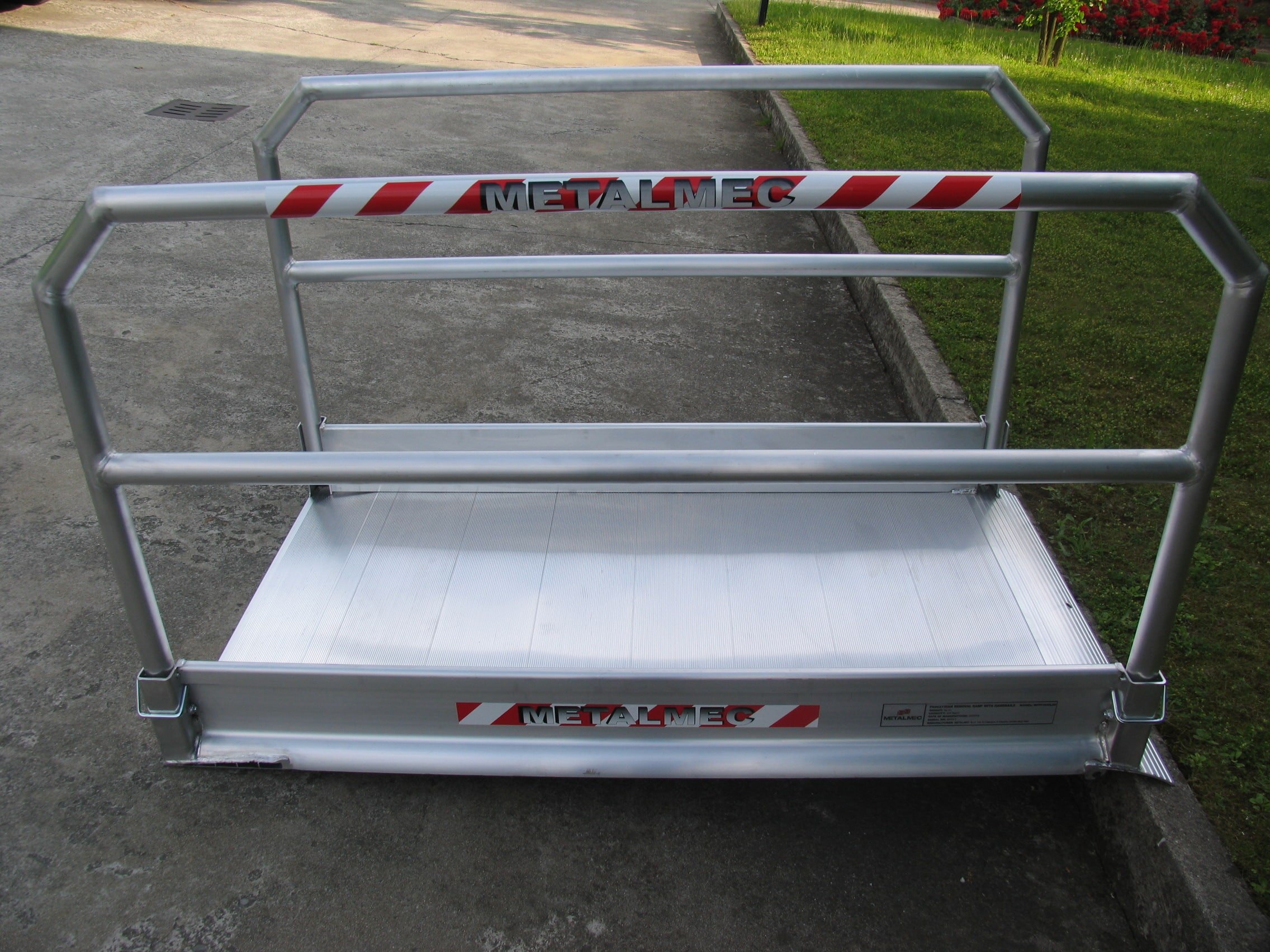

- Ergonomic handrails 1018mm high
For safety remember the following:
- Do not exceed a maximum gradient of 8%
Further usage Guidelines and Safety Information for these ramps can be found here.
|Default Connection||Rest On Connection|
|Edge Height (mm)||200|
|Internal Width (mm)||1000|
|One Year Warranty||Yes|
|Easy to Fit||Yes|
