RollAble Ramp, 660mm Wide

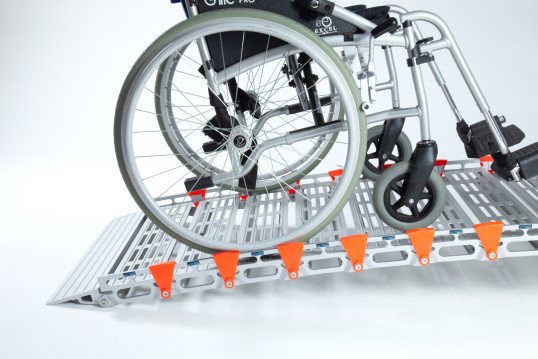

This 660mm wide RollAble Ramp can be used both for commercial and private purposes. Featuring a capacity of 453kg, the portable wheelchair ramp can be used for a variety of purposes, including overcoming steps, kerbs, doorways and thresholds, such as trickly PVC doorways. As a result of its design, it can be used by scooters, wheelchairs, and electric wheelchairs.
The ramp can be rolled for storage and transportation. Where required sections can be removed or added to reduce or increase the wheelchair ramp length. The RollAble ramp is also lightweight and durable, making it perfect for any kind of setup indoors or outdoors. Support stands are included with longer ramp lengths.
Please note support stands are included from 7ft onwards, however these are not always needed until lengths of 11ft, unless loading at a steeper gradient. Legs are fitted by the customer upon arrival.
RollAble Ramps can be built at any length, please contact us if you need the ramps to be 21ft or longer.
RollAble Ramp Features Include:
- RollAble Ramp is flexible and portable
- Roll up ramp is designed for easy storage and transportation. Provided with a black safety strap to keep the ramp rolled during storage
- Lengths from 3ft to any length available
- 453kg capacity
- Smooth access onto and off of the wheelchair ramp
- Anti-slip surface, R13 rating
- High visibility safety edges, 30mm high on each side of the ramp to prevent accidentally wheeling off
- Lightweight for easy handling and compliance with health and safety guidelines
- Suitable for manual wheelchairs, electric wheelchairs, scooters and walkers
- Add/remove sections to amend the ramp length as required, Allen key and spanner provided. Additional sections are available to purchase on our website if you wish to extend the ramp at a later date
- The edges of the ramp offer a cutout design to be used as carry handles when moving the ramp
- Constructed from aluminium
- Suitable for indoor and outdoor use, can be left outside
- Use to overcome steps or use as a bridge to go up and over thresholds
- Use as a temporary portable wheelchair ramp or fix to the step with our fixing plate and screws
- CE marked
- For advice on finding the right ramp length view our wheelchair ramp length calculator or contact or team for advice. Due to the length of the rest on connection we recommend you purchase a ramp length 1ft longer than required
- Not suitable for solid wheels such as those on flight cases
- Not suitable for rubber wheels with a diameter of under 20cm
- Please note some lengths are sent on a pallet with delivery to the kerbside only, if this is not suitable for you please let us know when ordering
- Please note, this product is built to order so non-returnable/refundable
*Support stands are provided for ramps from 7ft and longer and are recommended to be used when loading at 50cm or above. Support stands are adjustable between 47cm - 63cm. Please note the support stands are adjustable between 47cm - 63cm so are usually only used on ramps at 11ft and longer. The support stands are provided with ramps from 7ft - 10ft incase you wish to use the ramp at a steeper gradient, for example, to load empty scooters
The RollAble Ramp user guide can be found here.
RollAble Ramp, 660mm wide
3ft / 91cm
- Length 3ft (914mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 8kg
- Capacity 453kg
- Rolled Diameter 14 inches / 356mm
- Max. load height 100mm
4ft / 121cm
- Length 4ft (1210mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 10.5kg
- Capacity 453kg
- Rolled Diameter 16 inches / 406mm
- Max. load height 150mm
5ft / 152cm
- Length 5ft (1524mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 13kg
- Capacity 453kg
- Rolled Diameter 18 inches / 457mm
- Max. load height 200mm
6ft / 183cm
- Length 6ft (1830mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 16.5kg
- Capacity 453kg
- Rolled Diameter 20 inches / 508mm
- Max. load height 255mm
7ft / 213cm
- Length 7ft (2134mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 19.5kg
- Capacity 453kg
- Rolled Diameter 22 inches / 559mm
- Max. load height 305mm
- Support Stands: Included*
8ft / 244cm
- Length 8ft (2438mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 22kg
- Capacity 453kg
- Rolled Diameter 24 inches / 610mm
- Max. load height 355mm
- Support Stands: Included*
9ft / 274cm
- Length 9ft (2743mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 24.5kg
- Capacity 453kg
- Rolled Diameter 26 inches / 660mm
- Max. load height 405mm
- Support Stands: Included*
10ft / 304cm
- Length 10ft (3040mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 27kg
- Capacity 453kg
- Rolled Diameter 28 inches / 711mm
- Max. load height 455mm
- Support Stands: Included*
11ft / 335cm
- Length 11ft (3350mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 30kg
- Capacity 453kg
- Rolled Diameter 30 inches / 762mm
- Max. load height 510mm
- Support Stands: Included
12ft / 365cm
- Length 12ft (3657mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 32kg
- Capacity 453kg
- Rolled Diameter 32 inches / 813mm
- Max. load height 560mm
- Support Stands: Included
13ft / 396cm
- Length 13ft (3962mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 35kg
- Capacity 453kg
- Rolled Diameter 34 inches / 864mm
- Max. load height 610mm
- Support Stands: Included
14ft / 426cm
- Length 14ft (4267mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 39kg
- Capacity 453kg
- Rolled Diameter 36 inches / 914mm
- Max. load height 660mm
- Support Stands: Included
15ft / 457cm
- Length 15ft (4570mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 41.5kg
- Capacity 453kg
- Rolled Diameter 38 inches / 965mm
- Max. load height 710mm
- Support Stands: Included
16ft / 488cm
- Length 16ft (4877mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 47kg
- Capacity 453kg
- Rolled Diameter 40 inches / 1016mm
- Max. load height 760mm
- Support Stands: Included*
17ft / 518cm
- Length 17ft (5182mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 49.5kg
- Capacity 453kg
- Rolled Diameter 42 inches / 1067mm
- Max. load height 810mm
- Support Stands: Included*
18ft / 549cm
- Length 18ft (5486mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 52kg
- Capacity 453kg
- Rolled Diameter 44 inches / 1118mm
- Max. load height 860mm
- Support Stands: Included*
19ft / 579cm
- Length 19ft (5791mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 54.5kg
- Capacity 453kg
- Rolled Diameter 48 inches / 1219mm
- Max. load height 910mm
- Support Stands: Included*
20ft / 610cm
- Length 20ft (6096mm)
- Internal Width: 640mm
- Outer width: 685mm
- Weight 57kg
- Capacity 453kg
- Rolled Diameter 50 inches / 1270mm
- Max. load height 960mm
- Support Stands: Included*
SKU | TRP-ROLL660 |
---|---|
Capacity (kg) | 453 |
Edge Height (mm) | 30 |
Height (mm) | 75 |
Internal Width (mm) | 640 |
Length (ft) | 3 - 20 |
Outer Ramp Width (mm) | 685 |
Weight (kg) | 7 - 32 |
Width (mm) | 660 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
High Visability | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
Leave Outside | Yes |
