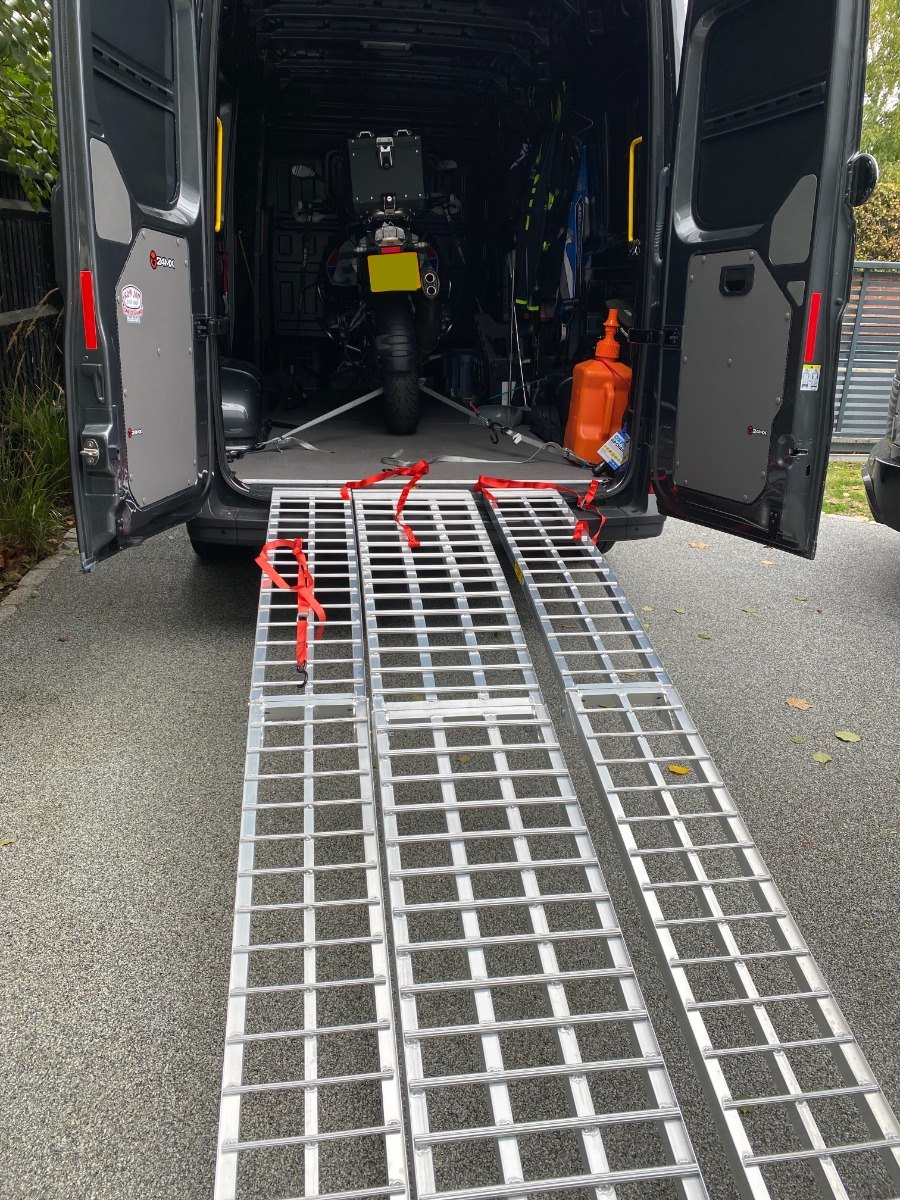

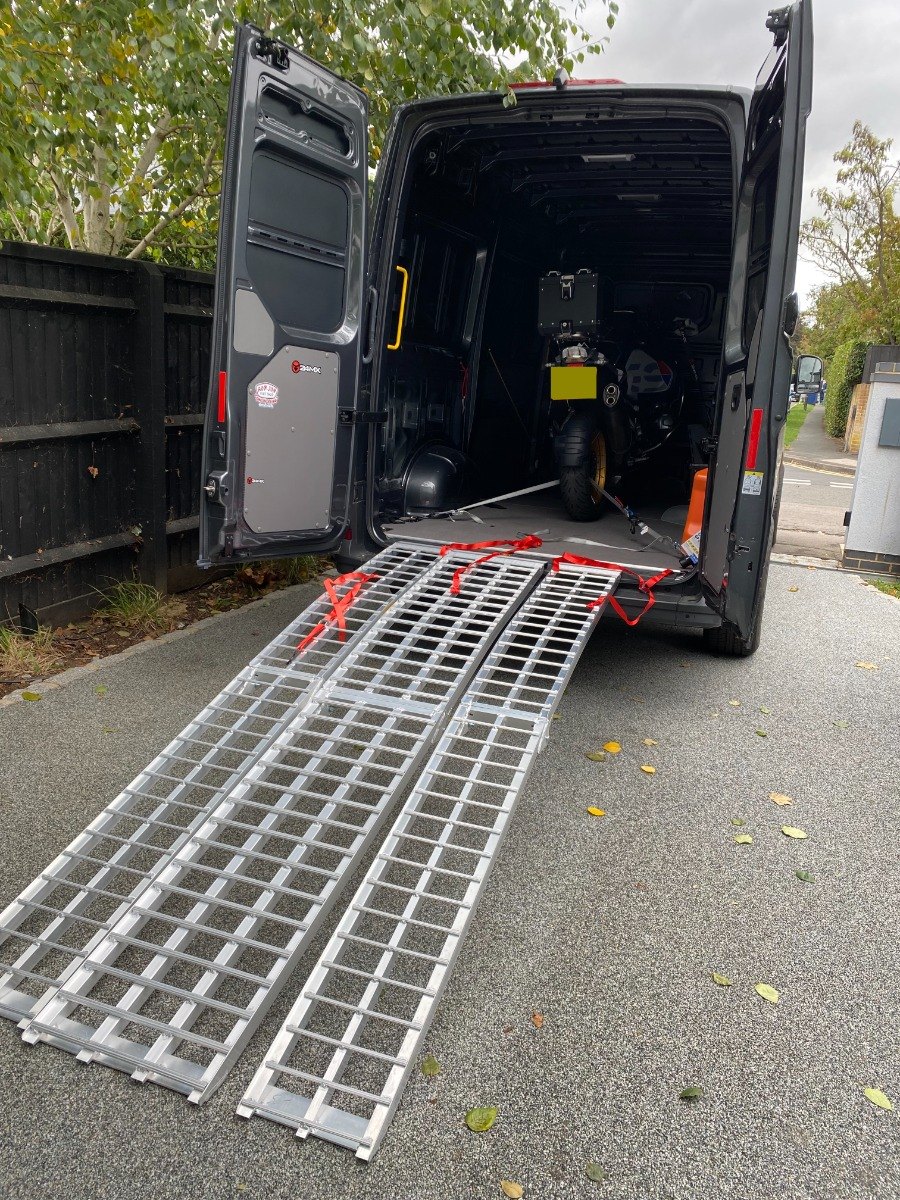

3 part ramp kit for motorbikes - allows you to load a motorbike whilst riding up. Motorbike 3 Ramp kit: 1 central ramp TRP615M XL and a pair of TRP615S XL outer ramps. The middle ramp has a maximum capacity of 680kg for the bike itself, the outer sections have a maximum capacity across the pair of 545kg for the person who is pushing the bike up the ramps.

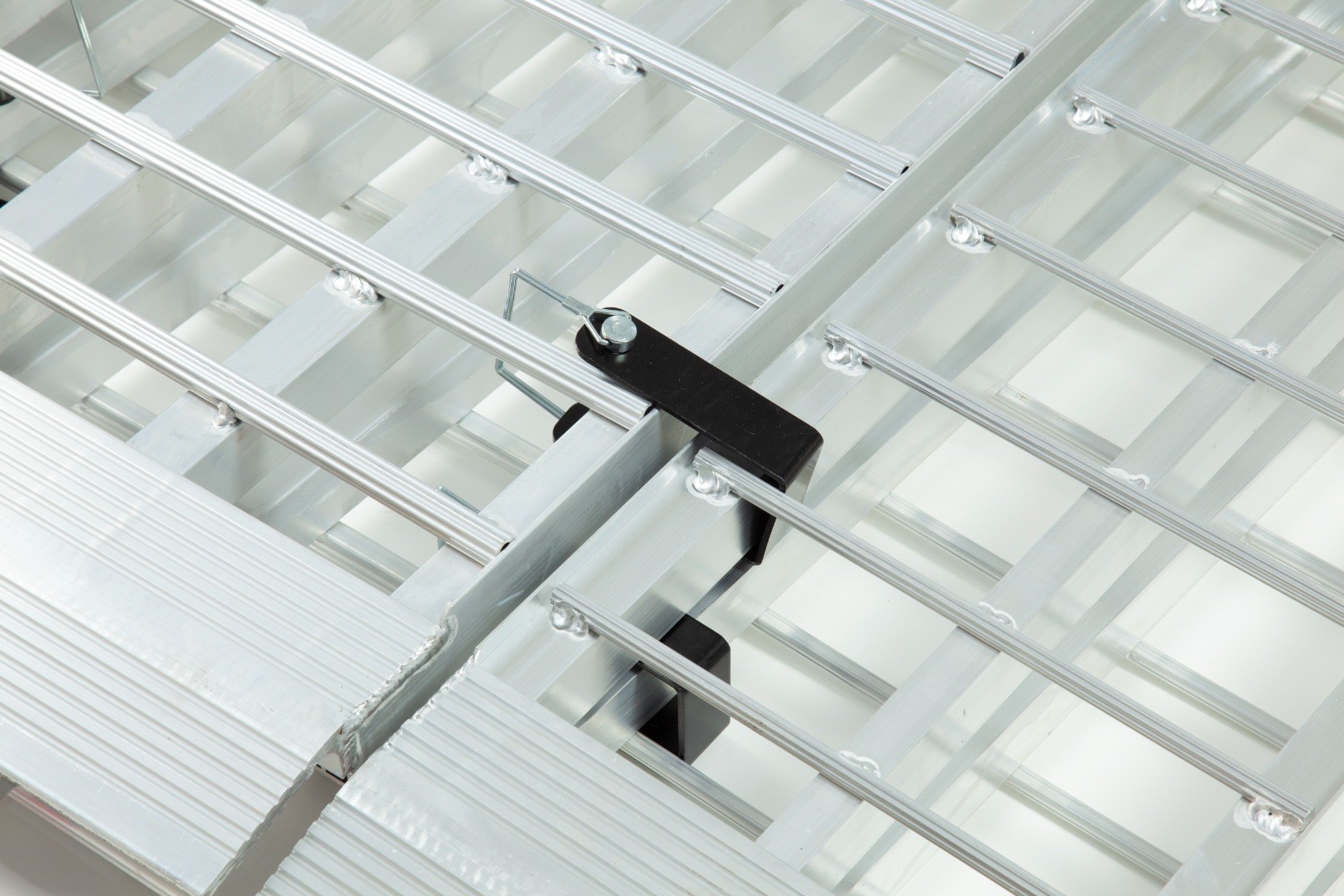

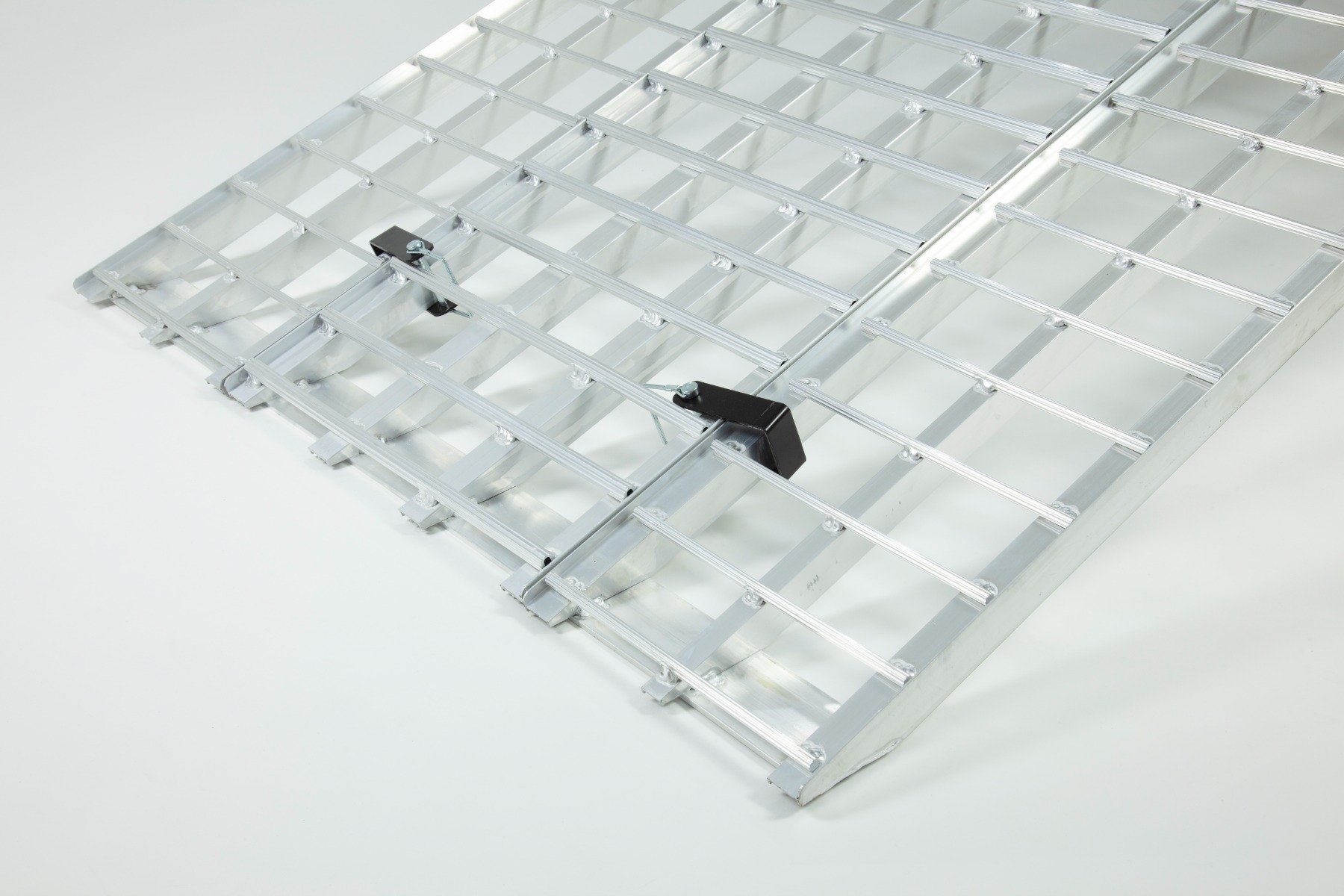

While the standard ramp kit includes safety straps to connect the ramp to the vehicle while loading, you can also add an additional level of security and save time by using the U-shaped joining brackets to lock the ramp with this attaching system which is sold separately, please click here
Please note, these ramps are not suitable for commercial/Industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. for any of this use we would recommend a solution from our professional range.
The Extra Wide Motorcycle Ramp Kit XL, 2750mm long
Length (mm)
2750
Total Width (mm)
1000
Max Load Height (mm)
835
Weight (kg)
38
Capacity (kg)
540-680
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.

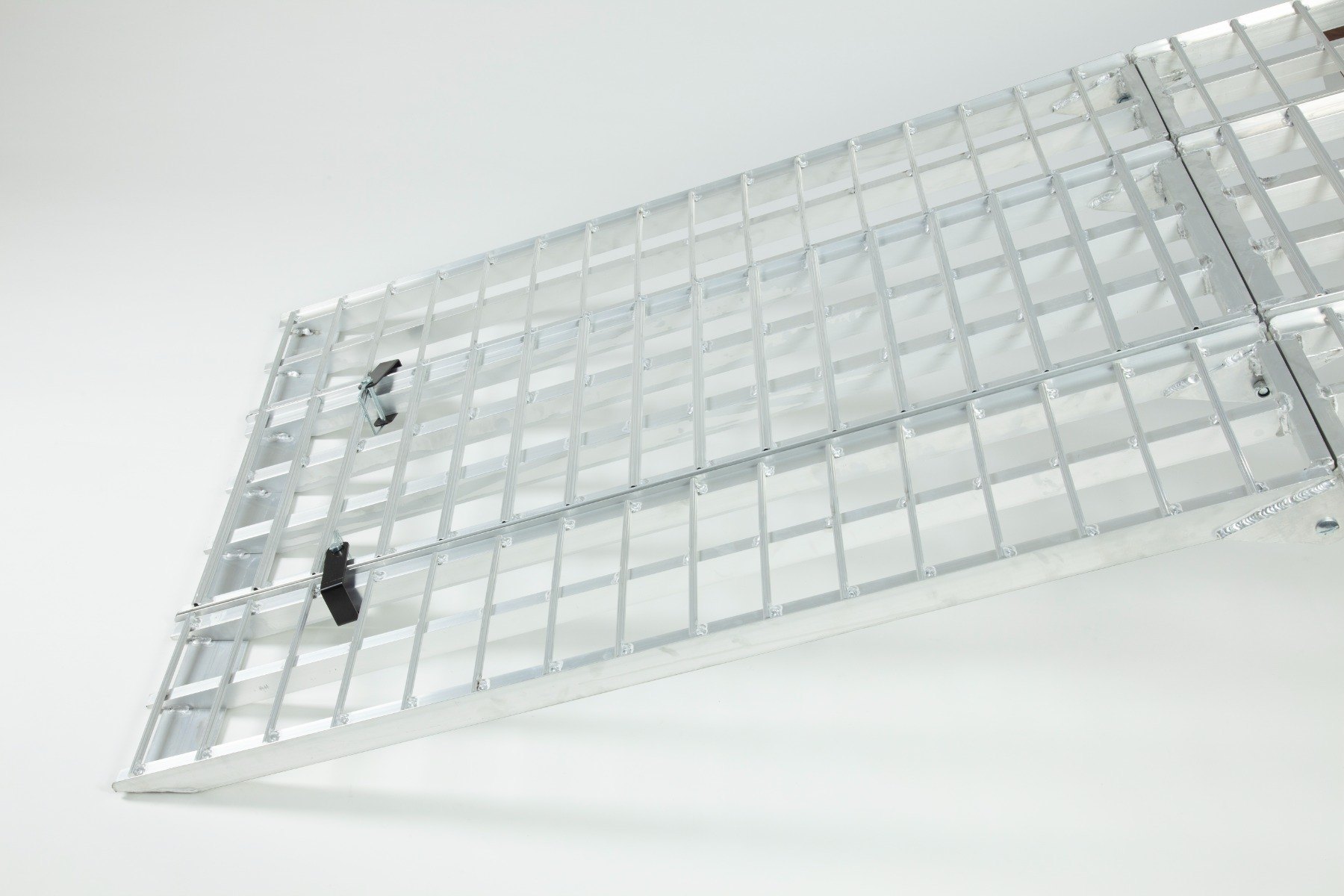

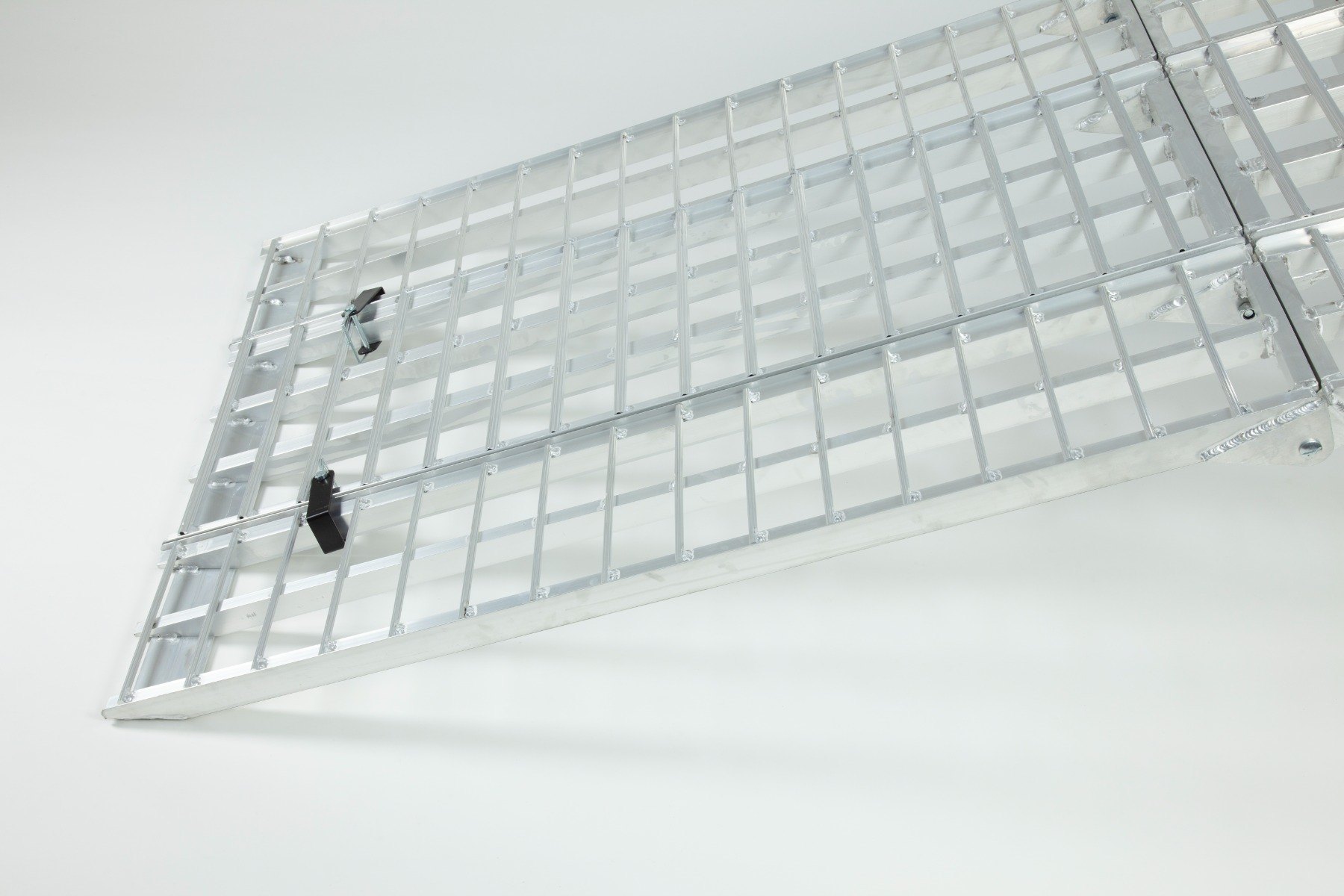

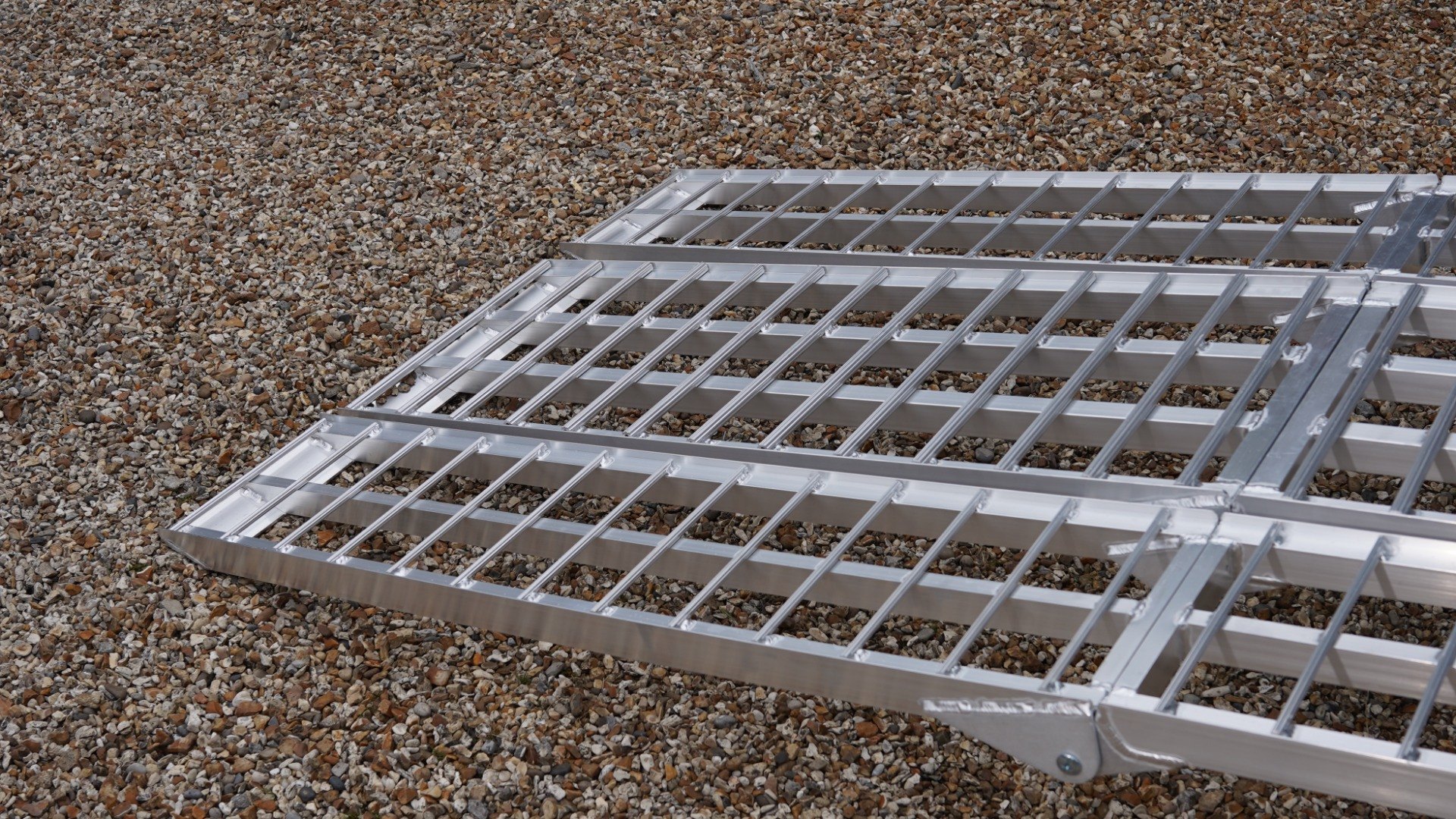

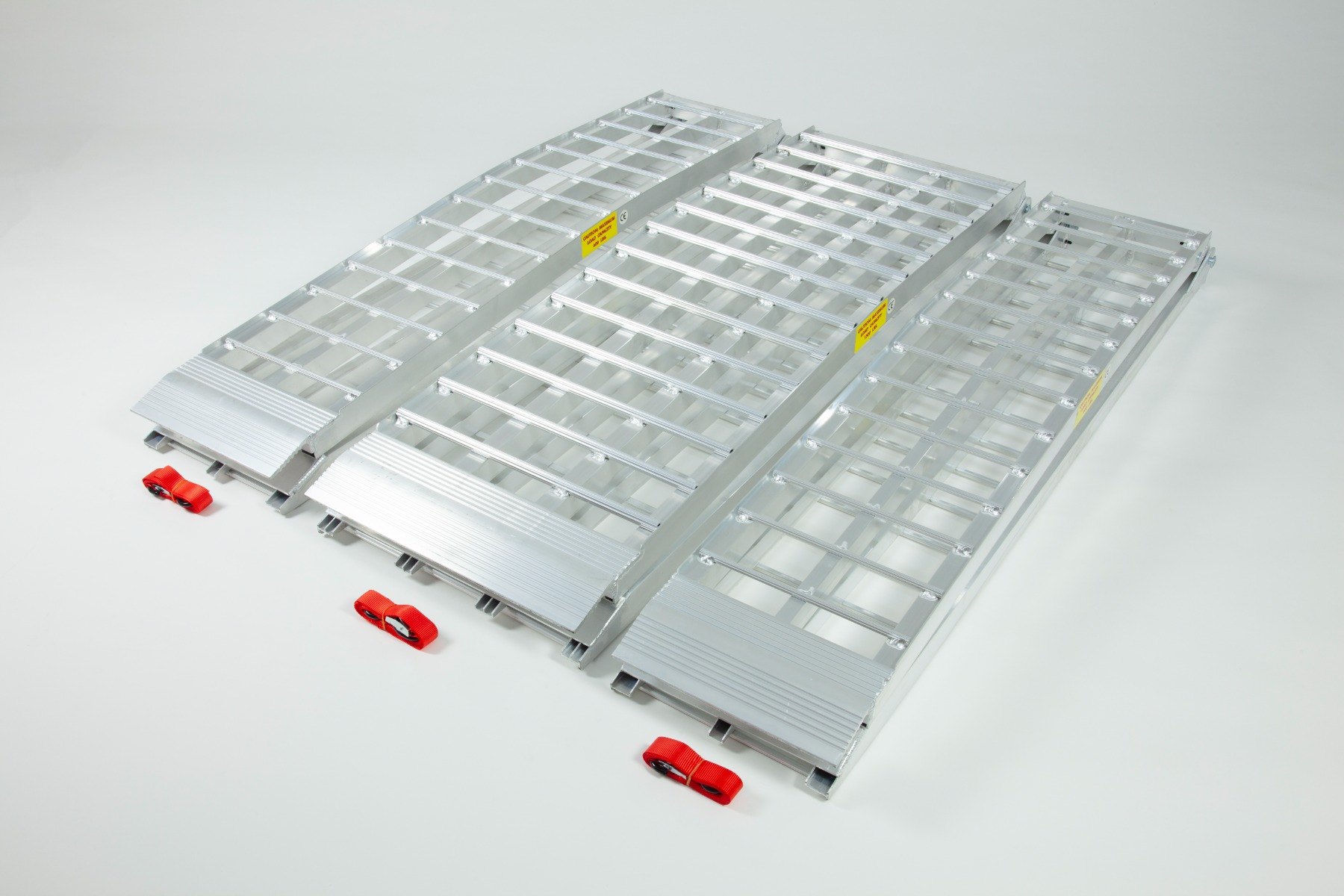

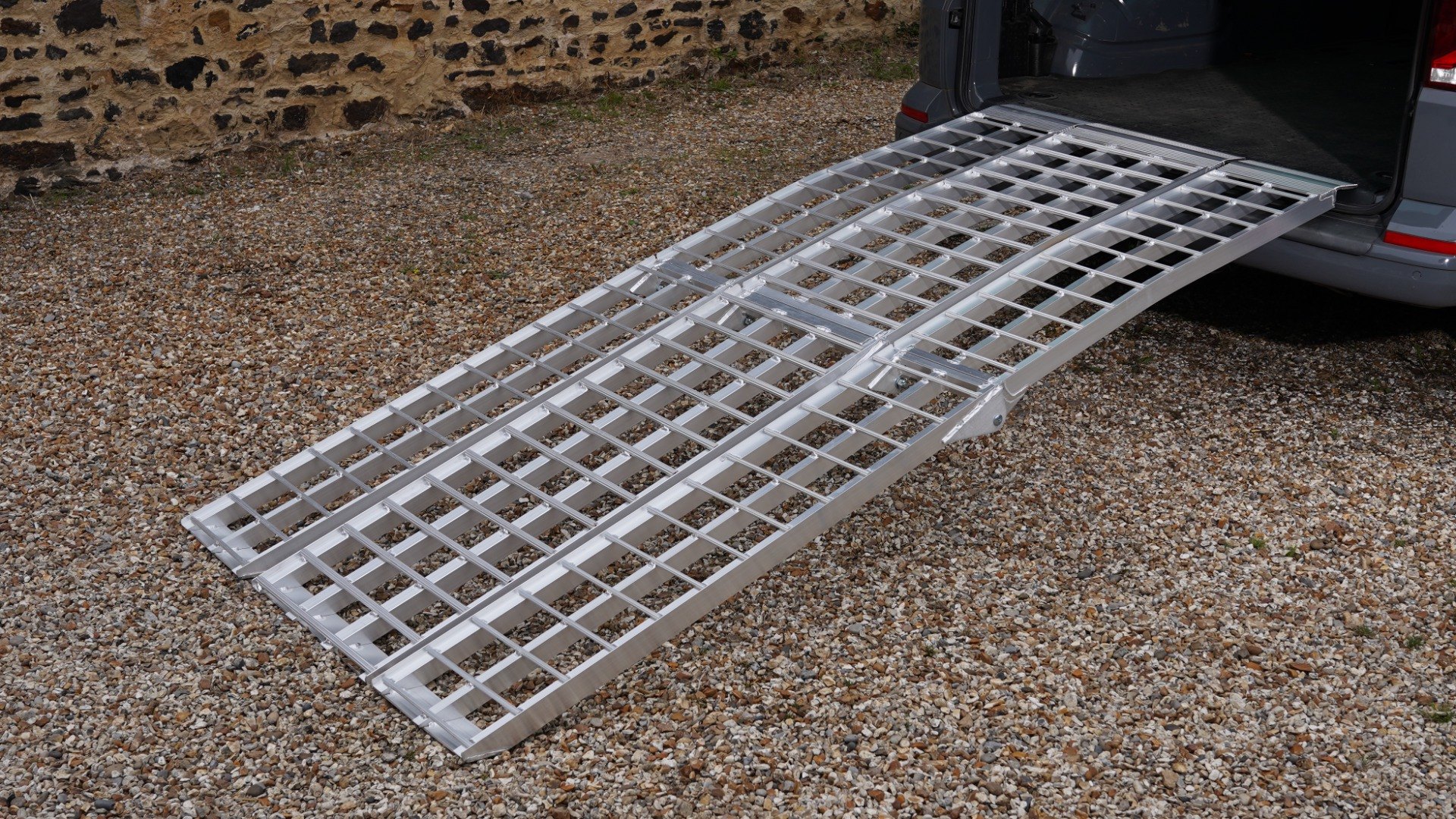

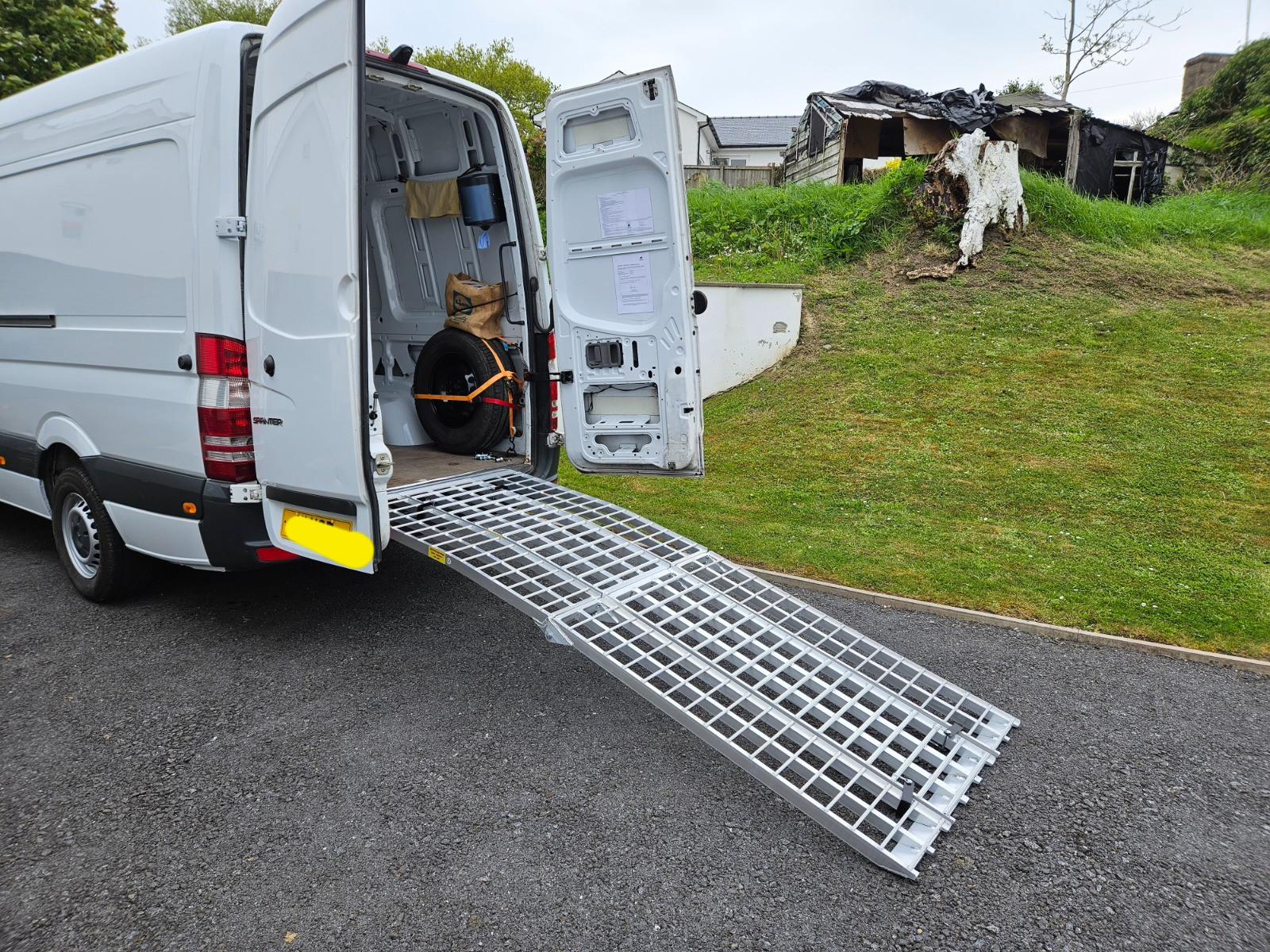

This kit is for all three ramps shown in the photo on the left: 1 central ramp TRP615M XL and a pair of TRP615P outer ramps. Please note capacity shown is the combined capacity of all 3 ramps. If you are in any doubt, please contact us.
New Extra Wide Mk III design; even stronger and more durable than its predecessor. Superior build quality for a superior motorcycle ramp.
The middle ramp has a maximum capacity of 680kg for the bike itself, the outer sections have a maximum capacity across the pair of 545kg for the person who is pushing the bike up the ramps.

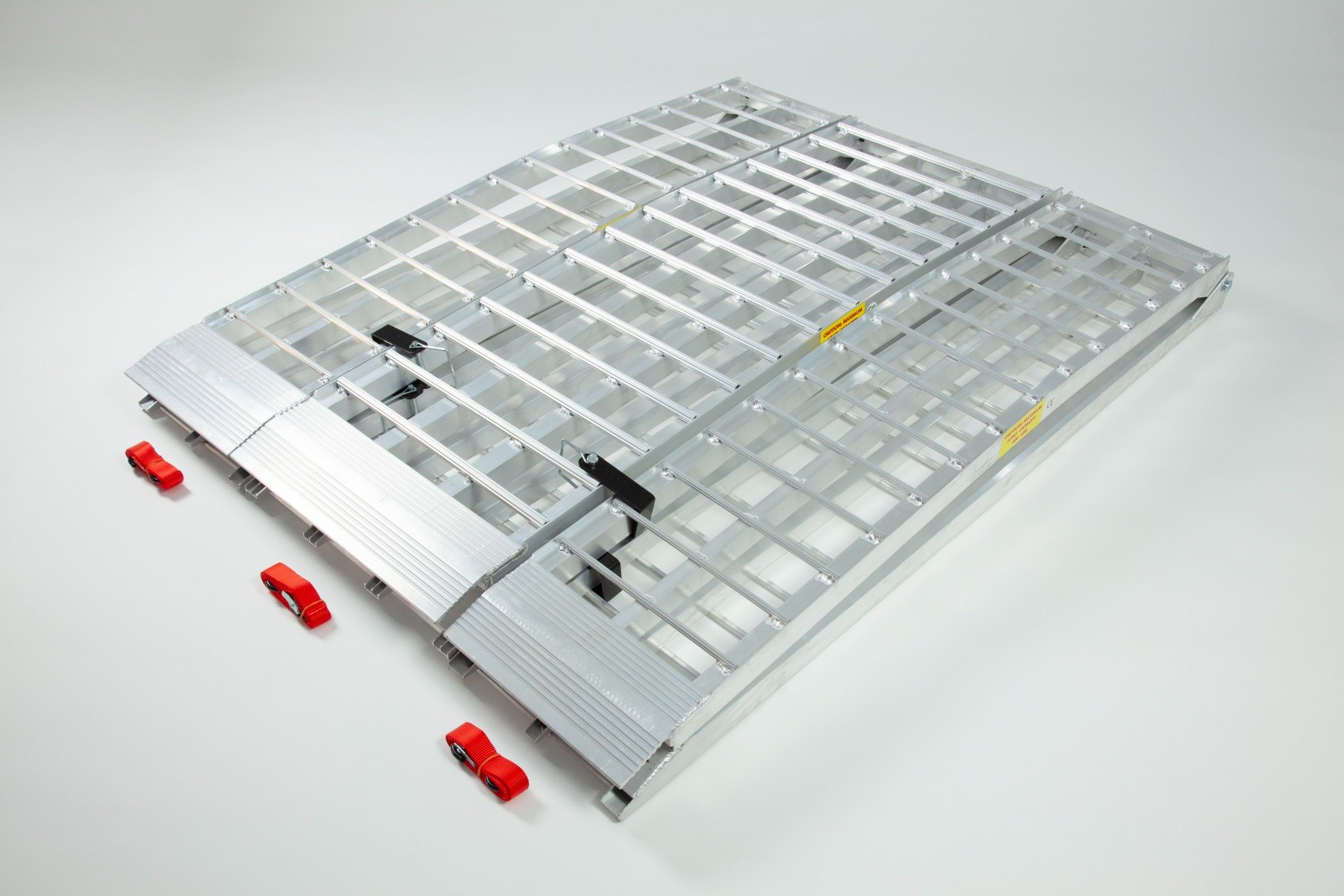

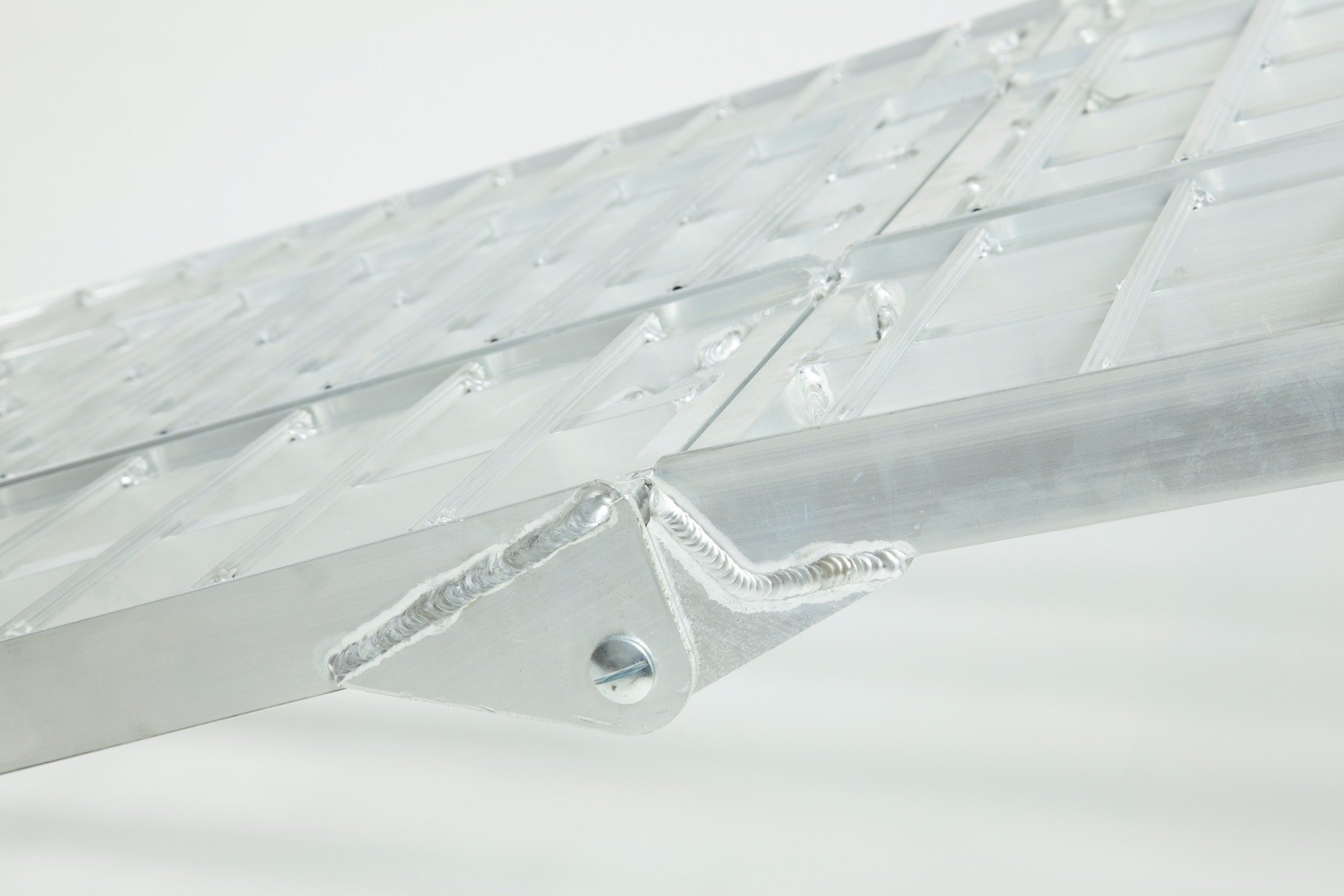

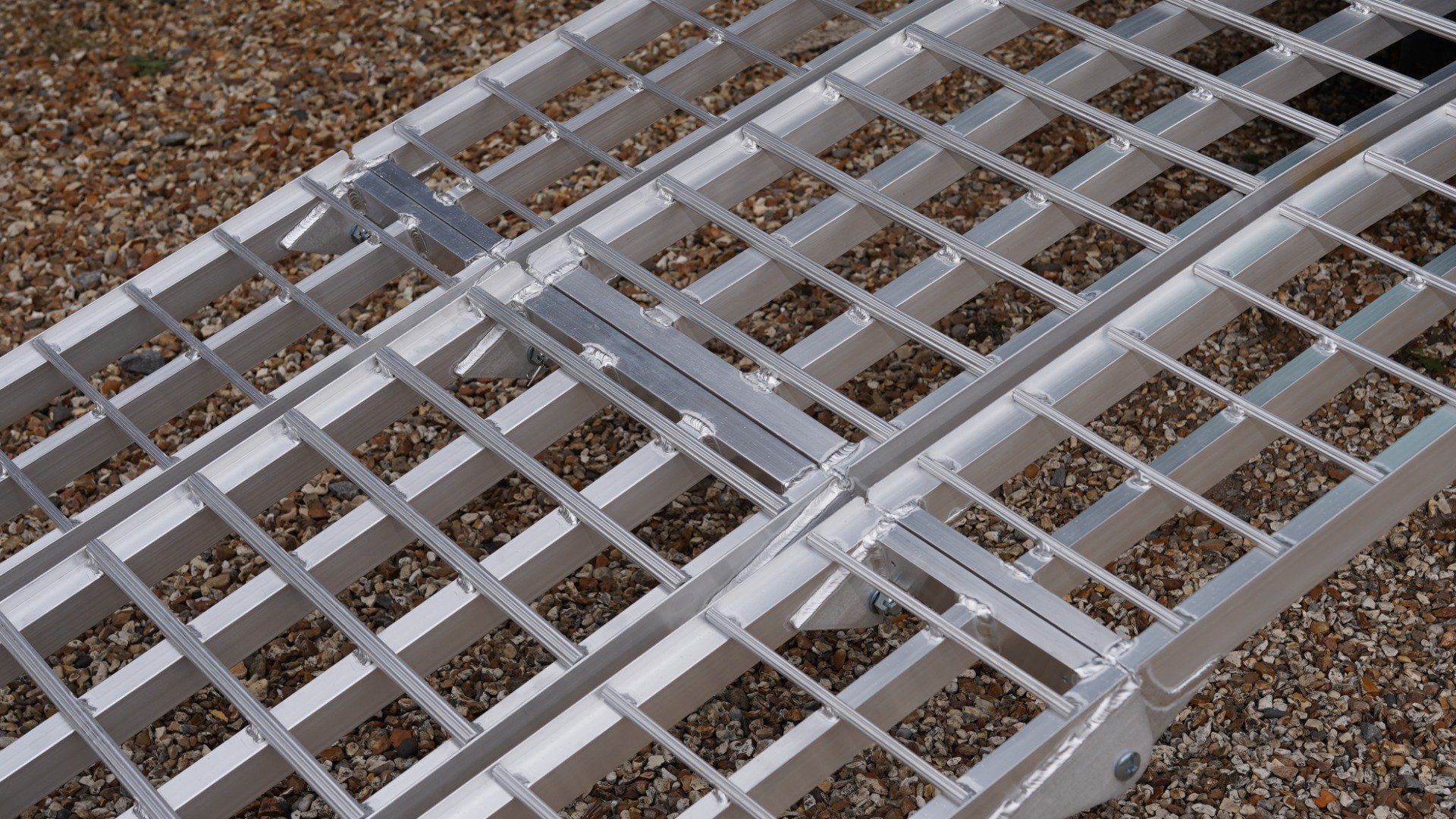

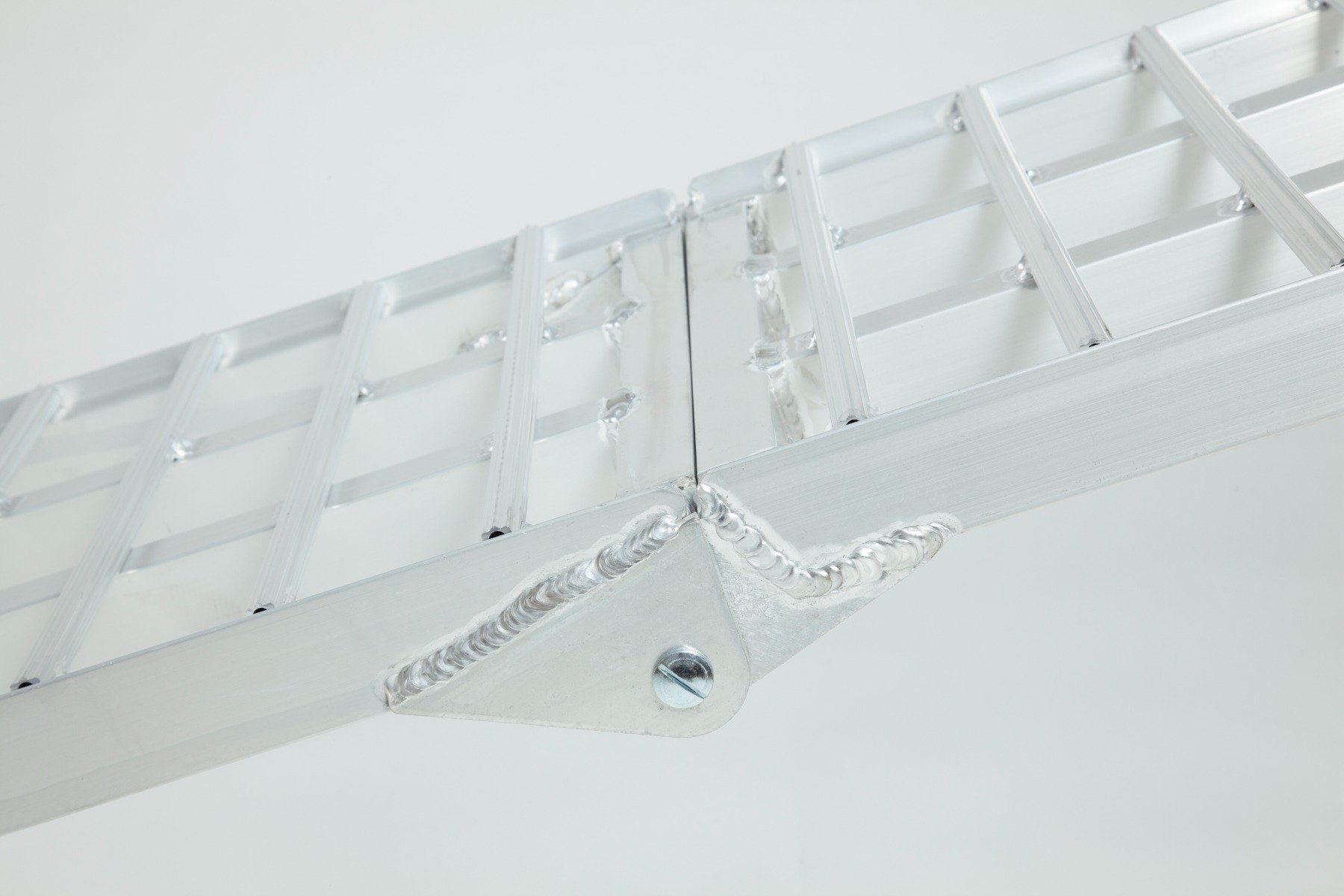

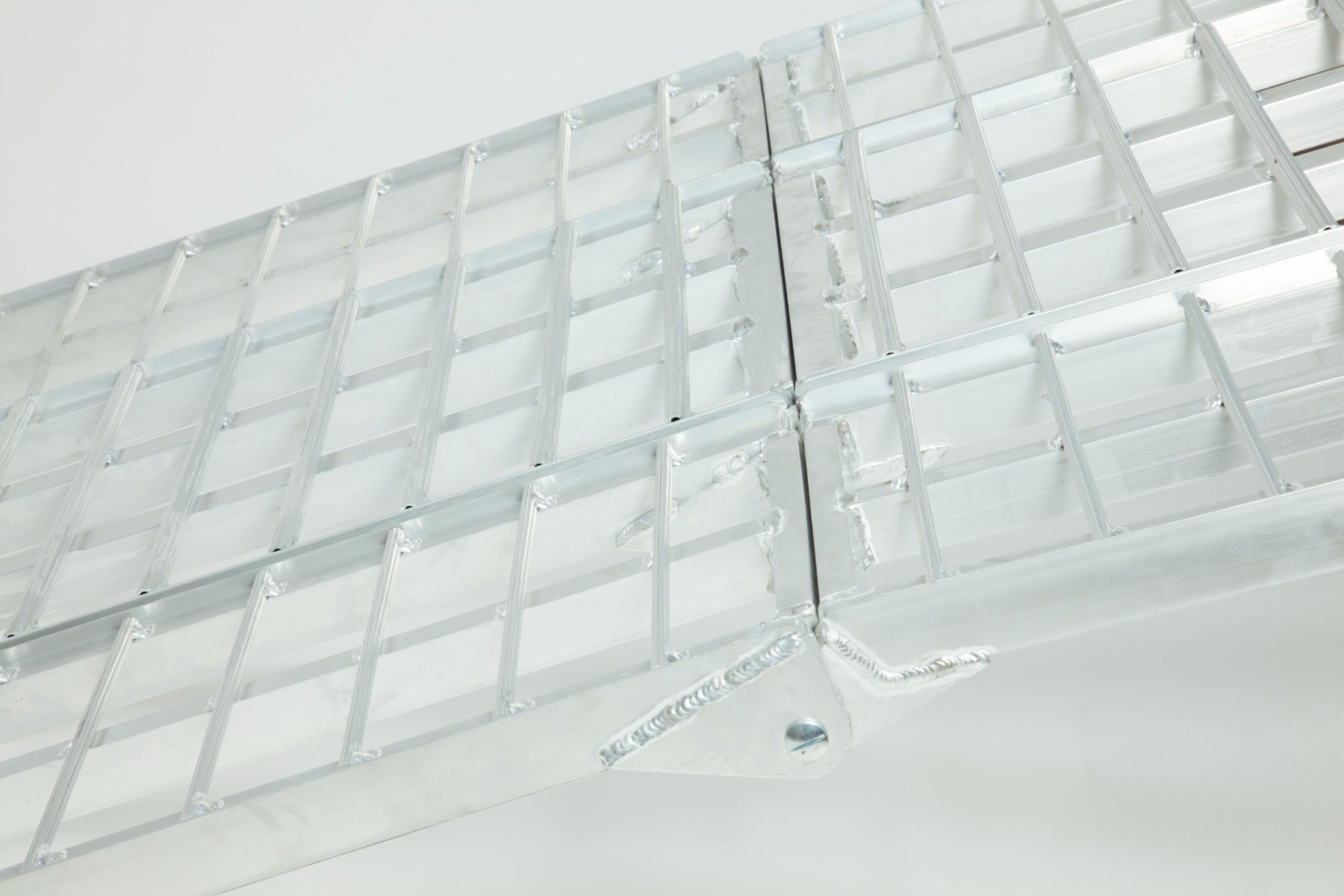

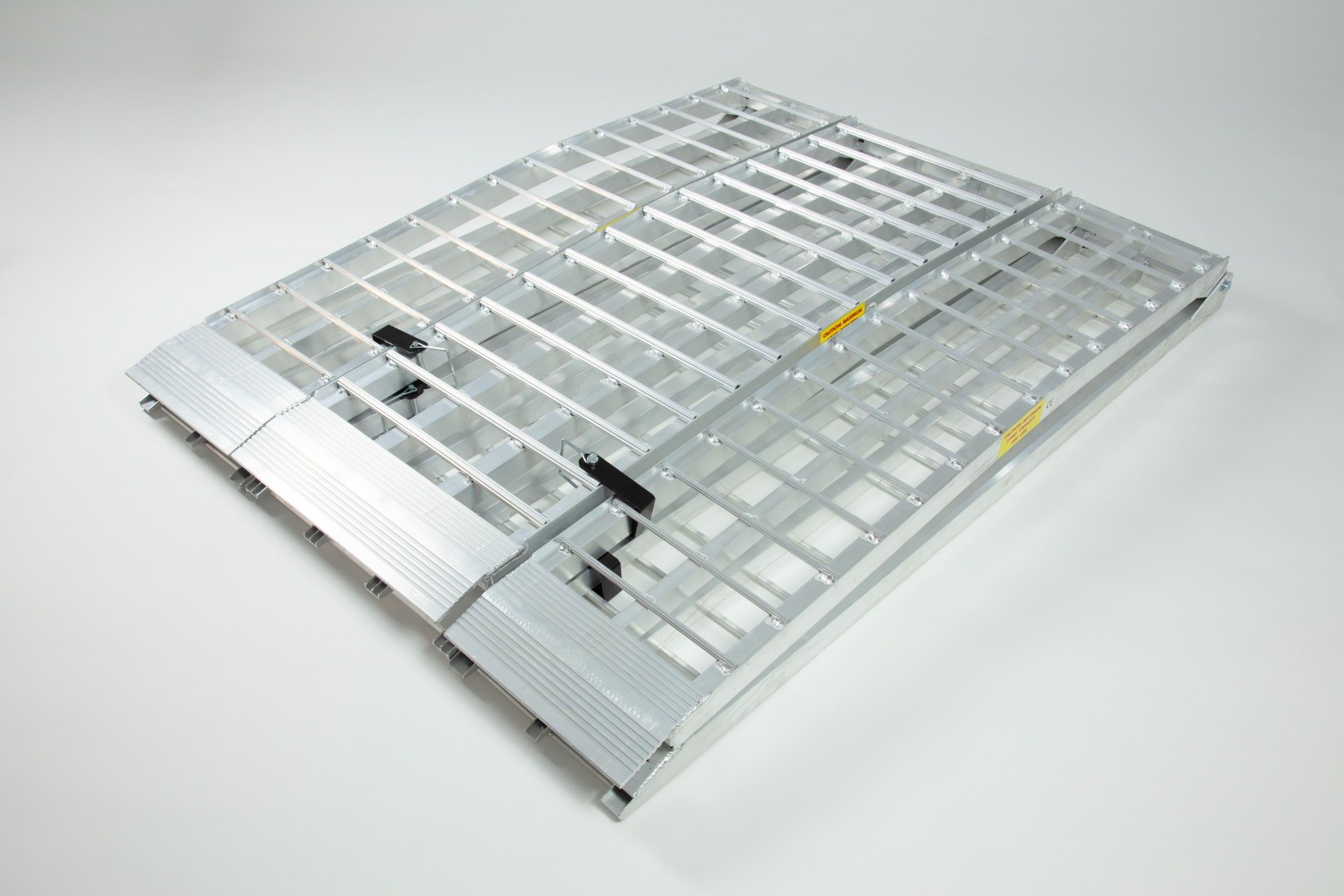

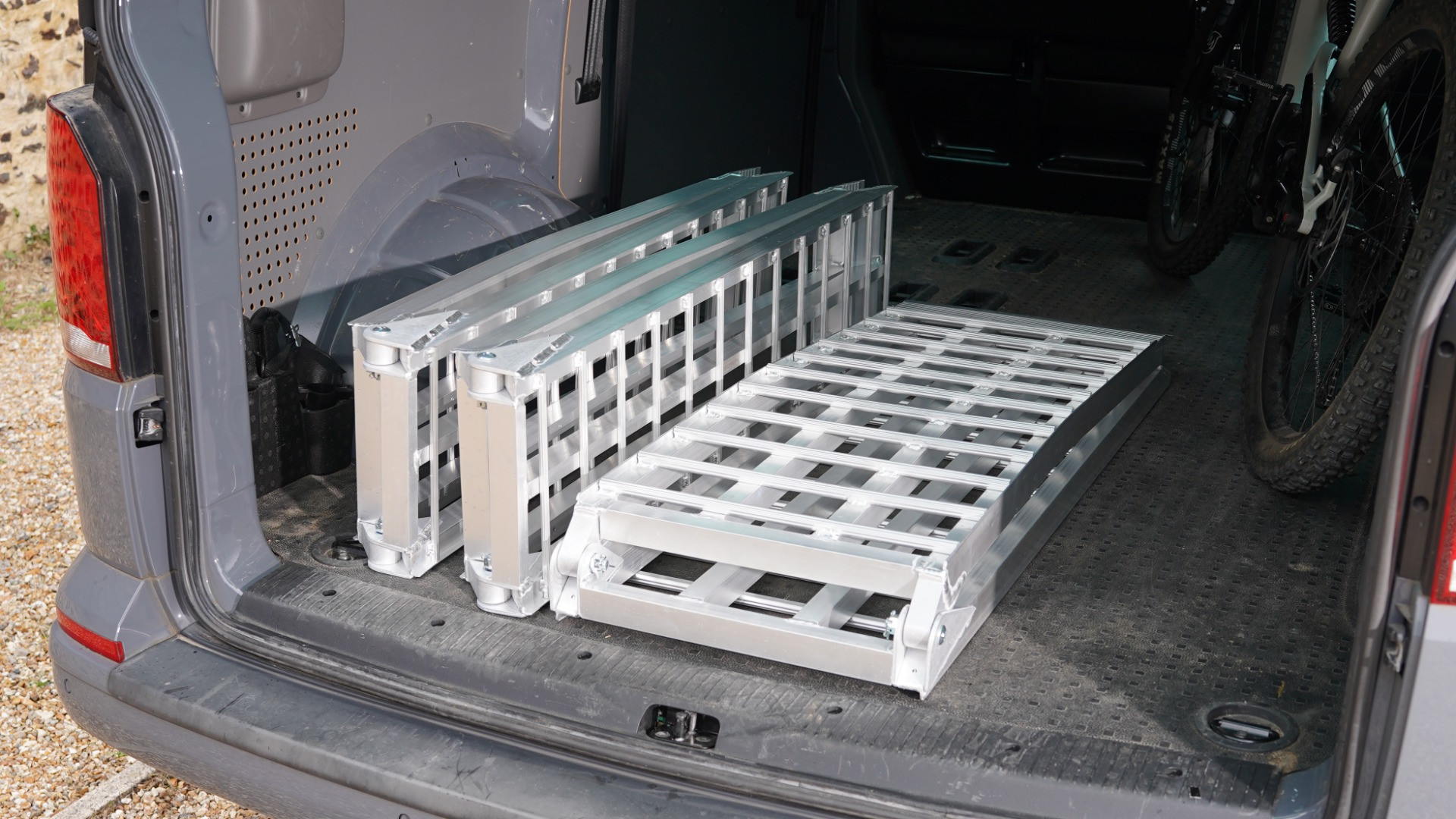

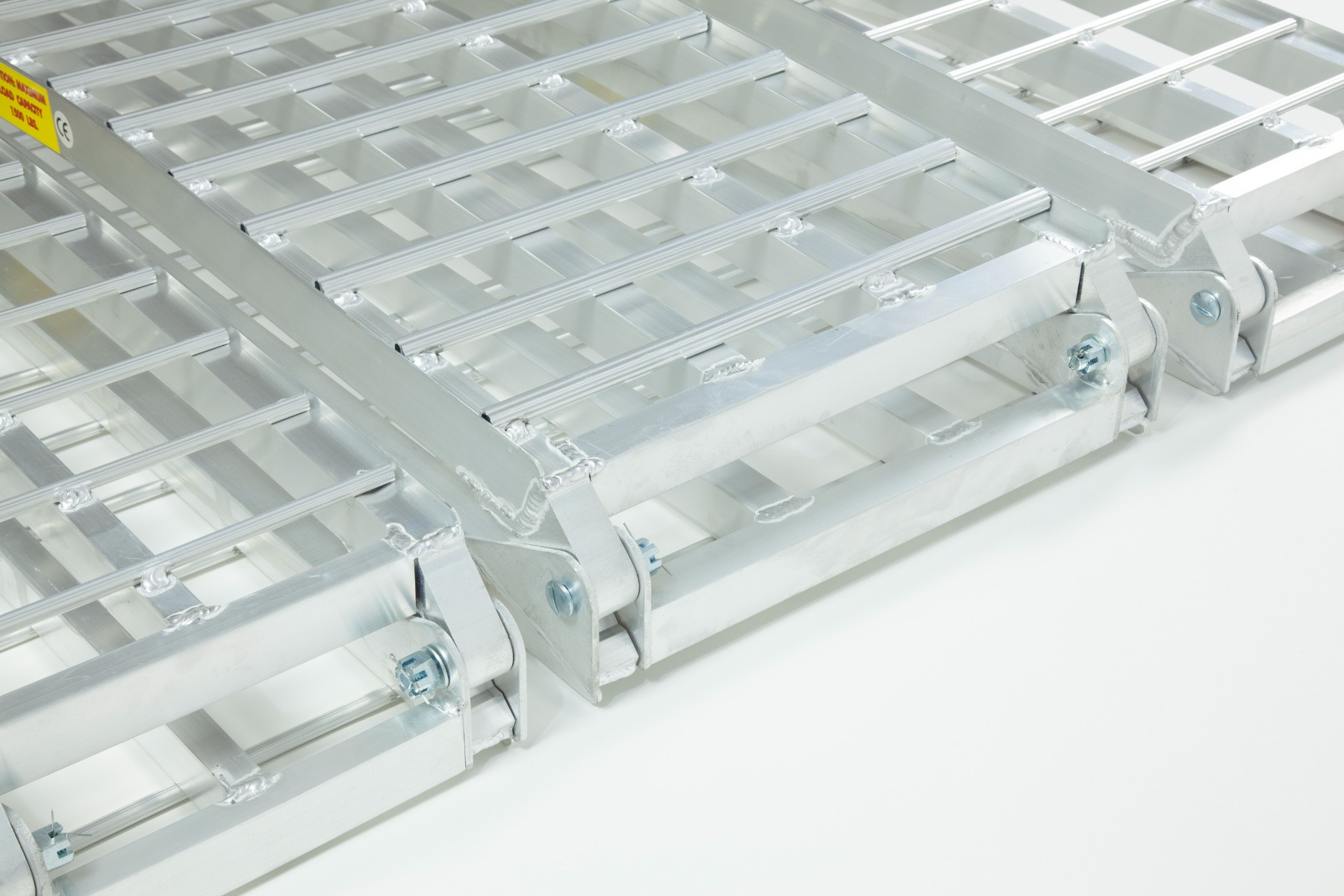

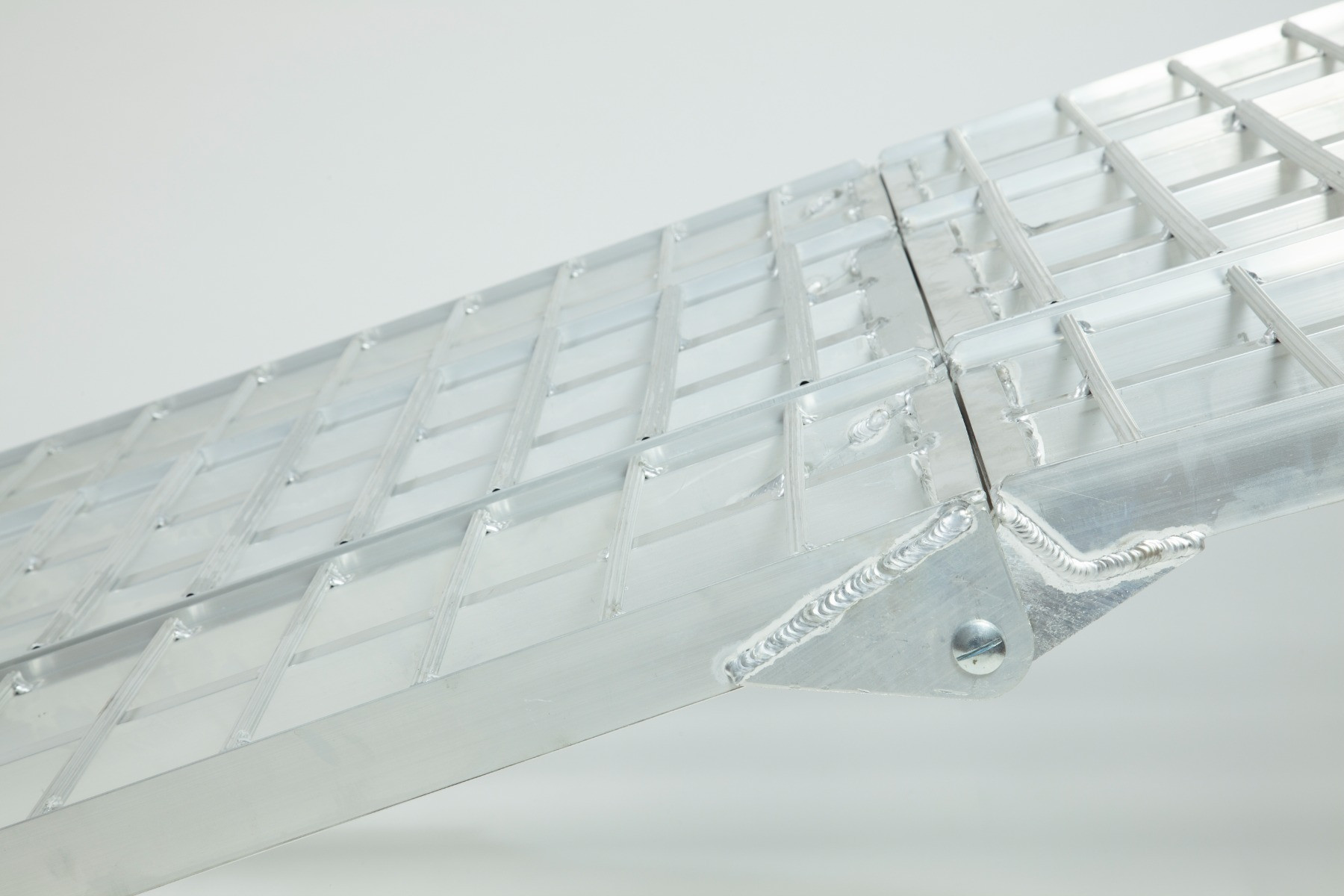

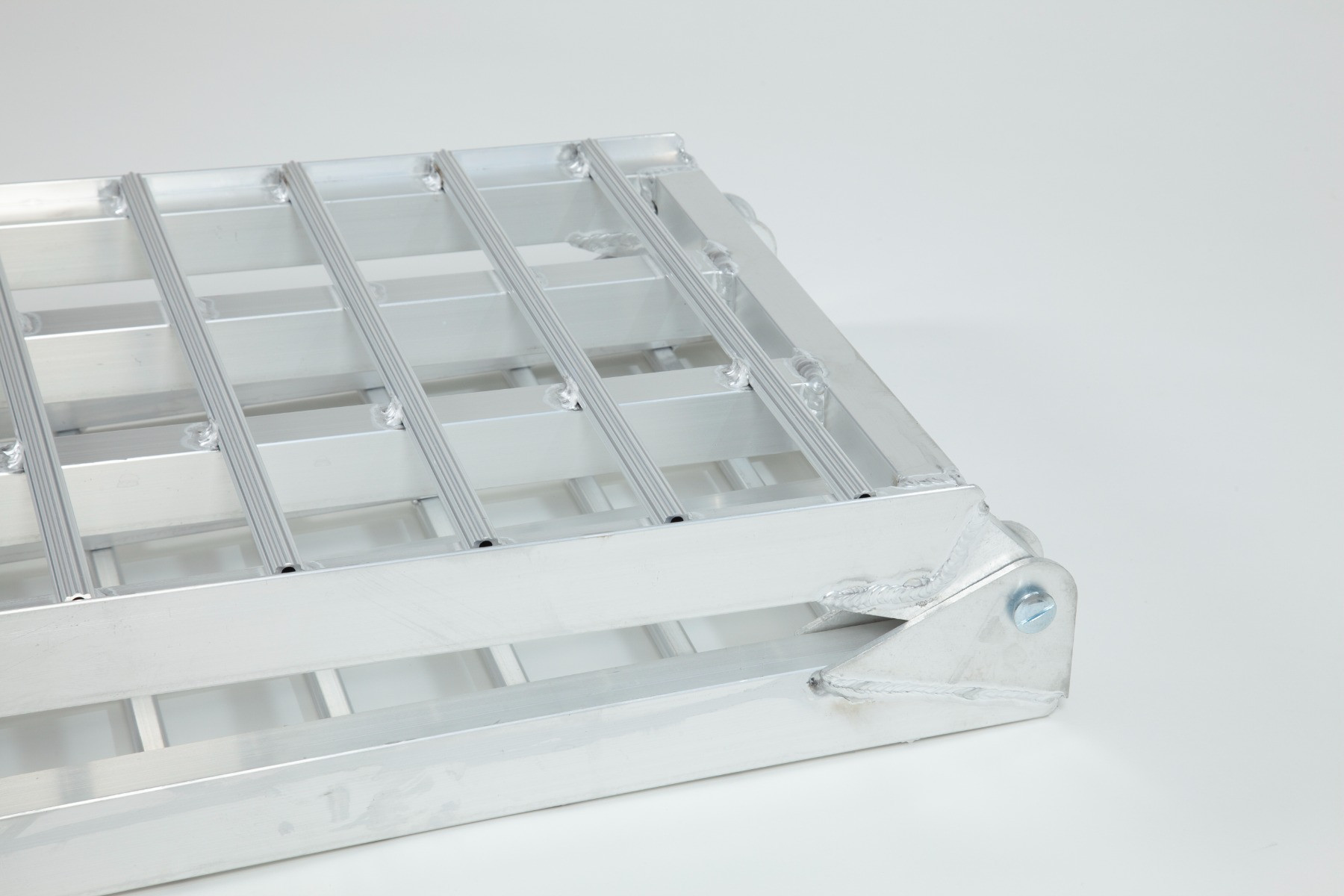

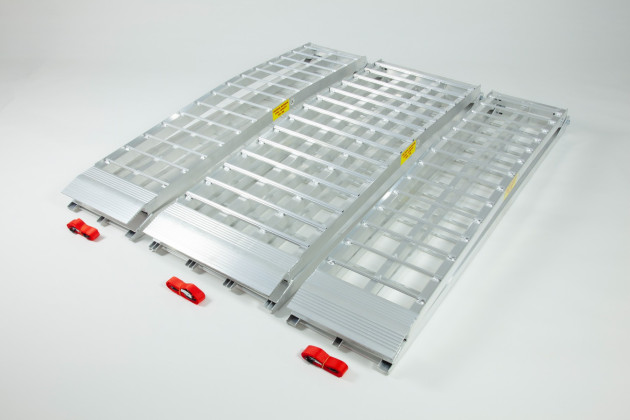

Folds in half for quick storage

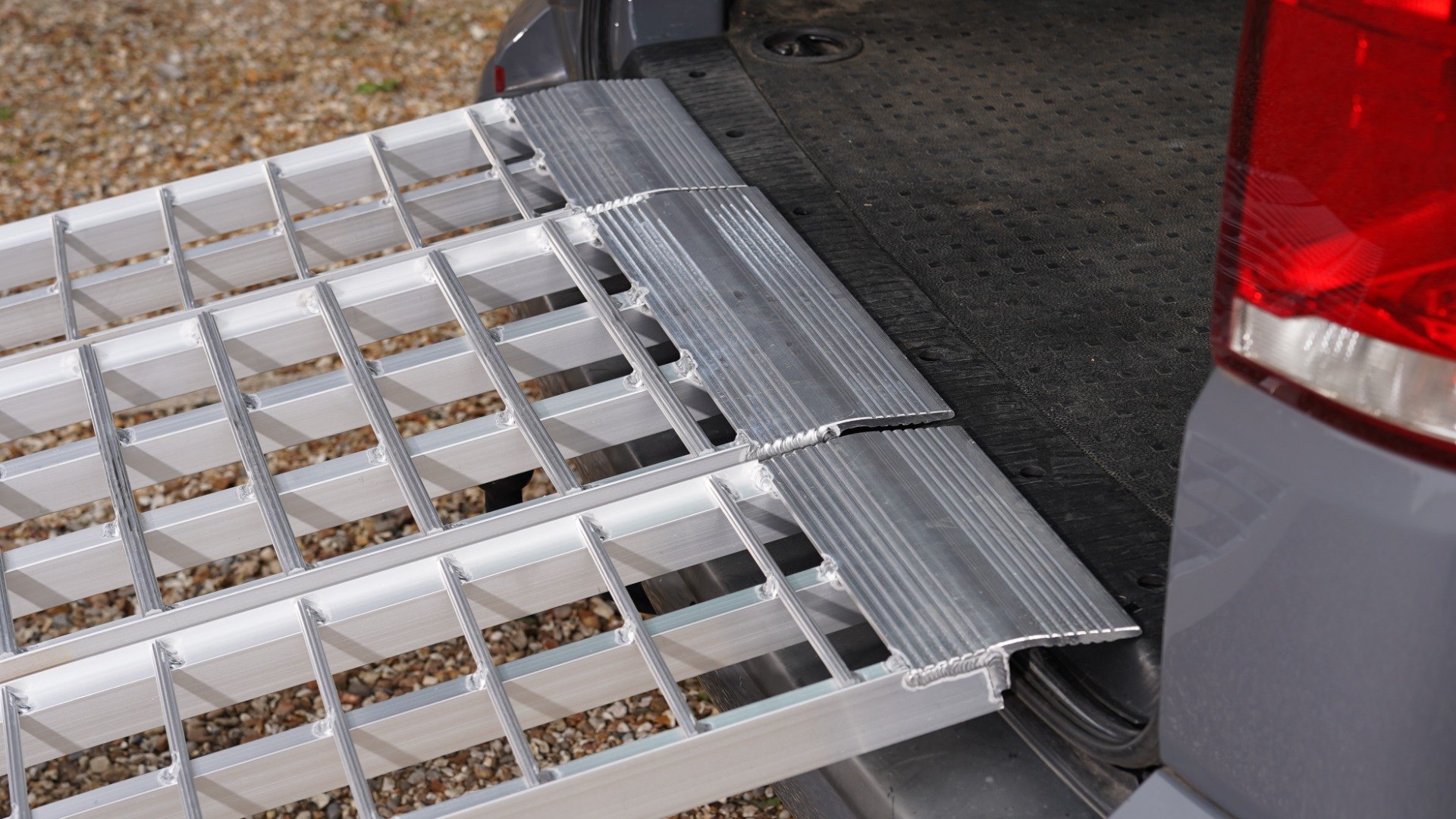

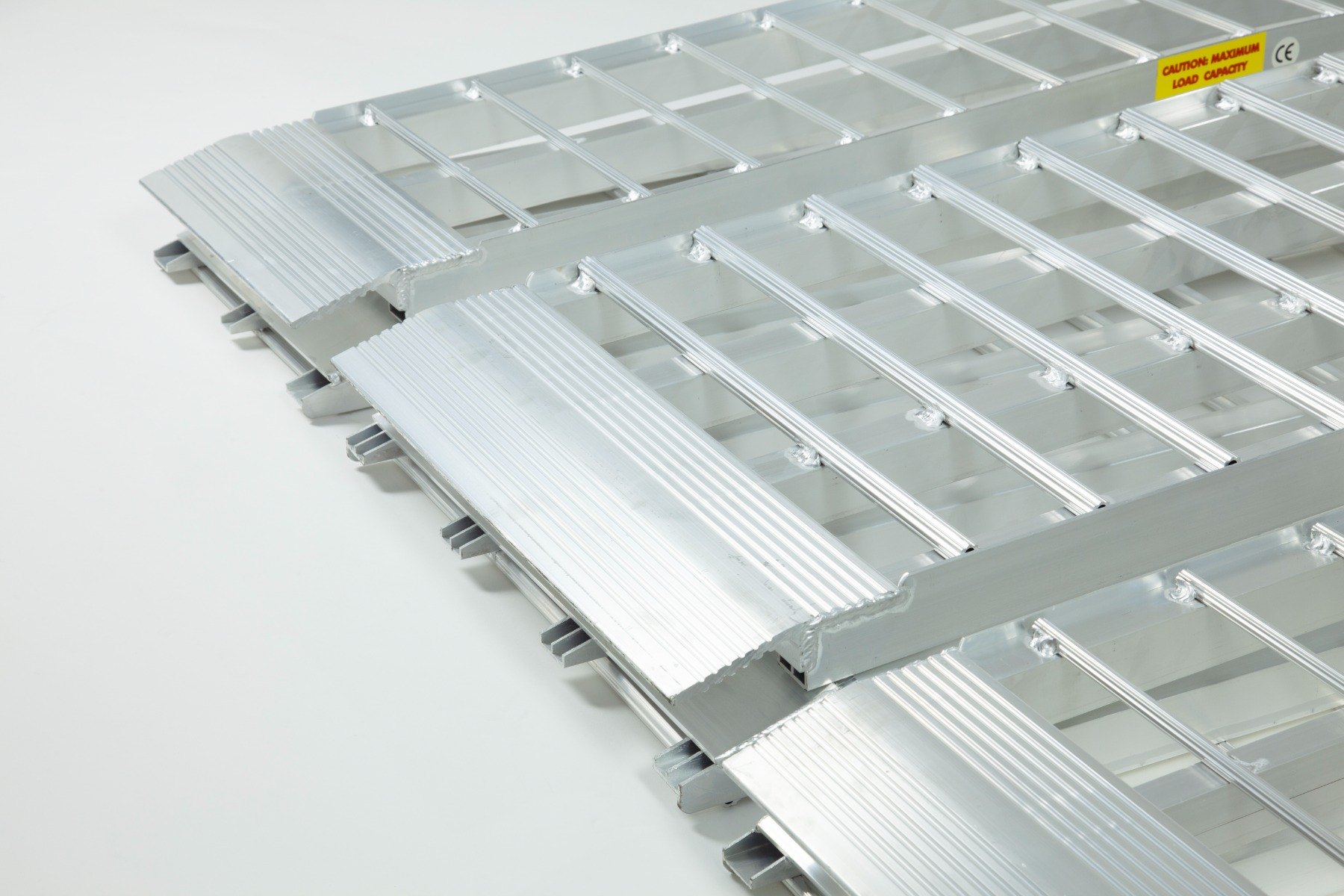

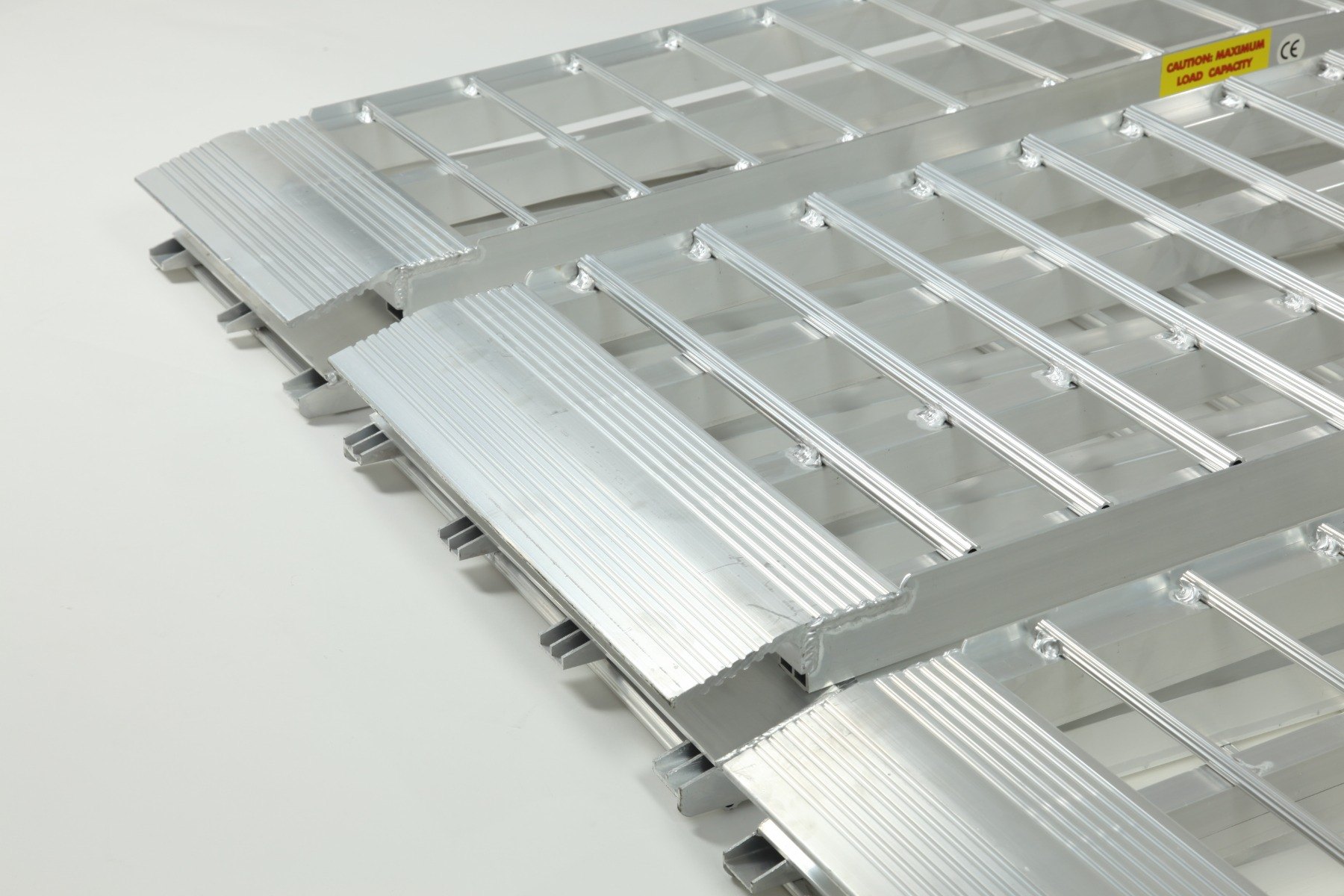

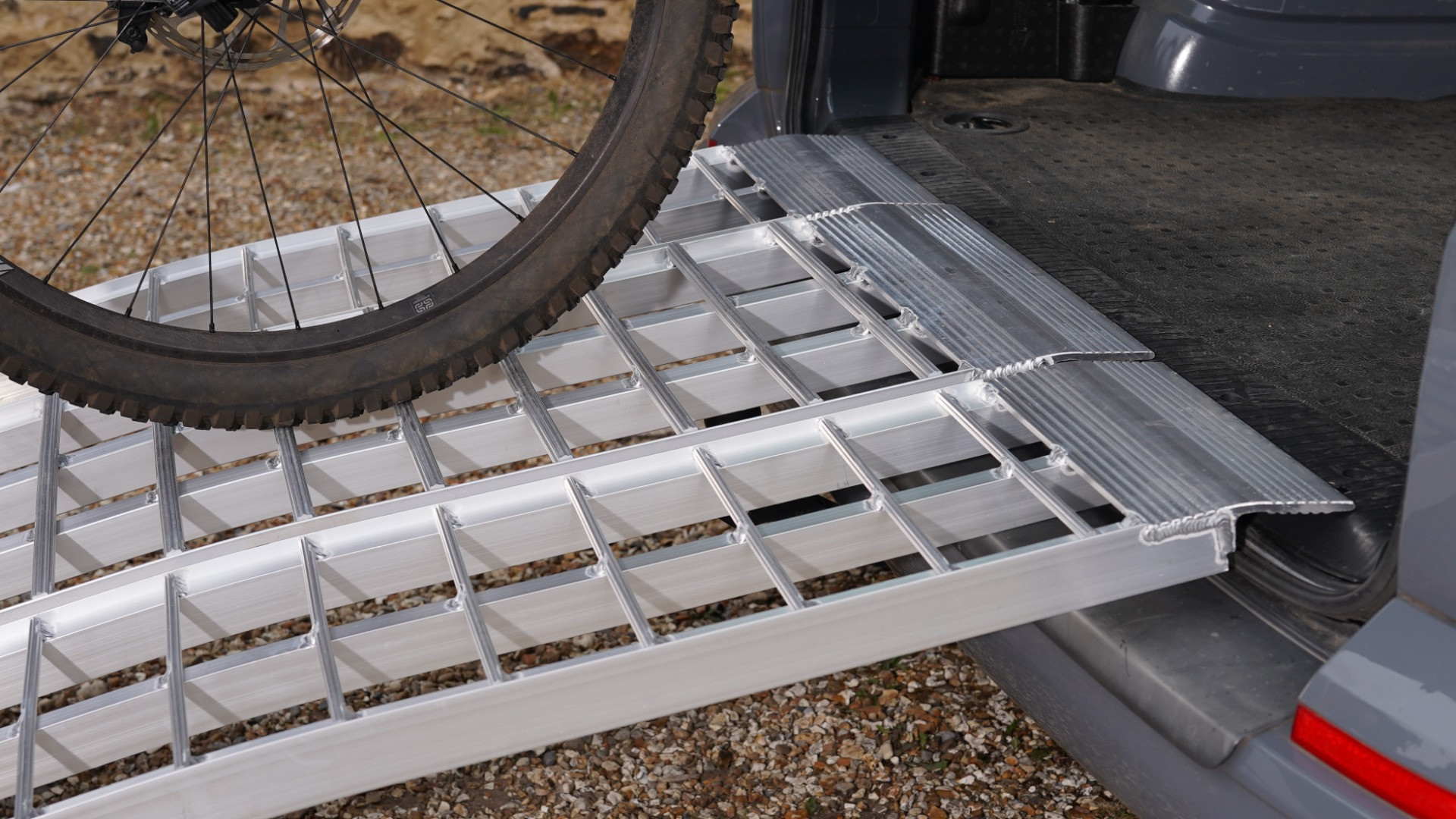

Solid plate style lip rest for grip on tailgate

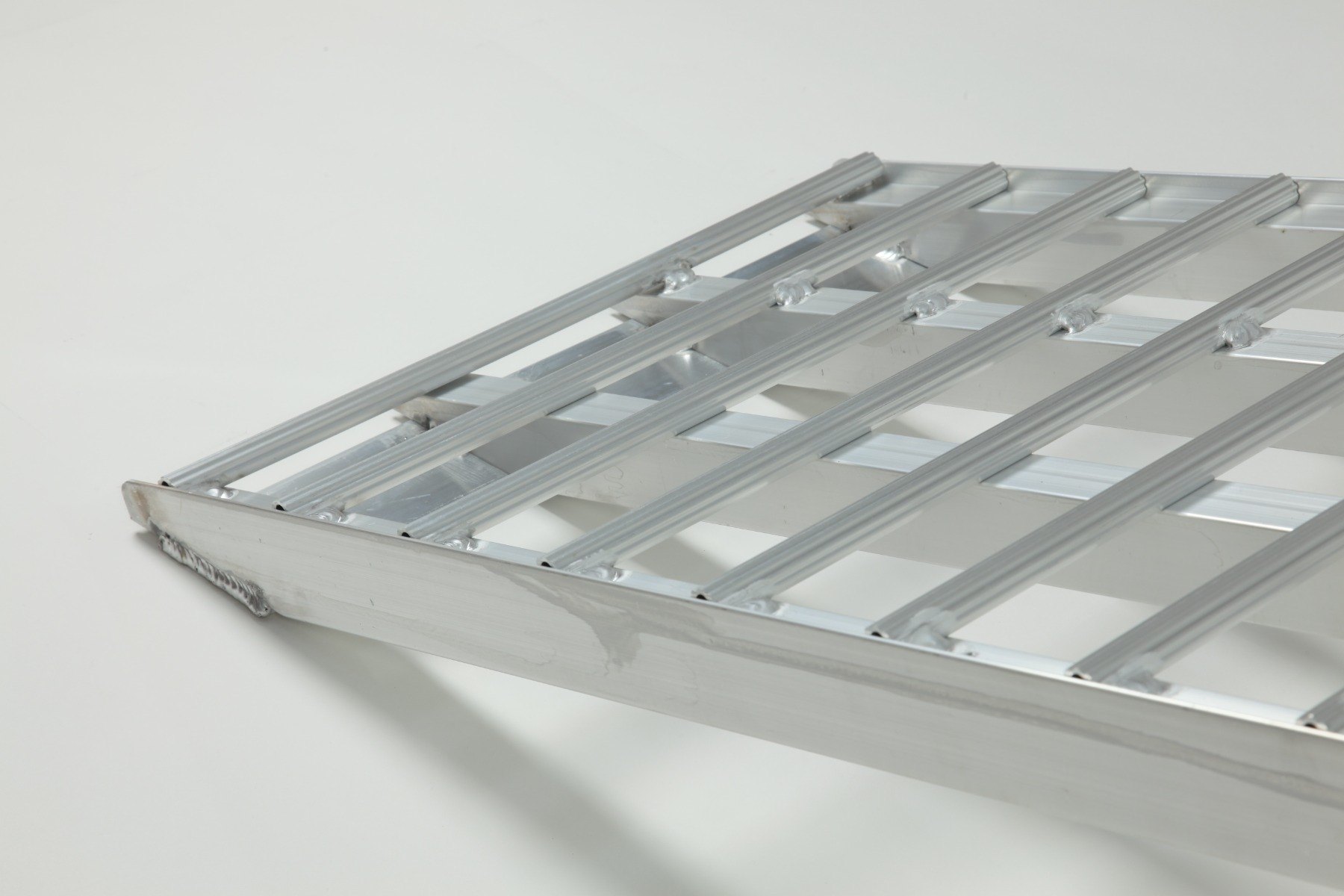

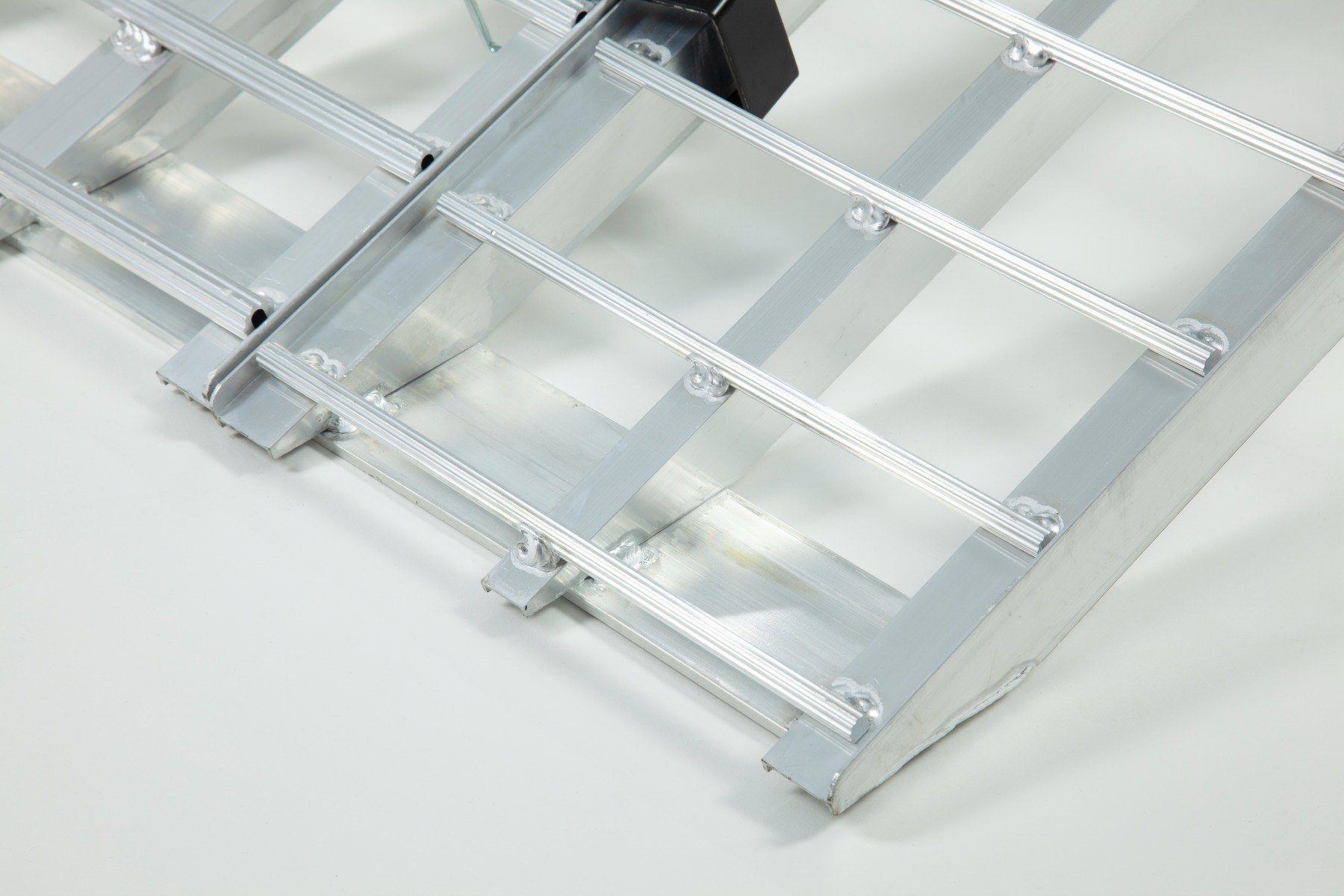

All aluminum construction

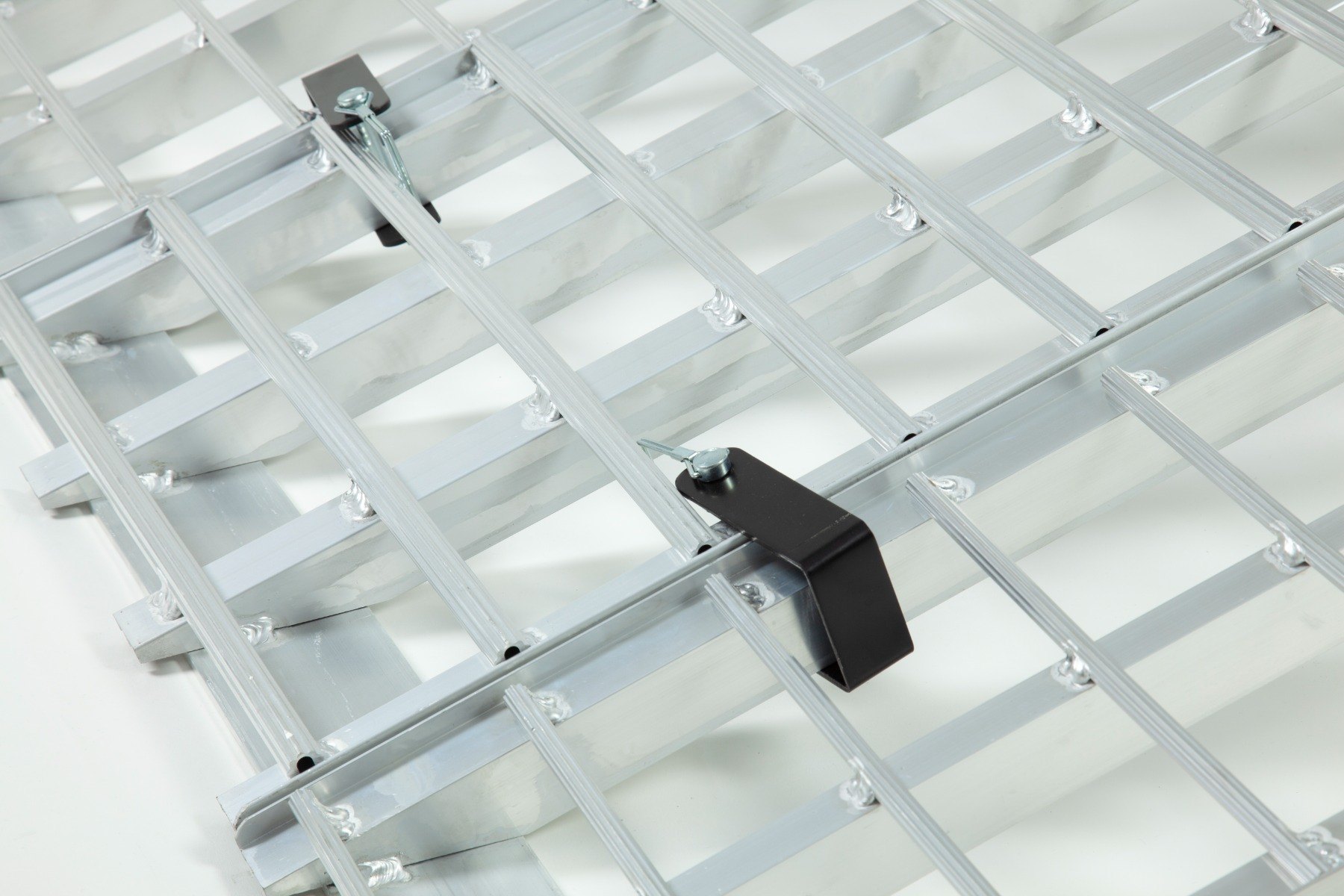

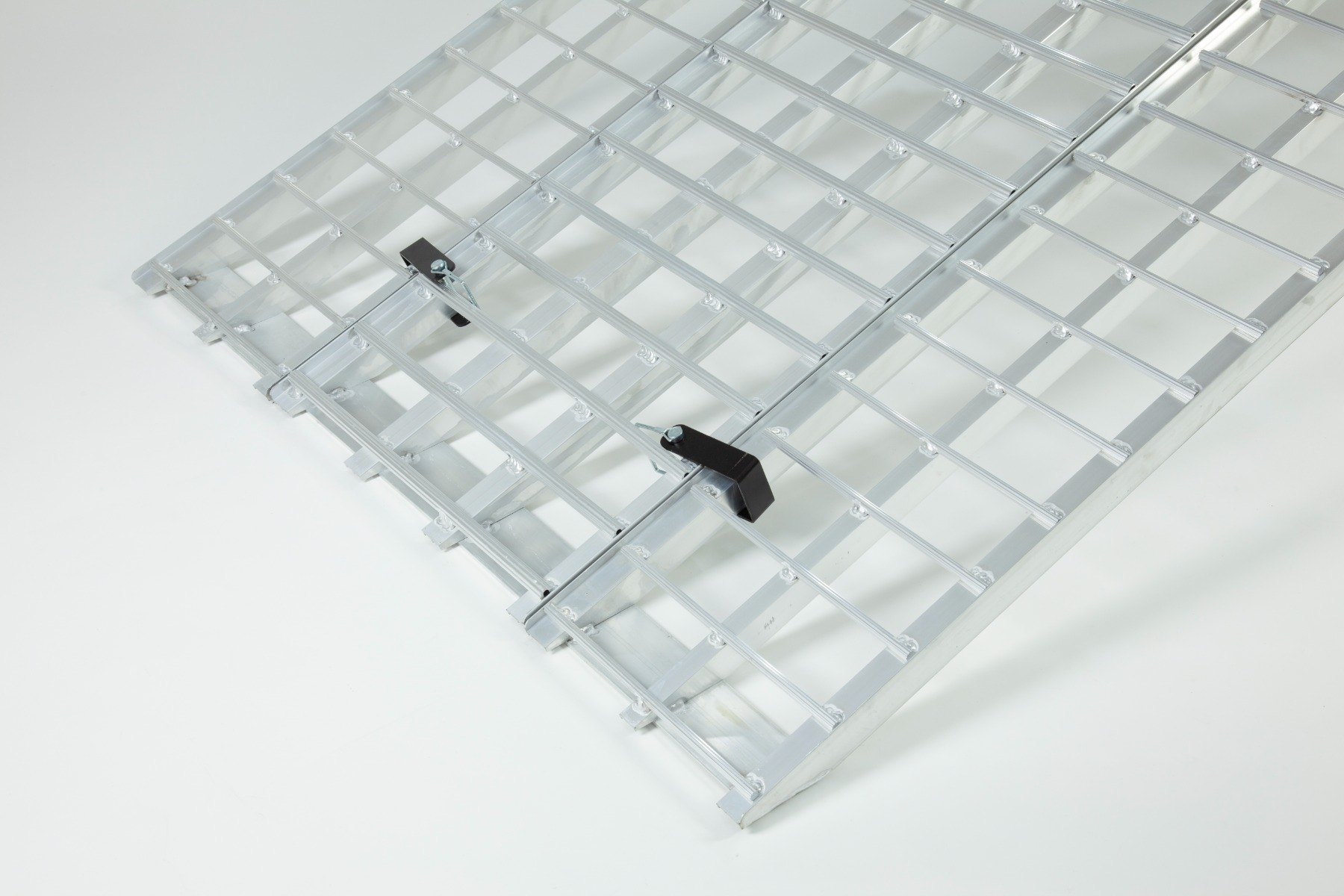

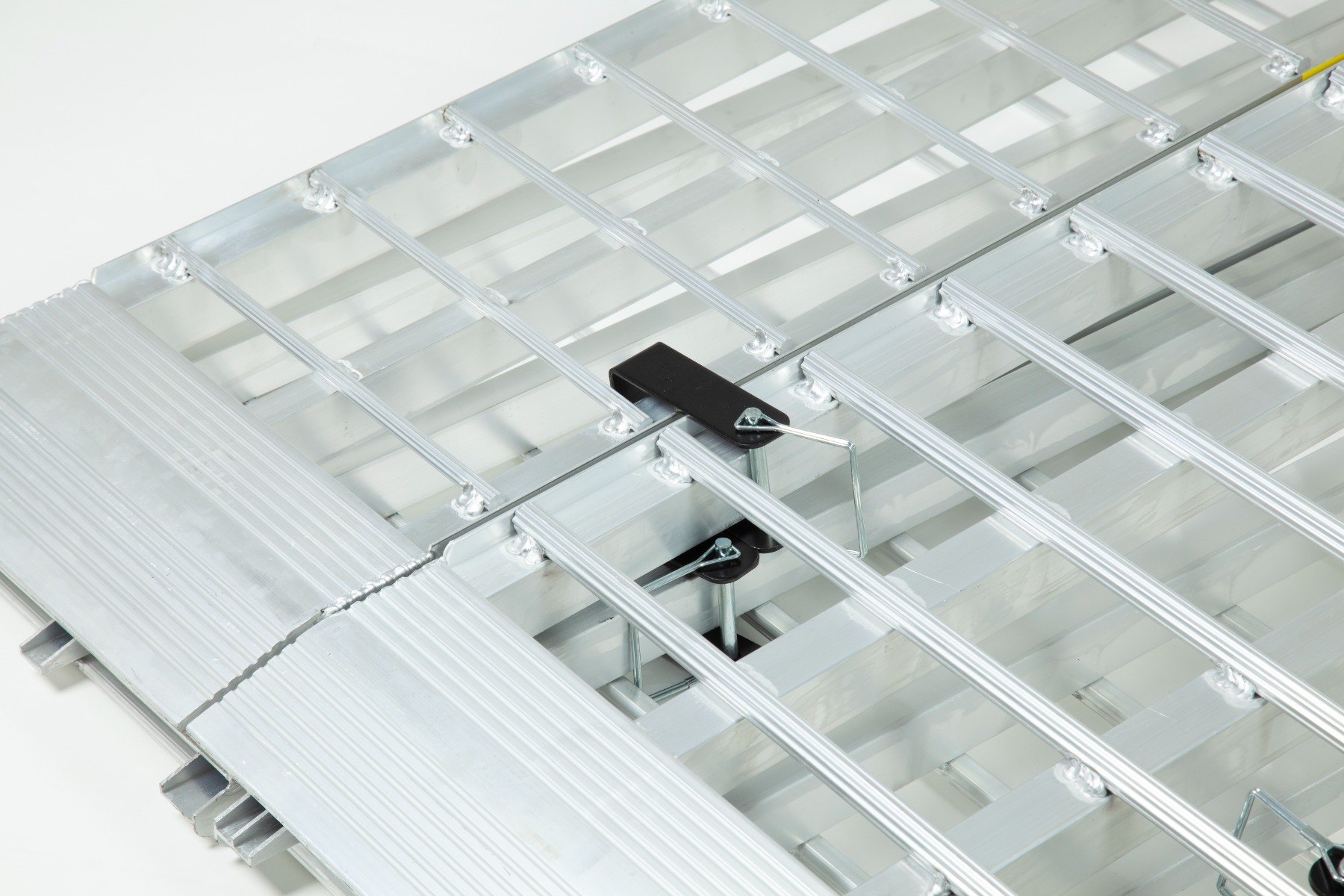

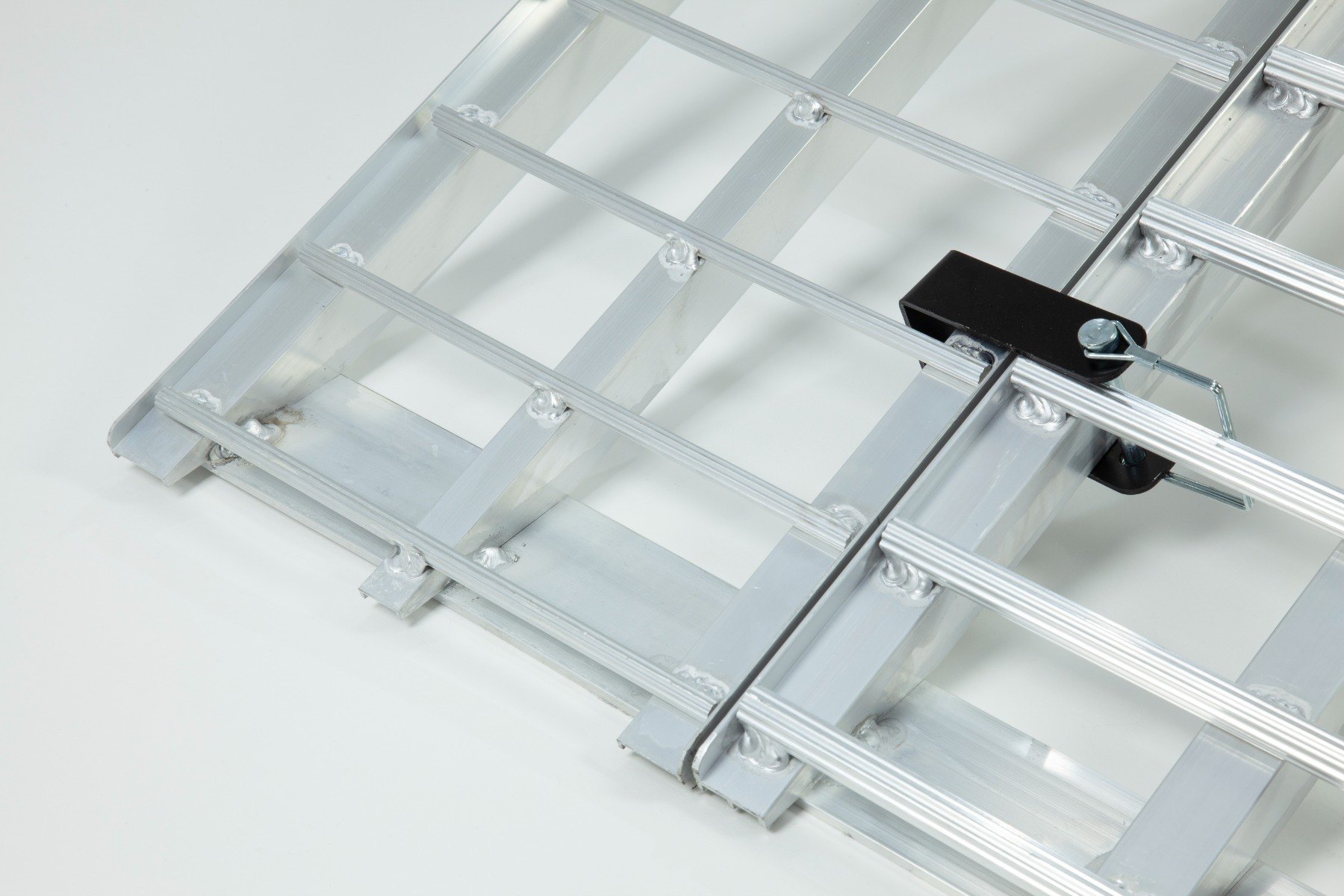

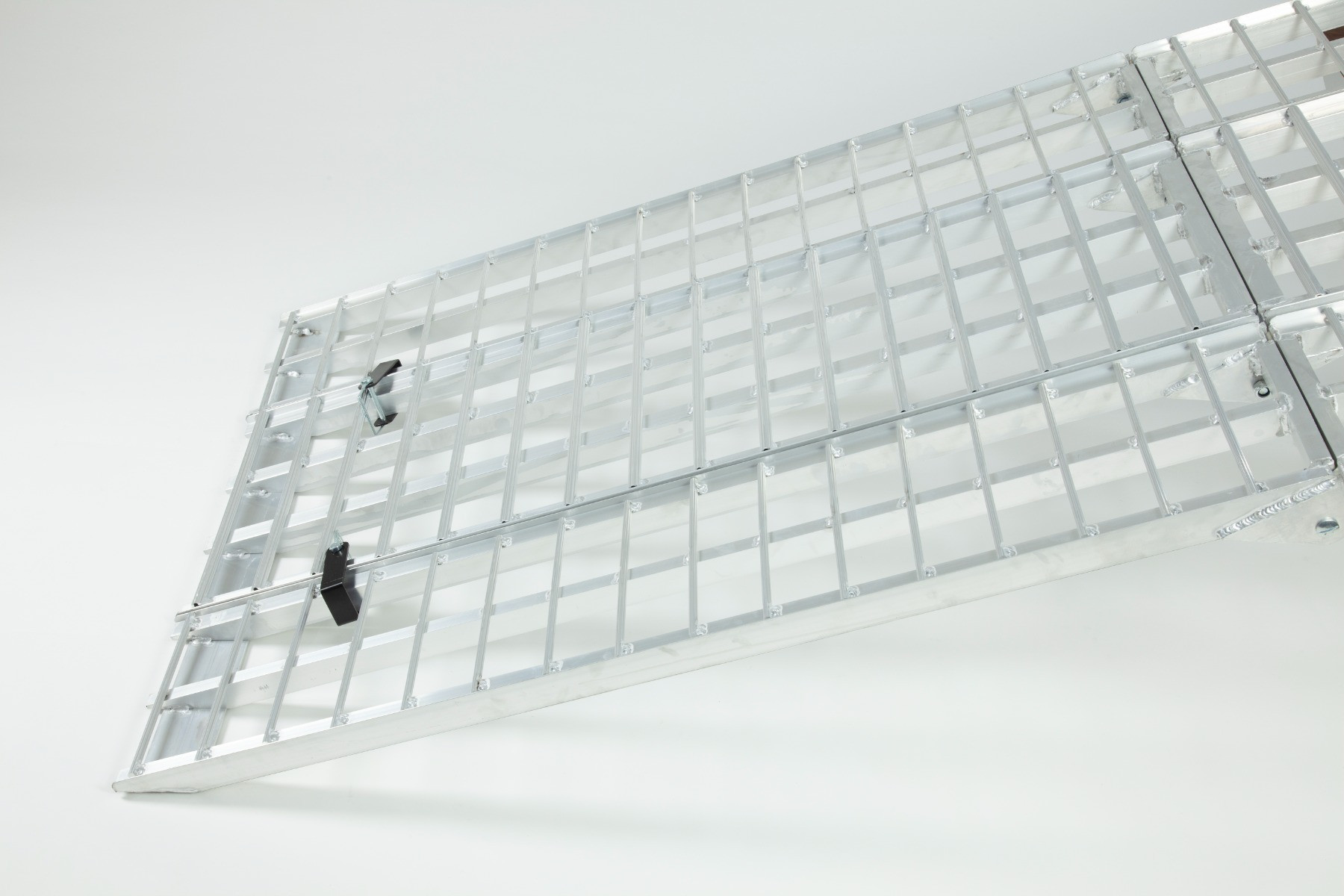

Ramps can be joined together with the optional attaching system
One person loading and unloading

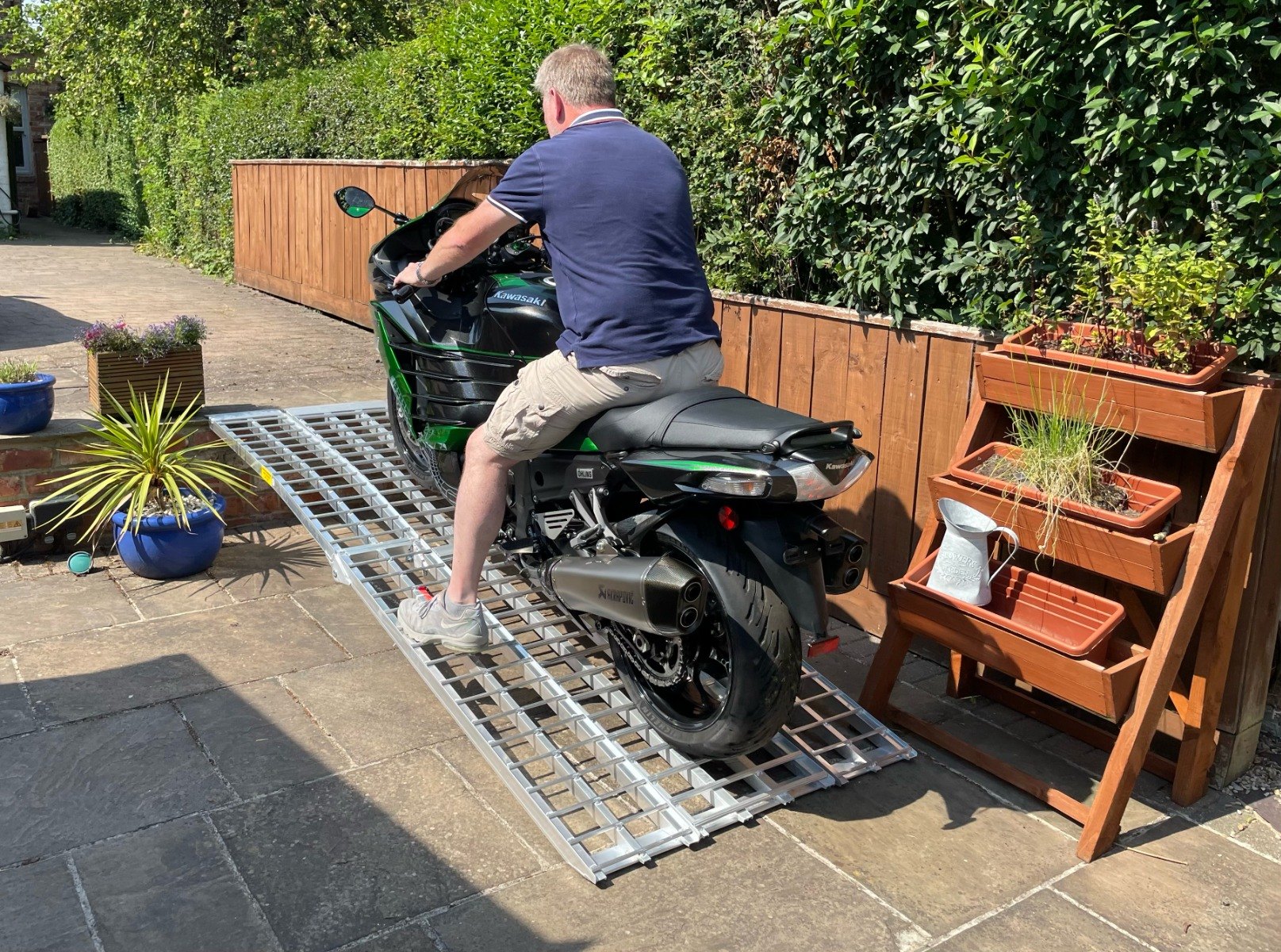

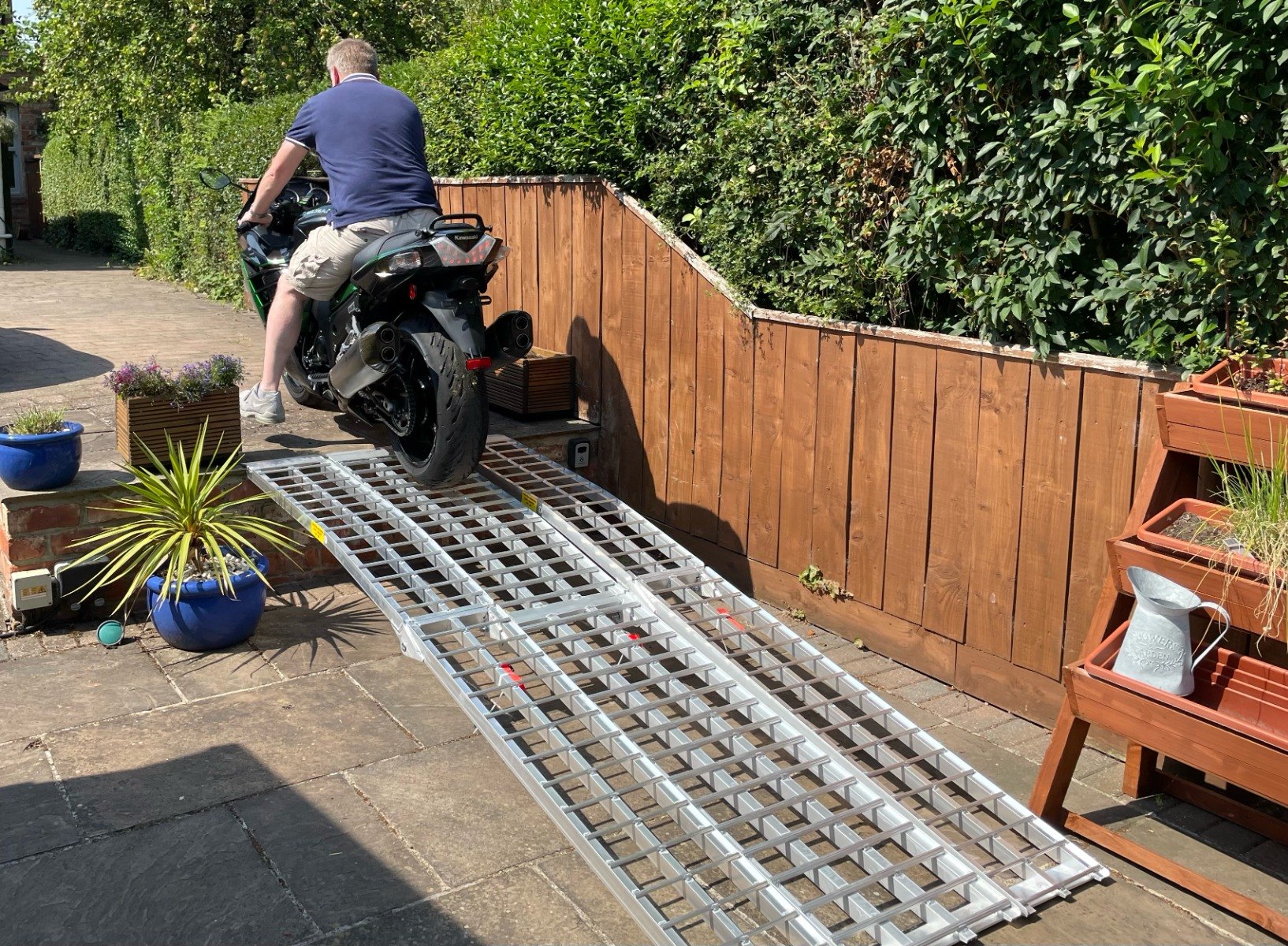

Walk or ride your bike up the ramps

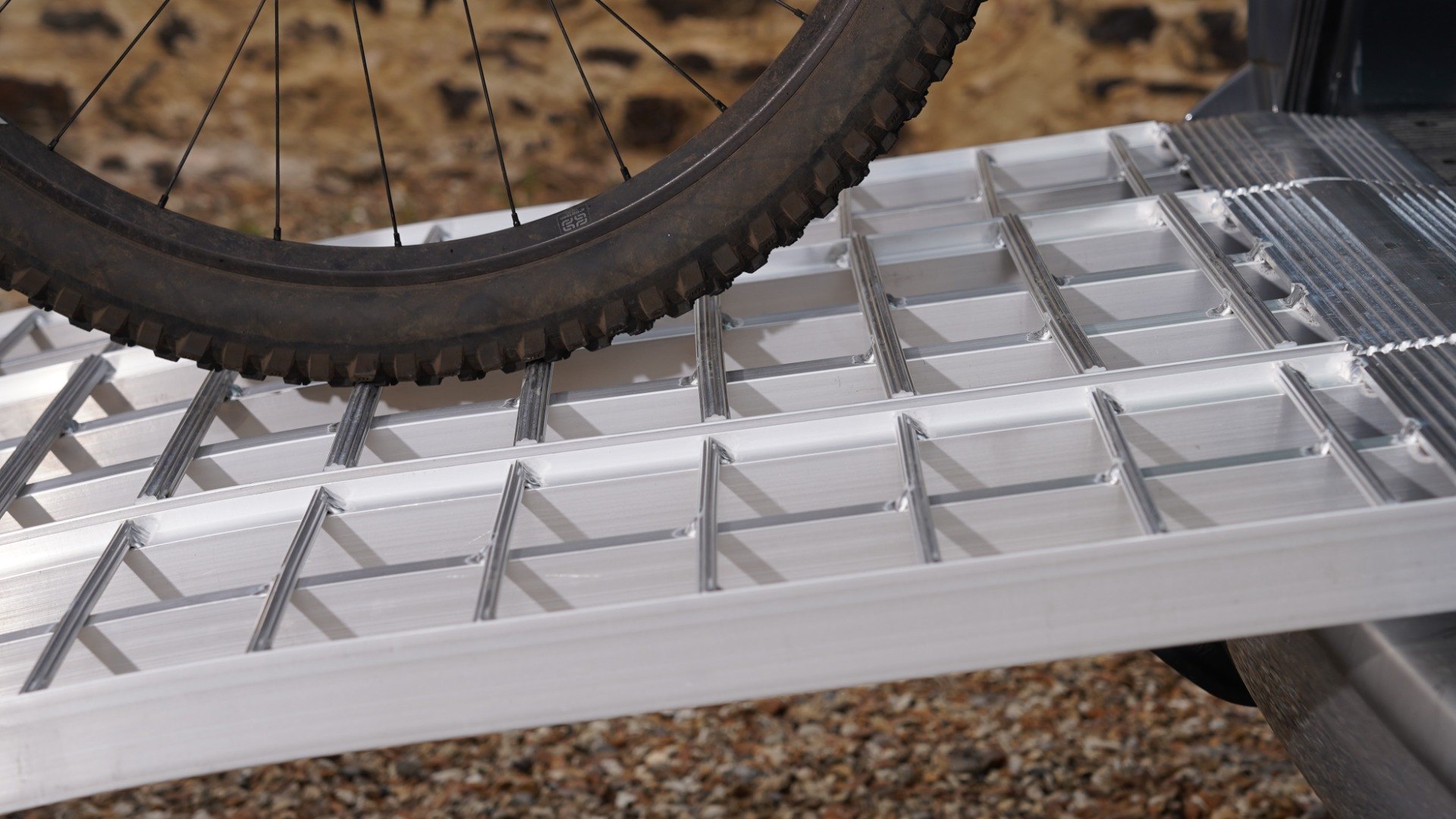

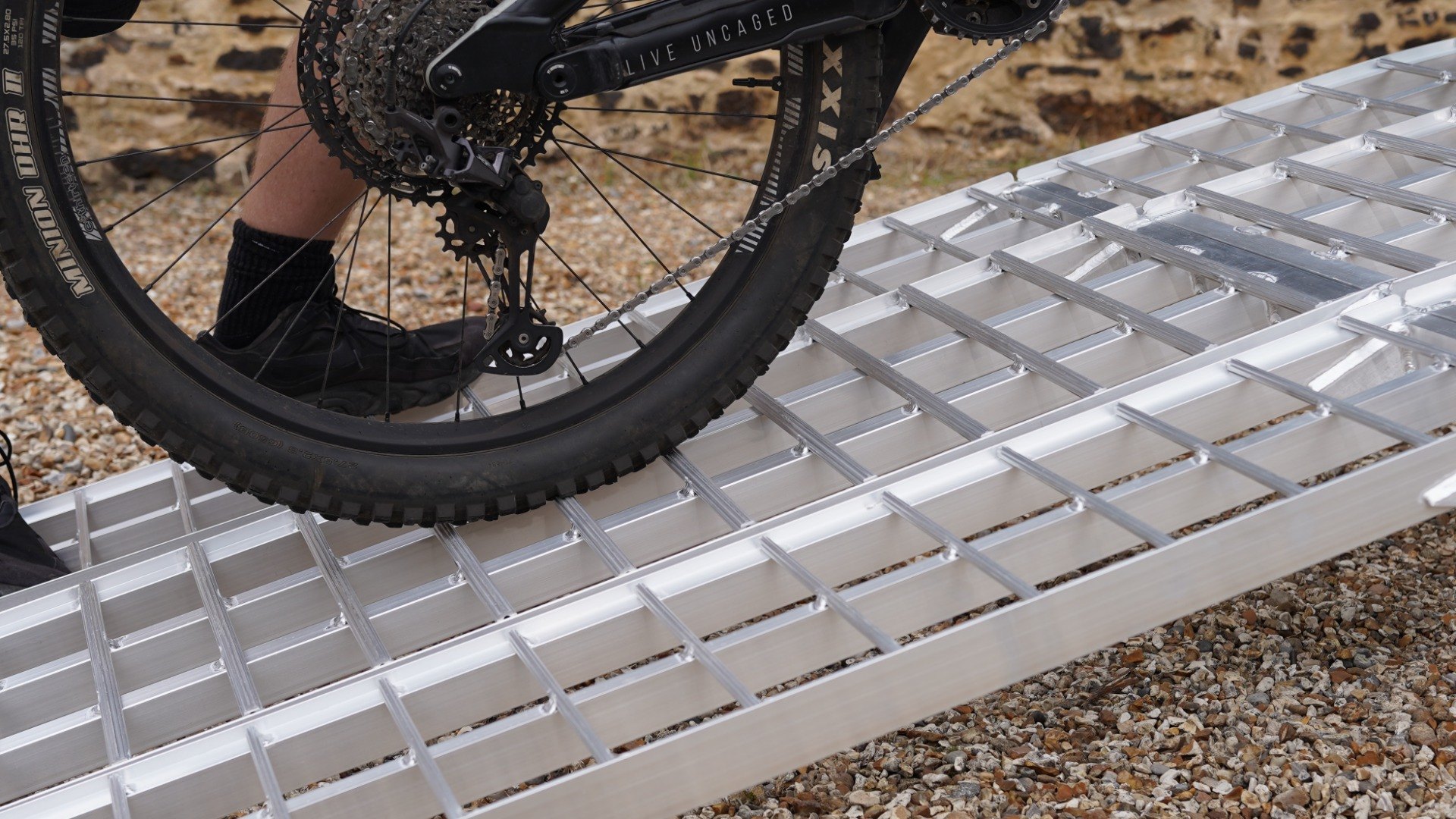

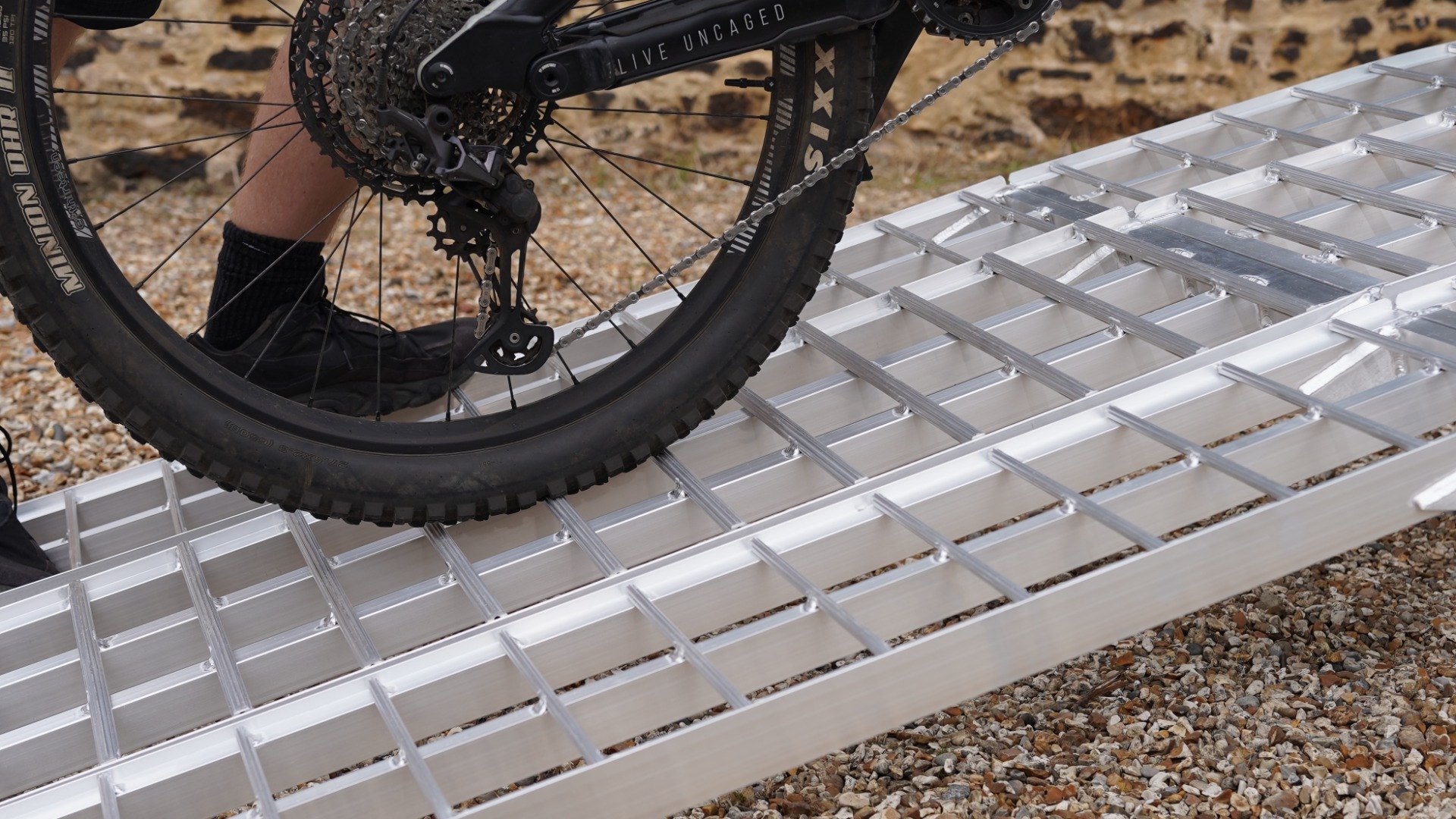

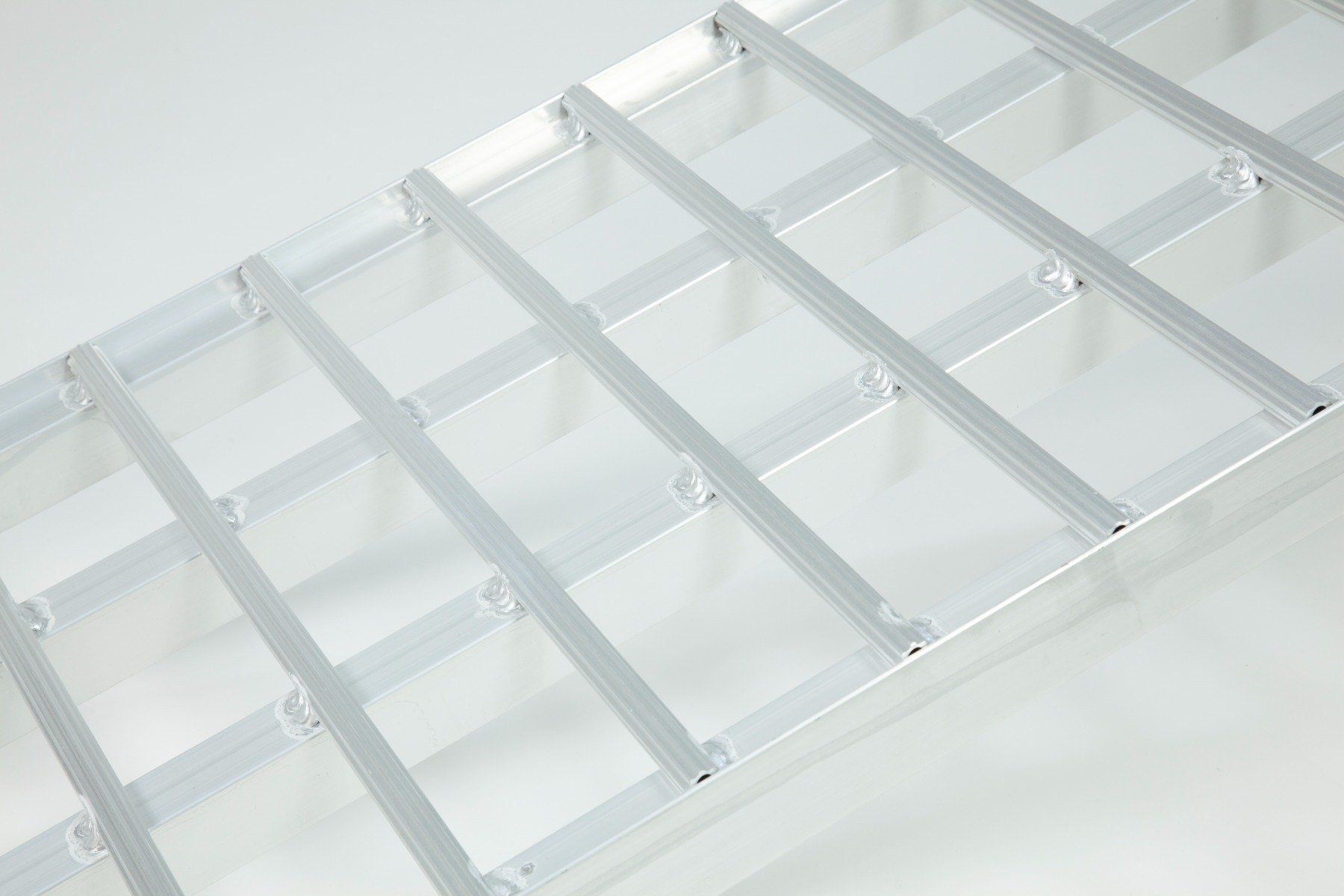

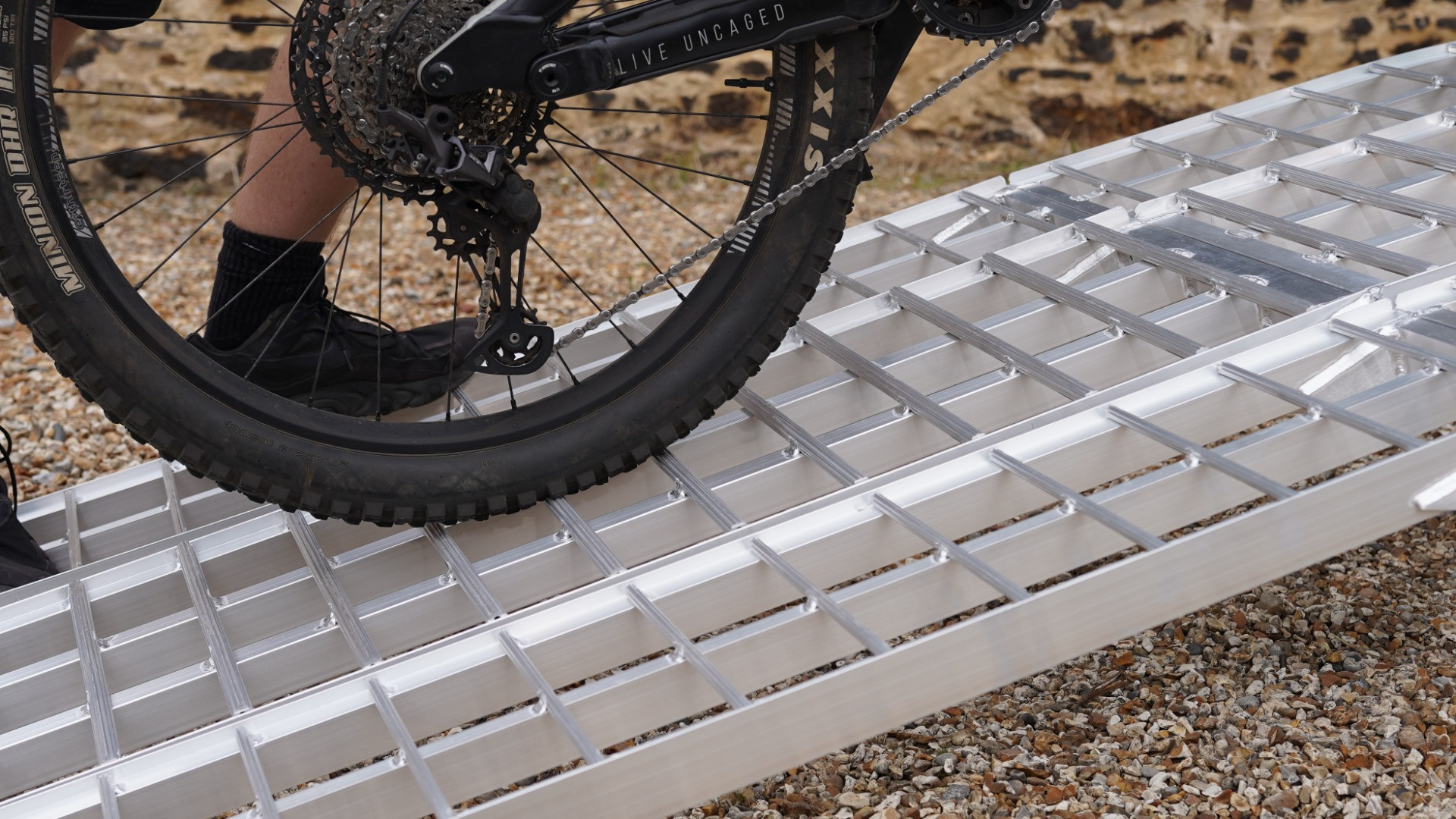

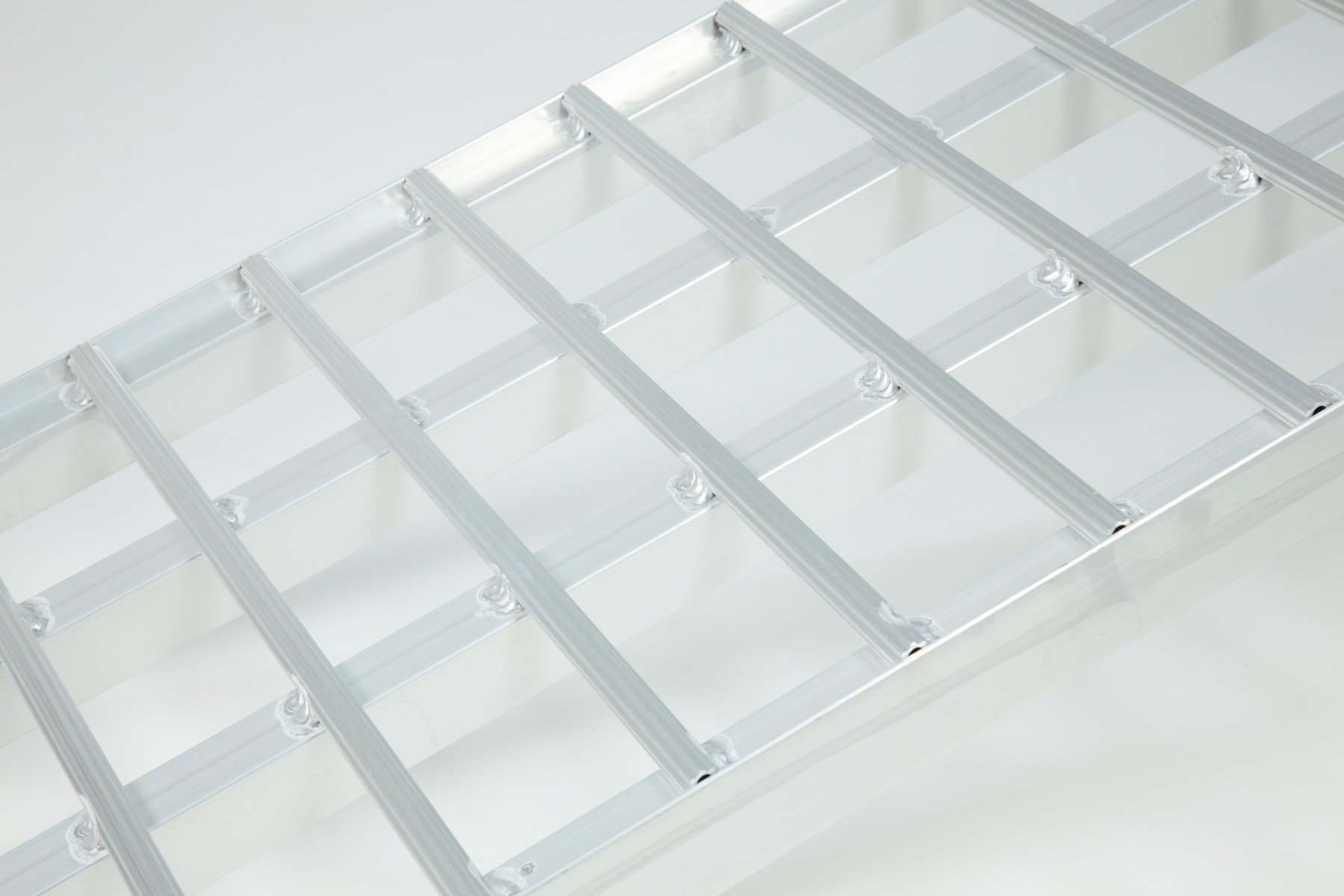

Notched cross rungs provide extra traction for wet tires
Arched for greater clearance

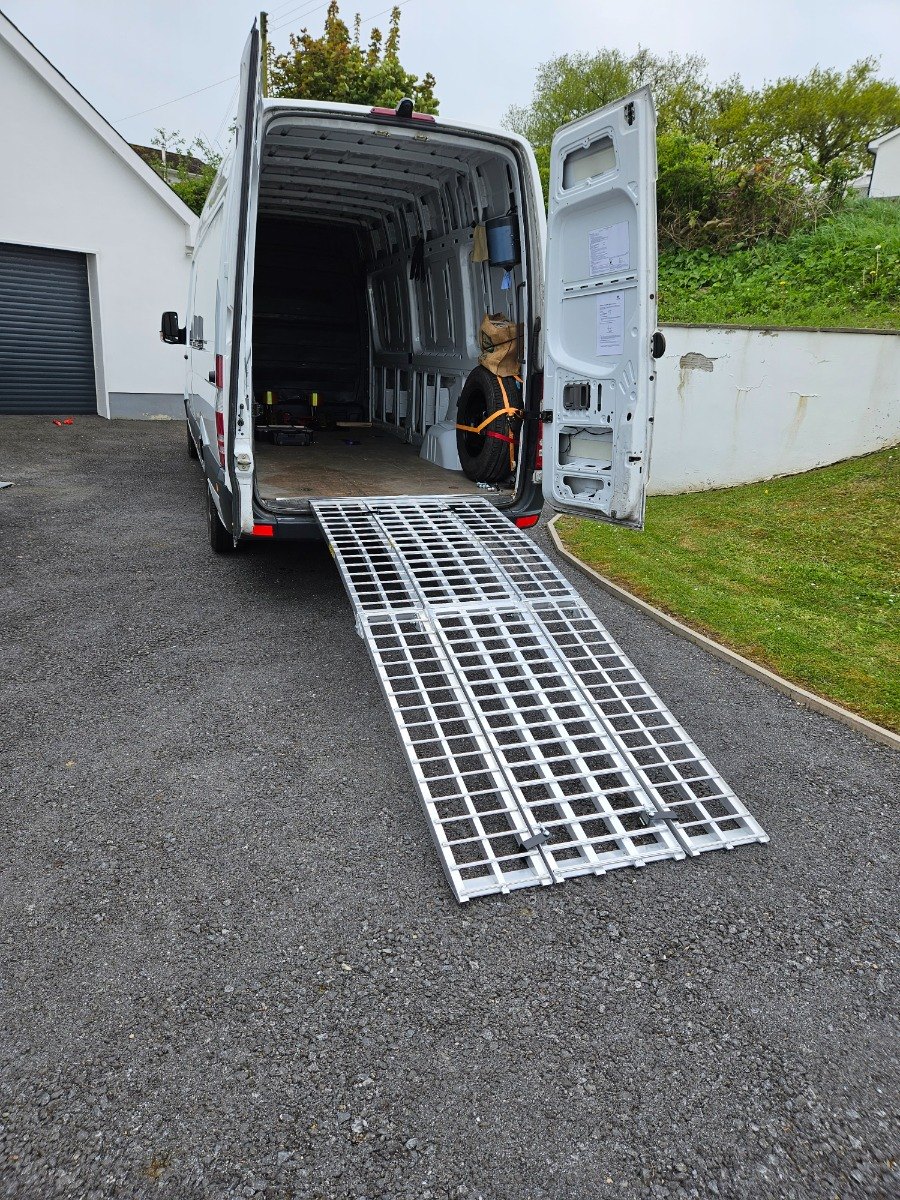

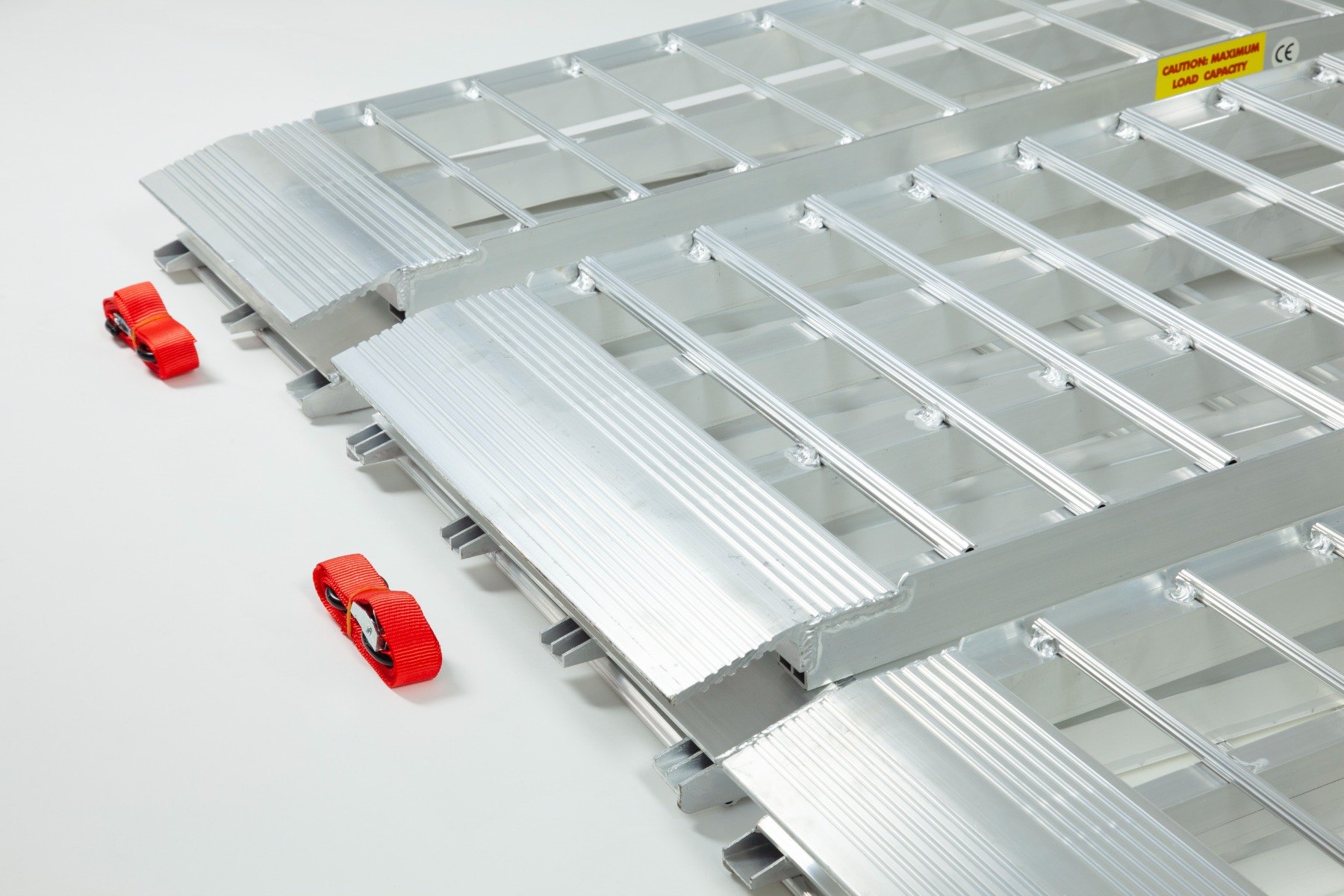

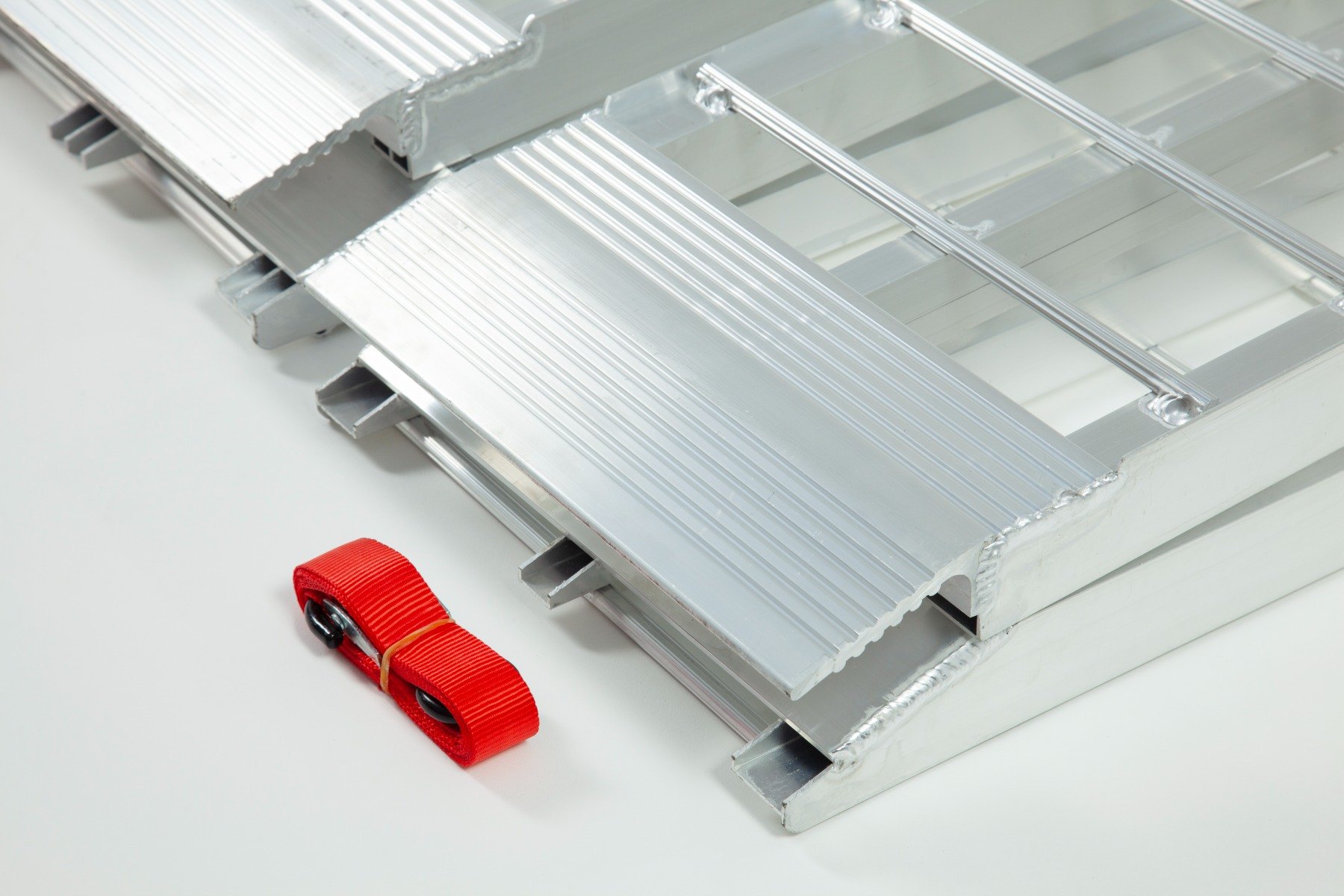

Safety straps included to keep ramp secure to loading surface
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
