Viper Premium Heavy Duty Van Ramp 1000mm Wide x 1000kg
Single Piece Aluminium Loading Heavy Duty Van Ramp with a capacity from 1000kg and a 1000mm width. Available in the lengths 1800mm, 2000mm, 2400mm, 2600mm, 3000mm and 3600mm.
Length (mm) | 1800-3600 |
---|---|
Width (mm) | 1000 |
Max. Load Height (mm) | 540-1050 |
Weight Per Ramp (kg) | 27-56 |
Capacity (kg) | 1000 |
Viper Premium Heavy Duty Van Ramp 1000mm wide
Available in the lengths 1800mm, 2000mm, 2400mm, 2600mm, 3000mm and 3600mm with a 1000kg Capacity and the width 1000mm. These ramps are ideally suited for flight cases.
- Rest on connection: to fit just rest on and start loading
- No vehicle or van modification required

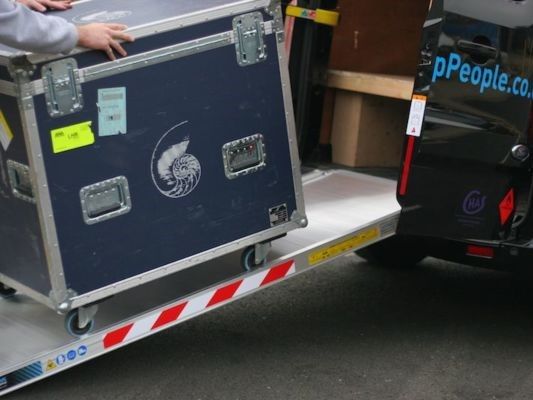

- Perfect for flight cases
- Entry onto ramp slightly smoother than our economy version.
- Lies flat for easy storage when not being used
- Manufactured from lightweight aluminium (type 6005A)
- Robot welded for solid, strong and durable construction
- Lightweight for easy handling
- Fully TUV Certified to 1000kg capacity as standard
- Angled foot, this allows for smooth access onto the van ramp when using casters or wheels
- Edges on each side of the van ramp to prevent accidentally wheeling off
- Ramps without edges are also available
- Optimised ramp weight ensures the ramp stays connected to the van
- Hook connection option available
- Extended connection terminal bridges most bumpers, crash bars and tow bars
Viper Premium Heavy Duty Van Ramp 1000mm wide
1800mm
- Length (mm): 1800
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 540
- Min Load Height (mm): 390
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 27
- Capacity (kg): 1000
- Ramp Profile Height (mm): 65
2000mm
- Length (mm): 2000
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 600
- Min Load Height (mm): 450
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 30
- Capacity (kg): 1000
- Ramp Profile Height (mm): 65
2400mm
- Length (mm): 2400
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 720
- Min Load Height (mm): 570
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 37
- Capacity (kg): 1000
- Ramp Profile Height (mm): 85
2600mm
- Length (mm): 2600
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 780
- Min Load Height (mm): 630
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 40
- Capacity (kg): 1000
- Ramp Profile Height (mm): 85
3000mm
- Length (mm): 3000
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 900
- Min Load Height (mm): 750
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 46
- Capacity (kg): 1000
- Ramp Profile Height (mm): 100
3600mm
- Length (mm): 3600
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 1050
- Min Load Height (mm): 900
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 56
- Capacity (kg): 1000
- Ramp Profile Height (mm): 115
SKU | TRP-Viper1000 |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 1000 |
Height of Raised Side (mm) | 29 |
Height of Ramps Profile (mm) | 65-115 |
Internal Width (mm) | 940 |
Length (mm) | 1800-3600 |
Max Load Height (mm) | 540-1050 |
Weight per Ramp (kg) | 27-56 |
Width (mm) | 1000 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
External Width (mm) | 1000 |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
