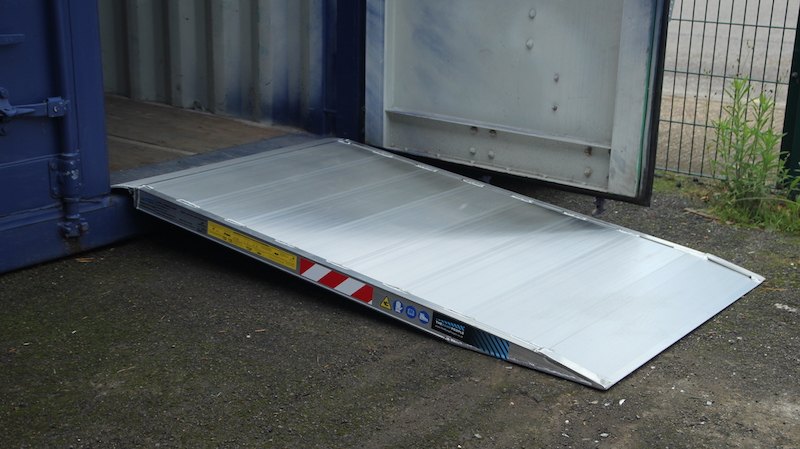

A single piece heavy duty loading ramp 2400 mm long x 1000mm wide x 1000kg Capacity perfect for manual pallet truck loading into a container or over kerbs.

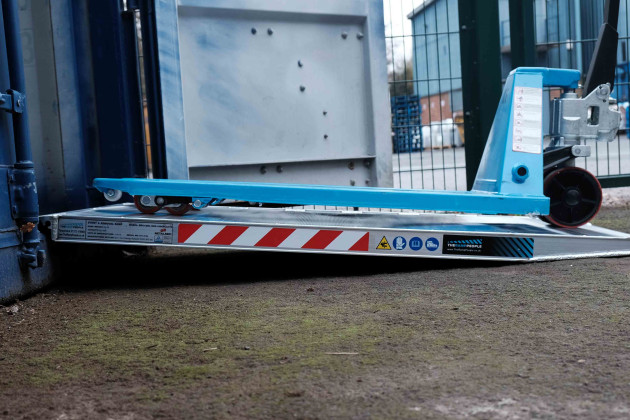

Pallet Truck Ramp 2400 mm long x 1000mm wide x 1000kg
Length (mm)
2400
Width (mm)
1000
Height (mm)
70
Max Load Height (mm)
400
Weight (kg)
45
Capacity (kg)
1000
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Available in the lengths 1800mm, 2000mm and 2400mm, with Capacity of up to 1000kg and the width 1000mm. Those ramps are ideally suited for pallet trucks.
Rest on connection: to fit just rest on and start loading
Cut for a maximum load height of 175mm.
Perfect for loading pallets with a pallet truck into a container or over kerbs.
Lies flat for easy storage when not being used
Manufactured from lightweight aluminium (type 6005A)
Robot welded for solid, strong and durable construction
Lightweight for easy handling
Complies with Health & Safety Guidelines
Fully TUV Certified to 2000kg capacity as standard
Tested to 200% loading capacity
Angled foot, this allows for smooth access onto the ramp when using casters or wheels
No edges for easier handling on the ramp
Usage Guidelines and Safety Information for these ramps can be found here.
