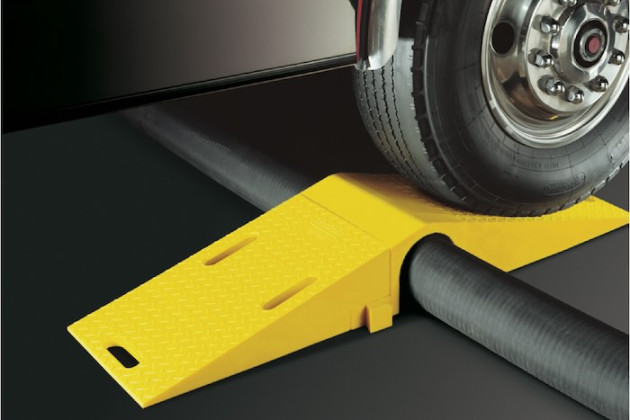

Checkers Diamondback Hose Bridge System 4.5 High Tunnel System -1 Tunnel System Kit

The 1-Tunnel System with a diameter of up to 4.5" or 114.3mm from CHECKERS DIAMONDBACK Hose Bridge System consists of 2x ramps and 1x tunnel. Assembled the system feature the sizes 1118mm long x 406mm wide x 141mm high. It features a capacity of up to 8,754kg per tyre.

Cable Protector FAQ's

Length (mm)1118
Width (mm)406
Height (mm)141
Weight (kg)22.7

Got a question?

Product: Checkers Diamondback Hose Bridge System 4.5 High Tunnel System -1 Tunnel System Kit
SKU: TRP-UHB4045

  • Easy to Fit
  • One Year Warranty
£540.00 £450.00
5-7 working days
TRP-UHB4045
Talk to The Ramp People's sales team

CHECKERS DIAMONDBACK Hose Bridge System 4.5" 1-Tunnel System feature:

  • Protect large lines up to 4.5" outside diameter
  • High density polyurethane construction
  • Single or multiple tunnel systems available with this system
  • Reduces maintenance and replacement costs
  • Modular interlocking design for easy setup, no tools required. Can be set up by one person only. Lightweight, easy to transport and store
  • Diamond-plate tread surface increases traction
  • Yellow caution colour for high visibility
  • Built-in hand holds allow for handling with ease and double as attachment point for mounting brackets
  • Vehicles crossing bridge system must have a clearance of greater than bridge height
  • Hose Bridges are for rubber tired vehicles only, not for equipment with metal tracks
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
SKU TRP-UHB4045
Height (mm) 141
Length (mm) 1118
Weight (kg) 22.7
Width (mm) 406
One Year Warranty Yes
Easy to Fit Yes
Cable Protector Color Yellow
Max Cable/ Hose Diameter (mm) 114.3
No. Channels 1
Capacity per Tyre (kg) 8,754
Speedlimit (mph) <5
