Ramp Length & Load Height
Heavy Duty Truck Ramp 1000mm wide x 1000kg Capacity
Single Piece Aluminium Loading Ramp with a capacity from 1000kg and 1000mm wide, available in lengths 2600mm, 3000mm, 3600mm, 4000mm, 4400mm and 5000mm.
| Length (mm) | 2600 - 5000 |
|---|---|
| Width (mm) | 1000 |
| Max. Load Height (mm) | 780 - 1500 |
| Weight (kg) | 48 - 99 |
| Capacity (kg) | 1000 |
£744.00
£620.00
In Stock
TRP-Truck1000
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Further information can be seen in this blog article here
Buy With Confidence
Buy With Confidence
The Ramp People value transparency in all of their business transactions and want you to be able to buy from us with confidence. We have taken a number of measures to ensure that this is possible. These include:
Speedy Delivery
We aim to despatch all of our orders within a maximum of 48 hours after they have been received. Next business day delivery is included free of charge as standard, although other shipping methods are available at an extra charge.
No Quibble Returns Policy
All non-faulty stock items can be returned within 14 calendar days of purchase for a full refund. If you aren’t sure how to choose the correct ramp, do give our friendly sales team a call.
Fully Secure Payment Processing
The Ramp People are proud to use Sage Pay, one of the world’s fastest growing E-Commerce Payment Providers to process all of our transactions. Sage Pay encrypt all of your payment details to the highest level possible, ensuring that none of your personal details are passed on to third parties.
See What Other Customers Say About Us
It’s always comforting to be able to see how other customers have rated an Ecommerce Retailer. See what our ratings say about our fantastic service and products by viewing our Trust Pilot reviews on the website.

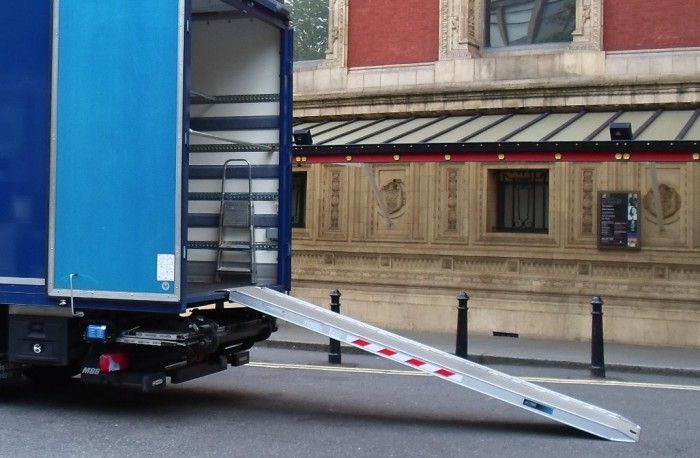

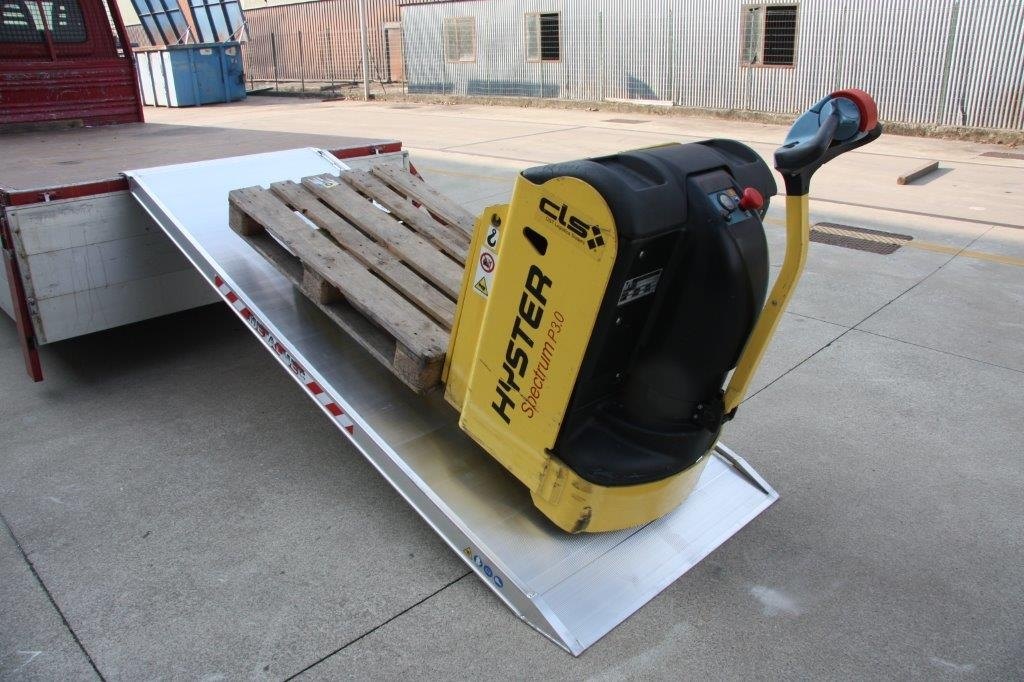

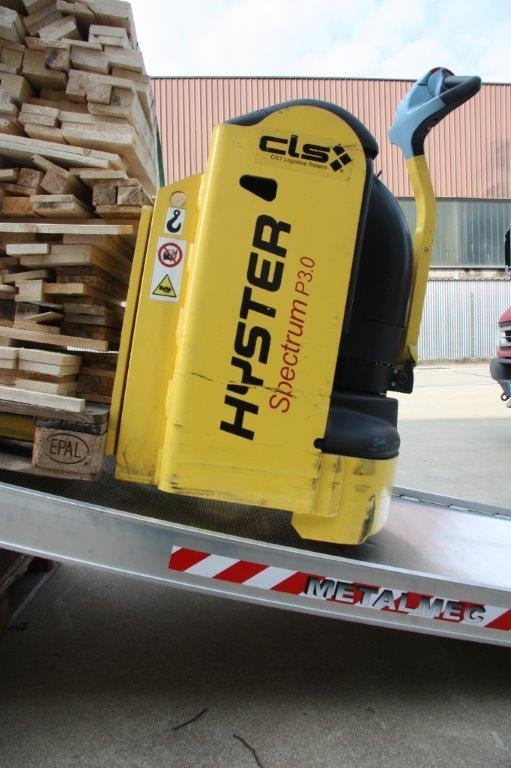

TRP Truck Ramp Features include:
- Rest on connection: to fit just rest on your truck and start loading (hook connection also available)

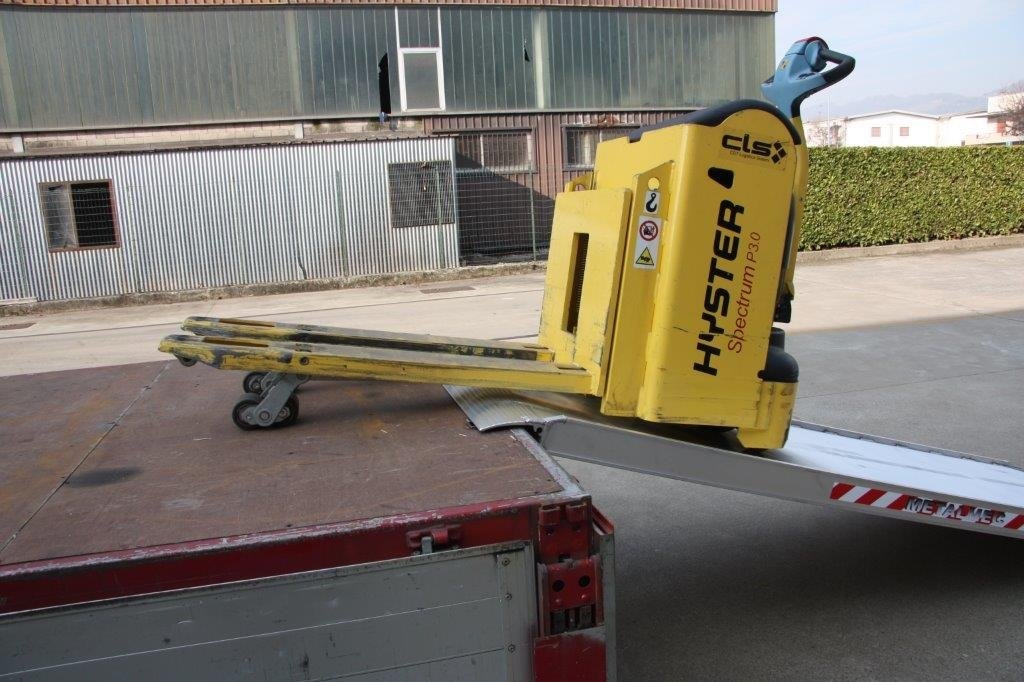

- Extended connection terminal bridges most bumpers, crash bars and tow bars
- Optimised ramp weight ensures the ramp stays connected to the truck
- No vehicle or truck modification required
- Robot welded for solid, strong and durable construction
- Lightweight aluminium (type 6005A) for easy handling
- Fully TUV Certified to 1000kg capacity as standard
- Tested to 200% loading capacity

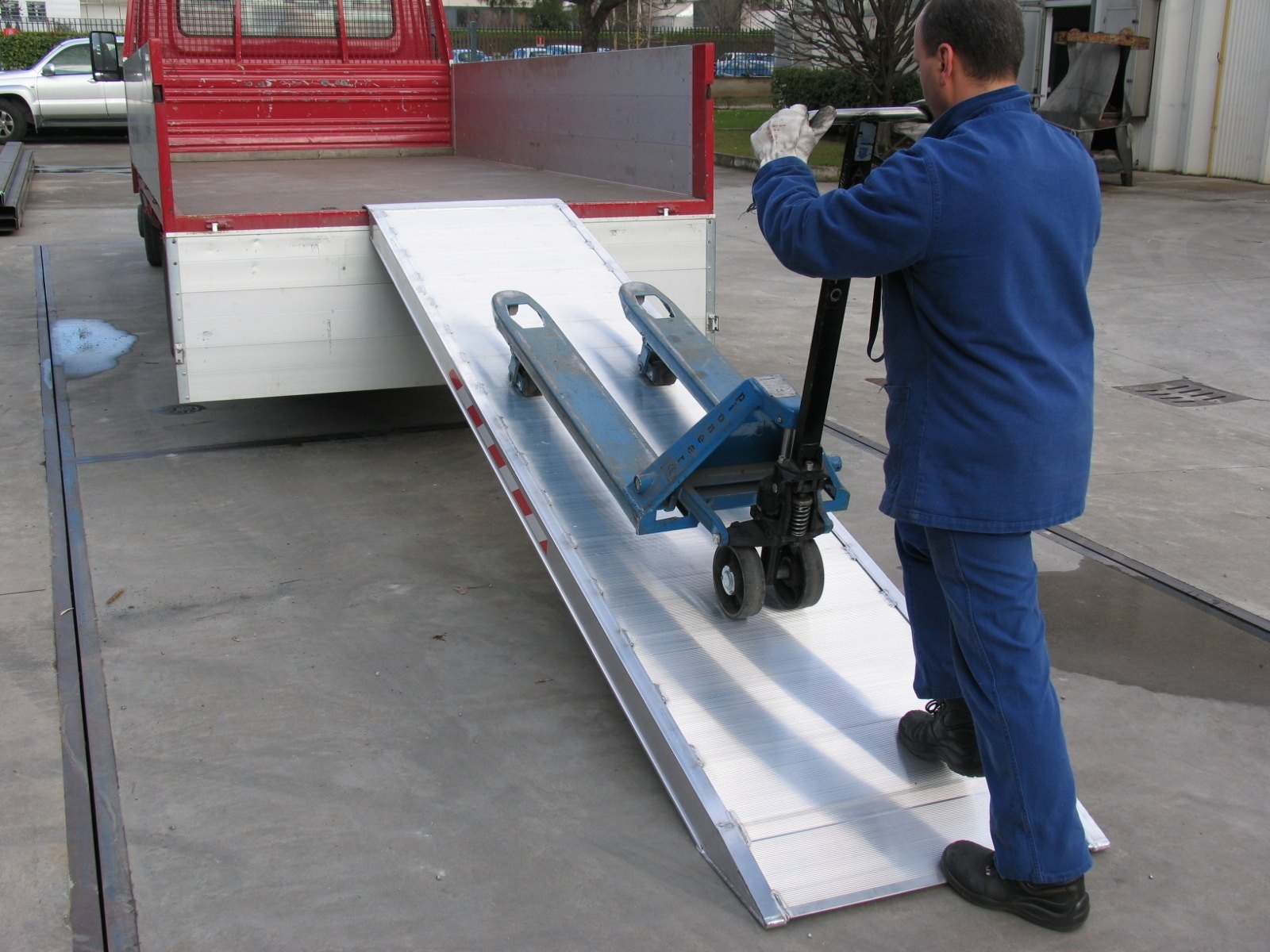

- Angled foot which allows for smooth access onto the truck ramp when using casters or wheels
- Edges on each side of the ramp to prevent accidentally wheeling off (ramps without edges also available)
- Lengths from 2600mm to 5000mm available
- Bespoke truck ramps built to any length or width
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Heavy Duty Truck Ramp 1000mm wide
2600mm
- Length (mm): 2600
- Height of Raised Edges (mm): 23
- Max Load Height (mm): 780
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 48
- Capacity (kg): 1000
- Ramp Profile Height (mm):80
3000mm
- Length (mm): 3000
- Height of Raised Edges (mm): 23
- Max Load Height (mm): 900
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 55
- Capacity (kg): 1000
- Ramp Profile Height (mm):100
3600mm
- Length (mm): 3600
- Height of Raised Edges (mm): 36
- Max Load Height (mm): 1050
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 66
- Capacity (kg): 1000
- Ramp Profile Height (mm):115
4000mm
- Length (mm): 4000
- Height of Raised Edges (mm): 36
- Max Load Height (mm): 1200
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 78
- Capacity (kg): 1000
- Ramp Profile Height (mm):125
4400mm
- Length (mm): 4400
- Height of Raised Edges (mm): 36
- Max Load Height (mm): 1300
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 88
- Capacity (kg): 1000
- Ramp Profile Height (mm):125
5000mm
- Length (mm): 5000
- Height of Raised Edges (mm): 32
- Max Load Height (mm): 1500
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 99
- Capacity (kg): 1000
- Ramp Profile Height (mm):140
Usage Guidelines and Safety Information for these ramps can be found here.
| SKU | TRP-Truck1000 |
|---|---|
| Default Connection | Rest On Connection |
| Capacity (kg) | 1000 |
| Internal Width | 940 |
| Length (mm) | 2600 - 5000 |
| Weight (kg) | 48 - 99 |
| Width (mm) | 1000 |
| One Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
