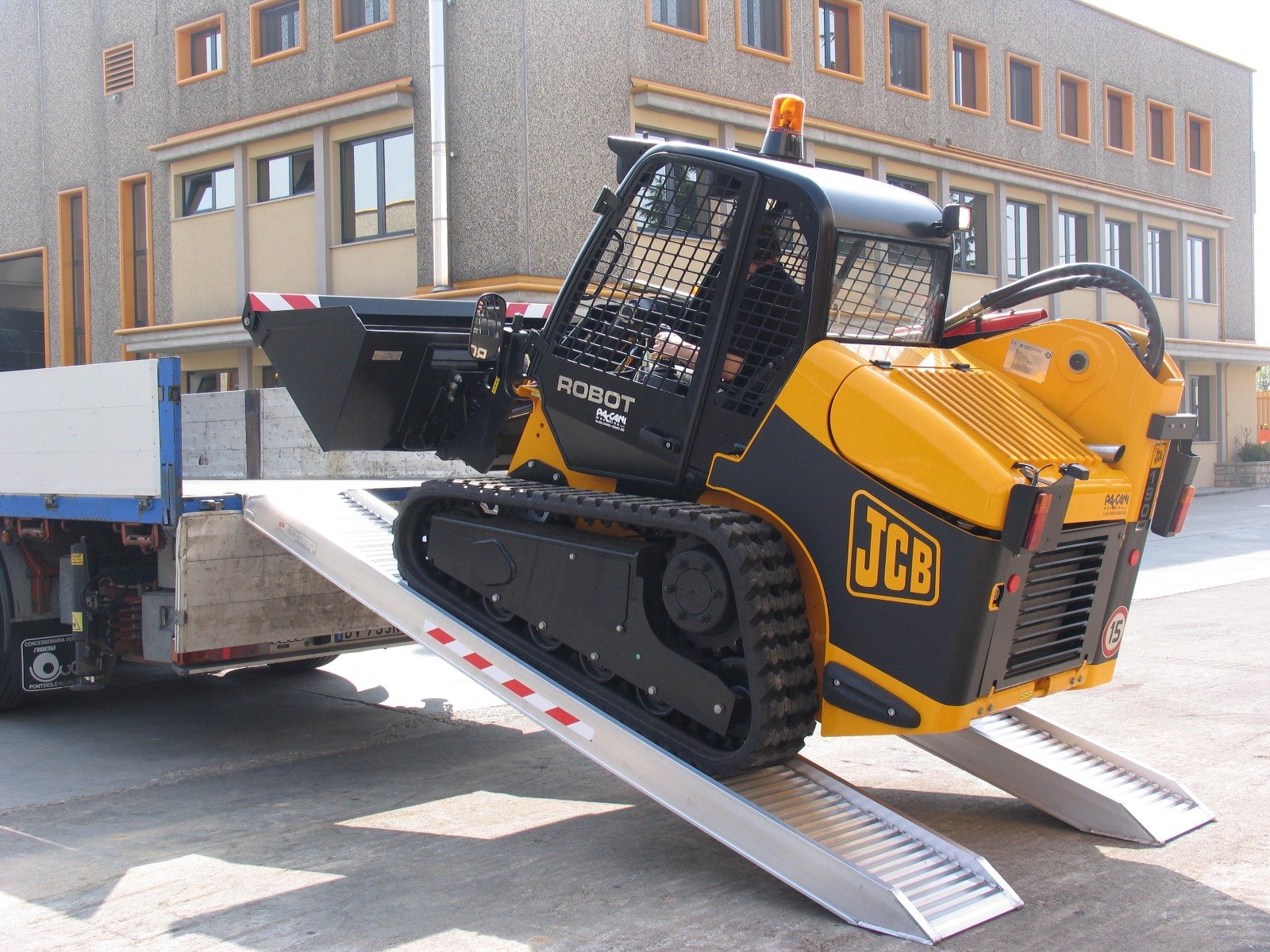

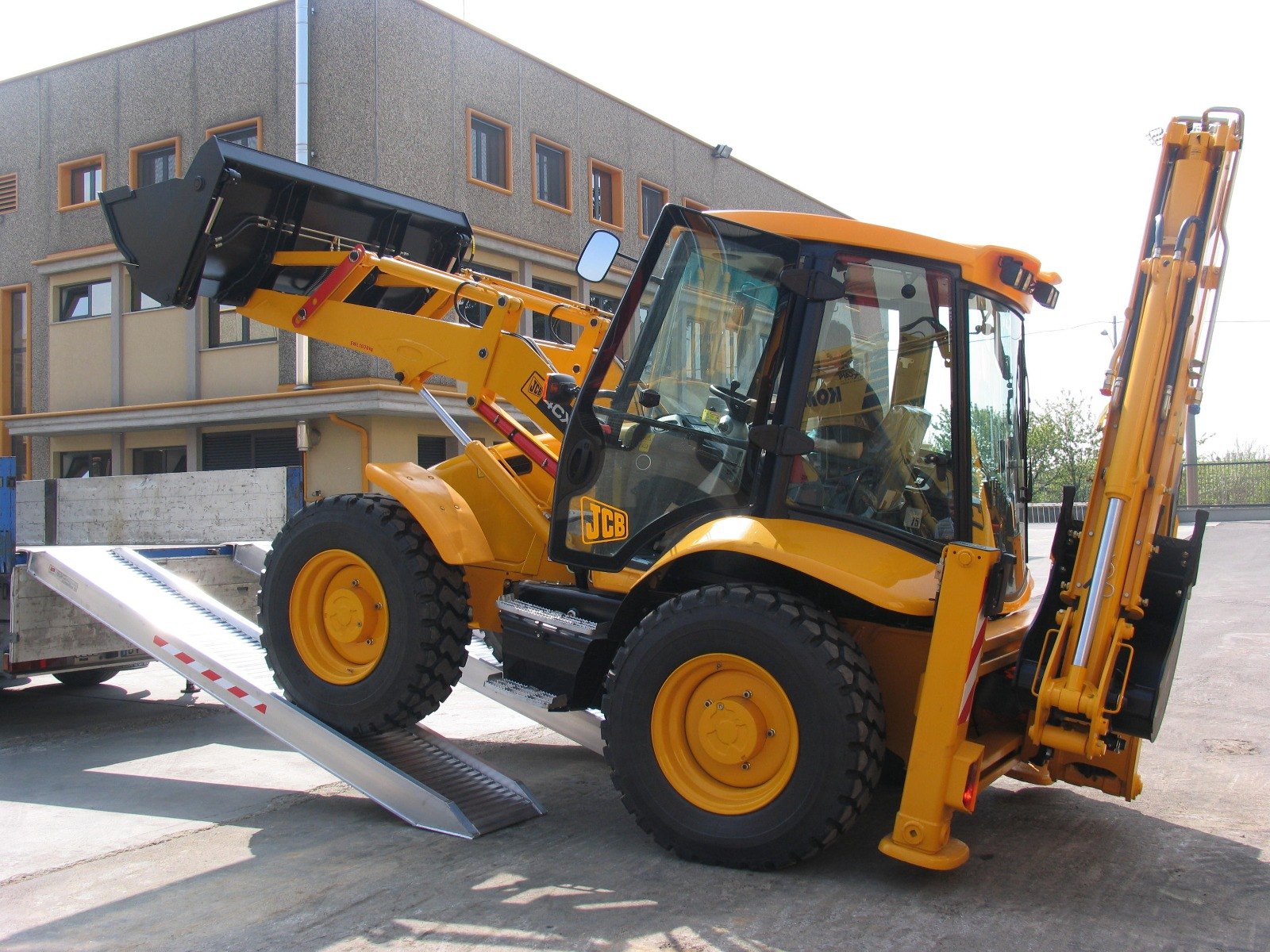

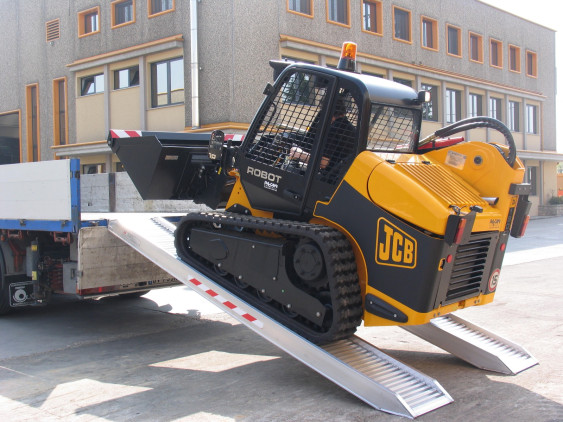

Extra Wide Aluminium Loading Ramps (2500x510x14000kg)
2500mm length, 510mm width and a profile height of 160mm . These ramps include a maximum capacity of 14000kg, ideal for loading plant machinery and vehicles. These ramps are made from aluminium, which makes them exceptionally thin and lightweight. Please note these ramps require a min track or tyre width of 400mm.
Capacity and price is for the PAIR.
Extra Wide Aluminium Loading Ramps (2500x510x14000kg)
Length (mm)
2500
Width (mm)
510
Min. Load Height (mm)
600
Max Load Height (mm)
750
Weight per Ramp (kg)
39,5
Weight Per Pair (kg)
79
Capacity (kg)
14.000
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Connection Options
Customisable
Easy to Fit
European Made
Not for Solid Wheels
One Year Warranty
Description
The TRP65LTRP Series has a core profile thickness of 65mm and a width of 510mm. On the TRP65LTRP Series the minimum width of tracks/wheels is 400mm.
They feature a capacity of up to 14,000kg and are ideal for use as car ramps or plant ramps.
Designed for a maximum gradient of 30%
These ramps are available both with and without edges, the default is however without edges
Four different connection options available, however the default connection is the rest on connection
Custom load heights available
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Quotes for bespoke ramps can be supplied on request
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
