£1,794.00 £1,495.00
SKU
TRP160/35L
In Stock - Limited Availability





Extra Wide Aluminium Loading Ramps (3500x510x8430kg)

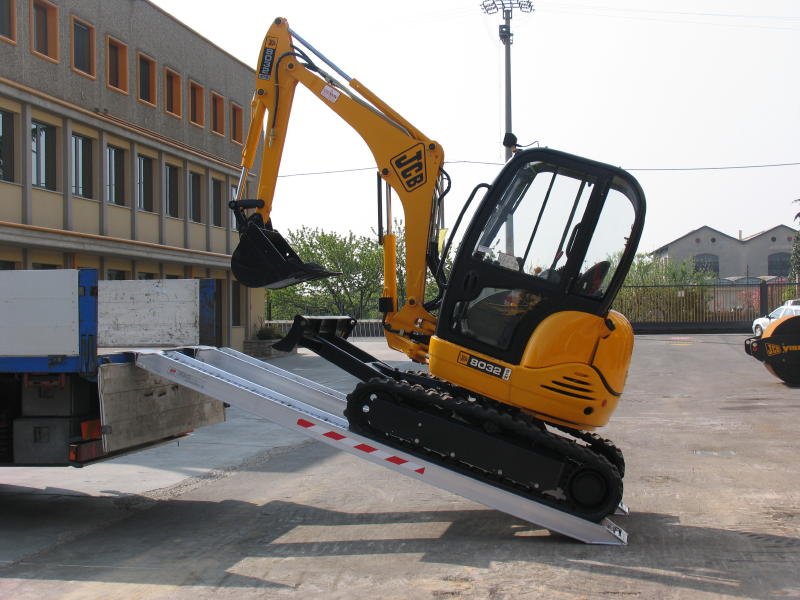

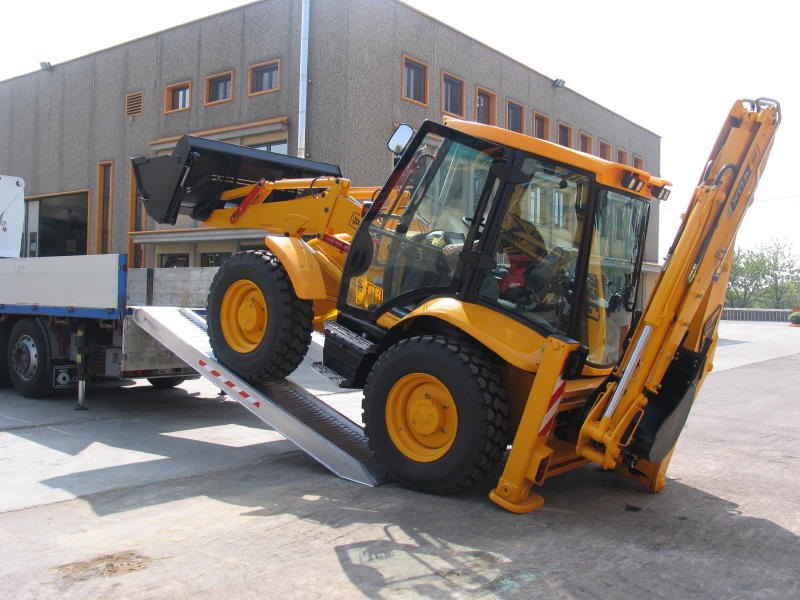

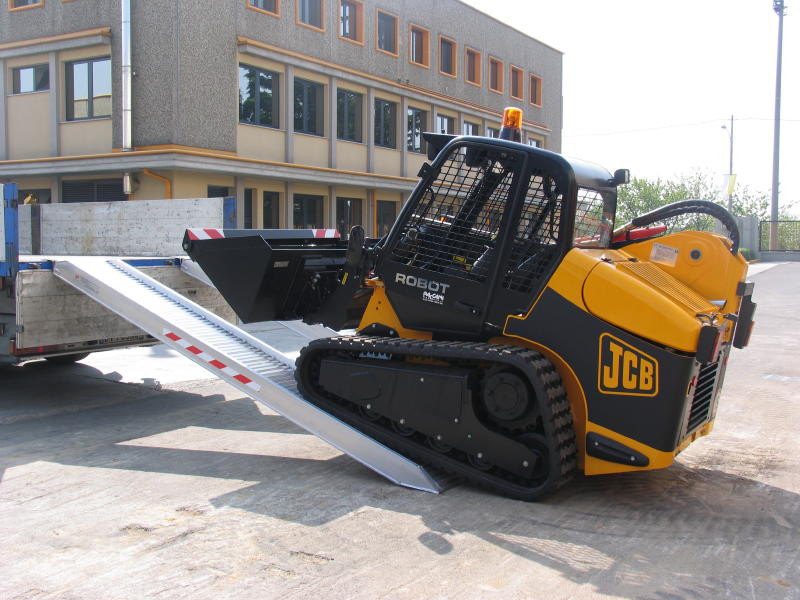

510mm wide x 3500mm long with a 160mm profile thickness. Featuring a maximum capacity of 8430kg, this ramp is ideal for use with rubber tracked excavators, as a plant ramp, digger ramp and for tele-handlers. Please note the minimum track width is 200mm. The maximum width of the wheel or track 430mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

The TRP160 Series has a core profile thickness of 160mm and a width of 510mm. They feature a capacity of up to 9000kg and are ideally suited for use with rubber tracked excavators, as plant ramps, digger ramps and for tele-handlers.

On the TRP160 series the minimum width of tracks/wheels is 200mm.The maximum width of the tracks/wheels is 430mm.

  • These ramps are available both with and without edges. You can also have one raised edge. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP160/35L
Default Connection Rest On Connection
Capacity (kg) 8430
Height of Ramps Profile (mm) 160
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 49.5
Weight Per Pair (kg) 99
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 5060
Capacity Wheelbase 1500mm (kg) 6320
Capacity Wheelbase 2000mm (kg) 8430
