£2,754.00
£2,295.00
SKU
TRP230/35TRP
Built to Order
Aluminium Loading Ramps (3500x550x18000kg)

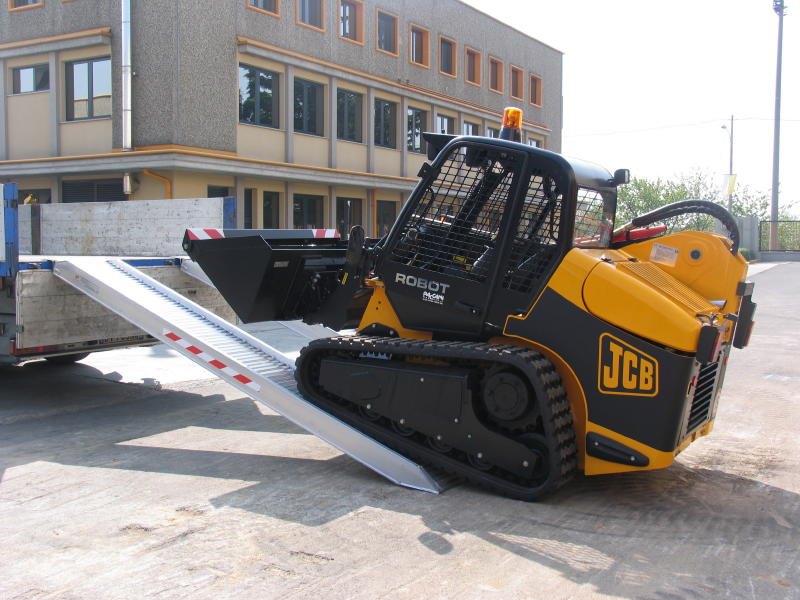

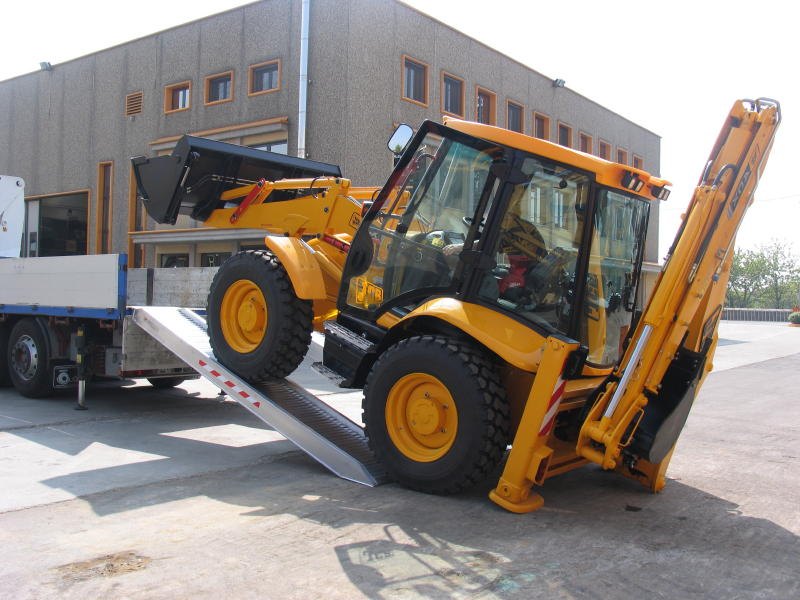

550mm wide x 3500mm long, with a 230mm profile thickness. Featuring a maximum capacity of 18,000kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 450mm.
Custom built sizes are available on request. Price and capacity stated is for the PAIR.
Description
One of our heaviest duty ramps from our standard range. The TRP230/35TRP Series core profile thickness is 230mm.
At 550mm these ramps are over half a metre wide and feature a capacity of up to 18,000kg and are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.
On the TRP230/35TRP series the minimum width of tracks/wheels is 450mm.
- These ramps are available both with and without edges
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Fully TÜV certified
- Quotes for bespoke ramps can be supplied on request
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Usage guidelines and safety information for our full vehicle ramp range can be found here.
Details
SKU | TRP230/35TRP |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 18000 |
Height of Ramps Profile (mm) | 230 |
Length (mm) | 3500 |
Max Load Height (mm) | 1050 |
Min. Load Height (mm) | 900 |
Weight per Ramp (kg) | 81 |
Weight Per Pair (kg) | 162 |
Width (mm) | 550 |
Minimum Track Width (mm) | 400 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 12,010 |
Capacity Wheelbase 1500mm (kg) | 15,010 |
Capacity Wheelbase 2000mm (kg) | 18,000 |
